Model Whirlpool LB5500XKW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $3.70

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

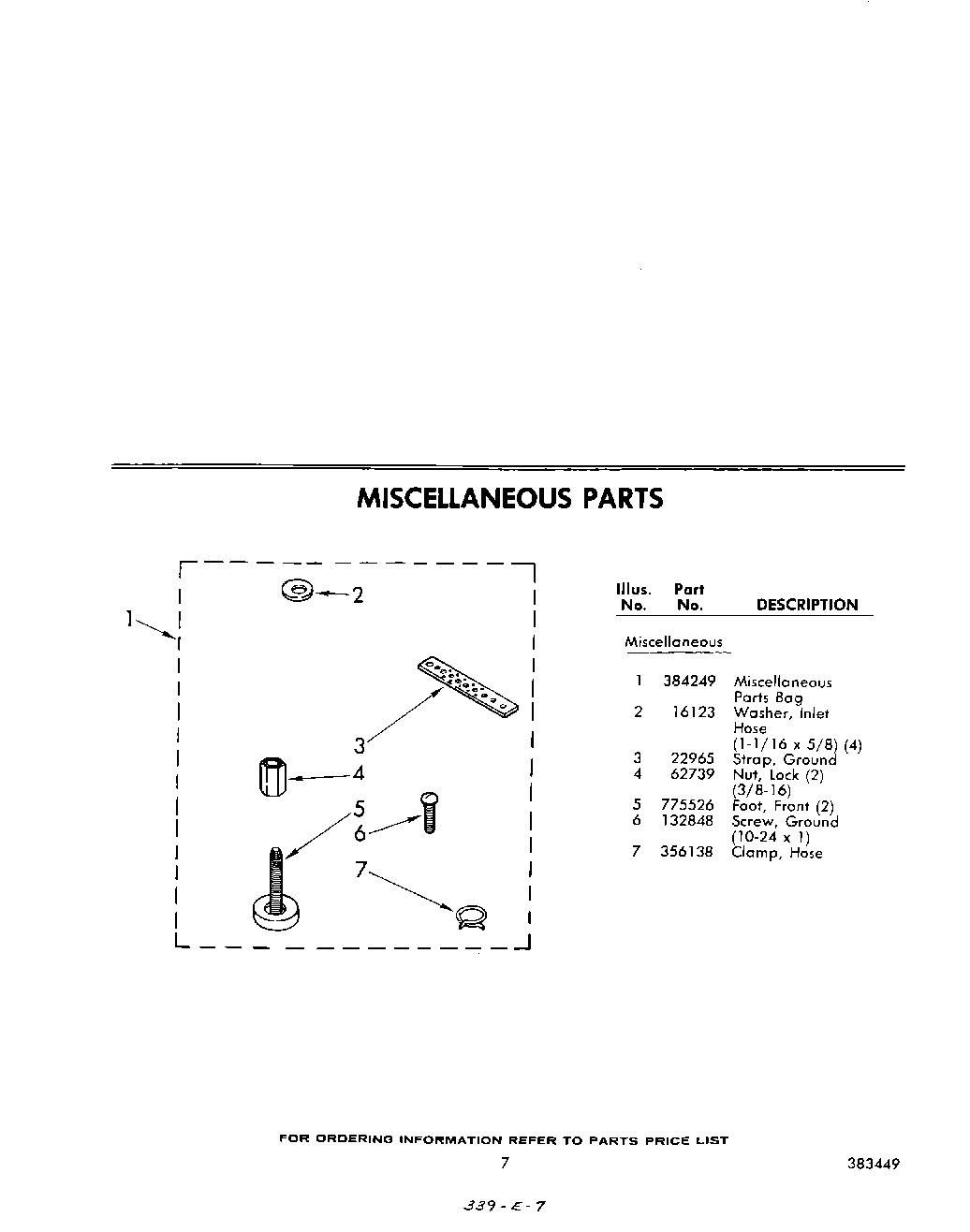

Miscellaneous Parts Bag WPL 384249 Contact Us For Availability

1

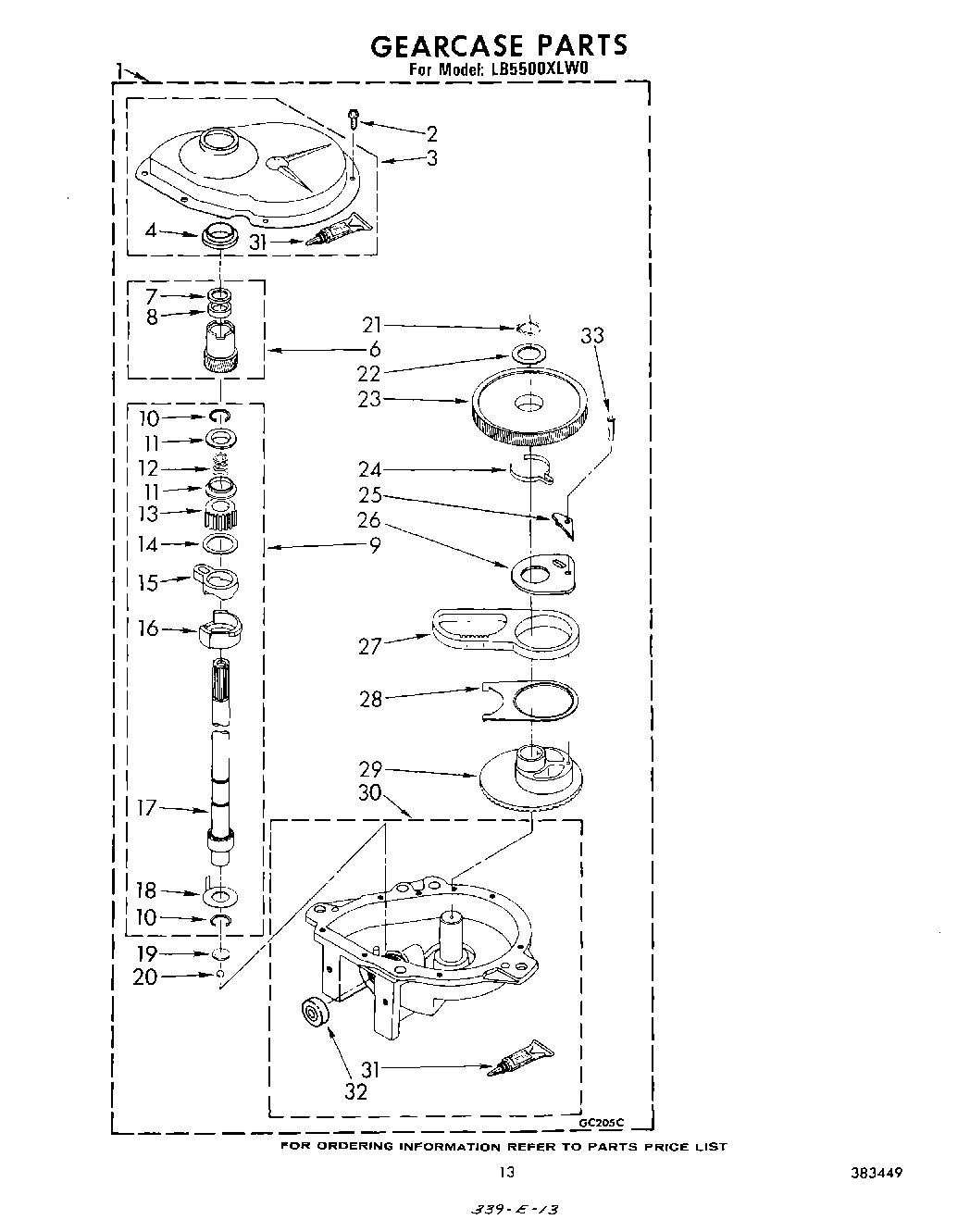

Gearcase (Complete) WPL 62667 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

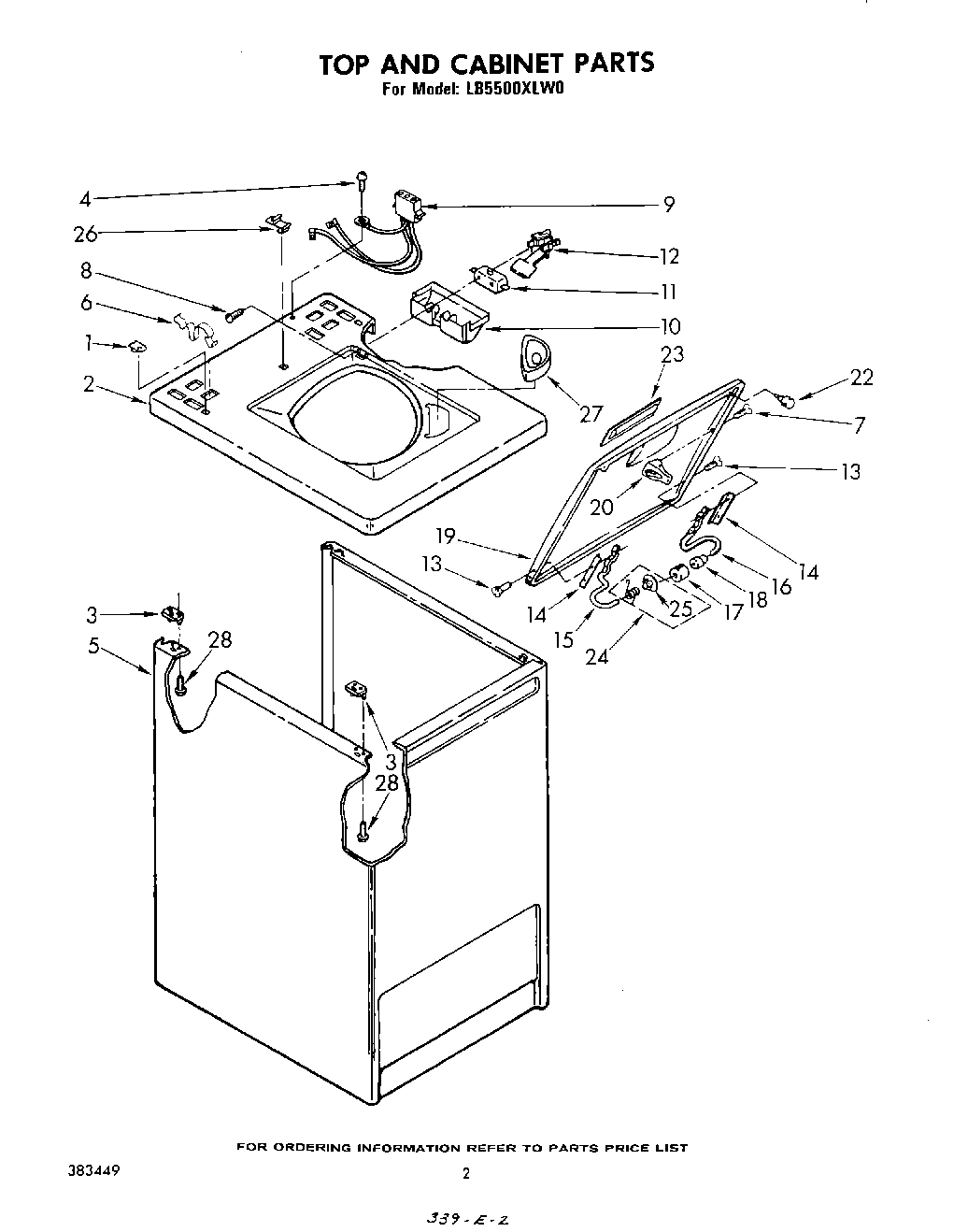

Top (White) WPL 62814 Contact Us For Availability

2

Top (Almond) WPL 62815 Contact Us For Availability

2

Top (Coffee) WPL 62816 Contact Us For Availability

2

Top (New Avocado) WPL 62817 Contact Us For Availability

2

Top (Golden Harvest) WPL 62818 Contact Us For Availability

3

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

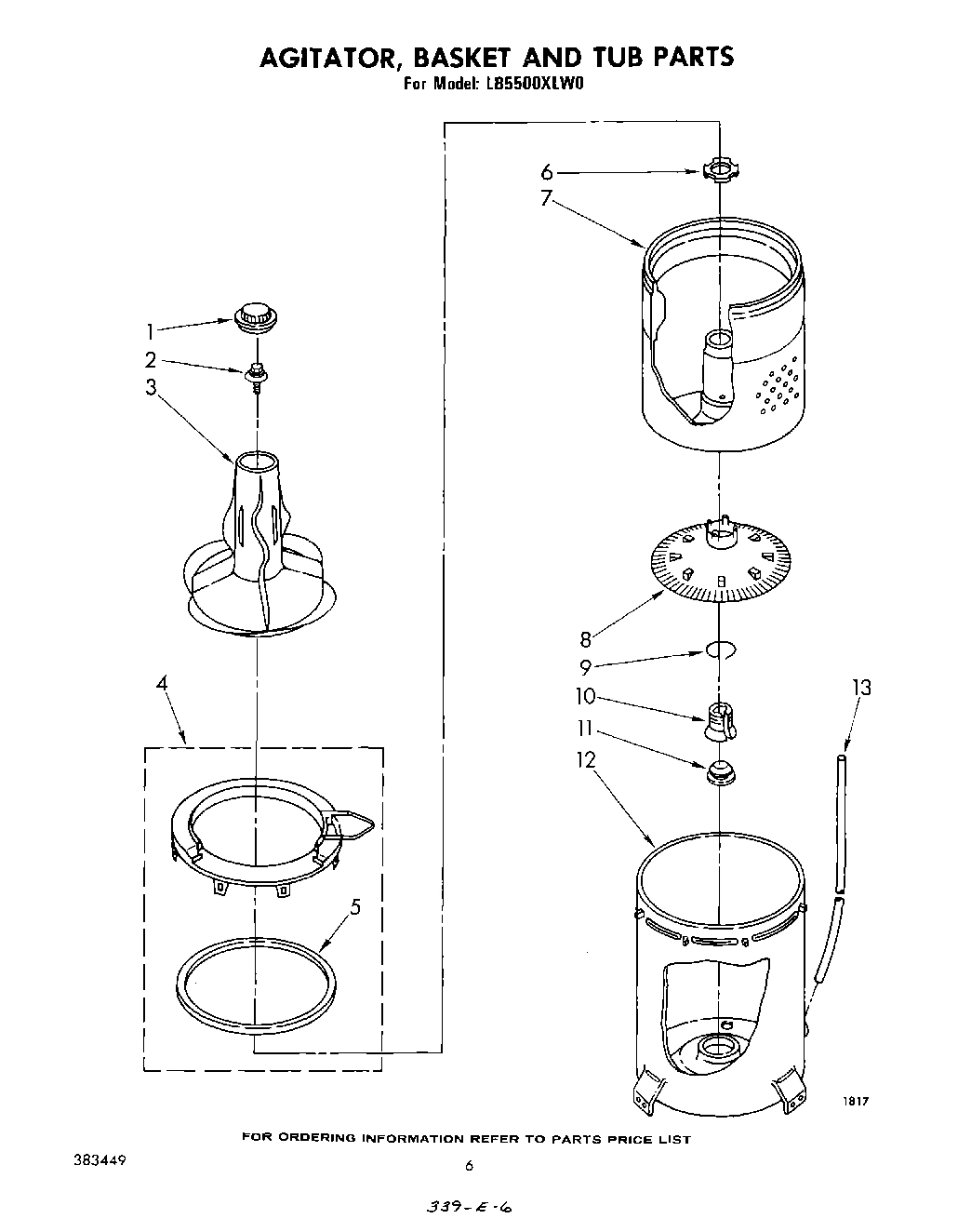

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $103.86

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $4.98

3

Strap, Ground WPL 22965 Contact Us For Availability

3

Spring (3) WPL 62740 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

4

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

4

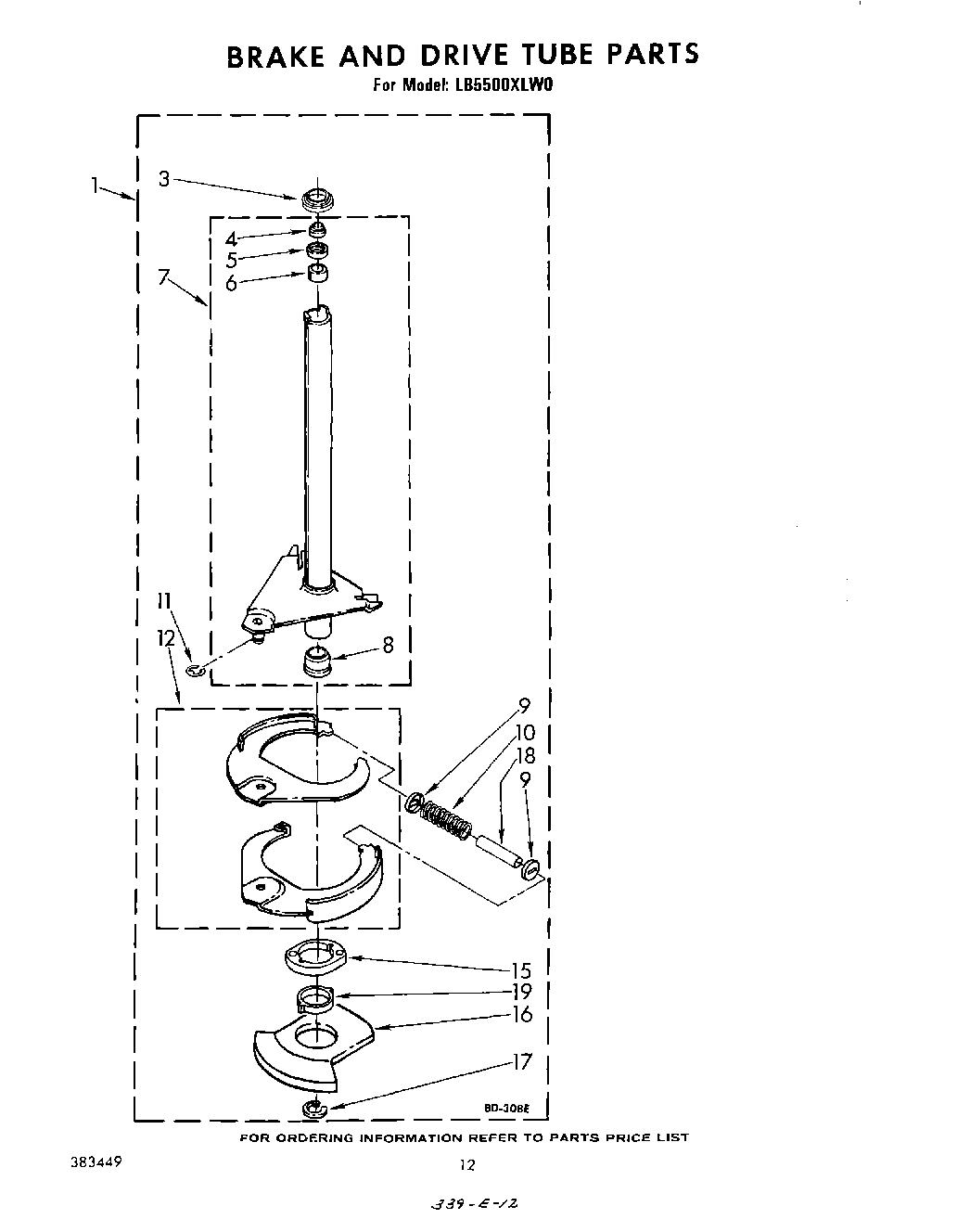

Support & Brake, Tub WPL 62798 Contact Us For Availability

4

Tub Ring WPL 62896 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $18.42

5

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

5

Bracket, Spring Outer (L.F.) WPL 62606 Contact Us For Availability

5

Cabinet (White) WPL 62583 Contact Us For Availability

5

Cabinet (Almond) WPL 62584 Contact Us For Availability

5

Cabinet (Coffee) WPL 62585 Contact Us For Availability

5

Cabinet (New Avocado) WPL 62586 Contact Us For Availability

5

Cabinet (Golden Harvest) WPL 62587 Contact Us For Availability

5

Gasket, Tub Ring WPL 62645 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

6

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

7

Spring, Clutch WPL 96409 Contact Us For Availability

7

Screw & Washer WPL 354975 Contact Us For Availability

7

Basket WPL 62842 Contact Us For Availability

8

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $9.92

8

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP96743 Whirlpool Hose In Stock WPL WP96743 $23.59

8

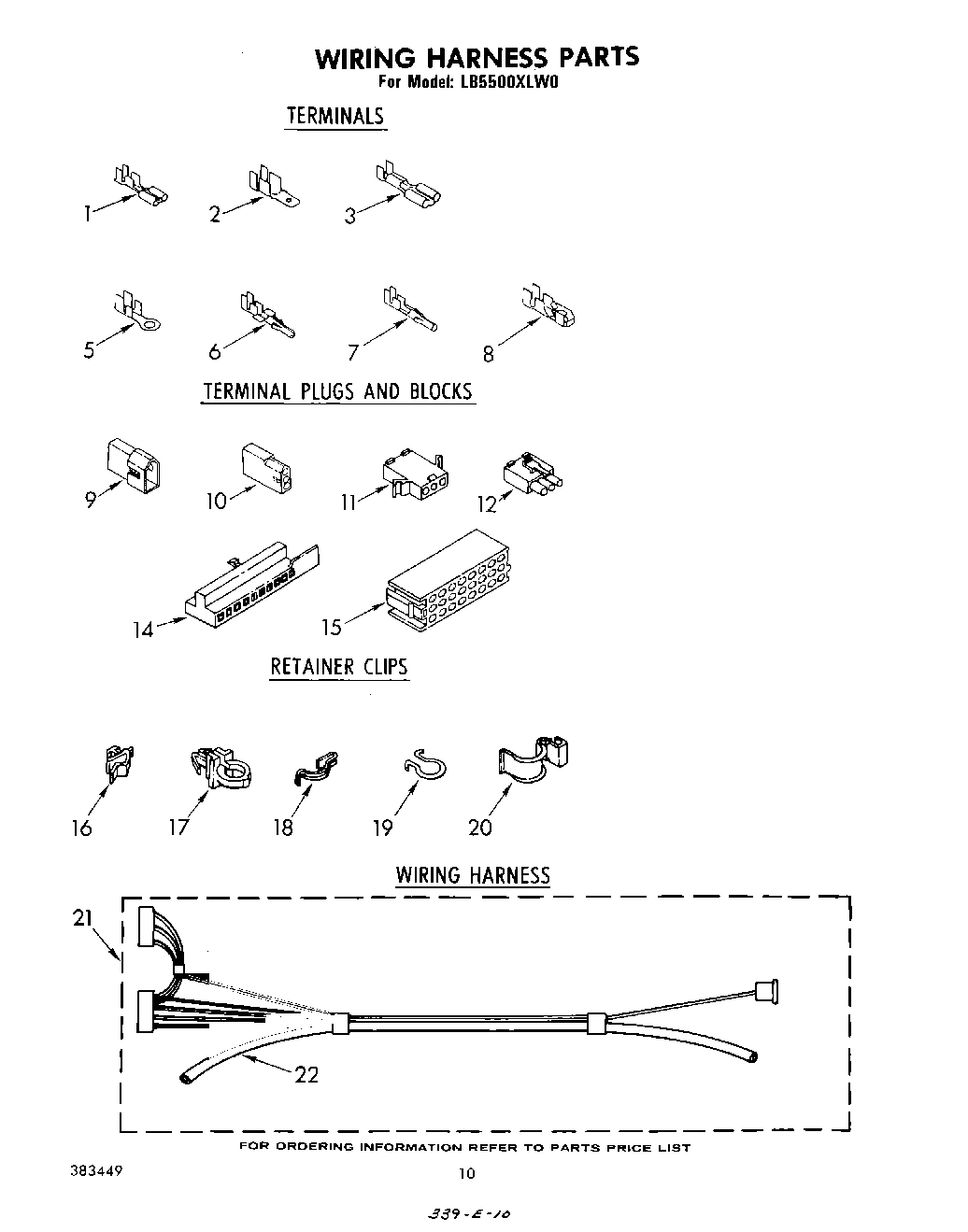

Terminal, Female WPL 352088 Contact Us For Availability

8

Screw & Washer, Lid Switch (2) WPL 354764 Contact Us For Availability

9

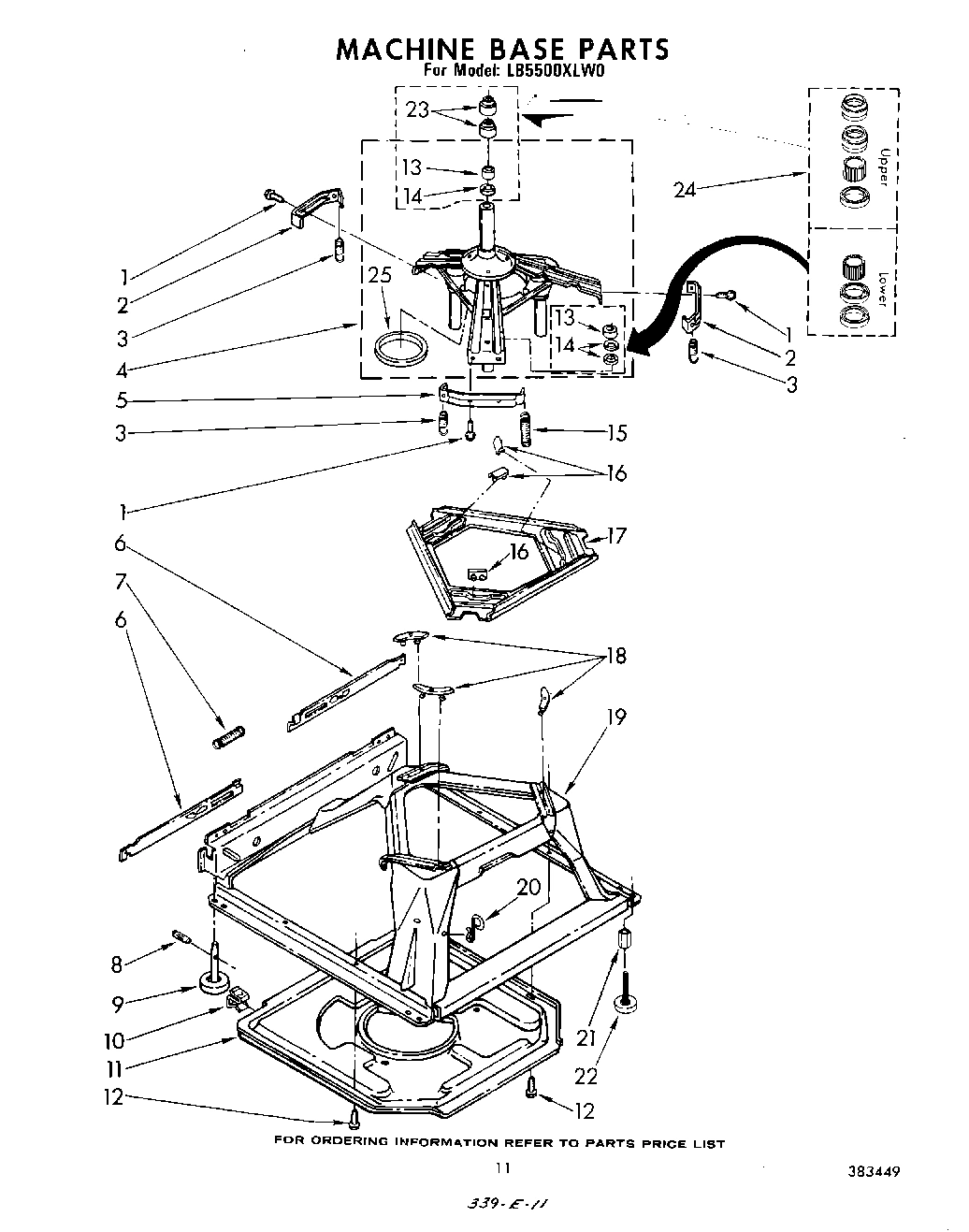

285244 Whirlpool Leveling Feet In Stock WPL 285244 $10.82

9

353424 Whirlpool Connector Backorder WPL 353424 $10.76

9

Lock, Filter WPL 62942 Contact Us For Availability

9

Harness, Lid Switch WPL 62937 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

Clip, Mounting (2) WPL 62825 Contact Us For Availability

Ring, Retaining (2) WPL 90369 Contact Us For Availability

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $4.94

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

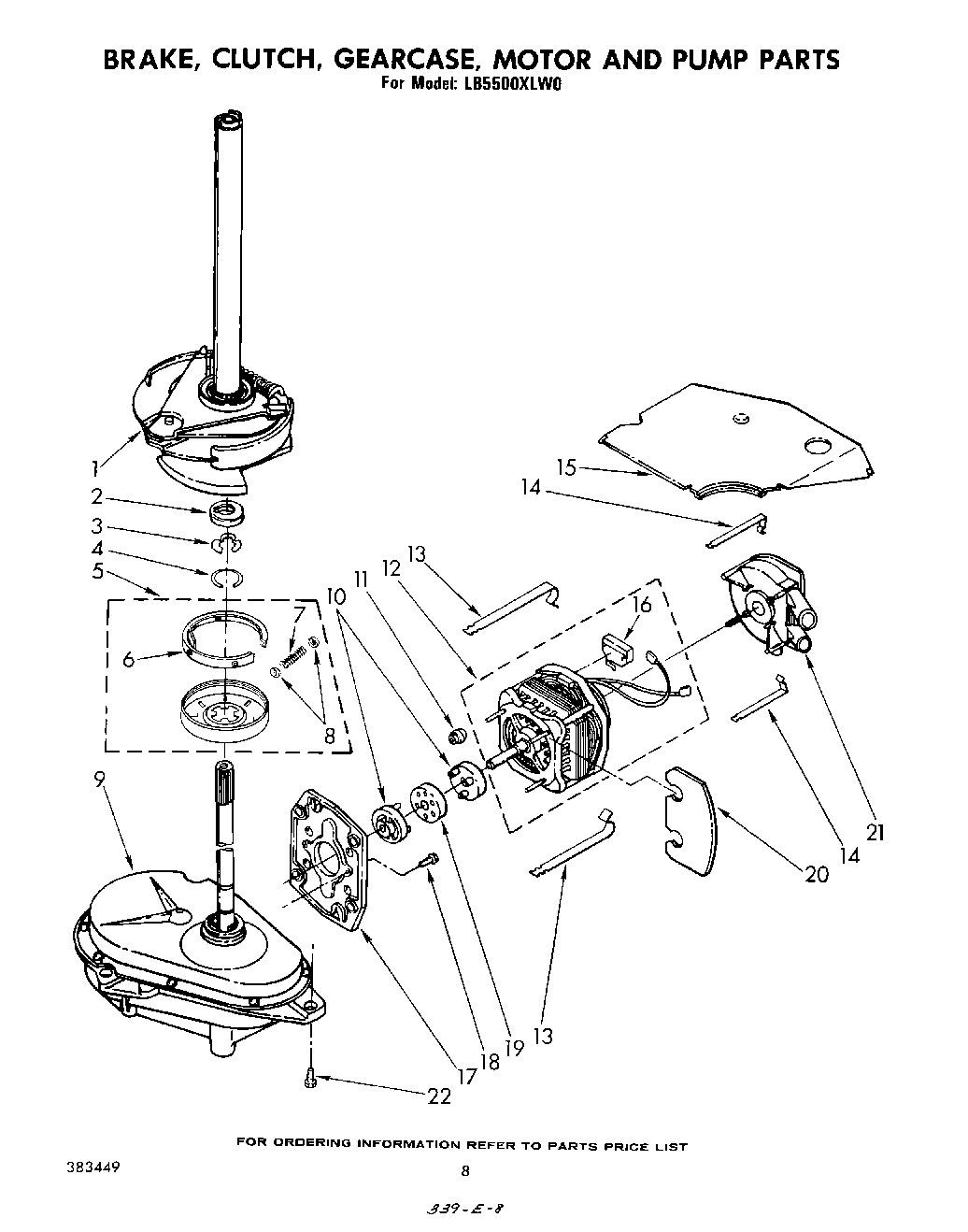

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

Actuator, Lid Switch WPL 370959 Contact Us For Availability

Spring, Agitator WPL 62676 Contact Us For Availability

Tub WPL 62523 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

15

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

15

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

15

Shield, Tub To Motor WPL 62741 Contact Us For Availability

16

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

16

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

16

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

285459 Whirlpool Washer Base Backorder WPL 285459 $202.38

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Lid (White) WPL 382782 Contact Us For Availability

Lid (Almond) WPL 382783 Contact Us For Availability

Lid (Coffee) WPL 382784 Contact Us For Availability

Lid (New Avocado) WPL 382785 Contact Us For Availability

Lid (Golden Harvest) WPL 382786 Contact Us For Availability

20

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

20

Retainer, Counterweight Spring WPL 62737 Contact Us For Availability

20

Strike, Lid Switch WPL 357633 Contact Us For Availability

21

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

21

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

21

Ring, Retaining WPL 95082 Contact Us For Availability

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

Washer Kit, Thrust WPL 285292 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

Handle, Lid (White) WPL 379884 Contact Us For Availability

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

Handle, Lid (Coffee) WPL 379886 Contact Us For Availability

Handle, Lid (New Avocado) WPL 379887 Contact Us For Availability

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

24

Spring & Button, Lid WPL 53749 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Plug, Button WPL 54690 Contact Us For Availability

26

285715 Whirlpool Drain Kit Backorder WPL 285715 $79.95

26

Stop, Push-In Top WPL 358472 Contact Us For Availability

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

27

Bezel, Dispenser WPL 62894 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Coffee WPL 261886 Contact Us For Availability

Coffee (Uncut) WPL 261887 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

New Avocado (Uncut) WPL 261889 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 358770 WPL 358770 Contact Us For Availability

WPL 378950 WPL 378950 Contact Us For Availability

WPL 383159 WPL 383159 Contact Us For Availability

WPL 383358 WPL 383358 Contact Us For Availability

WPL 383449 WPL 383449 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

29

Gear, Main Drive WPL 62528 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

30

Pinion Assembly, Gearcase WPL 62668 Contact Us For Availability

31

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

32

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

33

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

33

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

33

WP62638 Whirlpool Screw Backorder WPL WP62638 $2.38

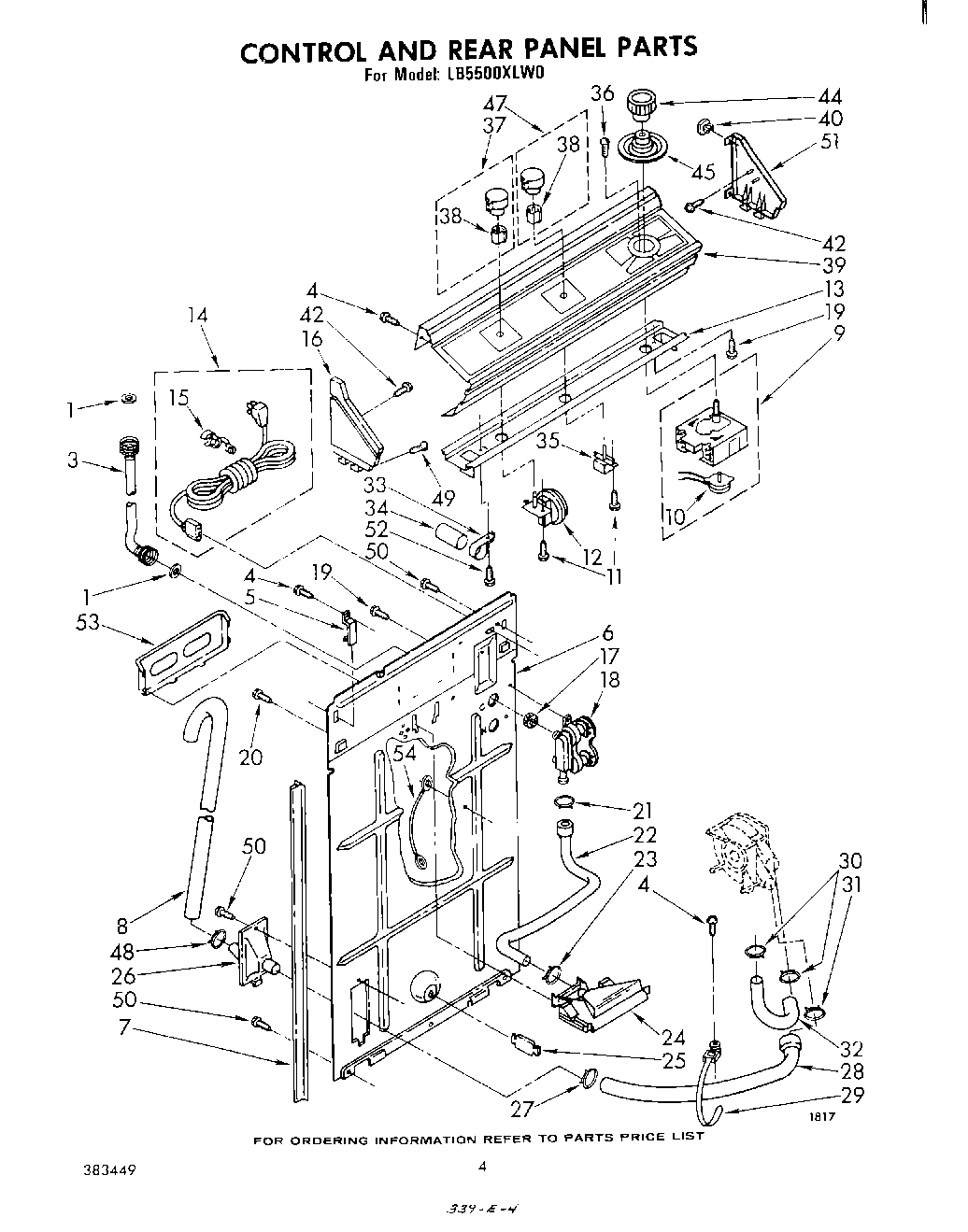

35

Switch, Water Temperature (Alternate) WPL 358934 Contact Us For Availability

35

Switch, Water Temperature (Alternate) WPL 358935 Contact Us For Availability

36

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

37

Knob Assembly, Water WPL 690306 Contact Us For Availability

38

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

39

WPL 382666 WPL 382666 Contact Us For Availability

40

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

42

WPL 355326 WPL 355326 Contact Us For Availability

44

WPL 359773 WPL 359773 Contact Us For Availability

45

WPL 359254 WPL 359254 Contact Us For Availability

47

WPL 690307 WPL 690307 Contact Us For Availability

49

WPL 358225 WPL 358225 Contact Us For Availability

WPL 375309 WPL 375309 Contact Us For Availability

WPL 375315 WPL 375315 Contact Us For Availability

WPL 375316 WPL 375316 Contact Us For Availability

WPL 377282 WPL 377282 Contact Us For Availability

WPL 377283 WPL 377283 Contact Us For Availability

52

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

53

WPL 63020 WPL 63020 Contact Us For Availability

54

WPL 364089 WPL 364089 Contact Us For Availability
