Model Whirlpool LA9800XTN1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

WPL 799344 WPL 799344 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Shipping Kit WPL 3348675 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 89121 WPL 89121 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3347019 WPL LIT3347019 Contact Us For Availability

WPL LIT3351410 WPL LIT3351410 Contact Us For Availability

WPL LIT3351544 WPL LIT3351544 Contact Us For Availability

WPL LIT3355648 WPL LIT3355648 Contact Us For Availability

WPL LIT3356177 WPL LIT3356177 Contact Us For Availability

WPL LIT377904 WPL LIT377904 Contact Us For Availability

WPL LIT388293 WPL LIT388293 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $10.49

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 387980 Contact Us For Availability

1

Clip, Harness WPL 62732 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.83

2

Clip, Harness WPL 62749 Contact Us For Availability

2

Top (White) WPL 388351 Contact Us For Availability

2

Top (Almond) WPL 388352 Contact Us For Availability

2

Top (Toast) WPL 388353 Contact Us For Availability

2

Top (Platinum) WPL 388354 Contact Us For Availability

2

Top (Golden Harvest) WPL 388355 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.88

3

Strap, Ground WPL 22965 Contact Us For Availability

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $77.59

4

Support & Brake, Tub WPL 389350 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $80.47

5

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $32.39

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (Almond) WPL 63425 Contact Us For Availability

5

Cabinet (Toast) WPL 63426 Contact Us For Availability

5

Cabinet (Platinum) WPL 63427 Contact Us For Availability

5

Cabinet (Golden Harvest) WPL 63428 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

6

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

6

Protector, Harness WPL 63523 Contact Us For Availability

6

Link, Leveling Mechanism (2) WPL 3348727 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.88

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.88

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

7

Wiring Harness & Pressure Switch Hose (Base) WPL 387928 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

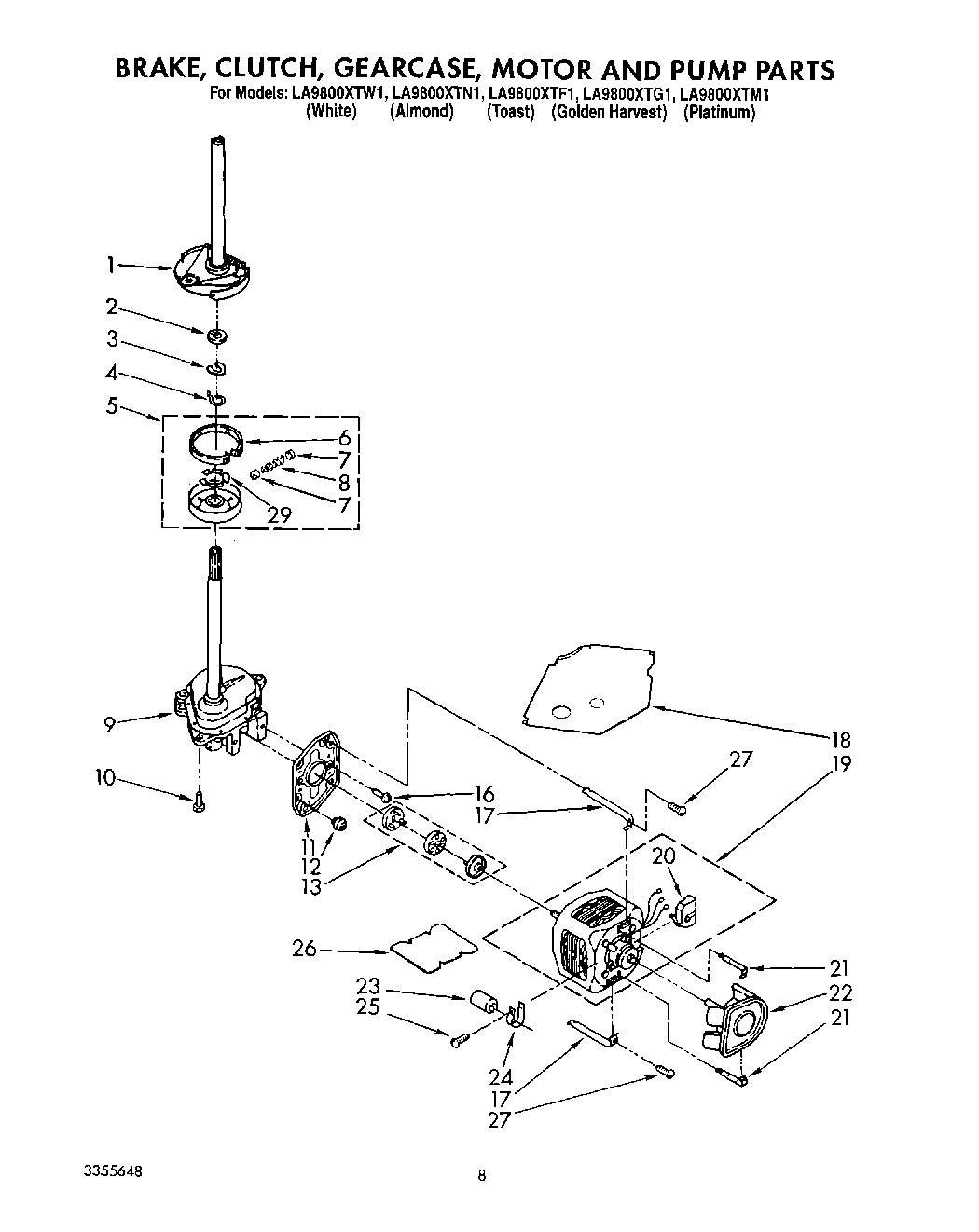

285438 Whirlpool Brake Shoe In Stock WPL 285438 $78.79

8

W10389328 Whirlpool Basket Backorder WPL W10389328 $199.90

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $14.59

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

9

Plug, Terminal (15 Way) WPL 96894 Contact Us For Availability

10

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

10

3361596 Whirlpool Outer Tub Primary Backorder WPL 3361596 $180.24

285671 Whirlpool Lid Switch Assembly In Stock WPL 285671 $23.68

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

Hinge, Console (2) WPL 387402 Contact Us For Availability

Lock, Filter WPL 62942 Contact Us For Availability

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

353424 Whirlpool Connector Backorder WPL 353424 $10.76

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Nut, Push-In (2) WPL 689559 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.13

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Hose, Bleach WPL 63323 Contact Us For Availability

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $90.19

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Harness, Wiring (Console) WPL 387927 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $8.76

Cap, Terminal (15 Way) WPL 96895 Contact Us For Availability

Lid (White) WPL 3351647 Contact Us For Availability

Lid (Almond) WPL 3351648 Contact Us For Availability

Lid (Toast) WPL 3351649 Contact Us For Availability

Lid (Platinum) WPL 3351650 Contact Us For Availability

Lid (Golden Harvest) WPL 3351651 Contact Us For Availability

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.15

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

Connector, 5 Terminal (Uses Terminal 388499) WPL 388500 Contact Us For Availability

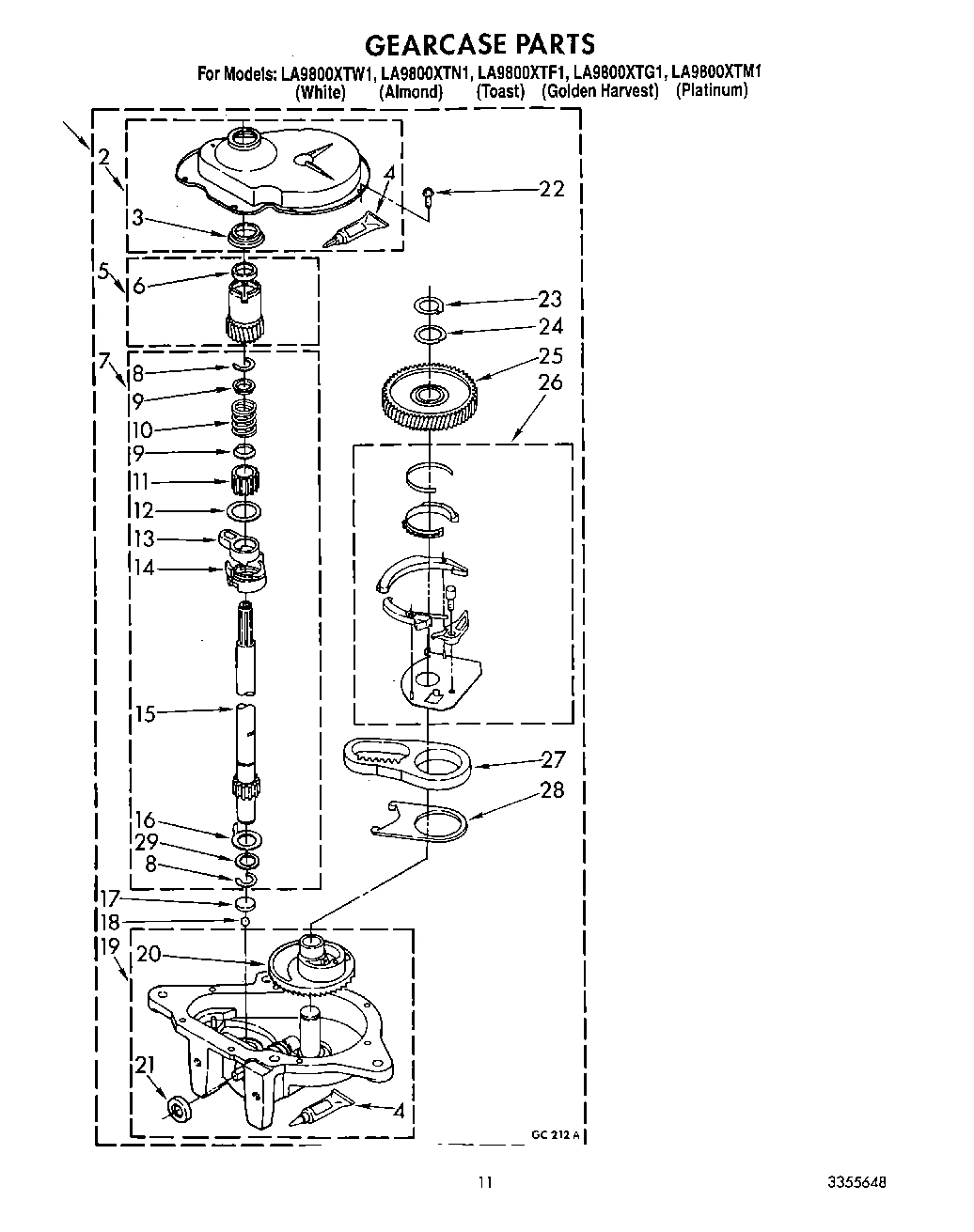

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3352259 Contact Us For Availability

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $34.90

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

Seal, Agitator WPL 357574 Contact Us For Availability

Terminal WPL 388499 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.88

Connector, 8 Terminal (Uses Terminal 388499) WPL 388501 Contact Us For Availability

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.43

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

Connector, 3 Terminal WPL 388497 Contact Us For Availability

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Cap, 10 Pin (Uses Terminal 772581) WPL 772579 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.53

Terminal WPL 772581 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $30.87

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

26

Stop, Push-In Top WPL 358472 Contact Us For Availability

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

51

Connector, Two Terminal WPL 3407005 Contact Us For Availability

52

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

54

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

56

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

57

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

60

WP681414 Whirlpool Screw Backorder WPL WP681414 $2.51

61

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

61

WPL 10875 WPL 10875 Contact Us For Availability

61

WPL 299885 WPL 299885 Contact Us For Availability
