Model Whirlpool LA9480XWW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $11.31

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.89

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

WPL 799344 WPL 799344 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $3.33

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

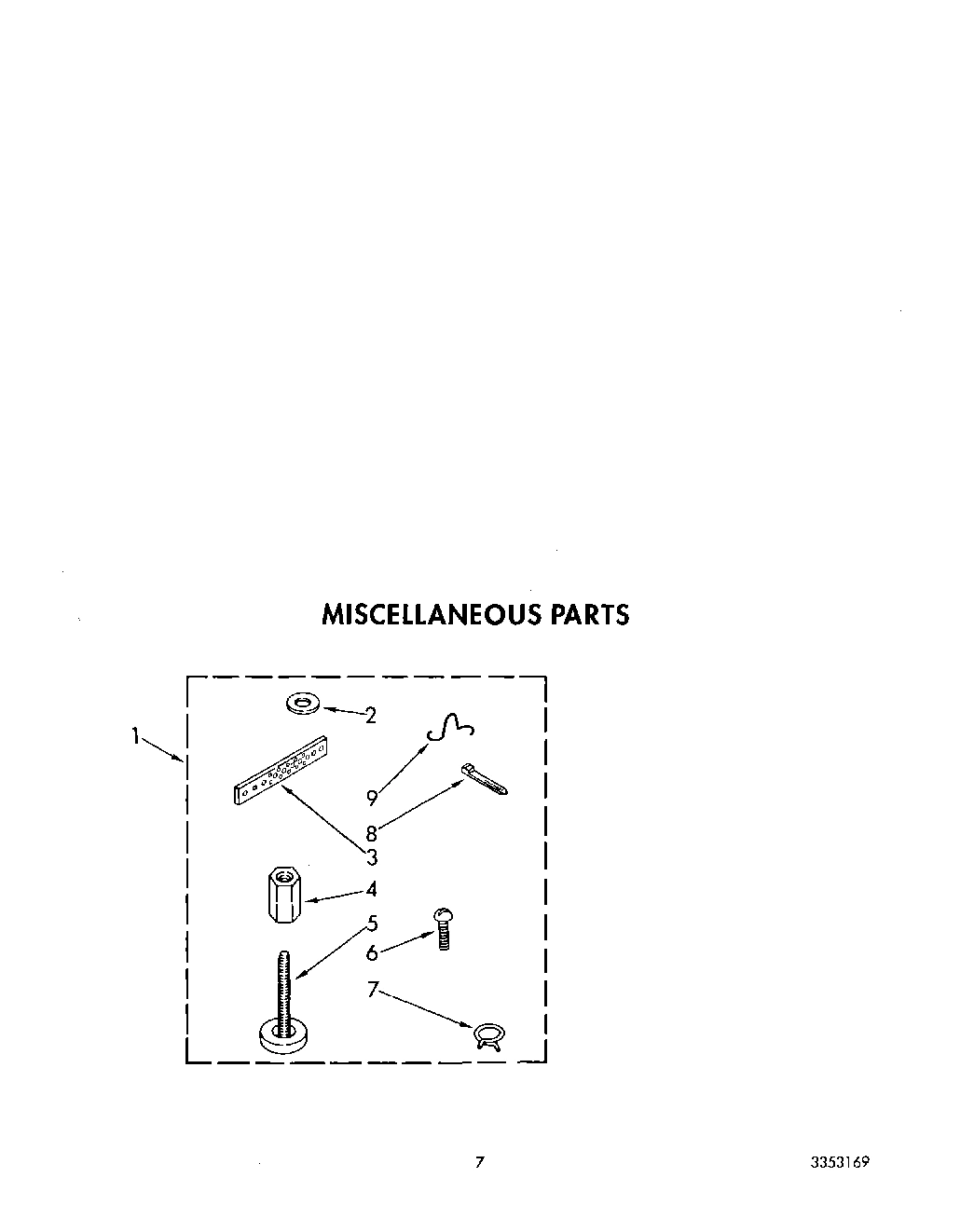

Miscellaneous Parts Bag WPL 387980 Contact Us For Availability

1

Clip, Harness WPL 3349278 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.52

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.70

2

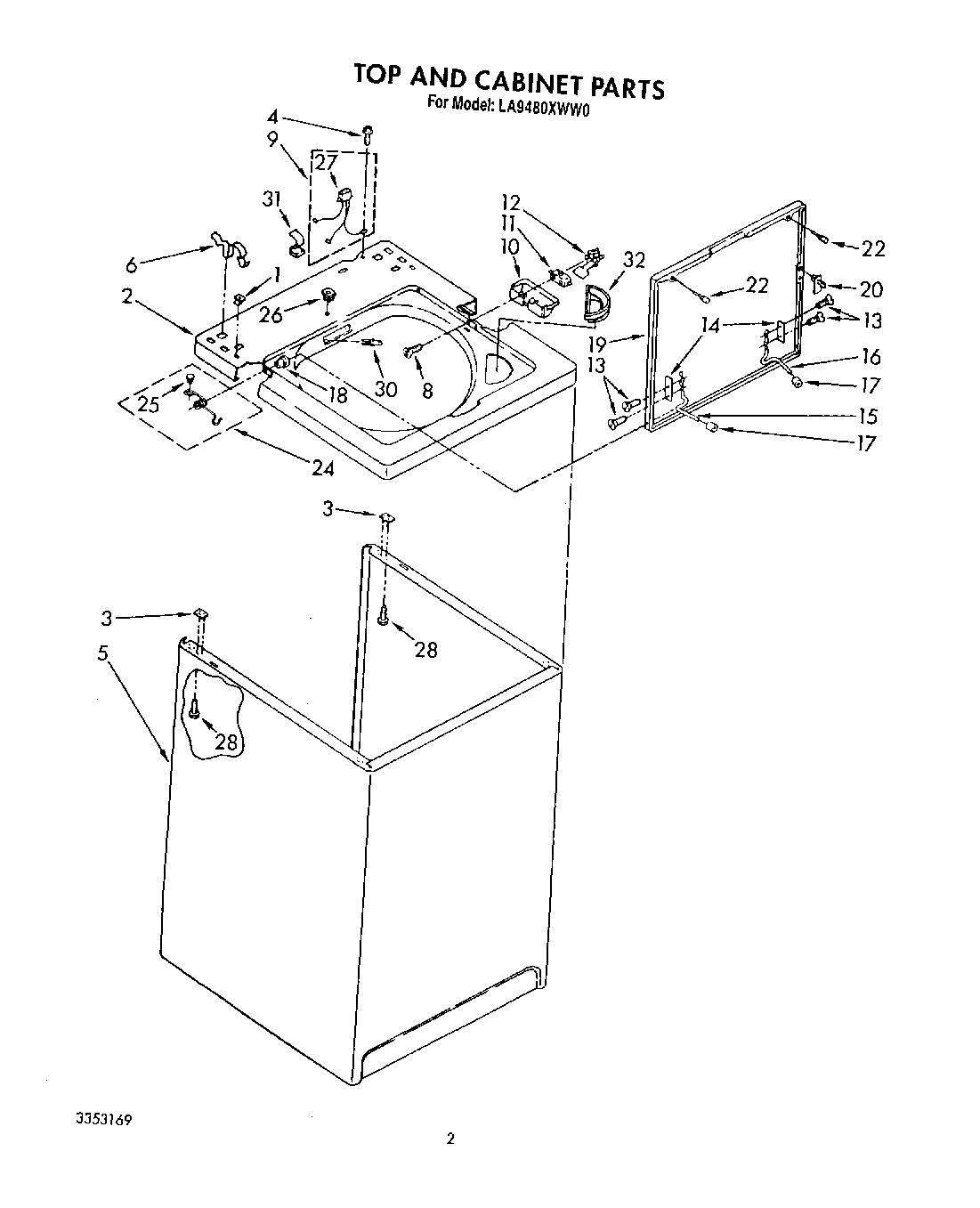

Top (Almond) WPL 388352 Contact Us For Availability

2

Top (Toast) WPL 388353 Contact Us For Availability

2

Top (Platinum) WPL 388354 Contact Us For Availability

2

Top (Golden Harvest) WPL 388355 Contact Us For Availability

2

Clip, Harness WPL 62749 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

3

WP3348752 Whirlpool Agitator Mover In Stock WPL WP3348752 $90.19

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $4.52

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $5.29

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

3

Strap, Ground WPL 22965 Contact Us For Availability

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $3.11

4

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

4

Support & Brake, Tub WPL 389350 Contact Us For Availability

5

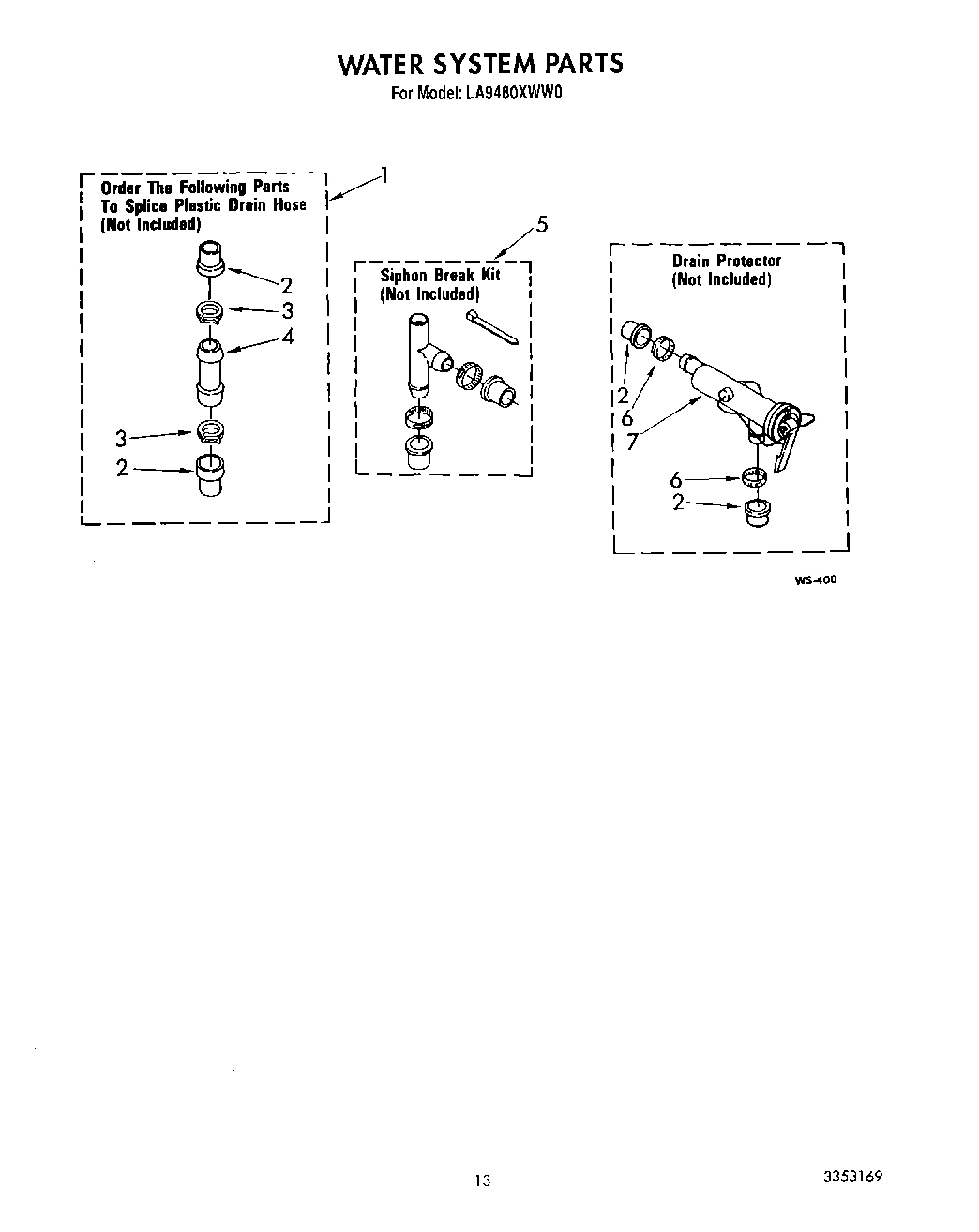

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $78.41

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $3.11

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (Almond) WPL 63425 Contact Us For Availability

5

Cabinet (Toast) WPL 63426 Contact Us For Availability

5

Cabinet (Platinum) WPL 63427 Contact Us For Availability

5

Cabinet (Golden Harvest) WPL 63428 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

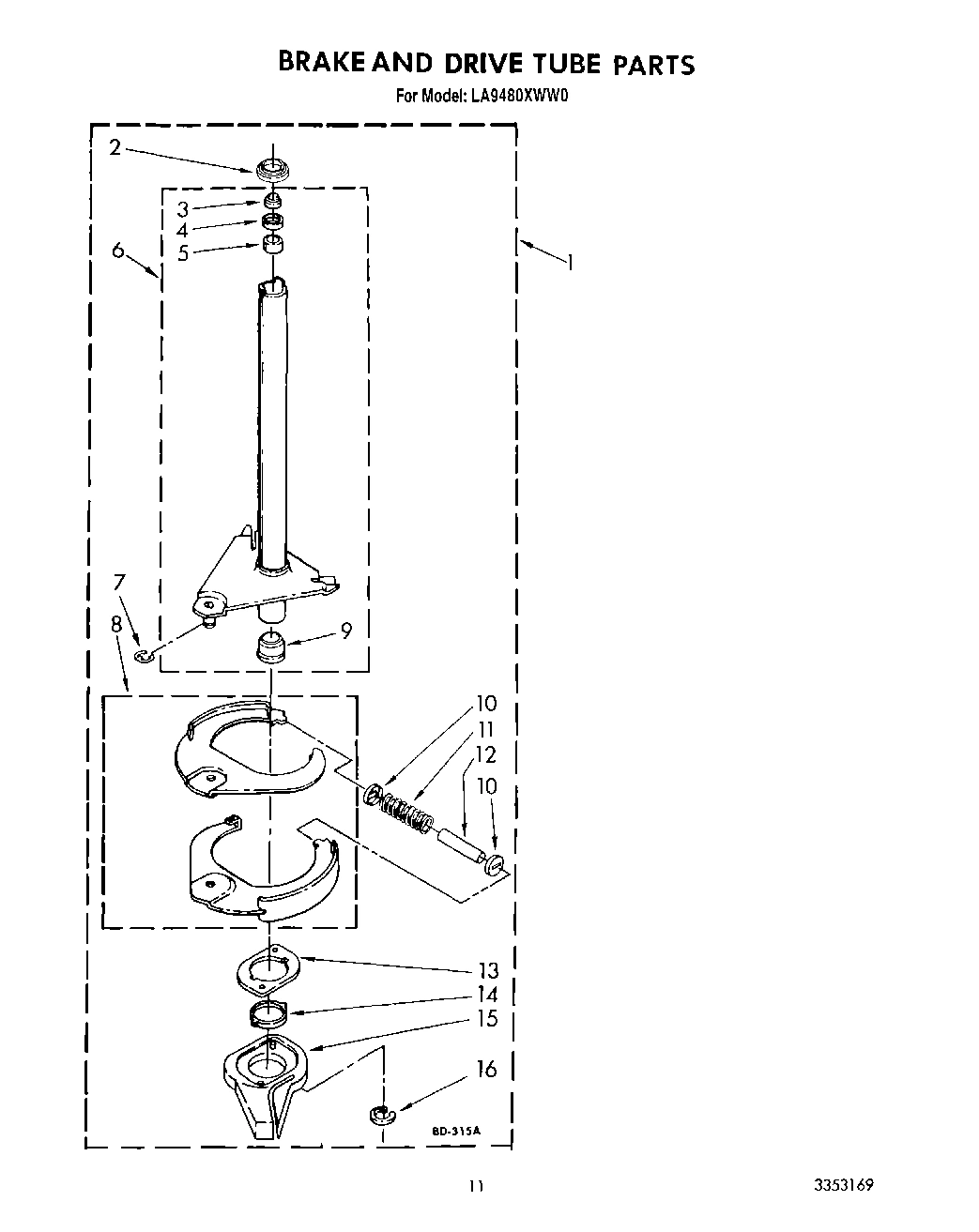

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.70

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

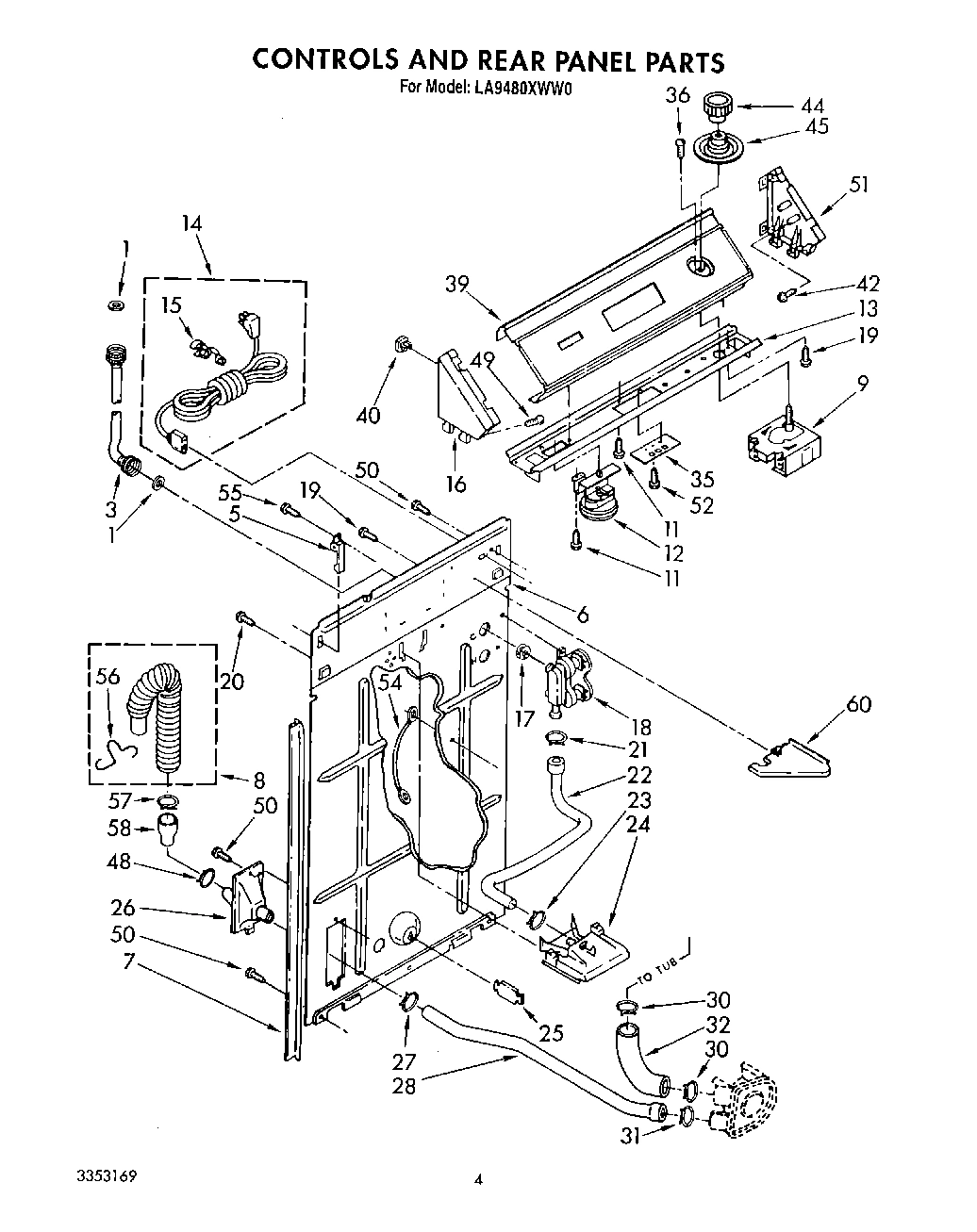

Panel, Rear WPL 3348430 Contact Us For Availability

6

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

6

Protector, Harness WPL 63523 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $4.70

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

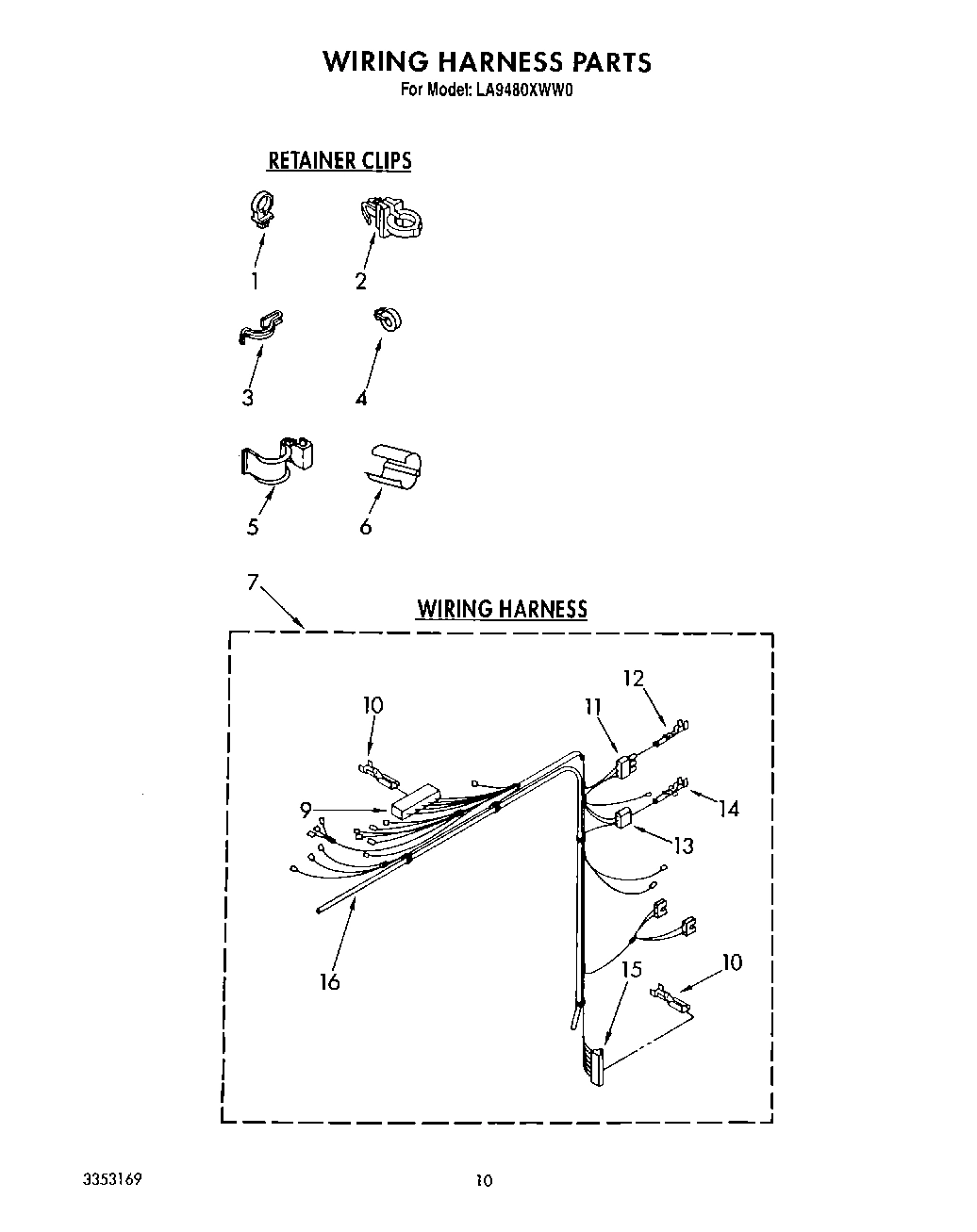

Wiring Harness & Pressure Switch Hose WPL 3353638 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $79.60

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $19.14

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $30.62

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.52

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

8

Screw & Washer, Lid Switch (2) WPL 354764 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $12.19

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

9

WP3351744 Whirlpool Timer Backorder WPL WP3351744 $181.39

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.70

9

Harness, Lid Switch WPL 63833 Contact Us For Availability

9

Retainer, Drain Hose WPL 3350222 Contact Us For Availability

10

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

10

WP359231 Whirlpool Shield In Stock WPL WP359231 $4.52

10

Terminal, Female WPL 352088 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Lock, Filter WPL 62942 Contact Us For Availability

Actuator, Lid Switch WPL 357347 Contact Us For Availability

Switch, Pressure WPL 3351160 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $9.26

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $10.28

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.46

Bracket, Control WPL 3351951 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $3.40

W11095997 Whirlpool Seal In Stock WPL W11095997 $11.58

WP21097 Whirlpool Pad In Stock WPL WP21097 $4.52

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Cord, Power WPL 62734 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $30.74

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $3.11

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $20.97

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.99

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $5.78

Cap, End (L.H.) WPL 63789 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

17

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

17

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.58

17

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.64

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.31

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

Lid (White) WPL 388450 Contact Us For Availability

Lid (Almond) WPL 388451 Contact Us For Availability

Lid (Platinum) WPL 388452 Contact Us For Availability

Lid (Toast) WPL 388453 Contact Us For Availability

Lid (Golden Harvest) WPL 388454 Contact Us For Availability

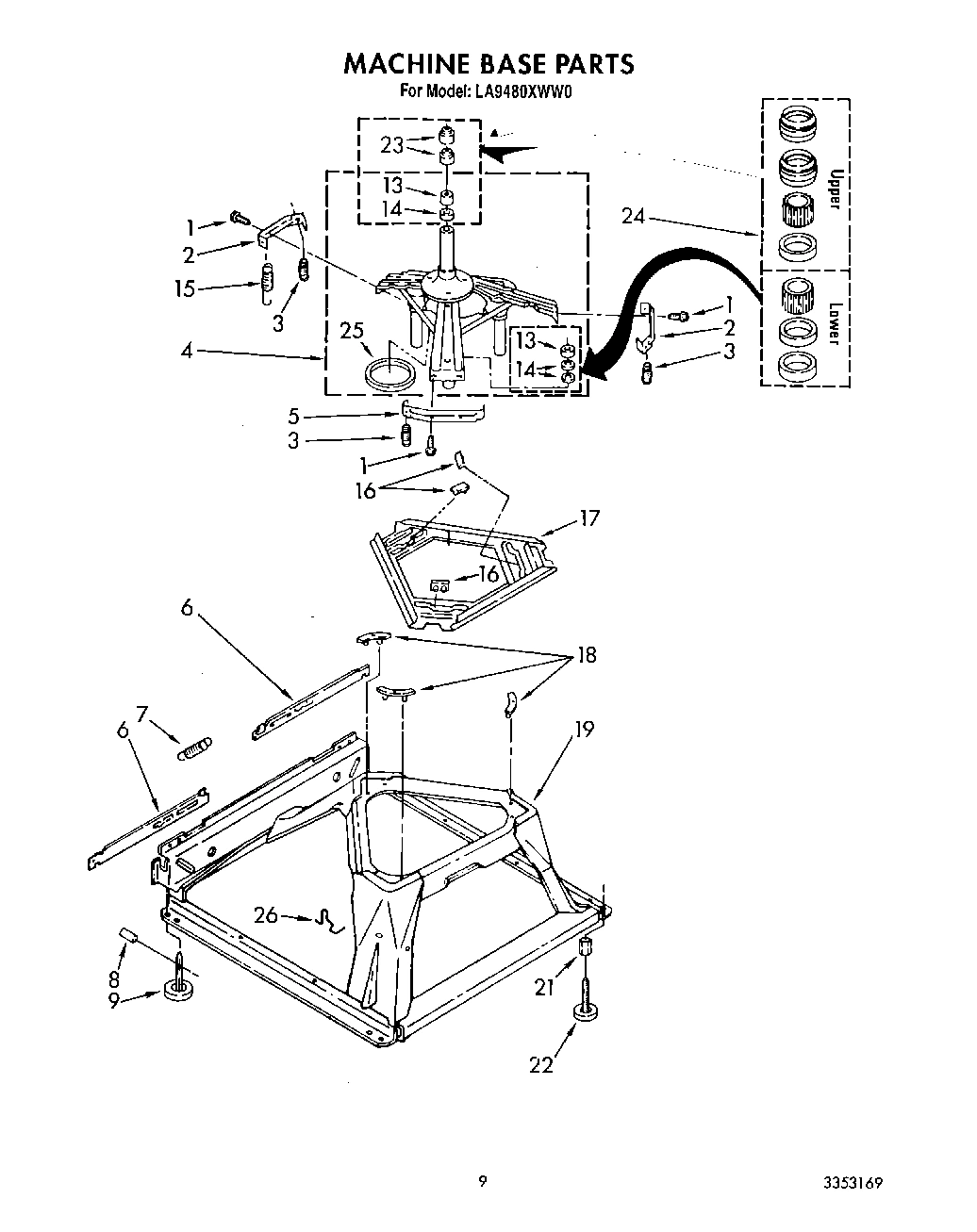

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 389149 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Seal, Agitator WPL 357574 Contact Us For Availability

21

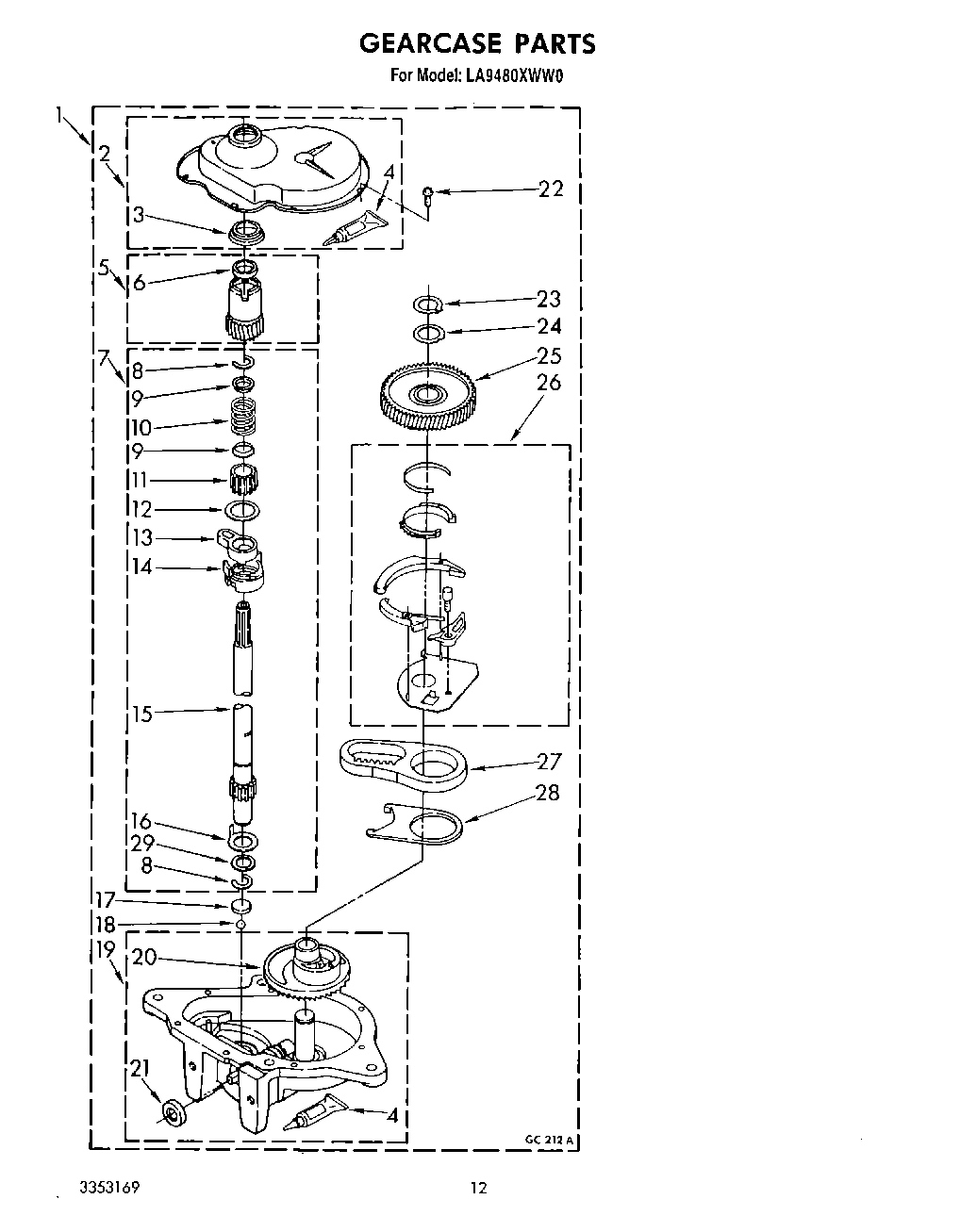

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $31.51

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $3.33

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $9.04

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $3.46

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.70

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $76.00

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $42.23

24

Spring & Button, Lid (Includes Ill. 25) WPL 3349948 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

25

Plug, Button WPL 54690 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $3.04

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $15.23

Stop, Push-In Top WPL 358472 Contact Us For Availability

27

Plug, Terminal (3-Way) WPL 62888 Contact Us For Availability

28

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $34.90

28

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.33

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.52

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $8.75

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.84

35

Switch, Water Temperature WPL 3353598 Contact Us For Availability

36

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

39

Panel, Console WPL 3352066 Contact Us For Availability

40

Nut, Push-In (2) WPL 689559 Contact Us For Availability

42

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

44

Knob, Timer WPL 3347726 Contact Us For Availability

45

Dial, Timer WPL 64140 Contact Us For Availability

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.52

49

Screw, 8-18 (2) (Panel to Top) WPL 64211 Contact Us For Availability

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

51

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

54

Wire, Ground WPL 364089 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.33

57

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

58

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $32.39

60

WPL 3348424 WPL 3348424 Contact Us For Availability
