Model Whirlpool LA7400XMW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

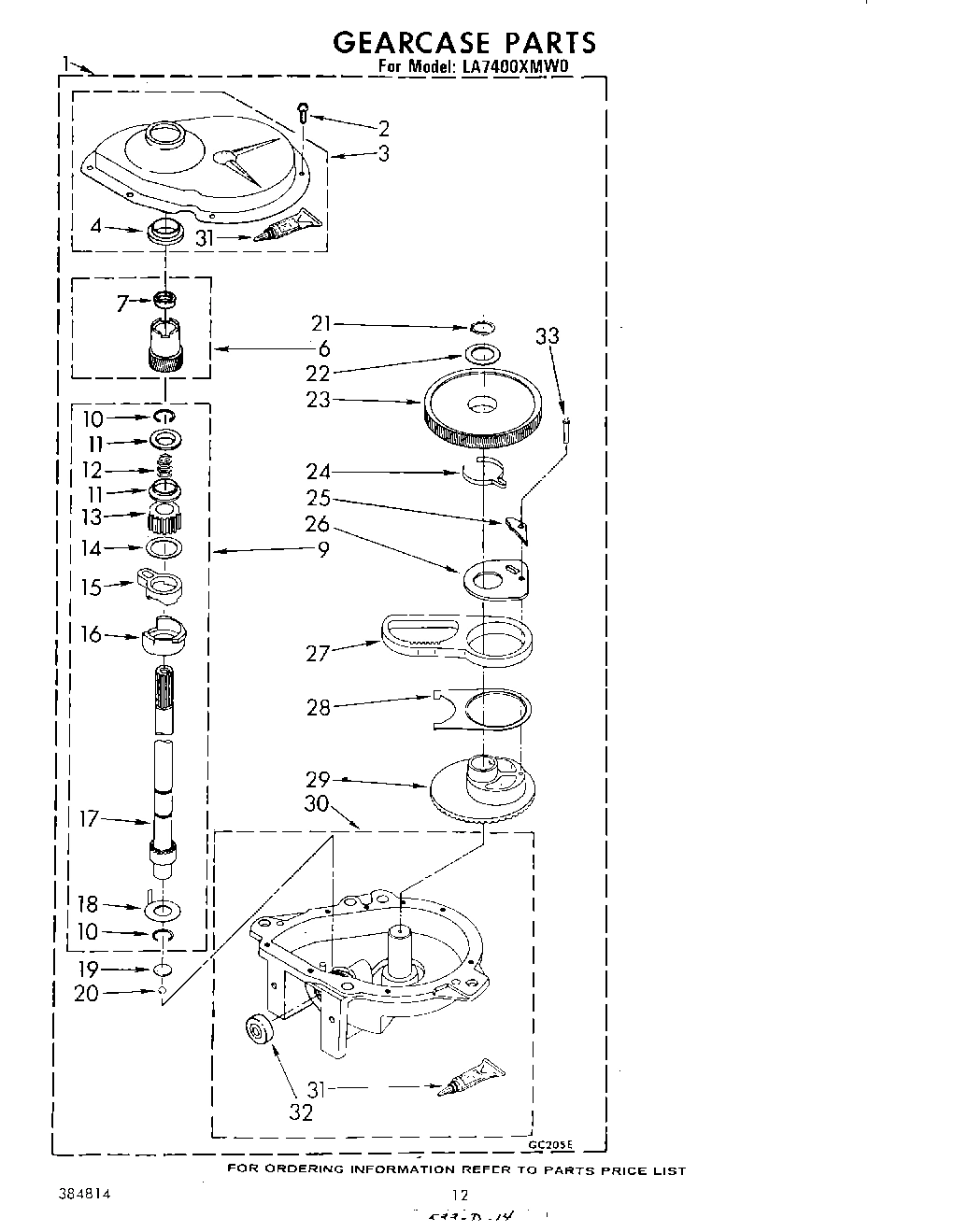

Gearcase (Complete) WPL 62667 Contact Us For Availability

1

Clip, Harness WPL 62732 Contact Us For Availability

1

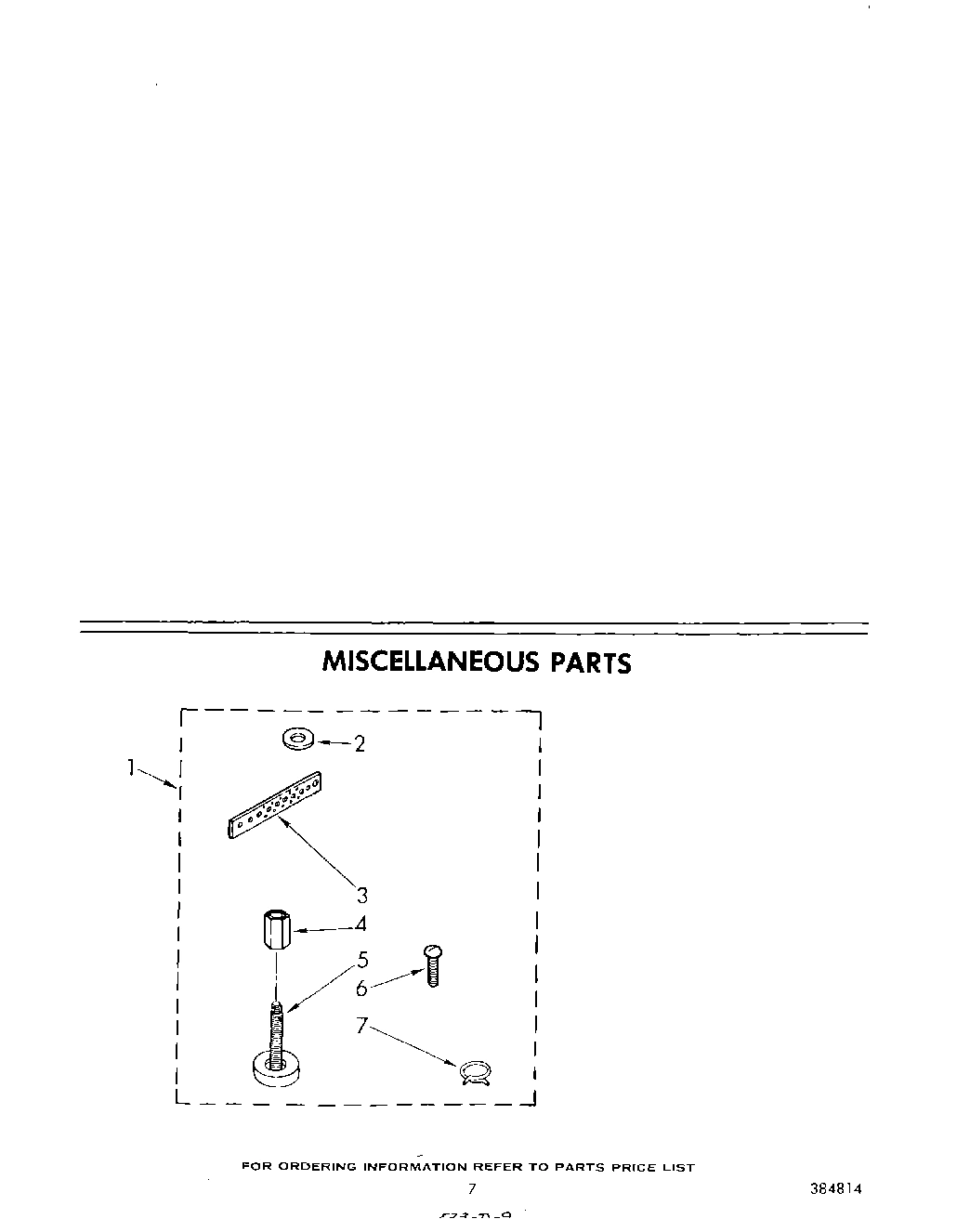

Miscellaneous Parts Bag WPL 384249 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

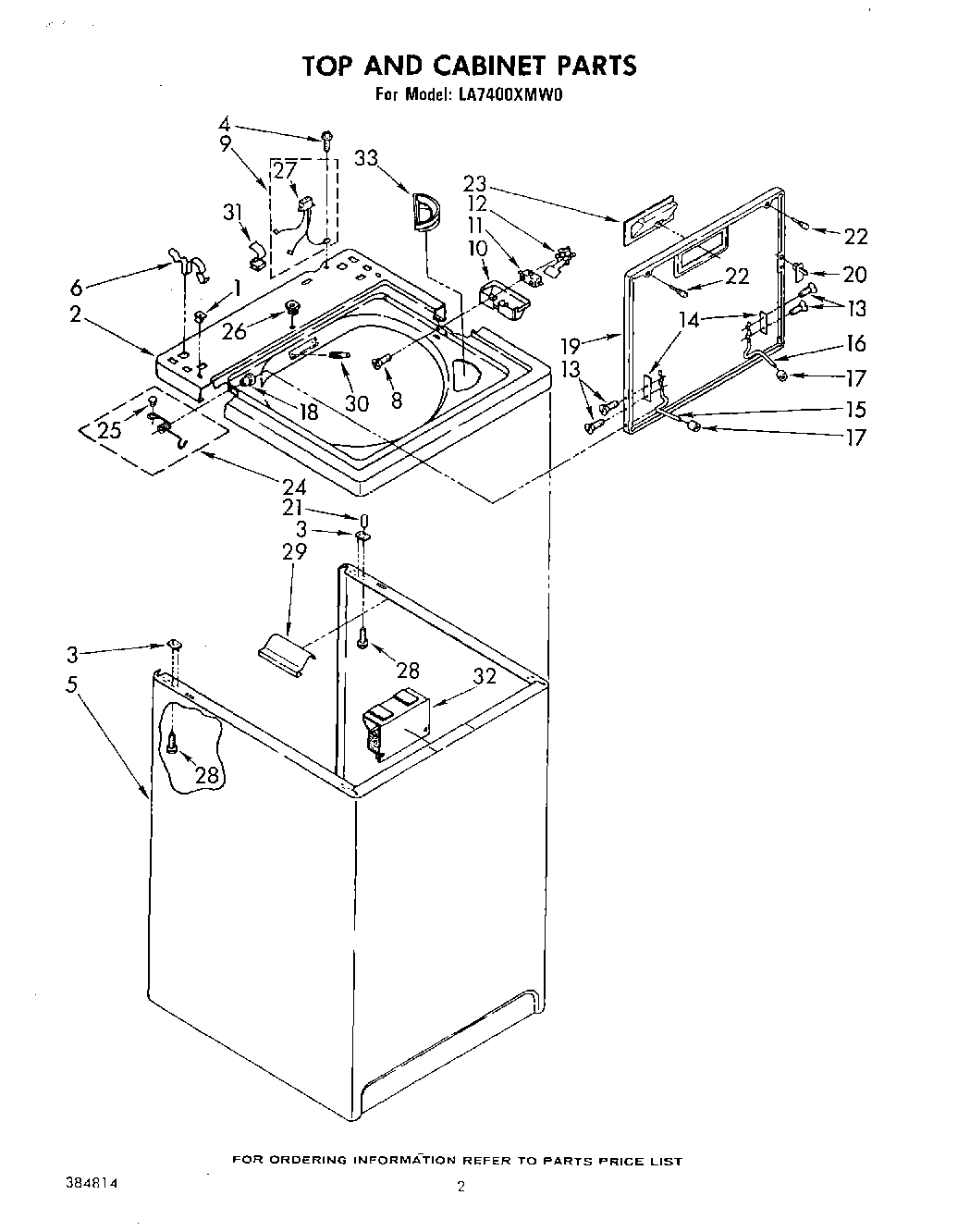

Top (White) WPL 385511 Contact Us For Availability

2

Top (Almond) WPL 385512 Contact Us For Availability

2

Top (Coffee) WPL 385513 Contact Us For Availability

2

Top (New Avocado) WPL 385514 Contact Us For Availability

2

Top (Golden Harvest) WPL 385515 Contact Us For Availability

2

Clip, Harness WPL 62749 Contact Us For Availability

3

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

3

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $103.86

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $4.98

3

Strap, Ground WPL 22965 Contact Us For Availability

3

Spring (3) WPL 62740 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

4

Clip, Harness (3) WPL 357469 Contact Us For Availability

4

Support & Brake, Tub WPL 63239 Contact Us For Availability

5

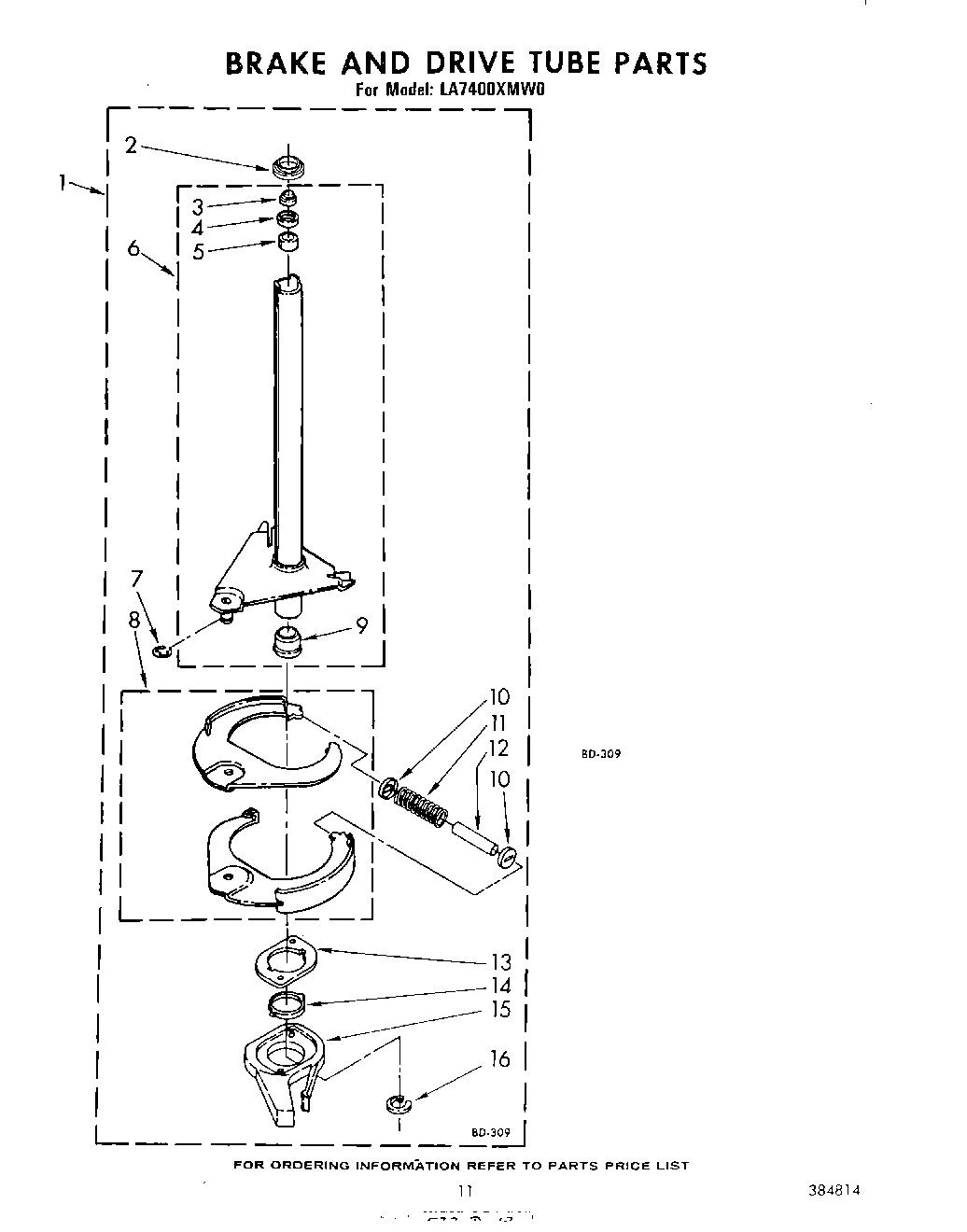

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $18.42

5

Cabinet (White) WPL 63128 Contact Us For Availability

5

Cabinet (Almond) WPL 63129 Contact Us For Availability

5

Cabinet (Coffee) WPL 63130 Contact Us For Availability

5

Cabinet (New Avocado) WPL 63131 Contact Us For Availability

5

Cabinet (Golden Harvest) WPL 63132 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 62606 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Protector, Harness WPL 63523 Contact Us For Availability

6

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $4.94

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

7

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

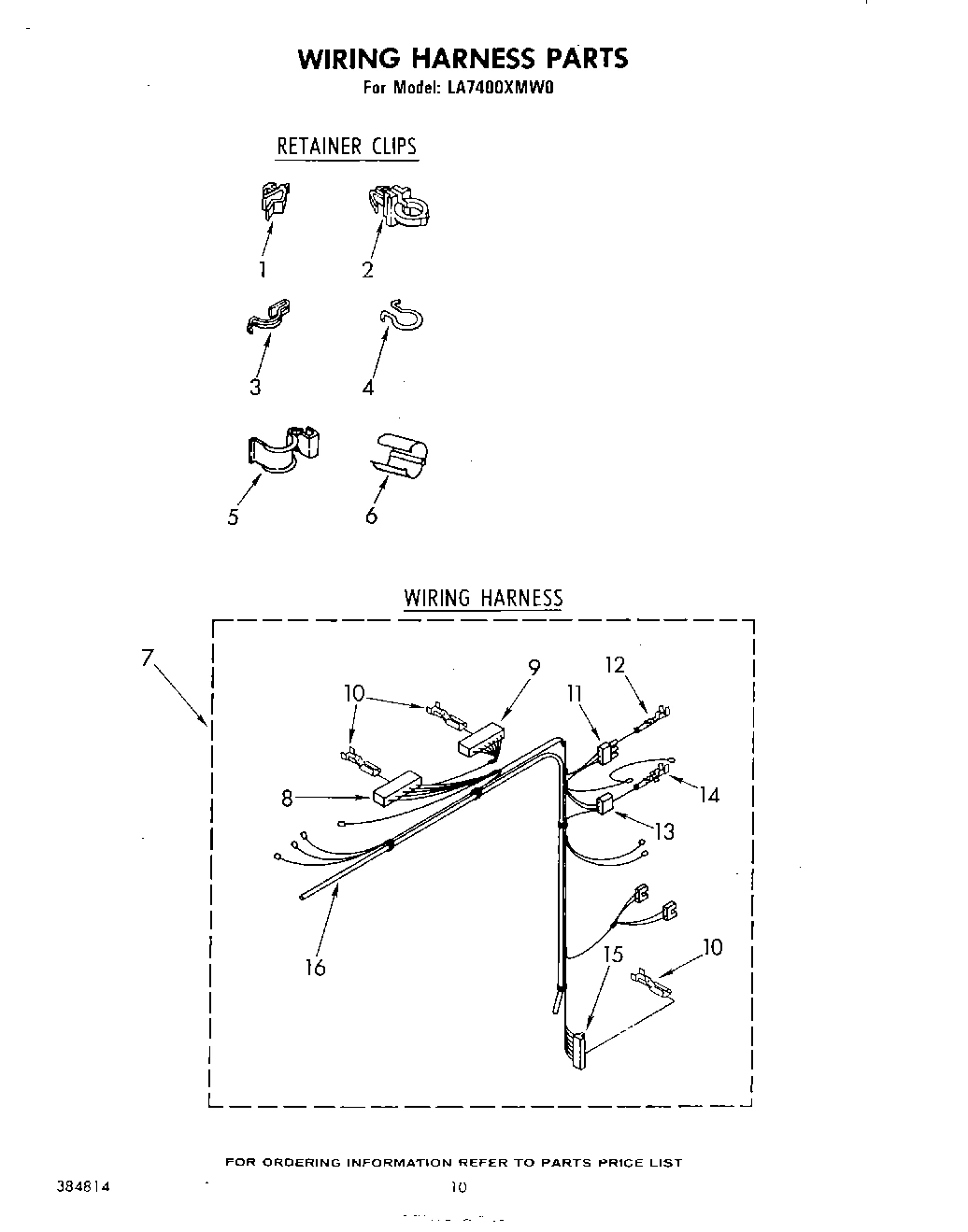

Wiring Harness & Pressure Switch Hose WPL 63331 Contact Us For Availability

8

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP96743 Whirlpool Hose In Stock WPL WP96743 $23.59

8

Screw & Washer, Lid Switch (2) WPL 354764 Contact Us For Availability

8

Spring, Clutch WPL 354276 Contact Us For Availability

8

Block, Disconnect (Timer) WPL 352090 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $10.82

9

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.70

9

Harness, Lid Switch WPL 63352 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

Terminal, Female WPL 352088 Contact Us For Availability

Clip, Mounting (2) WPL 62825 Contact Us For Availability

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

Ring, Retaining (2) WPL 90369 Contact Us For Availability

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

WP62647 Whirlpool Spring Pressure Backorder WPL WP62647 $3.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Actuator, Lid Switch WPL 357347 Contact Us For Availability

Spring, Agitator WPL 62676 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Lock, Filter WPL 62942 Contact Us For Availability

15

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

15

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

15

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Tub WPL 63039 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

Stopper (2) WPL 21265 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

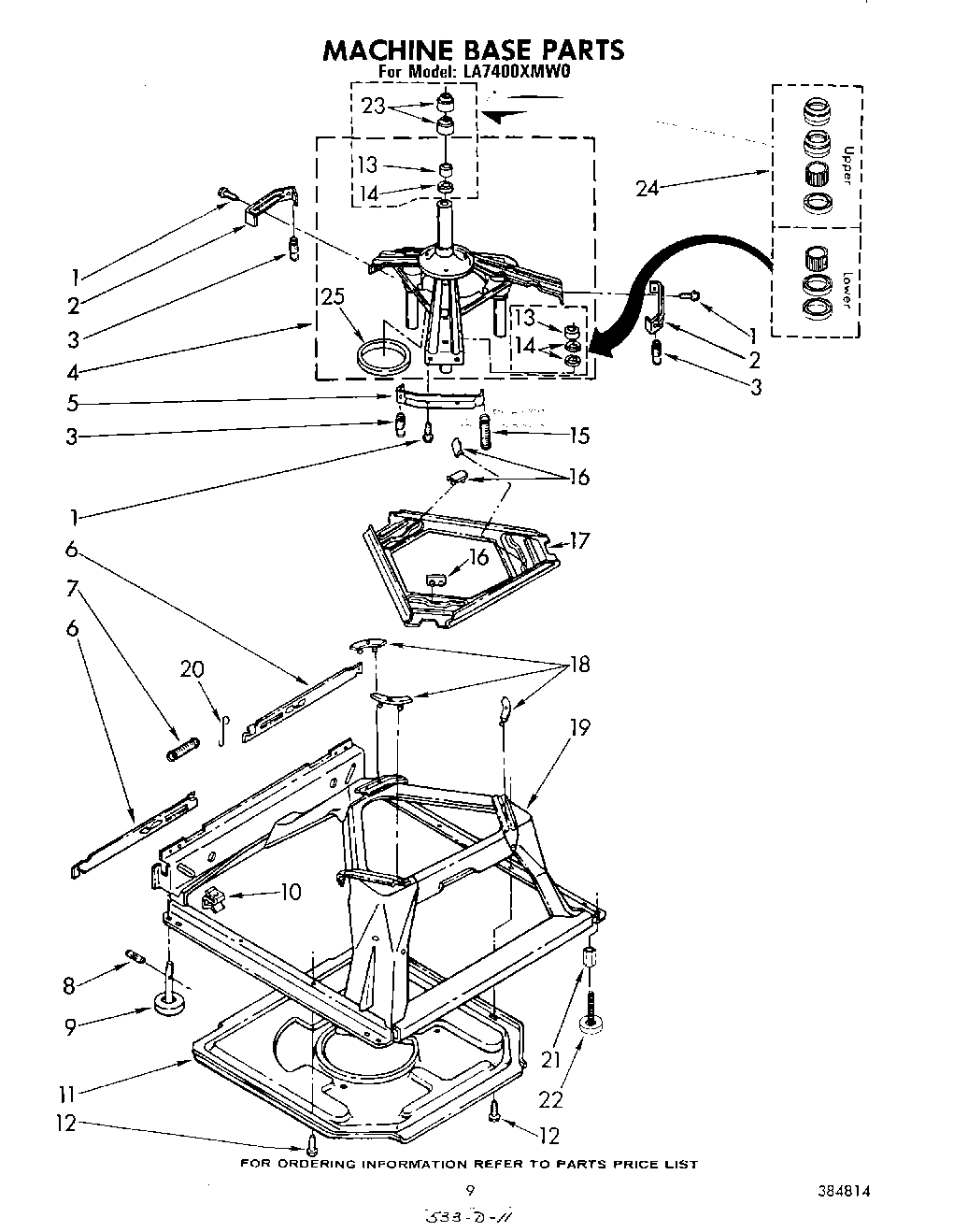

285459 Whirlpool Washer Base Backorder WPL 285459 $202.38

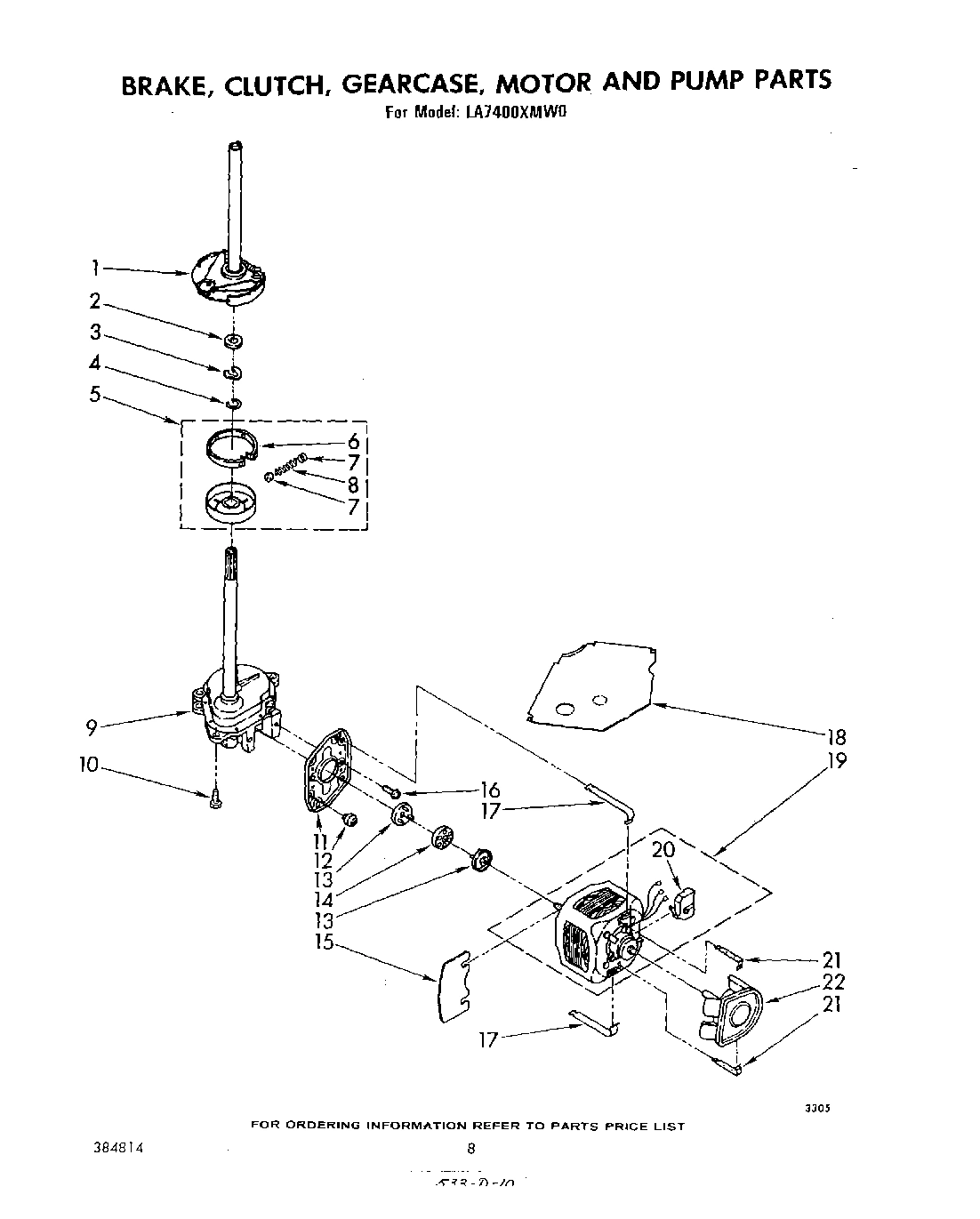

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

Lid (White) WPL 63064 Contact Us For Availability

Lid (Almond) WPL 63065 Contact Us For Availability

Lid (Coffee) WPL 63066 Contact Us For Availability

Lid (New Avocado) WPL 63067 Contact Us For Availability

Lid (Golden Harvest) WPL 63068 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Clamp, Hose WPL 272841 Contact Us For Availability

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $3.81

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

Ring, Retaining WPL 95082 Contact Us For Availability

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

Hose, Bleach WPL 63323 Contact Us For Availability

Washer Kit, Thrust WPL 285292 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

Handle, Lid (White) WPL 379884 Contact Us For Availability

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

Handle, Lid (Coffee) WPL 379886 Contact Us For Availability

Handle, Lid (New Avocado) WPL 379887 Contact Us For Availability

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

24

Spring & Button, Lid ((R.H.)) WPL 53748 Contact Us For Availability

24

Spring & Button, Lid ((L.H.)) WPL 53749 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Plug, Button WPL 54690 Contact Us For Availability

26

285715 Whirlpool Drain Kit Backorder WPL 285715 $79.95

26

Stop, Push-In Top WPL 358472 Contact Us For Availability

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

27

Plug, Terminal (3-Way) WPL 62888 Contact Us For Availability

28

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

29

Support Protector WPL 63392 Contact Us For Availability

29

Gear, Main Drive WPL 62528 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

30

Pinion Assembly, Gearcase WPL 62668 Contact Us For Availability

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

WP62638 Whirlpool Screw Backorder WPL WP62638 $2.38

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261880 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Coffee (Uncut) WPL 261887 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

New Avocado WPL 261889 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 383381 WPL 383381 Contact Us For Availability

WPL 383976 WPL 383976 Contact Us For Availability

WPL 384814 WPL 384814 Contact Us For Availability

WPL 385030 WPL 385030 Contact Us For Availability

WPL 385238 WPL 385238 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

35

Switch, Water Temperature WPL 660746 Contact Us For Availability

38

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

40

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70
