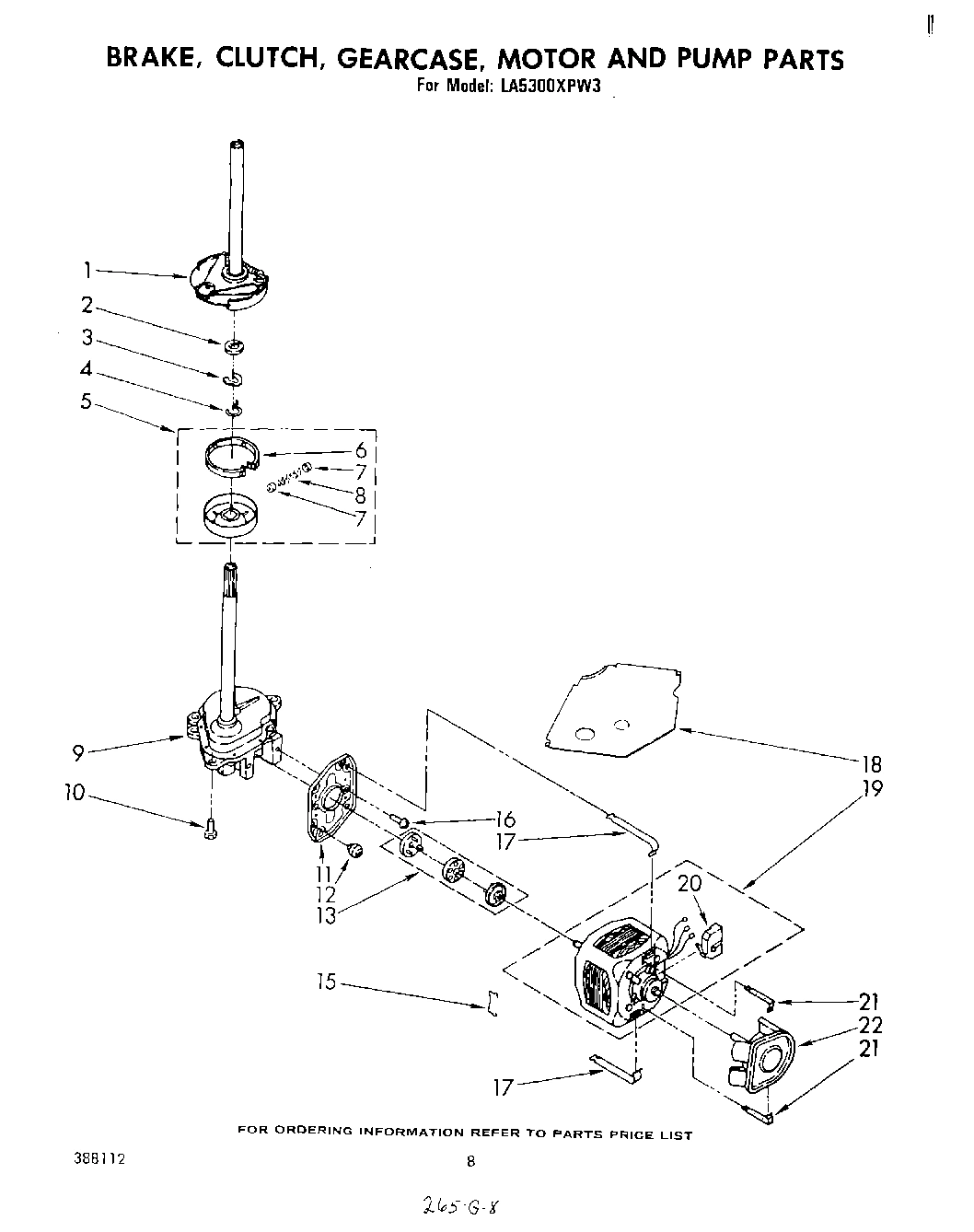

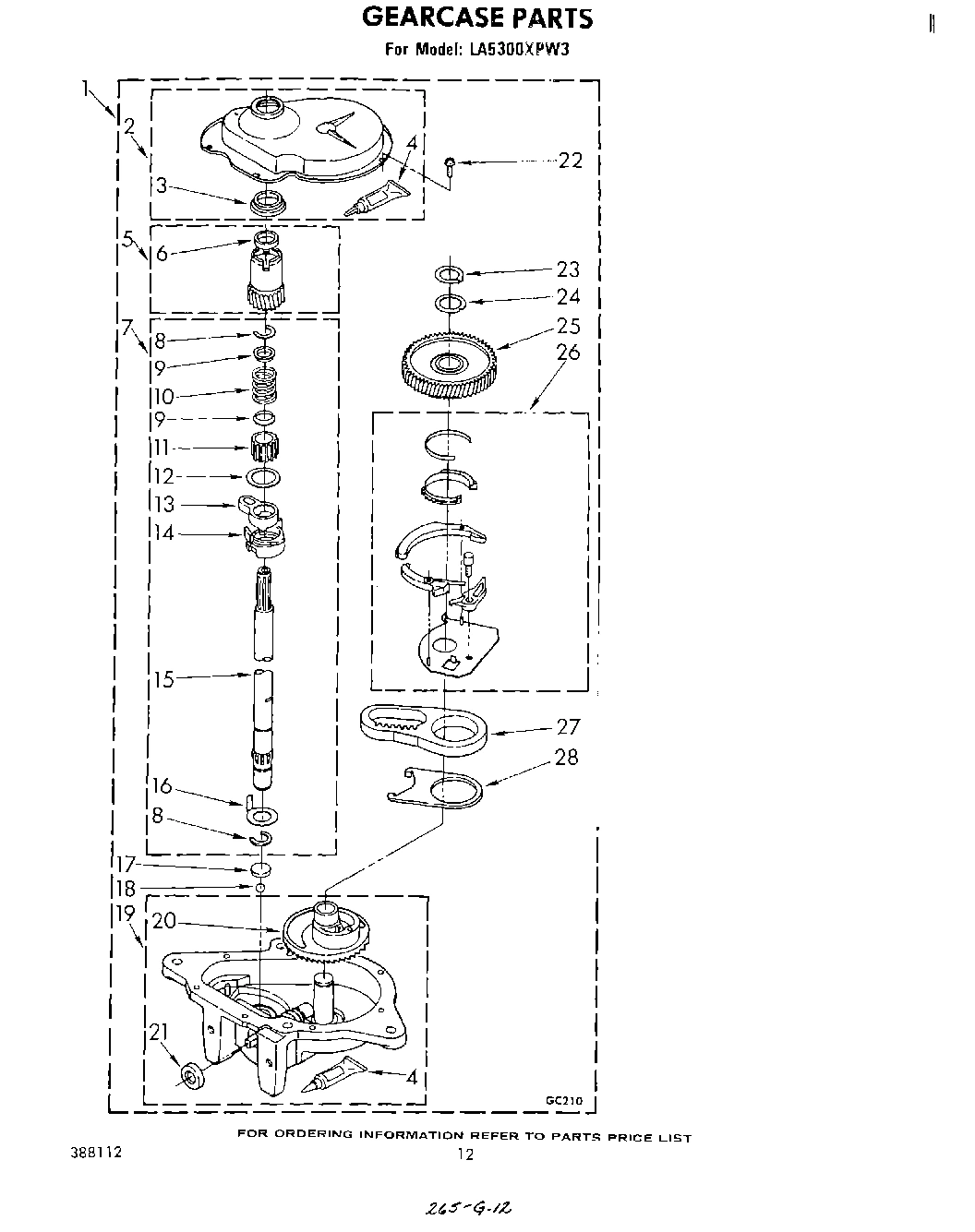

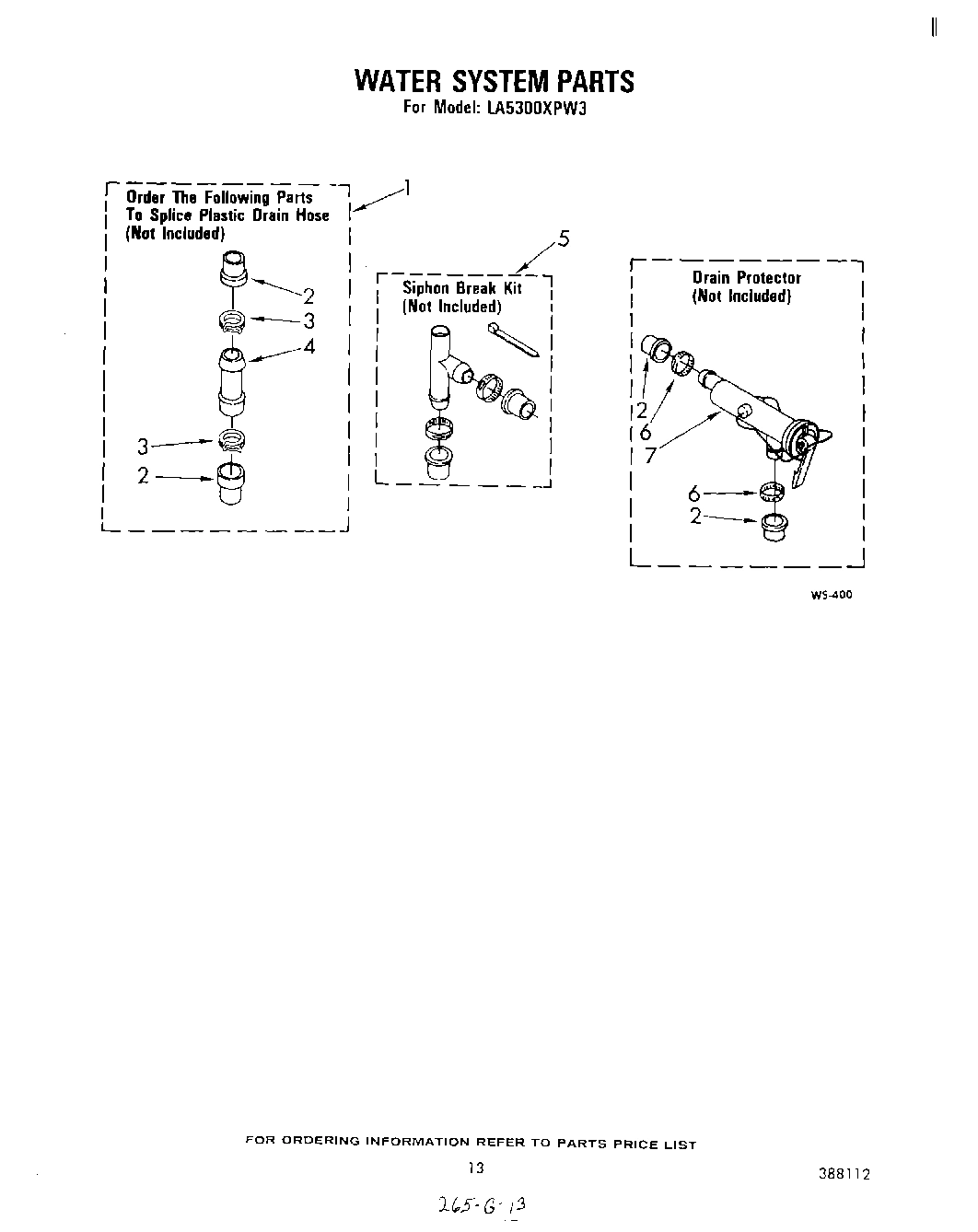

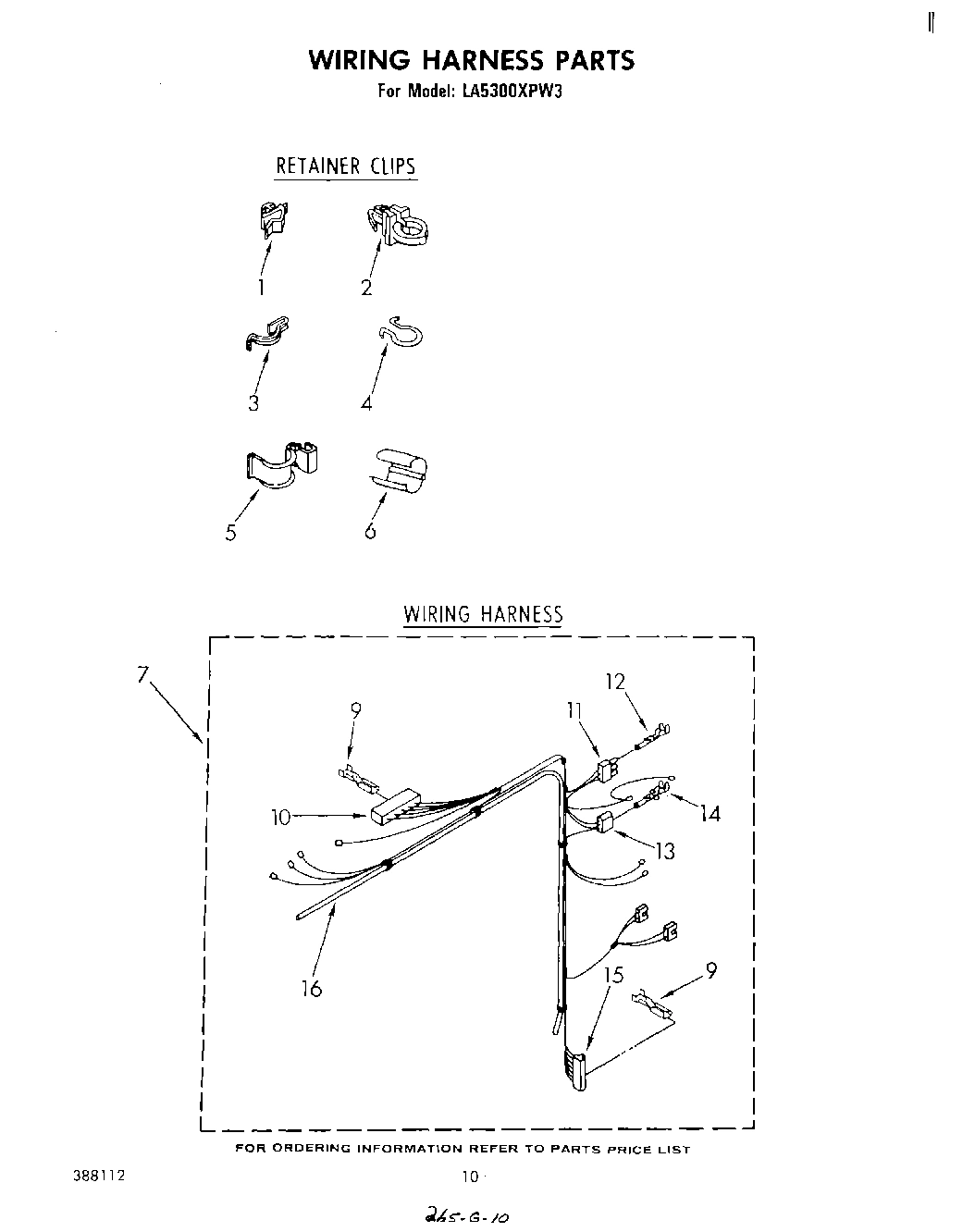

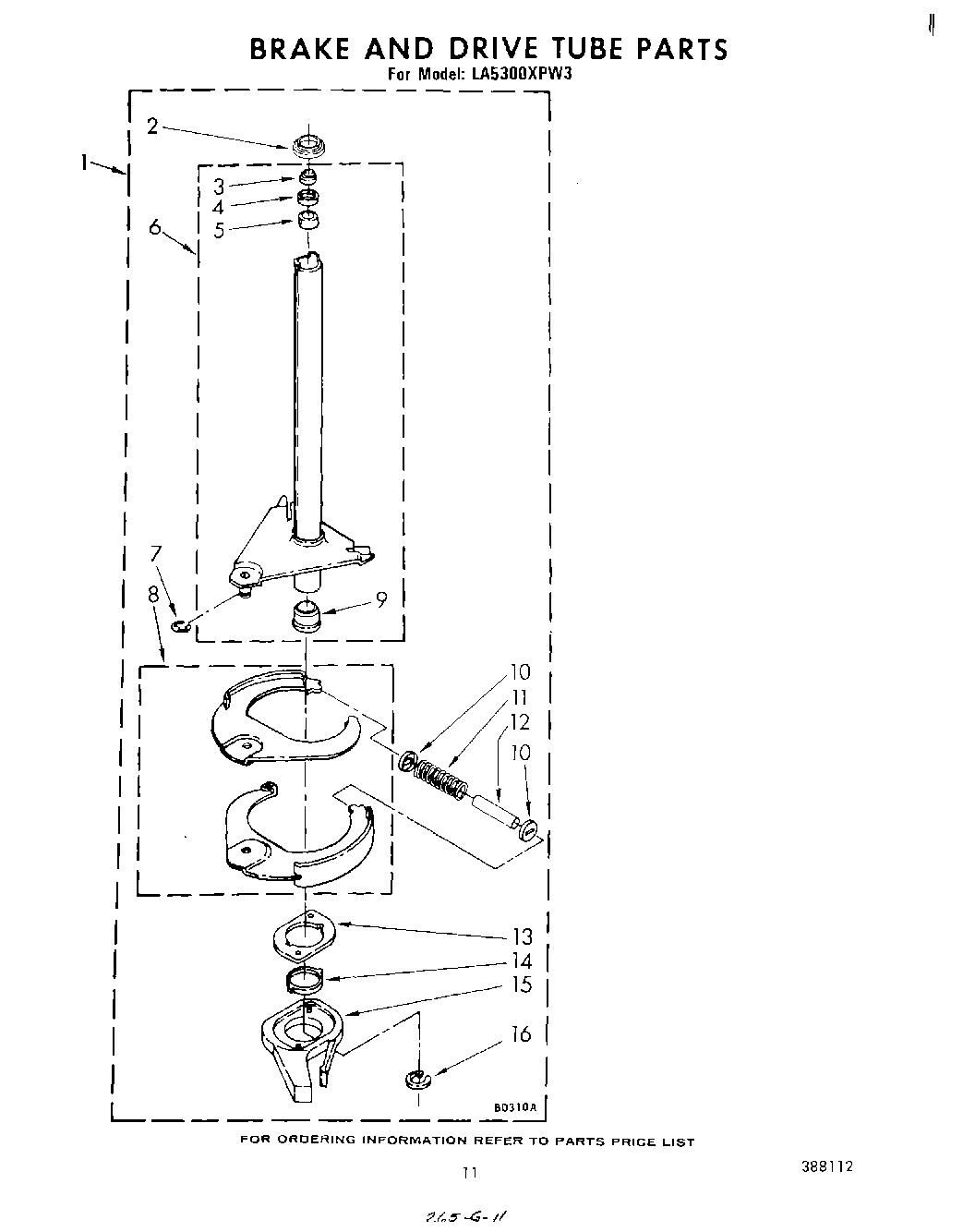

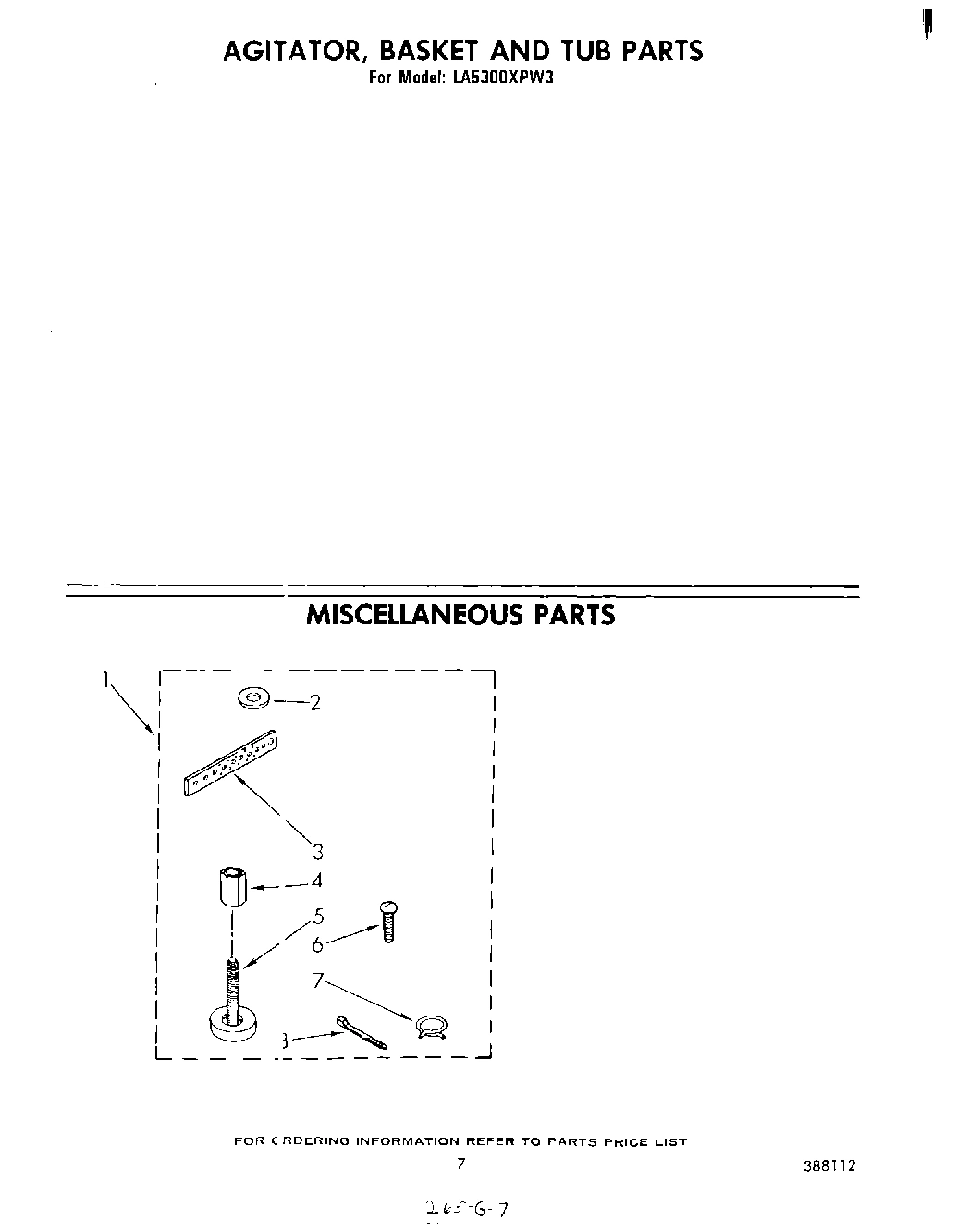

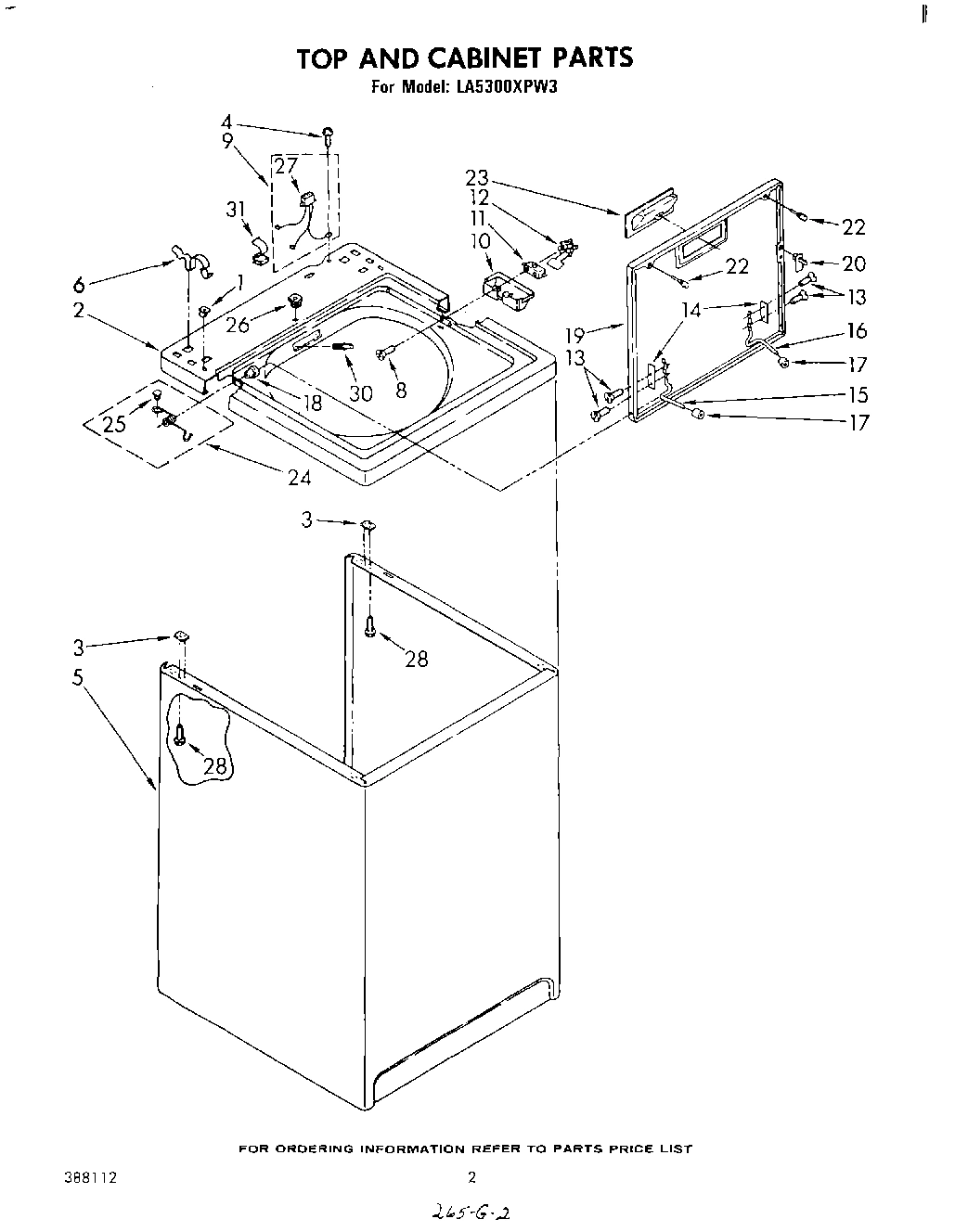

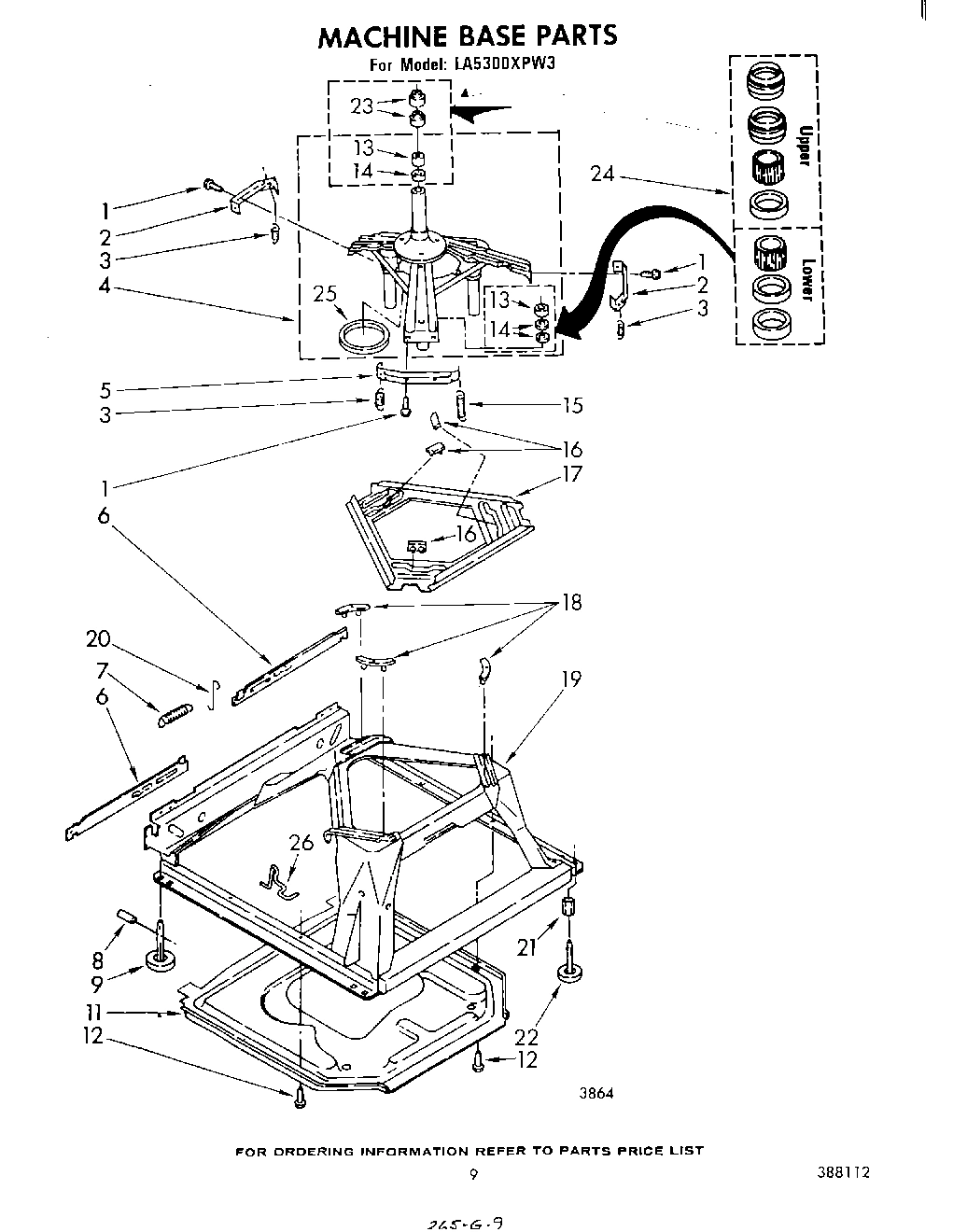

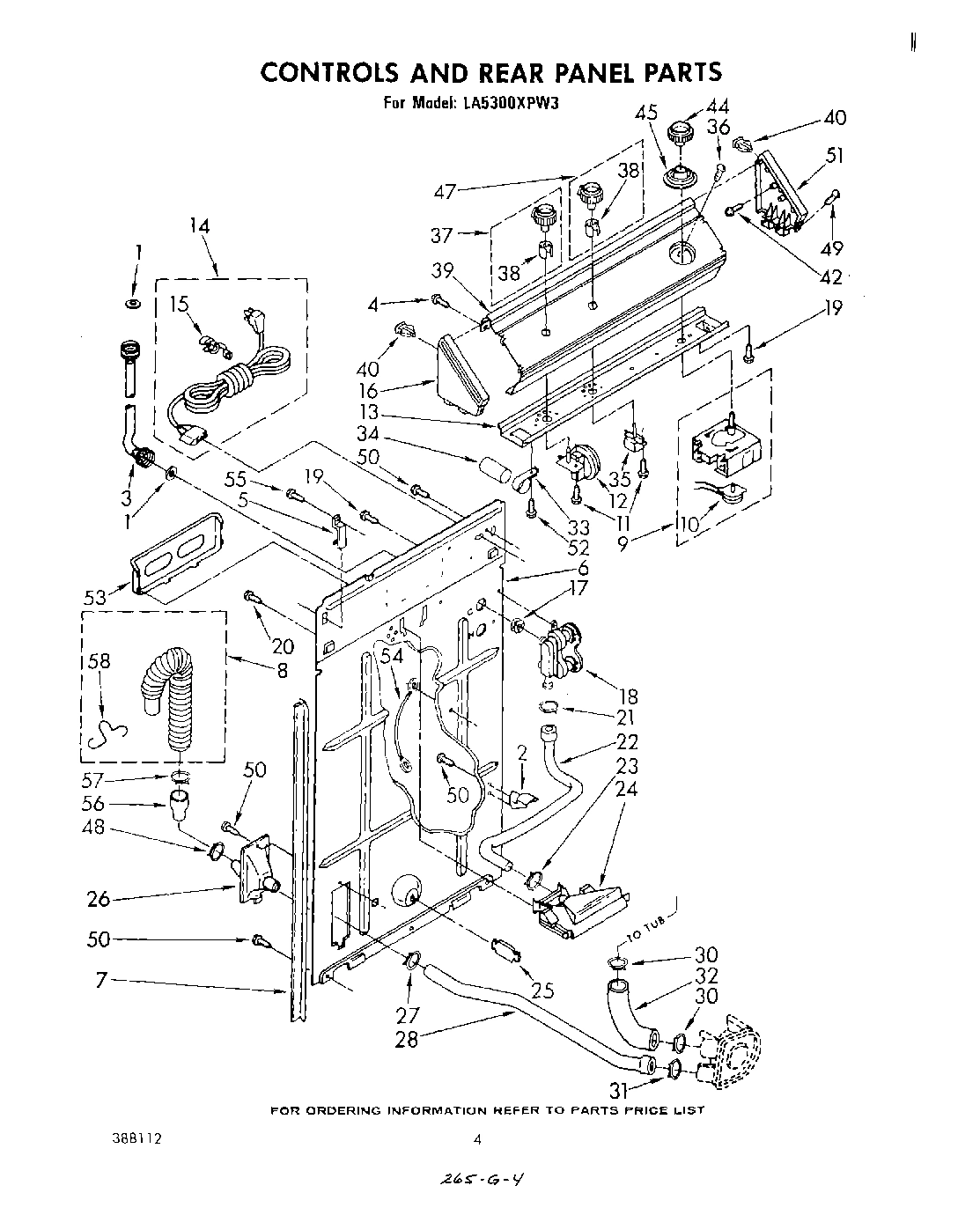

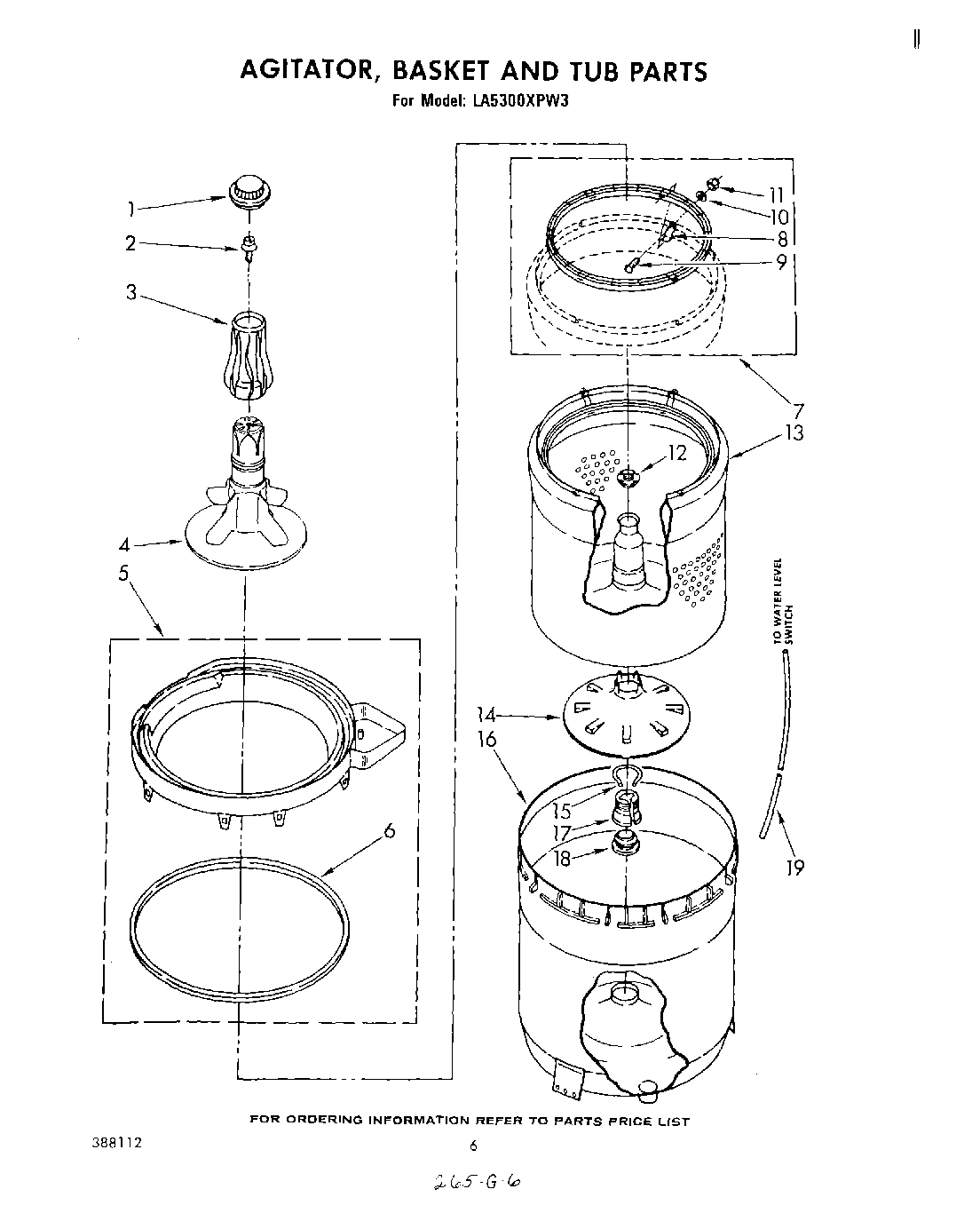

Model Whirlpool LA5300XPW3 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261880 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL ARI156615A WPL ARI156615A Contact Us For Availability

WPL LIT385238 WPL LIT385238 Contact Us For Availability

WPL LIT386200 WPL LIT386200 Contact Us For Availability

WPL LIT387257 WPL LIT387257 Contact Us For Availability

WPL LIT387931 WPL LIT387931 Contact Us For Availability

WPL LIT388112 WPL LIT388112 Contact Us For Availability

WPL LIT677818 WPL LIT677818 Contact Us For Availability

WPL LIT677821 WPL LIT677821 Contact Us For Availability

WPL LIT677967 WPL LIT677967 Contact Us For Availability

WPL LIT677971 WPL LIT677971 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Top (White) WPL 63574 Contact Us For Availability

2

Top (Almond) WPL 63575 Contact Us For Availability

2

Top (Toast) WPL 63576 Contact Us For Availability

2

Top (Platinum) WPL 63577 Contact Us For Availability

2

Top (Golden Harvest) WPL 63578 Contact Us For Availability

2

Pin, Cabinet Guide (2) WPL 63162 Contact Us For Availability

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63753 Whirlpool Filter Backorder WPL WP63753 $98.74

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.88

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (Almond) WPL 63425 Contact Us For Availability

5

Cabinet (Toast) WPL 63426 Contact Us For Availability

5

Cabinet (Platinum) WPL 63427 Contact Us For Availability

5

Cabinet (Golden Harvest) WPL 63428 Contact Us For Availability

5

Hinge, Console (2) WPL 62748 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Panel, Rear WPL 63633 Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $78.79

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Screw & Washer, Lid Switch (2) WPL 354764 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

9

Harness, Lid Switch WPL 63833 Contact Us For Availability

9

Timer, Control (60 Hz.) WPL 64100 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

Terminal, Female WPL 352088 Contact Us For Availability

Motor, Timer WPL 63493 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $3.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Actuator, Lid Switch WPL 357347 Contact Us For Availability

Switch, Water Level WPL 63834 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

Bracket, Control WPL 386628 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Cord, Power WPL 62734 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Lock, Filter WPL 62942 Contact Us For Availability

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.13

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Tub WPL 63125 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Cap, End (L.H.) WPL 63789 Contact Us For Availability

17

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

17

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

17

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $14.60

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.88

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 63481 Contact Us For Availability

Lid (White) WPL 387074 Contact Us For Availability

Lid (Almond) WPL 387075 Contact Us For Availability

Lid (Platinum) WPL 387076 Contact Us For Availability

Lid (Toast) WPL 387077 Contact Us For Availability

Lid (Golden Harvest) WPL 387078 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

21

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.22

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

22

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Handle, Lid (White) WPL 379884 Contact Us For Availability

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

Handle, Lid (Toast) WPL 379890 Contact Us For Availability

Handle, Lid (Platinum) WPL 379891 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $30.12

Spring & Button, Lid ((R.H.)) WPL 53748 Contact Us For Availability

Spring & Button, Lid ((L.H.)) WPL 53749 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

25

Plug, Button WPL 54690 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $30.87

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

Stop, Push-In Top WPL 358472 Contact Us For Availability

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

27

Plug, Terminal (3-Way) WPL 62888 Contact Us For Availability

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $34.90

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

33

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

34

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $44.94

35

Switch, Water Temperature WPL 660746 Contact Us For Availability

35

Switch, Water Temperature (Alt.) WPL 358934 Contact Us For Availability

35

Switch, Water Temperature (Alt.) WPL 358935 Contact Us For Availability

36

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

38

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

39

Panel, Console WPL 63683 Contact Us For Availability

40

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

42

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

44

Knob, Timer WPL 386570 Contact Us For Availability

45

Dial, Timer WPL 64138 Contact Us For Availability

47

Knob, Water Temperature WPL 386630 Contact Us For Availability

49

Screw, 8-18 (2) WPL 64211 Contact Us For Availability

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

51

WPL 63795 WPL 63795 Contact Us For Availability

52

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

53

WPL 63020 WPL 63020 Contact Us For Availability

54

WPL 364089 WPL 364089 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

56

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $32.39

57

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

58

WPL 357247 WPL 357247 Contact Us For Availability
