Model Whirlpool KUDS30FXSS8 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

3
JUMPER, 4 WIRE
JUMPER, 4 WIRE WPL W10315814 Contact Us For Availability
View on Model
3

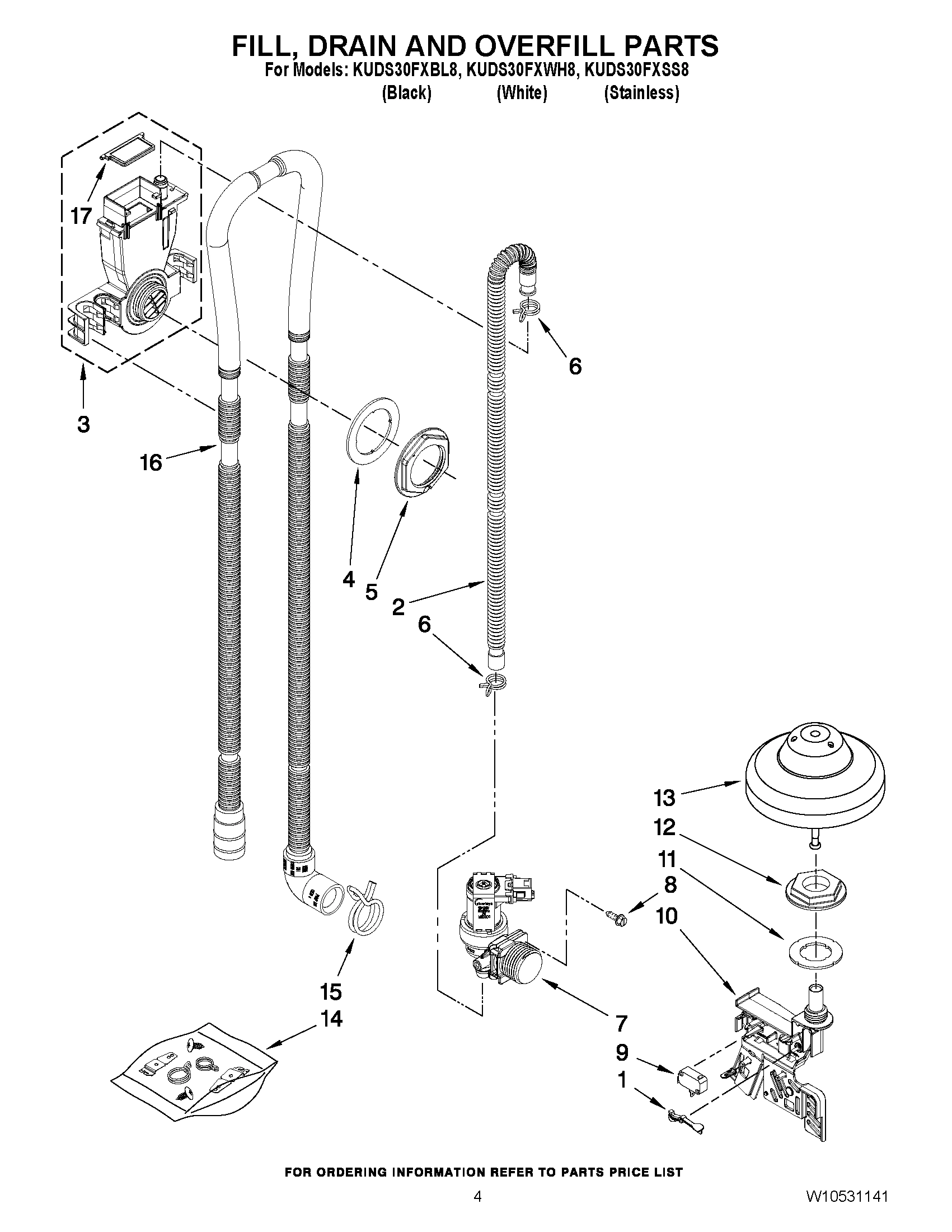

WATER INLET (ALSO ORDER ITEMS 4 & 17)
WATER INLET (ALSO ORDER ITEMS 4 & 17) WPL W10316375 Contact Us For Availability
View on Model
4
Retainer, Spring Grip
Retainer, Spring Grip WPL 3400931 Contact Us For Availability
View on Model
6
PANEL, FULL FRONT (INCLUDES ITEMS 9, 11, 15,
PANEL, FULL FRONT (INCLUDES ITEMS 9, 11, 15, WPL W10195872 Contact Us For Availability
View on Model
7
Hanger
Hanger WPL W10082832 Contact Us For Availability
View on Model
8
WIRING HARNESS
WIRING HARNESS WPL W10496097 Contact Us For Availability
View on Model
11
BARRIER, VAPOR DOOR
BARRIER, VAPOR DOOR WPL W10195837 Contact Us For Availability
View on Model
11
Screen, Separation
Screen, Separation WPL W10084567 Contact Us For Availability
View on Model
12
Valve Assembly, Manifold
Valve Assembly, Manifold WPL W10077903 Contact Us For Availability
View on Model
15
LIGHT PIPE
LIGHT PIPE WPL W10319007 Contact Us For Availability
View on Model
17
FLAPPER
FLAPPER WPL W10316376 Contact Us For Availability
View on Model
22
PROTECTOR
PROTECTOR WPL W10292870 Contact Us For Availability
View on Model
25
BRACKET, THERMOSTAT
BRACKET, THERMOSTAT WPL W10300703 Contact Us For Availability
View on Model
27
SPACER, TUB BRACE (LEFT)
SPACER, TUB BRACE (LEFT) WPL W10195630 Contact Us For Availability
View on Model
27
SPACER, TUB BRACE (RIGHT)
SPACER, TUB BRACE (RIGHT) WPL W10195631 Contact Us For Availability
View on Model
30
Motor, Wax
Motor, Wax WPL W10082769 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. WHITE)
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. BLACK)
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2oz.) (Biscuit)
PAINT, TOUCH-UP (1/2oz.) (Biscuit) WPL 4392899 Contact Us For Availability
View on Model
NI
POWER CORD KIT (INCLUDES POWER CORD & MISC. H
POWER CORD KIT (INCLUDES POWER CORD & MISC. H WPL 4317824 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BL
PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BL WPL 285006 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
View on Model
NI
Moisture Barrier Kit
Moisture Barrier Kit WPL 4396277 Contact Us For Availability
View on Model
NI
ARCHITECT II HANDLES (STAINLESS STEEL)
ARCHITECT II HANDLES (STAINLESS STEEL) WPL W10195738A Contact Us For Availability
View on Model
NI
ARCHITECT II HANDLES (BLACK)
ARCHITECT II HANDLES (BLACK) WPL W10195735A Contact Us For Availability
View on Model
NI
Side Panel Kits (Stainless Steel)
Side Panel Kits (Stainless Steel) WPL 8171659 Contact Us For Availability
View on Model
NI
ARCHITECT II HANDLES (WHITE)
ARCHITECT II HANDLES (WHITE) WPL W10195736A Contact Us For Availability
View on Model
NI
Side Panel Kits (White)
Side Panel Kits (White) WPL 8171656 Contact Us For Availability
View on Model
NI
PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
NI
Side Panel Kits (Black)
Side Panel Kits (Black) WPL 8171657 Contact Us For Availability
View on Model
