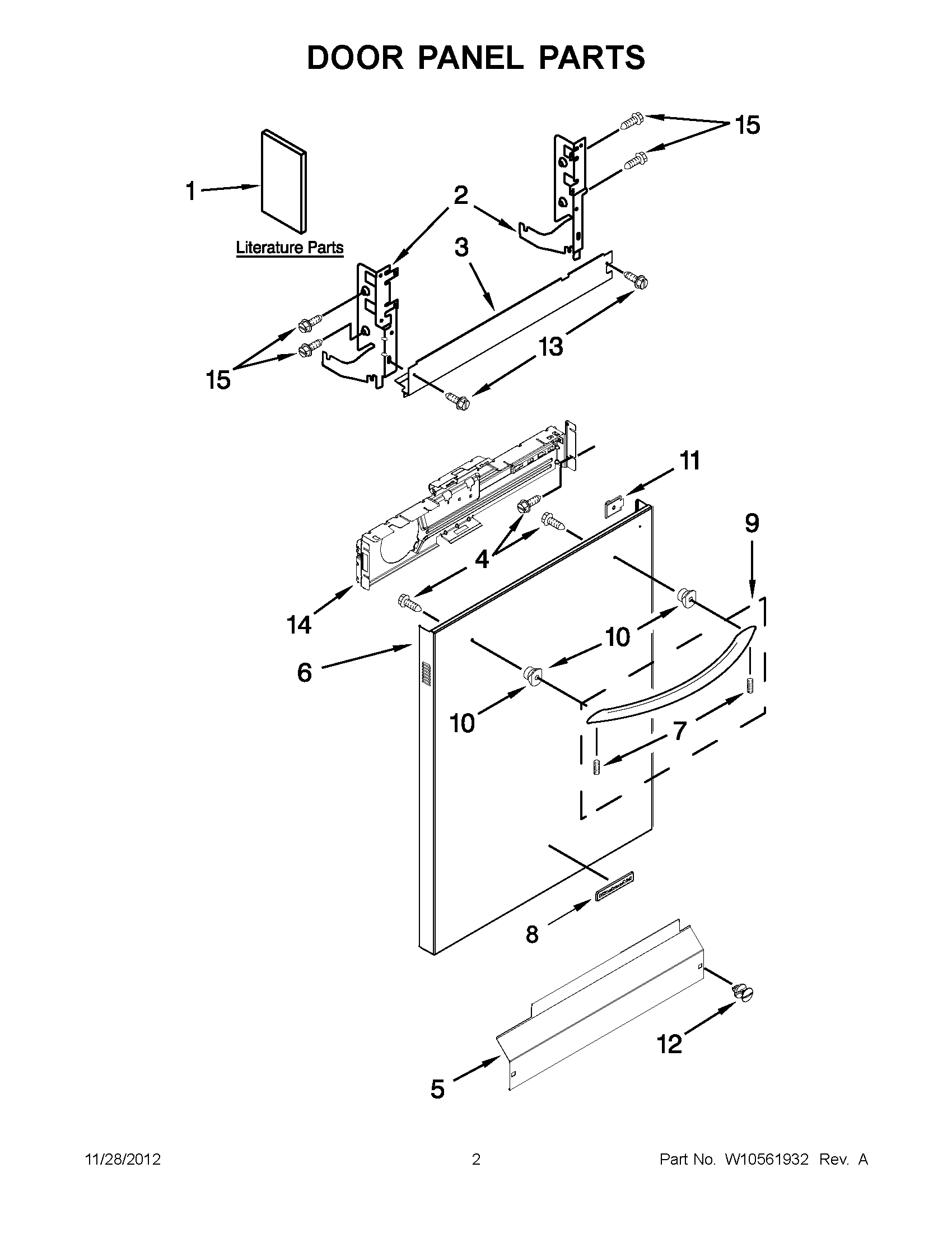

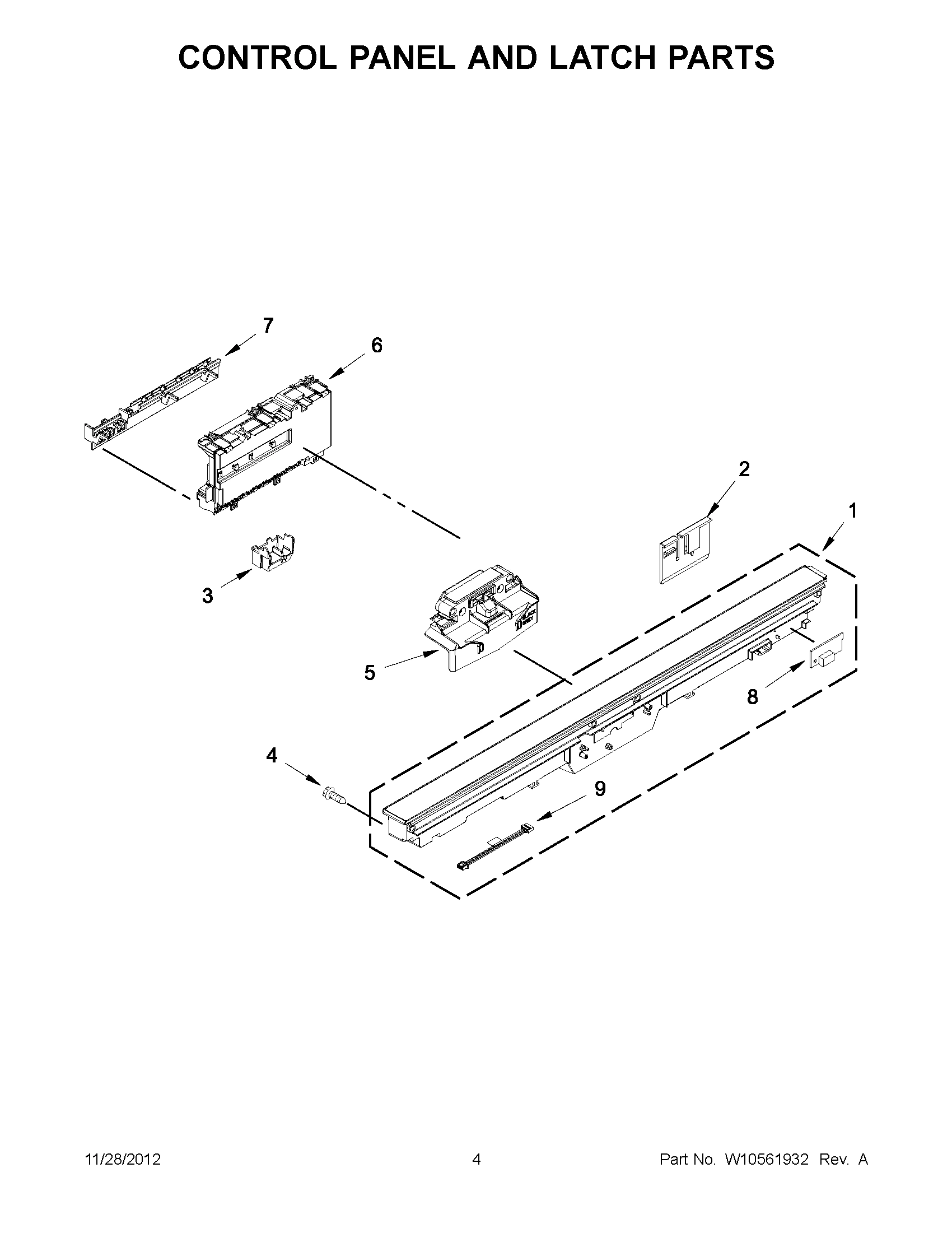

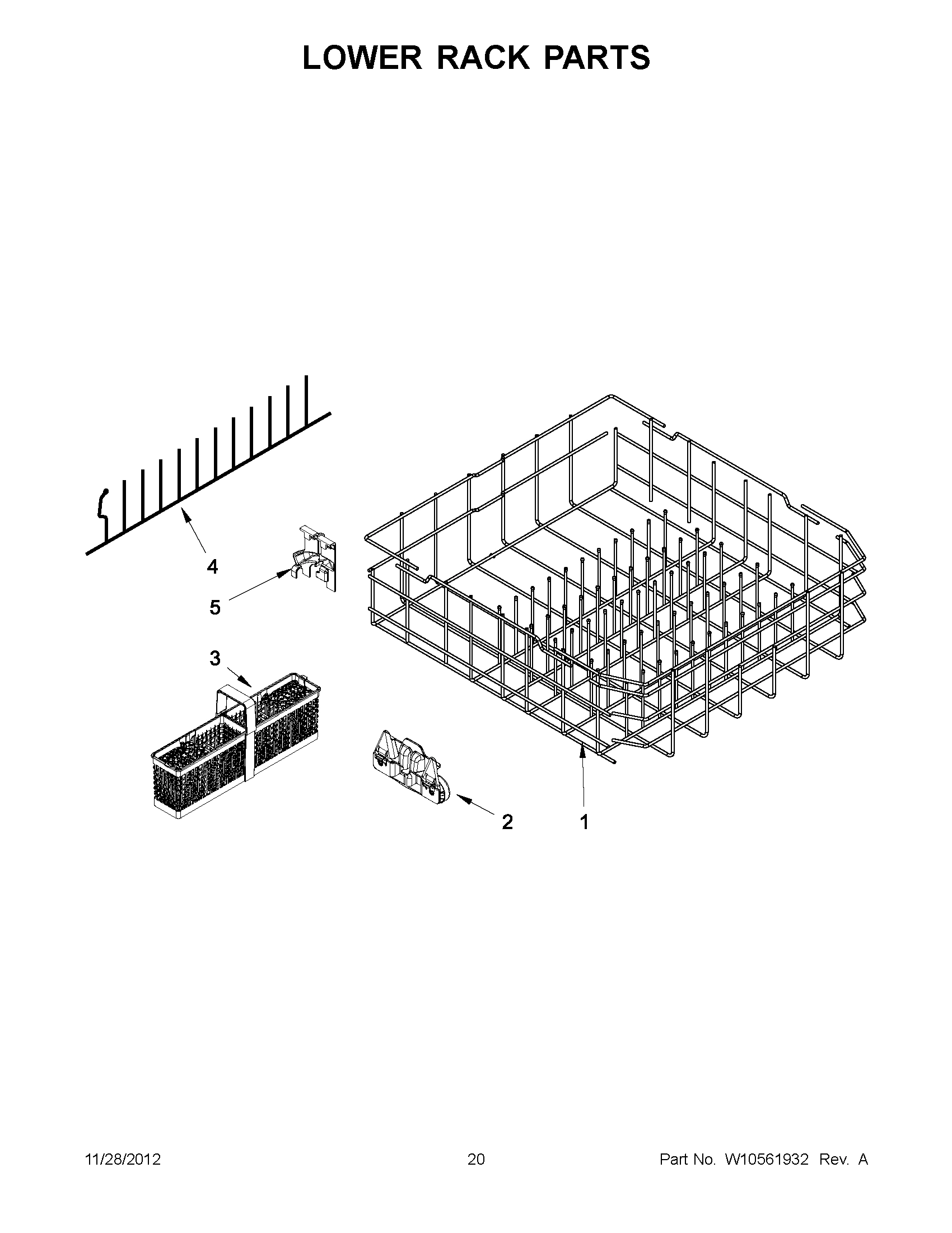

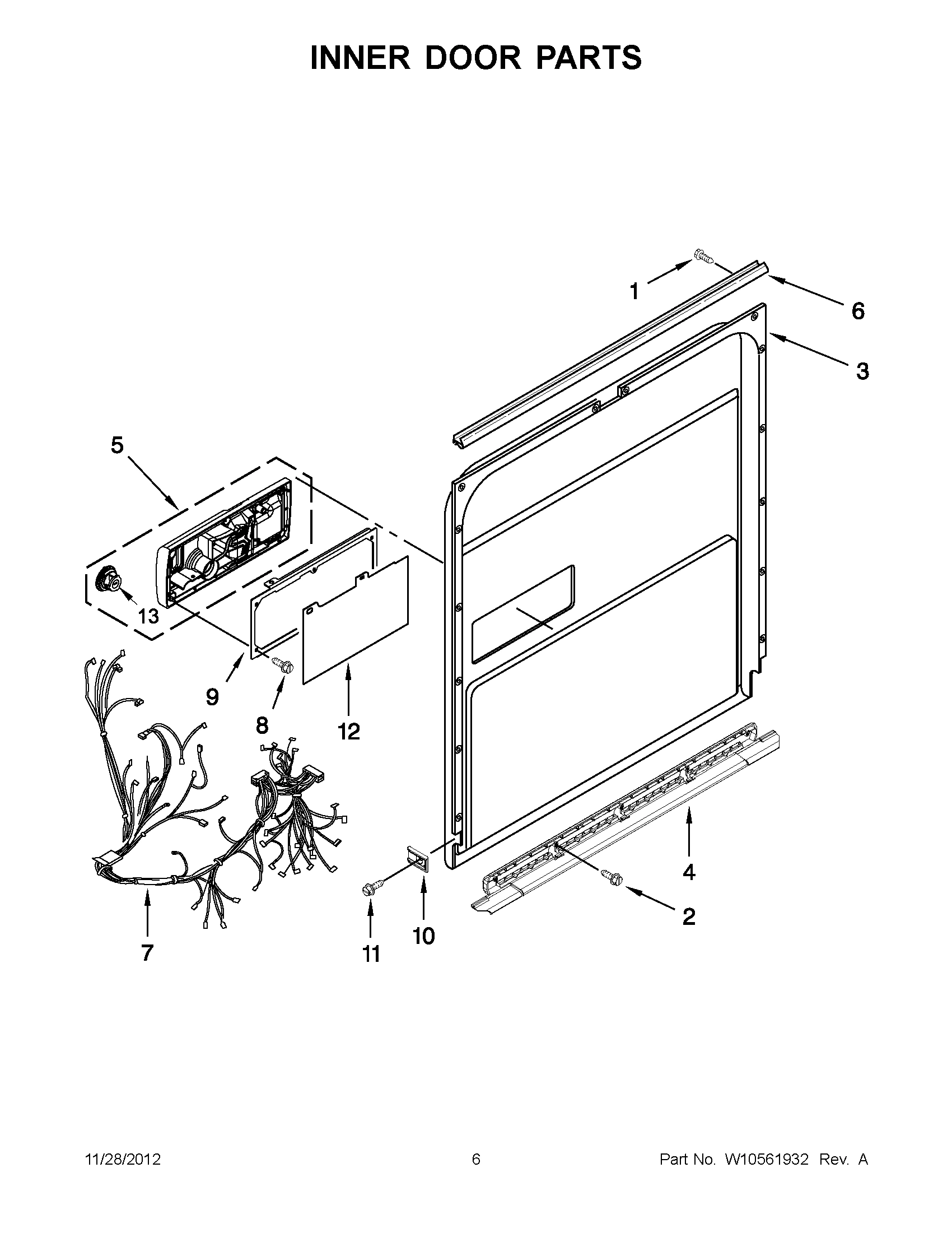

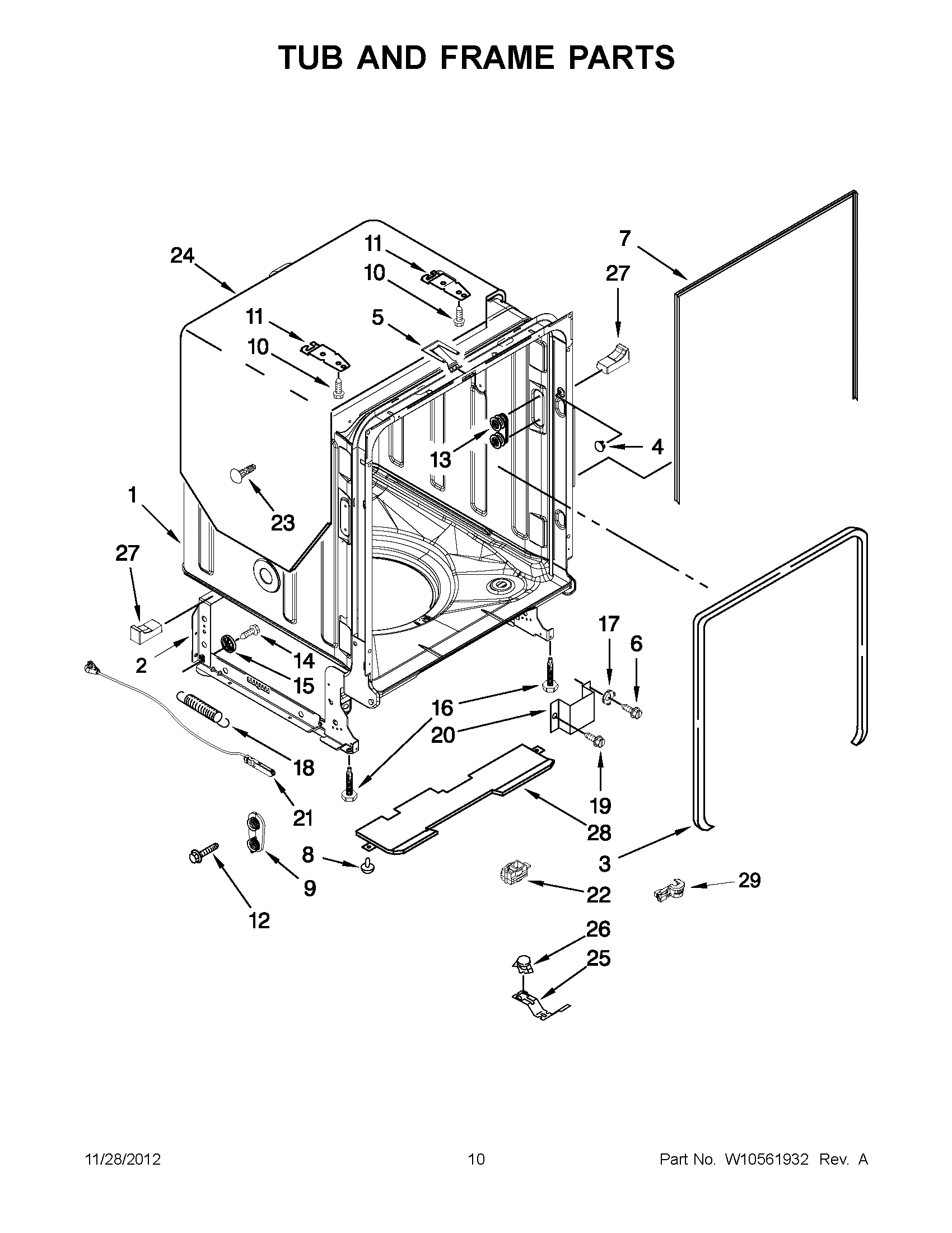

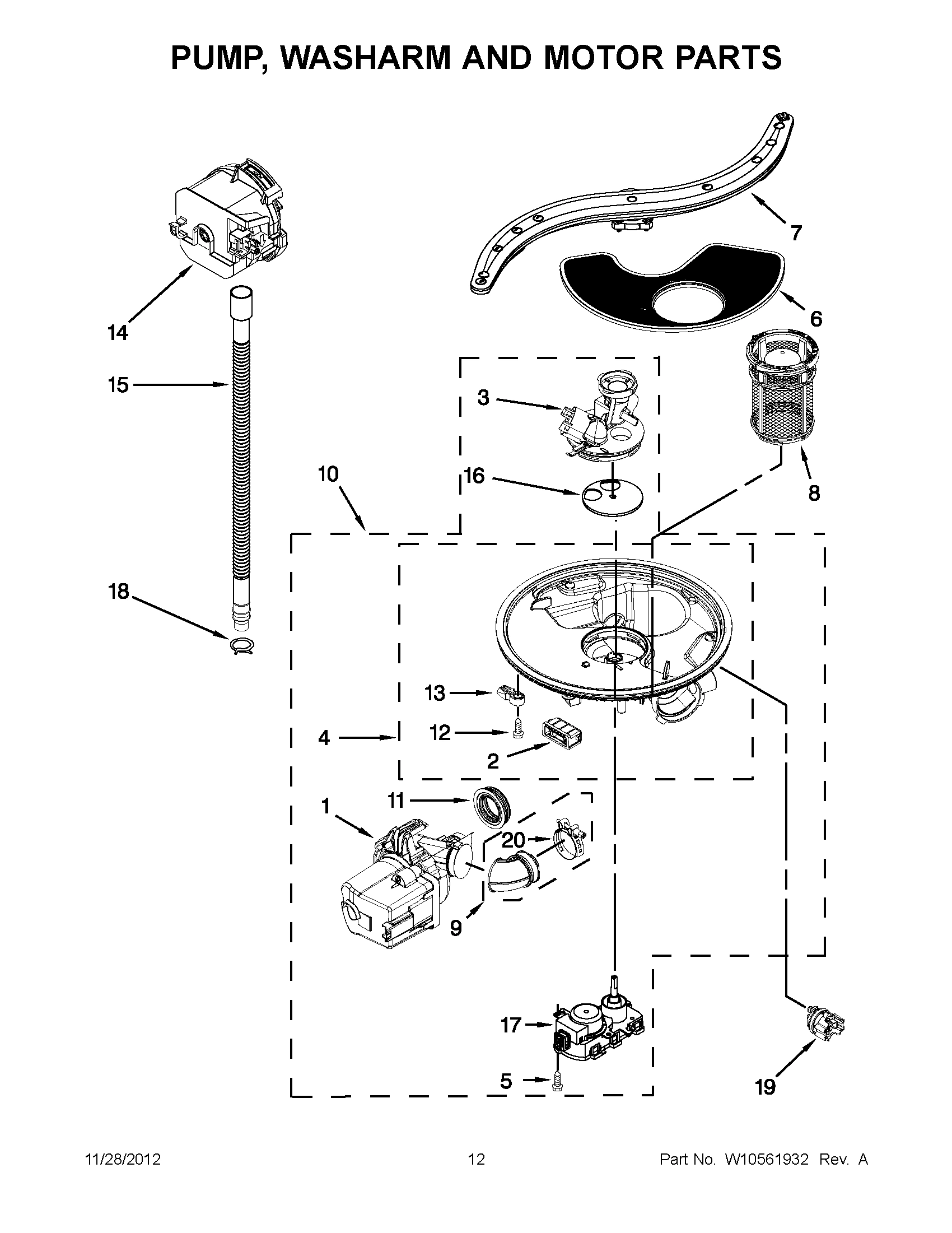

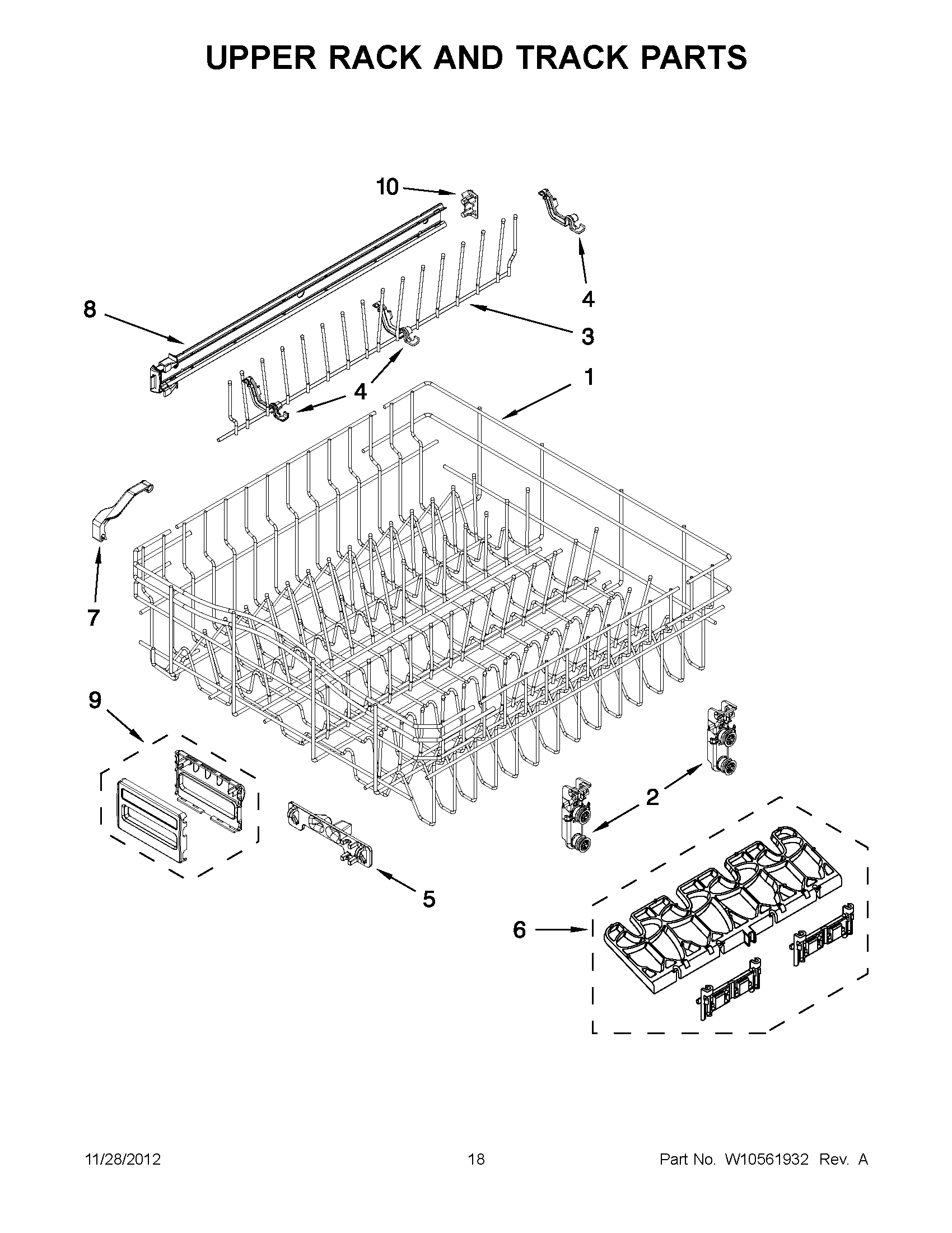

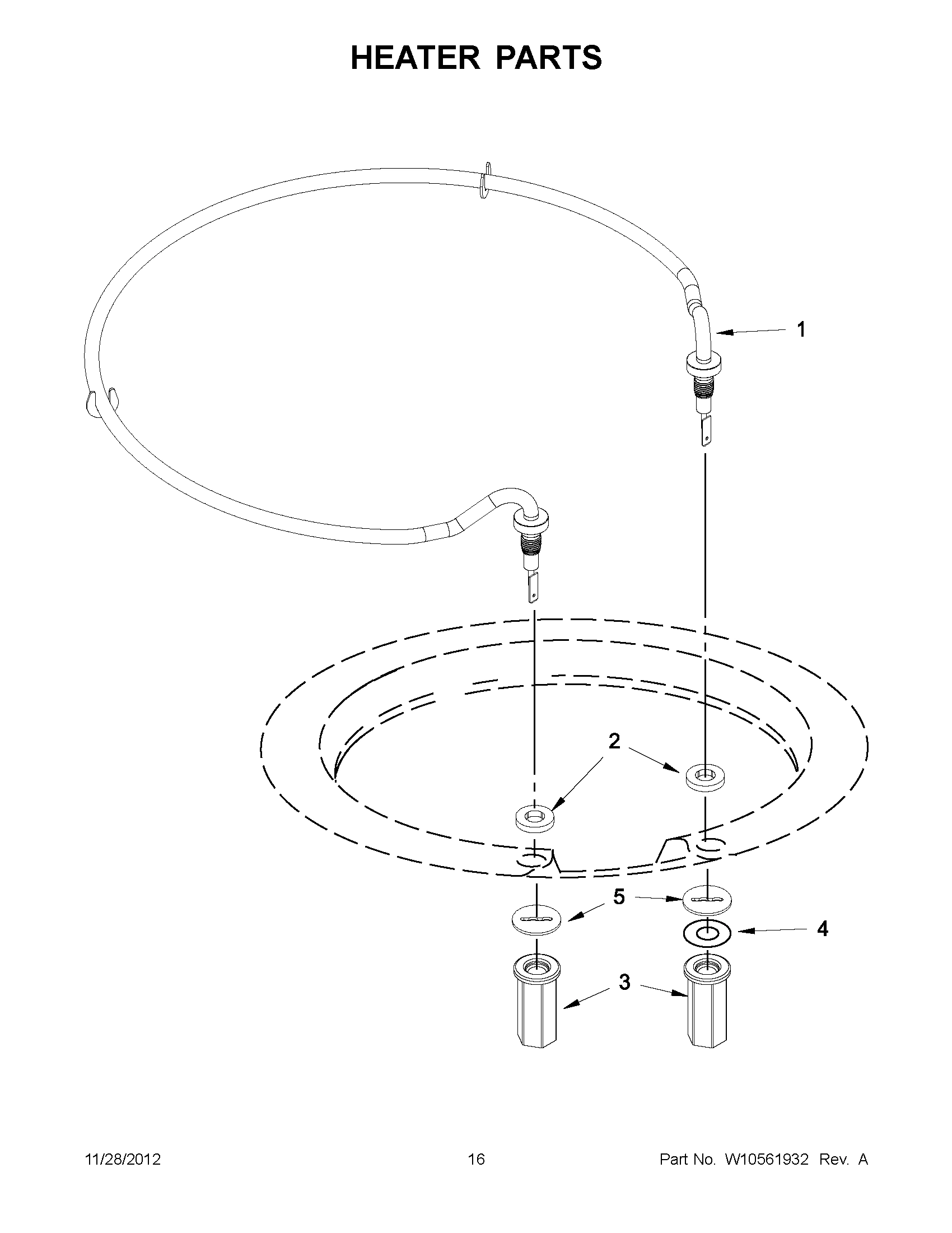

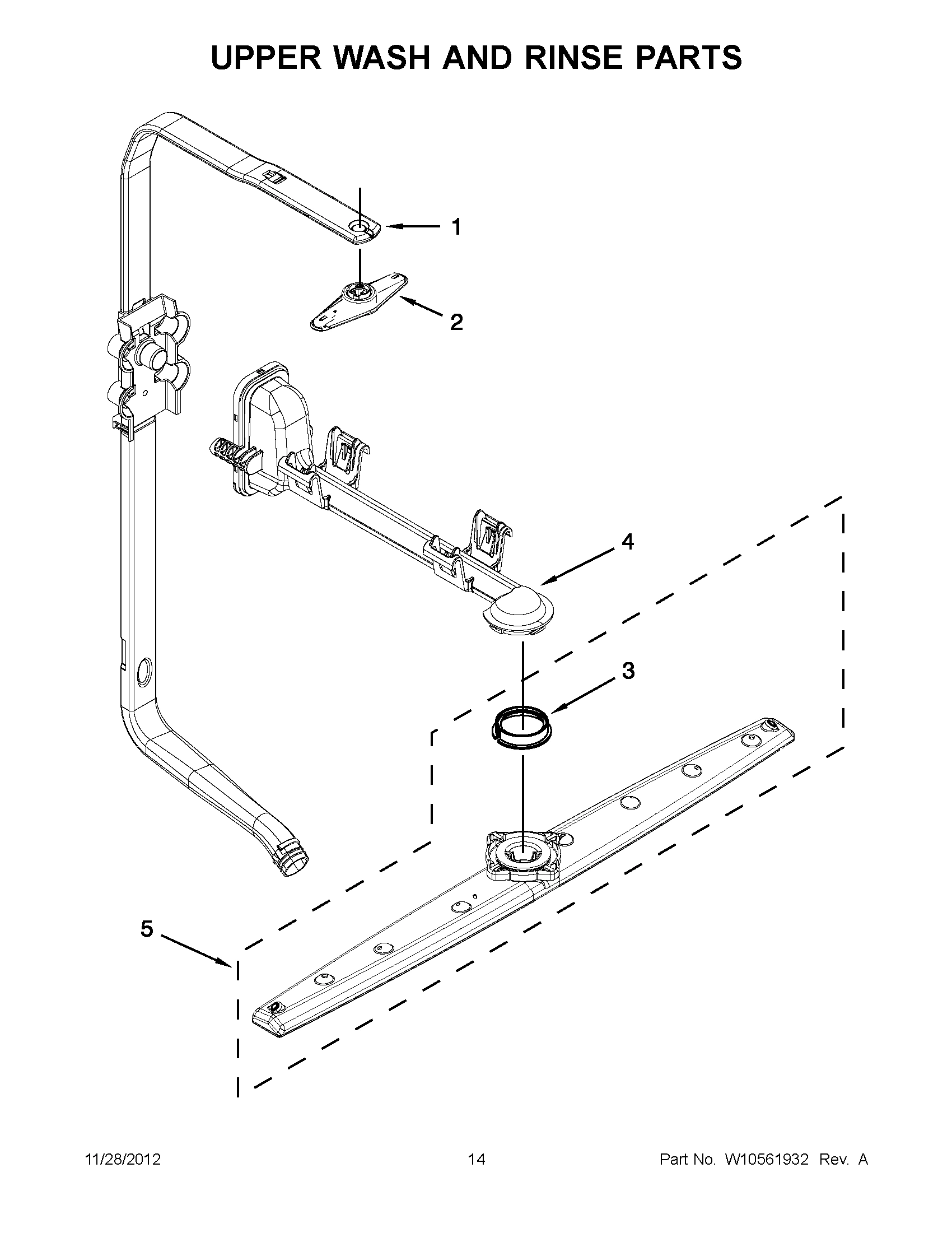

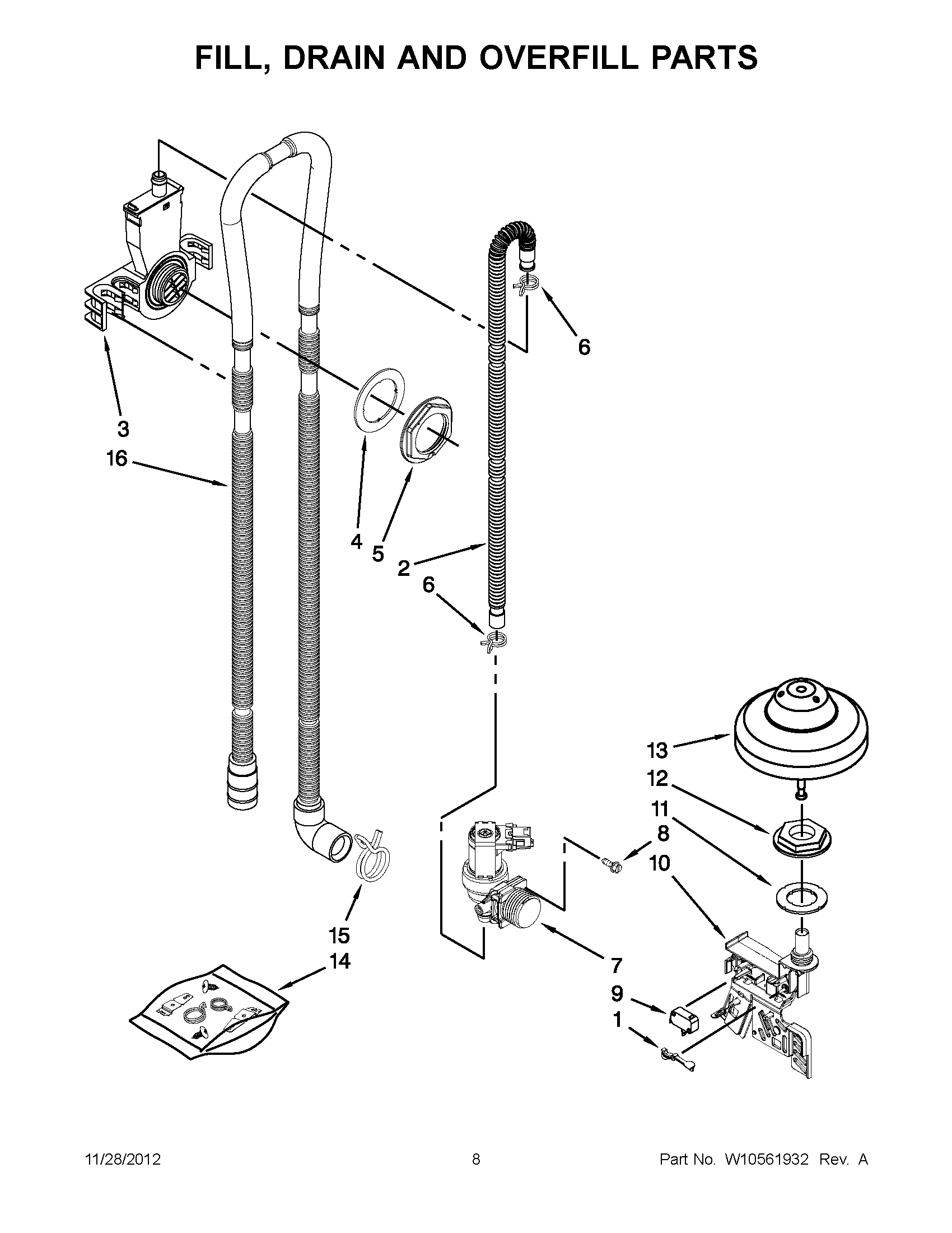

Model Whirlpool KUDL15FXSS6 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

WPW10195037 Whirlpool Lever Assembly In Stock WPL WPW10195037 $3.59

1

WPW10340745 Whirlpool Water Feed Tube In Stock WPL WPW10340745 $51.26

1

WPW10481148 Whirlpool Dishwasher Control Pane Backorder WPL WPW10481148 $184.85

1

CONSOLE ASSEMBLY (BLACK) WPL W10481150 Contact Us For Availability

2

W10195416V Whirlpool Dishwasher Roller Wheel In Stock WPL W10195416V $17.55

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $39.14

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.64

2

WPW10327455 Whirlpool Dishwasher Spray Arm In Stock WPL WPW10327455 $40.70

2

WPW10350401 Whirlpool Upper Rack Roller In Stock WPL WPW10350401 $38.46

3

WPW10195536 Whirlpool Water Inlet Valve In Stock WPL WPW10195536 $39.37

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

3

WPW10480715 Whirlpool Dishwasher Inner Door Backorder WPL WPW10480715 $134.91

3

COVER, OUTLET WPL W10500282 Contact Us For Availability

4

W10795980 Whirlpool Cap In Stock WPL W10795980 $5.62

4

W10826179 Whirlpool Dishwasher Screw In Stock WPL W10826179 $2.51

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $13.05

4

WPW10082853 Whirlpool Dishwasher Tine Pivot C In Stock WPL WPW10082853 $3.39

4

WPW10340542 Whirlpool Manifold In Stock WPL WPW10340542 $42.38

4

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

4

WPW10455268 Whirlpool Sump In Stock WPL WPW10455268 $76.16

4

WPW10497235 Whirlpool Dishwasher Lower Door S In Stock WPL WPW10497235 $4.19

4

Nut, Speed WPL 3400931 Contact Us For Availability

5

W11032769 Whirlpool Dishwasher Dispenser In Stock WPL W11032769 $78.27

5

WP8539102 Whirlpool Dishwasher Positioner Backorder WPL WP8539102 $43.02

5

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

5

WPW10078215 Whirlpool Dishwasher Tine Row Com In Stock WPL WPW10078215 $3.70

5

WPW10213825 Whirlpool Dishwasher Tube Nut Backorder WPL WPW10213825 $3.70

5

WPW10300779 Whirlpool Dishwasher Strike Backorder WPL WPW10300779 $35.52

5

WPW10441007 Whirlpool Dishwasher Panel Backorder WPL WPW10441007 $55.08

5

WPW10448645 Whirlpool Dishwasher Upper Spray In Stock WPL WPW10448645 $27.61

6

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

6

WPW10082649 Whirlpool Dishwasher Cup Shelf In Stock WPL WPW10082649 $33.42

6

WPW10195007 Whirlpool Dishwasher Seal In Stock WPL WPW10195007 $60.07

6

WPW10195870 Whirlpool Door Outer Panel In Stock WPL WPW10195870 $186.91

6

WPW10195873 Whirlpool Dishwasher Panel Backorder WPL WPW10195873 $146.35

6

WPW10463906 Whirlpool Dishwasher Screen Filte In Stock WPL WPW10463906 $13.54

6

PANEL, FRONT (INCLUDES ITEMS 8, 10 & 11) (WHI WPL W10195872 Contact Us For Availability

7

W10864081 Whirlpool Dishwasher Seal In Stock WPL W10864081 $49.46

7

WPW10267076 Whirlpool Guard Clip In Stock WPL WPW10267076 $11.18

7

WPW10462395 Whirlpool Dishwasher Brace Backorder WPL WPW10462395 $7.59

7

WPW10491331 Whirlpool Dishwasher Lower Spray In Stock WPL WPW10491331 $47.98

8

WPW10177098 Whirlpool Dishwasher Screw In Stock WPL WPW10177098 $3.62

8

WPW10195836 Whirlpool Dishwasher Indicator Li Backorder WPL WPW10195836 $29.24

8

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $28.26

8

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

8

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

9

W10315814 Whirlpool Dishwasher Wire Harness Backorder WPL W10315814 $9.00

9

W10445975 Whirlpool Dishwasher Sump Hose with In Stock WPL W10445975 $42.28

9

WPW10084086 Whirlpool Dishwasher Mount Backorder WPL WPW10084086 $13.34

9

WPW10195039 Whirlpool Dishwasher Float Switch In Stock WPL WPW10195039 $28.16

9

WPW10462232 Whirlpool Dishwasher Dispenser Mo In Stock WPL WPW10462232 $12.13

10

W10195837 Whirlpool Dishwasher Barrier Backorder WPL W10195837 $10.47

10

W10873429 Whirlpool Housing In Stock WPL W10873429 $12.55

10

WPW10195622 Whirlpool Stop In Stock WPL WPW10195622 $4.74

11

W10319007 Whirlpool Dishwasher Indicator Ligh Backorder WPL W10319007 $26.66

11

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $5.53

11

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $22.34

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $2.51

WPW10195038 Whirlpool Dishwasher Nut In Stock WPL WPW10195038 $3.70

WPW10348407 Whirlpool Dishwasher Screw Backorder WPL WPW10348407 $3.70

WPW10482094 Whirlpool Dishwasher Cover Backorder WPL WPW10482094 $10.65

WPW10503548 Whirlpool Dishwasher Panel Retain In Stock WPL WPW10503548 $10.17

WPW10503549 Whirlpool Dishwasher Retainer Cli In Stock WPL WPW10503549 $2.29

13

WPW10195036 Whirlpool Dishwasher Float In Stock WPL WPW10195036 $31.46

13

WPW10372113 Whirlpool Dishwasher Sump Tab Backorder WPL WPW10372113 $10.21

13

WPW10505748 Whirlpool Dishwasher Dishrack Whe In Stock WPL WPW10505748 $3.88

14

WPW10292152 Whirlpool Hardware Kit In Stock WPL WPW10292152 $17.39

14

WPW10348411 Whirlpool Roller Wheel Screw In Stock WPL WPW10348411 $3.68

14

WPW10531320 Whirlpool Drain Pump In Stock WPL WPW10531320 $43.79

15

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $11.55

15

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $2.51

16

WPW10476221 Whirlpool Dishwasher Diffuser Backorder WPL WPW10476221 $9.53

17

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $2.51

18

WP8269146 Whirlpool Dishwasher Clamp Backorder WPL WP8269146 $3.70

18

WP8270020 Whirlpool Dishwasher Spring In Stock WPL WP8270020 $12.77

19

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

20

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $16.60

22

SHIELD, THERMOSTAT WPL W10292870 Contact Us For Availability

24

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

25

W10300703 Whirlpool Dishwasher Bracket Stat Backorder WPL W10300703 $7.37

27

W10195630 Whirlpool Dishwasher Spacer Backorder WPL W10195630 $6.39

27

W10195631 Whirlpool Dishwasher Tank Spacer Backorder WPL W10195631 $6.35

29

STRAIN RELIEF WPL W10337661 Contact Us For Availability

3385556 Whirlpool Drain Hose In Stock WPL 3385556 $13.65

8171477 Whirlpool Dishwasher Mounting Bracket Backorder WPL 8171477 $16.47

8212489 Whirlpool Dishwasher Panel Backorder WPL 8212489 $125.83

8212560 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8212560 $11.09

W10195735A Whirlpool Dishwasher Door Handle B Backorder WPL W10195735A $28.26

W10195736A Whirlpool Dishwasher Handle Backorder WPL W10195736A $25.69

W10195738A Whirlpool Stainless Steel Door Han Backorder WPL W10195738A $25.97

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $15.77

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $15.43

PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) WPL 4392899 Contact Us For Availability

POWER CORD KIT (INCLUDED CORD & MISC. HARWARE WPL 4317824 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) WPL 285006 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU WPL 4392901 Contact Us For Availability

ACCESSORIES, MOISTURE BARRIER KIT WPL 4396277 Contact Us For Availability

ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL WPL 8171659 Contact Us For Availability

ACCESSORIES, SIDE PANEL KITS (WHITE) WPL 8171656 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

ACCESSORIES, SIDE PANEL KITS (BLACK) WPL 8171657 Contact Us For Availability
