Model Whirlpool KSUS27QDAL00 – Common Parts & Diagrams
10 - UNIT
12 - AIR FLOW, LIT/OPTIONAL

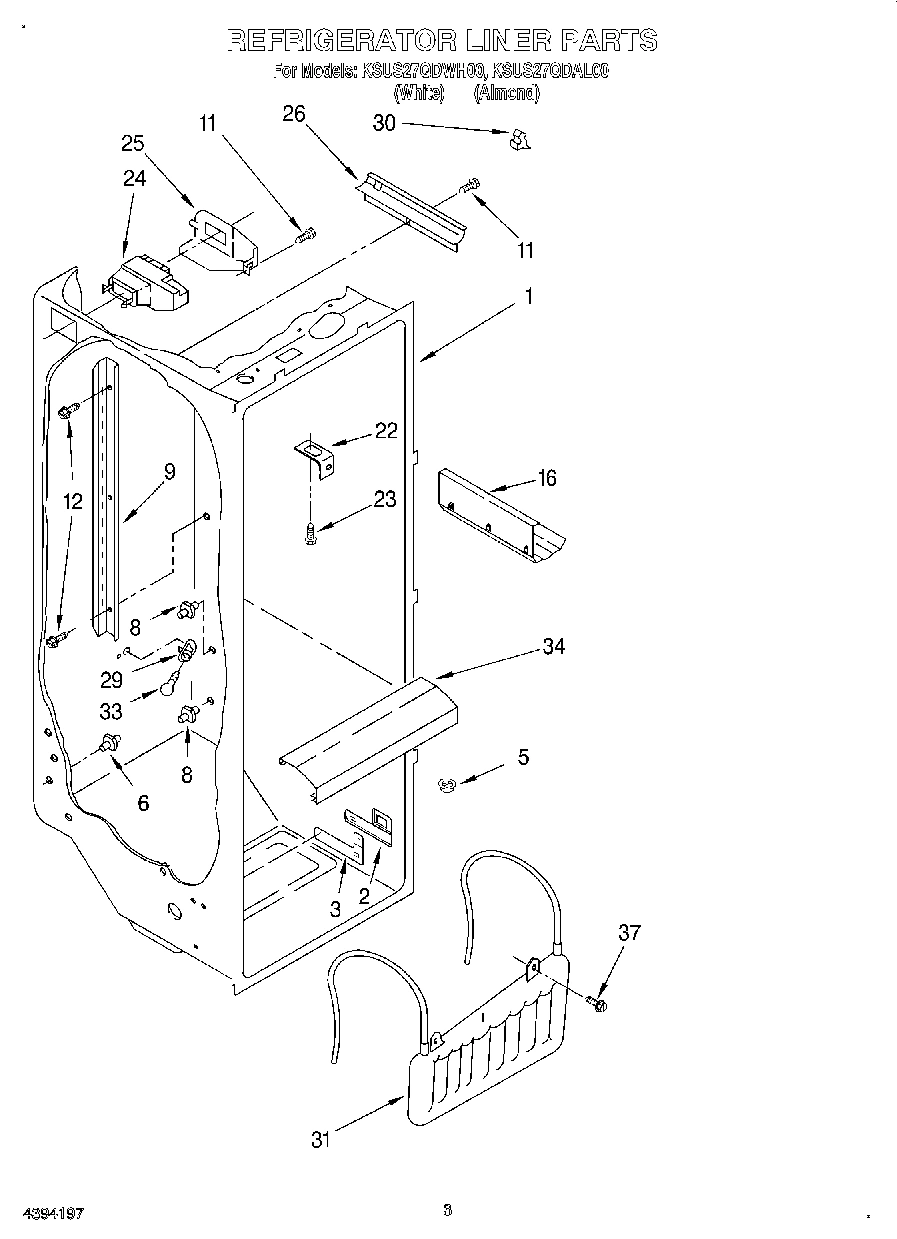

02 - REFRIGERATOR LINER
05 - FREEZER LINER

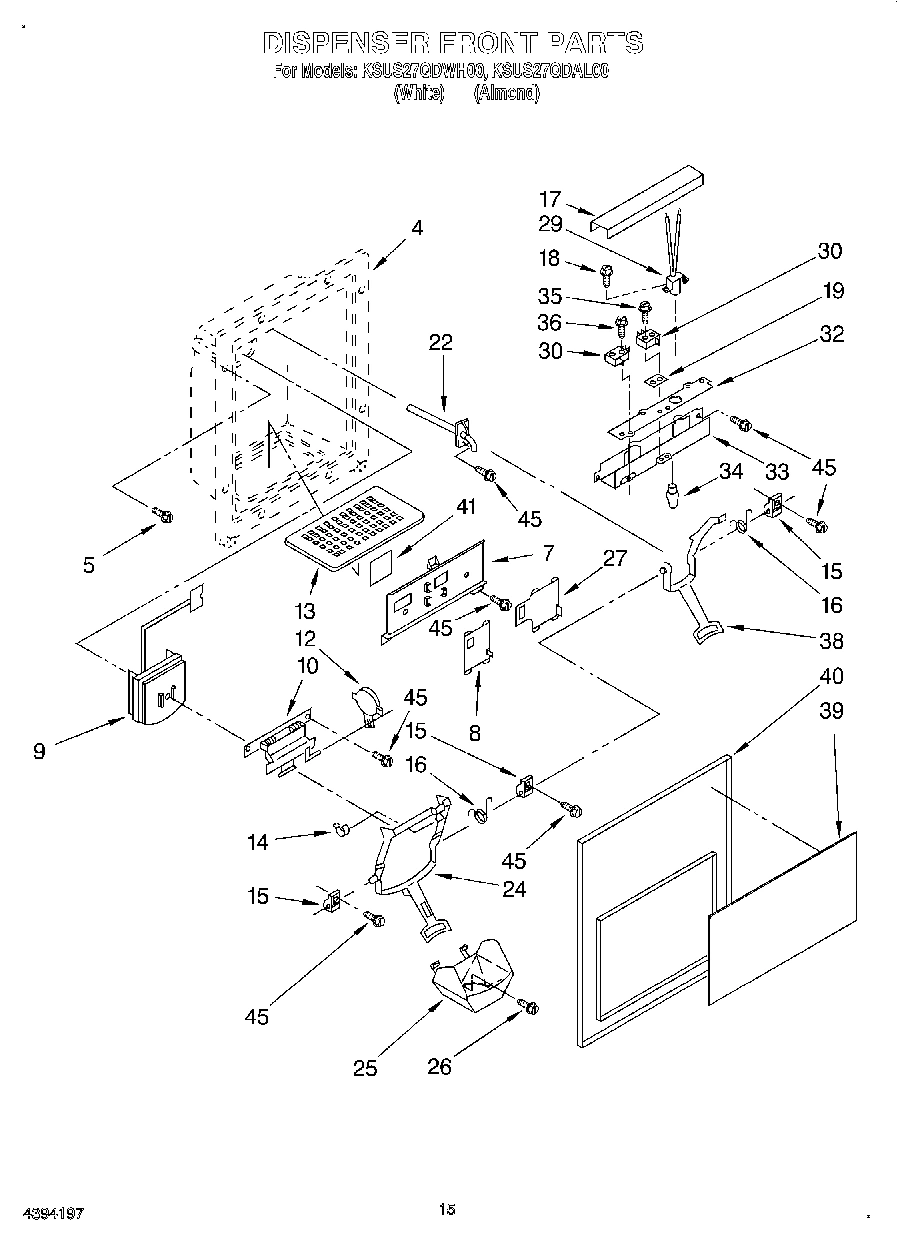

09 - DISPENSER FRONT
11 - ICEMAKER

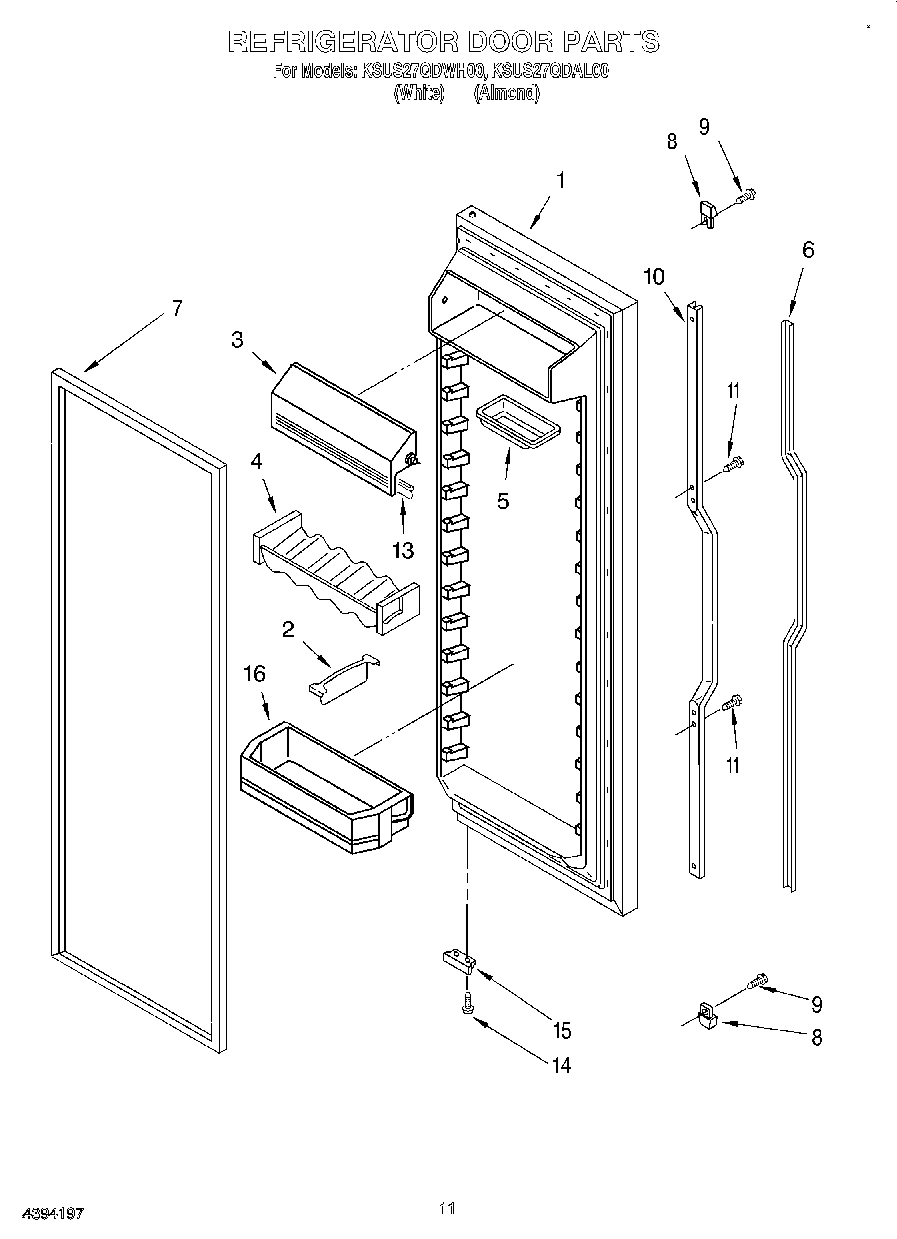

07 - REFRIGERATOR DOOR

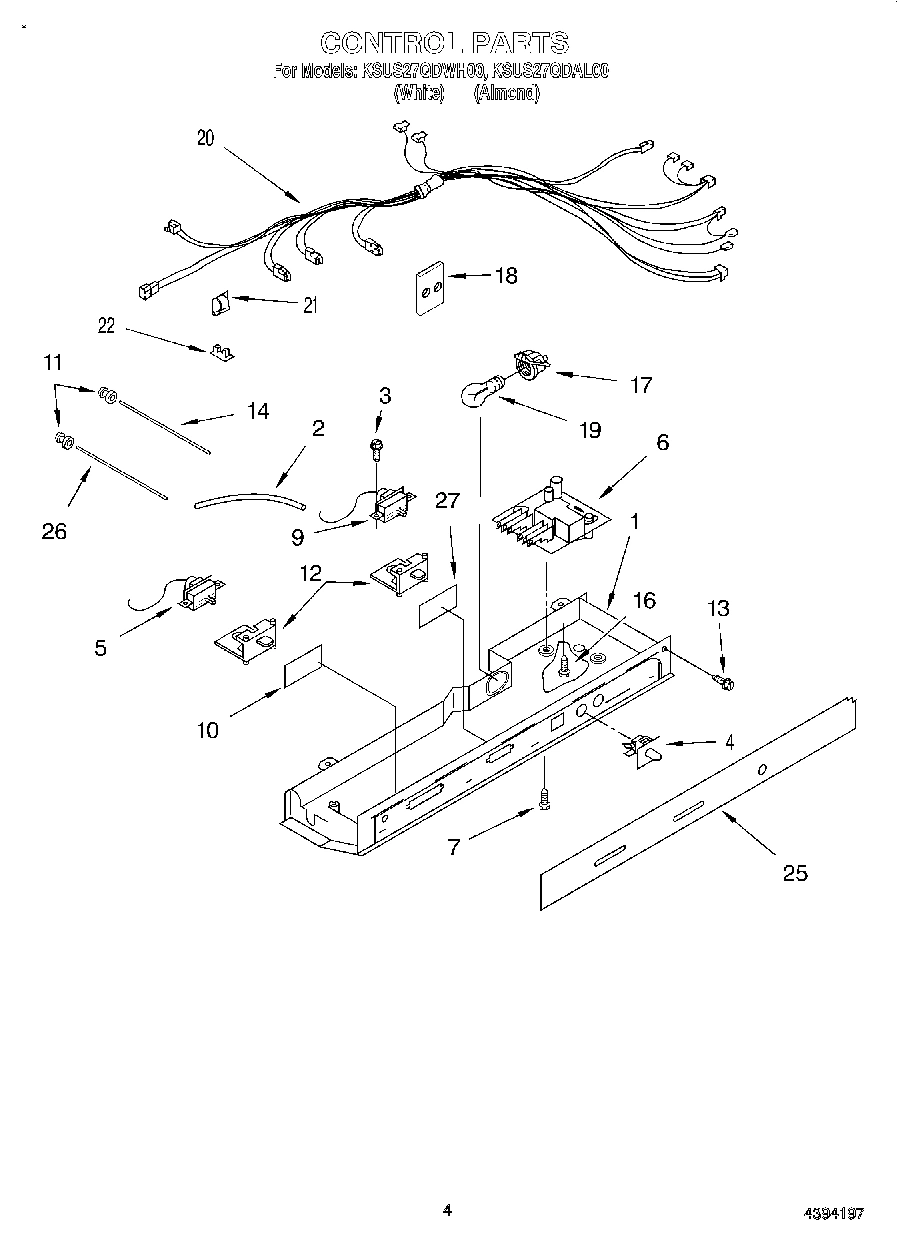

03 - CONTROL
04 - REFRIGERATOR SHELF

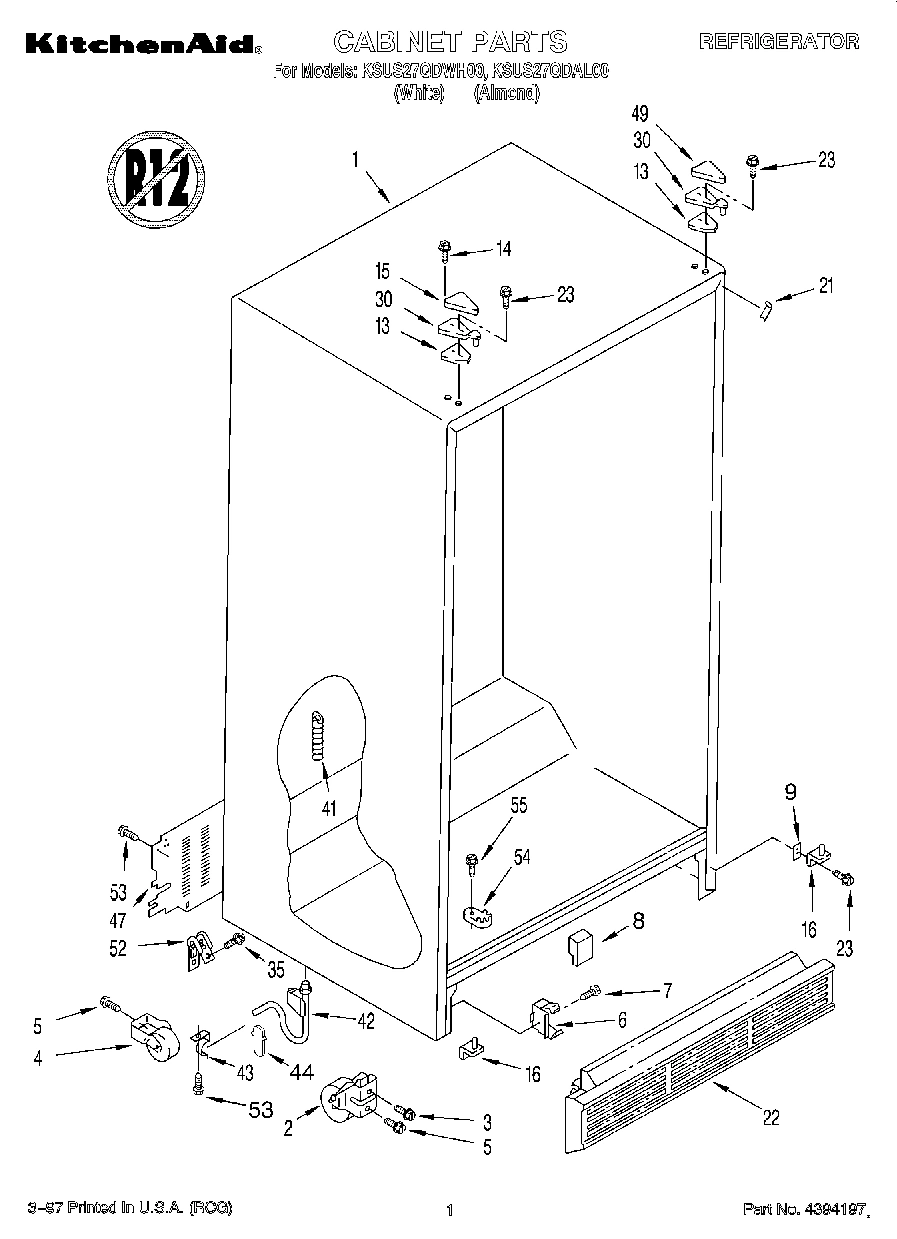

01 - CABINET

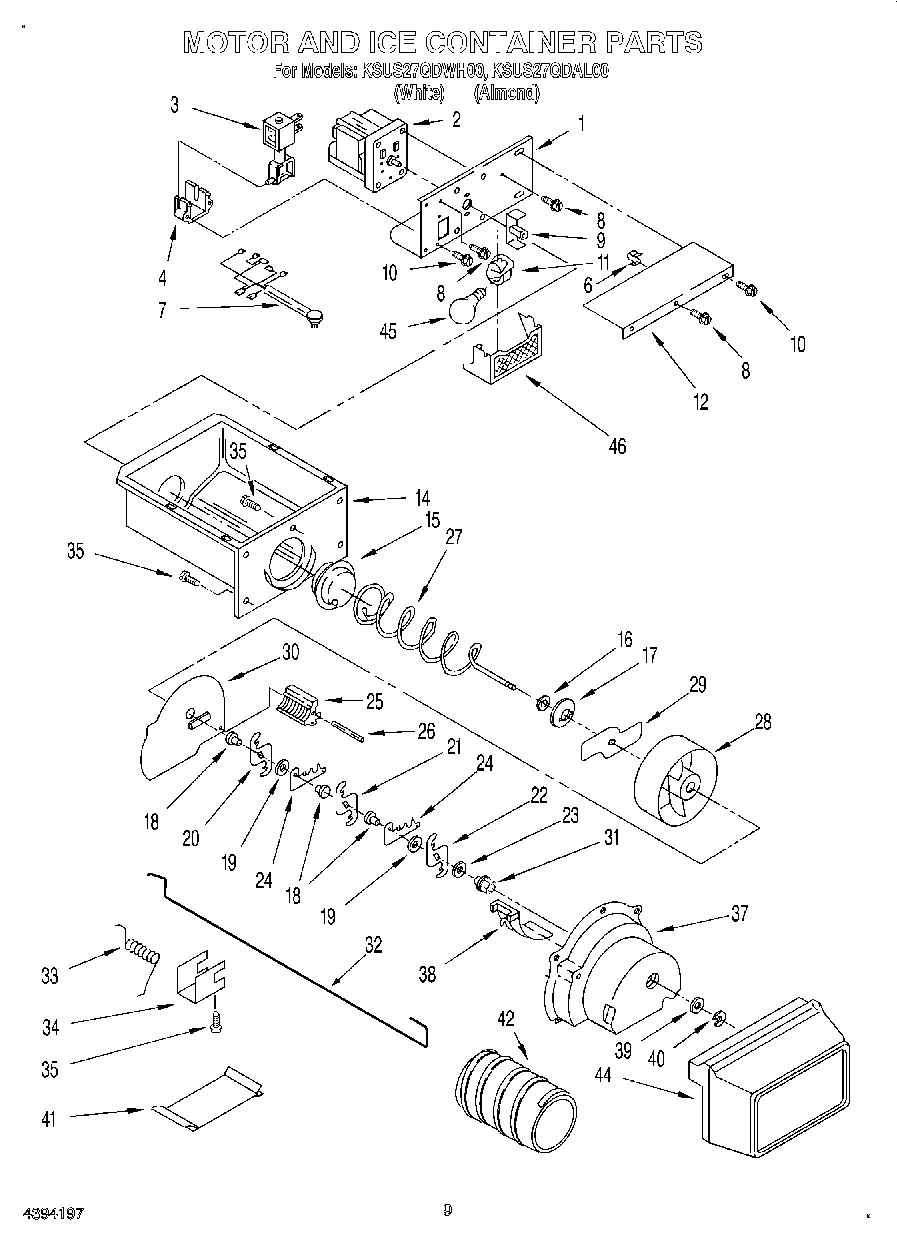

06 - MOTOR AND ICE CONTAINER

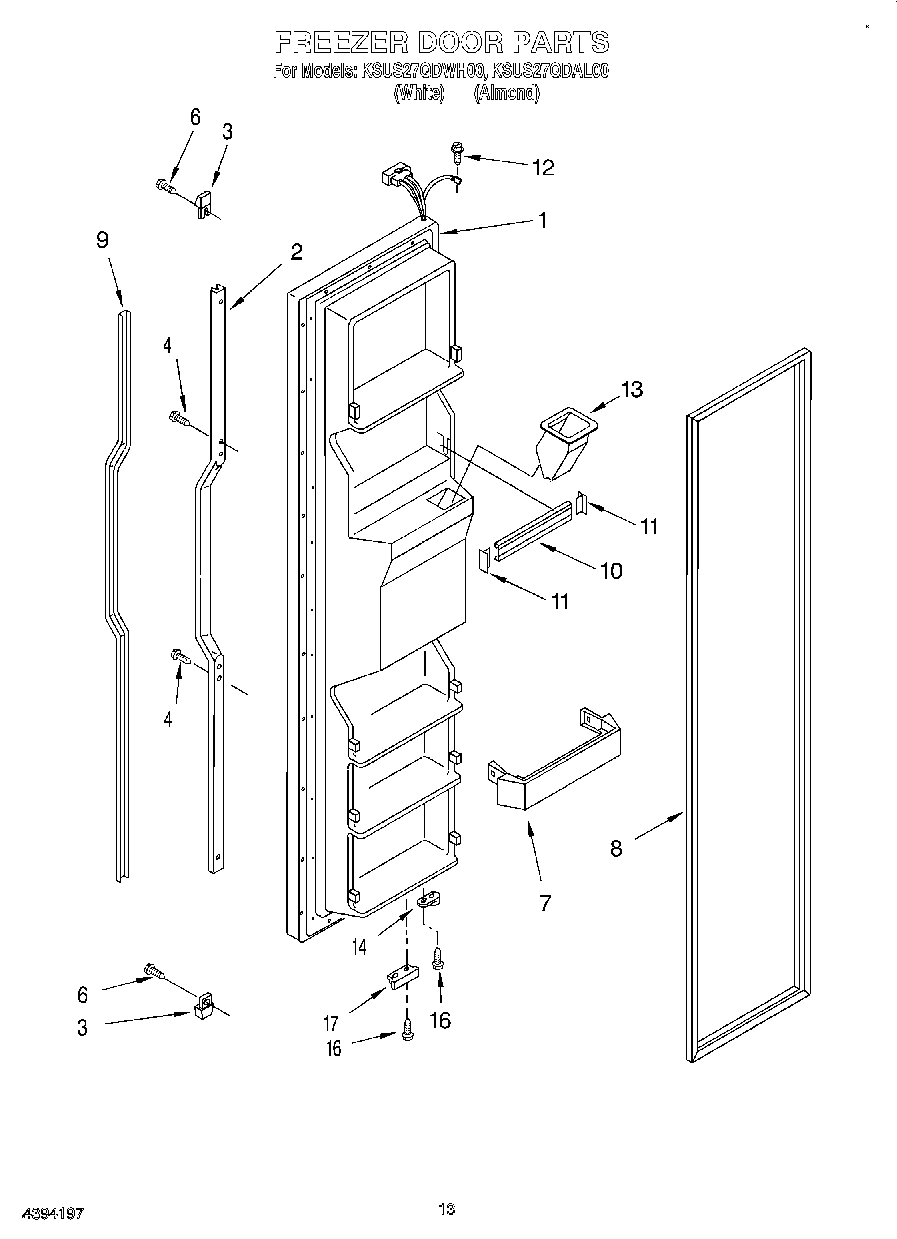

08 - FREEZER DOOR
Common parts from model Whirlpool KSUS27QDAL00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2189688 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2189689 Contact Us For Availability
1
Control Box WPL 2172930 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 2174023 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI108094A Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2189702 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2189703 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Load, Lock (4) WPL 2171283 Contact Us For Availability
2
Retainer, Insert WPL 2173824 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Door, Compartment WPL 2171078 Contact Us For Availability
3
End Cap (2) WPL 2173826 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI108097A Contact Us For Availability
4
Holder, Beverage WPL 1125981 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
5
Butter, Tray WPL 1125936 Contact Us For Availability
6
Screw WPL 489075 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Insert, Handle (White) WPL 2173825 Contact Us For Availability
9
Insert, Handle (Almond) WPL 2173828 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Gasket WPL 2159124 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Chute, Ice WPL 2156145 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Shelf Bin (4) WPL 2171062 Contact Us For Availability
16
Acrylic Panel Kit (Black) WPL 4210348 Contact Us For Availability
16
Acrylic Panel Kit (Almond) WPL 4211147 Contact Us For Availability
16
Acrylic Panel Kit (White) WPL 4211148 Contact Us For Availability
16
Trim Kit WPL 4318336 Contact Us For Availability
16
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
16
Handle Inserts (Woodgrain) WPL 4318340 Contact Us For Availability
16
Handle Inserts (Black Grille Kit) WPL 4318417 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Bracket, Door Stop WPL 2155331 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
20
Control Box Harness WPL 2172953 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
23
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
23
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177146 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 2177147 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161486 Contact Us For Availability
25
Cover WPL 2169935 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
26
Frame And Roller Asm. (Cantilever) WPL 2174387 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
28
Screw WPL 489439 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Carriage WPL 2168792 Contact Us For Availability
31
Roller, Front (2) WPL 2179486 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Roller, Rear (2) WPL 2179487 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Round Pan WPL 2168793 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Divider, 1/2 WPL 2174363 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
35
Divider, 1/4 WPL 2174364 Contact Us For Availability
36
Screw (6) WPL 489155 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177151 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2177152 Contact Us For Availability
39
Insert, Cover (Almond) WPL 2174339 Contact Us For Availability
39
Insert, Cover (White) WPL 2174341 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (Almond) WPL 2179387 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (White) WPL 2179389 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
41
Housing Filler WPL 2152700 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
