Model Whirlpool KSUS25QDWH01 – Common Parts & Diagrams
07 - REFRIGERATOR DOOR
09 - DISPENSER FRONT

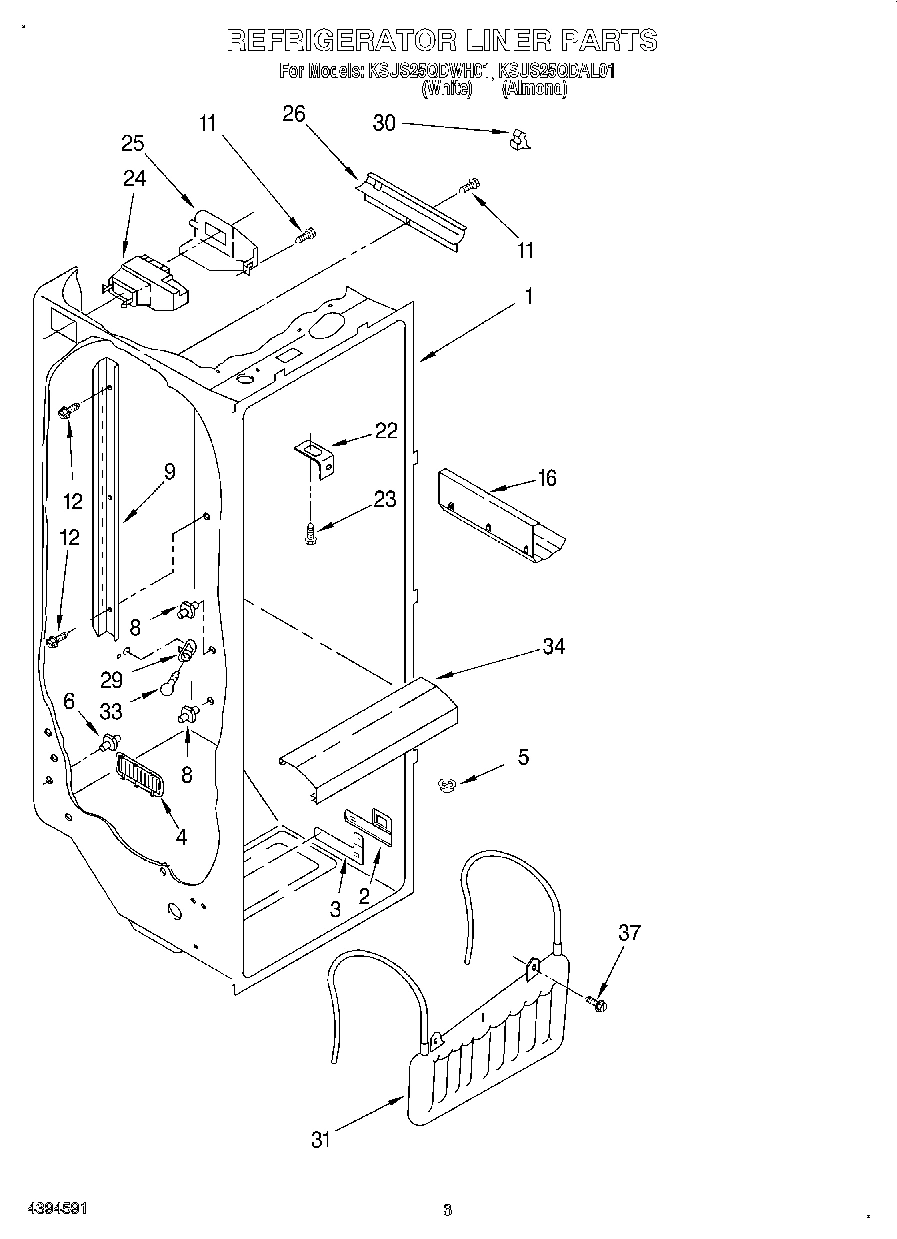

02 - REFRIGERATOR LINER

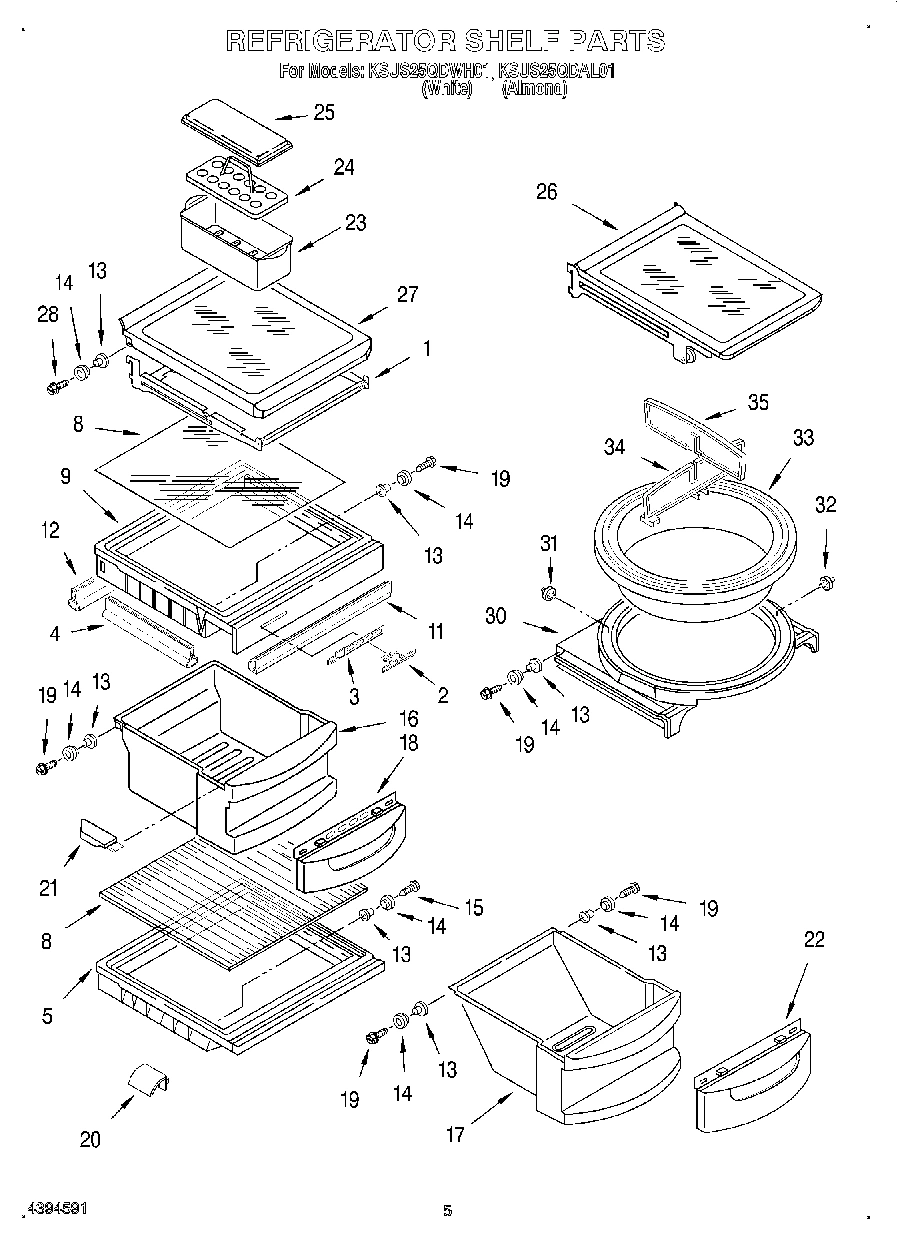

04 - REFRIGERATOR SHELF

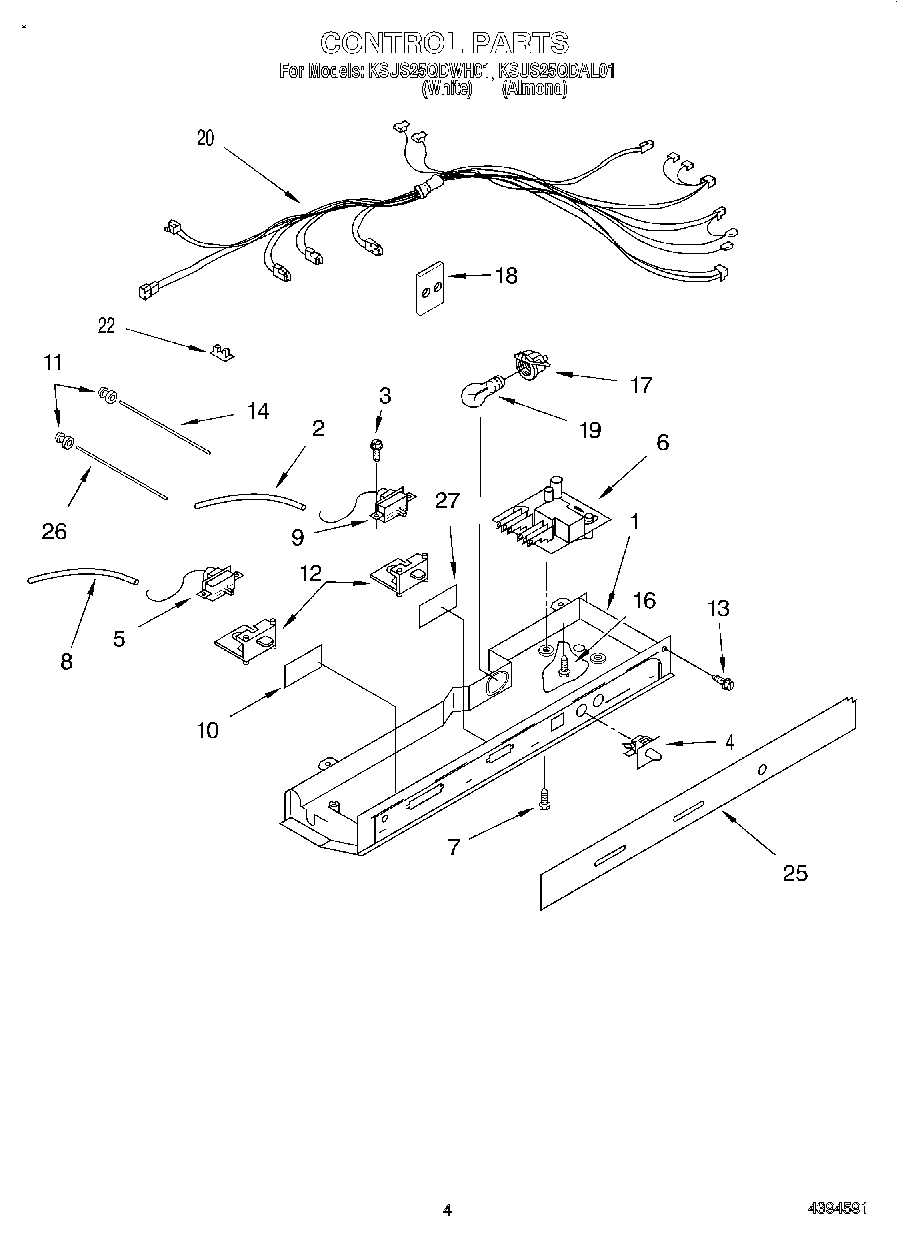

03 - CONTROL
10 - UNIT
06 - MOTOR AND ICE CONTAINER
08 - FREEZER DOOR

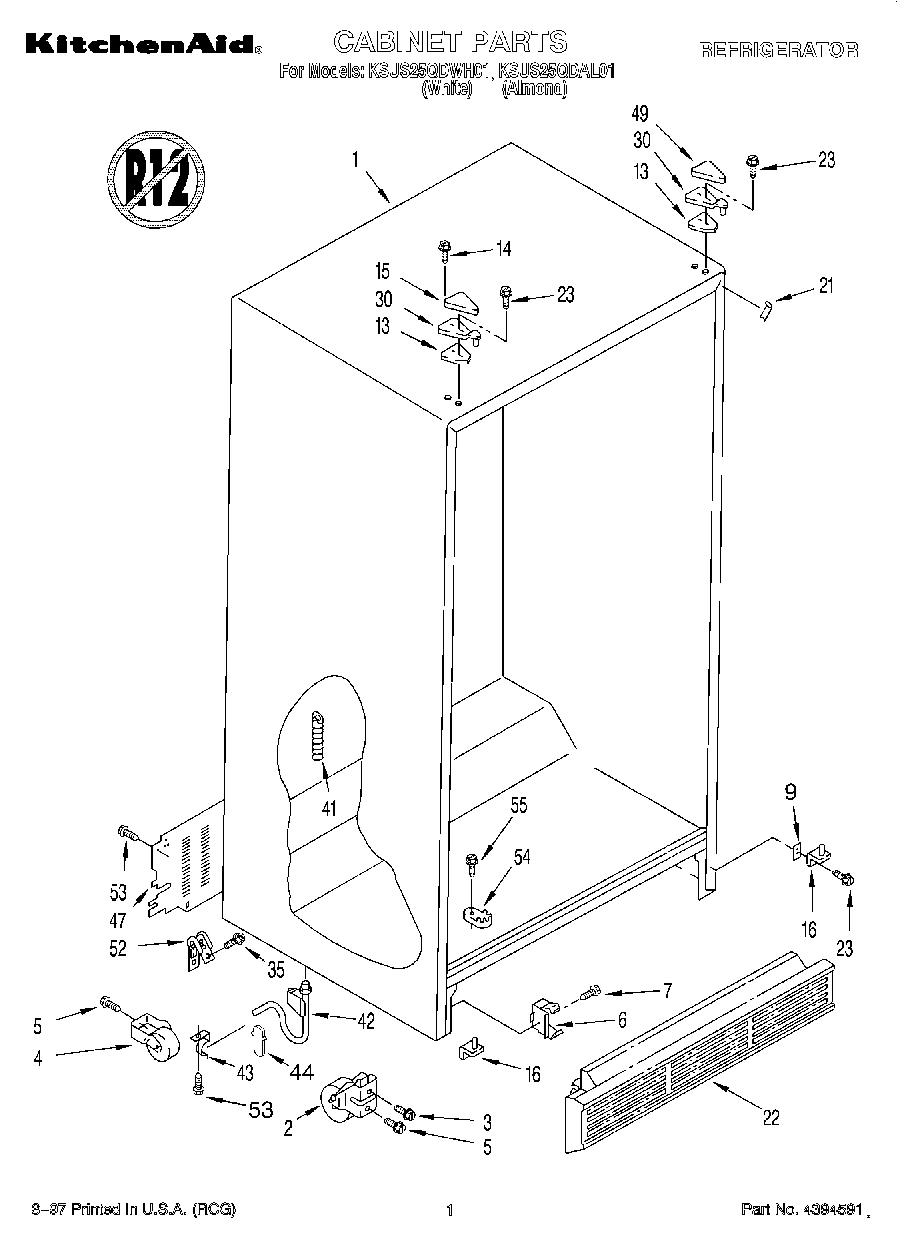

01 - CABINET
05 - FREEZER LINER
12 - AIR FLOW, LIT/OPTIONAL
11 - ICEMAKER
Common parts from model Whirlpool KSUS25QDWH01
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2175536 WPL LIT2175536 Contact Us For Availability
WPL LIT2181963 WPL LIT2181963 Contact Us For Availability
WPL LIT2194922 WPL LIT2194922 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2194871N Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2194871W Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI108089A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI108091A Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Retainer, Insert WPL 2194899 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
3
End Cap (2) WPL 2173826 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
6
Screw WPL 489075 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Insert, Handle (White) WPL 2173825 Contact Us For Availability
9
Insert, Handle (Almond) WPL 2173828 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Chute, Ice WPL 2156146 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Relay (See Overload) WPL ARI108093A Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Bracket, Door Stop WPL 2155332 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Basket, Shallow WPL 2181763 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
Front, Basket WPL 2171767 Contact Us For Availability
23
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
23
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Basket, Square WPL 2181765 Contact Us For Availability
23
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
23
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
23
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
23
WPL 978883 WPL 978883 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Basket, Sloped WPL 2181764 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
31
Unit Harness WPL 2194876 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
44
Front Cover, Ice Container WPL 2196004 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
