Model Whirlpool KSUP25QDWH00 – Common Parts & Diagrams
09 - AIR FLOW
11 - UNIT

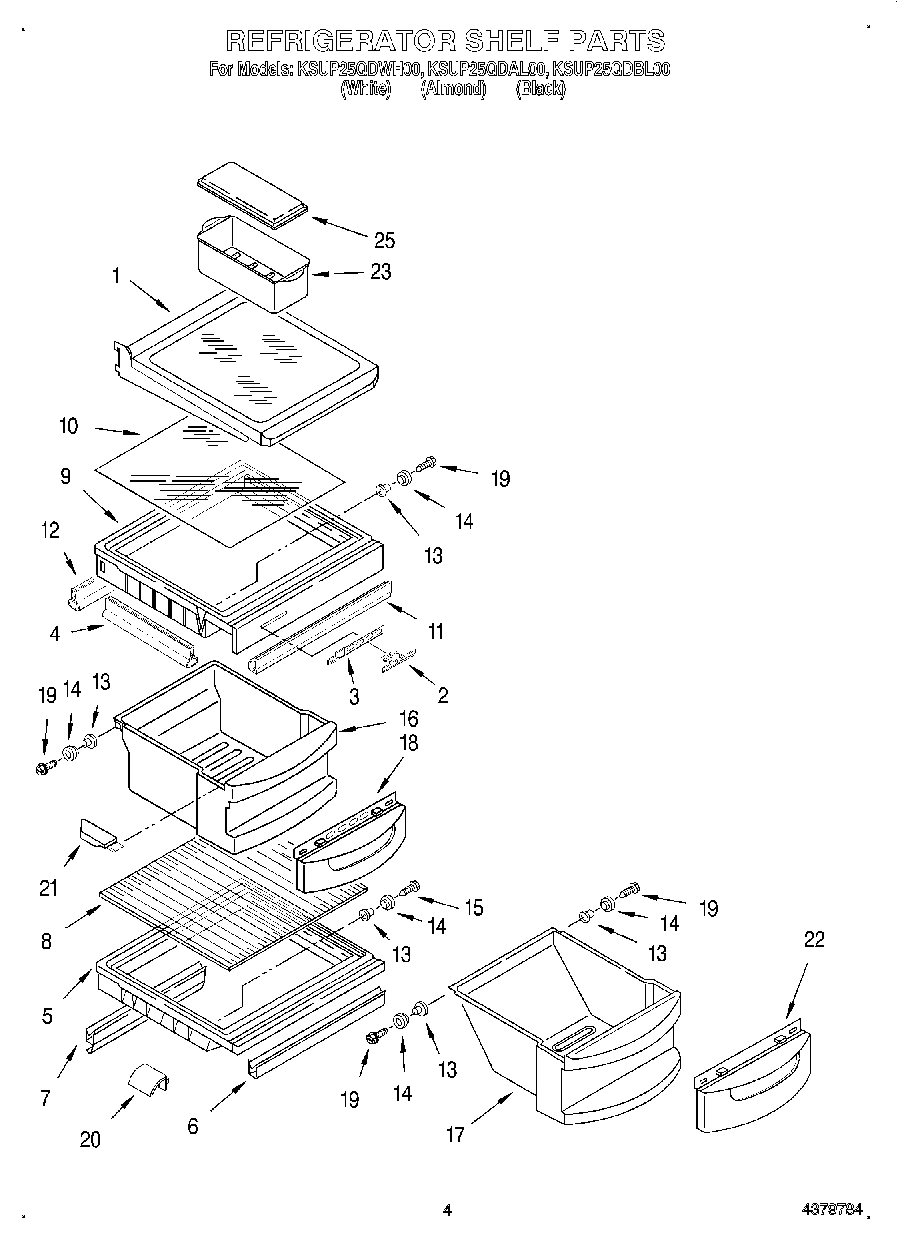

03 - REFRIGERATOR SHELF

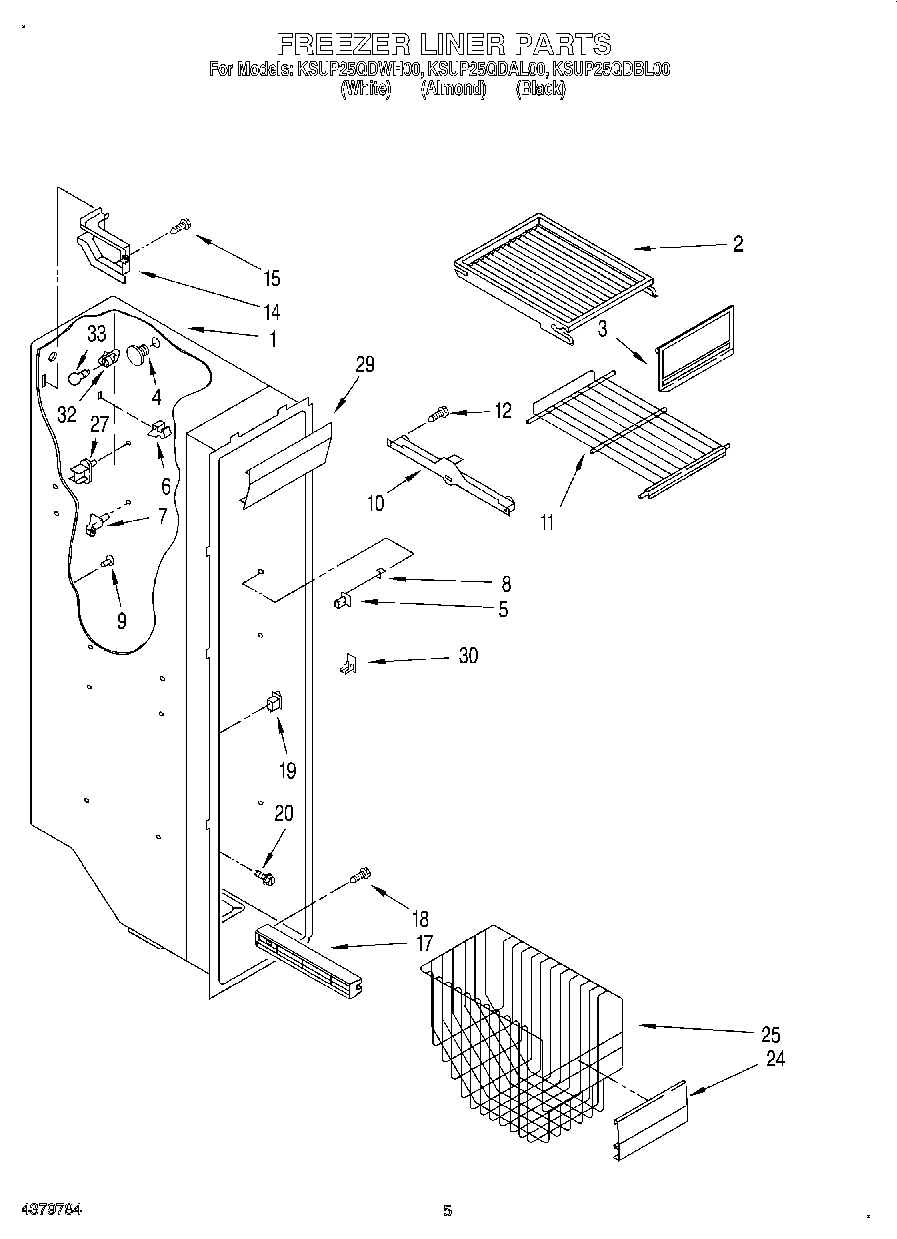

04 - FREEZER LINER

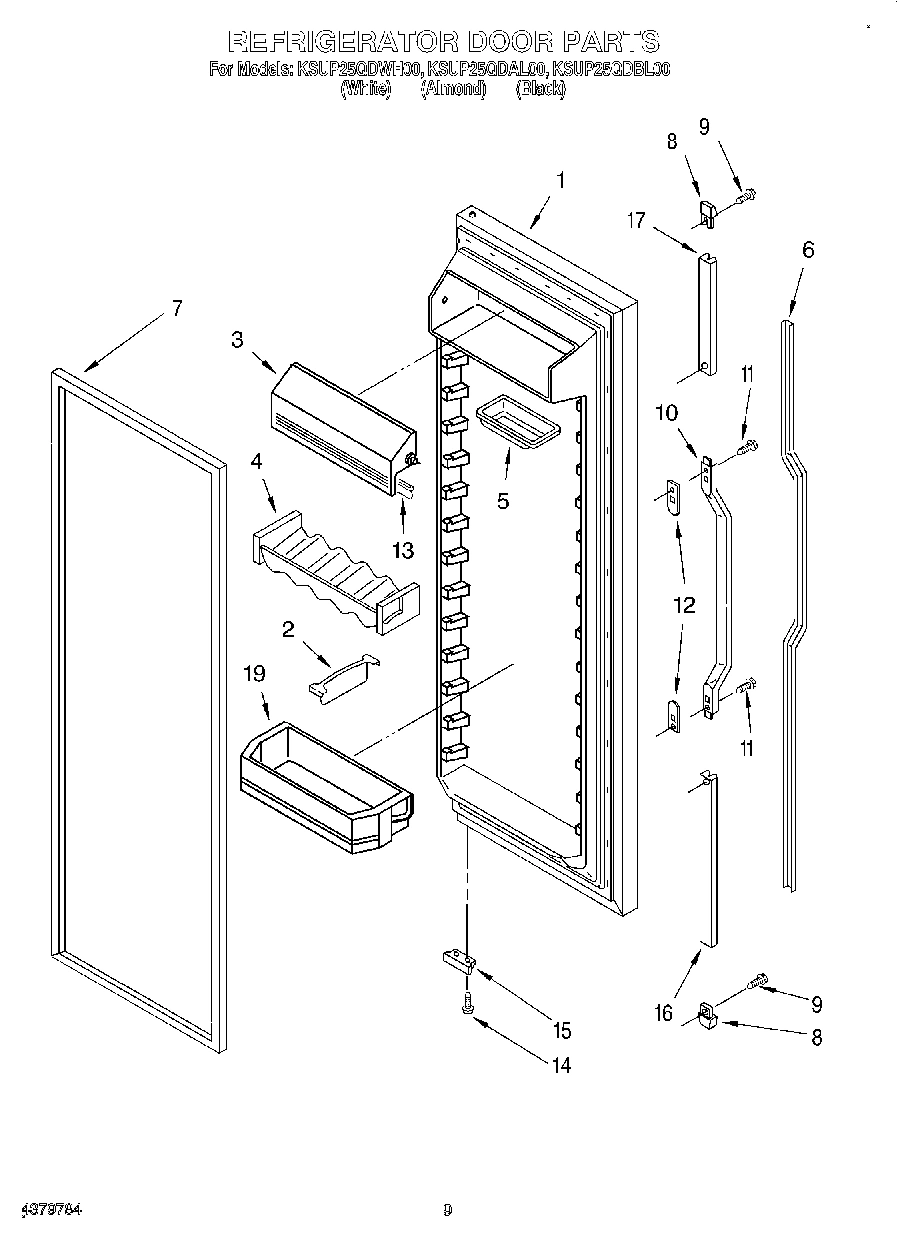

06 - REFRIGERATOR DOOR

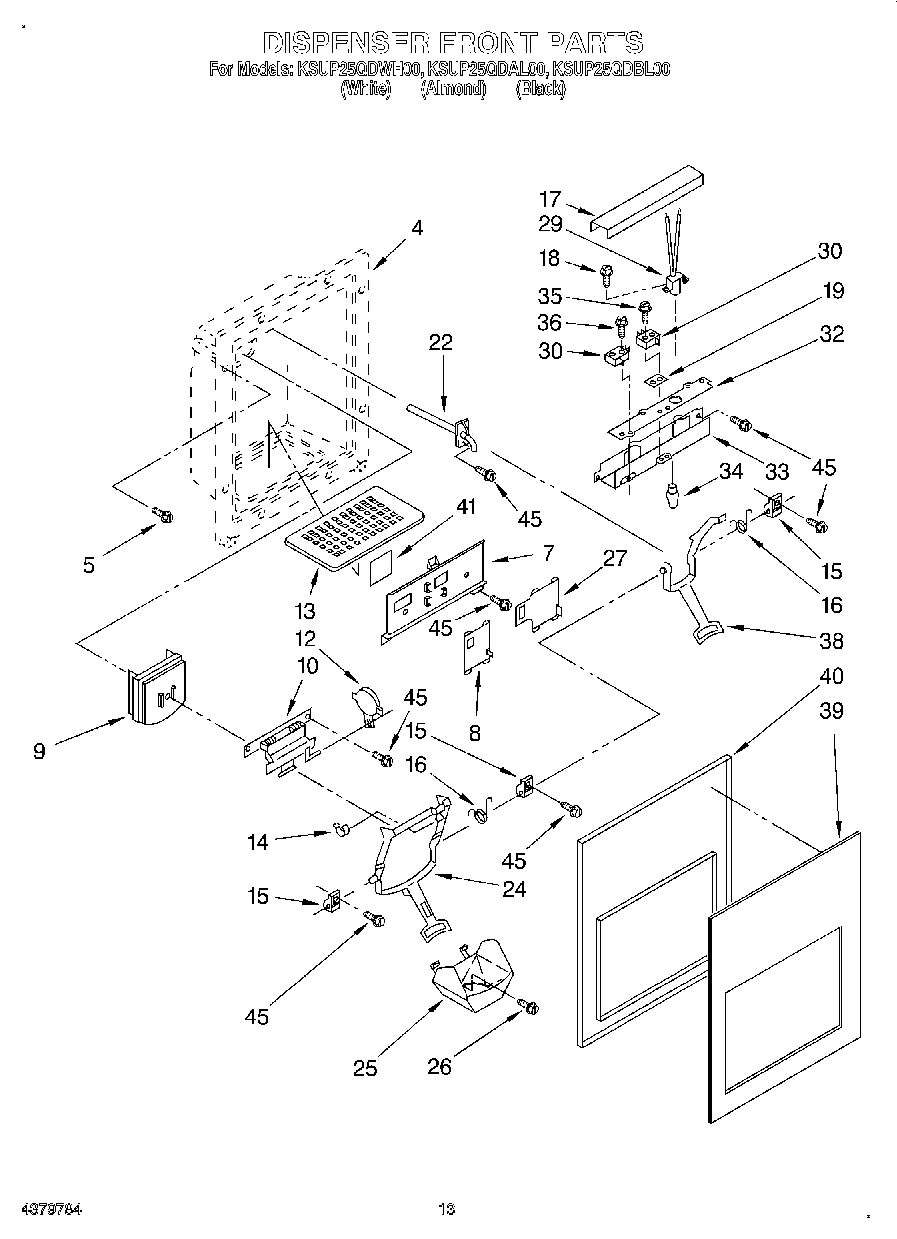

08 - DISPENSER FRONT

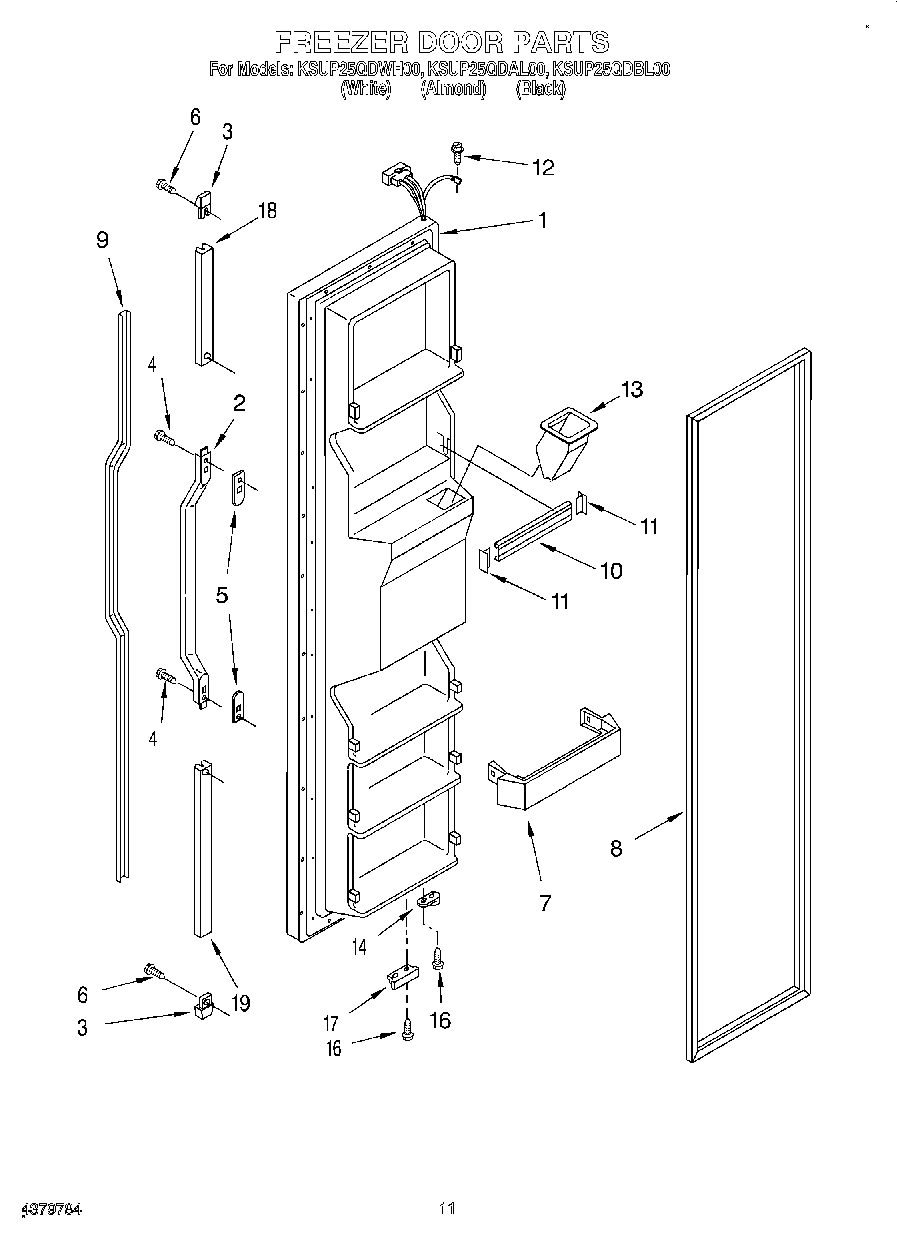

07 - FREEZER DOOR

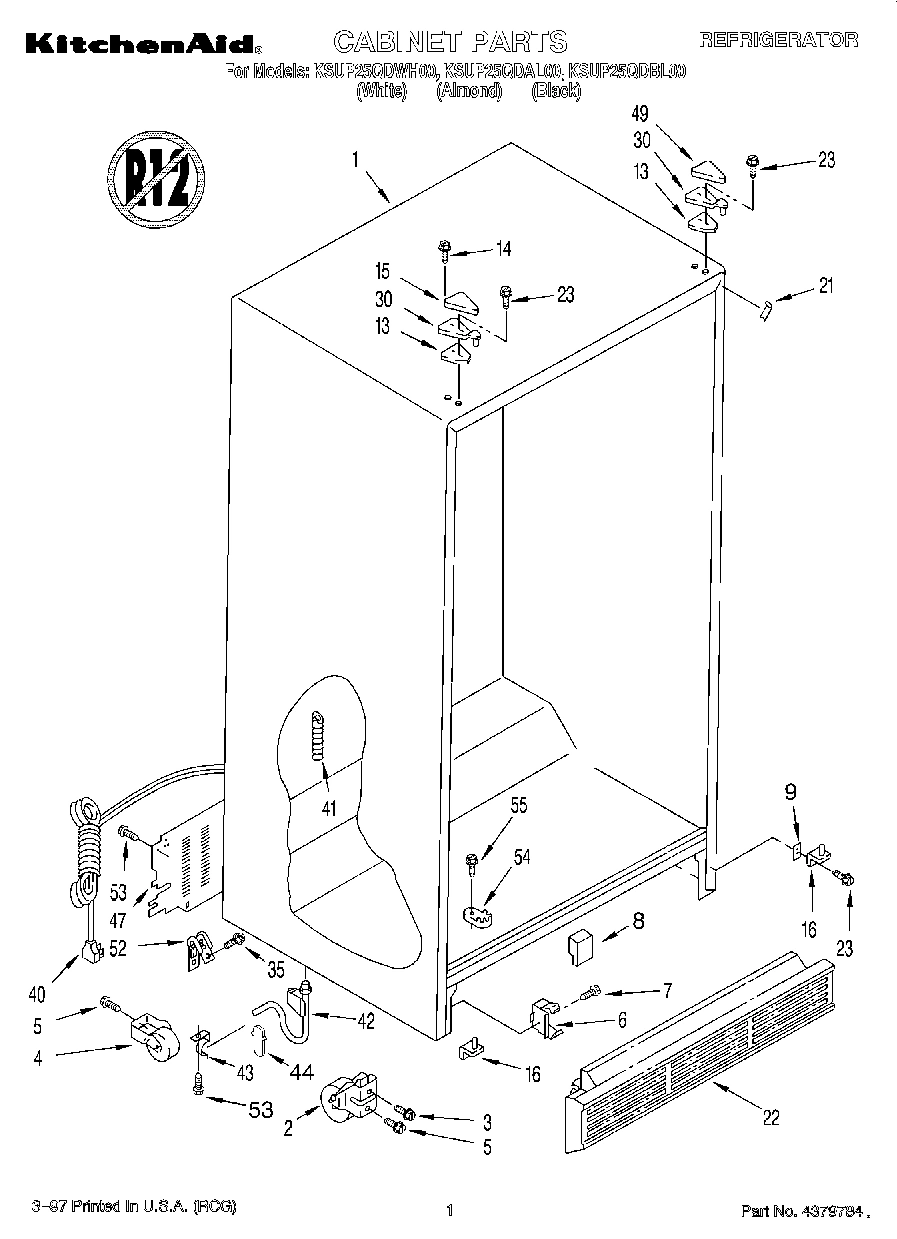

01 - CABINET

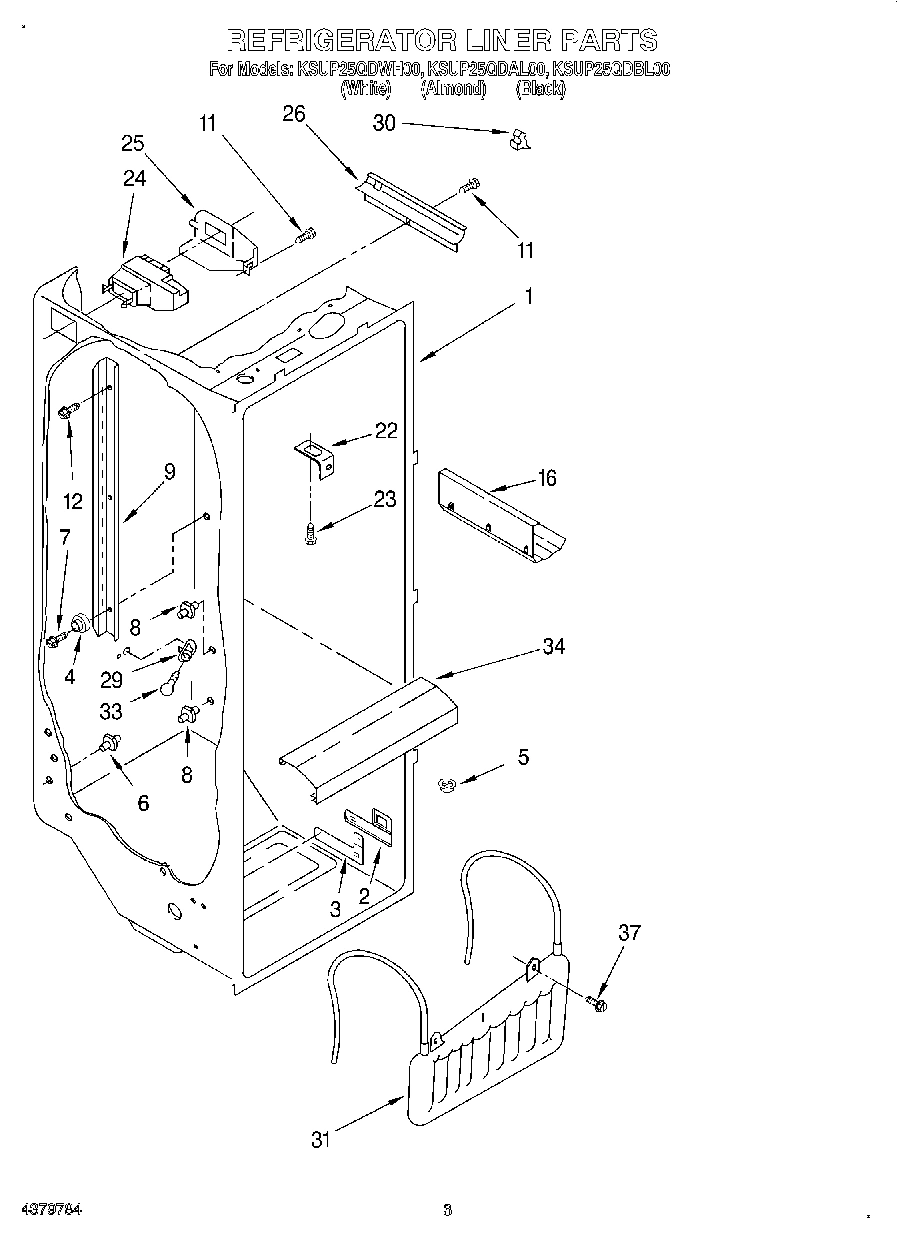

02 - REFRIGERATOR LINER

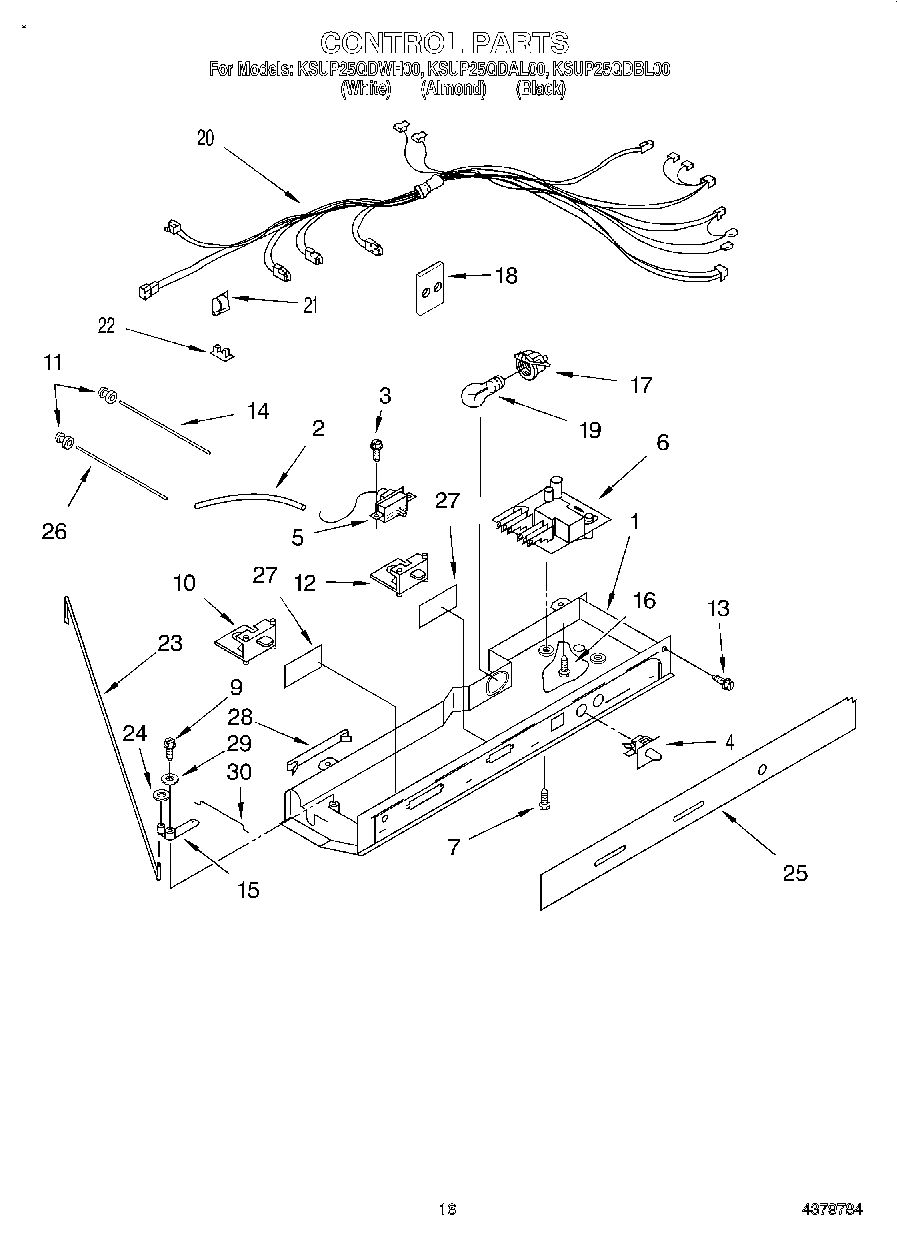

10 - CONTROL
12 - ICEMAKER, LIT/OPTIONAL
05 - MOTOR AND ICE CONTAINER
Common parts from model Whirlpool KSUP25QDWH00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2161476 WPL LIT2161476 Contact Us For Availability
WPL LIT2176077 WPL LIT2176077 Contact Us For Availability
WPL LIT2180080 WPL LIT2180080 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2179924 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2179925 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2179926 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI108004A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI108005A Contact Us For Availability
1
Control Box WPL 2176074 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Handle Assembly WPL 1107215 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Door, Compartment WPL 2171078 Contact Us For Availability
3
End Cap (2) WPL 1107341 Contact Us For Availability
4
Holder, Beverage WPL 1125981 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI108007A Contact Us For Availability
4
Stud WPL 658944 Contact Us For Availability
5
Butter, Tray WPL 1125936 Contact Us For Availability
5
Spacer, Handle WPL 1107651 Contact Us For Availability
5
Thermostat WPL 2175515 Contact Us For Availability
6
Screw WPL 489075 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
7
Screw WPL 487559 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Insert, Handle (White) WPL 1117948 Contact Us For Availability
9
Insert, Handle (Almond) WPL 1117949 Contact Us For Availability
9
Insert, Handle (Black) WPL 2180118 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2171996 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Shelf (2) WPL 2174268 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Gasket WPL 2159124 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Grille, Overflow (Black) WPL 2152678 Contact Us For Availability
13
Chute, Ice WPL 2156146 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Bracket, Door Stop (Chrome) WPL 2155332 Contact Us For Availability
17
Bracket, Door Stop (Black) WPL 2155334 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Retainer, Insert WPL 1107243 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Retainer, Insert WPL 1117952 Contact Us For Availability
19
Shelf Bin (4) WPL 2171063 Contact Us For Availability
19
Acrylic Panel Kit (Black) WPL 4210348 Contact Us For Availability
19
Acrylic Panel Kit (Almond) WPL 4211147 Contact Us For Availability
19
Acrylic Panel Kit (White) WPL 4211148 Contact Us For Availability
19
Trim Kit WPL 4318336 Contact Us For Availability
19
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
19
Handle Inserts (Woodgrain) WPL 4318340 Contact Us For Availability
19
Handle Inserts (Black Grille Kit) WPL 4318417 Contact Us For Availability
20
Control Box Harness WPL 2162460 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Black) WPL 2177143 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177146 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 2177147 Contact Us For Availability
24
Fastener, Push-On WPL 489391 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175514 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Window (2) WPL 2175513 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
36
Screw (6) WPL 489155 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Black) WPL 2177148 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177151 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2177152 Contact Us For Availability
39
Insert, Cover (Almond) WPL 2174314 Contact Us For Availability
39
Insert, Cover (Black) WPL 2174315 Contact Us For Availability
39
Insert, Cover (White) WPL 2174316 Contact Us For Availability
40
Co WPL 2174292 Contact Us For Availability
40
WPL 2174293 WPL 2174293 Contact Us For Availability
40
WPL 2174294 WPL 2174294 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
41
Housing Filler WPL 2152700 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
