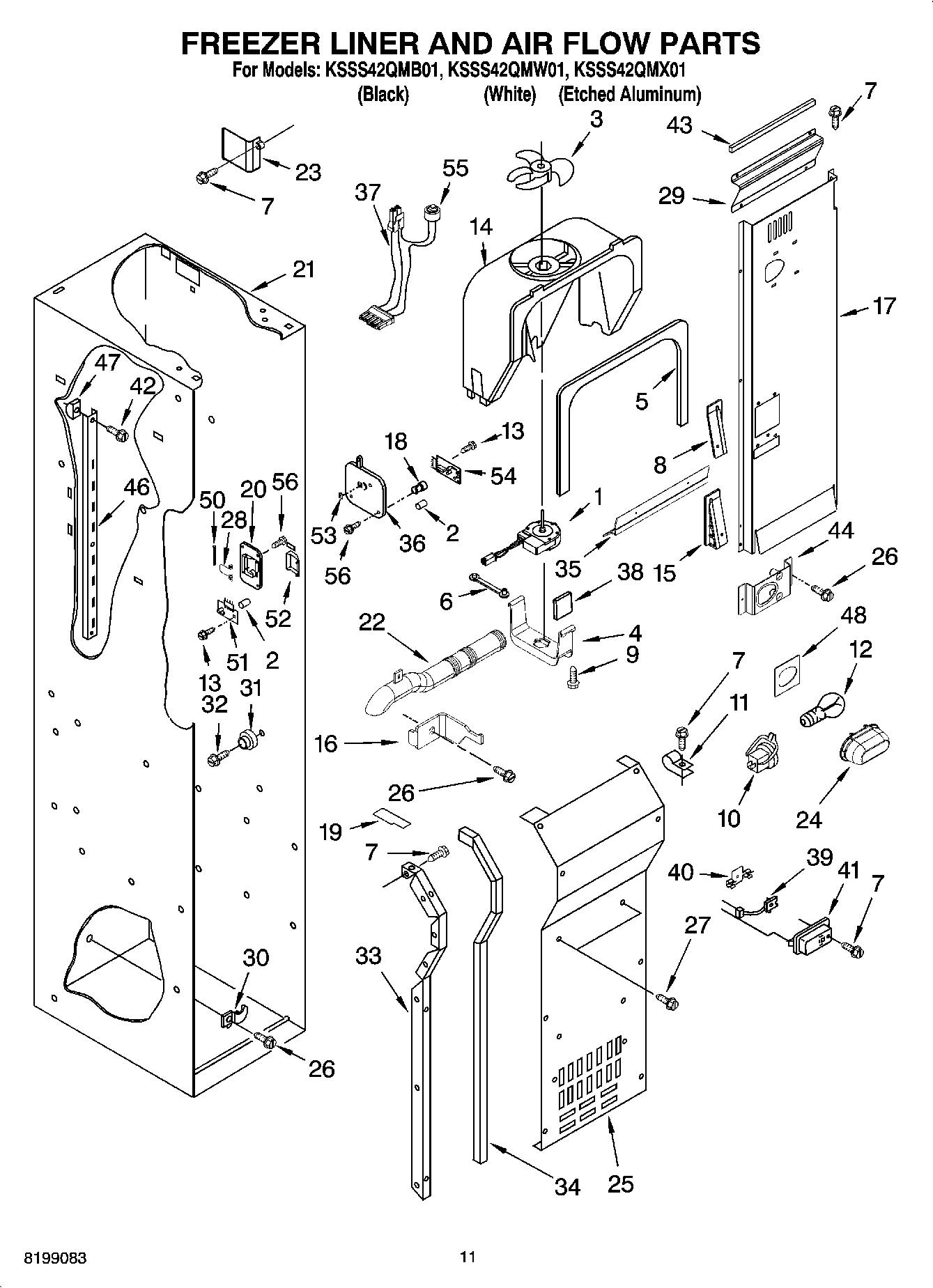

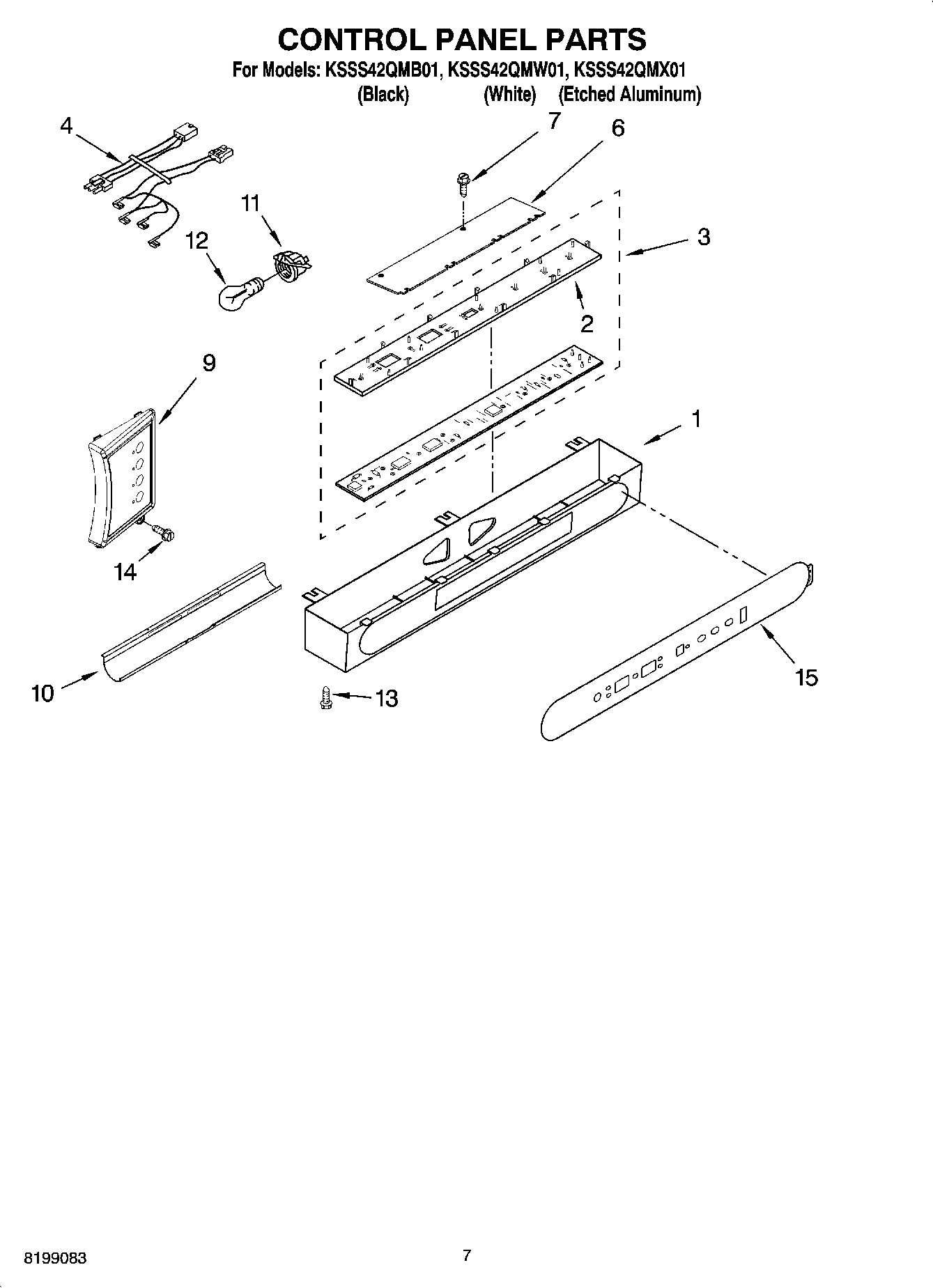

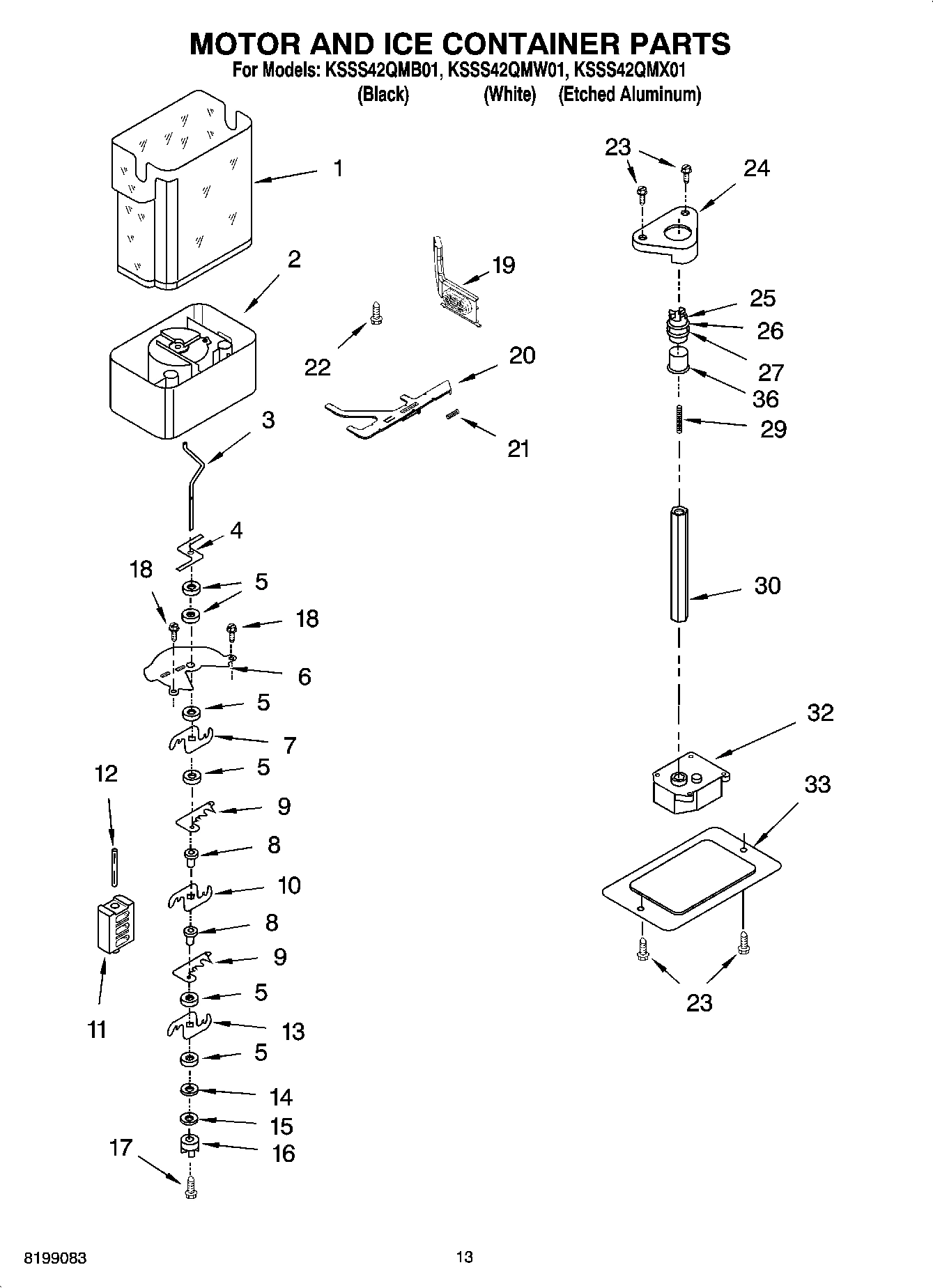

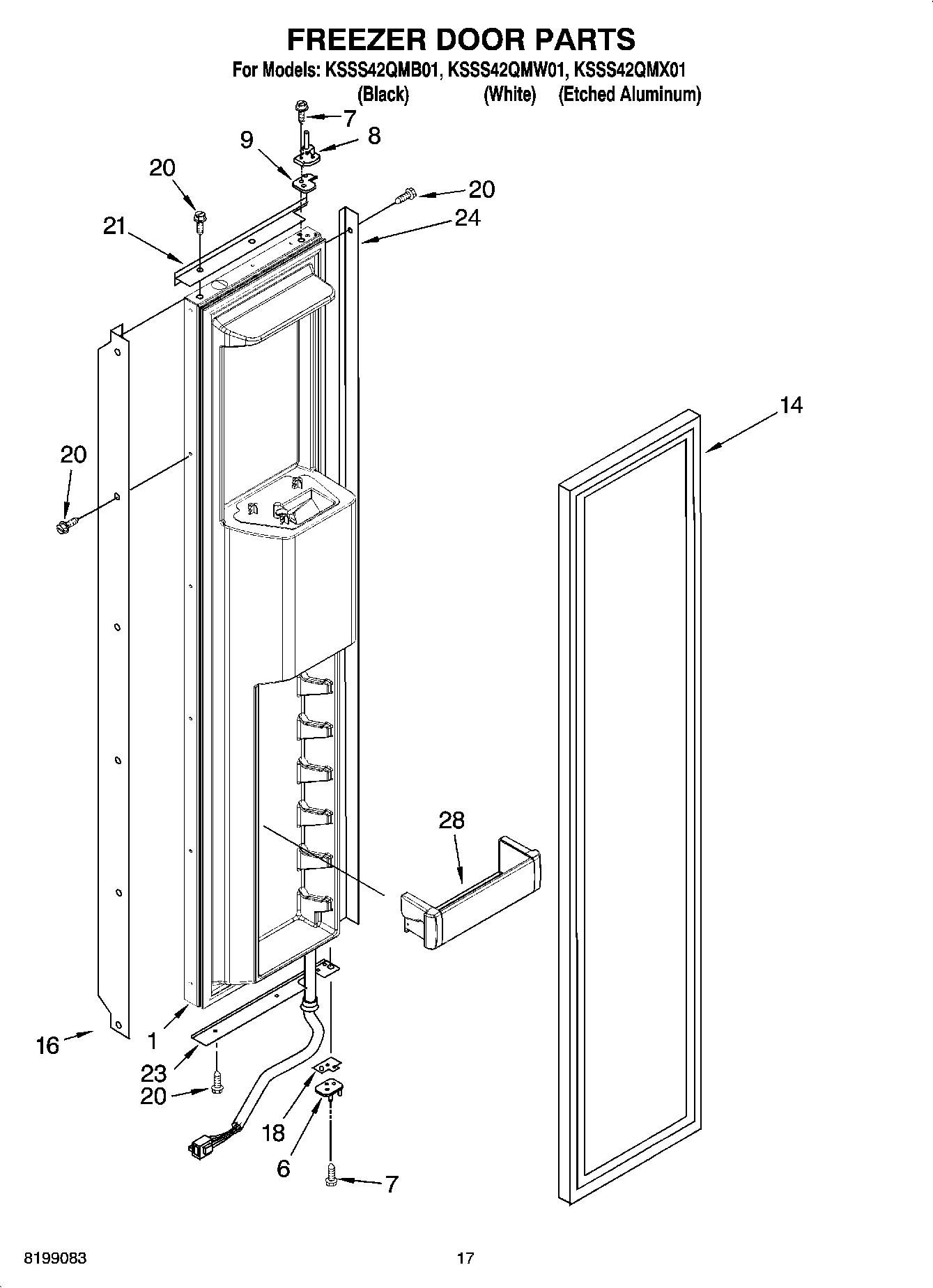

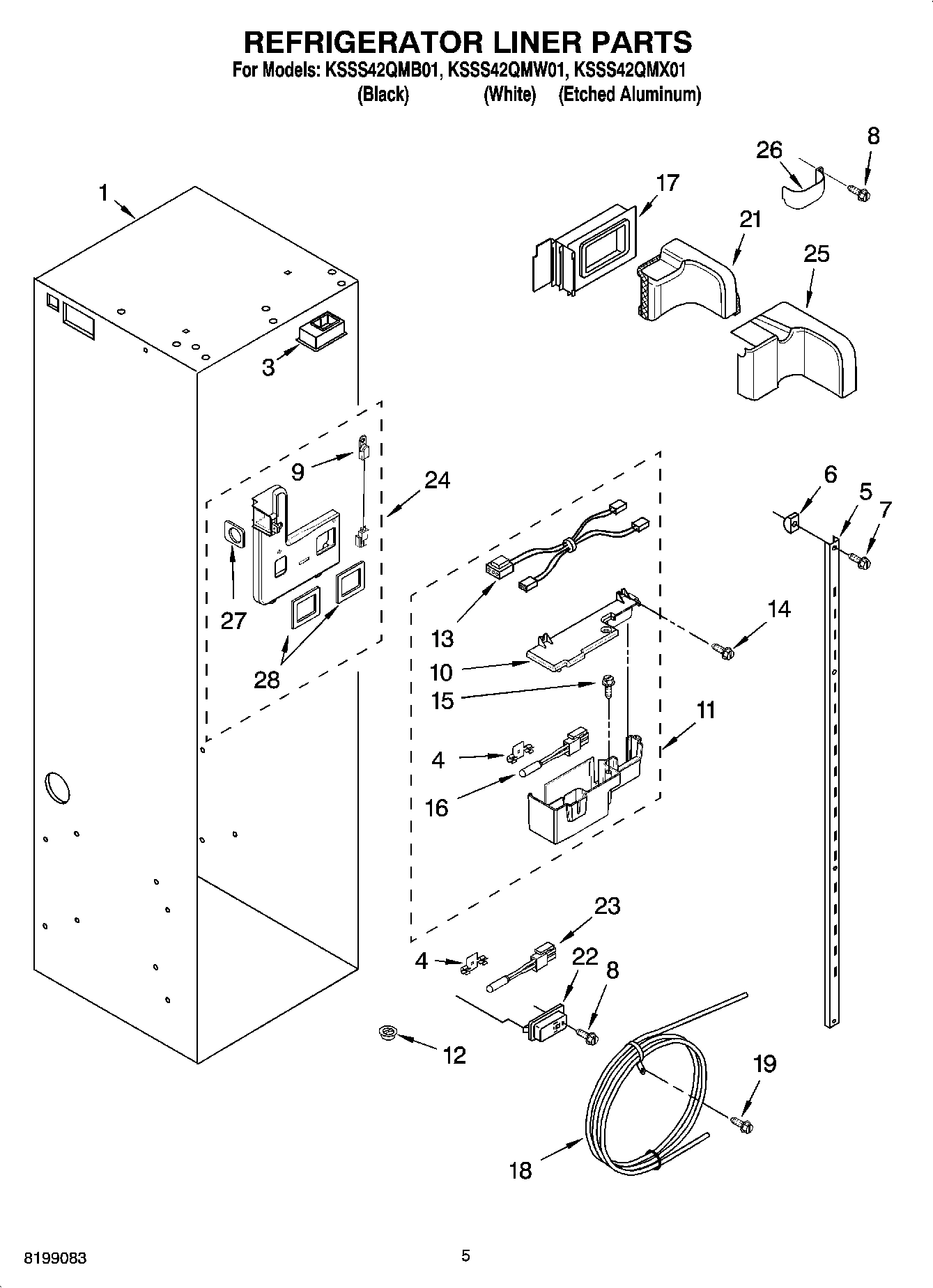

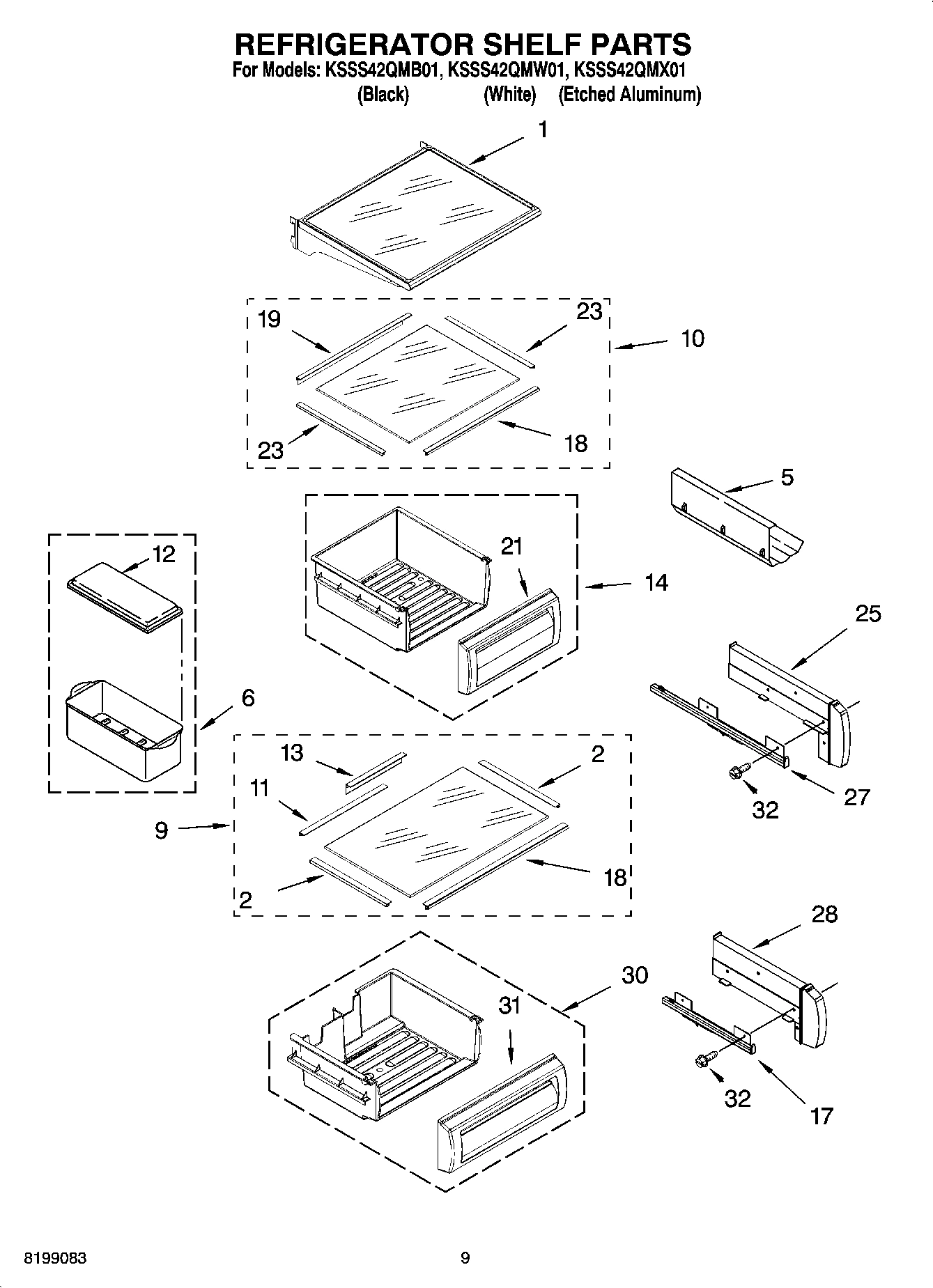

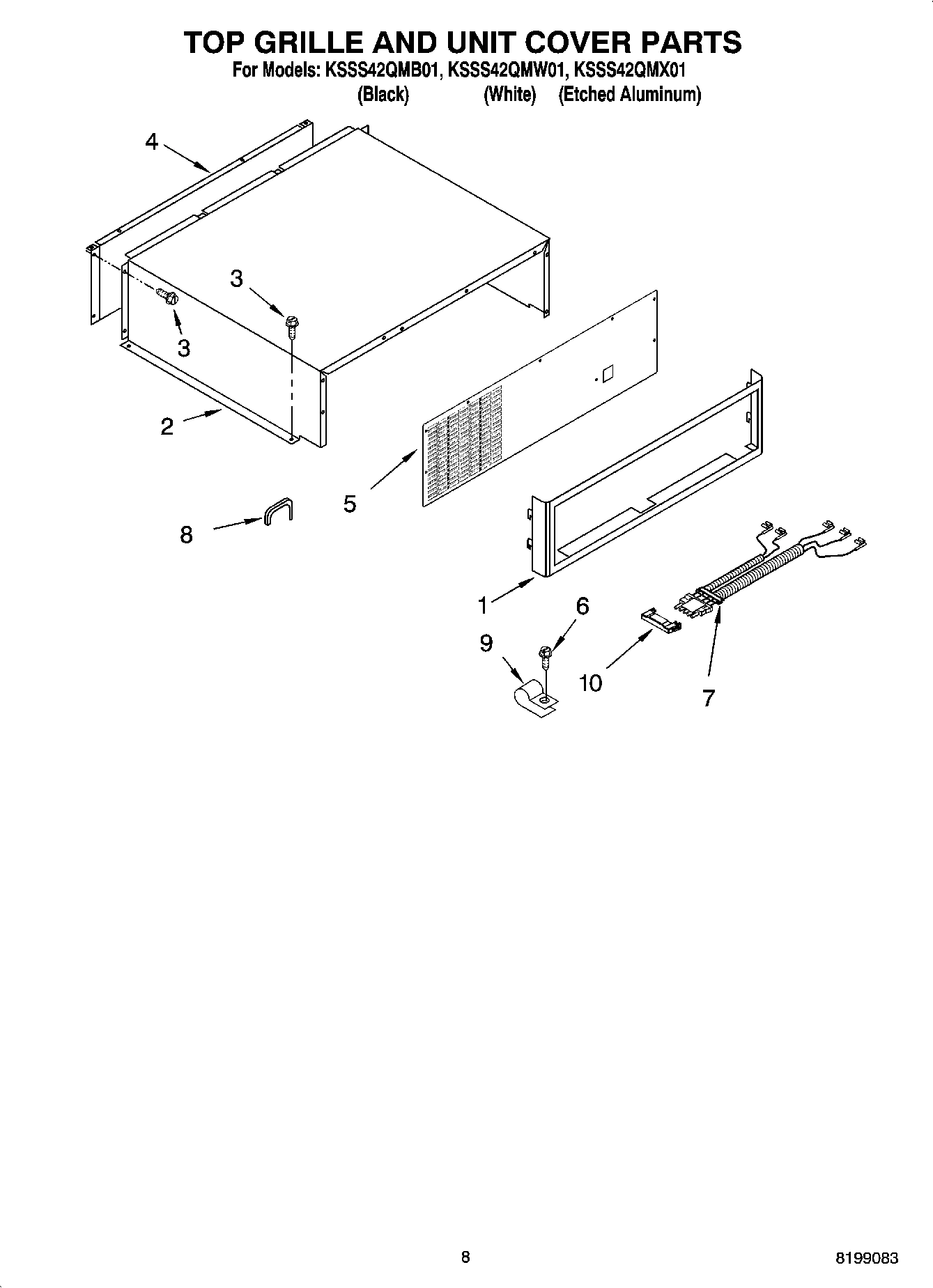

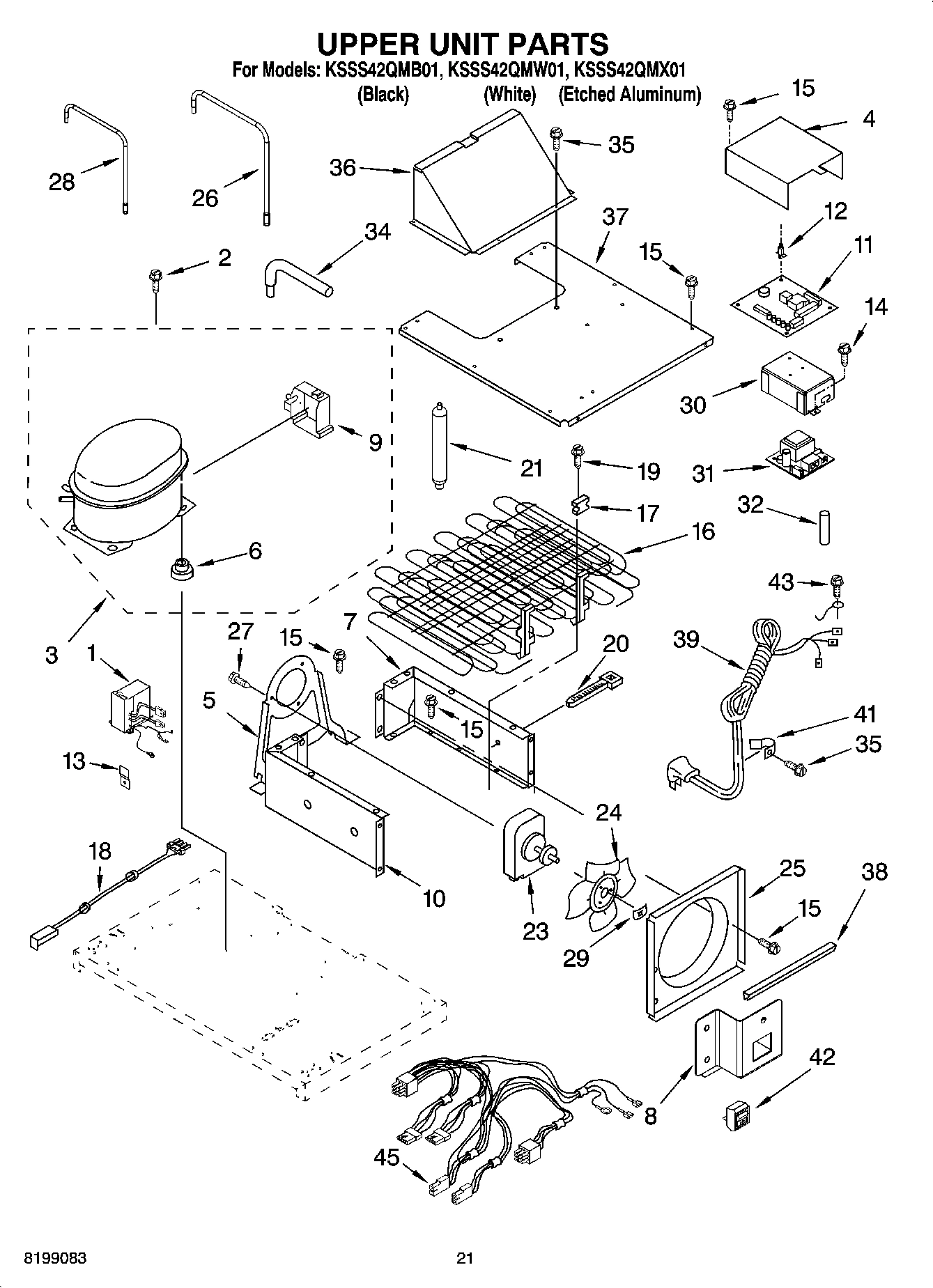

Model Whirlpool KSSS42QMB01 42`` BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

Control Box WPL 2302772 Contact Us For Availability

1

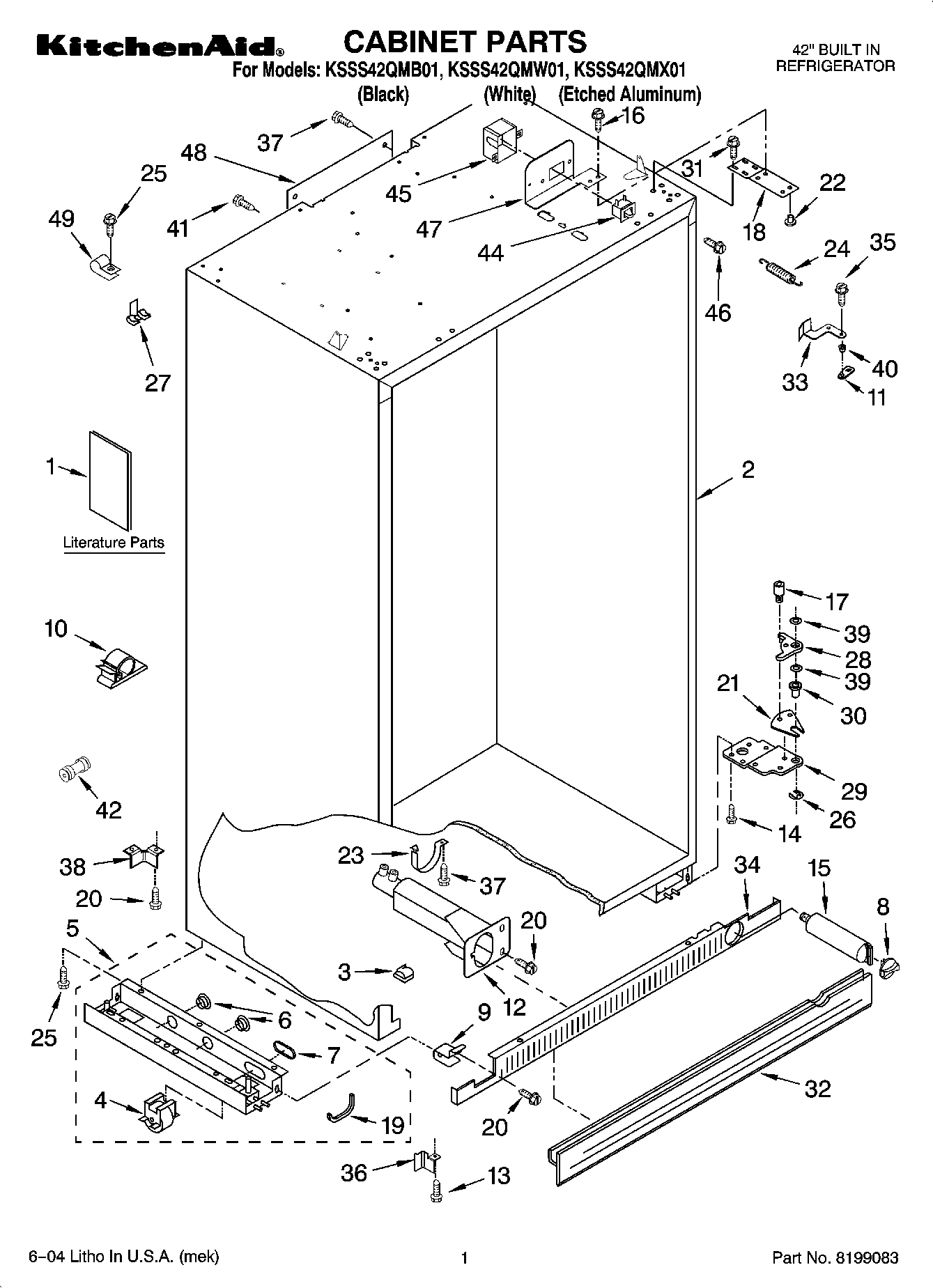

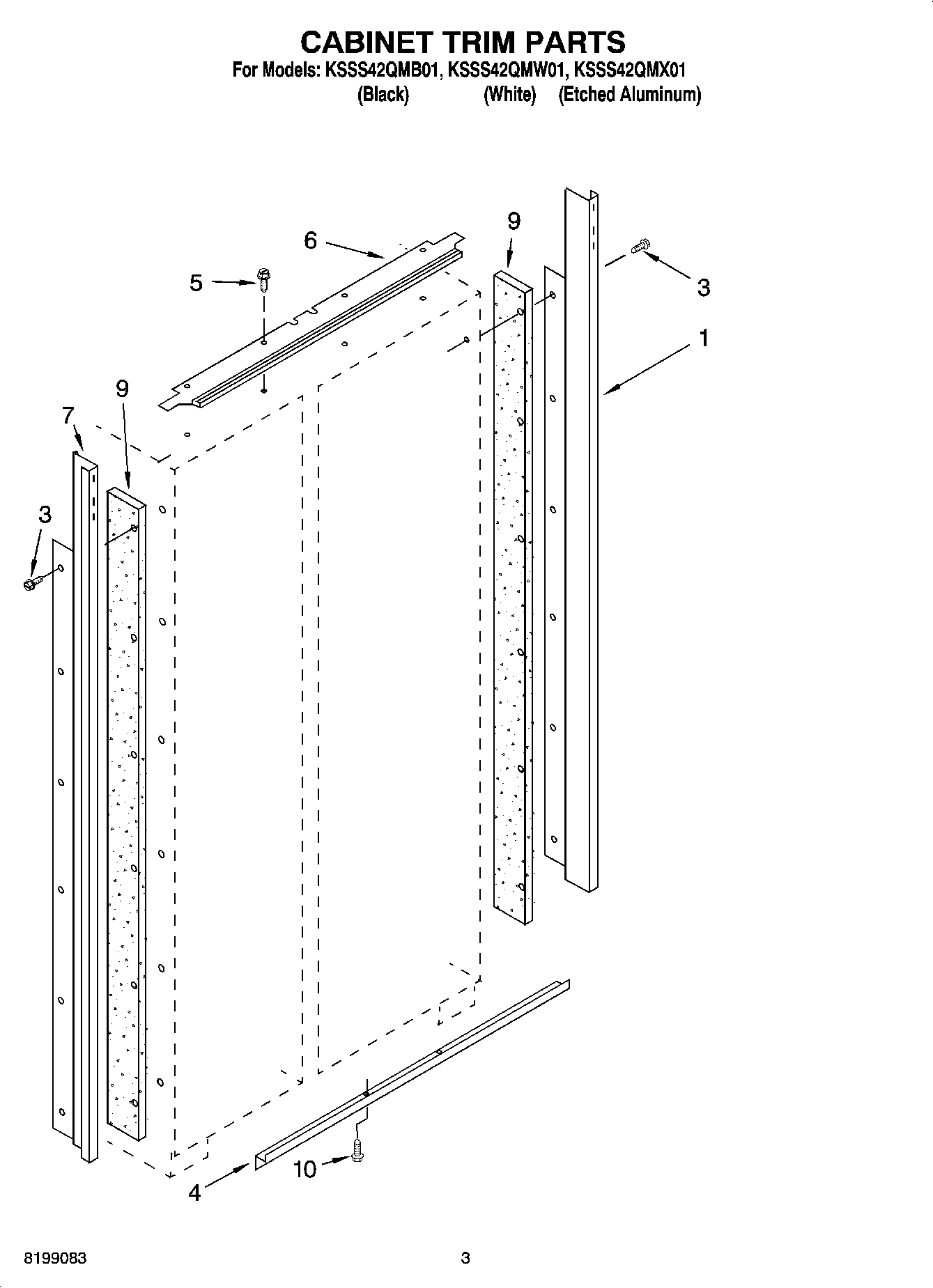

Cabinet, Trim (Right Side) (Black) WPL 2222552B Contact Us For Availability

1

Cabinet, Trim (Right Side) (White) WPL 2222552W Contact Us For Availability

1

Cabinet, Trim (Right Side) (Etched Aluminum) WPL 2222552X Contact Us For Availability

1

Use & Care Guide WPL 2266808 Contact Us For Availability

1

Installation Instructions WPL 2266811 Contact Us For Availability

1

Main Control Service Sheet WPL 2302865 Contact Us For Availability

1

Service & Wiring Sheet WPL 2306332 Contact Us For Availability

1

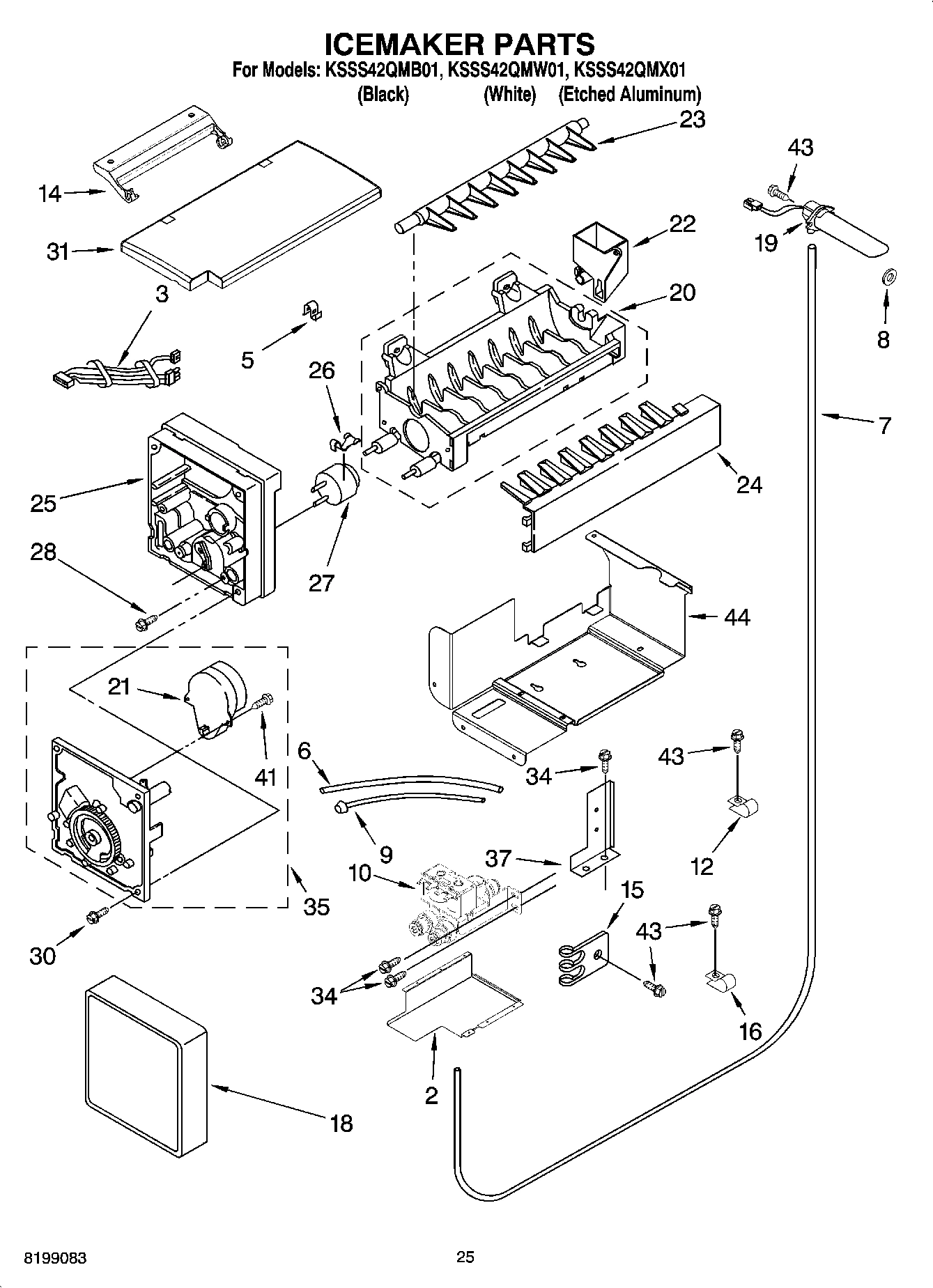

Icemaker and Ingredient Care Center Service S WPL 2306424 Contact Us For Availability

1

Energy Label WPL 2307358 Contact Us For Availability

1

Fan Motor WPL 2259385 Contact Us For Availability

1

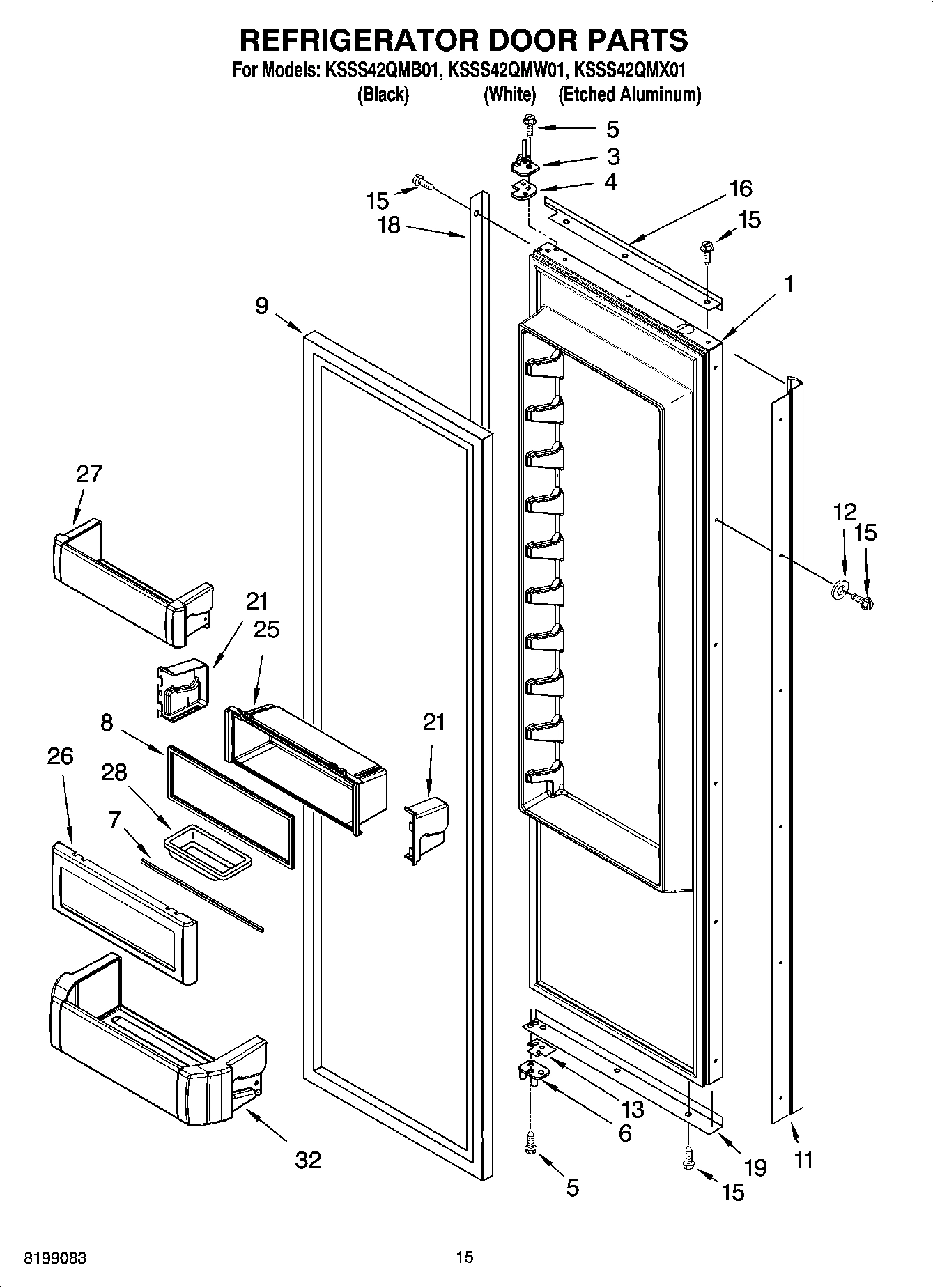

Refrigerator Door Panel (Includes Insulation) WPL 2252330 Contact Us For Availability

2

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

2

TRIM, GLASS SIDE MEAT PAN WPL 2256250 Contact Us For Availability

2

Crusher Bin WPL 2222964 Contact Us For Availability

2

Cabinet (Not A Serviceable Part) WPL ARI107515A Contact Us For Availability

2

Tube, P.C. Board WPL 2198665 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct In Stock WPL 2208970 $53.75

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

3

WP2198574 Whirlpool Refrigerator Ice Auger Backorder WPL WP2198574 $79.37

3

Wire Assembly, Icemaker WPL 2187717 Contact Us For Availability

3

Clip, Water Tube WPL 934011 Contact Us For Availability

4

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $52.48

4

W11318848 Whirlpool Refrigerator Freezer Bask Backorder WPL W11318848 $97.74

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $16.58

4

Spacer-Door, Top WPL 2256381 Contact Us For Availability

4

Clip, Thermistor WPL 2209204 Contact Us For Availability

4

Cabinet, Trim (Bottom) WPL 2254725 Contact Us For Availability

4

Blade, Stirring WPL 2198603 Contact Us For Availability

5

W10839856 Whirlpool Refrigerator Front Drawer Backorder WPL W10839856 $70.77

5

W10860229 Whirlpool Refrigerator Support Backorder WPL W10860229 $177.18

5

W10860448 Whirlpool Refrigerator Support Backorder WPL W10860448 $137.10

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2302817 Whirlpool Refrigerator Gasket Backorder WPL WP2302817 $33.67

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $109.65

6

2302878 Whirlpool Refrigerator Door Hinge Backorder WPL 2302878 $36.65

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

W11669856 Whirlpool Grommet Backorder WPL W11669856 $5.51

6

W11752085 Whirlpool Door Hinge Backorder WPL W11752085 $23.48

6

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

6

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $144.34

6

Suction Tube WPL 2259303 Contact Us For Availability

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

Cabinet, Trim Top WPL 2257367 Contact Us For Availability

6

Grommet, Wiring WPL 2005006 Contact Us For Availability

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

7

W11448696 Whirlpool Refrigerator Bin Backorder WPL W11448696 $95.66

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

7

Cabinet Trim (Left Side) (Black) WPL 2222553B Contact Us For Availability

7

Cabinet Trim (Left Side) (White) WPL 2222553W Contact Us For Availability

7

Cabinet Trim (Left Side) (Etched Aluminum) WPL 2222553X Contact Us For Availability

7

Grommet, Flexible WPL 2005007 Contact Us For Availability

8

2259464 Whirlpool Refrigerator Wedge Backorder WPL 2259464 $34.97

8

W11724512 Whirlpool Door Hinge In Stock WPL W11724512 $117.46

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

8

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

8

Tube, Connect (Drier/Restrictor) WPL 2259304 Contact Us For Availability

8

Gasket, Bin WPL 2222982 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

9

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

9

WP2266902 Whirlpool Refrigerator Door Gasket In Stock WPL WP2266902 $215.02

9

WP2306010 Whirlpool Refrigerator Thermistor In Stock WPL WP2306010 $31.66

9

WP2306086 Whirlpool Refrigerator Electronic C Backorder WPL WP2306086 $195.04

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Blade, Fixed WPL 2198601 Contact Us For Availability

9

Mounting Stud, Grill WPL 2006442 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2188786 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2188786 $76.79

Lever, Ice Dispenser (Black) WPL 2259396B Contact Us For Availability

Clamp, Tube WPL 2004514 Contact Us For Availability

Cam, Door Closer WPL 2005783 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

TRIM, GLASS WPL 2257611 Contact Us For Availability

Clamp, Nylon WPL 488937 Contact Us For Availability

Handle, Door (Etched Aluminum) WPL 2256473 Contact Us For Availability

Handle, Door (Black) WPL 2256473B Contact Us For Availability

Handle, Door (White) WPL 2256473W Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $96.31

Release Valve WPL 2171846 Contact Us For Availability

Lever, Water Dispenser (Black) WPL 2259395B Contact Us For Availability

Washer WPL 2001230 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

Door Spacer, Bottom WPL 2257637 Contact Us For Availability

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Screw WPL 3400525 Contact Us For Availability

2259465 Whirlpool Refrigerator Wedge Backorder WPL 2259465 $36.07

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $2.51

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

Screw (White) WPL 8281251 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

WP2302937 Whirlpool Refrigerator Thermistor In Stock WPL WP2302937 $30.07

WP2306093 Whirlpool Evaporator In Stock WPL WP2306093 $213.36

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

CONDENSER WPL 2259307 Contact Us For Availability

Bracket, Vent Tube WPL 2302925 Contact Us For Availability

Trim (Top) (Etched Aluminum) WPL 2005011 Contact Us For Availability

Trim (Top) (White) WPL 2005014 Contact Us For Availability

Trim (Top) (Black) WPL 2005840 Contact Us For Availability

2302954 Whirlpool Refrigerator Slide In Stock WPL 2302954 $127.84

2302955 Whirlpool Refrigerator Slide Backorder WPL 2302955 $127.84

W11769878 Whirlpool Screw Backorder WPL W11769878 $7.72

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $177.39

WP2306388 Whirlpool Refrigerator Heater In Stock WPL WP2306388 $50.26

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Bracket, Anti-Drip Valve WPL 2259209 Contact Us For Availability

Air Duct WPL 2306046 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

2180200 Whirlpool Refrigerator Socket In Stock WPL 2180200 $32.98

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $65.21

WP2187629 Whirlpool Refrigerator Wire Jumper Backorder WPL WP2187629 $39.49

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Trim, Side (Etched Aluminum) WPL 2005967 Contact Us For Availability

Trim (Side) (White) WPL 2005968 Contact Us For Availability

Trim, Side (Black) WPL 2005971 Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $30.25

8201798 Whirlpool Refrigerator Fan Block Backorder WPL 8201798 $83.71

WP2252265 Whirlpool Refrigerator Ice Bin Butt In Stock WPL WP2252265 $14.37

Screw WPL 487522 Contact Us For Availability

Grommet, Crossover Tube WPL 2005004 Contact Us For Availability

Trim (Bottom) (Etched Aluminum) WPL 2215994 Contact Us For Availability

Trim (Bottom) (Black) WPL 2215994B Contact Us For Availability

Trim (Bottom) (White) WPL 2215994W Contact Us For Availability

WP2215650 Whirlpool Refrigerator Cover Backorder WPL WP2215650 $87.39

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Gasket, Evaporator WPL 2220832 Contact Us For Availability

Latch, Bin WPL 2252207 Contact Us For Availability

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2198608 Whirlpool Refrigerator Spring Backorder WPL WP2198608 $3.70

WPW10323172 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323172 $3.70

WPW10323173 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323173 $3.70

Liner (Not A Serviceable Part) WPL ARI107518A Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $4.58

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Bushing WPL 2002903 Contact Us For Availability

Tube, Vent WPL 2302932 Contact Us For Availability

2259025 Whirlpool Refrigerator Air Cover Backorder WPL 2259025 $35.36

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clamp, Filter Housing WPL 2209090 Contact Us For Availability

W10475010 Whirlpool Refrigerator Spacer Backorder WPL W10475010 $129.41

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $32.39

Blade, Fan WPL 2190685 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

Light Shield (2) WPL 2259367 Contact Us For Availability

2256223 Whirlpool Refrigerator Track Backorder WPL 2256223 $30.43

W10323042 Whirlpool Cantilever Bin Backorder WPL W10323042 $87.01

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $93.40

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

Cover, Evaporator WPL 2306049 Contact Us For Availability

W11553221 Whirlpool Refrigerator Door Compres Backorder WPL W11553221 $37.37

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

2302956 Whirlpool Refrigerator Slide Backorder WPL 2302956 $124.19

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $91.88

W10323599 Whirlpool Refrigerator Cantilever B Backorder WPL W10323599 $59.28

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

Fastener (3) WPL 1113227 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

2259398 Whirlpool Refrigerator Seal Backorder WPL 2259398 $7.69

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

Tube, Transition (Heat Loop) WPL 2259340 Contact Us For Availability

Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability

Butter Tray WPL 2165792 Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $73.63

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $107.80

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

Deflector, Air Duct WPL 2306038 Contact Us For Availability

30

1112260 Whirlpool EV Support Backorder WPL 1112260 $4.58

30

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

30

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $28.40

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2259350 Whirlpool Refrigerator Electronic C Backorder WPL WP2259350 $70.57

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

W10323747 Whirlpool Refrigerator Cantilever B Backorder WPL W10323747 $60.98

WP2212363 Whirlpool Refrigerator Motor In Stock WPL WP2212363 $94.84

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $2.51

Skirt-Grille, Bottom (Black) WPL 2209025B Contact Us For Availability

Skirt-Grille, Bottom (White) WPL 2209025W Contact Us For Availability

2259355 Whirlpool Refrigerator Evaporator Rai Backorder WPL 2259355 $47.78

W10847927 Whirlpool Refrigerator Extension In Stock WPL W10847927 $32.16

W11298172 Whirlpool Refrigerator Extension Backorder WPL W11298172 $31.95

COVER WPL 2222862 Contact Us For Availability

Evaporator, Cover Rail (Left Side) WPL 2221107 Contact Us For Availability

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $8.31

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

Grille WPL 2209428W Contact Us For Availability

Grille Bottom, Front (Black) WPL 2209428B Contact Us For Availability

35

2302850 Whirlpool Refrigerator Support Backorder WPL 2302850 $46.35

35

WPL 2005921 WPL 2005921 Contact Us For Availability

2006556 Whirlpool Refrigerator Bracket Backorder WPL 2006556 $12.50

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $30.25

2259493 Whirlpool Refrigerator Cover Backorder WPL 2259493 $30.25

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

37

Harness, Evap Fan (Includes Item 55) WPL 2187673 Contact Us For Availability

37

Cover, Condenser WPL 2259092 Contact Us For Availability

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $30.25

38

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

38

Grommet, Edge WPL 2307907 Contact Us For Availability

39

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $4.59

39

Service Cord WPL 2259197 Contact Us For Availability

40

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $23.70

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

Cover, Thermistor WPL 1116793 Contact Us For Availability

42

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $32.34

42

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

43

Gasket, Air Duct WPL 2306052 Contact Us For Availability

2252228 Whirlpool Refrigerator Bracket Backorder WPL 2252228 $30.89

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

Bracket, Light WPL 2257571 Contact Us For Availability

2215938 Whirlpool Refrigerator Switch Cover In Stock WPL 2215938 $30.25

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2187900 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI107523A Contact Us For Availability

and Optional Parts Not Included WPL ARI107524A Contact Us For Availability

REFRIGERANT CHARGE 7.50 oz. (R-134A) WPL ARI107525A Contact Us For Availability

46

WP2259032 Whirlpool Ladder Backorder WPL WP2259032 $27.52

46

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

47

2221096 Whirlpool Refrigerator Bracket Backorder WPL 2221096 $30.89

47

2259445 Whirlpool Support Assembly Backorder WPL 2259445 $27.52

47

W10741111 Whirlpool Refrigerator Bracket In Stock WPL W10741111 $26.08

48

2215612 Whirlpool Refrigerator Duct Cover Backorder WPL 2215612 $33.31

48

Seal-Light, Socket WPL 2302777 Contact Us For Availability

49

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $4.45

50

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

51

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $227.62

52

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $15.13

53

2255563 Whirlpool Refrigerator Slide Backorder WPL 2255563 $30.25

55

WP2306462 Whirlpool Refrigerator Bimetallic D In Stock WPL WP2306462 $57.72

56

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56
