Model Whirlpool KSSS36QMW01 36`` BUILT IN REFRIGERATOR – Common Parts & Diagrams

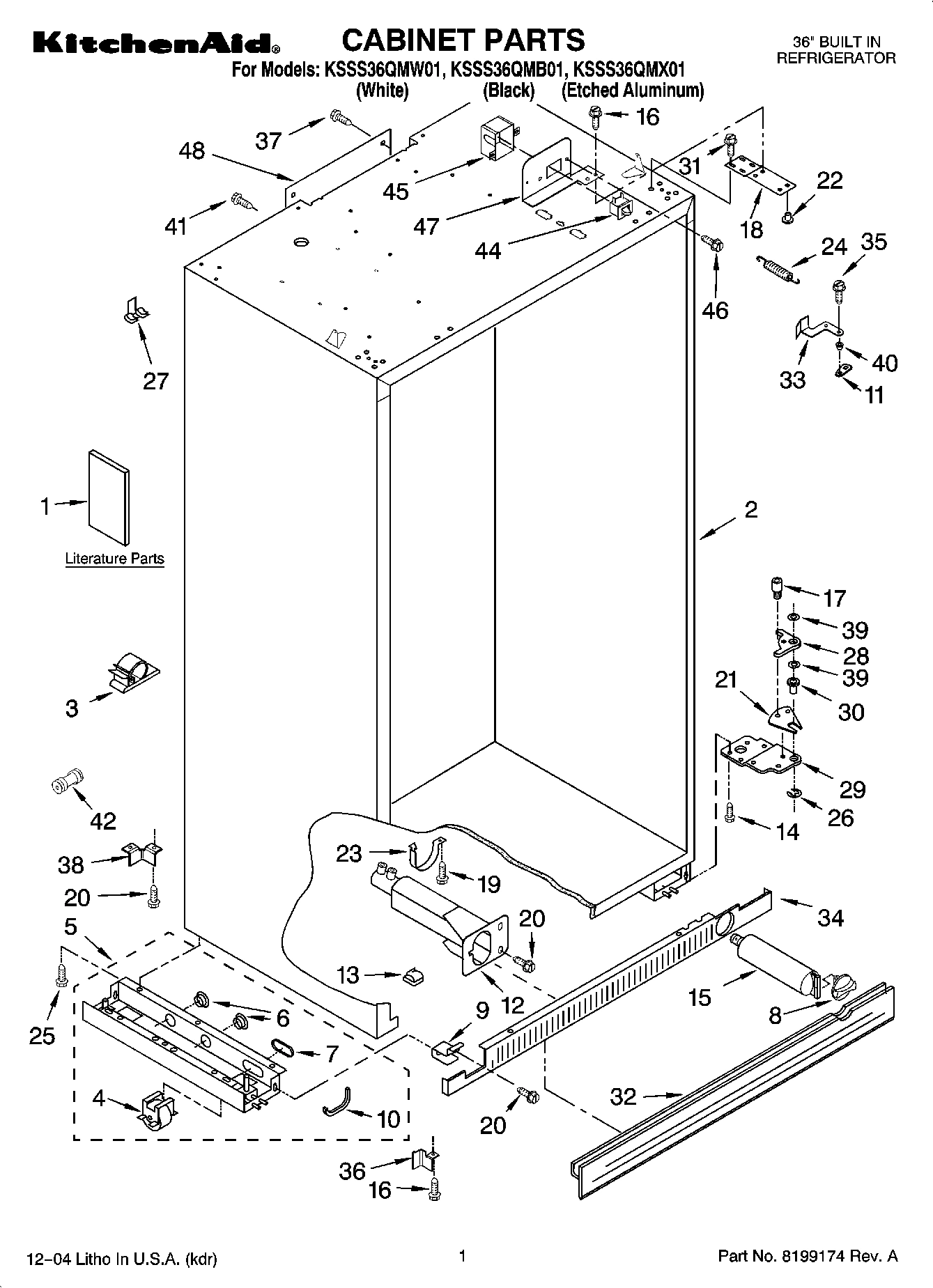

01 - CABINET PARTS

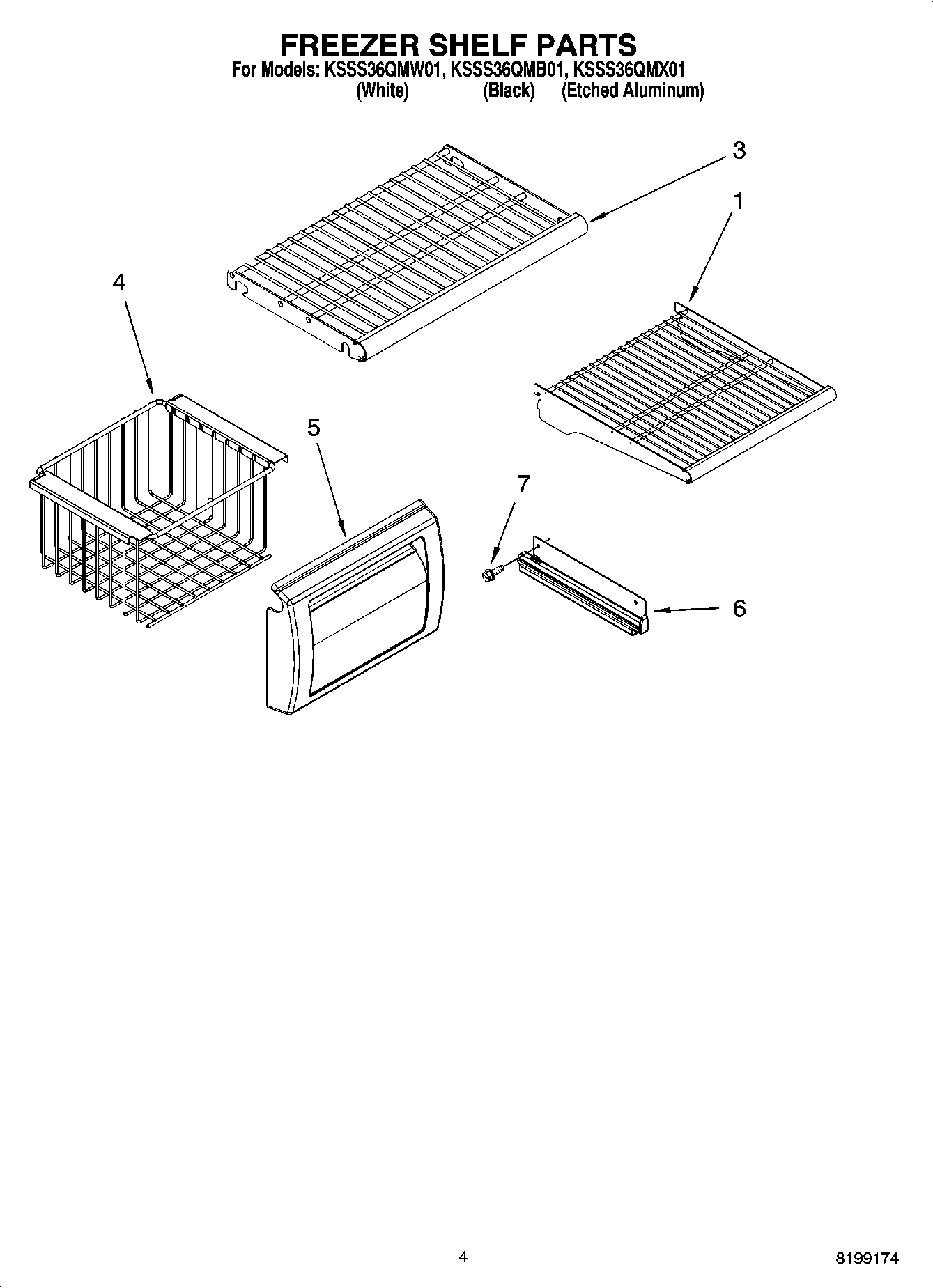

03 - FREEZER SHELF PARTS
10 - REFRIGERATOR DOOR PARTS
11 - FREEZER DOOR PARTS
04 - REFRIGERATOR LINER PARTS
06 - TOP GRILLE AND UNIT COVER PARTS
13 - UPPER UNIT PARTS
15 - ICEMAKER PARTS
07 - REFRIGERATOR SHELF PARTS
14 - LOWER UNIT AND TUBE PARTS
08 - FREEZER LINER AND AIR FLOW PARTS
09 - MOTOR AND ICE CONTAINER PARTS
02 - CABINET TRIM PARTS
05 - CONTROL PANEL PARTS
12 - DISPENSER AND FRONT PARTS
Common parts from model Whirlpool KSSS36QMW01 36`` BUILT IN REFRIGERATOR
1
Shelf Assembly WPL 2222591 Contact Us For Availability
1
Fan Motor WPL 2259385 Contact Us For Availability
1
Ice Bin WPL 2222960 Contact Us For Availability
1
Cabinet, Trim (Right Side) (Black) WPL 2222552B Contact Us For Availability
1
Cabinet, Trim (Right Side) (White) WPL 2222552W Contact Us For Availability
1
Cabinet, Trim (Right Side) (Etched Aluminum) WPL 2222552X Contact Us For Availability
1
Control Box WPL 2302771 Contact Us For Availability
1
Housing, Dispenser (Not Serviced) WPL ARI106925A Contact Us For Availability
2
Tube, P.C. Board WPL 2198665 Contact Us For Availability
2
Crusher Bin WPL 2222959 Contact Us For Availability
2
Insert, Control Box WPL 2303938 Contact Us For Availability
3
Circuit Board, Housing Control WPL 2302913 Contact Us For Availability
3
Wire Assembly WPL 2187755 Contact Us For Availability
4
Blade, Stirring WPL 2257021 Contact Us For Availability
4
Clip, Thermistor WPL 2209204 Contact Us For Availability
4
Bracket WPL 2215508 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2254724 Contact Us For Availability
4
Control Box Wire Harness WPL 2187424 Contact Us For Availability
4
Cover, Dispenser (Not Available- Order Item 2 WPL ARI106926A Contact Us For Availability
5
Side Support WPL 2302929 Contact Us For Availability
6
Suction Tube WPL 2259303 Contact Us For Availability
6
Cover, Crusher WPL 2255460 Contact Us For Availability
6
Egg Bin WPL 2221071 Contact Us For Availability
6
Cabinet, Trim Top WPL 2257366 Contact Us For Availability
6
Support, Control Box WPL 2221121 Contact Us For Availability
7
Cabinet Trim (Left Side) (Black) WPL 2222553B Contact Us For Availability
7
Cabinet Trim (Left Side) (White) WPL 2222553W Contact Us For Availability
7
Cabinet Trim (Left Side) (Etched Aluminum) WPL 2222553X Contact Us For Availability
7
Ice Door Mechanism WPL 2304355 Contact Us For Availability
8
Tube, Connect (Drier/Restrictor) WPL 2259304 Contact Us For Availability
9
Spacer-Door, Top WPL 2256381 Contact Us For Availability
9
Blade, Fixed WPL 2257020 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Meat Pan Cover Assembly WPL 2302841 Contact Us For Availability
9
Heater, Drain Pan WPL 2259329 Contact Us For Availability
10
Lever, Ice Dispenser (Black) WPL 2259396B Contact Us For Availability
10
Valve, Solenoid WPL 2307811 Contact Us For Availability
10
Crisper Cover Assembly WPL 2302834 Contact Us For Availability
10
Hanger, Heater WPL 2209450 Contact Us For Availability
10
Shield, Light WPL 2302727 Contact Us For Availability
10
Lever, Ice Dispenser (White) WPL 2259396W Contact Us For Availability
11
Cam, Door Closer WPL 2005783 Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Trim, Glass Rear Side WPL 2257611 Contact Us For Availability
11
Shield, Drain Pan WPL 2005908 Contact Us For Availability
11
Clamp, Nylon WPL 488937 Contact Us For Availability
11
Switch Assembly (Not Available Order Item 25) WPL ARI106927A Contact Us For Availability
12
Lever, Water Dispenser (Black) WPL 2259395B Contact Us For Availability
12
Cover WPL 2169935 Contact Us For Availability
12
Lever, Water Dispenser (White) WPL 2259395W Contact Us For Availability
13
Trim, Glass Rear WPL 2257581 Contact Us For Availability
13
Tube, Discharge WPL 2259352 Contact Us For Availability
14
Screw WPL 3400525 Contact Us For Availability
14
Delay Mechanism WPL 2205686 Contact Us For Availability
15
OVERLAY WPL 2257518 Contact Us For Availability
16
CONDENSER WPL 2259307 Contact Us For Availability
16
Seal-Light, Socket WPL 2302777 Contact Us For Availability
17
Bracket, Anti-Drip Valve WPL 2259209 Contact Us For Availability
17
Heater, Defrost WPL 2306387 Contact Us For Availability
17
Air Duct WPL 2306045 Contact Us For Availability
18
Door, Spacer WPL 2257637 Contact Us For Availability
18
Trim, Glass Front (Not Serviceable) WPL ARI106922A Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Trim, Glass Rear WPL 2256253 Contact Us For Availability
20
Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability
20
Gasket, Evaporator WPL 2220832 Contact Us For Availability
20
Latch, Bin WPL 2252206 Contact Us For Availability
21
Liner (Not A Serviceable Part) WPL ARI106923A Contact Us For Availability
22
Bushing WPL 2300082 Contact Us For Availability
22
Pad, Air Duct WPL 2306055 Contact Us For Availability
23
TRIM, GLASS SIDE CRISPER PAN WPL 2252255 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Holder WPL 2212369 Contact Us For Availability
24
Light Shield WPL 2259367 Contact Us For Availability
24
Overlay, Cover (Not Available- Order Item 25) WPL ARI106928A Contact Us For Availability
25
Front Cover Assembly (Includes Items 4,11,20, WPL 2309379B Contact Us For Availability
25
Cover, Evaporator WPL 2306048 Contact Us For Availability
25
Front Cover Assembly (Includes Items 4,11,20, WPL 2309379W Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Trim, Front (White) WPL 2208917 Contact Us For Availability
26
Trim, Front (Black) WPL 2208926 Contact Us For Availability
27
Screw 8-15 x 1/2 (White) WPL 8281251 Contact Us For Availability
28
Trim, Front (Black) WPL 2266918B Contact Us For Availability
28
Trim, Front (White) WPL 2266918W Contact Us For Availability
30
Harness, Switch Jumper Assembly WPL 2309372 Contact Us For Availability
33
COVER WPL 2222862 Contact Us For Availability
33
Evaporator, Cover Rail (Left Side) WPL 2221107 Contact Us For Availability
35
WPL 2005921 WPL 2005921 Contact Us For Availability
35
Bracket, Vent Tube WPL 2302925 Contact Us For Availability
37
Harness, Evap Fan (Includes Item 55) WPL 2187673 Contact Us For Availability
44
Bracket, Light WPL 2257571 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Spacer, Light Bracket WPL 2259446 Contact Us For Availability
47
Support, Screw WPL 2259397 Contact Us For Availability
49
Tube, Vent WPL 2302933 Contact Us For Availability
57
Support, Air Duct WPL 2302849 Contact Us For Availability
100
Front Panel Kit (White) WPL 2220864 Contact Us For Availability
100
Front Panel Kit (Black) WPL 2220867 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 2220873 Contact Us For Availability
100
Ice Container Assembly WPL 2222958 Contact Us For Availability
100
Static Cleaner, Black Panel WPL 978849 Contact Us For Availability
100
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI106932A Contact Us For Availability
100
(Optional Parts Only) WPL ARI106933A Contact Us For Availability
× ![]()
