Model Whirlpool KSSS36QMB00 36`` BUILT IN REFRIGERATOR – Common Parts & Diagrams
08 - FREEZER LINER AND AIR FLOW PARTS

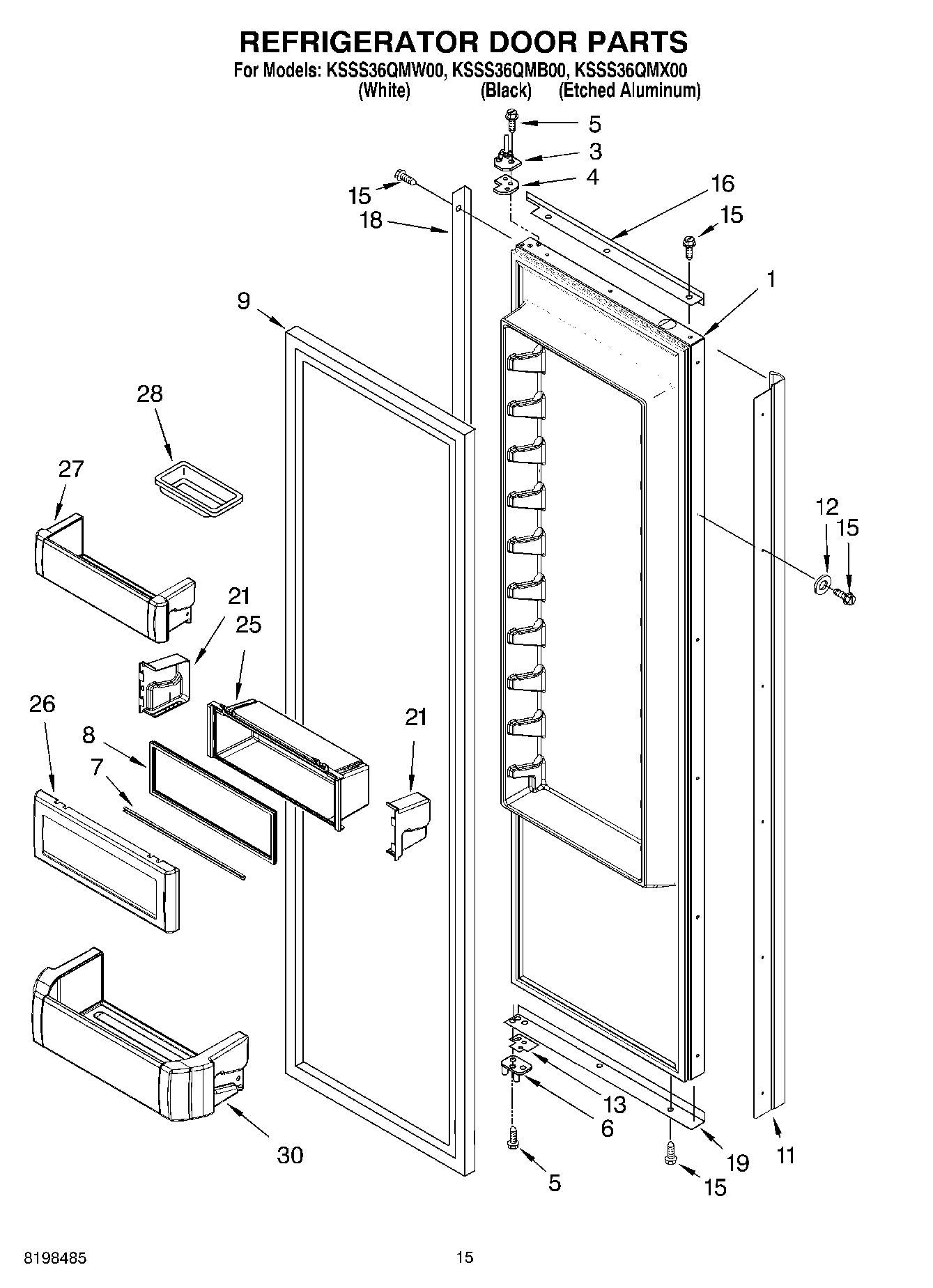

10 - REFRIGERATOR DOOR PARTS
03 - FREEZER SHELF PARTS
13 - UPPER UNIT PARTS
15 - ICEMAKER PARTS
07 - REFRIGERATOR SHELF PARTS
14 - LOWER UNIT AND TUBE PARTS
01 - CABINET PARTS
02 - CABINET TRIM PARTS
09 - MOTOR AND ICE CONTAINER PARTS
11 - FREEZER DOOR PARTS
05 - CONTROL PANEL PARTS
12 - DISPENSER AND FRONT PARTS
04 - REFRIGERATOR LINER PARTS
06 - TOP GRILLE AND UNIT COVER PARTS
Common parts from model Whirlpool KSSS36QMB00 36`` BUILT IN REFRIGERATOR
1
Literature Parts (Use & Care Guide) WPL LIT2266808 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT2266811 Contact Us For Availability
1
Literature Parts (Energy Label) WPL LIT2266813 Contact Us For Availability
1
Literature Parts (Service & Wiring Sheet) WPL LIT2266827 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT2302855 Contact Us For Availability
1
Cabinet, Trim (Right Side) (Black) WPL 2222552B Contact Us For Availability
1
Cabinet, Trim (Right Side) (White) WPL 2222552W Contact Us For Availability
1
Cabinet, Trim (Right Side) (Etched Aluminum) WPL 2222552X Contact Us For Availability
1
Ice Bin WPL 2222960 Contact Us For Availability
1
Freezer Door Panel (Includes Item 14) (Black) WPL 2252323B Contact Us For Availability
1
Freezer Door Panel (Includes Item 14) (White) WPL 2252323W Contact Us For Availability
1
Control Box WPL 2215715 Contact Us For Availability
1
Housing, Dispenser (Not Serviced) WPL ARI106859A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106856A Contact Us For Availability
1
Top Grille Assembly (Black) WPL 2257401B Contact Us For Availability
1
Top Grille Assembly (White) WPL 2257401W Contact Us For Availability
1
Top Grille Assembly (Etched Aluminum) WPL 2257401X Contact Us For Availability
2
Cabinet (Not A Serviceable Part) WPL ARI106855A Contact Us For Availability
2
Crusher Bin WPL 2222959 Contact Us For Availability
2
Insert, Control Box WPL 2215670 Contact Us For Availability
2
Cover, Unit WPL 2259320 Contact Us For Availability
3
Clamp, Tube WPL 2004514 Contact Us For Availability
3
Circuit Board, Housing Control WPL 2252110 Contact Us For Availability
3
Wire Assembly WPL 2187755 Contact Us For Availability
4
Spacer-Door, Top WPL 2256381 Contact Us For Availability
4
Bracket WPL 2215508 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2254724 Contact Us For Availability
4
Blade, Stirring WPL 2198603 Contact Us For Availability
4
Control Box Wire Harness WPL 2187424 Contact Us For Availability
4
Cover, Dispenser (Not Available- Order Item 2 WPL ARI106860A Contact Us For Availability
5
Side Support WPL 2259244 Contact Us For Availability
5
Panel Control, Meat Pan WPL 2258914 Contact Us For Availability
5
Cover-Unit, Front WPL 2259095 Contact Us For Availability
6
Suction Tube WPL 2259303 Contact Us For Availability
6
Cover, Crusher WPL 2255460 Contact Us For Availability
6
Grommet, Wiring WPL 2005006 Contact Us For Availability
6
Cabinet, Trim Top WPL 2257366 Contact Us For Availability
7
Grommet, Flexible WPL 2005007 Contact Us For Availability
7
Cabinet Trim (Left Side) (Black) WPL 2222553B Contact Us For Availability
7
Cabinet Trim (Left Side) (White) WPL 2222553W Contact Us For Availability
7
Cabinet Trim (Left Side) (Etched Aluminum) WPL 2222553X Contact Us For Availability
7
Ice Door Mechanism WPL 2206423 Contact Us For Availability
7
Wire Assembly RC/FC Light Switch WPL 2187429 Contact Us For Availability
8
Tube, Connect (Drier/Restrictor) WPL 2300191 Contact Us For Availability
8
Touch Pad, Meat Pan WPL 2252067 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Heater, Drain Pan WPL 2259329 Contact Us For Availability
9
Mounting Stud, Grill WPL 2006442 Contact Us For Availability
9
Blade, Fixed WPL 2198601 Contact Us For Availability
10
Lever, Ice Dispenser (Black) WPL 2259396B Contact Us For Availability
10
Valve, Solenoid WPL 2302814 Contact Us For Availability
10
Glass, Crisper Cover WPL 2256426 Contact Us For Availability
10
Hanger, Heater WPL 2209450 Contact Us For Availability
10
Grommet, Crossover Tube WPL 2005004 Contact Us For Availability
10
Clip, Retainer WPL 2302712 Contact Us For Availability
10
Lever, Ice Dispenser (White) WPL 2259396W Contact Us For Availability
10
Lid, Meat Pan Baffle WPL 2257528 Contact Us For Availability
10
Enclosure, Connector WPL 2221297 Contact Us For Availability
11
Cam, Door Closer WPL 2005783 Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Trim, Glass Rear Side WPL 2257611 Contact Us For Availability
11
Shield, Drain Pan WPL 2005908 Contact Us For Availability
11
Switch Assembly (Not Available Order Item 25) WPL ARI106861A Contact Us For Availability
11
Baffle Control Assembly WPL 2257526 Contact Us For Availability
12
Cover WPL 2169935 Contact Us For Availability
12
Lever, Water Dispenser (White) WPL 2259395W Contact Us For Availability
13
Door Spacer, Bottom WPL 2257637 Contact Us For Availability
13
Trim, Glass Rear WPL 2257581 Contact Us For Availability
13
Tube, Discharge WPL 2259352 Contact Us For Availability
13
Clip, Water Tube WPL 934011 Contact Us For Availability
13
Jumper, Air Baffle WPL 2187619 Contact Us For Availability
14
Screw WPL 3400525 Contact Us For Availability
14
Delay Mechanism WPL 2205686 Contact Us For Availability
14
Screw WPL 488357 Contact Us For Availability
15
Clip, Thermistor WPL 2257639 Contact Us For Availability
15
OVERLAY WPL 2257518 Contact Us For Availability
16
CONDENSER WPL 2259307 Contact Us For Availability
16
Handle, Door (Etched Aluminum) WPL 2256472 Contact Us For Availability
16
Handle, Door (Black) WPL 2256472B Contact Us For Availability
16
Handle, Door (White) WPL 2256472W Contact Us For Availability
17
Heater, Defrost WPL 2006749 Contact Us For Availability
18
Trim, Glass Front WPL 2302830 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Trim, Glass Rear WPL 2256253 Contact Us For Availability
19
Screw WPL 488280 Contact Us For Availability
20
Gasket, Evaporator WPL 2220832 Contact Us For Availability
20
Latch, Bin WPL 2252206 Contact Us For Availability
20
Wire Assembly WPL 2187680 Contact Us For Availability
21
Trim (Top) (Etched Aluminum) WPL 2005019 Contact Us For Availability
21
Trim (Top) (White) WPL 2005022 Contact Us For Availability
21
Trim (Top) (Black) WPL 2005885 Contact Us For Availability
21
Diffuser Assembly WPL 2208997 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
23
TRIM, GLASS SIDE CRISPER PAN WPL 2252255 Contact Us For Availability
23
Clamp, Filter Housing WPL 2209090 Contact Us For Availability
23
Trim (Bottom) (Etched Aluminum) WPL 2215984 Contact Us For Availability
23
Trim (Bottom) (Black) WPL 2215984B Contact Us For Availability
23
Trim (Bottom) (White) WPL 2215984W Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Holder WPL 2212369 Contact Us For Availability
24
Trim (Side) (Etched Aluminum) WPL 2005962 Contact Us For Availability
24
Trim (Side) (White) WPL 2005963 Contact Us For Availability
24
Trim (Side) (Black) WPL 2005966 Contact Us For Availability
24
Overlay, Cover (Not Available- Order Item 25) WPL ARI106862A Contact Us For Availability
24
Spacer, Air Baffle WPL 2259372 Contact Us For Availability
25
Front Cover Assembly (Includes Items 4,11,20, WPL 2257555B Contact Us For Availability
25
Front Cover Assembly (Includes Items 4,11,20, WPL 2257555W Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Trim, Front (White) WPL 2208917 Contact Us For Availability
26
Trim, Front (Black) WPL 2208926 Contact Us For Availability
26
Cover, Air Return WPL 2259066 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
27
Screw 8-15 x 1/2 (White) WPL 8281251 Contact Us For Availability
27
Seal, Air Duct (Round Hole) WPL 2259412 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability
28
F.C. (3) WPL ARI106858A Contact Us For Availability
28
Trim, Front (Black) WPL 2266918B Contact Us For Availability
28
Trim, Front (White) WPL 2266918W Contact Us For Availability
30
Harness, Switch Jumper Assembly WPL 2187623 Contact Us For Availability
32
SKIRT-GRILLE, BOTTOM (WHITE) WPL 2209024W Contact Us For Availability
33
COVER WPL 2222862 Contact Us For Availability
34
Grille Bottom, Front (Black) WPL 2209425B Contact Us For Availability
34
Grill WPL 2209425W Contact Us For Availability
35
WPL 2005921 WPL 2005921 Contact Us For Availability
40
Clip, Thermistor WPL 2209204 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
