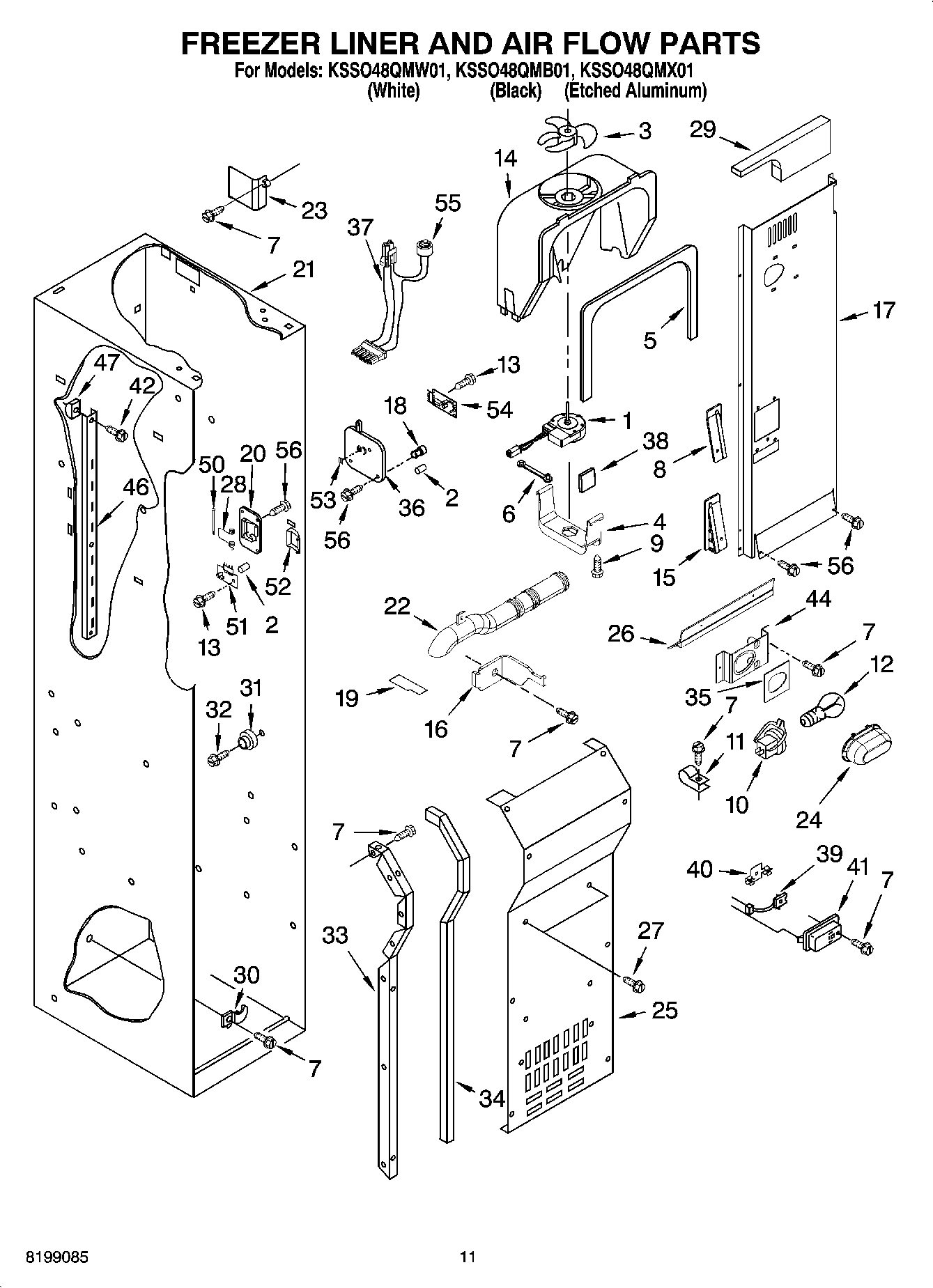

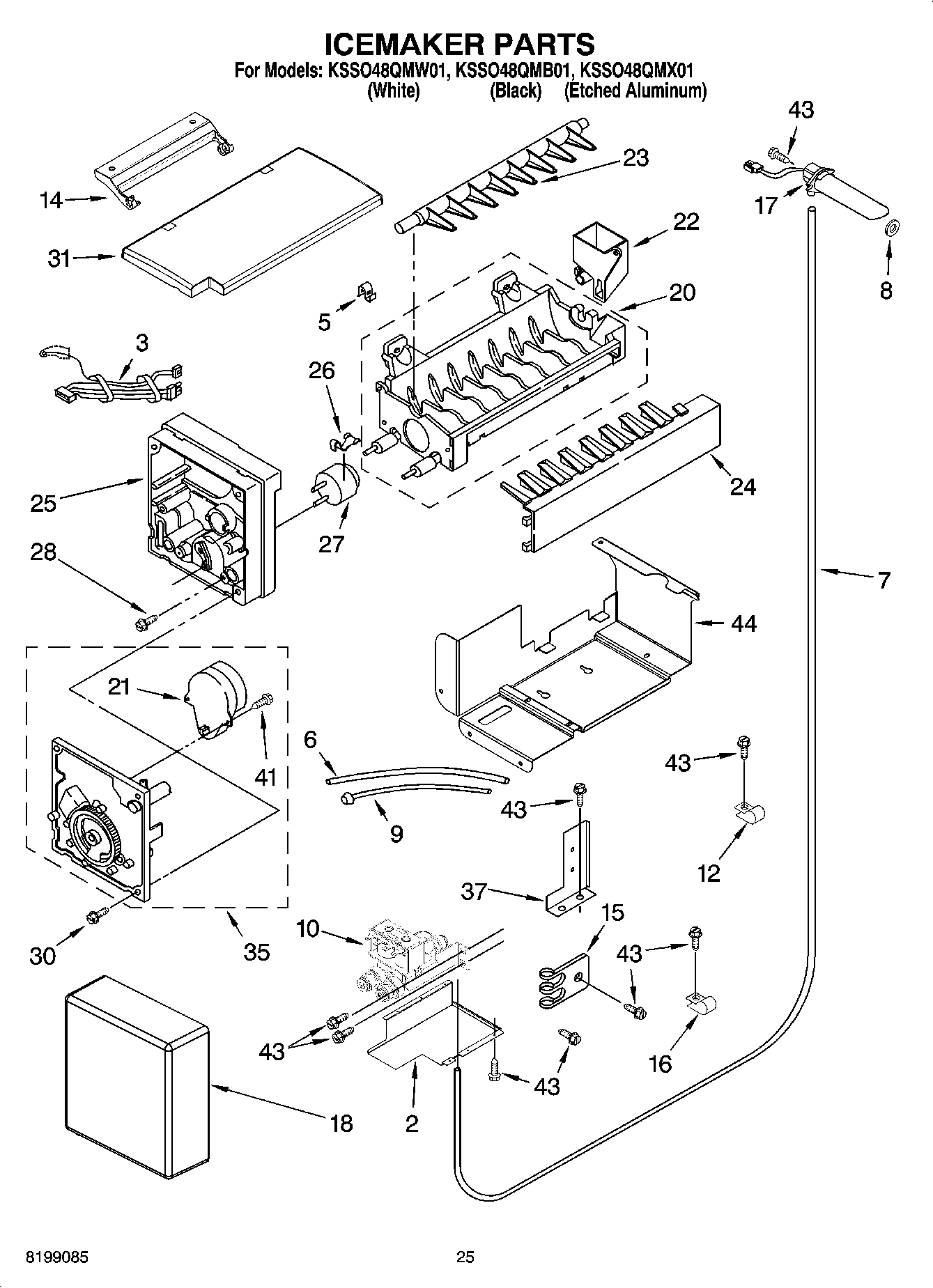

Model Whirlpool KSSO48QMX01 48`` BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2222970 Whirlpool Refrigerator Ice Bin Backorder WPL WP2222970 $104.13

1

Wire, Shelf WPL 2302869 Contact Us For Availability

1

Top Grille Assembly (Black) WPL 2259424B Contact Us For Availability

1

Top Grille Assembly (White) WPL 2259424W Contact Us For Availability

1

Top Grille Assembly (Etched Aluminum) WPL 2259424X Contact Us For Availability

1

Cabinet Trim, Right Side (Black) WPL 2257688B Contact Us For Availability

1

Cabinet, Trim (Right Side) (White) WPL 2257688W Contact Us For Availability

1

Cabinet Trim, Right Side (Etched Aluminum) WPL 2257688X Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI155053A Contact Us For Availability

1

Refrigerator Door Panel (Includes Item 9) WPL 2252331 Contact Us For Availability

2

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

2

WP2306010 Whirlpool Refrigerator Thermistor In Stock WPL WP2306010 $31.66

2

Cover, Unit WPL 2259320 Contact Us For Availability

2

Crusher Bin WPL 2222969 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct In Stock WPL 2208970 $53.75

3

2302884 Whirlpool Refrigerator Wire Shelf Backorder WPL 2302884 $125.19

3

W10841139 Whirlpool Refrigerator Compressor In Stock WPL W10841139 $335.53

3

W10852517 Whirlpool Refrigerator Ice Auger Backorder WPL W10852517 $83.82

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

3

Wire Assembly, Icemaker WPL 2187717 Contact Us For Availability

4

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $151.83

4

W11318849 Whirlpool Refrigerator Freezer Bask Backorder WPL W11318849 $97.74

4

Clip, Thermistor WPL 2209204 Contact Us For Availability

4

Washer, Auger WPL 2258220 Contact Us For Availability

4

Housing, Control Board WPL 2257354 Contact Us For Availability

4

Cabinet, Trim (Bottom) WPL 2254726 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2256271 Whirlpool Refrigerator Front Basket Backorder WPL WP2256271 $54.79

5

WP2259077 Whirlpool Ladder Assembly Backorder WPL WP2259077 $28.09

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Cover, Unit Front WPL 2302974 Contact Us For Availability

5

Bracket, Fan Motor WPL 2215641 Contact Us For Availability

6

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $109.65

6

2302878 Whirlpool Refrigerator Door Hinge In Stock WPL 2302878 $36.65

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

6

W11752085 Whirlpool Door Hinge Backorder WPL W11752085 $23.48

6

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

6

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $144.34

6

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

6

Suction Tube WPL 2259303 Contact Us For Availability

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

Cabinet, Trim Top WPL 2313993 Contact Us For Availability

7

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

7

W11348580 Whirlpool Refrigerator Bin In Stock WPL W11348580 $103.37

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

7

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $2.51

7

Wire Assembly RC/FC Light Switch WPL 2187429 Contact Us For Availability

7

Shroud, Condenser (Right) WPL 2266803 Contact Us For Availability

7

Cabinet Trim, Left Side (Black) WPL 2257689B Contact Us For Availability

7

Cabinet Trim (Left Side) (White) WPL 2257689W Contact Us For Availability

7

Cabinet Trim, Left Side (Etched Aluminum) WPL 2257689X Contact Us For Availability

8

2215910 Whirlpool Refrigerator Grommet Backorder WPL 2215910 $30.25

8

2259464 Whirlpool Refrigerator Wedge Backorder WPL 2259464 $34.97

8

W11724512 Whirlpool Door Hinge In Stock WPL W11724512 $117.46

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

8

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

8

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

8

Tube, Connect (Drier/Restrictor) WPL 2259304 Contact Us For Availability

8

Bracket, Switch WPL 2302969 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

9

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

9

WP2266903 Whirlpool Refrigerator Door Gasket In Stock WPL WP2266903 $203.10

9

WP2302937 Whirlpool Refrigerator Thermistor In Stock WPL WP2302937 $44.95

9

WP2306086 Whirlpool Refrigerator Electronic C Backorder WPL WP2306086 $195.04

9

Spacer-Door, Top WPL 2256381 Contact Us For Availability

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Meat Pan Cover Assembly WPL 2302843 Contact Us For Availability

2302986 Whirlpool Refrigerator Cover Backorder WPL 2302986 $35.67

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2188786 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2188786 $102.53

Lever, Ice Dispenser (Black) WPL 2259396B Contact Us For Availability

Crisper Cover Assembly WPL 2302836 Contact Us For Availability

Enclosure, Connector WPL 2221297 Contact Us For Availability

Shroud, Condenser (Left) WPL 2302973 Contact Us For Availability

W10219463-includeCORE Whirlpool W10219463 Con Backorder WPL W10219463-includeCORE $254.73

Cam, Door Closer WPL 2005783 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Trim, Glass Rear Side WPL 2257611 Contact Us For Availability

Grille-Trim, Right Side (Black) WPL 2259420B Contact Us For Availability

Grille-Trim, Right Side (White) WPL 2259420W Contact Us For Availability

Grille-Trim, Right Side (Etched Aluminum) WPL 2259420X Contact Us For Availability

Baffle, Control Assembly WPL 2302987 Contact Us For Availability

Trim, Door (Handle Side) (Black) WPL 2259040B Contact Us For Availability

Trim, Door (Handle Side) (White) WPL 2259040W Contact Us For Availability

Trim, Door (Handle Side) (Etched Aluminum) WPL 2259040X Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $6.59

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $96.31

Lever, Water Dispenser (Black) WPL 2259395B Contact Us For Availability

Grille-Trim, Top (Black) WPL 2259442B Contact Us For Availability

Grille-Trim, Top (White) WPL 2259442W Contact Us For Availability

Grille-Trim, Top (Etched Aluminum) WPL 2259442X Contact Us For Availability

Cover, Screw (Hinge Side) (Black) WPL 2259448B Contact Us For Availability

Cover, Screw (Hinge Side) (White) WPL 2259448W Contact Us For Availability

Cover, Screw (Hinge Side) (Etched Aluminum) WPL 2259448X Contact Us For Availability

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $29.61

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

Trim, Glass Rear WPL 2257583 Contact Us For Availability

Grille-Trim. Left Side (Black) WPL 2259421B Contact Us For Availability

Grille-Trim. Left Side (White) WPL 2259421W Contact Us For Availability

Grille-Trim. Left Side (Etched Aluminum) WPL 2259421X Contact Us For Availability

Jumper, Air Baffle WPL 2187619 Contact Us For Availability

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Screw WPL 3400525 Contact Us For Availability

Screw WPL 488357 Contact Us For Availability

Cover, Screw (Handle Side) (Black) WPL 2259365B Contact Us For Availability

Cover, Screw (Handle Side) (White) WPL 2259365W Contact Us For Availability

Cover, Screw (Handle Side) (Etched Aluminum) WPL 2259365X Contact Us For Availability

2003347 Whirlpool Screw Backorder WPL 2003347 $9.35

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $2.51

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Screw, 8-15 x .500 (White) WPL 8281251 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

WP2306094 Whirlpool Evaporator In Stock WPL WP2306094 $242.21

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

CONDENSER WPL 2259307 Contact Us For Availability

Grille-Trim, Bottom (Black) WPL 2259436B Contact Us For Availability

Grille-Trim, Bottom (White) WPL 2259436W Contact Us For Availability

Grille-Trim, Bottom (Etched Aluminum) WPL 2259436X Contact Us For Availability

Trim, Door (Top) (Etched Aluminum) WPL 2005012 Contact Us For Availability

TRIM-DOOR, TOP (WHITE) WPL 2005015 Contact Us For Availability

TRIM-DOOR, TOP (BLACK) WPL 2005841 Contact Us For Availability

2302954 Whirlpool Refrigerator Slide In Stock WPL 2302954 $127.84

2302955 Whirlpool Refrigerator Slide In Stock WPL 2302955 $127.84

W11769878 Whirlpool Screw Backorder WPL W11769878 $7.72

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $177.39

WP2306389 Whirlpool Refrigerator Heater In Stock WPL WP2306389 $71.95

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Bracket, Anti-Drip Valve WPL 2259209 Contact Us For Availability

Grommet (4) WPL 943447 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $65.21

WP2187629 Whirlpool Refrigerator Wire Jumper Backorder WPL WP2187629 $39.49

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Door, Spacer WPL 2257637 Contact Us For Availability

Trim, Door (Hinge Side) (Black) WPL 2257686B Contact Us For Availability

Trim, Door (Hinge Side) (White) WPL 2257686W Contact Us For Availability

Trim, Door (Hinge Side) (Etched Aluminum) WPL 2257686X Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $30.25

WP2252265 Whirlpool Refrigerator Ice Bin Butt In Stock WPL WP2252265 $14.37

Screw WPL 487522 Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

Trim (Bottom) (Etched Aluminum) WPL 2215995 Contact Us For Availability

Trim (Bottom) (Black) WPL 2215995B Contact Us For Availability

Trim (Bottom) (White) WPL 2215995W Contact Us For Availability

WP2215650 Whirlpool Refrigerator Cover Backorder WPL WP2215650 $87.39

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Gasket, Evaporator WPL 2220832 Contact Us For Availability

Latch, Bin WPL 2252208 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

WP2309222 Whirlpool Refrigerator Diffuser Backorder WPL WP2309222 $30.89

WPW10323172 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323172 $3.70

WPW10323173 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323173 $3.70

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $4.58

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Bushing WPL 2300082 Contact Us For Availability

2259025 Whirlpool Refrigerator Air Cover Backorder WPL 2259025 $35.36

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $137.10

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

2256250 Whirlpool Refrigerator Shelf Trim Backorder WPL 2256250 $31.04

W10475010 Whirlpool Refrigerator Spacer Backorder WPL W10475010 $129.41

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $32.39

Blade, Fan WPL 2190685 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

2256222 Whirlpool Refrigerator Track Backorder WPL 2256222 $32.19

2256223 Whirlpool Refrigerator Track Backorder WPL 2256223 $30.43

2309087 Whirlpool Refrigerator Cover Backorder WPL 2309087 $10.65

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $93.40

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

Front Cover Assembly (Includes Items 4, 11, 2 WPL 2309377B Contact Us For Availability

Orifice, Fan WPL 2003169 Contact Us For Availability

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

26

Tube, Drier Transition WPL 2259302 Contact Us For Availability

26

Cover, Air Return WPL 2259066 Contact Us For Availability

2302956 Whirlpool Refrigerator Slide Backorder WPL 2302956 $124.19

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $91.88

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

BIN-CNTLVR Backorder WPL W11752086 $36.67

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

Seal, Air Duct (Round Hole) WPL 2259412 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

2259398 Whirlpool Refrigerator Seal Backorder WPL 2259398 $7.69

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

Tube, Heat Loop Transition WPL 2259341 Contact Us For Availability

Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability

Butter Tray WPL 2165792 Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $73.63

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $107.80

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

W10323748 Whirlpool Refrigerator Cantilever B Backorder WPL W10323748 $63.13

W10407628 Whirlpool Refrigerator Meat Pan Backorder WPL W10407628 $94.10

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $28.40

Housing, Power Supply WPL 2259349 Contact Us For Availability

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2259350 Whirlpool Refrigerator Electronic C Backorder WPL WP2259350 $70.57

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

WP2212363 Whirlpool Refrigerator Motor In Stock WPL WP2212363 $94.84

SKIRT, GRILLE BOTTOM (BLACK) WPL 2209026B Contact Us For Availability

Skirt-Grille, Bottom (White) WPL 2209026W Contact Us For Availability

Sleeve, Condenser WPL 2000645 Contact Us For Availability

33

W10847927 Whirlpool Refrigerator Extension In Stock WPL W10847927 $32.16

33

W11298172 Whirlpool Refrigerator Extension Backorder WPL W11298172 $31.95

33

COVER WPL 2222862 Contact Us For Availability

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $8.31

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

Grille Bottom, Front (Black) WPL 2209431B Contact Us For Availability

WPL 2209431W WPL 2209431W Contact Us For Availability

35

WPL 2005921 WPL 2005921 Contact Us For Availability

2006556 Whirlpool Refrigerator Bracket Backorder WPL 2006556 $12.50

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $30.25

2259493 Whirlpool Refrigerator Cover Backorder WPL 2259493 $30.25

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

Cover, Fan WPL 2209495 Contact Us For Availability

37

Harness, Evap Fan (Includes Item 55) WPL 2187673 Contact Us For Availability

37

Cover, Condenser WPL 2259092 Contact Us For Availability

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $30.25

38

Grommet, Edge WPL 2307907 Contact Us For Availability

39

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $4.59

39

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

39

Service Cord WPL 2259197 Contact Us For Availability

40

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $23.70

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

41

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $36.85

42

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

43

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

2252228 Whirlpool Refrigerator Bracket Backorder WPL 2252228 $30.89

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

2215938 Whirlpool Refrigerator Switch Cover In Stock WPL 2215938 $30.25

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2187900 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI155061A Contact Us For Availability

and Optional Parts Not Included WPL ARI155062A Contact Us For Availability

REFRIGERANT CHARGE 7.75 oz. (R-134A) WPL ARI155063A Contact Us For Availability

47

2221096 Whirlpool Refrigerator Bracket Backorder WPL 2221096 $30.89

47

2221097 Whirlpool Refrigerator Bracket Backorder WPL 2221097 $30.89

48

2215612 Whirlpool Refrigerator Duct Cover Backorder WPL 2215612 $33.31

50

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

52

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

55

WP2306462 Whirlpool Refrigerator Bimetallic D In Stock WPL WP2306462 $71.46

56

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56
