Model Whirlpool KSSO36QMX01 36`` BUILT IN REFRIGERATOR – Common Parts & Diagrams
02 - CABINET TRIM PARTS

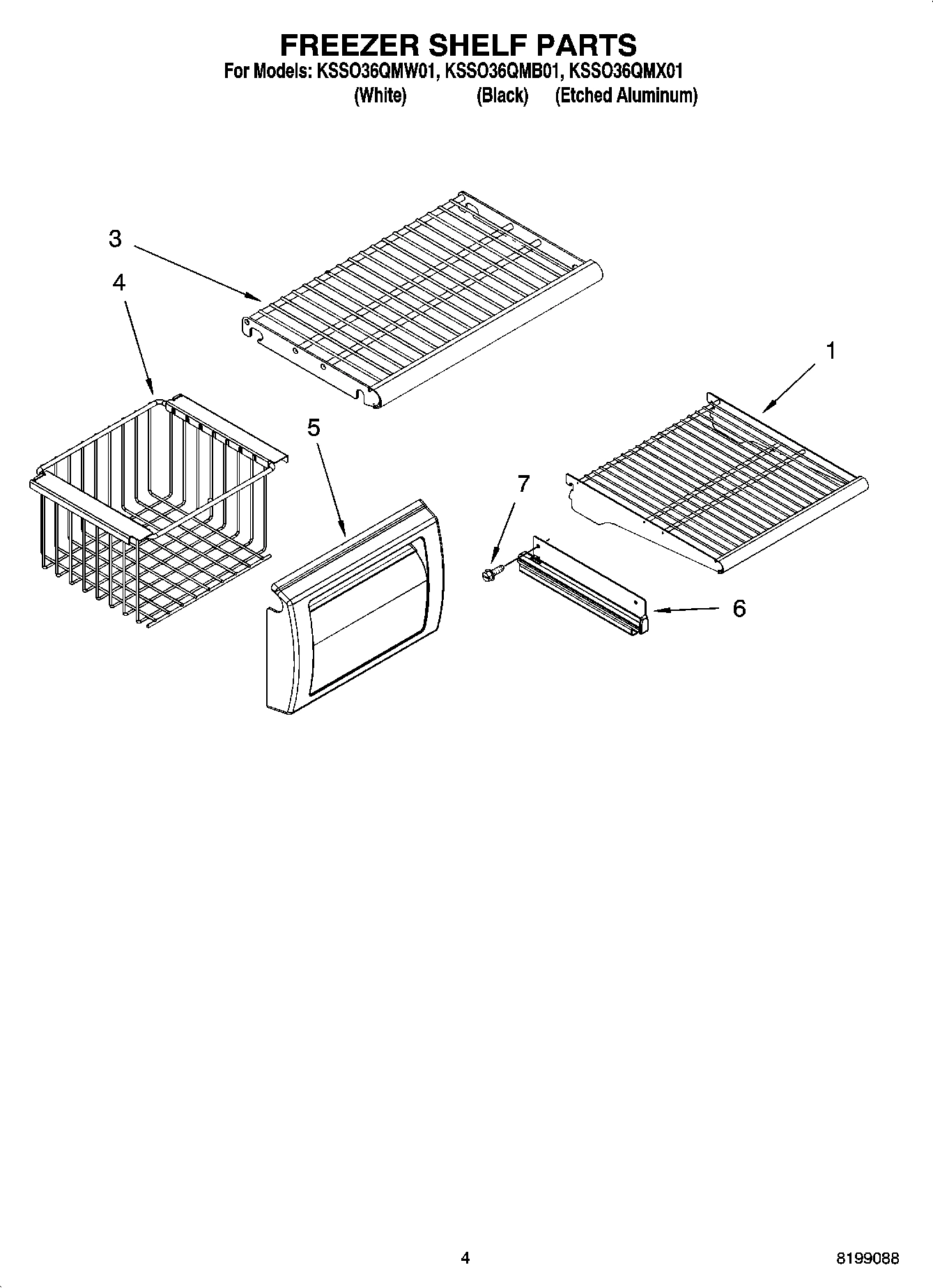

03 - FREEZER SHELF PARTS
08 - FREEZER LINER AND AIR FLOW PARTS
10 - REFRIGERATOR DOOR PARTS
12 - DISPENSER AND FRONT PARTS
05 - CONTROL PANEL PARTS
07 - REFRIGERATOR SHELF PARTS
06 - TOP GRILLE AND UNIT COVER PARTS
13 - UPPER UNIT PARTS
01 - CABINET PARTS
09 - MOTOR AND ICE CONTAINER PARTS
11 - FREEZER DOOR PARTS
04 - REFRIGERATOR LINER PARTS
15 - ICEMAKER PARTS
14 - LOWER UNIT AND TUBE PARTS
Common parts from model Whirlpool KSSO36QMX01 36`` BUILT IN REFRIGERATOR
1
Main Control Service Sheet WPL 2302865 Contact Us For Availability
1
Service & Wiring Sheet WPL 2306332 Contact Us For Availability
1
Icemaker and Ingredient Care Center Service S WPL 2306424 Contact Us For Availability
1
Energy Label WPL 2307357 Contact Us For Availability
1
Use & Care Guide WPL 2309068 Contact Us For Availability
1
Installation Instructions WPL 2309069 Contact Us For Availability
1
Ice Bin WPL 2222960 Contact Us For Availability
1
Freezer Door Panel (Includes Item 14) (Black) WPL 2252323B Contact Us For Availability
1
Freezer Door Panel (Includes Item 14) (White) WPL 2252323W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI105806A Contact Us For Availability
2
Cabinet (Not A Serviceable Part) WPL ARI105805A Contact Us For Availability
2
Crusher Bin WPL 2222959 Contact Us For Availability
2
Cover-Bottom, Electrical WPL 2300104 Contact Us For Availability
3
Clamp, Tube WPL 2004514 Contact Us For Availability
3
Wire Assembly, Icemaker WPL 2187622 Contact Us For Availability
4
Spacer-Door, Top WPL 2256381 Contact Us For Availability
4
Washer, Auger WPL 2258220 Contact Us For Availability
4
Bracket WPL 2215508 Contact Us For Availability
5
Side Support WPL 2302929 Contact Us For Availability
6
Suction Tube WPL 2259303 Contact Us For Availability
6
Cover, Crusher WPL 2255460 Contact Us For Availability
6
Grommet, Wiring WPL 2005006 Contact Us For Availability
6
Tube, Filter Inlet WPL 2214613 Contact Us For Availability
7
Grommet, Flexible WPL 2005007 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2316756 Contact Us For Availability
8
Tube, Connect (Drier/Restrictor) WPL 2259304 Contact Us For Availability
8
Seal Gasket WPL 2302758 Contact Us For Availability
9
Blade, Fixed WPL 2257020 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Mounting Stud, Grill WPL 2006442 Contact Us For Availability
9
Heater, Drain Pan WPL 2259329 Contact Us For Availability
10
Lever, Ice Dispenser (Black) WPL 2259396B Contact Us For Availability
10
Valve, Solenoid WPL 2307811 Contact Us For Availability
10
Shroud, Condenser (Left) WPL 2302973 Contact Us For Availability
10
Grommet, Crossover Tube WPL 2005004 Contact Us For Availability
10
Hanger, Heater WPL 2209450 Contact Us For Availability
11
Cam, Door Closer WPL 2005783 Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Trim, Glass Rear Side WPL 2257611 Contact Us For Availability
11
Baffle, Control Assembly WPL 2302987 Contact Us For Availability
11
Shield, Drain Pan WPL 2005908 Contact Us For Availability
13
Door Spacer, Bottom WPL 2257637 Contact Us For Availability
13
Clip, Water Tube WPL 934011 Contact Us For Availability
13
Jumper, Air Baffle WPL 2187619 Contact Us For Availability
13
Tube, Discharge WPL 2259352 Contact Us For Availability
14
Screw WPL 3400525 Contact Us For Availability
14
Screw WPL 488357 Contact Us For Availability
15
Cover, Screw (Handle Side) (Black) WPL 2259365B Contact Us For Availability
15
Cover, Screw (Handle Side) (White) WPL 2259365W Contact Us For Availability
15
Cover, Screw (Handle Side) (Etched Aluminum) WPL 2259365X Contact Us For Availability
16
CONDENSER WPL 2259307 Contact Us For Availability
16
Trim, Door (Handle Side) (Black) WPL 2259041B Contact Us For Availability
16
Trim, Door (Handle Side) (White) WPL 2259041W Contact Us For Availability
16
Trim, Door (Handle Side) (Etched Aluminum) WPL 2259041X Contact Us For Availability
16
Clamp, Tube WPL 488937 Contact Us For Availability
17
Heater, Defrost WPL 2306387 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Cover, Screw (Hinge Side) (Black) WPL 2259448B Contact Us For Availability
17
Cover, Screw (Hinge Side) (White) WPL 2259448W Contact Us For Availability
17
Cover, Screw (Hinge Side) (Etched Aluminum) WPL 2259448X Contact Us For Availability
18
Cover WPL 2257538 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Screw WPL 488280 Contact Us For Availability
20
Gasket, Evaporator WPL 2220832 Contact Us For Availability
20
Latch, Bin WPL 2252206 Contact Us For Availability
20
Screw (White) WPL 8281251 Contact Us For Availability
21
Trim, Door (Top) (Etched Aluminum) WPL 2005019 Contact Us For Availability
21
TRIM-DOOR, TOP (WHITE) WPL 2005022 Contact Us For Availability
21
TRIM-DOOR, TOP (BLACK) WPL 2005885 Contact Us For Availability
22
Bushing WPL 2300082 Contact Us For Availability
23
Clamp, Filter Housing WPL 2209090 Contact Us For Availability
23
Trim (Bottom) (Etched Aluminum) WPL 2215984 Contact Us For Availability
23
Trim (Bottom) (Black) WPL 2215984B Contact Us For Availability
23
Trim (Bottom) (White) WPL 2215984W Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Holder WPL 2212369 Contact Us For Availability
24
Trim, Door (Hinge Side) (Black) WPL 2257687B Contact Us For Availability
24
Trim, Door (Hinge Side) (White) WPL 2257687W Contact Us For Availability
24
Trim, Door (Hinge Side) (Etched Aluminum) WPL 2257687X Contact Us For Availability
25
Front Cover Assembly (Includes Items 4, 11, 2 WPL 2309379B Contact Us For Availability
25
Orifice, Fan WPL 2003169 Contact Us For Availability
26
Tube, Drier Transition WPL 2300190 Contact Us For Availability
26
Cover, Air Return WPL 2259066 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
27
Seal, Air Duct (Round Hole) WPL 2259412 Contact Us For Availability
28
Tube, Heat Loop Transition WPL 2259301 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability
28
F.C. (3) WPL ARI105809A Contact Us For Availability
30
Housing, Power Supply WPL 2259349 Contact Us For Availability
31
Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
32
SKIRT-GRILLE, BOTTOM (WHITE) WPL 2209024W Contact Us For Availability
33
COVER WPL 2222862 Contact Us For Availability
34
Grille Bottom, Front ( WPL 2209425B Contact Us For Availability
34
WPL 2209425W WPL 2209425W Contact Us For Availability
35
WPL 2005921 WPL 2005921 Contact Us For Availability
36
Cover, Fan WPL 2209495 Contact Us For Availability
37
Harness, Evap Fan (Includes Item 55) WPL 2187673 Contact Us For Availability
37
Cover, Condenser WPL 2259092 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2306081 Contact Us For Availability
38
Grommet, Edge WPL 2307907 Contact Us For Availability
39
Service Cord WPL 2259197 Contact Us For Availability
40
Clip, Thermistor WPL 2209204 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2187900 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
45
Following Parts Not Illustrated and Optional WPL ARI105814A Contact Us For Availability
45
REFRIGERANT CHARGE 6.25 oz. (R-134A) WPL ARI105815A Contact Us For Availability
100
Front Panel Kit (White) WPL 2220864 Contact Us For Availability
100
Front Panel Kit (Black) WPL 2220867 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 2220873 Contact Us For Availability
100
Ice Container Assembly WPL 2222958 Contact Us For Availability
100
Static Cleaner, Black Panel WPL 978849 Contact Us For Availability
100
Following Parts Not Illustrated (Optional Par WPL ARI105816A Contact Us For Availability
× ![]()
