Model Whirlpool KSSO36QMW01 36`` BUILT IN REFRIGERATOR – Common Parts & Diagrams

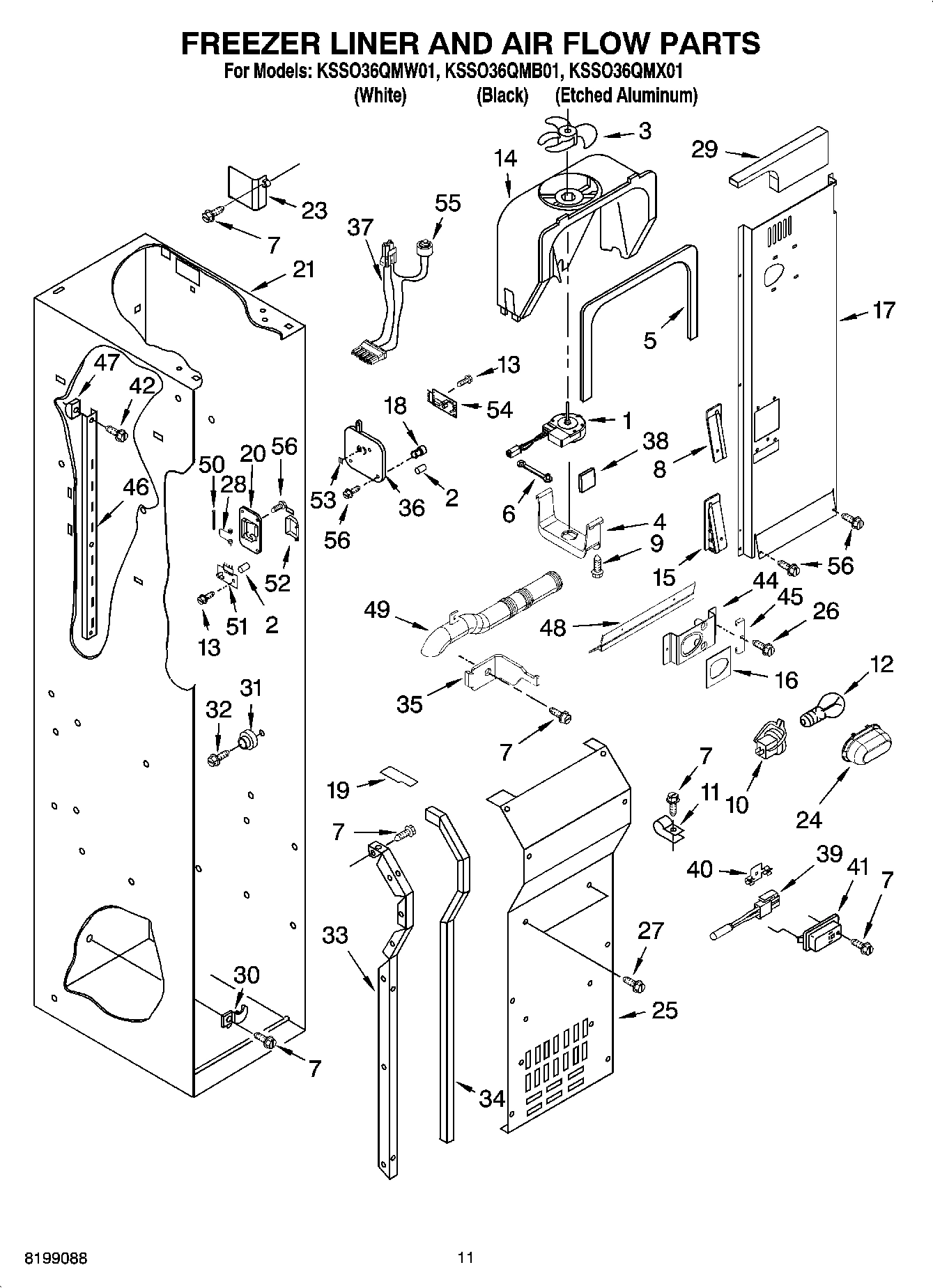

08 - FREEZER LINER AND AIR FLOW PARTS

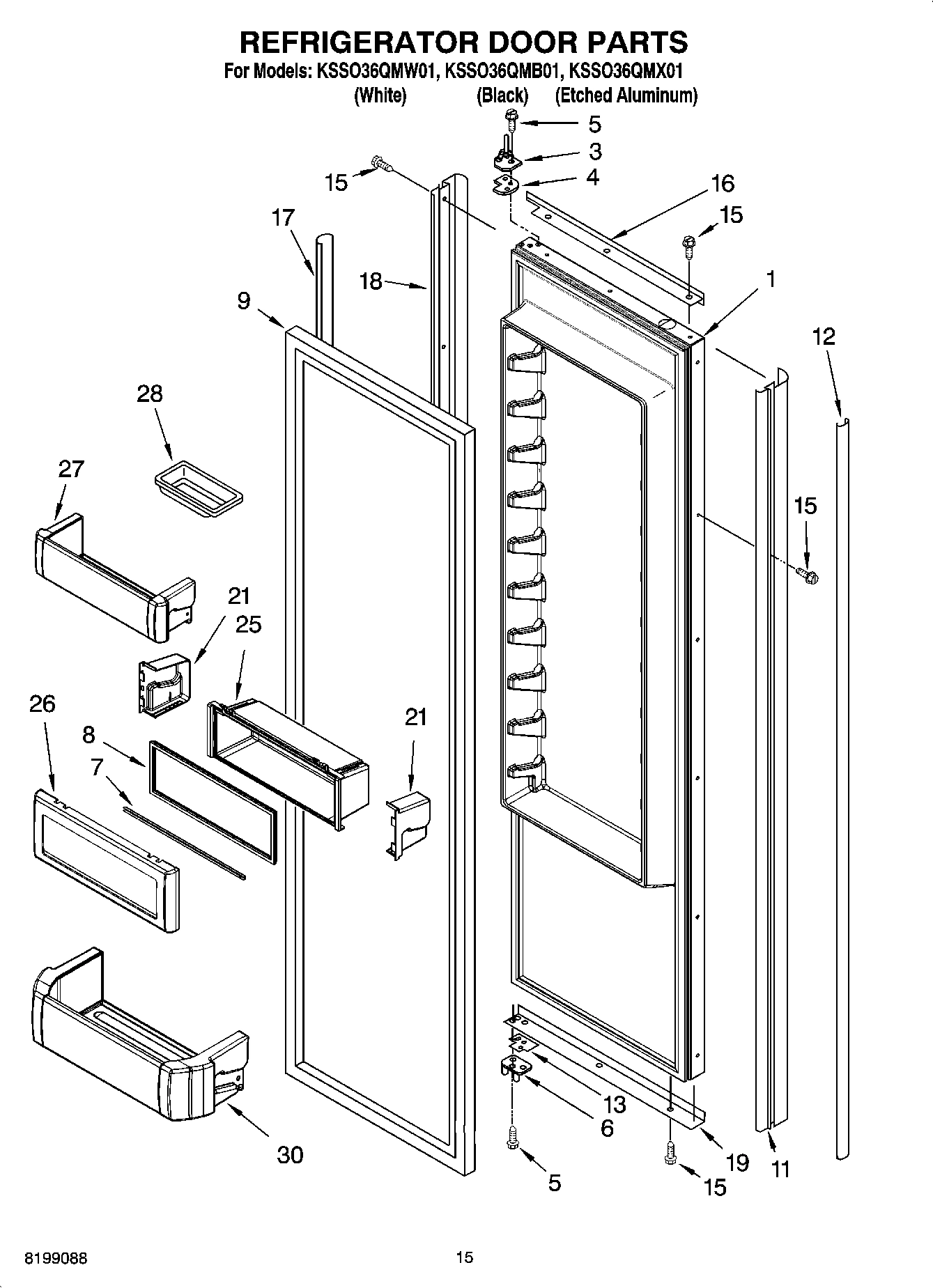

10 - REFRIGERATOR DOOR PARTS
11 - FREEZER DOOR PARTS
13 - UPPER UNIT PARTS
03 - FREEZER SHELF PARTS
14 - LOWER UNIT AND TUBE PARTS
01 - CABINET PARTS
15 - ICEMAKER PARTS
07 - REFRIGERATOR SHELF PARTS
09 - MOTOR AND ICE CONTAINER PARTS
05 - CONTROL PANEL PARTS
12 - DISPENSER AND FRONT PARTS
02 - CABINET TRIM PARTS
04 - REFRIGERATOR LINER PARTS
06 - TOP GRILLE AND UNIT COVER PARTS
Common parts from model Whirlpool KSSO36QMW01 36`` BUILT IN REFRIGERATOR
1
Shelf Assembly WPL 2222591 Contact Us For Availability
1
Ice Bin WPL 2222960 Contact Us For Availability
1
Control Box WPL 2302771 Contact Us For Availability
1
Housing, Dispenser (Not Serviced) WPL ARI105798A Contact Us For Availability
1
Cabinet Trim, Right Side (Black) WPL 2257688B Contact Us For Availability
1
Cabinet, Trim (Right Side) (White) WPL 2257688W Contact Us For Availability
1
Cabinet Trim, Right Side (Etched Aluminum) WPL 2257688X Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI105794A Contact Us For Availability
1
Top Grille Assembly (Black) WPL 2259422B Contact Us For Availability
1
Top Grille Assembly (White) WPL 2259422W Contact Us For Availability
1
Top Grille Assembly (Etched Aluminum) WPL 2259422X Contact Us For Availability
2
Cover-Bottom, Electrical WPL 2300104 Contact Us For Availability
2
Crusher Bin WPL 2222959 Contact Us For Availability
2
Insert, Control Box WPL 2303938 Contact Us For Availability
2
Cover, Unit WPL 2259320 Contact Us For Availability
3
Wire Assembly, Icemaker WPL 2187622 Contact Us For Availability
3
Circuit Board, Housing Control WPL 2302913 Contact Us For Availability
3
Wire Assembly WPL 2187755 Contact Us For Availability
3
Screw (White) WPL 8281251 Contact Us For Availability
4
Spacer-Door, Top WPL 2256381 Contact Us For Availability
4
Washer, Auger WPL 2258220 Contact Us For Availability
4
Clip, Thermistor WPL 2209204 Contact Us For Availability
4
Control Box Wire Harness WPL 2187424 Contact Us For Availability
4
Cover, Dispenser (Not Available- Order Item 2 WPL ARI105799A Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2254724 Contact Us For Availability
5
Cover, Unit Front WPL 2302974 Contact Us For Availability
6
Suction Tube WPL 2259303 Contact Us For Availability
6
Cover, Crusher WPL 2255460 Contact Us For Availability
6
Tube, Filter Inlet WPL 2214613 Contact Us For Availability
6
Egg Bin WPL 2221071 Contact Us For Availability
6
Support, Control Box WPL 2221121 Contact Us For Availability
6
Cabinet, Trim Top WPL 2313991 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2316756 Contact Us For Availability
7
Ice Door Mechanism WPL 2304355 Contact Us For Availability
7
Cabinet Trim, Left Side (Black) WPL 2257689B Contact Us For Availability
7
Cabinet Trim (Left Side) (White) WPL 2257689W Contact Us For Availability
7
Cabinet Trim, Left Side (Etched Aluminum) WPL 2257689X Contact Us For Availability
7
Wire Assembly RC/FC Light Switch WPL 2187429 Contact Us For Availability
8
Tube, Connect (Drier/Restrictor) WPL 2259304 Contact Us For Availability
8
Seal Gasket WPL 2302758 Contact Us For Availability
9
Blade, Fixed WPL 2257020 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Meat Pan Cover Assembly WPL 2302841 Contact Us For Availability
10
Lever, Ice Dispenser (Black) WPL 2259396B Contact Us For Availability
10
Valve, Solenoid WPL 2307811 Contact Us For Availability
10
Crisper Cover Assembly WPL 2302834 Contact Us For Availability
10
Shield, Light WPL 2302727 Contact Us For Availability
10
Lever, Ice Dispenser (White) WPL 2259396W Contact Us For Availability
10
Enclosure, Connector WPL 2221297 Contact Us For Availability
11
Cam, Door Closer WPL 2005783 Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Trim, Glass Rear Side WPL 2257611 Contact Us For Availability
11
Switch Assembly (Not Available Order Item 25) WPL ARI105800A Contact Us For Availability
11
Baffle, Control Assembly WPL 2302987 Contact Us For Availability
11
Trim-Grille, Bottom (Black) WPL 2259434B Contact Us For Availability
11
Trim-Grille, Bottom (White) WPL 2259434W Contact Us For Availability
11
Trim-Grille, Bottom (Etched Aluminum) WPL 2259434X Contact Us For Availability
12
Lever, Water Dispenser (Black) WPL 2259395B Contact Us For Availability
12
Cover WPL 2169935 Contact Us For Availability
12
Lever, Water Dispenser (White) WPL 2259395W Contact Us For Availability
12
Trim-Grille, Right Side (Black) WPL 2259420B Contact Us For Availability
12
Trim-Grille, Right Side (White) WPL 2259420W Contact Us For Availability
12
Trim-Grille, Right Side (Etched Aluminum) WPL 2259420X Contact Us For Availability
13
Door Spacer, Bottom WPL 2257637 Contact Us For Availability
13
Trim, Glass Rear WPL 2257581 Contact Us For Availability
13
Jumper, Air Baffle WPL 2187619 Contact Us For Availability
13
Trim-Grille, Top (Black) WPL 2259440B Contact Us For Availability
13
Trim-Grille, Top (White) WPL 2259440W Contact Us For Availability
13
Trim-Grille, Top (Etched Aluminum) WPL 2259440X Contact Us For Availability
14
Screw WPL 3400525 Contact Us For Availability
14
Delay Mechanism WPL 2205686 Contact Us For Availability
14
Screw WPL 488357 Contact Us For Availability
14
Trim-Grille, Left Side (Black) WPL 2259421B Contact Us For Availability
14
Trim-Grille, Left Side (White) WPL 2259421W Contact Us For Availability
14
Trim-Grille, Left Side (Etched Aluminum) WPL 2259421X Contact Us For Availability
15
OVERLAY WPL 2257518 Contact Us For Availability
16
CONDENSER WPL 2259307 Contact Us For Availability
16
Clamp, Tube WPL 488937 Contact Us For Availability
17
Bracket, Anti-Drip Valve WPL 2259209 Contact Us For Availability
17
Heater, Defrost WPL 2306387 Contact Us For Availability
18
Cover WPL 2257538 Contact Us For Availability
18
Trim, Glass Front (Not Serviceable) WPL ARI105795A Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Trim, Glass Rear WPL 2256253 Contact Us For Availability
19
Screw WPL 488280 Contact Us For Availability
20
Gasket, Evaporator WPL 2220832 Contact Us For Availability
20
Latch, Bin WPL 2252206 Contact Us For Availability
22
Bushing WPL 2300082 Contact Us For Availability
22
Cover, Thermistor WPL 1116793 Contact Us For Availability
23
TRIM, GLASS SIDE CRISPER PAN WPL 2252255 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Holder WPL 2212369 Contact Us For Availability
24
Overlay, Cover (Not Available- Order Item 25) WPL ARI105801A Contact Us For Availability
25
Front Cover Assembly (Includes Items 4, 11, 2 WPL 2309379B Contact Us For Availability
25
Front Cover Assembly (Includes Items 4, 11, 2 WPL 2309379W Contact Us For Availability
26
Trim, Front-Bottom (White) WPL 2208917 Contact Us For Availability
26
Trim, Front-Bottom (Black) WPL 2208926 Contact Us For Availability
26
Cover, Air Return WPL 2259066 Contact Us For Availability
27
Seal, Air Duct (Round Hole) WPL 2259412 Contact Us For Availability
28
Trim, Front-Top (Black) WPL 2266918B Contact Us For Availability
28
Trim, Front-Top (White) WPL 2266918W Contact Us For Availability
30
Switch Jumper, Wire Assembly WPL 2309372 Contact Us For Availability
31
Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability
33
COVER WPL 2222862 Contact Us For Availability
34
Grille Bottom, Front ( WPL 2209425B Contact Us For Availability
34
WPL 2209425W WPL 2209425W Contact Us For Availability
35
WPL 2005921 WPL 2005921 Contact Us For Availability
37
Harness, Evap Fan (Includes Item 55) WPL 2187673 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2306081 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
Front Panel Kit (White) WPL 2220864 Contact Us For Availability
100
Front Panel Kit (Black) WPL 2220867 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 2220873 Contact Us For Availability
100
Ice Container Assembly WPL 2222958 Contact Us For Availability
100
Static Cleaner, Black Panel WPL 978849 Contact Us For Availability
100
Following Parts Not Illustrated (Optional Par WPL ARI105804A Contact Us For Availability
× ![]()
