Model Whirlpool KSSO36QMB01 36`` BUILT IN REFRIGERATOR – Common Parts & Diagrams

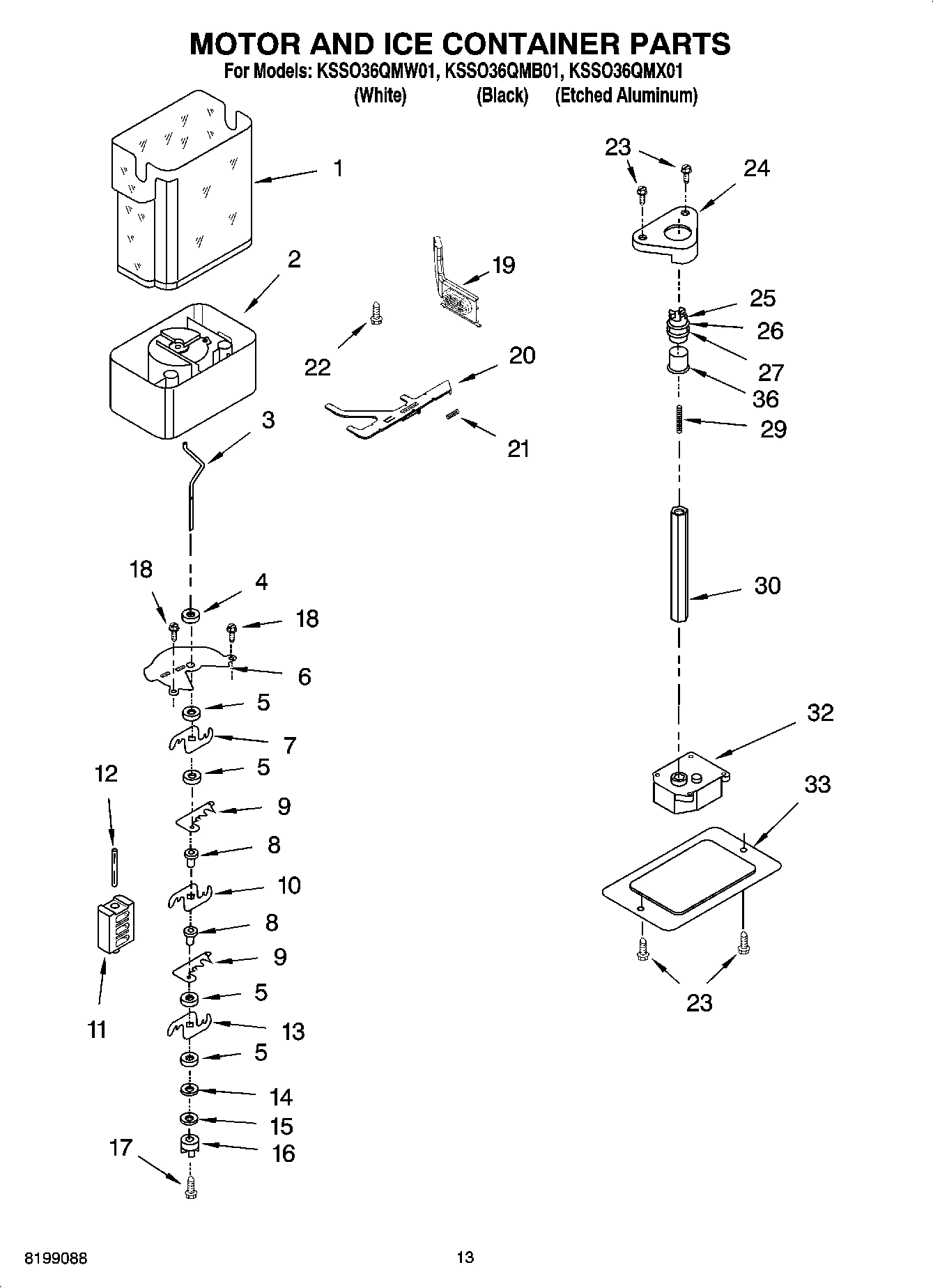

09 - MOTOR AND ICE CONTAINER PARTS

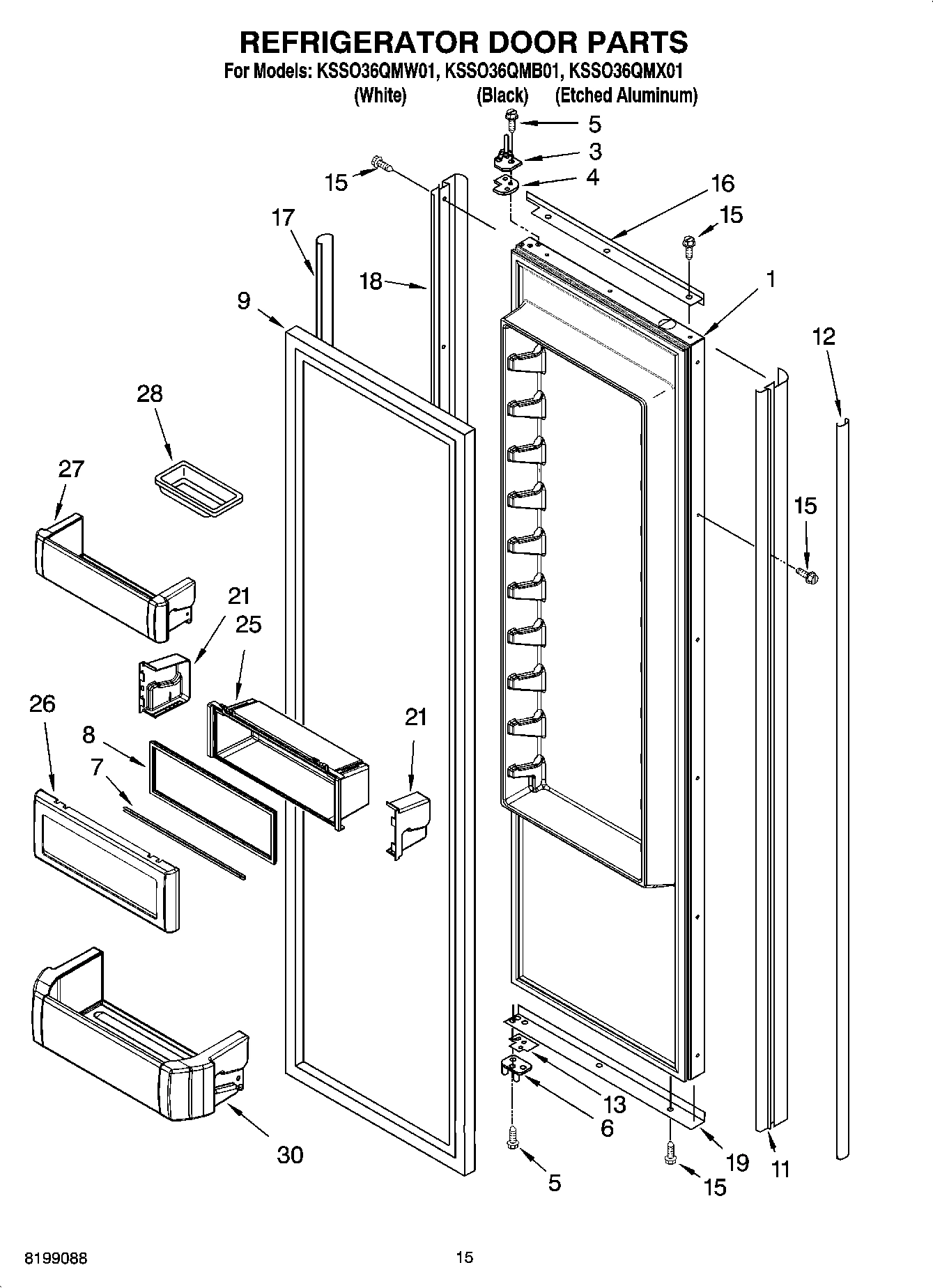

10 - REFRIGERATOR DOOR PARTS
02 - CABINET TRIM PARTS

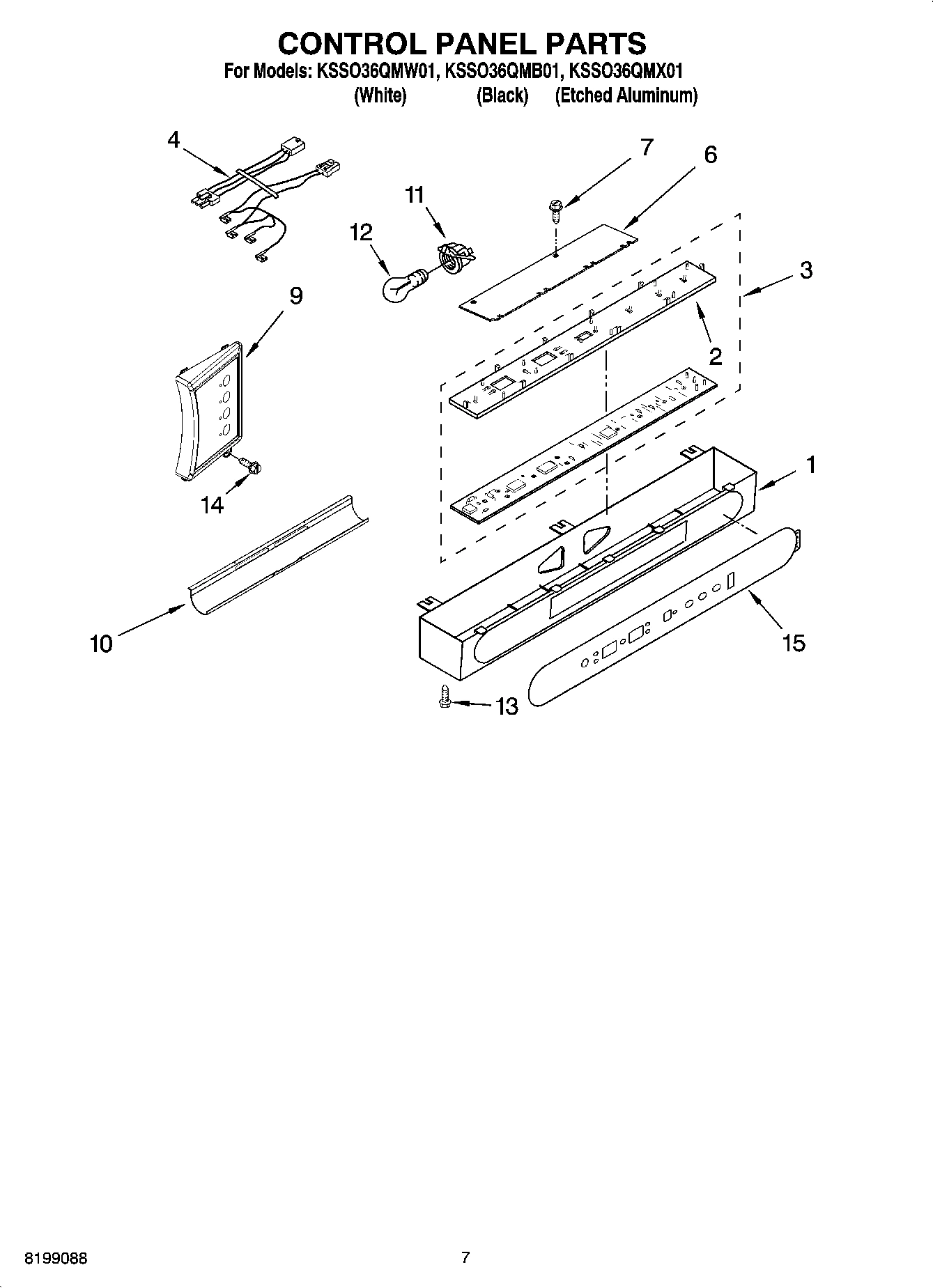

05 - CONTROL PANEL PARTS

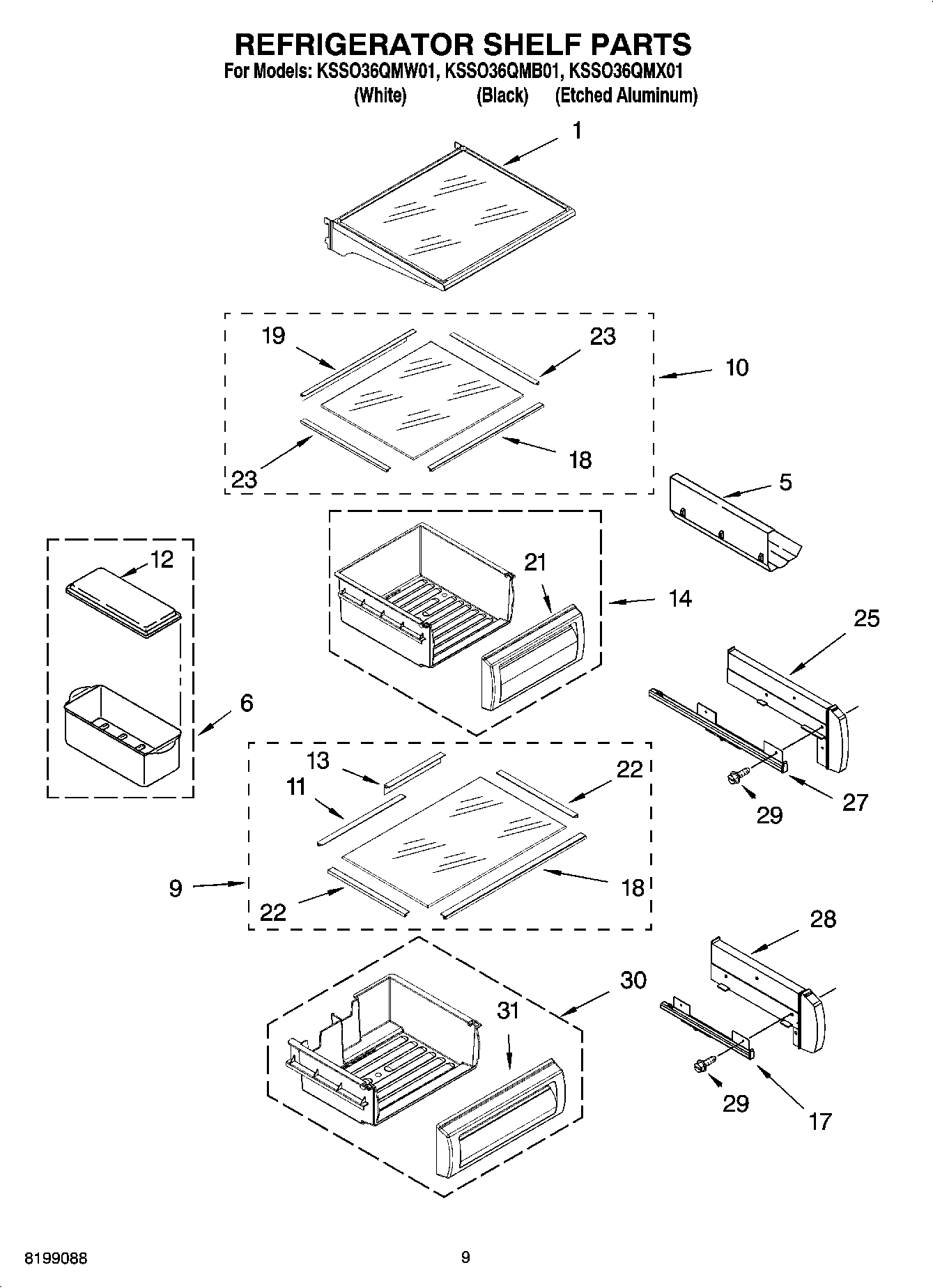

07 - REFRIGERATOR SHELF PARTS

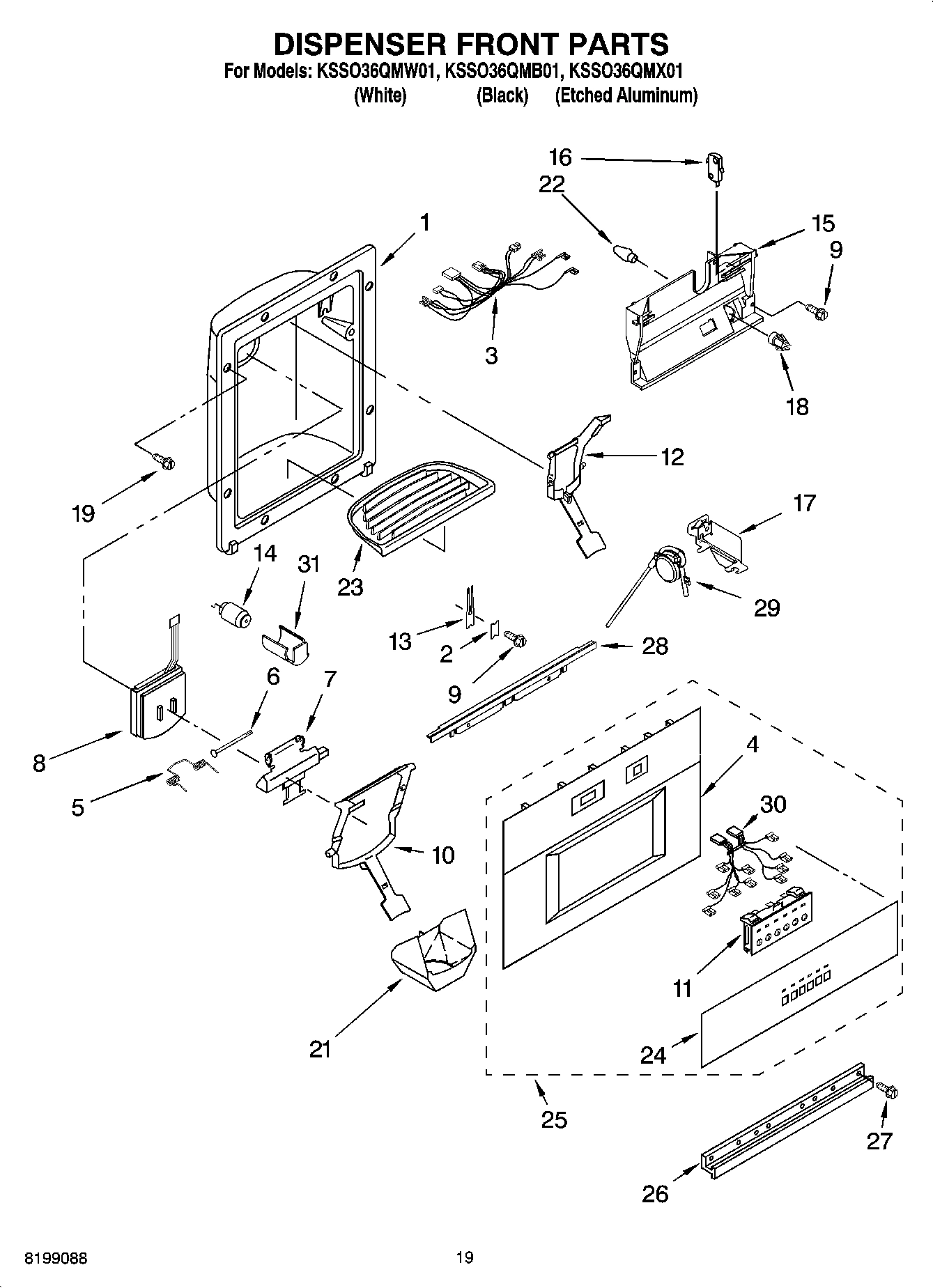

12 - DISPENSER AND FRONT PARTS

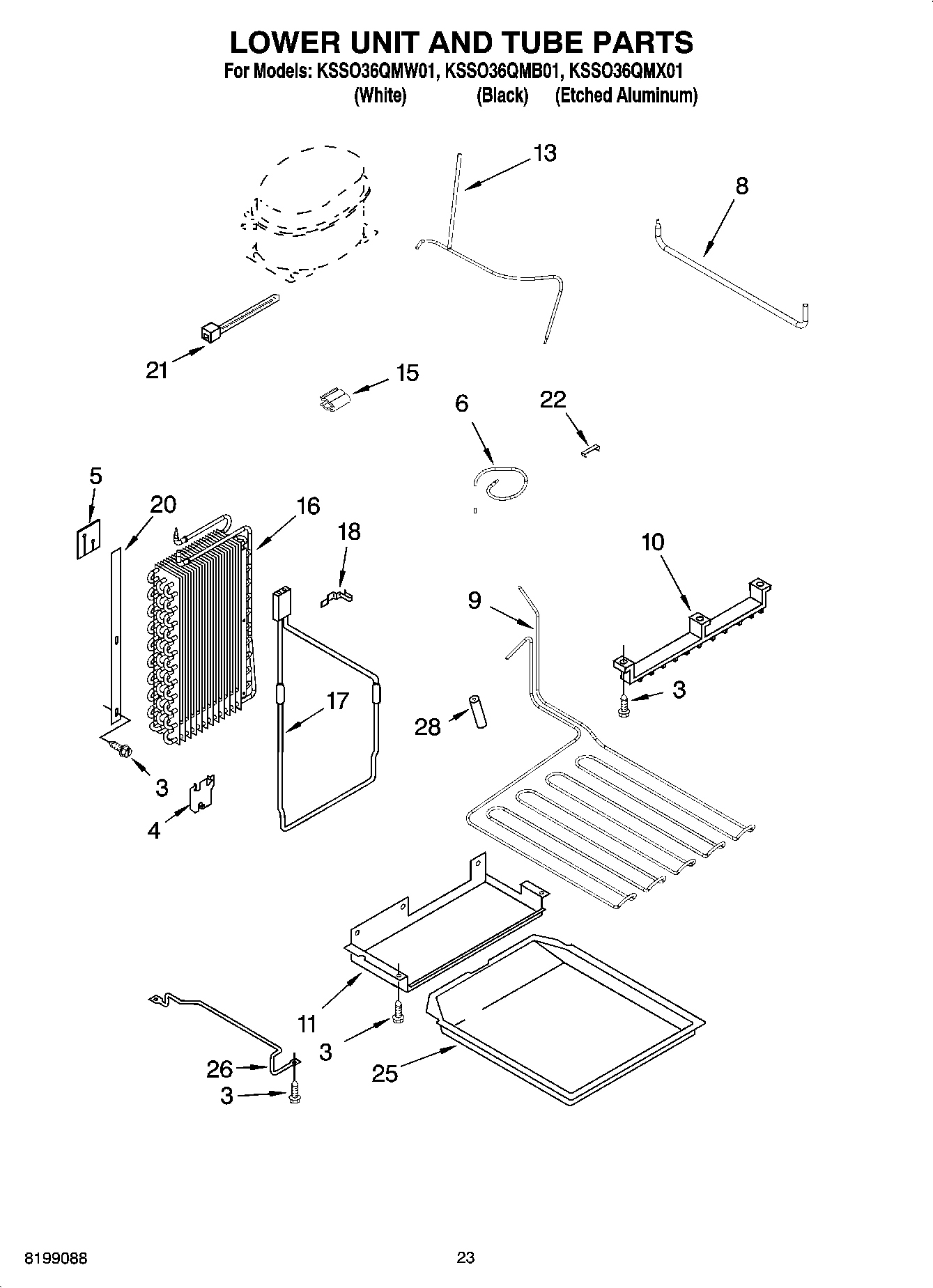

14 - LOWER UNIT AND TUBE PARTS

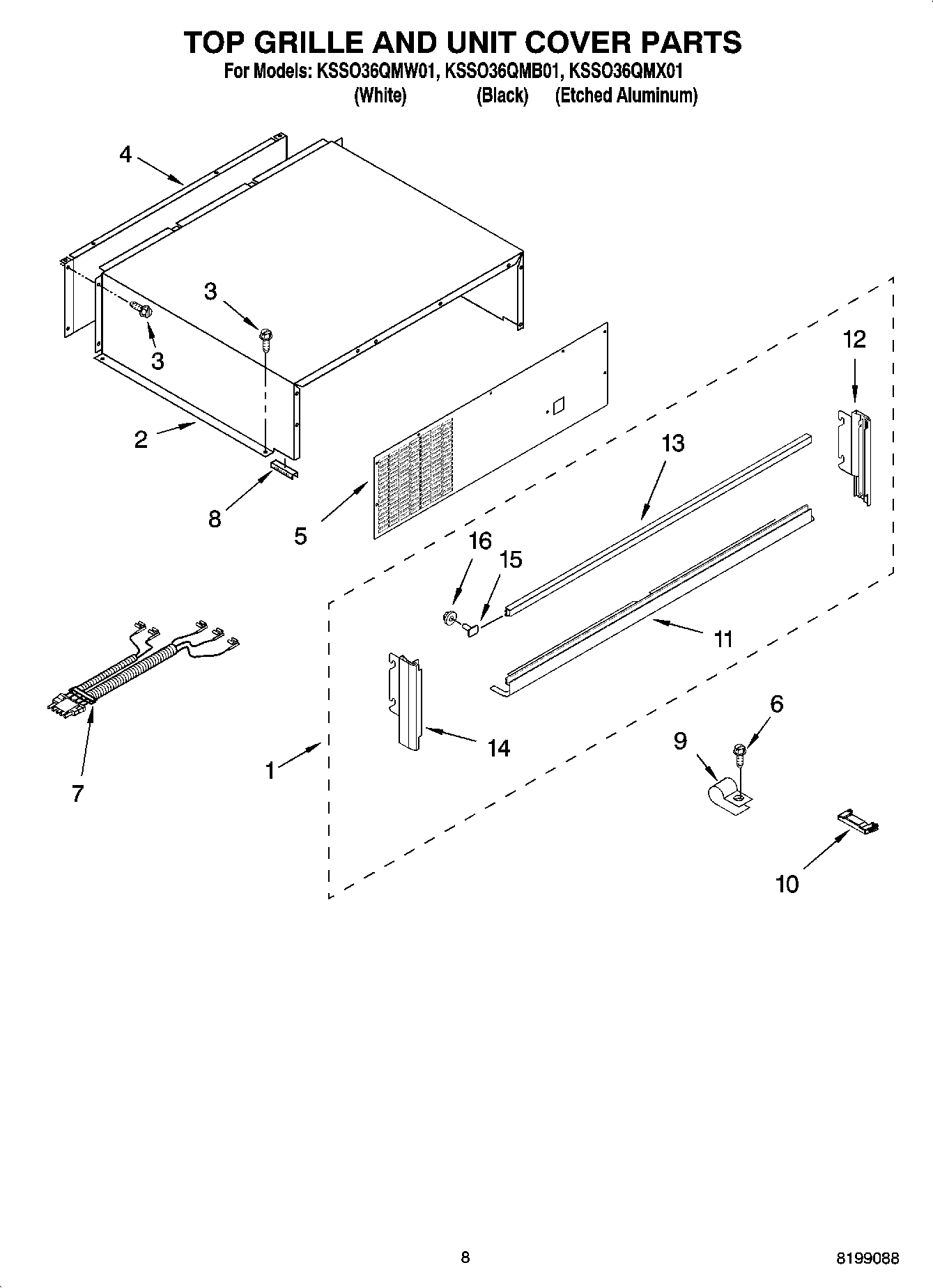

06 - TOP GRILLE AND UNIT COVER PARTS

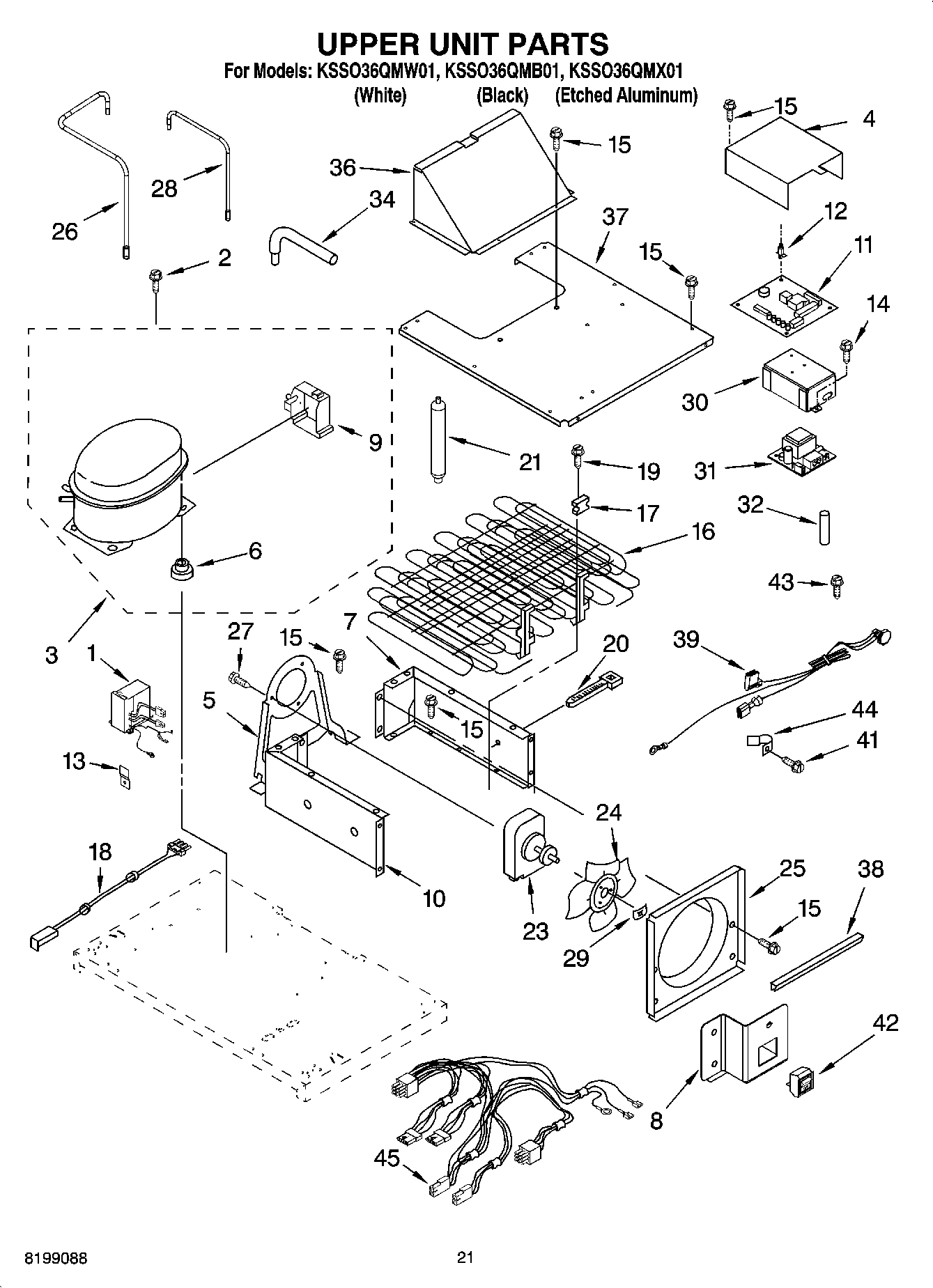

13 - UPPER UNIT PARTS

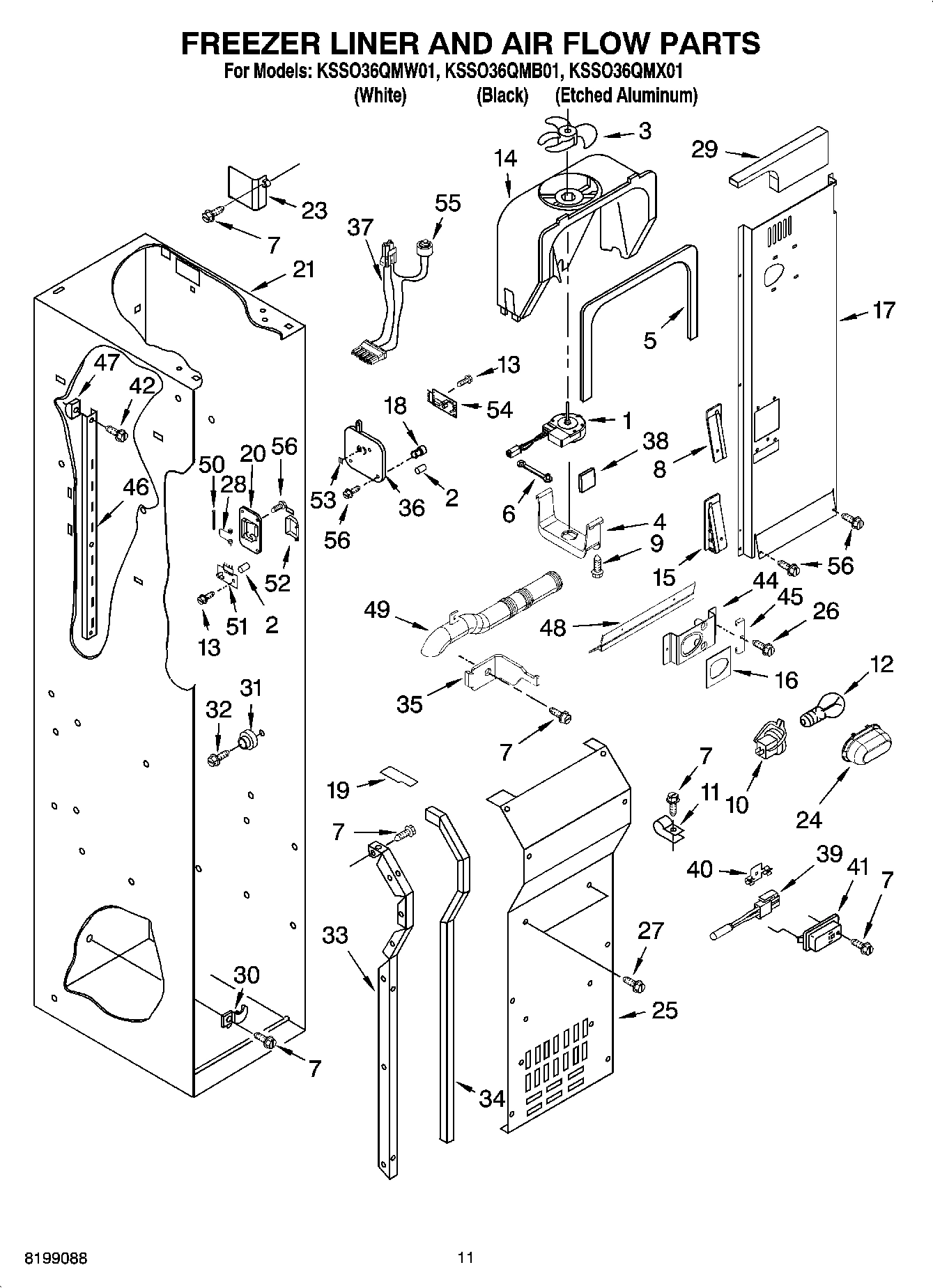

08 - FREEZER LINER AND AIR FLOW PARTS

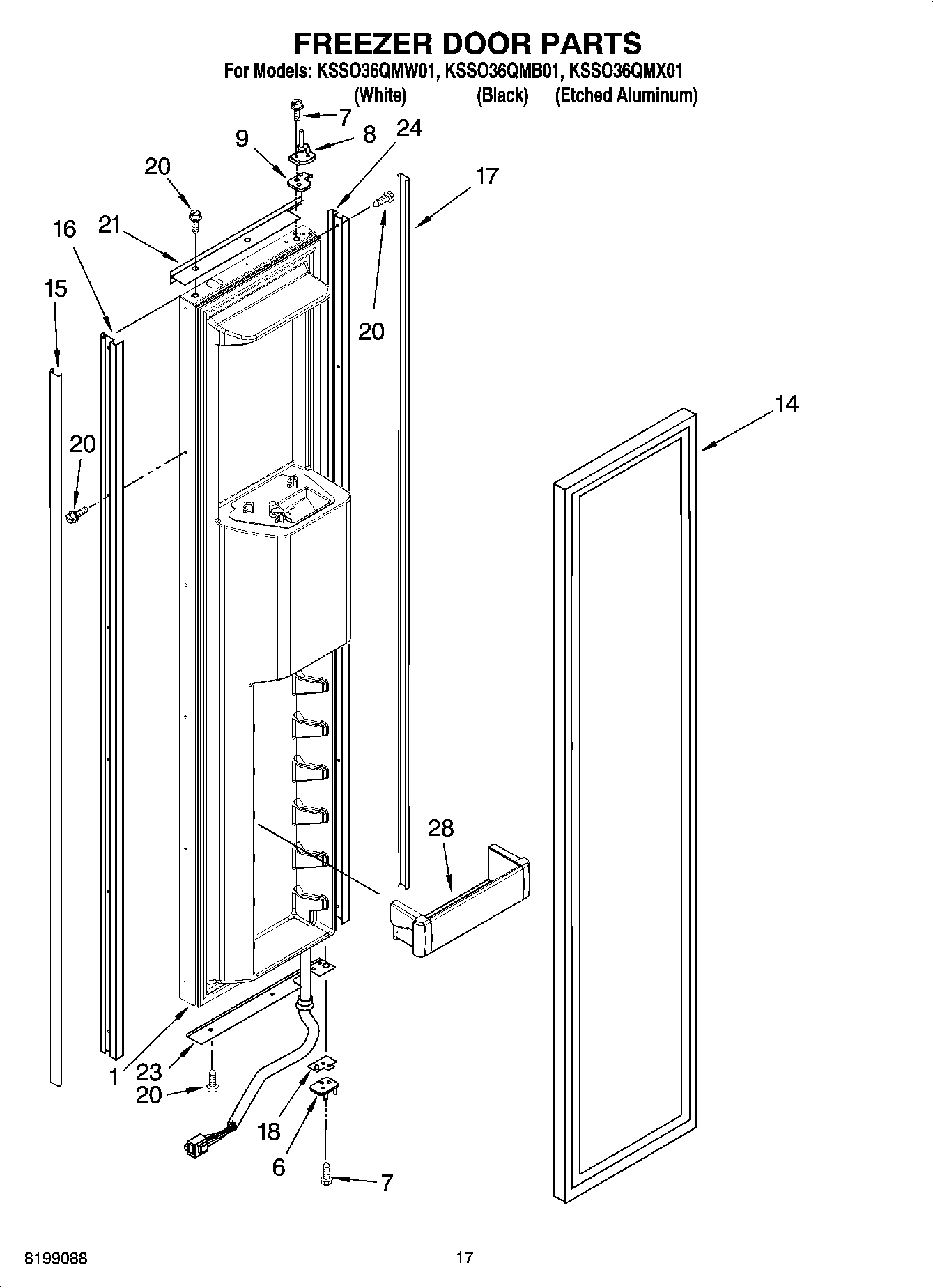

11 - FREEZER DOOR PARTS

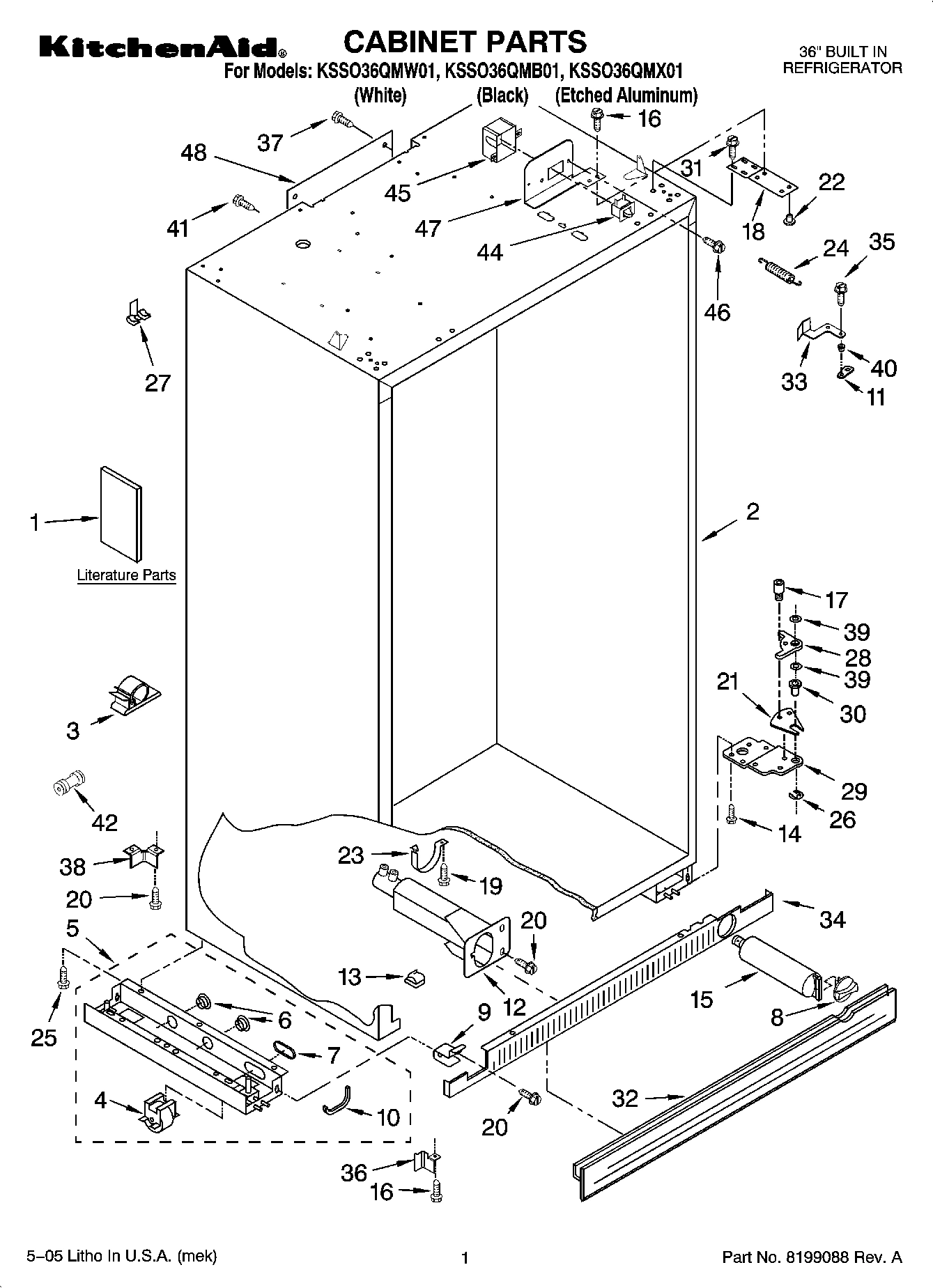

01 - CABINET PARTS

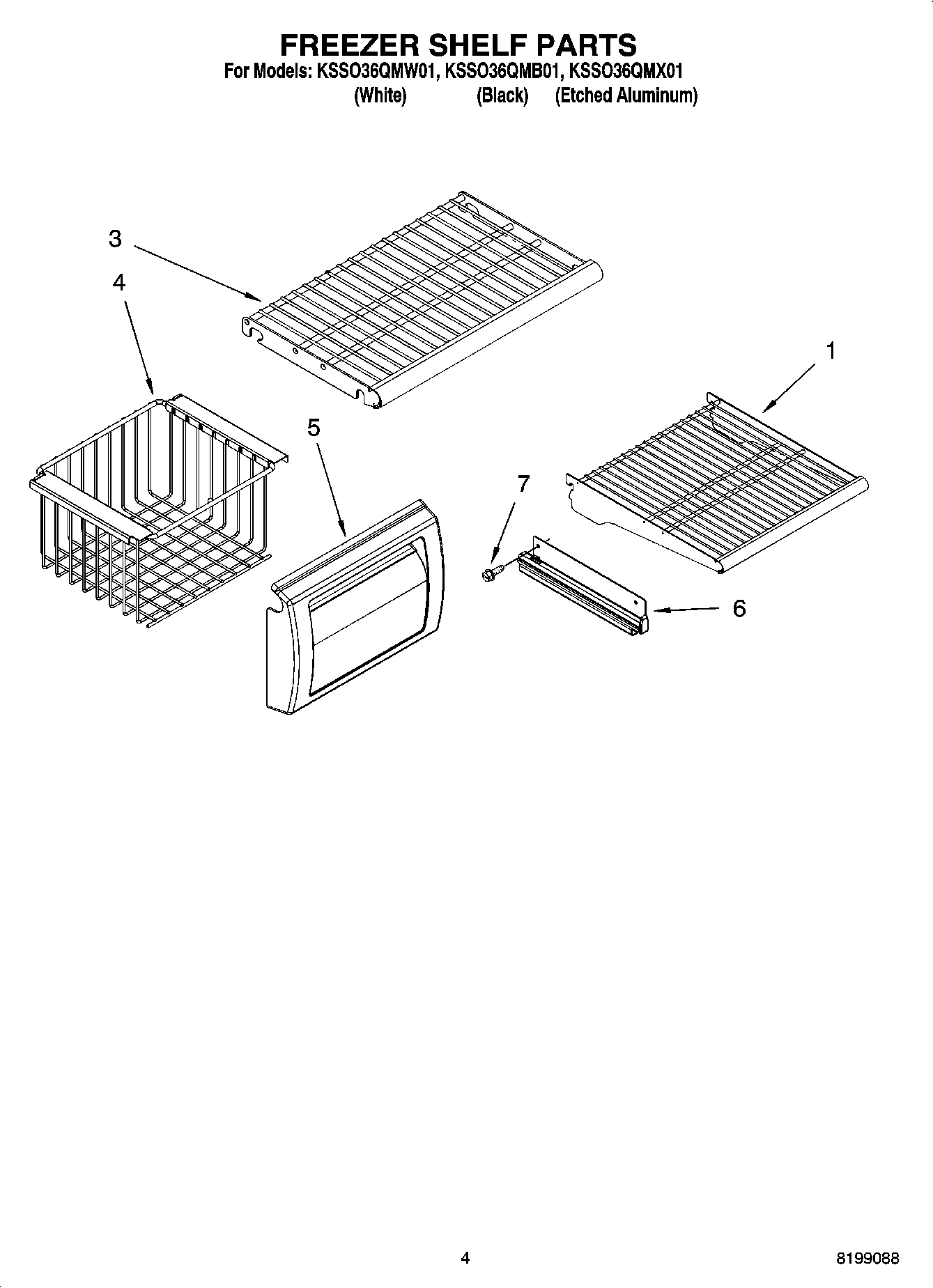

03 - FREEZER SHELF PARTS

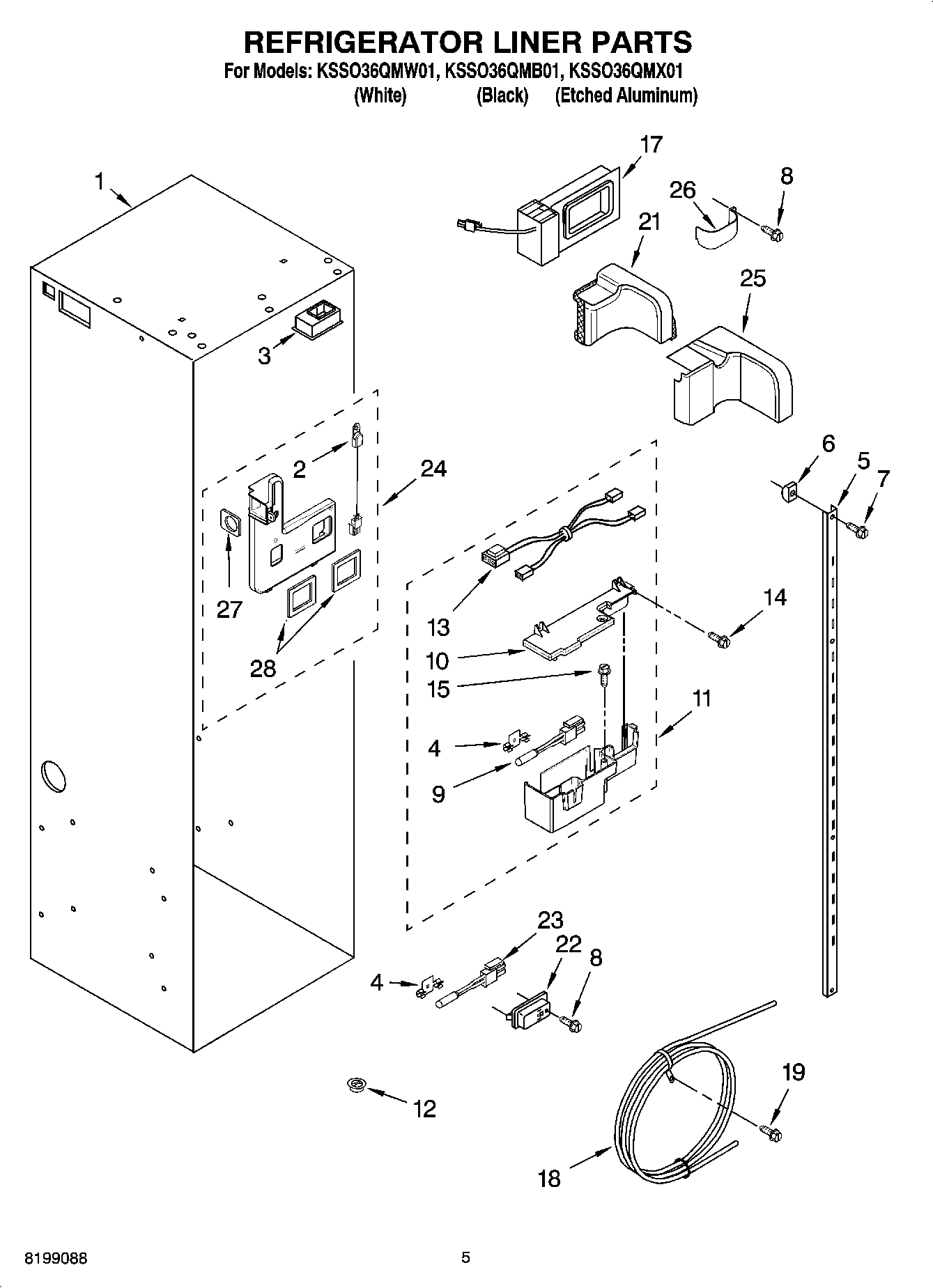

04 - REFRIGERATOR LINER PARTS

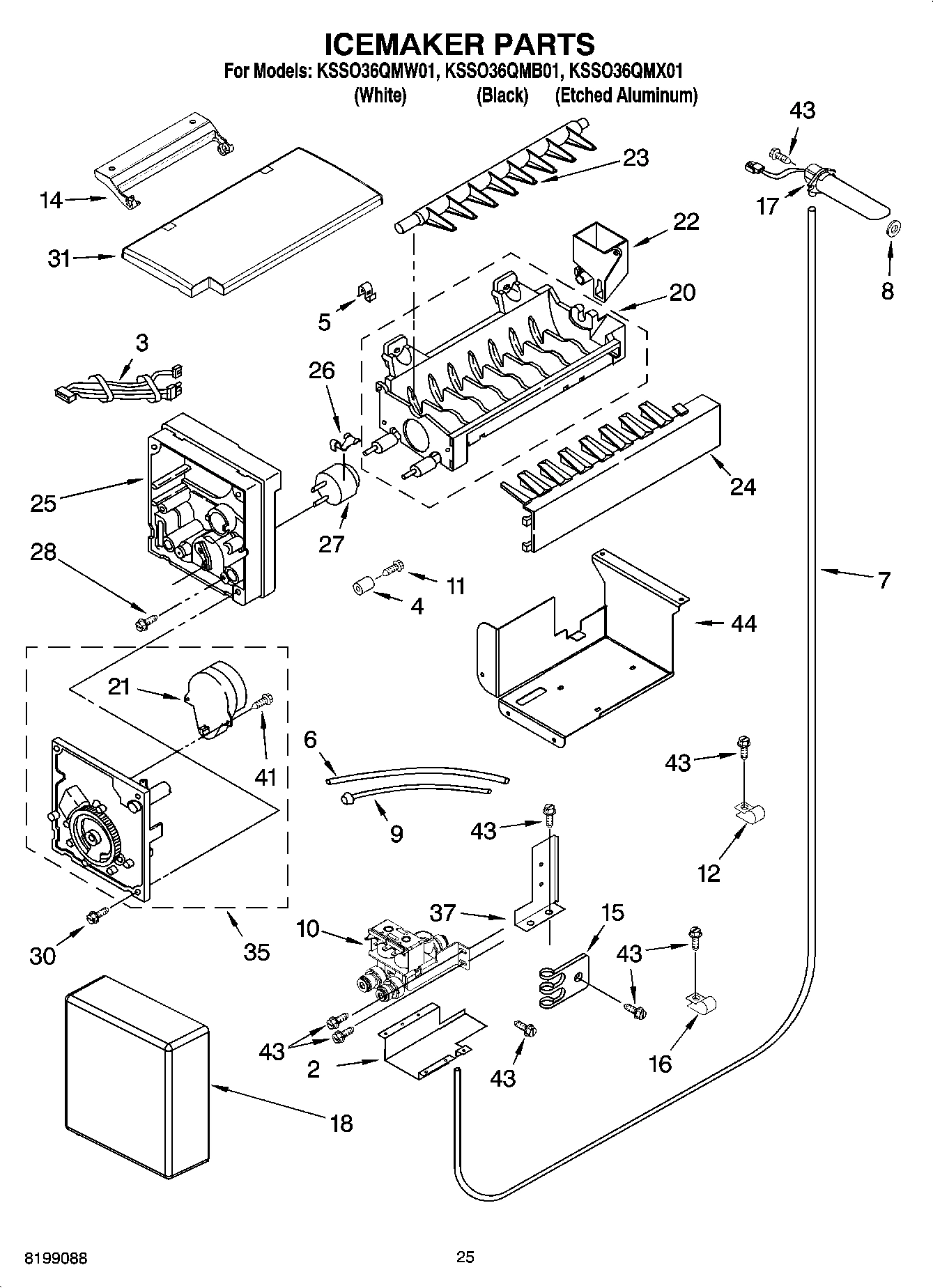

15 - ICEMAKER PARTS
Common parts from model Whirlpool KSSO36QMB01 36`` BUILT IN REFRIGERATOR
1
Top Grille Assembly (Black) WPL 2259422B Contact Us For Availability
1
Top Grille Assembly (White) WPL 2259422W Contact Us For Availability
1
Top Grille Assembly (Etched Aluminum) WPL 2259422X Contact Us For Availability
1
Fan Motor WPL 2259385 Contact Us For Availability
1
Freezer Door Panel (Includes Item 14) (Black) WPL 2252323B Contact Us For Availability
1
Freezer Door Panel (Includes Item 14) (White) WPL 2252323W Contact Us For Availability
1
Main Control Service Sheet WPL 2302865 Contact Us For Availability
1
Service & Wiring Sheet WPL 2306332 Contact Us For Availability
1
Icemaker and Ingredient Care Center Service S WPL 2306424 Contact Us For Availability
1
Energy Label WPL 2307357 Contact Us For Availability
1
Use & Care Guide WPL 2309068 Contact Us For Availability
1
Installation Instructions WPL 2309069 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI105743A Contact Us For Availability
2
Cover, Unit WPL 2259320 Contact Us For Availability
2
Tube, P.C. Board WPL 2198665 Contact Us For Availability
2
Cabinet (Not A Serviceable Part) WPL ARI105742A Contact Us For Availability
2
Cover-Bottom, Electrical WPL 2300104 Contact Us For Availability
3
Clamp, Tube WPL 2004514 Contact Us For Availability
3
Shelf, Fixed (2) WPL 2302882 Contact Us For Availability
3
Wire Assembly, Icemaker WPL 2187622 Contact Us For Availability
4
Spacer-Door, Top WPL 2256381 Contact Us For Availability
4
Washer, Auger WPL 2258220 Contact Us For Availability
4
Housing, Control Board WPL 2257354 Contact Us For Availability
4
Spacer WPL 2252354 Contact Us For Availability
5
Cover, Unit Front WPL 2302974 Contact Us For Availability
5
Bracket, Fan Motor WPL 2215641 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2302878 Contact Us For Availability
6
Suction Tube WPL 2259303 Contact Us For Availability
6
Cover, Crusher WPL 2255460 Contact Us For Availability
6
Slide, Basket (Right Side) WPL 2259317 Contact Us For Availability
6
Grommet, Wiring WPL 2005006 Contact Us For Availability
6
Tube, Filter Inlet WPL 2214613 Contact Us For Availability
7
Rail, Lid WPL 2222795 Contact Us For Availability
7
Wire Assembly RC/FC Light Switch WPL 2187429 Contact Us For Availability
7
Shroud, Condenser (Right) WPL 2266803 Contact Us For Availability
7
SCREW WPL 2006475 Contact Us For Availability
7
Grommet, Flexible WPL 2005007 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2316756 Contact Us For Availability
8
Tube, Connect (Drier/Restrictor) WPL 2259304 Contact Us For Availability
8
Wedge, Air Duct WPL 2259464 Contact Us For Availability
8
GROMMET-FLEXIBLE WPL 2215910 Contact Us For Availability
8
Bracket, Switch WPL 2302969 Contact Us For Availability
8
Seal Gasket WPL 2302758 Contact Us For Availability
9
Blade, Fixed WPL 2257020 Contact Us For Availability
9
Terminal Cover WPL 2215676 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Clamp WPL 489348 Contact Us For Availability
9
Mounting Stud, Grill WPL 2006442 Contact Us For Availability
10
Lever, Ice Dispenser (Black) WPL 2259396B Contact Us For Availability
10
Valve, Solenoid WPL 2307811 Contact Us For Availability
10
Hanger, Heater WPL 2209450 Contact Us For Availability
10
Enclosure, Connector WPL 2221297 Contact Us For Availability
10
Shroud, Condenser (Left) WPL 2302973 Contact Us For Availability
10
Grommet, Crossover Tube WPL 2005004 Contact Us For Availability
10
Lid, Control Baffle WPL 2302986 Contact Us For Availability
11
Cam, Door Closer WPL 2005783 Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Trim, Glass Rear Side WPL 2257611 Contact Us For Availability
11
Shield, Drain Pan WPL 2005908 Contact Us For Availability
11
Trim-Grille, Bottom (Black) WPL 2259434B Contact Us For Availability
11
Trim-Grille, Bottom (White) WPL 2259434W Contact Us For Availability
11
Trim-Grille, Bottom (Etched Aluminum) WPL 2259434X Contact Us For Availability
11
Baffle, Control Assembly WPL 2302987 Contact Us For Availability
12
Roll Pin WPL 489229 Contact Us For Availability
12
Release Valve WPL 2171846 Contact Us For Availability
12
Lever, Water Dispenser (Black) WPL 2259395B Contact Us For Availability
12
Trim-Grille, Right Side (Black) WPL 2259420B Contact Us For Availability
12
Trim-Grille, Right Side (White) WPL 2259420W Contact Us For Availability
12
Trim-Grille, Right Side (Etched Aluminum) WPL 2259420X Contact Us For Availability
13
Door Spacer, Bottom WPL 2257637 Contact Us For Availability
13
Tube, Discharge WPL 2259352 Contact Us For Availability
13
Trim-Grille, Top (Black) WPL 2259440B Contact Us For Availability
13
Trim-Grille, Top (White) WPL 2259440W Contact Us For Availability
13
Trim-Grille, Top (Etched Aluminum) WPL 2259440X Contact Us For Availability
13
Bracket, Inverter Box WPL 2256328 Contact Us For Availability
13
Clip, Water Tube WPL 934011 Contact Us For Availability
13
Jumper, Air Baffle WPL 2187619 Contact Us For Availability
14
Screw WPL 3400525 Contact Us For Availability
14
Trim-Grille, Left Side (Black) WPL 2259421B Contact Us For Availability
14
Trim-Grille, Left Side (White) WPL 2259421W Contact Us For Availability
14
Trim-Grille, Left Side (Etched Aluminum) WPL 2259421X Contact Us For Availability
14
Screw WPL 488357 Contact Us For Availability
15
CLIP, THERMISTOR WPL 9791833 Contact Us For Availability
15
Screw WPL 2003347 Contact Us For Availability
15
Wedge, Air Duct WPL 2259465 Contact Us For Availability
15
Cover, Screw (Handle Side) (Black) WPL 2259365B Contact Us For Availability
15
Cover, Screw (Handle Side) (White) WPL 2259365W Contact Us For Availability
15
Cover, Screw (Handle Side) (Etched Aluminum) WPL 2259365X Contact Us For Availability
16
CONDENSER WPL 2259307 Contact Us For Availability
16
Clamp, Tube WPL 488937 Contact Us For Availability
16
Seal-Light, Socket WPL 2302777 Contact Us For Availability
16
Trim, Door (Handle Side) (Black) WPL 2259041B Contact Us For Availability
16
Trim, Door (Handle Side) (White) WPL 2259041W Contact Us For Availability
16
Trim, Door (Handle Side) (Etched Aluminum) WPL 2259041X Contact Us For Availability
17
Bracket, Anti-Drip Valve WPL 2259209 Contact Us For Availability
17
Heater, Defrost WPL 2306387 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Air Duct WPL 2306045 Contact Us For Availability
17
Cover, Screw (Hinge Side) (Black) WPL 2259448B Contact Us For Availability
17
Cover, Screw (Hinge Side) (White) WPL 2259448W Contact Us For Availability
17
Cover, Screw (Hinge Side) (Etched Aluminum) WPL 2259448X Contact Us For Availability
18
Clamp, Heater (2) WPL 1113048 Contact Us For Availability
18
Lamp Holder WPL 2180200 Contact Us For Availability
18
Cover WPL 2257538 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Block, Fan Scroll (Left) WPL 2209066 Contact Us For Availability
19
Screw WPL 488280 Contact Us For Availability
20
Gasket, Evaporator WPL 2220832 Contact Us For Availability
20
Screw (White) WPL 8281251 Contact Us For Availability
21
Liner (Not A Serviceable Part) WPL ARI105745A Contact Us For Availability
21
Trim, Door (Top) (Etched Aluminum) WPL 2005019 Contact Us For Availability
21
TRIM-DOOR, TOP (WHITE) WPL 2005022 Contact Us For Availability
21
TRIM-DOOR, TOP (BLACK) WPL 2005885 Contact Us For Availability
22
Bushing WPL 2300082 Contact Us For Availability
22
TRIM, GLASS SIDE MEAT PAN WPL 2256250 Contact Us For Availability
22
Cover, Thermistor WPL 1116793 Contact Us For Availability
23
Cover, Air Outlet WPL 2259025 Contact Us For Availability
23
Trim (Bottom) (Etched Aluminum) WPL 2215984 Contact Us For Availability
23
Trim (Bottom) (Black) WPL 2215984B Contact Us For Availability
23
Trim (Bottom) (White) WPL 2215984W Contact Us For Availability
23
Clamp, Filter Housing WPL 2209090 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Holder WPL 2212369 Contact Us For Availability
24
Light Shield WPL 2259367 Contact Us For Availability
24
Trim, Door (Hinge Side) (Black) WPL 2257687B Contact Us For Availability
24
Trim, Door (Hinge Side) (White) WPL 2257687W Contact Us For Availability
24
Trim, Door (Hinge Side) (Etched Aluminum) WPL 2257687X Contact Us For Availability
25
Cover, Diffuser WPL 2309087 Contact Us For Availability
25
SPACER, CRISPER (LEFT SIDE (2)) WPL 2256223 Contact Us For Availability
25
Front Cover Assembly (Includes Items 4, 11, 2 WPL 2309379B Contact Us For Availability
25
SPACER, CRISPER (RIGHT SIDE (2)) WPL 2256222 Contact Us For Availability
25
Orifice, Fan WPL 2003169 Contact Us For Availability
25
Cover, Evaporator WPL 2314042 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Tube, Drier Transition WPL 2300190 Contact Us For Availability
26
Cover, Air Return WPL 2259066 Contact Us For Availability
27
SLIDE, CRISPER (LEFT SIDE) (2) WPL 2302956 Contact Us For Availability
27
SLIDE, CRISPER (RIGHT SIDE) (2) WPL 2302957 Contact Us For Availability
27
Screw WPL 8281160 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
27
Seal, Air Duct (Round Hole) WPL 2259412 Contact Us For Availability
28
Damper, Heater WPL 2215648 Contact Us For Availability
28
Seal, Air Duct (Square Hole) WPL 2259398 Contact Us For Availability
28
Tube, Heat Loop Transition WPL 2259301 Contact Us For Availability
28
F.C. (3) WPL ARI105746A Contact Us For Availability
28
Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability
29
Deflector, Air Duct WPL 2309282 Contact Us For Availability
30
Housing, Power Supply WPL 2259349 Contact Us For Availability
30
SUPPORT, EVAPORATOR WPL 1112260 Contact Us For Availability
31
Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
32
SKIRT-GRILLE, BOTTOM (WHITE) WPL 2209024W Contact Us For Availability
33
COVER WPL 2222862 Contact Us For Availability
33
Evaporator, Cover Rail (Left Side) WPL 2221107 Contact Us For Availability
33
Evaporator, Cover Rail (Right Side) WPL 2259355 Contact Us For Availability
34
Gasket (2) Evaporator Cover WPL 2220904 Contact Us For Availability
34
Grille Bottom, Front ( WPL 2209425B Contact Us For Availability
34
WPL 2209425W WPL 2209425W Contact Us For Availability
35
WPL 2005921 WPL 2005921 Contact Us For Availability
35
Bracket, Vent Tube WPL 2302925 Contact Us For Availability
36
Cover, Receiver WPL 2259493 Contact Us For Availability
36
WPL 2006616 WPL 2006616 Contact Us For Availability
36
Cover, Fan WPL 2209495 Contact Us For Availability
36
WPL 2006556 WPL 2006556 Contact Us For Availability
37
Harness, Evap Fan (Includes Item 55) WPL 2187673 Contact Us For Availability
37
Cover, Condenser WPL 2259092 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2306081 Contact Us For Availability
38
WPL 2006617 WPL 2006617 Contact Us For Availability
38
Grommet, Edge WPL 2307907 Contact Us For Availability
39
Service Cord WPL 2259197 Contact Us For Availability
40
Clip, Thermistor WPL 2209204 Contact Us For Availability
41
Screw, (2) WPL 489136 Contact Us For Availability
44
CLAMP, CORD WPL 549193 Contact Us For Availability
44
Bracket, Light WPL 2257571 Contact Us For Availability
44
Bracket, Icemaker Mounting WPL 2300167 Contact Us For Availability
45
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
45
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
45
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2187900 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
45
Following Parts Not Illustrated and Optional WPL ARI105751A Contact Us For Availability
45
REFRIGERANT CHARGE 6.25 oz. (R-134A) WPL ARI105752A Contact Us For Availability
45
Spacer, Light Bracket WPL 2259446 Contact Us For Availability
45
WPL 2215938 WPL 2215938 Contact Us For Availability
47
Support, Screw WPL 2259397 Contact Us For Availability
48
Support, Air Duct WPL 2302849 Contact Us For Availability
48
WPL 2215612 WPL 2215612 Contact Us For Availability
49
Tube, Vent WPL 2302933 Contact Us For Availability
53
Slide, Icemaker Shut Off WPL 2255563 Contact Us For Availability
100
Front Panel Kit (White) WPL 2220864 Contact Us For Availability
100
Front Panel Kit (Black) WPL 2220867 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 2220873 Contact Us For Availability
100
Ice Container Assembly WPL 2222958 Contact Us For Availability
100
Static Cleaner, Black Panel WPL 978849 Contact Us For Availability
100
Following Parts Not Illustrated (Optional Par WPL ARI105753A Contact Us For Availability
× ![]()
