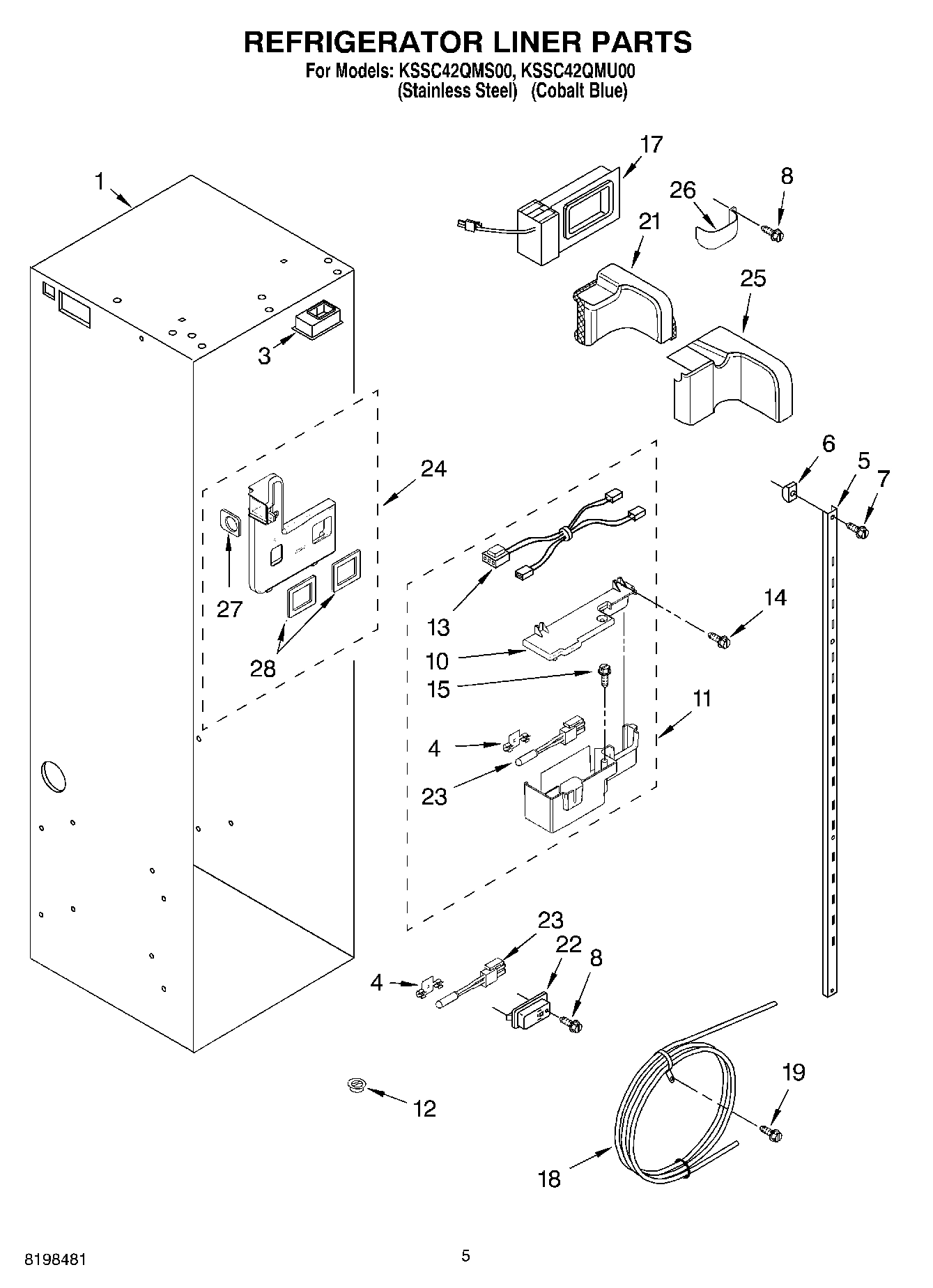

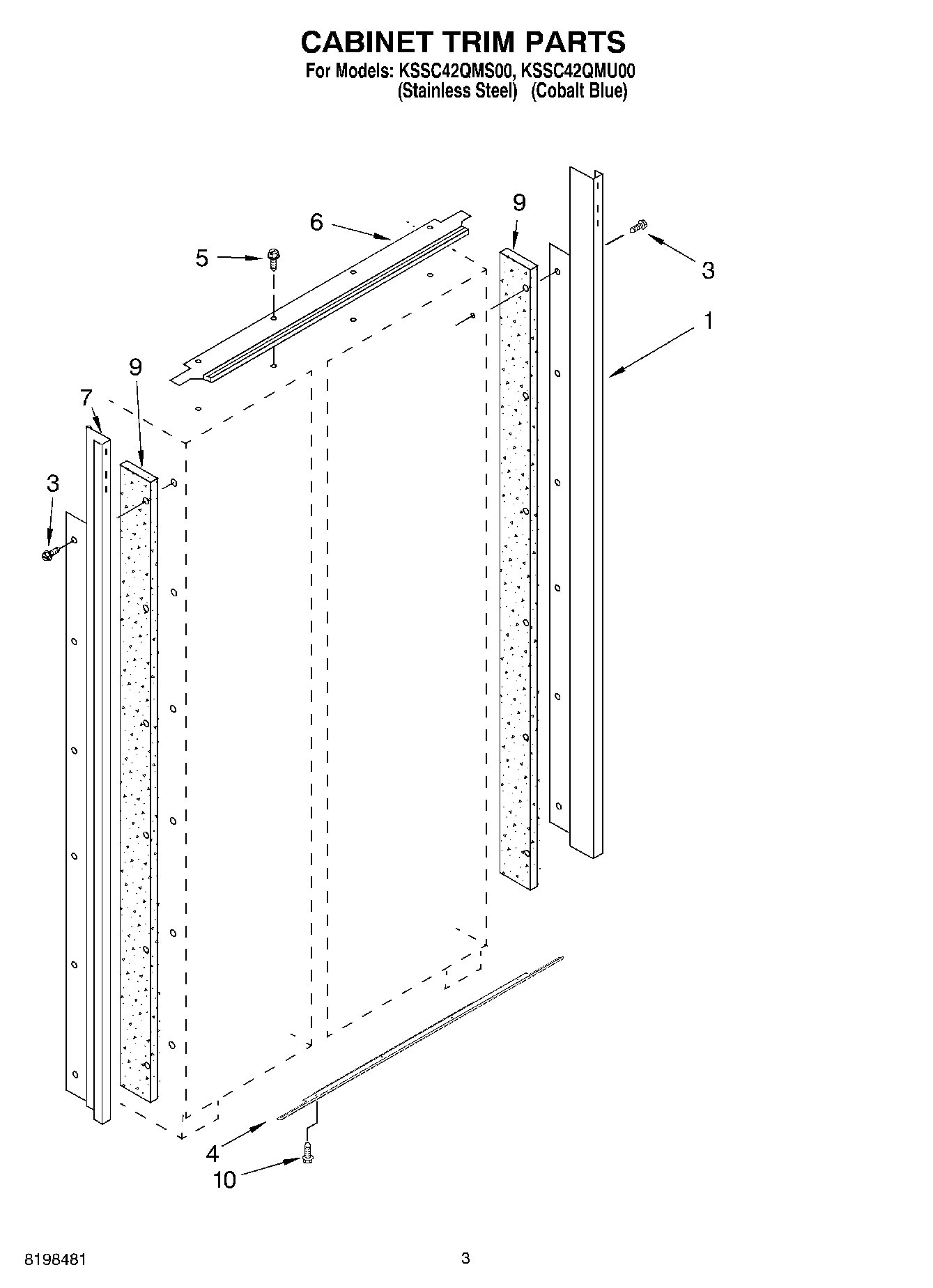

Model Whirlpool KSSC42QMS00 42`` BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

Freezer Door Panel (Includes Item 14) (Black) WPL 2252324B Contact Us For Availability

1

Freezer Door Panel (Includes Item 14) (Cobalt WPL 2252324U Contact Us For Availability

1

Housing, Dispenser (Not Serviced) WPL ARI105444A Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2266808 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT2266811 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT2266814 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2266827 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Wire Shelf WPL 2256205 Contact Us For Availability

1

Fan Motor WPL 2259385 Contact Us For Availability

2

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

2

BRACE, DOOR CORNER WPL 2258951 Contact Us For Availability

2

Cabinet (Not A Serviceable Part) WPL ARI105440A Contact Us For Availability

2

Tube, P.C. Board WPL 2198665 Contact Us For Availability

2

Cover, Electrical Bottom WPL 2300104 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct Backorder WPL 2208970 $51.19

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

3

Wire Assembly WPL 2187523 Contact Us For Availability

3

Shelf, Fixed (2) WPL 2259003 Contact Us For Availability

3

Wire Assembly, Icemaker WPL 2187716 Contact Us For Availability

4

W11318848 Whirlpool Refrigerator Freezer Bask Backorder WPL W11318848 $93.09

4

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $15.79

4

Spacer-Door, Top WPL 2256381 Contact Us For Availability

4

Clip, Thermistor WPL 2209204 Contact Us For Availability

4

Cover, Dispenser (Not Available- Order Item 2 WPL ARI105445A Contact Us For Availability

5

2252354 Whirlpool Spacer Assembly Backorder WPL 2252354 $8.66

5

W10839856 Whirlpool Refrigerator Front Drawer Backorder WPL W10839856 $67.40

5

W10860229 Whirlpool Refrigerator Support Backorder WPL W10860229 $177.18

5

W10860448 Whirlpool Refrigerator Support Backorder WPL W10860448 $137.10

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

6

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $106.19

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $49.98

6

W11752085 Whirlpool Door Hinge In Stock WPL W11752085 $22.36

6

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

6

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $144.34

6

Suction Tube WPL 2259303 Contact Us For Availability

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

Grommet, Wiring WPL 2005006 Contact Us For Availability

6

Tube, Filter Inlet WPL 2214613 Contact Us For Availability

7

W11448696 Whirlpool Refrigerator Bin Backorder WPL W11448696 $91.10

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

7

Ice Door Mechanism WPL 2206423 Contact Us For Availability

7

Grommet, Flexible WPL 2005007 Contact Us For Availability

7

Water Inlet Tube Assembly WPL 2252393 Contact Us For Availability

8

2259464 Whirlpool Refrigerator Wedge Backorder WPL 2259464 $33.31

8

W11724512 Whirlpool Door Hinge In Stock WPL W11724512 $111.87

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

8

Tube, Connect (Drier/Restrictor) WPL 2259304 Contact Us For Availability

8

Gaasket, Utility Bin WPL 2222982 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $28.80

9

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

9

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Mounting Stud, Grill WPL 2006442 Contact Us For Availability

9

Tube, Filter Outlet WPL 2254800 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2188786 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2188786 $94.55

Lever, Ice Dispenser (Black) WPL 2259396B Contact Us For Availability

Lever, Ice Dispenser (Cobalt Blue) WPL 2259396U Contact Us For Availability

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

Cam, Door Closer WPL 2005783 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Trim, Glass Rear Side WPL 2257611 Contact Us For Availability

Switch Assembly (Not Available Order Item 25) WPL ARI105446A Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.45

W10856124 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10856124 $111.61

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $91.73

Louver, Grille (Stainless Steel) WPL 2254761S Contact Us For Availability

Lever, Water Dispenser (Cobalt Blue) WPL 2259395U Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

Door Spacer, Bottom WPL 2257637 Contact Us For Availability

Clip, Water Tube WPL 934011 Contact Us For Availability

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

WP2266905 Whirlpool Refrigerator Door Gasket In Stock WPL WP2266905 $214.56

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Screw WPL 3400525 Contact Us For Availability

Connector, Enclosure WPL 2221297 Contact Us For Availability

Delay Mechanism WPL 2205686 Contact Us For Availability

2259465 Whirlpool Refrigerator Wedge Backorder WPL 2259465 $34.35

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

CONDENSER WPL 2259307 Contact Us For Availability

Handle, Door (Stainless Steel) WPL 2005290 Contact Us For Availability

Clamp, Tube WPL 488937 Contact Us For Availability

2259209 Whirlpool Refrigerator Bracket Backorder WPL 2259209 $35.78

W10460127 Whirlpool Refrigerator Inlet Tube Backorder WPL W10460127 $121.41

SCREW Backorder WPL W11769878 $7.72

WP2006750 Whirlpool Refrigerator Heater In Stock WPL WP2006750 $48.56

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $177.39

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Spacer, Door-Skin (Handle Side) WPL 2300028 Contact Us For Availability

Air Duct WPL 2259022 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $62.10

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Cover WPL 2257538 Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $28.80

8201798 Whirlpool Refrigerator Fan Block Backorder WPL 8201798 $79.73

WP2252265 Whirlpool Refrigerator Ice Bin Butt In Stock WPL WP2252265 $14.37

Screw WPL 487522 Contact Us For Availability

Skin, Door (Stainless Steel) WPL 2222910 Contact Us For Availability

Skin, Door (Cobalt Blue) WPL 2222910U Contact Us For Availability

Screw WPL 3400091 Contact Us For Availability

WP2215650 Whirlpool Refrigerator Cover Backorder WPL WP2215650 $83.22

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Gasket, Evaporator WPL 2220832 Contact Us For Availability

Wire Assembly WPL 2187680 Contact Us For Availability

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $10.23

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Liner (Not A Serviceable Part) WPL ARI105442A Contact Us For Availability

2198671 Whirlpool Refrigerator Screw Backorder WPL 2198671 $4.58

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Bushing WPL 2002903 Contact Us For Availability

2257385 Whirlpool Refrigerator Spacer Backorder WPL 2257385 $8.40

2259025 Whirlpool Refrigerator Air Cover Backorder WPL 2259025 $33.67

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Grille, Overflow (Cobalt Blue) WPL 2302944U Contact Us For Availability

Clamp, Filter Housing WPL 2209090 Contact Us For Availability

2256250 Whirlpool Refrigerator Shelf Trim Backorder WPL 2256250 $29.55

W10297244 Whirlpool Refrigerator Arm Strip Backorder WPL W10297244 $39.95

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $30.85

Blade, Fan WPL 2190685 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

SPACER, DOOR-SKIN HINGE SIDE) WPL 2005030 Contact Us For Availability

Overlay, Cover (Not Available- Order Item 25) WPL ARI105447A Contact Us For Availability

Light Shield WPL 2259367 Contact Us For Availability

2256222 Whirlpool Refrigerator Track Backorder WPL 2256222 $30.65

2256223 Whirlpool Refrigerator Track Backorder WPL 2256223 $28.99

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $88.94

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

Front Cover Assembly (Includes Items 4, 11, 2 WPL 2222526B Contact Us For Availability

Front Cover Assembly (Includes Items 4, 11, 2 WPL 2222526U Contact Us For Availability

Cover, Evaporator WPL 2221105 Contact Us For Availability

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

Filler, Door WPL 2252391 Contact Us For Availability

Switch-Jumper, Wire Assembly WPL 2187623 Contact Us For Availability

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Fastener (3) WPL 1113227 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

2259398 Whirlpool Refrigerator Seal Backorder WPL 2259398 $7.69

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10323602 Whirlpool Refrigerator Cantilever B Backorder WPL W10323602 $52.10

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

Tube, Heat Loop Transition WPL 2259340 Contact Us For Availability

F.C. (3) WPL ARI105443A Contact Us For Availability

Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $70.12

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $102.66

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $2.51

Deflector, Air Duct WPL 2259055 Contact Us For Availability

1112260 Whirlpool EV Support Backorder WPL 1112260 $4.58

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $27.05

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP2259350 Whirlpool Refrigerator Electronic C In Stock WPL WP2259350 $70.57

WPW10504753 Whirlpool Refrigerator Ice Door Backorder WPL WPW10504753 $44.16

32

WP2212363 Whirlpool Refrigerator Motor In Stock WPL WP2212363 $91.59

32

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

32

Skirt-Grille, Bottom (Black) WPL 2209025B Contact Us For Availability

2259355 Whirlpool Refrigerator Evaporator Rai Backorder WPL 2259355 $45.51

WP2307857 Whirlpool Refrigerator Extension In Stock WPL WP2307857 $32.17

WPW10121046 Whirlpool Refrigerator Extension In Stock WPL WPW10121046 $38.52

COVER WPL 2222862 Contact Us For Availability

Evaporator, Cover Rail (Left Side) WPL 2221107 Contact Us For Availability

34

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $8.31

34

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

34

Grille Bottom, Front (Black) WPL 2209428B Contact Us For Availability

35

Screw WPL 2005921 Contact Us For Availability

2006556 Whirlpool Refrigerator Bracket Backorder WPL 2006556 $12.50

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $28.80

2259493 Whirlpool Refrigerator Cover Backorder WPL 2259493 $28.80

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

37

Harness, Evap Fan WPL 2187520 Contact Us For Availability

37

Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $28.80

38

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

39

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $4.59

39

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

40

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $22.56

41

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

41

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

42

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $30.80

42

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

43

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

43

Gasket, Air Duct WPL 2259058 Contact Us For Availability

2252228 Whirlpool Refrigerator Bracket Backorder WPL 2252228 $29.43

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

Bracket, Light WPL 2257571 Contact Us For Availability

2215938 Whirlpool Refrigerator Switch Cover Backorder WPL 2215938 $28.80

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

46

WP2259032 Whirlpool Ladder Backorder WPL WP2259032 $26.21

46

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

47

2221096 Whirlpool Refrigerator Bracket Backorder WPL 2221096 $29.43

47

2221097 Whirlpool Refrigerator Bracket Backorder WPL 2221097 $29.43

47

2259445 Whirlpool Support Assembly Backorder WPL 2259445 $26.21

48

2215612 Whirlpool Refrigerator Duct Cover Backorder WPL 2215612 $31.71

48

Gasket, Air Duct WPL 2259467 Contact Us For Availability

49

THERMISTOR WPL 2266949 Contact Us For Availability

50

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

52

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

53

2255563 Whirlpool Refrigerator Slide Backorder WPL 2255563 $28.80

55

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

56

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

WPW10277448 Whirlpool Icemaker Assembly In Stock WPL WPW10277448 $116.31

Cleaner, Stainless Steel WPL 2006783 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI105451A Contact Us For Availability

(Optional Parts Only) WPL ARI105452A Contact Us For Availability
