Model KSRS27ILSS13 – Common Parts & Diagrams

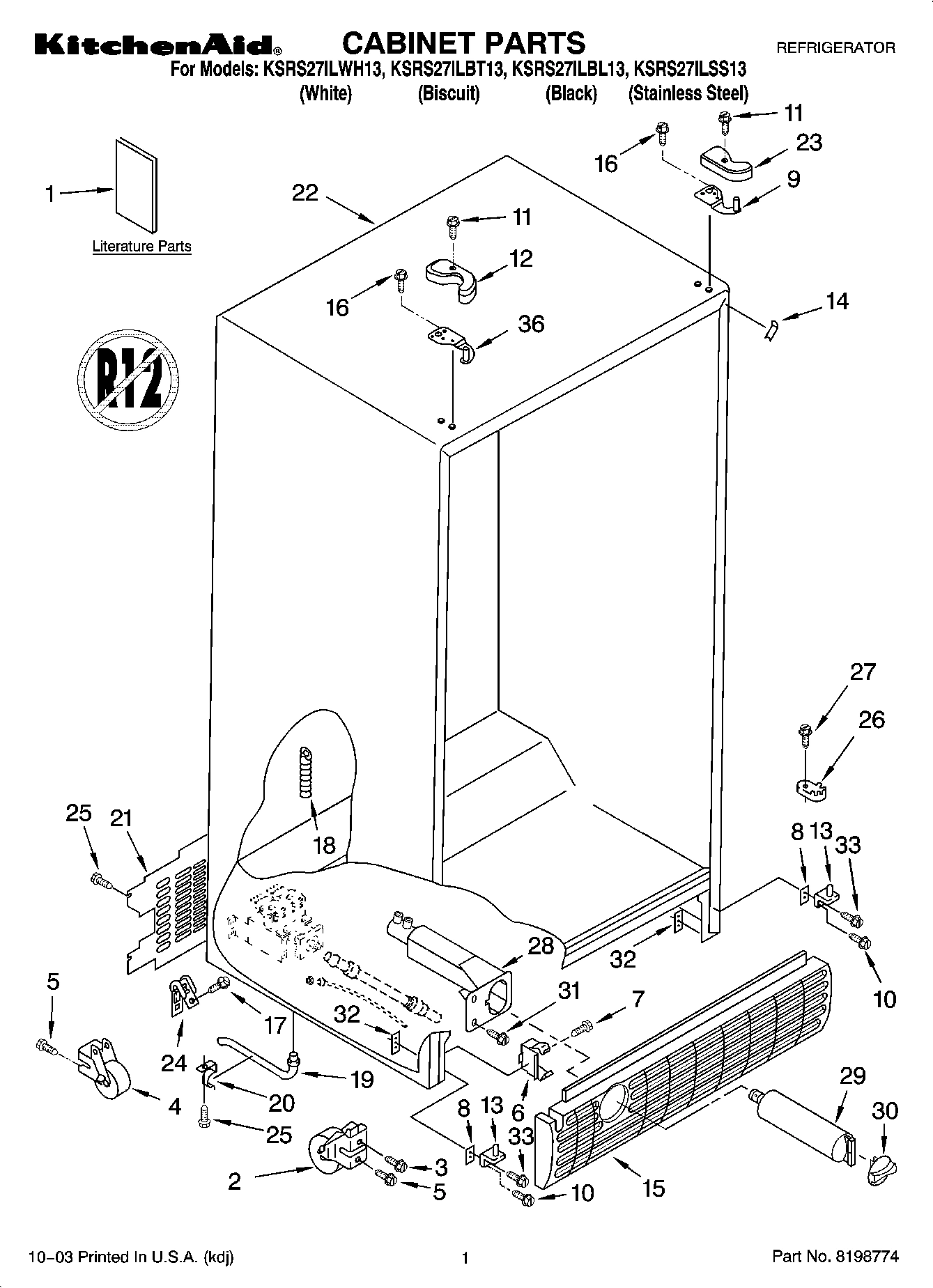

01 - CABINET PARTS

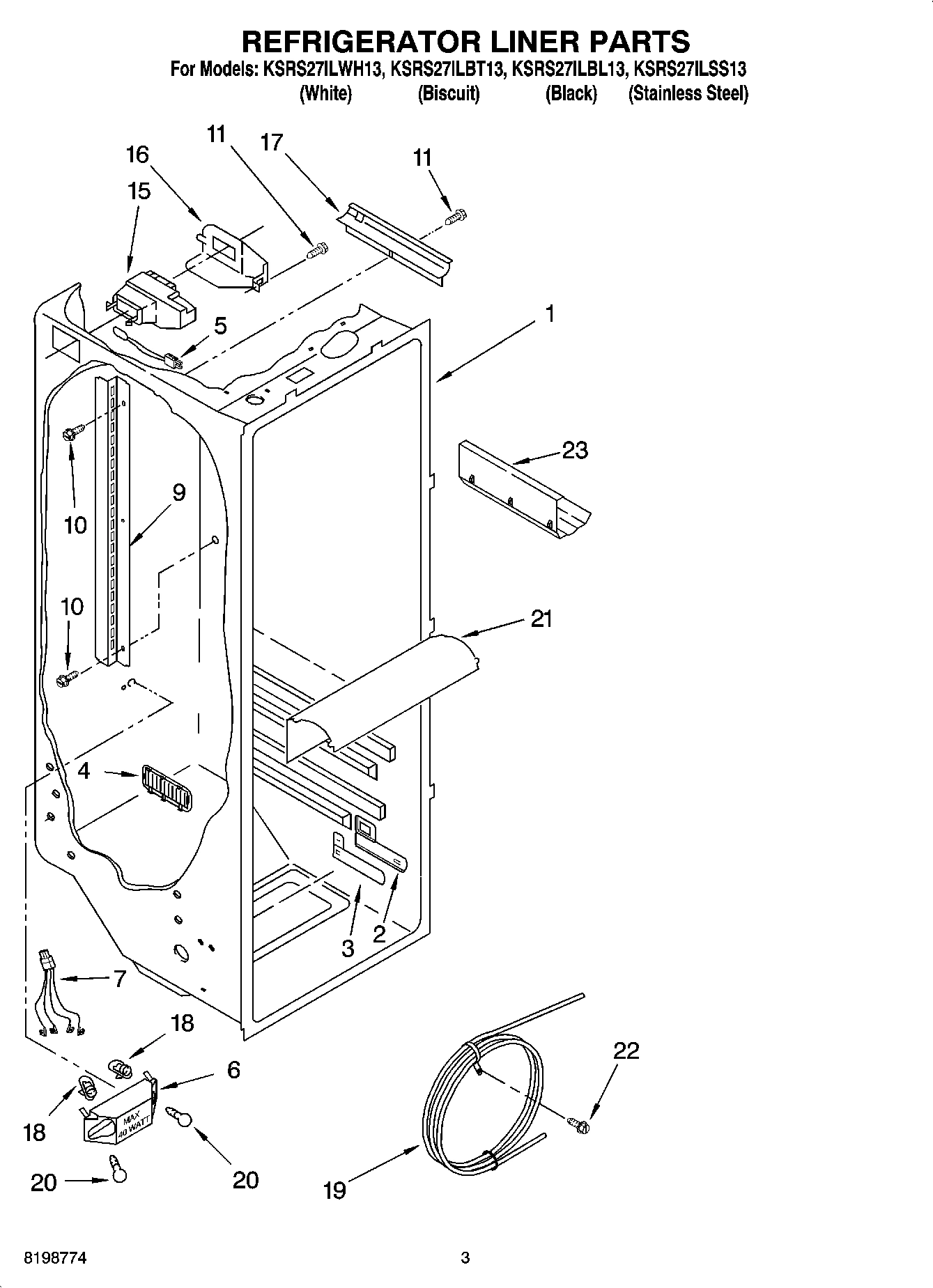

02 - REFRIGERATOR LINER PARTS

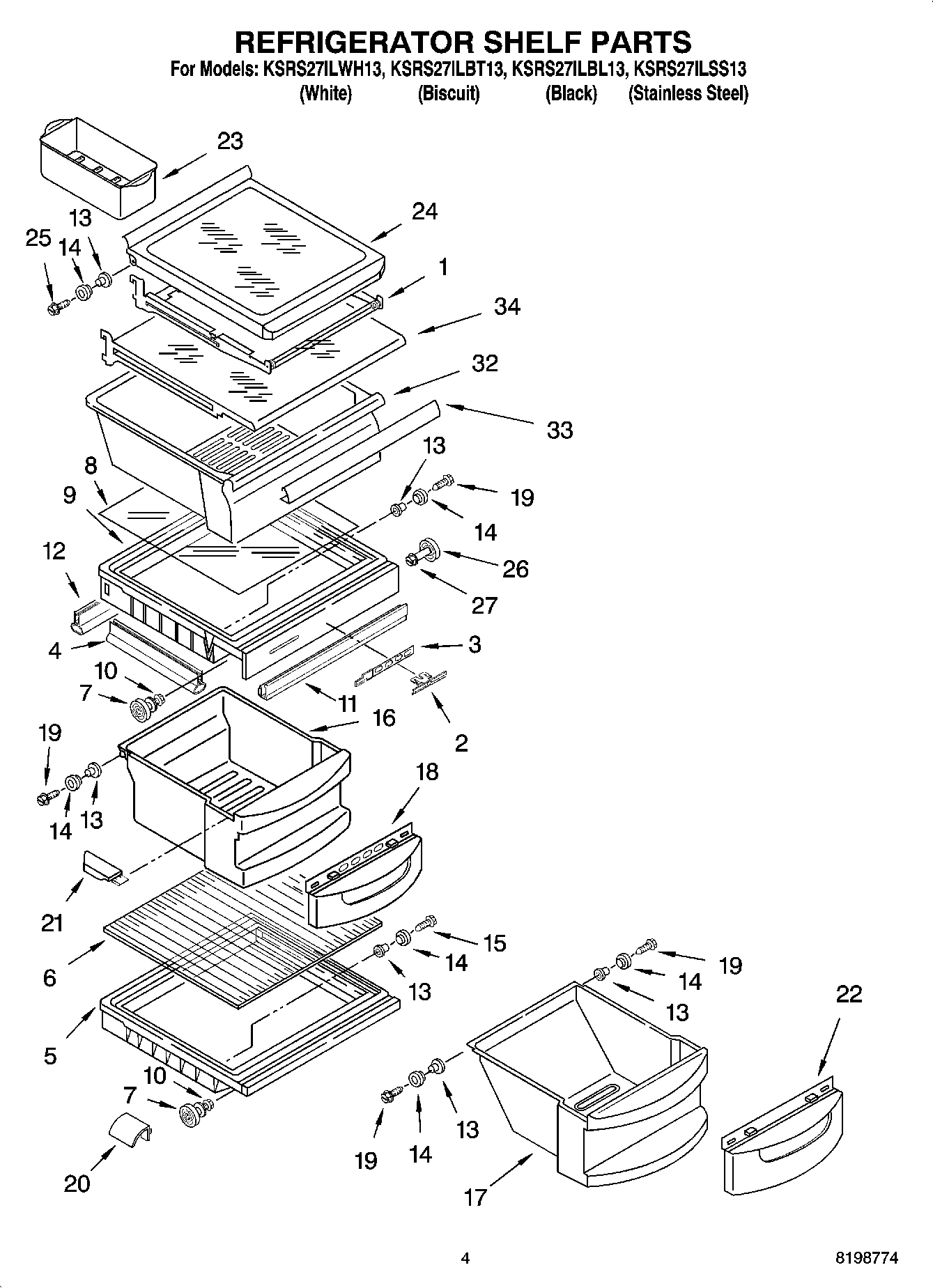

03 - REFRIGERATOR SHELF PARTS

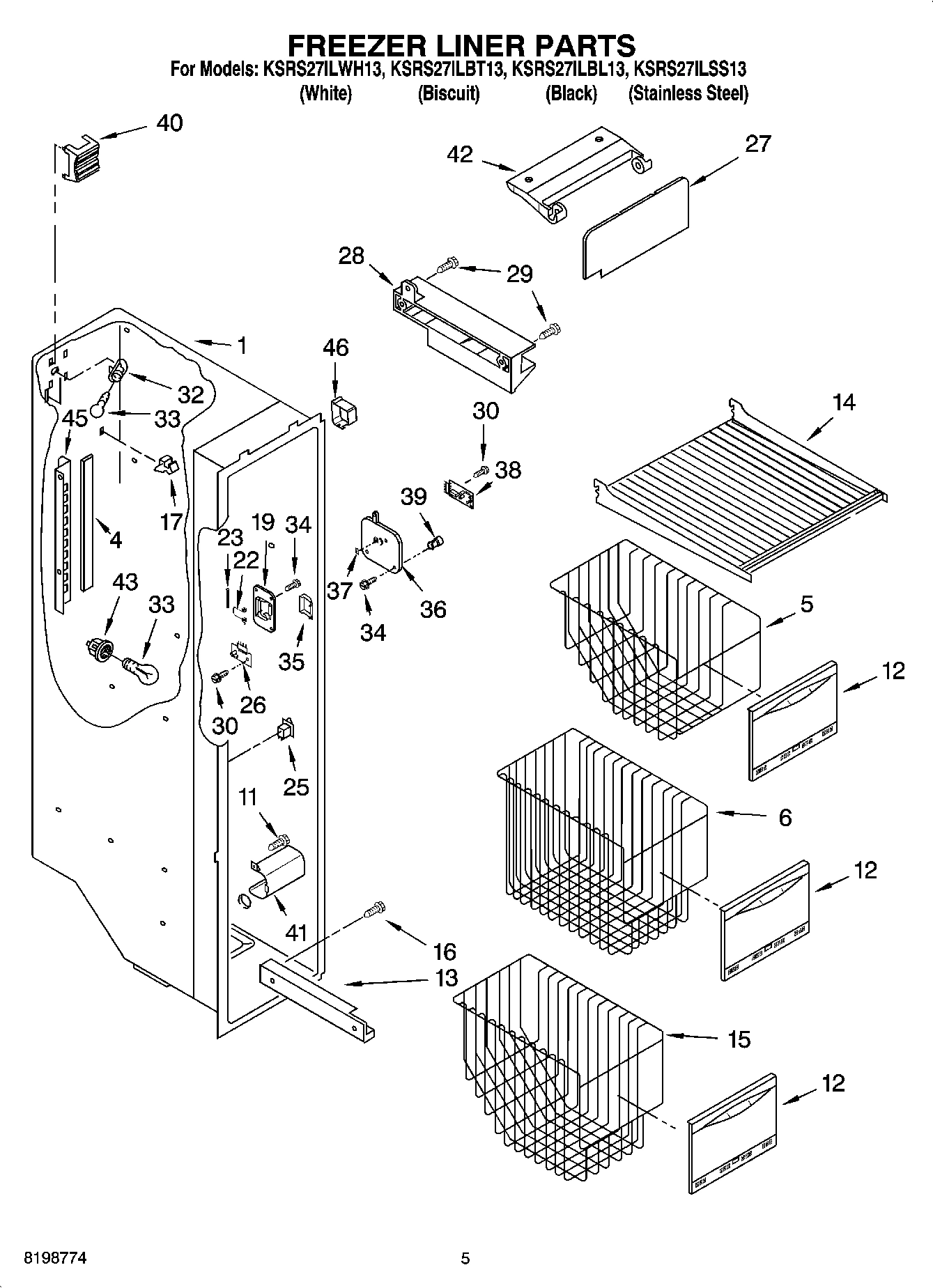

04 - FREEZER LINER PARTS

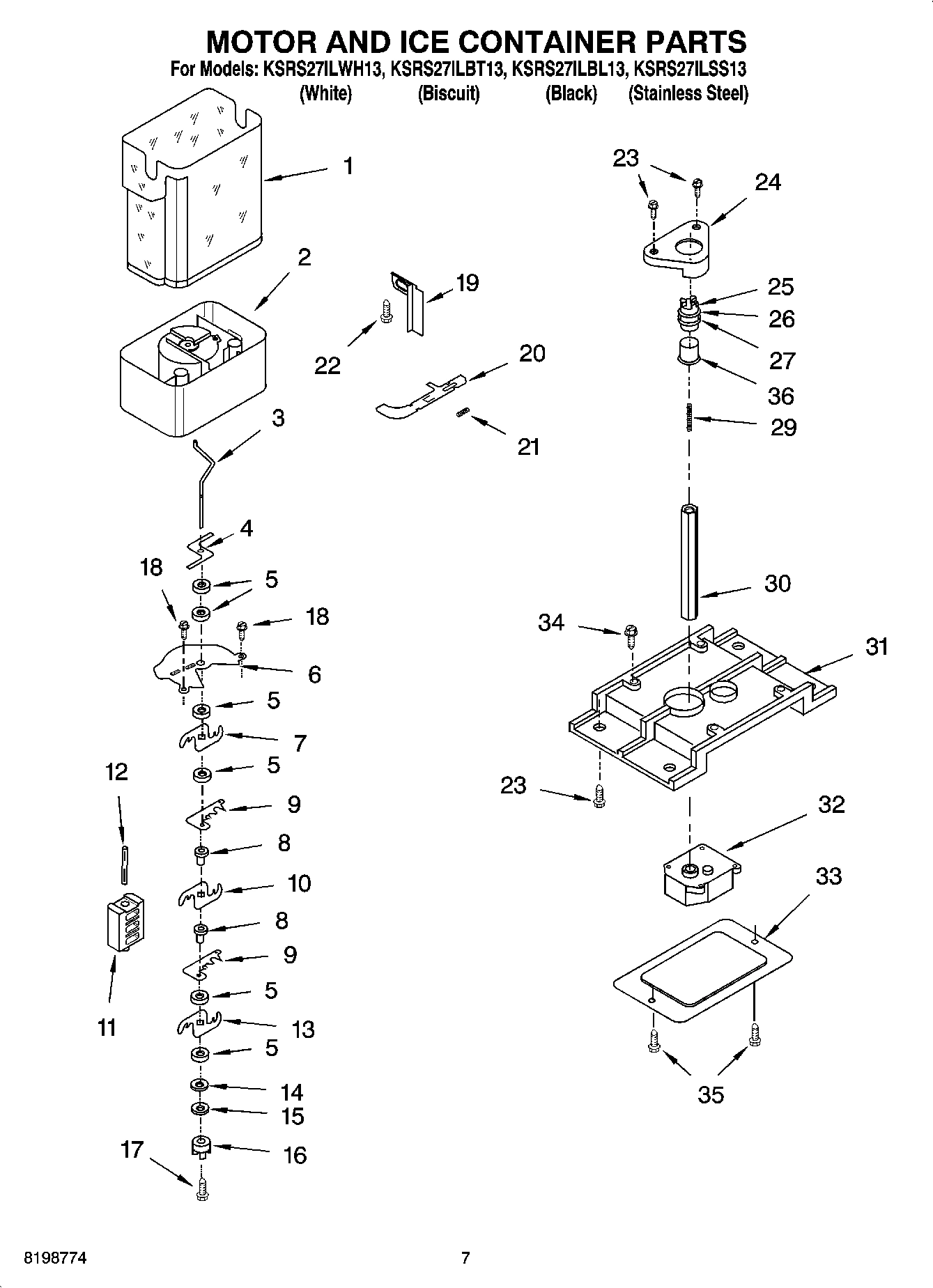

05 - MOTOR AND ICE CONTAINER PARTS

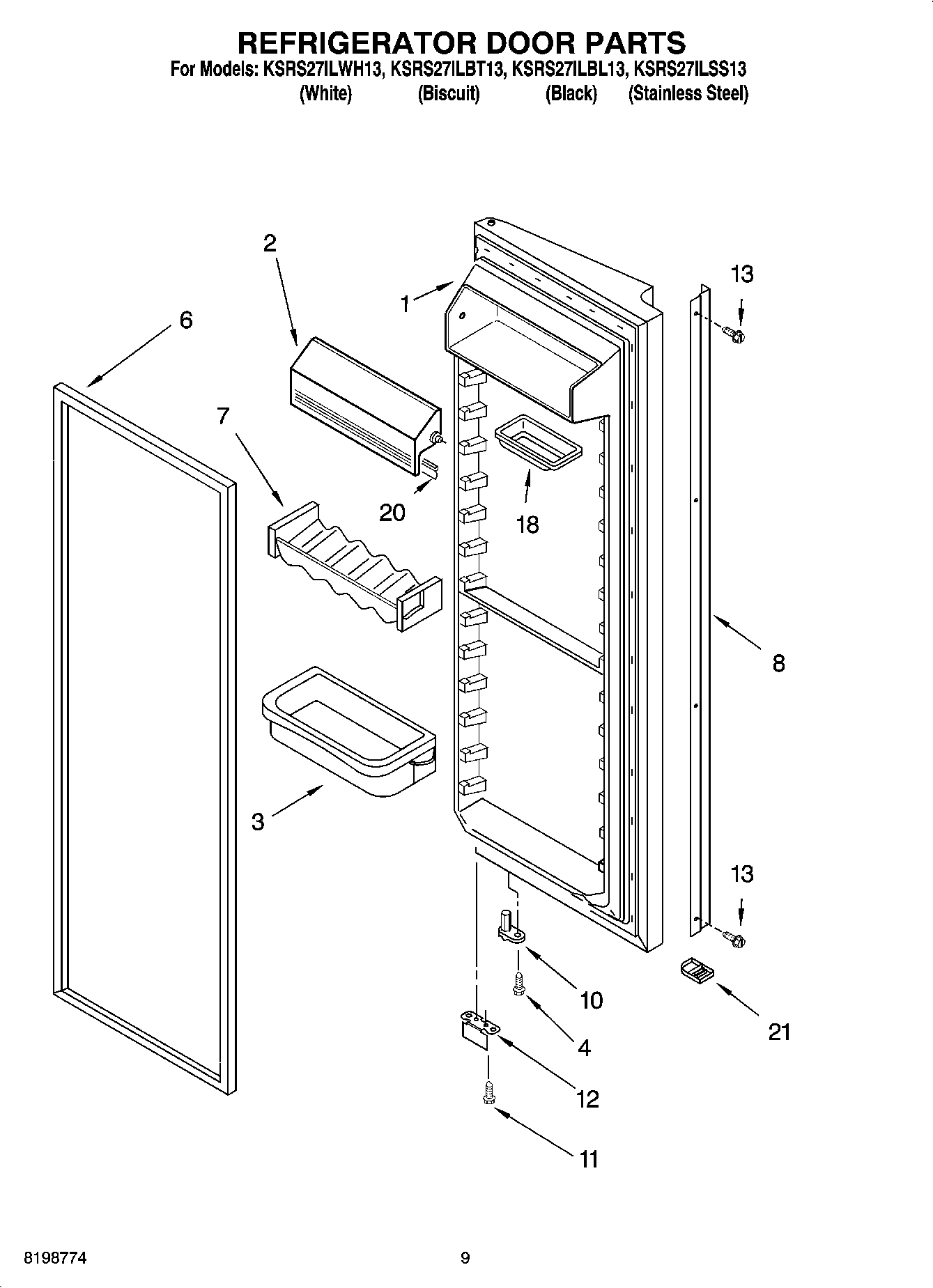

06 - REFRIGERATOR DOOR PARTS

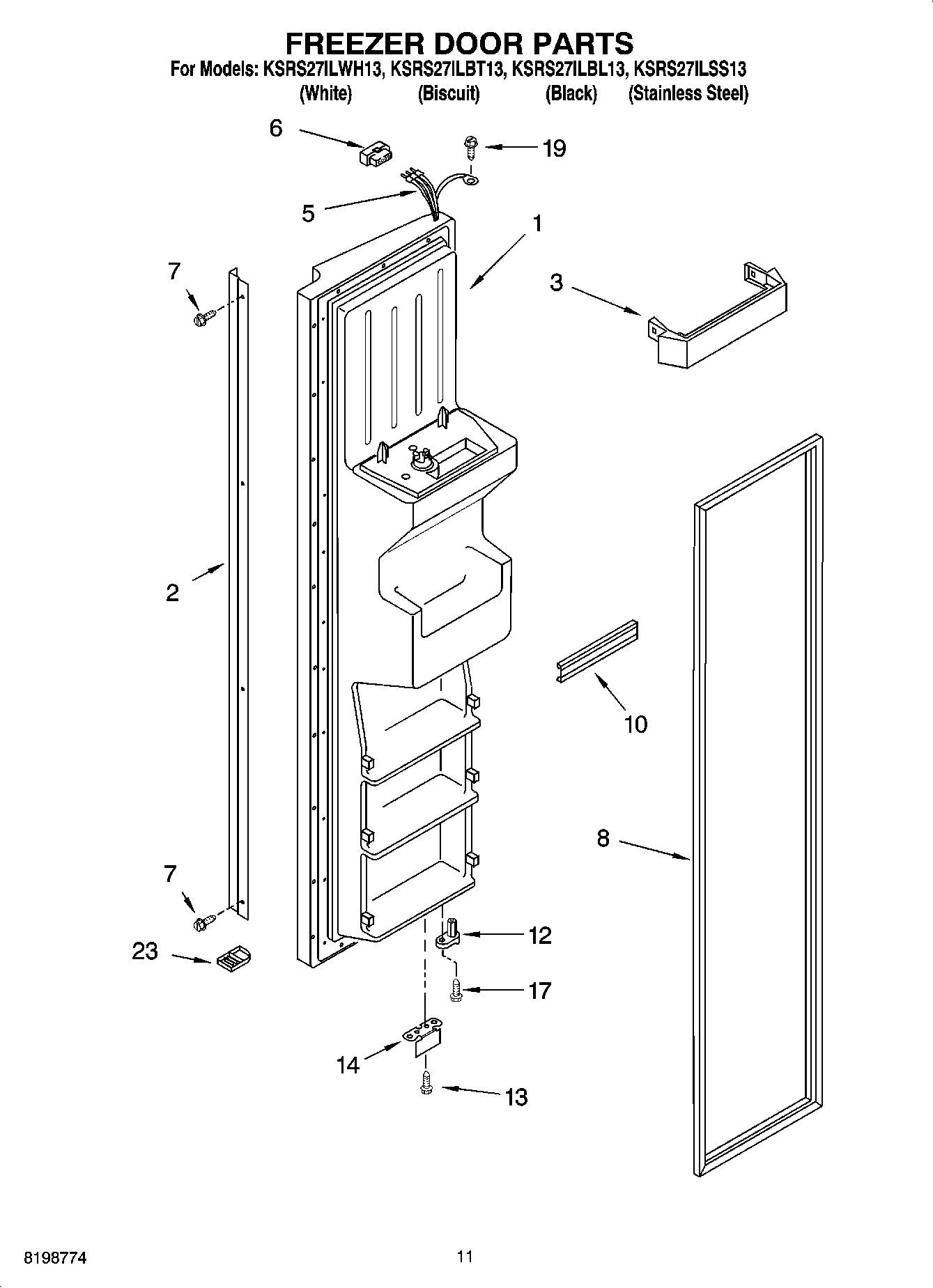

07 - FREEZER DOOR PARTS

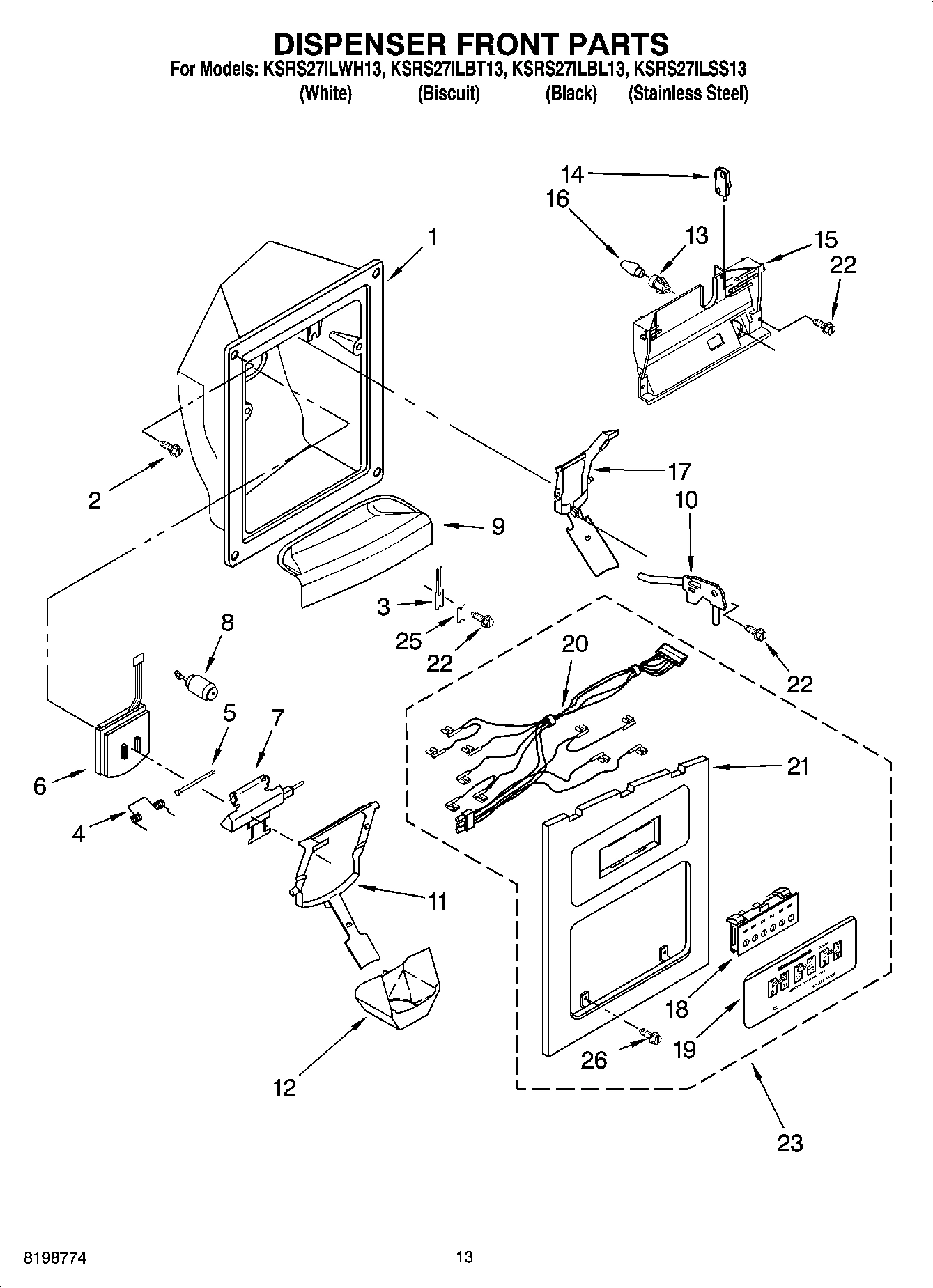

08 - DISPENSER FRONT PARTS

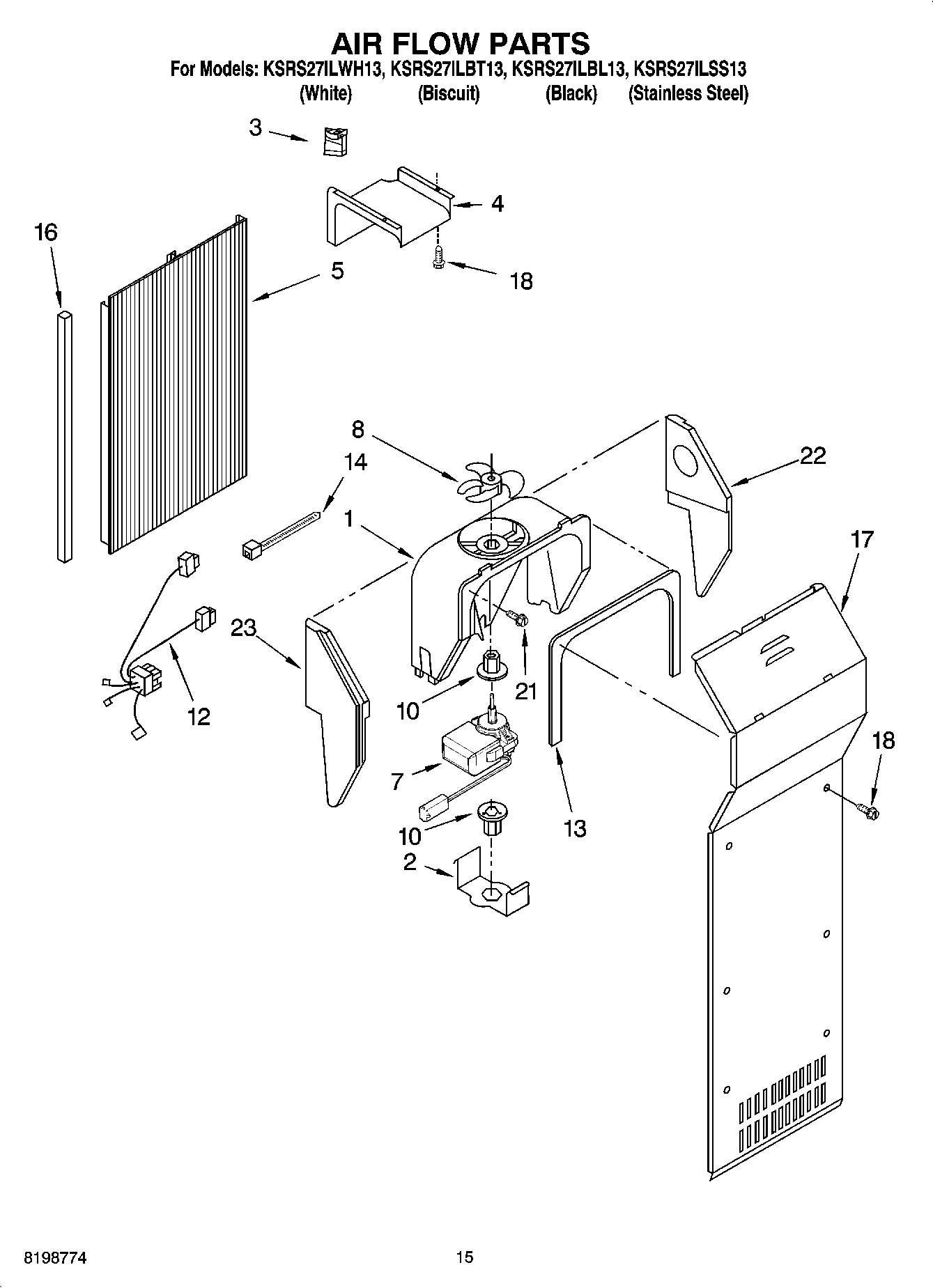

09 - AIR FLOW PARTS

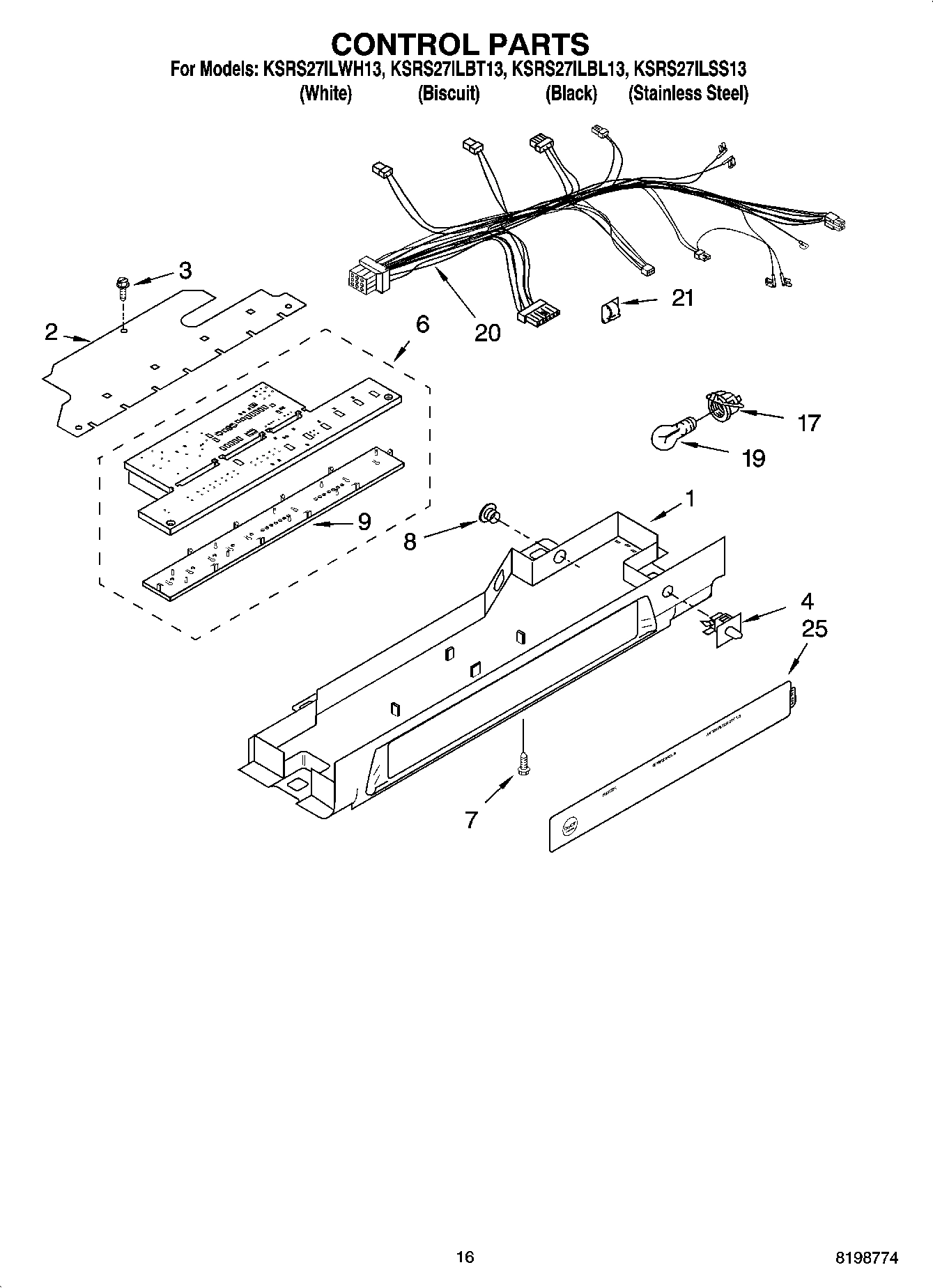

10 - CONTROL PARTS

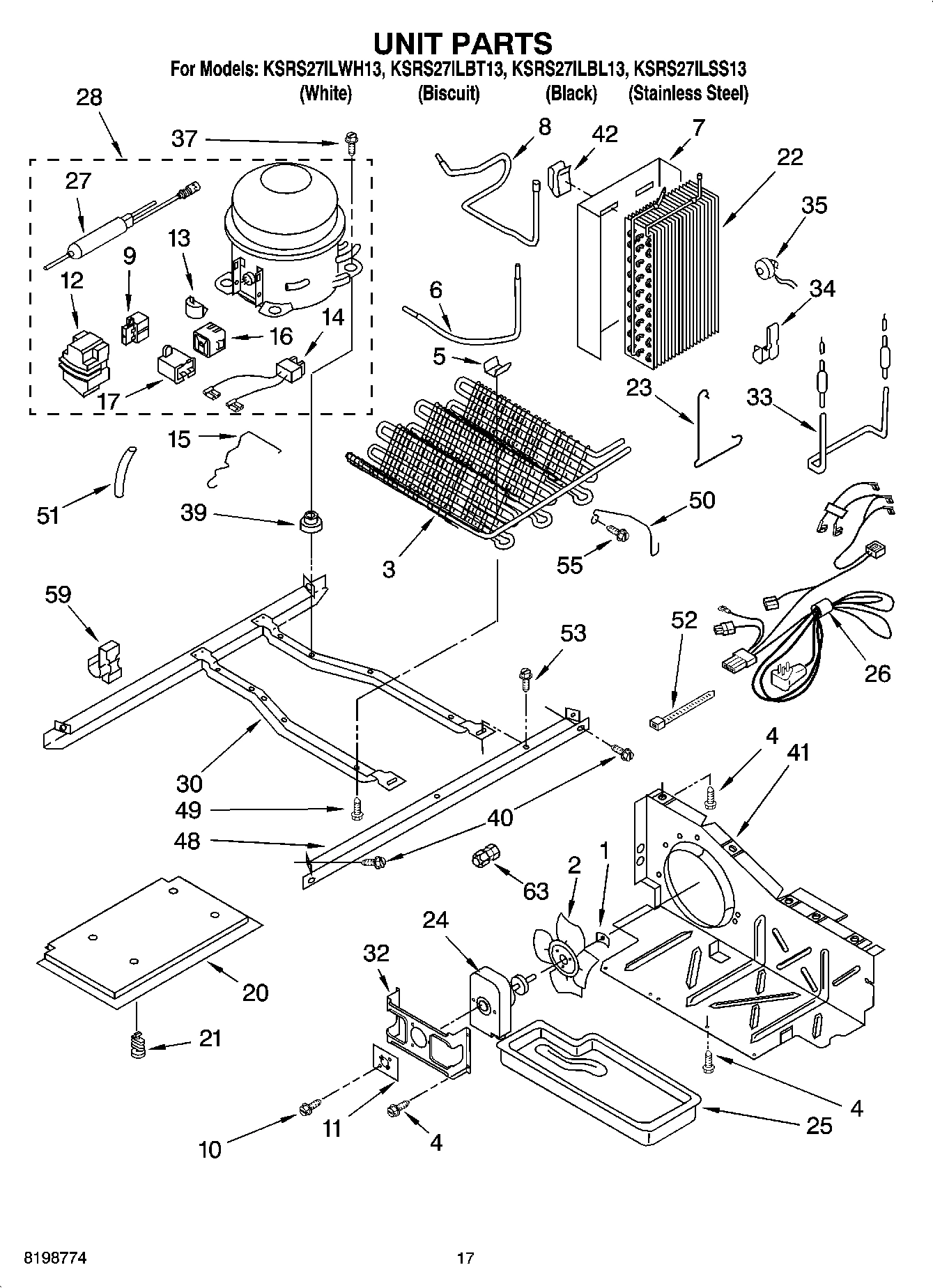

11 - UNIT PARTS

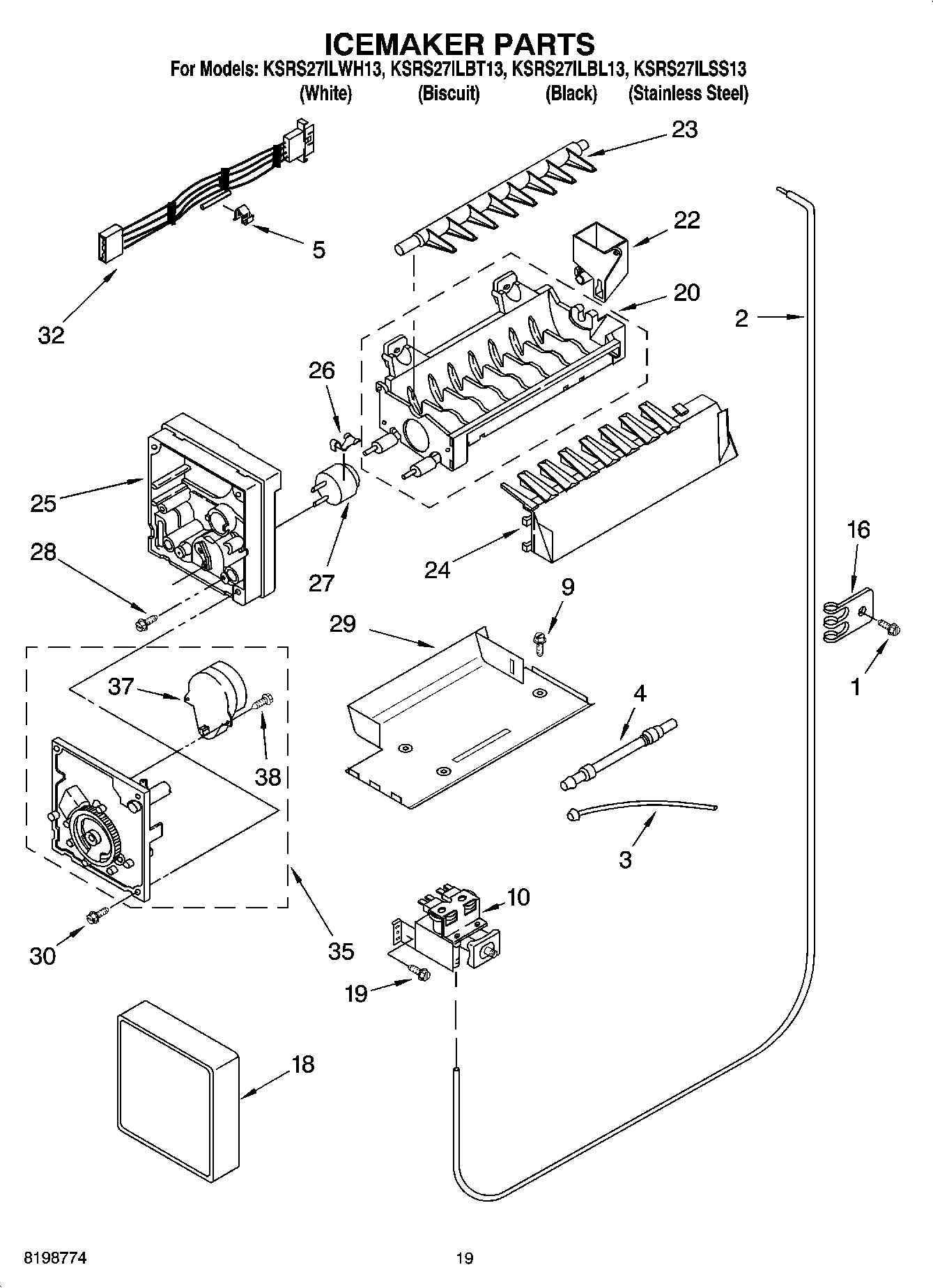

12 - ICEMAKER PARTS, PARTS NOT ILLUSTRATED
