Model Whirlpool KSRS25QFWH00 REFRIGERATOR – Common Parts & Diagrams
03 - REFRIGERATOR SHELF
05 - MOTOR AND ICE CONTAINER

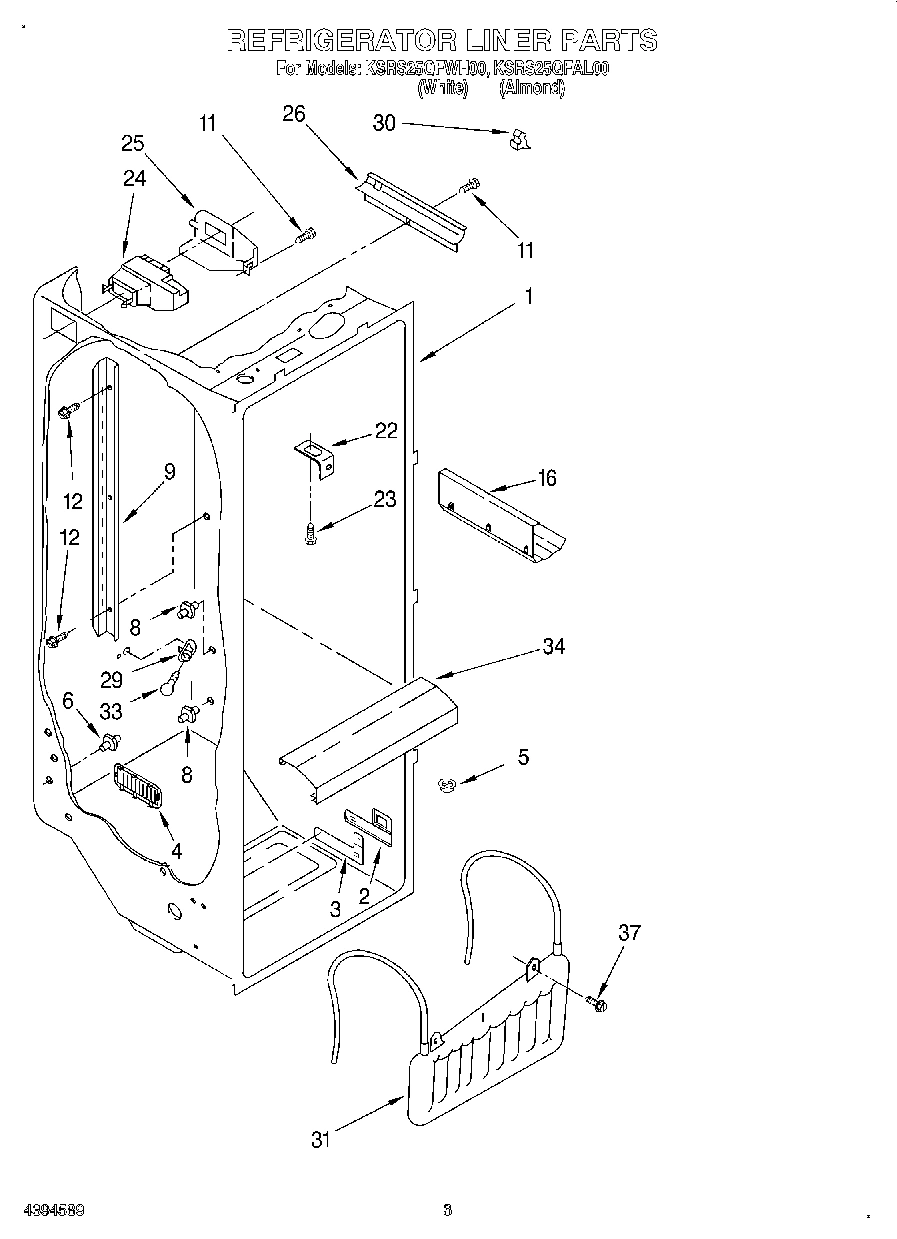

02 - REFRIGERATOR LINER

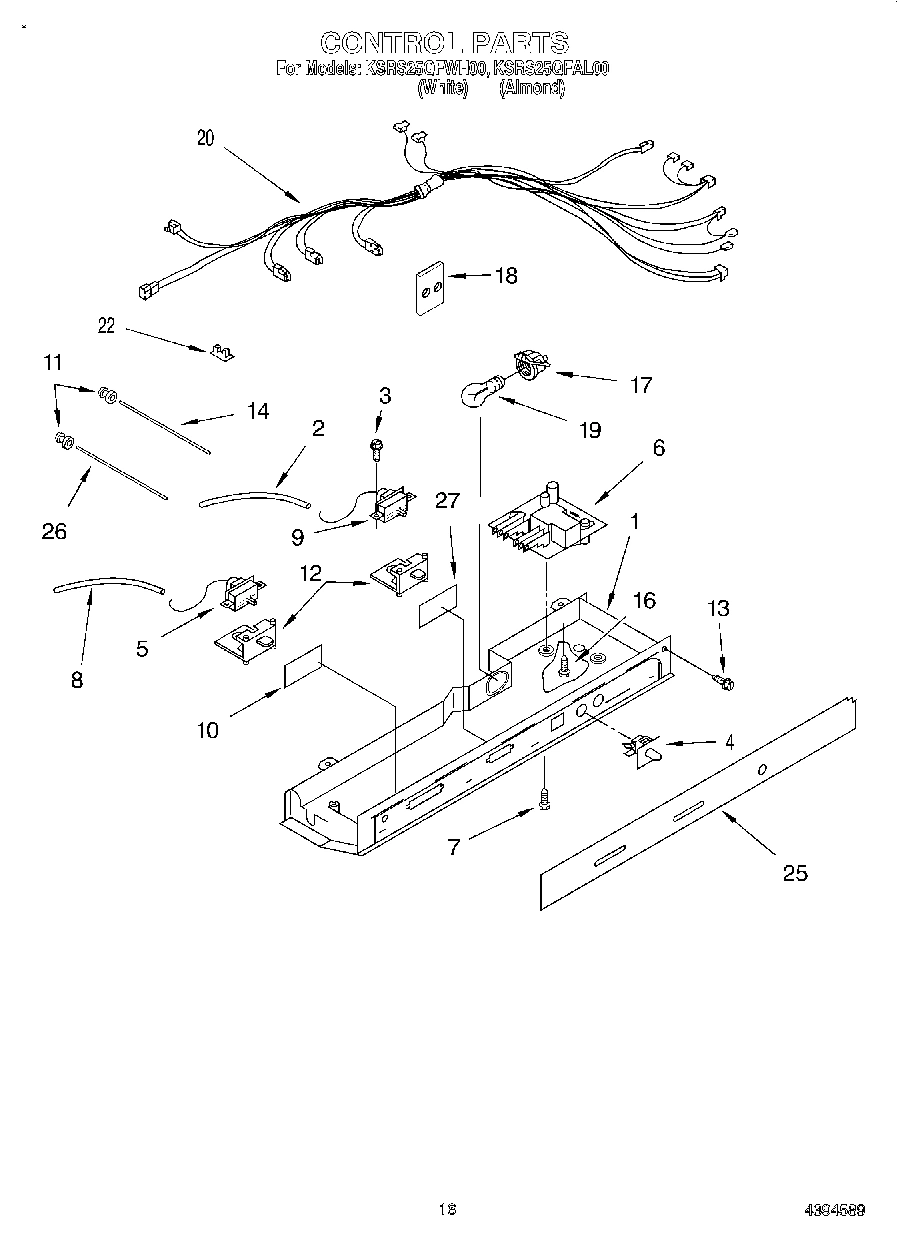

10 - CONTROL
11 - UNIT
12 - ICEMAKER, LIT/OPTIONAL

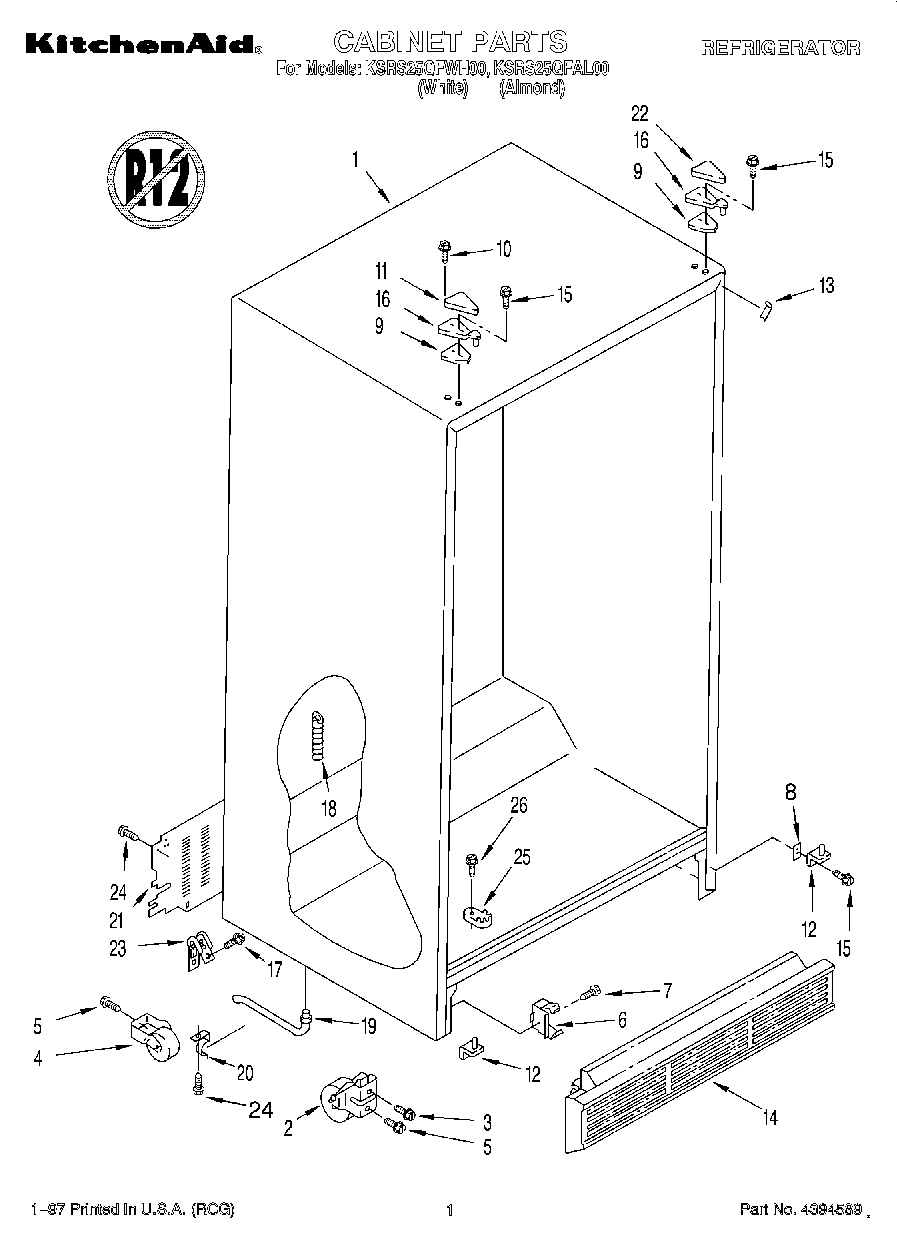

01 - CABINET

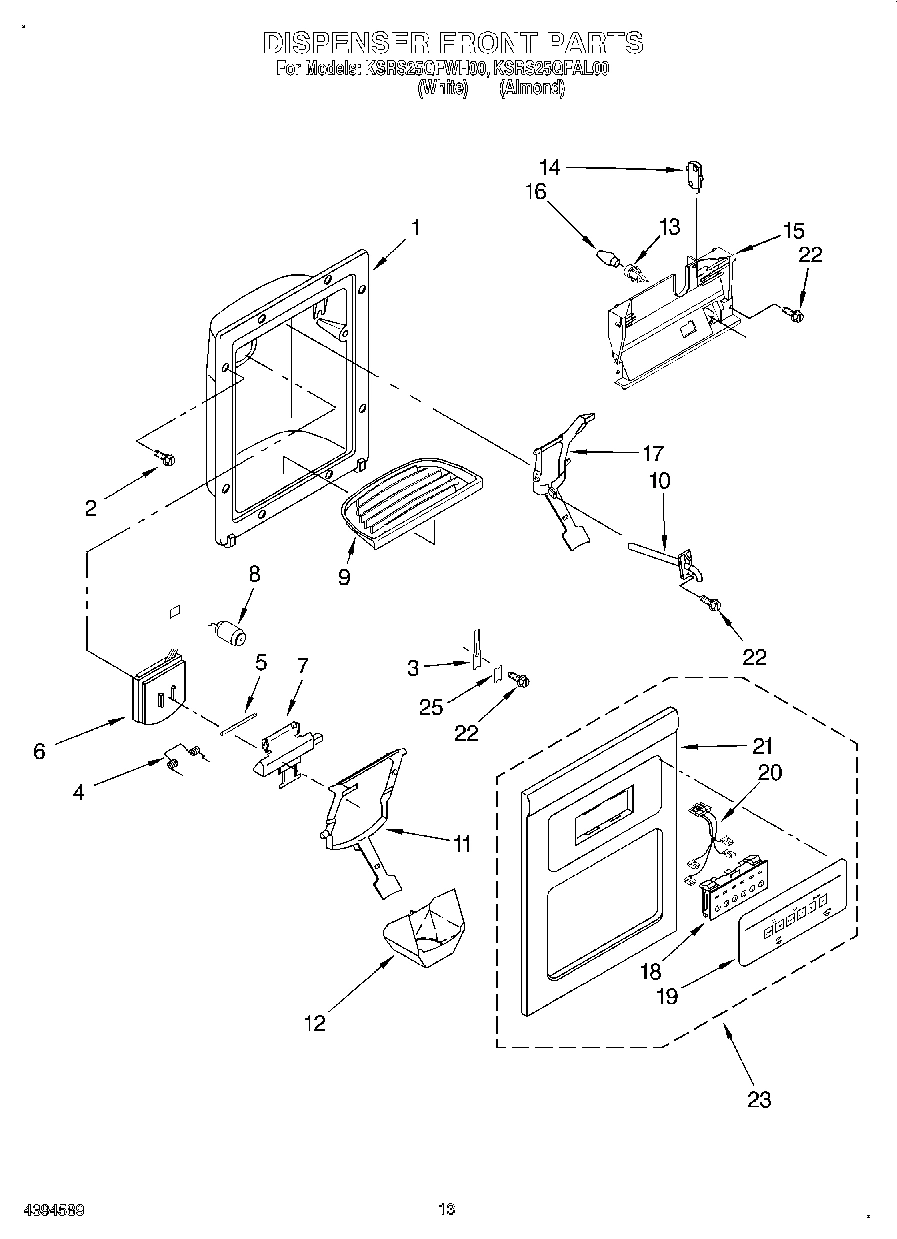

08 - DISPENSER FRONT
04 - FREEZER LINER
06 - REFRIGERATOR DOOR

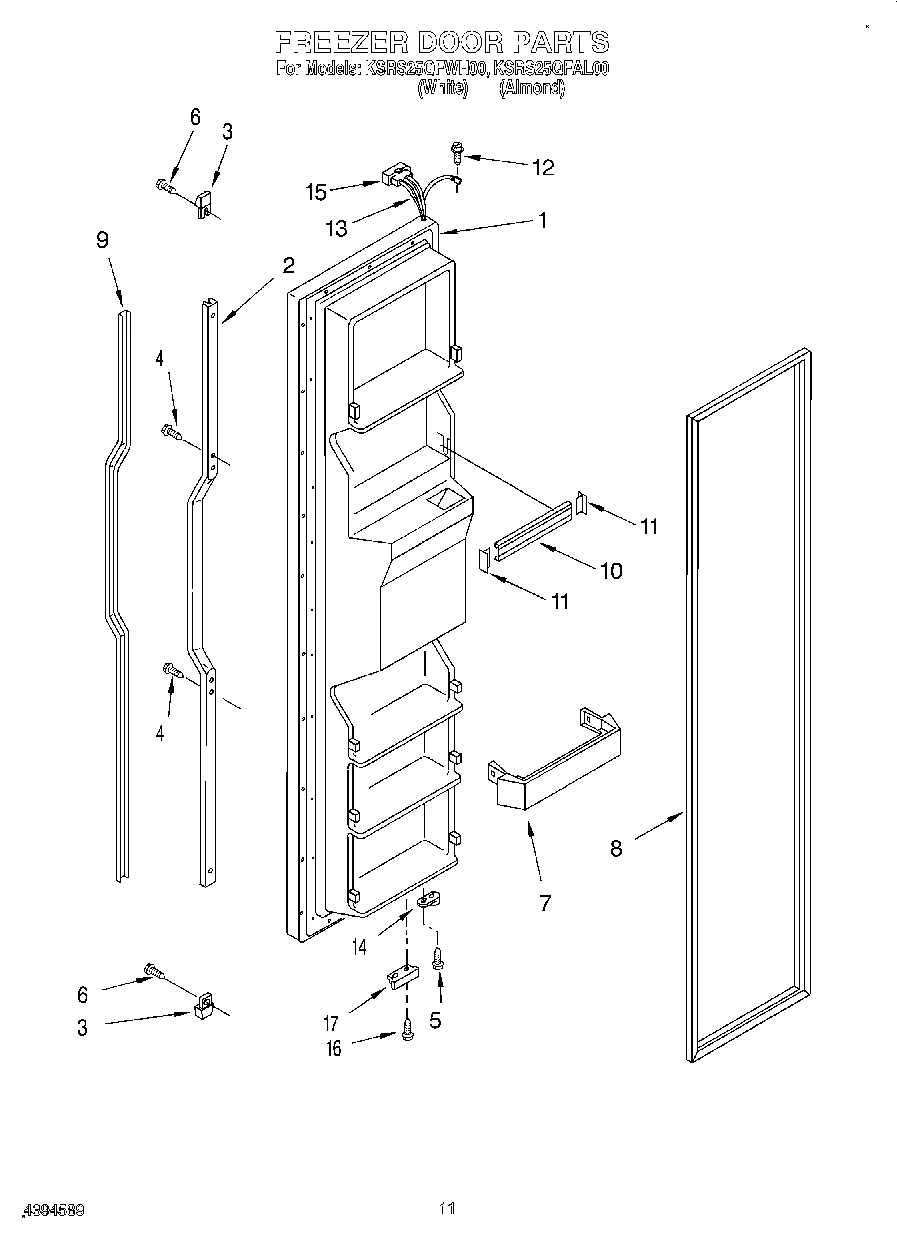

07 - FREEZER DOOR
09 - AIRFLOW
Common parts from model Whirlpool KSRS25QFWH00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI102644A Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI102647A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI102646A Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2194233N Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2194233W Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2182883 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2182884 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
2
Load, Lock (4) WPL 2171283 Contact Us For Availability
2
Retainer, Insert (Almond) WPL 2194777N Contact Us For Availability
2
Retainer, Insert (White) WPL 2194777W Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
End Cap (2) (Almond) WPL 2194778N Contact Us For Availability
3
End Cap (2) (White) WPL 2194778W Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
6
Screw WPL 489075 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Shim, Hinge Top WPL 2171868 Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2180324 Contact Us For Availability
9
Insert, Handle (White) WPL 2173825 Contact Us For Availability
9
Insert, Handle (Almond) WPL 2173828 Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
11
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2180260 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
13
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
13
Gasket WPL 2159124 Contact Us For Availability
13
Wire Harness WPL 2180229 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Grille (White) WPL 2155486 Contact Us For Availability
14
Grille (Almond) WPL 2155487 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
17
Lever, Water Dispenser (Almond) WPL 2180269 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
17
Bracket, Door Stop WPL 2155332 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Plaque, Front Cover (White) WPL 2180368 Contact Us For Availability
19
Plaque, Front Cover (Almond) WPL 2180369 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI102648A Contact Us For Availability
21
Basket, Shallow WPL 2181763 Contact Us For Availability
22
Front, Basket WPL 2171767 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180396 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180397 Contact Us For Availability
23
Basket, Square WPL 2181765 Contact Us For Availability
25
Basket, Sloped WPL 2181764 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BUL WPL 799344 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
