Model Whirlpool KSRS25QFAL00 REFRIGERATOR – Common Parts & Diagrams

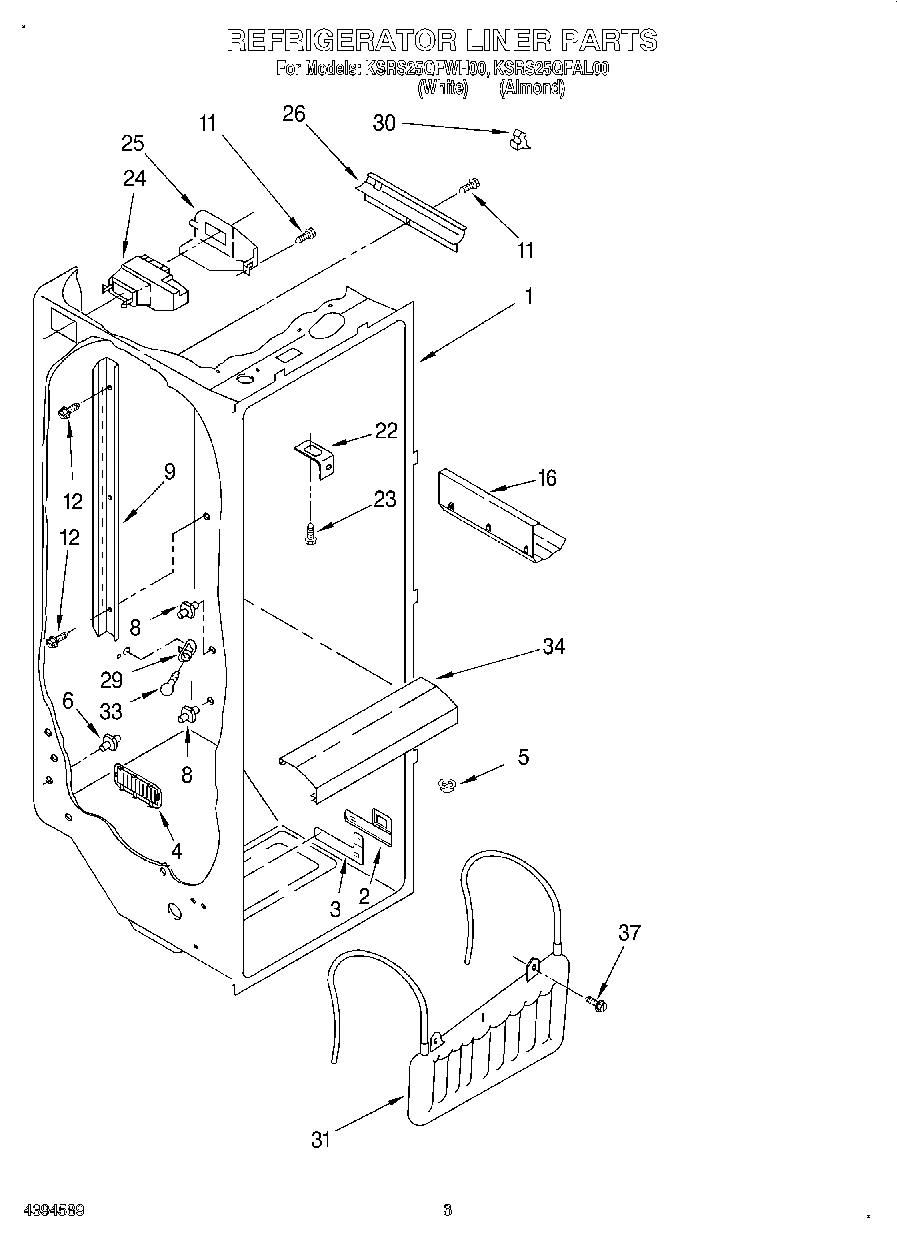

02 - REFRIGERATOR LINER
05 - MOTOR AND ICE CONTAINER

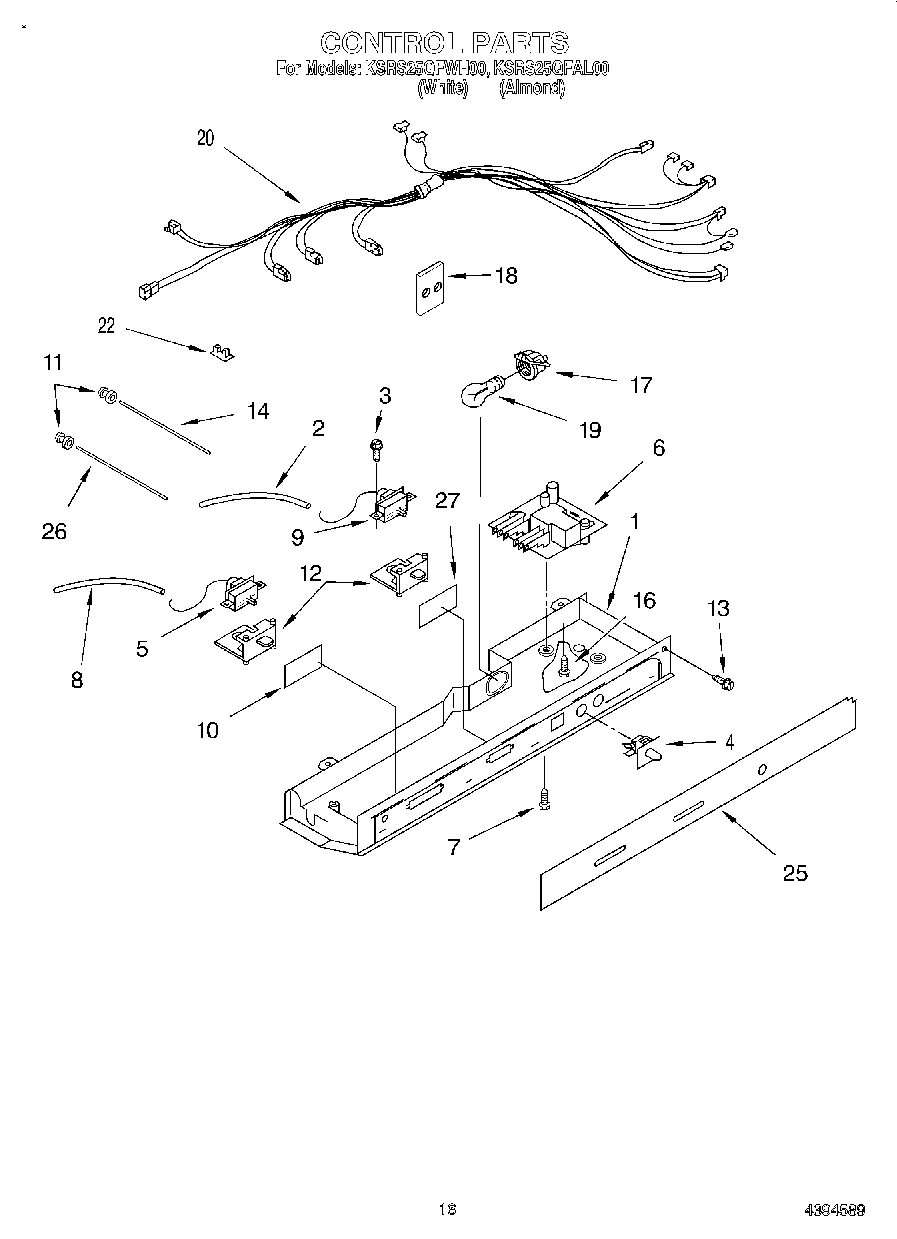

10 - CONTROL
12 - ICEMAKER, LIT/OPTIONAL
09 - AIRFLOW

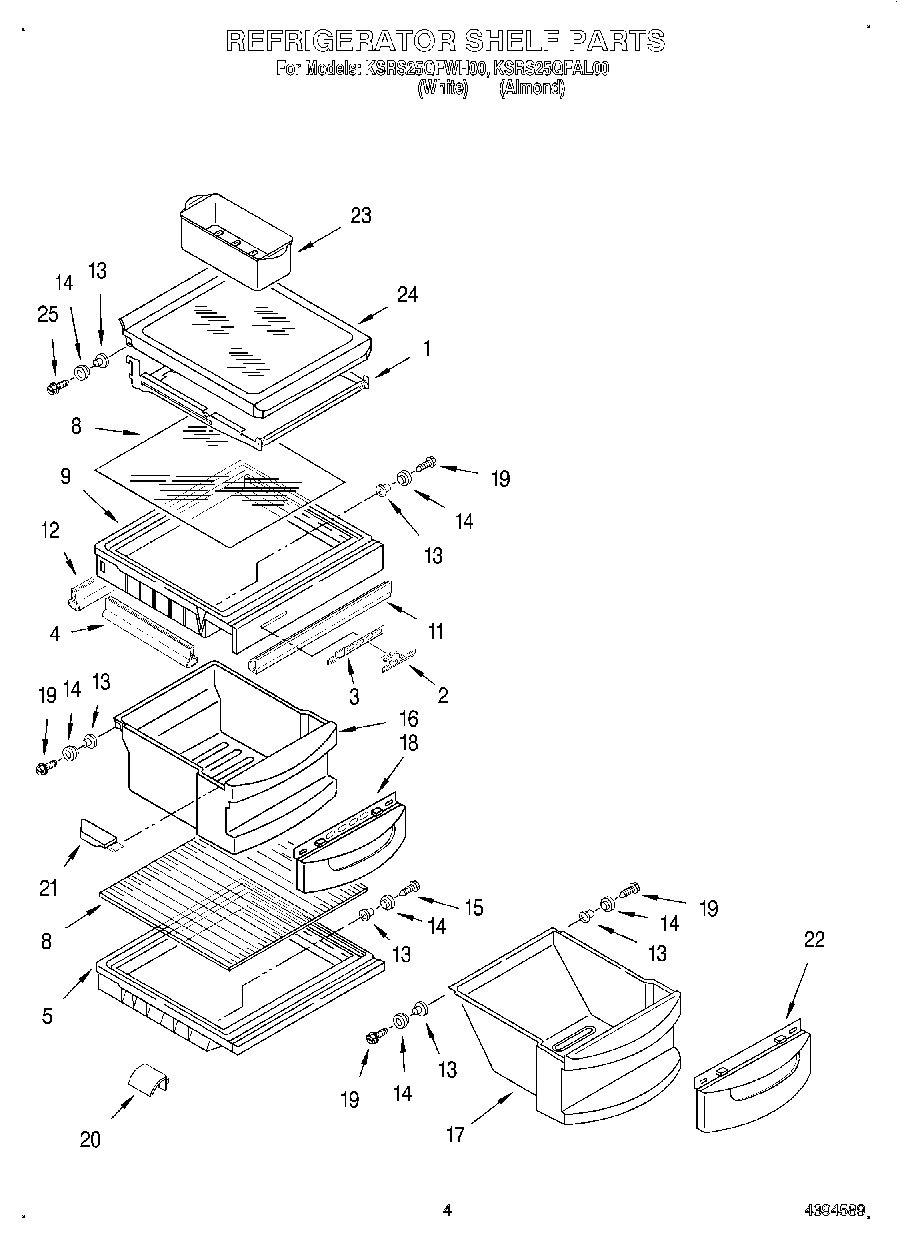

03 - REFRIGERATOR SHELF
04 - FREEZER LINER

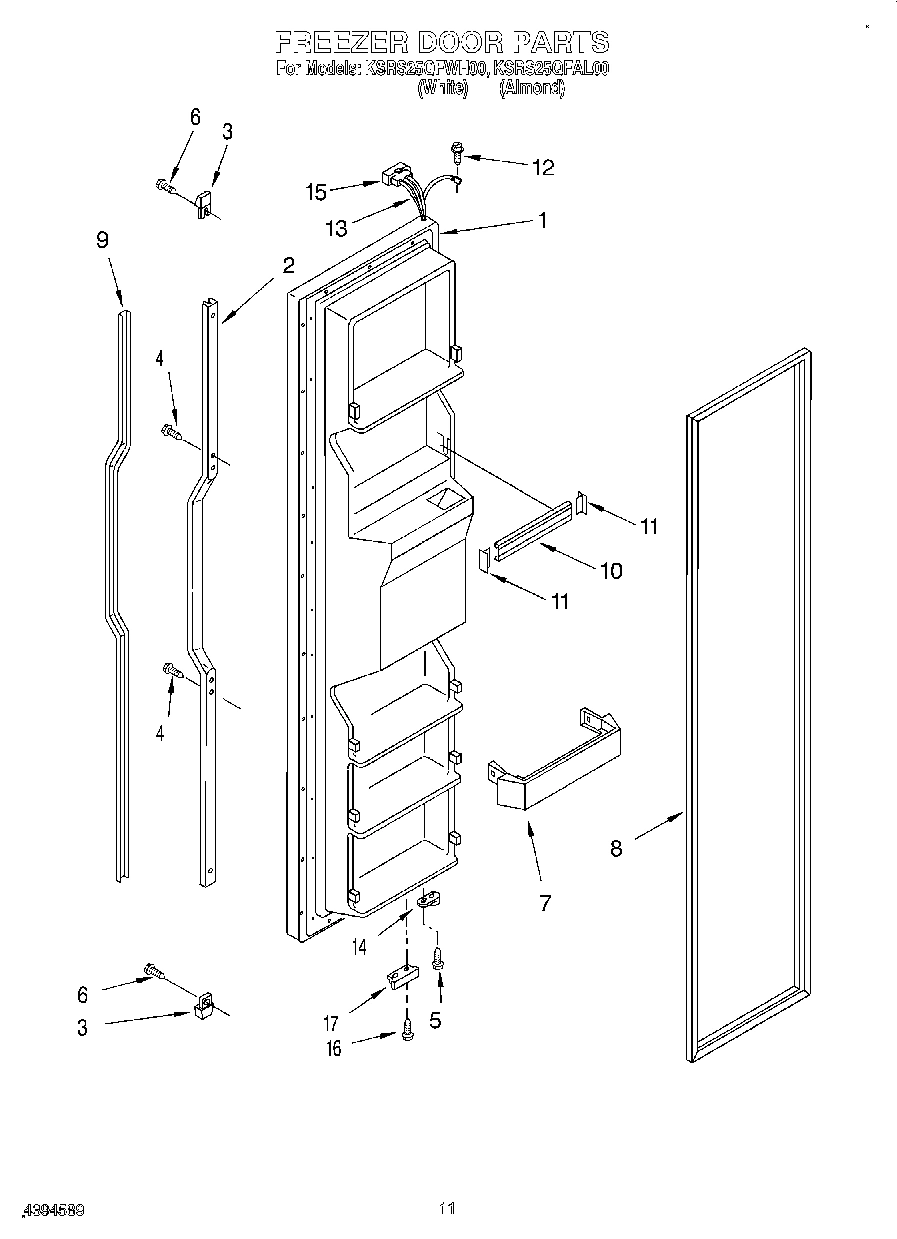

07 - FREEZER DOOR
11 - UNIT

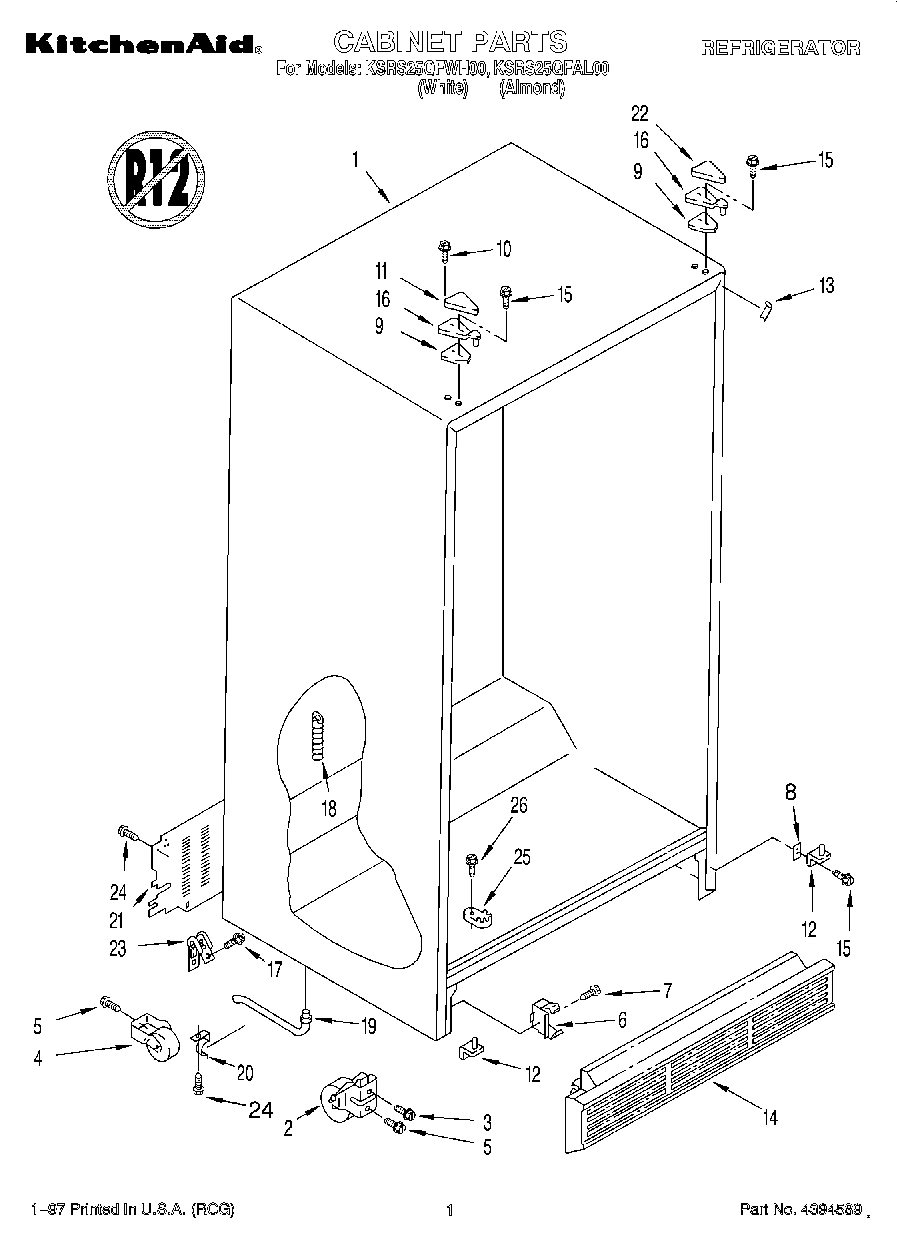

01 - CABINET
06 - REFRIGERATOR DOOR

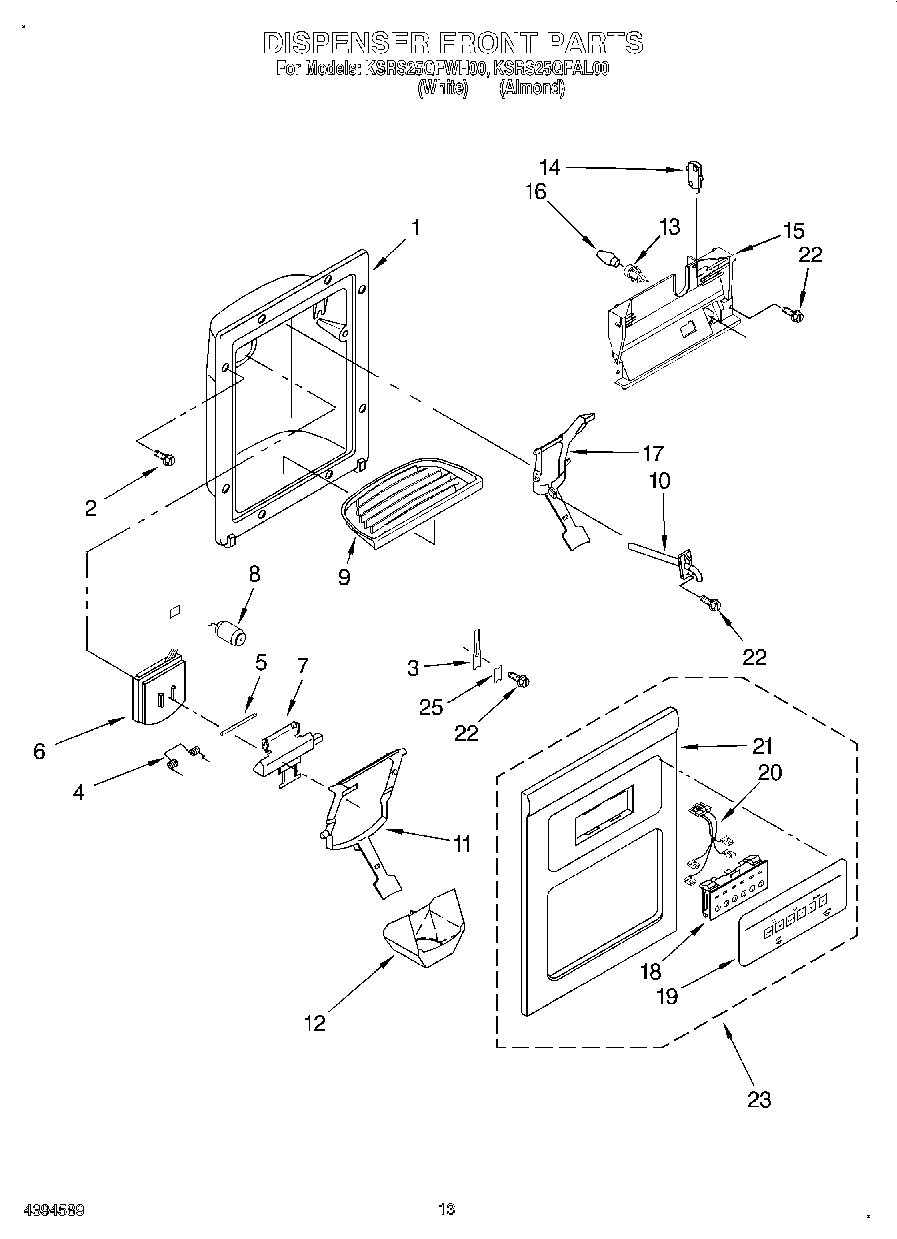

08 - DISPENSER FRONT
Common parts from model Whirlpool KSRS25QFAL00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2182883 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2182884 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI102632A Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2194233N Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2194233W Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI102635A Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Load, Lock (4) WPL 2171283 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
6
Insert, Handle (White) WPL 2173825 Contact Us For Availability
6
Insert, Handle (Almond) WPL 2173828 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
End Cap, Handle (Almond) WPL 2194778N Contact Us For Availability
8
End Cap, Handle (White) WPL 2194778W Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Screw WPL 489075 Contact Us For Availability
9
Shim, Hinge Top WPL 2171868 Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2180324 Contact Us For Availability
10
Retainer, Insert (Almond) WPL 2194777N Contact Us For Availability
10
Retainer, Insert (White) WPL 2194777W Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2180260 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Wire Harness WPL 2180229 Contact Us For Availability
13
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
13
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
13
Gasket WPL 2159124 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Grille (White) WPL 2155486 Contact Us For Availability
14
Grille (Almond) WPL 2155487 Contact Us For Availability
15
Bracket, Door Stop WPL 2155332 Contact Us For Availability
15
Relay (See Overload) WPL ARI102637A Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Lever, Water Dispenser (Almond) WPL 2180269 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Plaque, Front Cover (White) WPL 2180368 Contact Us For Availability
19
Plaque, Front Cover (Almond) WPL 2180369 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI102636A Contact Us For Availability
22
Front, Basket WPL 2171767 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Basket, Square WPL 2181765 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180396 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180397 Contact Us For Availability
25
Basket, Sloped WPL 2181764 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
31
Unit, Harness WPL 2194749 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
