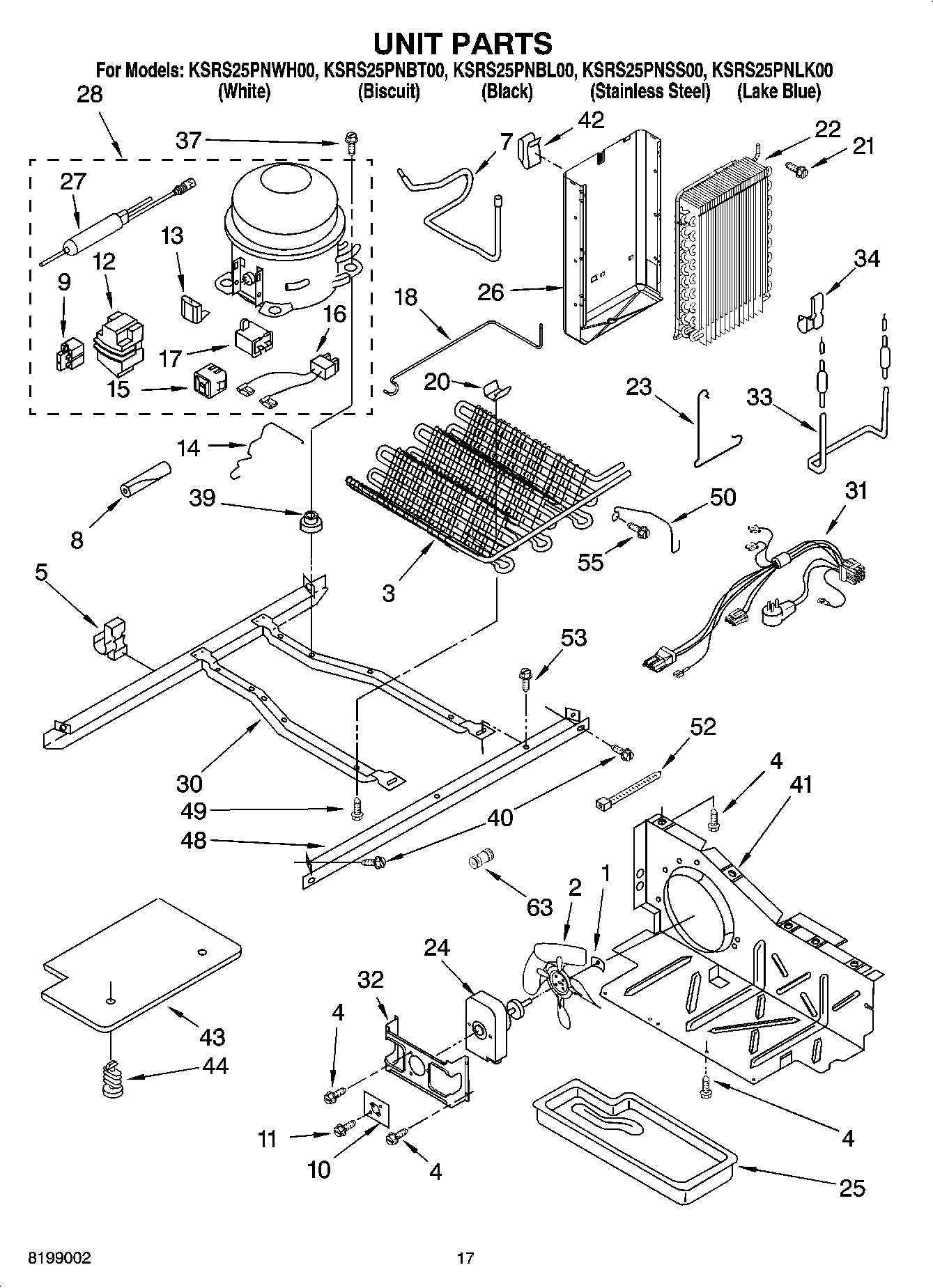

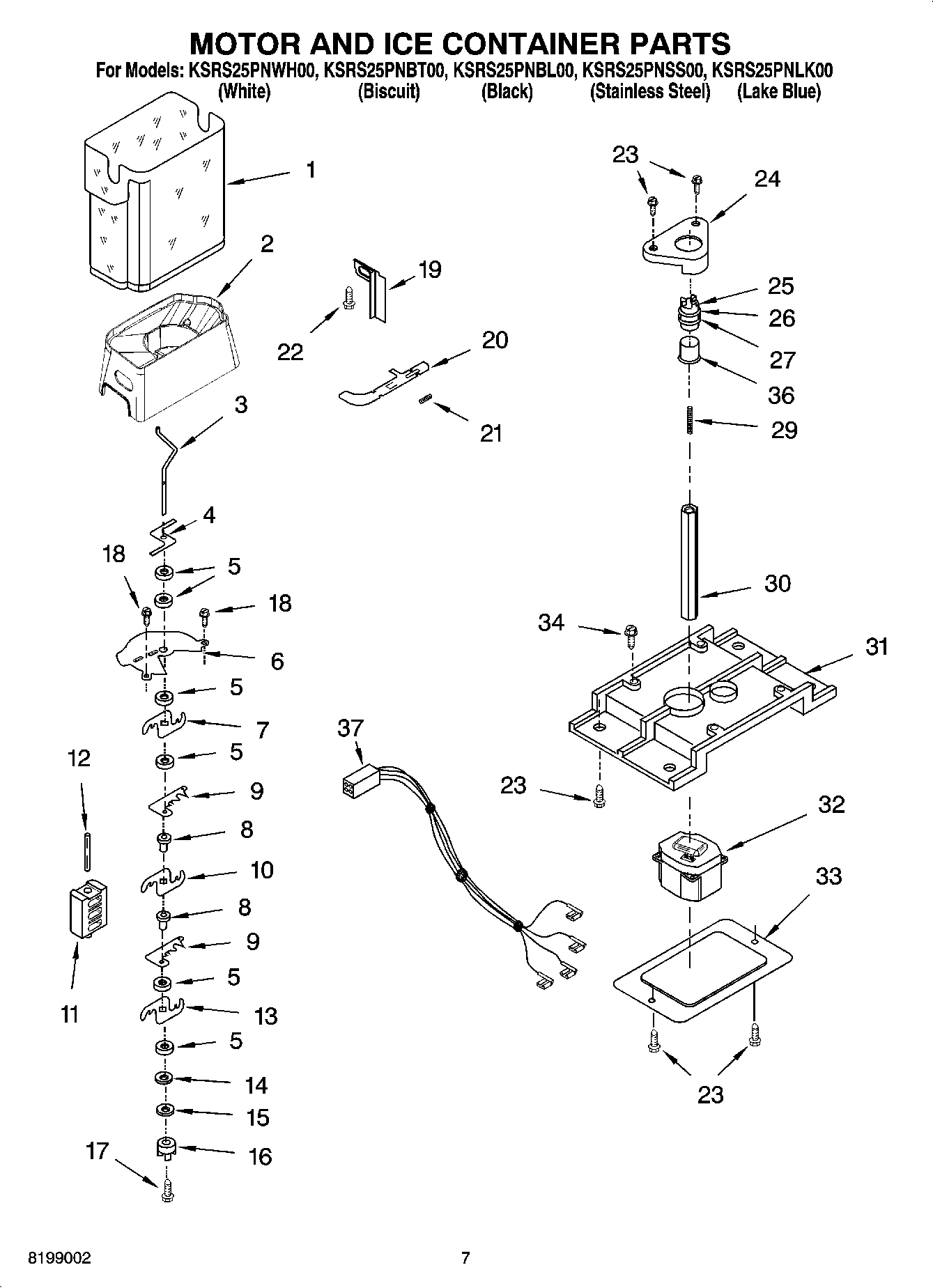

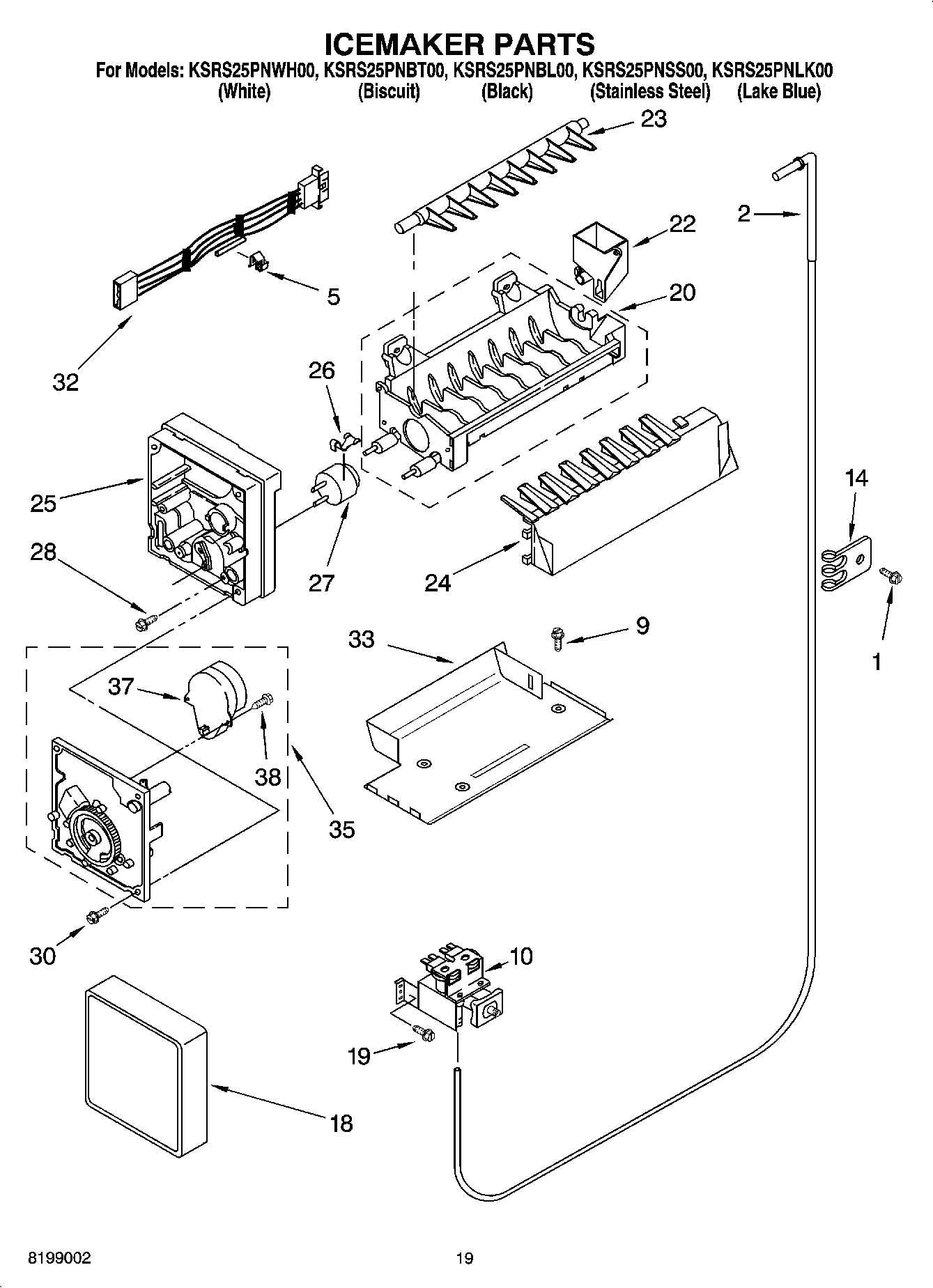

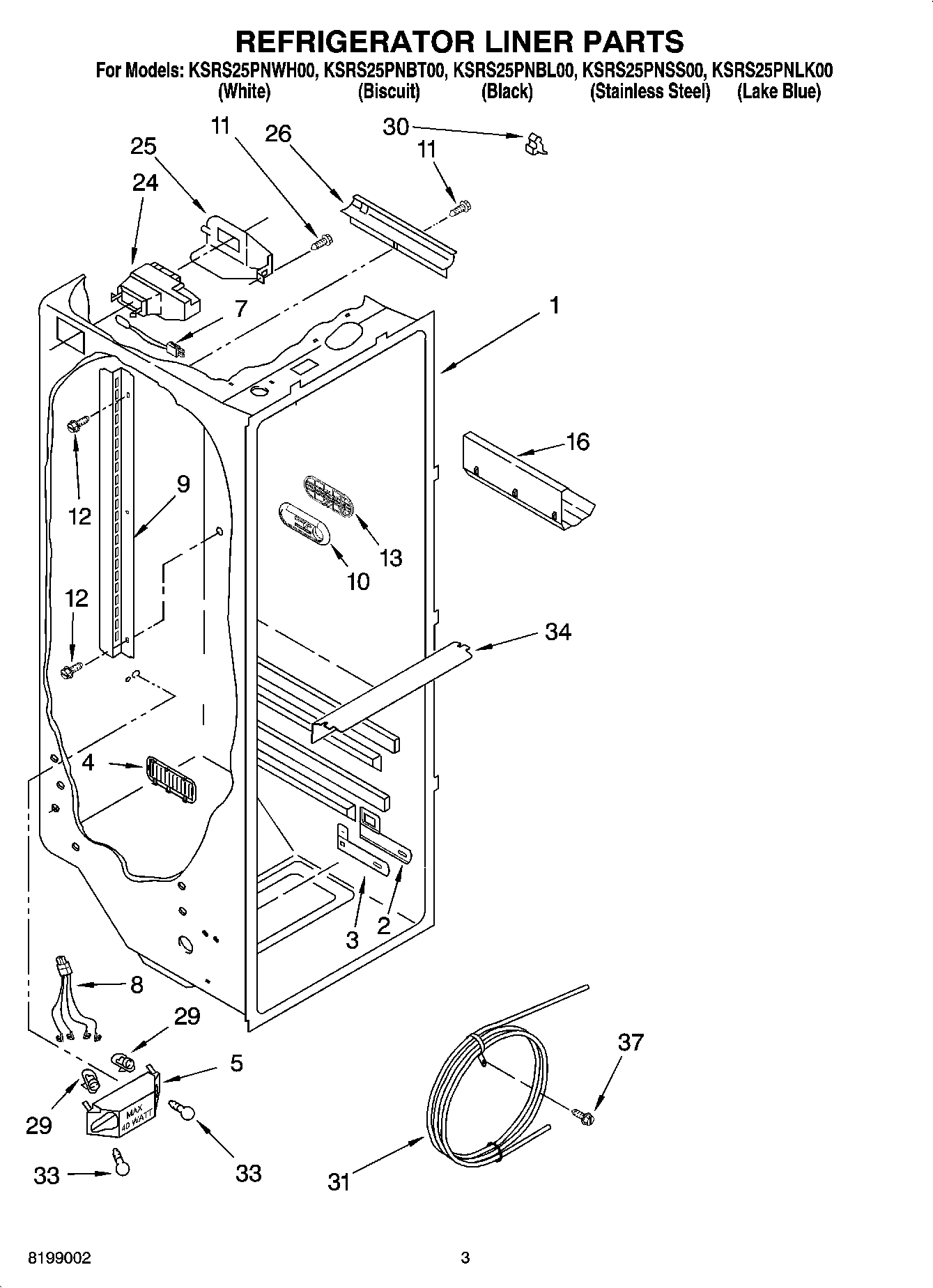

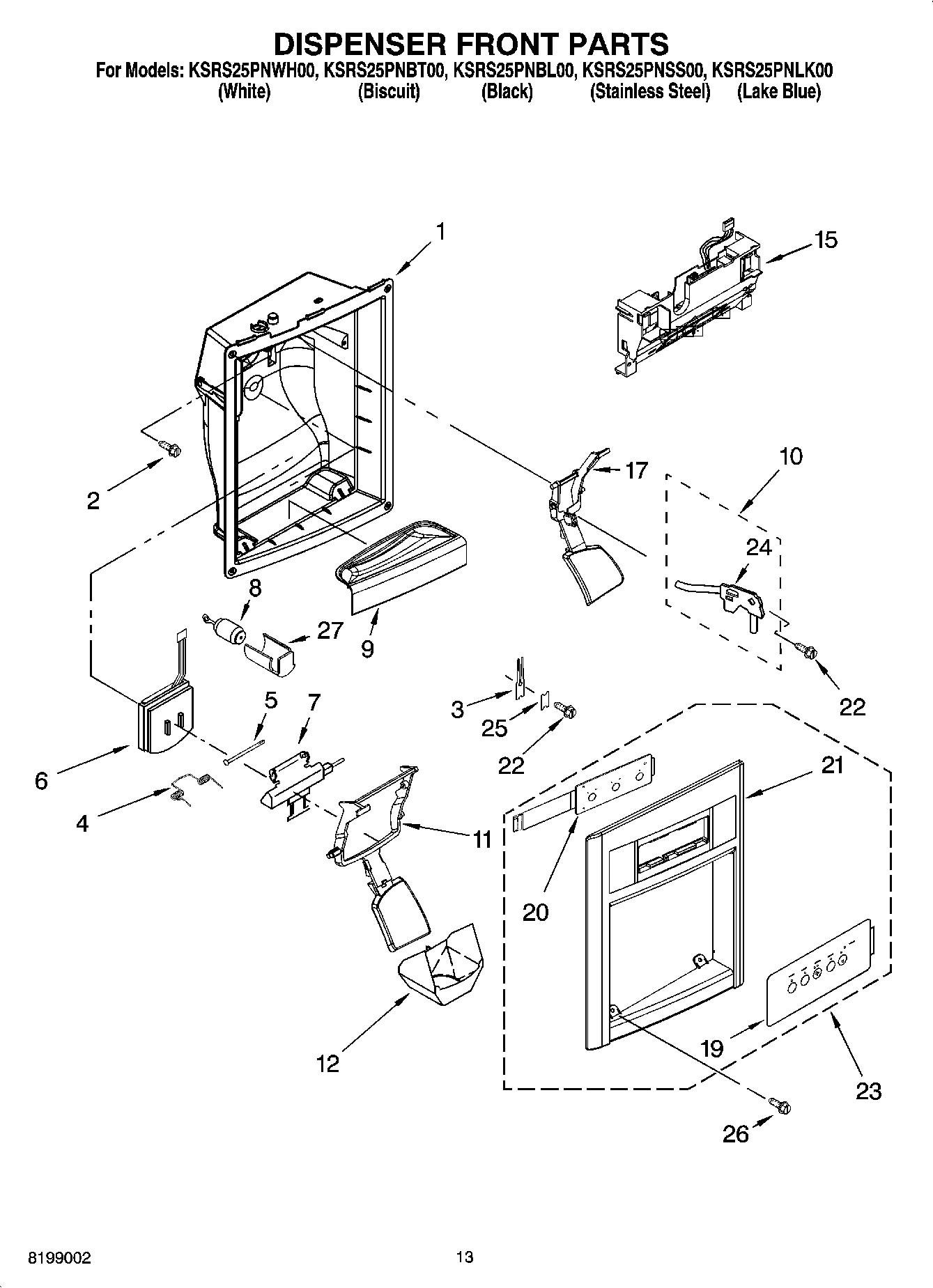

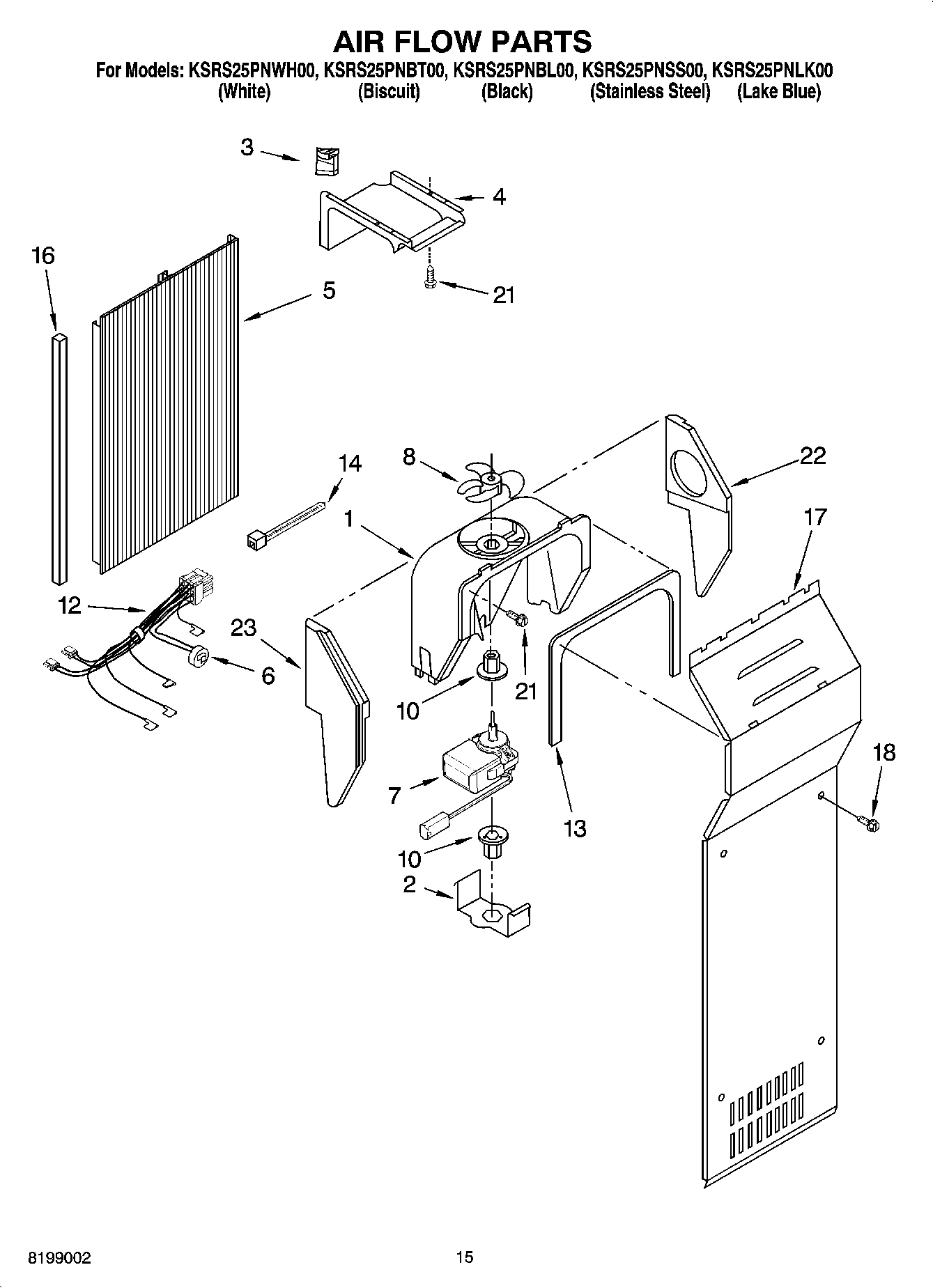

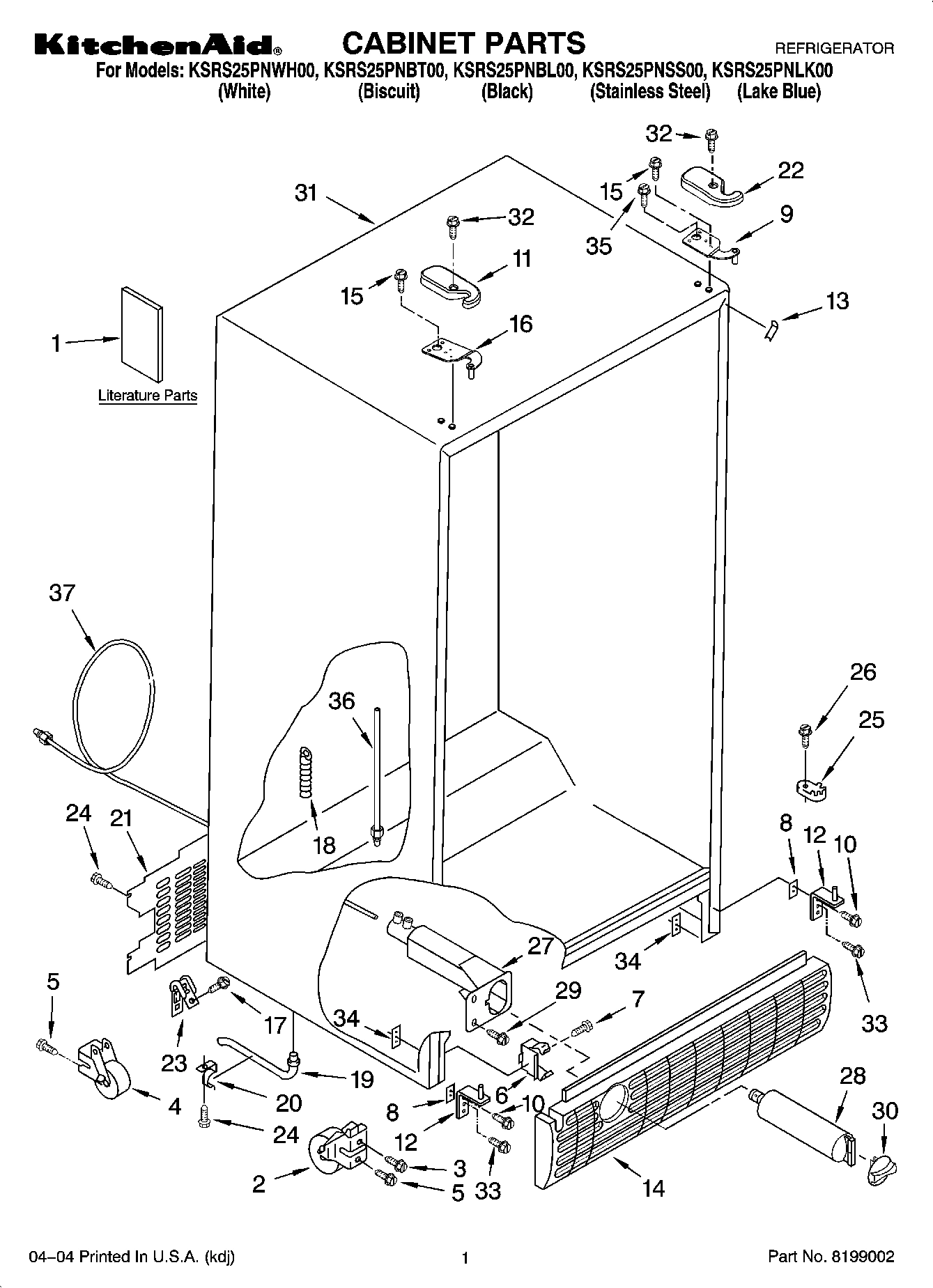

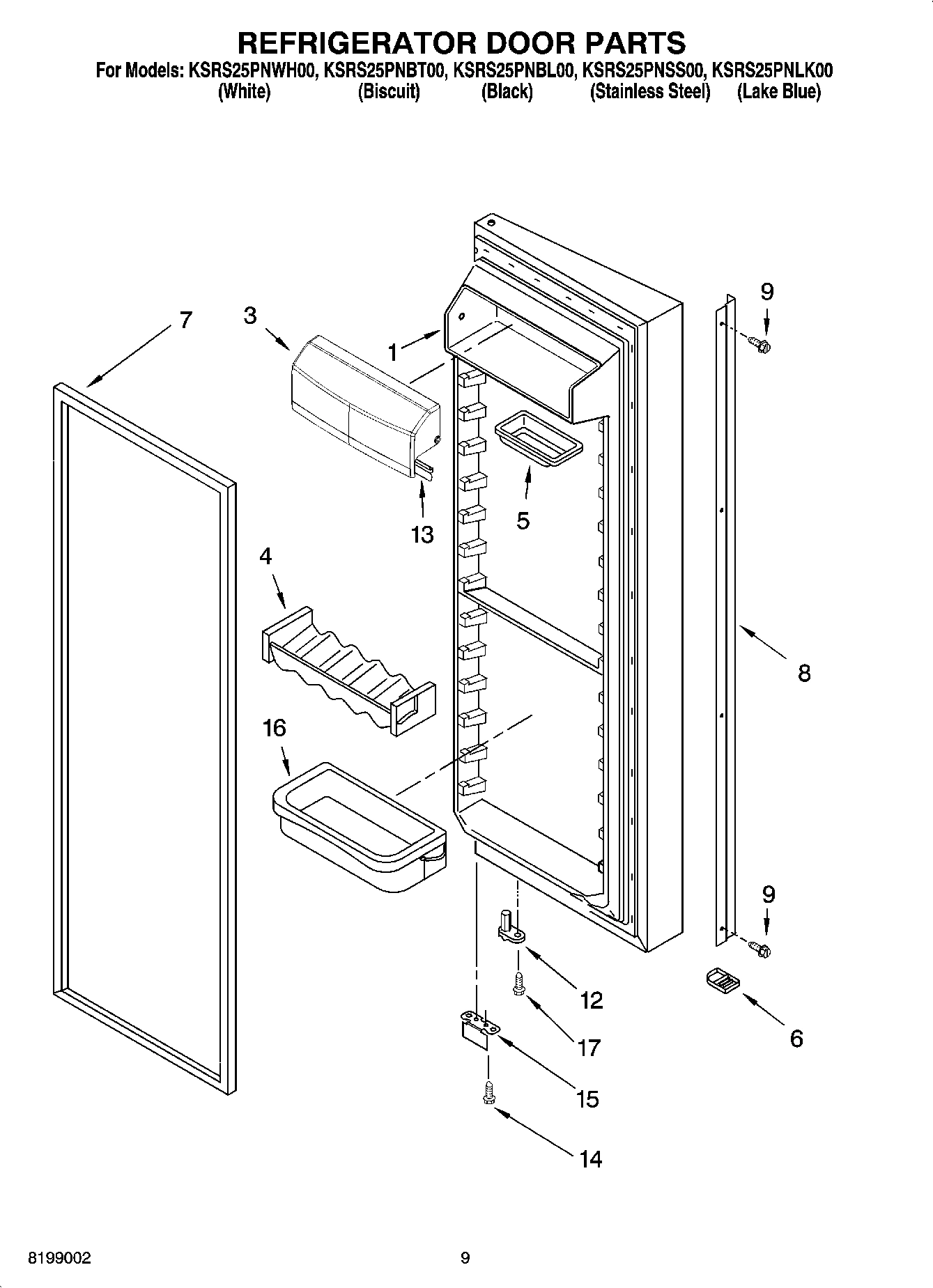

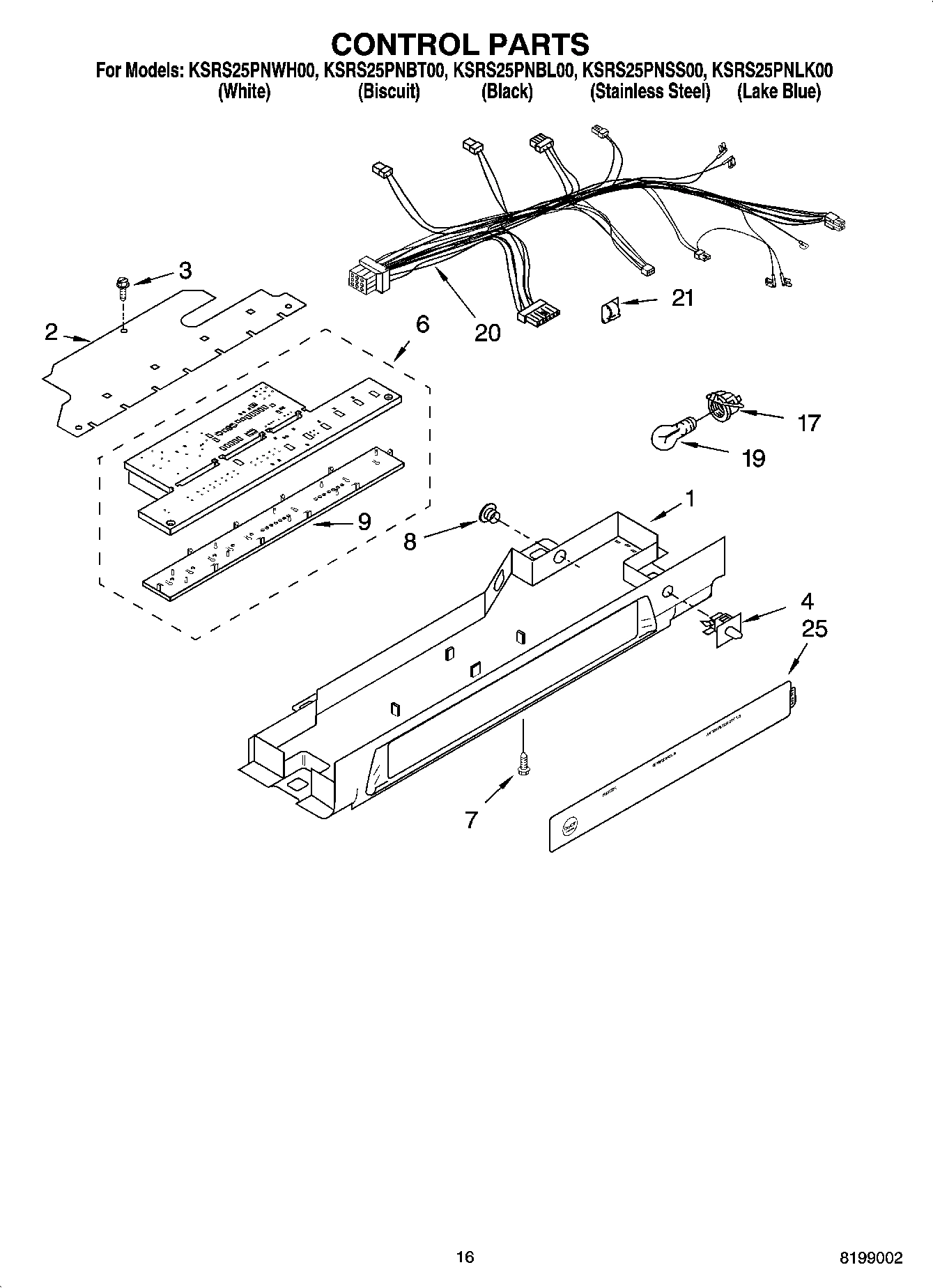

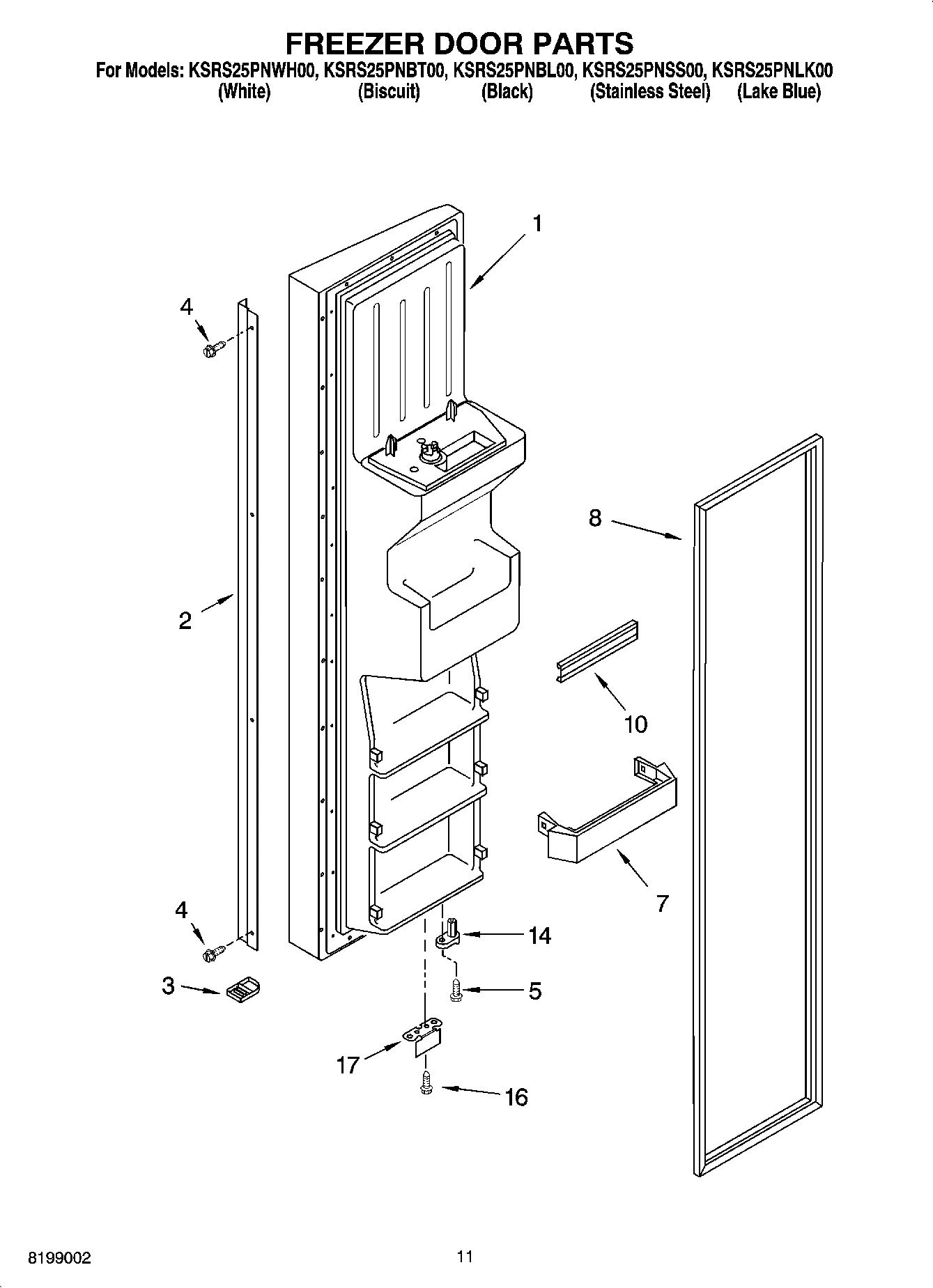

Model Whirlpool KSRS25PNBL00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cleaner (Stainless Steel) WPL 2261590 Contact Us For Availability

Ice Container Assembly WPL 2301343 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL ARI102481A WPL ARI102481A Contact Us For Availability

WPL ARI102482A WPL ARI102482A Contact Us For Availability

WPL ARI102483A WPL ARI102483A Contact Us For Availability

WPL ARI102484A WPL ARI102484A Contact Us For Availability

WPL ARI102485A WPL ARI102485A Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $138.23

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

Control Box WPL 2212005 Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2301201B Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2301201LK Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2301201SB Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2301201T Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2301201W Contact Us For Availability

1

Refrigerator Door (Includes 7) (Black) WPL 2207183B Contact Us For Availability

1

Refrigerator Door (Includes 7) (Lake Blue) WPL 2207183LK Contact Us For Availability

1

Refrigerator Door (Includes 7) (Stainless Ste WPL 2207183S Contact Us For Availability

1

Refrigerator Door (Includes 7) (Biscuit) WPL 2207183T Contact Us For Availability

1

Refrigerator Door (Includes 7) (White) WPL 2207183W Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI102472A Contact Us For Availability

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.10

2

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $4.52

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Cover WPL 2216879 Contact Us For Availability

2

Crusher Bin WPL 2255580 Contact Us For Availability

2

Escutcheon, Meat Pan Control WPL 2255612 Contact Us For Availability

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2198574 Whirlpool Refrigerator Ice Auger Backorder WPL WP2198574 $79.37

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $3.33

3

Endcap, Bottom (Black) WPL 2207110B Contact Us For Availability

3

Endcap, Bottom (European Silver) WPL 2207110ES Contact Us For Availability

3

Endcap, Bottom (Biscuit) WPL 2207110T Contact Us For Availability

3

Endcap, Bottom (White) WPL 2207110W Contact Us For Availability

3

Door, Compartment (Includes 13) WPL 2301486 Contact Us For Availability

3

Slide Meat Pan Control WPL 2301339 Contact Us For Availability

3

Air Scoop WPL 2198595 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Blade, Stirring WPL 2257021 Contact Us For Availability

4

Beverage Holder WPL 2193409 Contact Us For Availability

4

Louver WPL 2257741 Contact Us For Availability

4

Air Duct, Upper WPL 2212377 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $171.59

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Butter, Dish WPL 2165792 Contact Us For Availability

5

Bracket, Dual Crisper Lights WPL 2256035 Contact Us For Availability

5

Air Duct Freezer WPL 2198580 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

Control Board Asm (Includes 25) WPL 2252197 Contact Us For Availability

6

Endcap, Bottom (Black) WPL 2207111B Contact Us For Availability

6

Endcap, Bottom (European Silver) WPL 2207111ES Contact Us For Availability

6

Endcap, Bottom (Biscuit) WPL 2207111T Contact Us For Availability

6

Endcap, Bottom (White) WPL 2207111W Contact Us For Availability

7

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

7

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $142.79

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

7

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.92

7

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

7

TUBE, SUCTION WPL 2205765 Contact Us For Availability

7

Shelf Bin (4) WPL 2171070 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $148.70

8

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $52.54

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

Glass, Cover WPL 2255144 Contact Us For Availability

8

Handle (Black) WPL 2220238B Contact Us For Availability

8

Handle (European Silver) WPL 2220238ES Contact Us For Availability

8

Handle (Biscuit) WPL 2220238T Contact Us For Availability

8

Handle (White) WPL 2220238W Contact Us For Availability

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

9

WP2207109B Whirlpool Refrigerator Grille Backorder WPL WP2207109B $42.88

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Insert, Control Board (Not Available Order6) WPL ARI102478A Contact Us For Availability

9

Screw (4) WPL 3400898 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2206273 Contact Us For Availability

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $30.65

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $73.70

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

Block, Blade WPL 2198602 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

Harness, Fan Evaporator (Includes 6) WPL 2187825 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $48.35

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

Slide, Door Control WPL 2301235 Contact Us For Availability

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

Grille (Biscuit) WPL 2198468T Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $5.38

Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.19

Crisper Pan (Includes 13, 14 18, 19 & 21) WPL 2301481 Contact Us For Availability

Shelf Bin (4) WPL 2205821 Contact Us For Availability

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

Meat Pan (Includes 13, 14, 19 & 22) WPL 2301482 Contact Us For Availability

Cover, Evaporator WPL 2206314 Contact Us For Availability

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

18

Window, Crisper WPL 2174076 Contact Us For Availability

19

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

19

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

19

WP2315403 Whirlpool Refrigerator Bin Button In Stock WPL WP2315403 $13.78

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $145.60

20

Harness, Control Box WPL 2216115 Contact Us For Availability

20

Latch, Bin WPL 2212371 Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $4.58

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $17.39

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2252085W Contact Us For Availability

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $42.77

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $108.99

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Holder WPL 2212369 Contact Us For Availability

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $84.33

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $12.79

Overlay, Control Box WPL 2255617 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

28

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.97

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.97

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.33

Window, Snack Pan WPL 2301006 Contact Us For Availability

31

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

31

Bracket, Motor WPL 2198655 Contact Us For Availability

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP2252129 Whirlpool Refrigerator Motor Backorder WPL WP2252129 $151.87

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $55.72

Cover WPL 2198626 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

34

Screw WPL 8281162 Contact Us For Availability

34

Light Lens WPL 2209769 Contact Us For Availability

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $55.08

37

W10683539 Whirlpool Refrigerator Dispensing H Backorder WPL W10683539 $13.56

37

Screw WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $119.51
