Model Whirlpool KSRS25IKBU01 REFRIGERATOR – Common Parts & Diagrams
03 - REFRIGERATOR SHELF
04 - FREEZER LINER

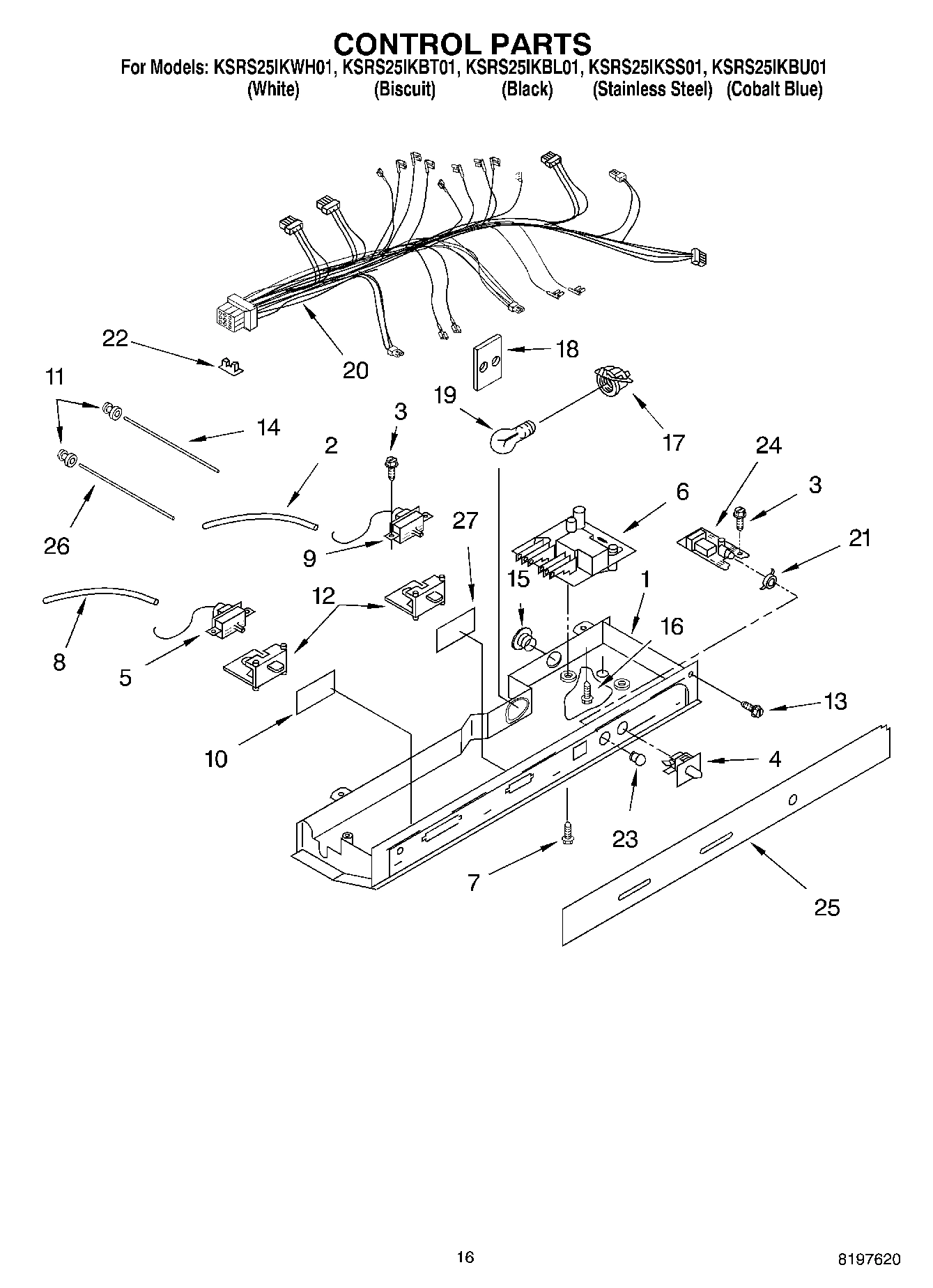

10 - CONTROL
12 - ICE MAKER, OPTIONAL

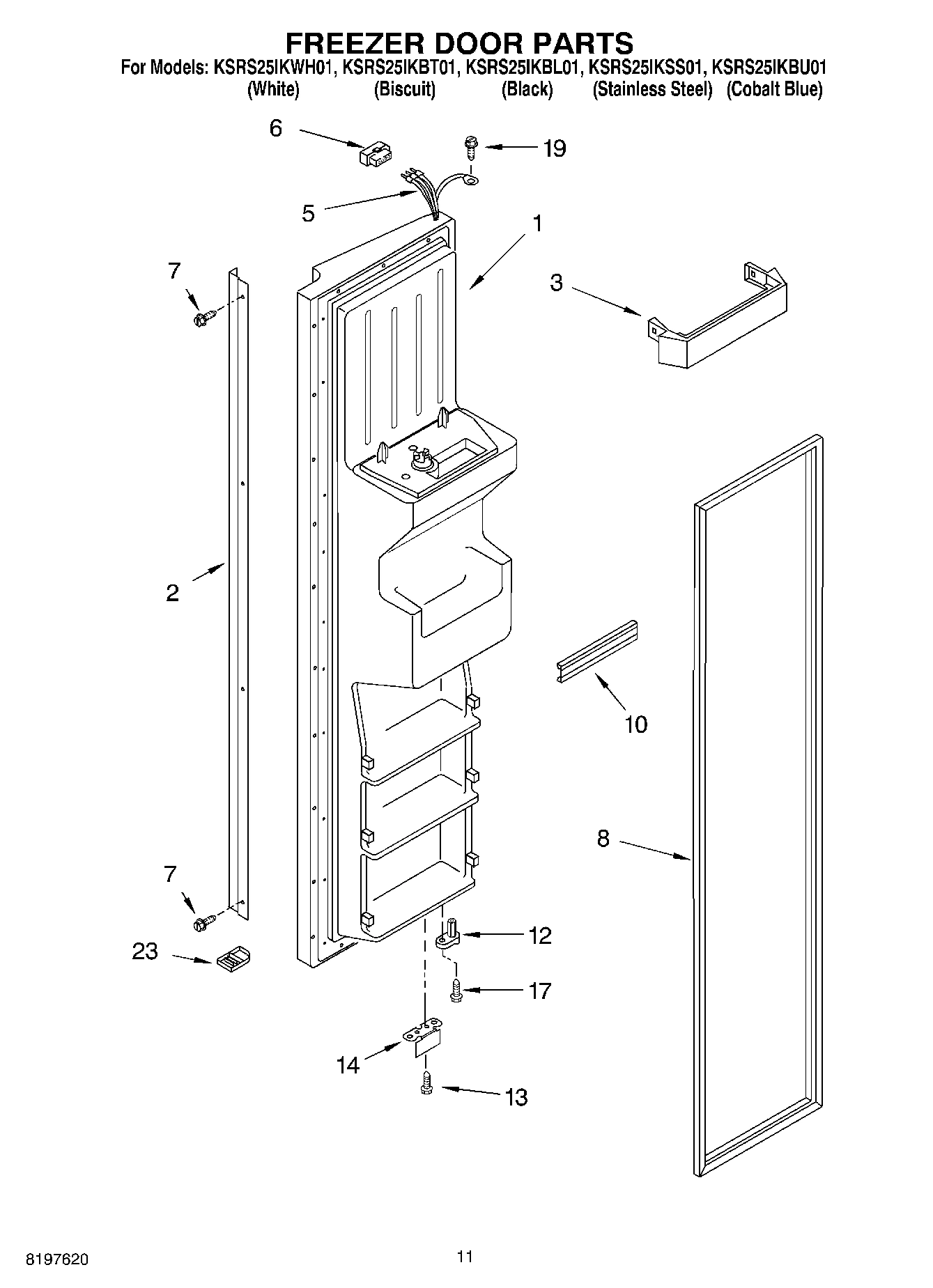

07 - FREEZER DOOR
02 - REFRIGERATOR LINER

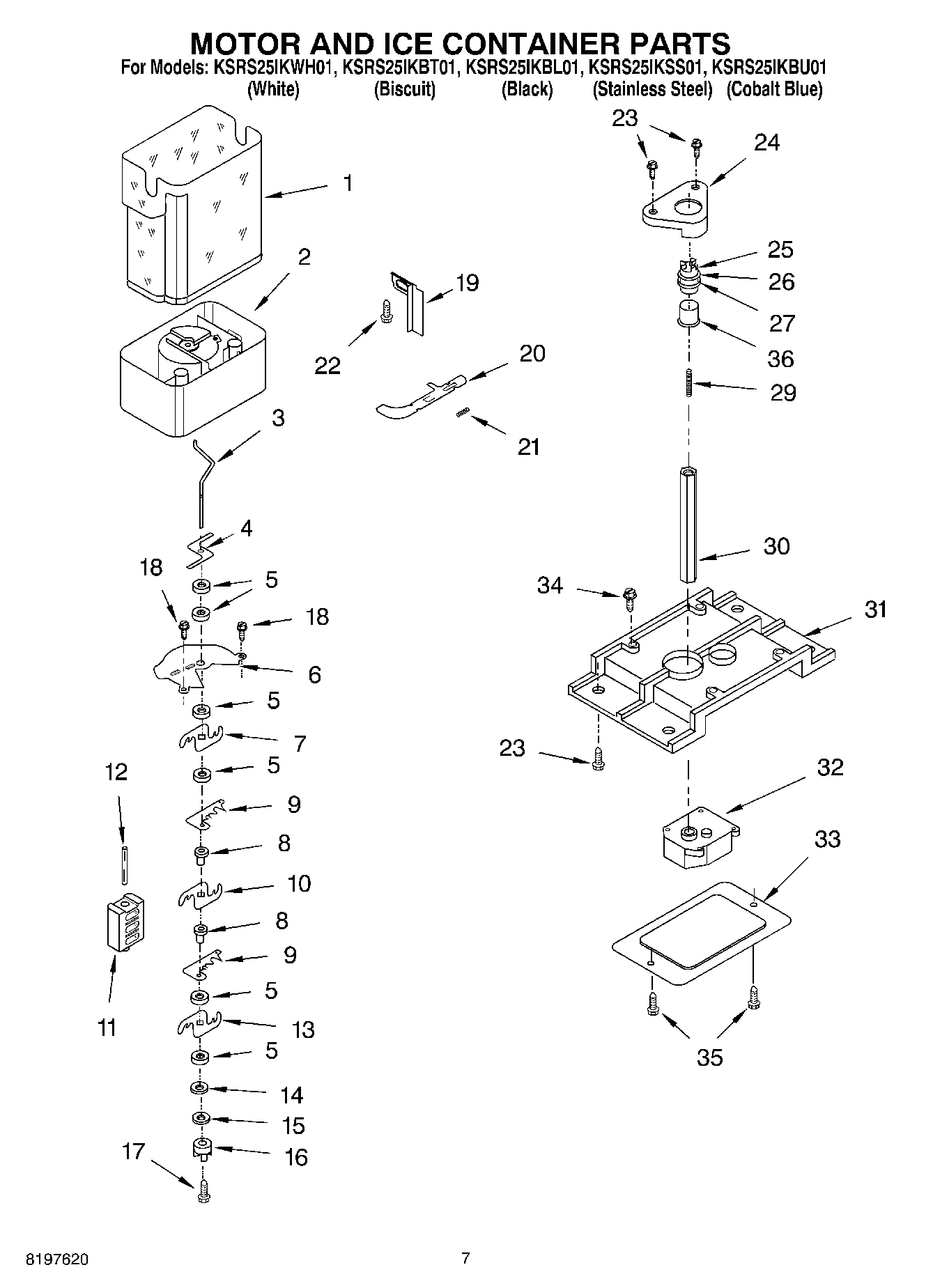

05 - MOTOR AND ICE CONTAINER

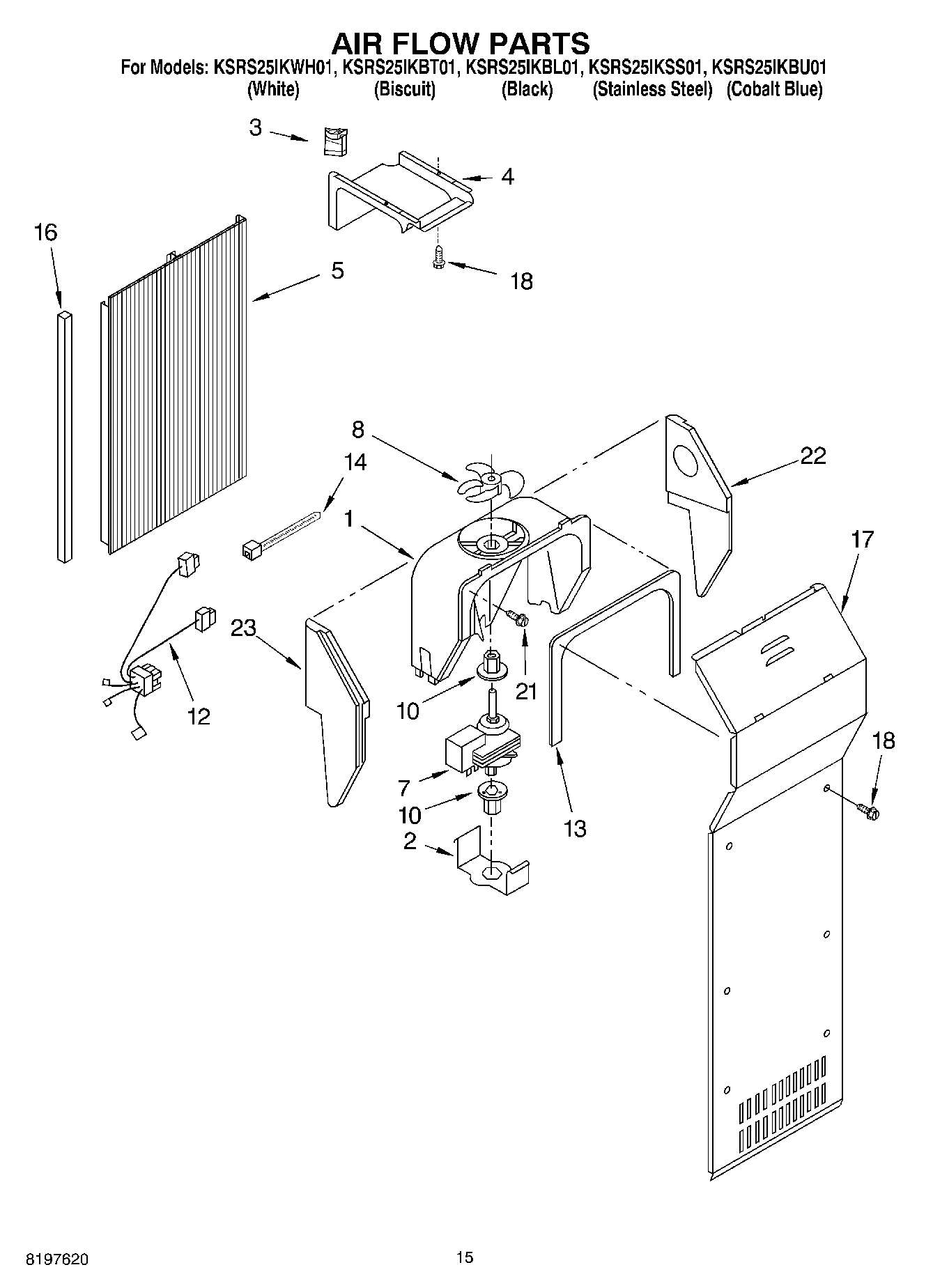

09 - AIR FLOW

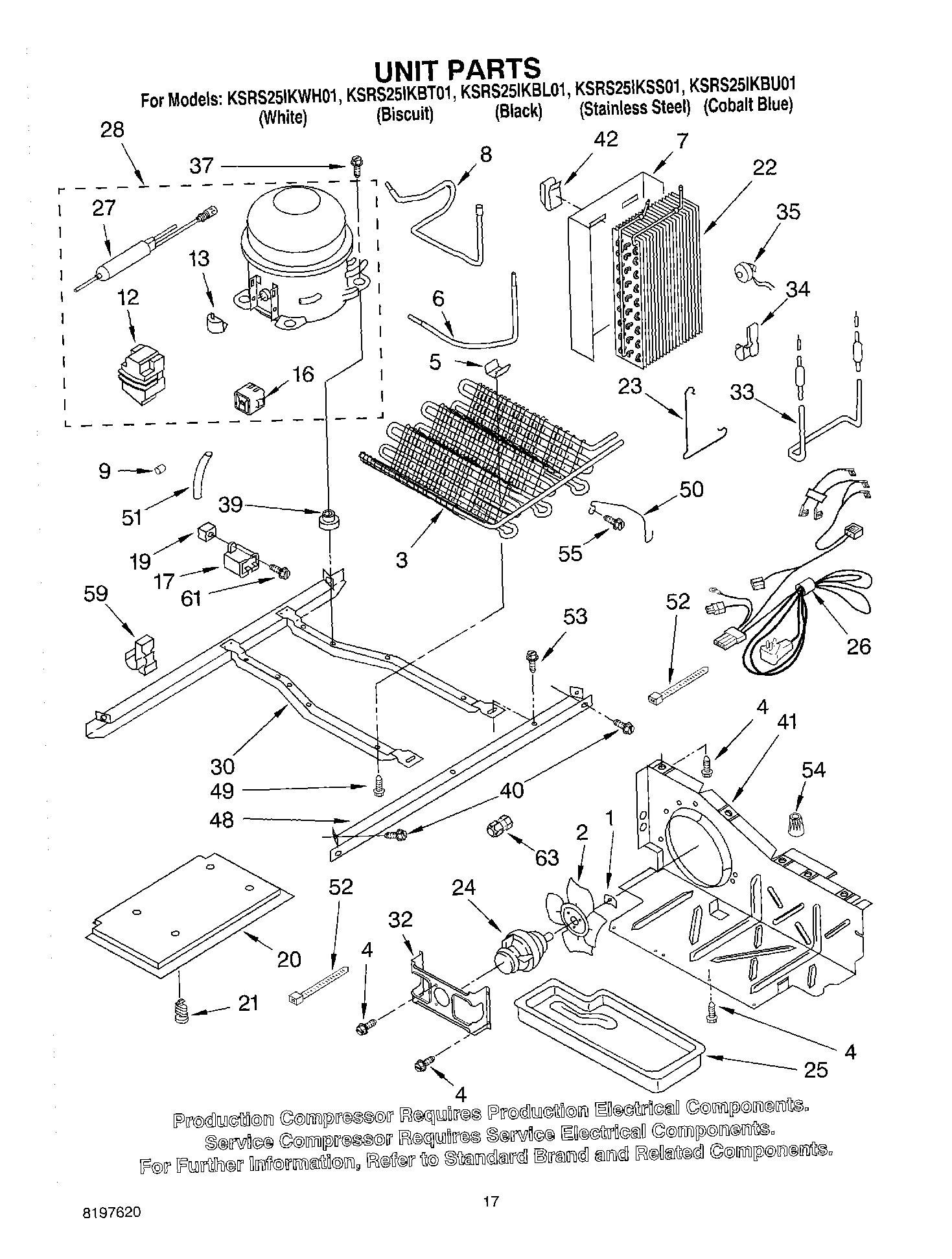

11 - UNIT

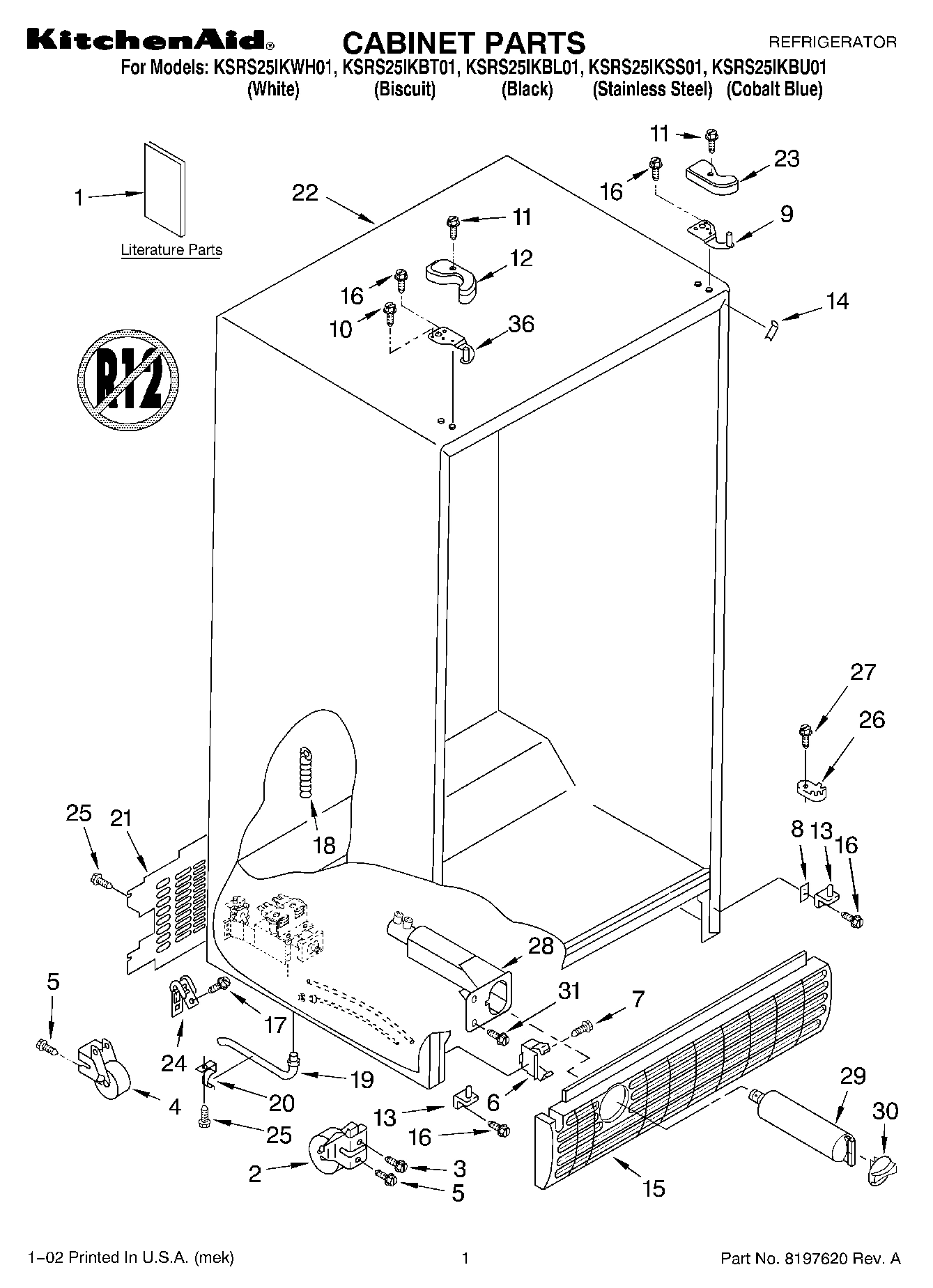

01 - CABINET, LITERATURE

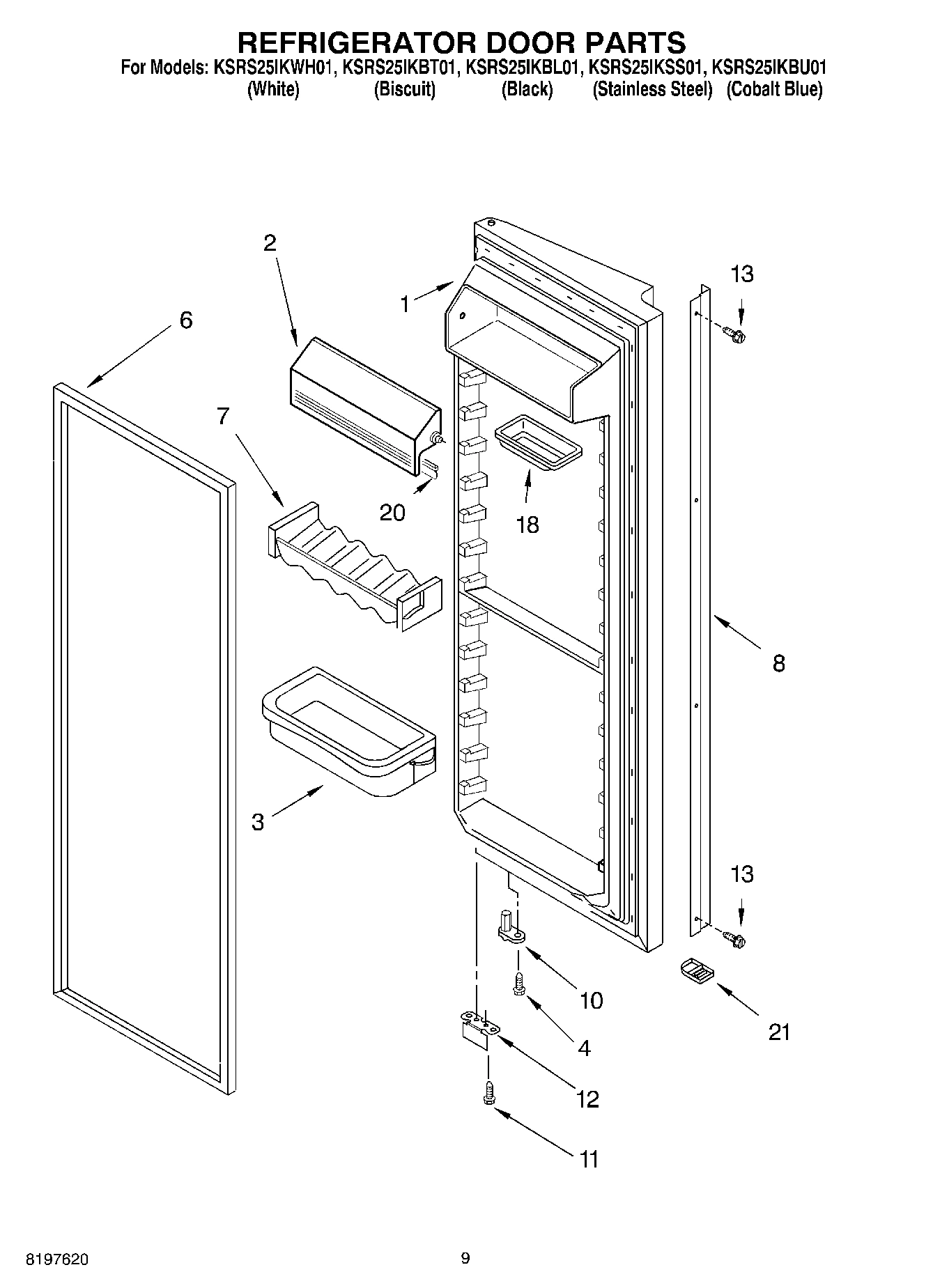

06 - REFRIGERATOR DOOR

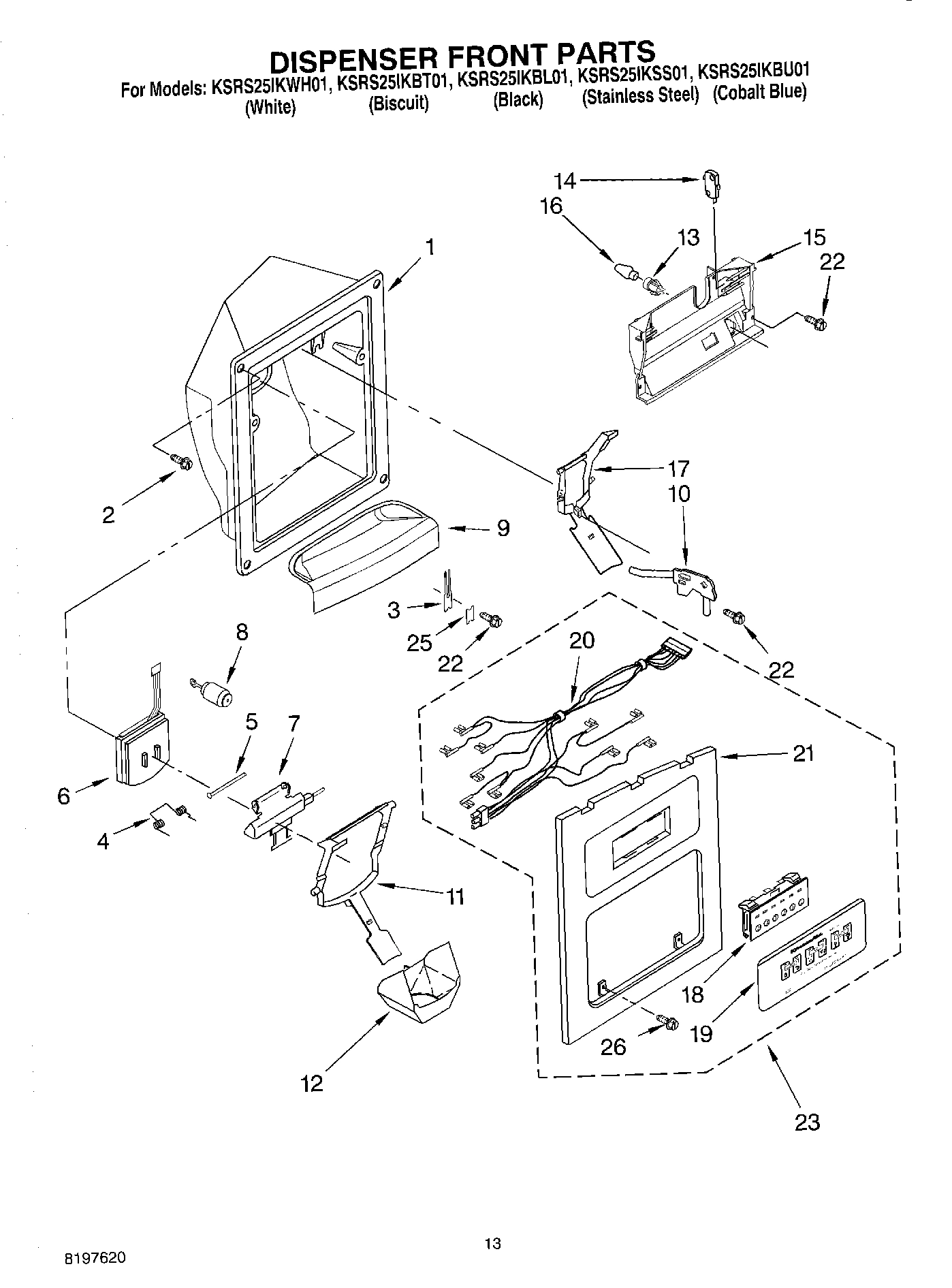

08 - DISPENSER FRONT
Common parts from model Whirlpool KSRS25IKBU01 REFRIGERATOR
Icemaker WPL LIT787316 Contact Us For Availability
Refrigerator WPL LIT787808 Contact Us For Availability
1
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2216935 Contact Us For Availability
1
LITERATURE PARTS (Owner`s Manual) WPL LIT2220276 Contact Us For Availability
1
LITERATURE PARTS (Energy Guide) WPL LIT2220322 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Refrigerator Door (Includes Item No.6) (Black WPL 2207183B Contact Us For Availability
1
Refrigerator Door (Includes Item No.6) (Cobal WPL 2207183BU Contact Us For Availability
1
Refrigerator Door (Includes Item No.6) (Stain WPL 2207183S Contact Us For Availability
1
Refrigerator Door (Includes Item No.6) (Biscu WPL 2207183T Contact Us For Availability
1
Refrigerator Door (Includes Item No.6) (White WPL 2207183W Contact Us For Availability
1
Housing, Dispenser (Not Serviced) WPL ARI101999A Contact Us For Availability
2
Fan, Blade WPL 2190685 Contact Us For Availability
2
Crusher Bin WPL 2212367 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Air Scoop WPL 2198595 Contact Us For Availability
3
Condenser Assembly WPL 2204484 Contact Us For Availability
3
Shelf Bin (4) WPL 2205821 Contact Us For Availability
4
Air Duct, Upper WPL 2212377 Contact Us For Availability
5
Dispenser Harness WPL 2206178 Contact Us For Availability
5
Air Duct Freezer WPL 2198580 Contact Us For Availability
6
Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability
6
Cover, Crusher WPL 2198591 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149294 Contact Us For Availability
7
Beverage Holder WPL 2193409 Contact Us For Availability
7
Door Mechanism Assembly WPL 2206423 Contact Us For Availability
8
Handle (Black) WPL 2207112B Contact Us For Availability
8
Handle (Cobalt Blue) WPL 2207112BU Contact Us For Availability
8
Handle (Stainless Steel) WPL 2207112S Contact Us For Availability
8
Handle (Biscuit) WPL 2207112T Contact Us For Availability
8
Handle (White) WPL 2207112W Contact Us For Availability
8
Mechanism Delay WPL 2205686 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Blade, Fixed WPL 2198601 Contact Us For Availability
9
Grille, Overflow (Cobalt Blue) WPL 2207109BU Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2207109T Contact Us For Availability
9
Grille, Overflow (White) WPL 2207109W Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability
11
Lever, Ice Dispenser (Cobalt Blue (Cobalt Blu WPL 2207151 Contact Us For Availability
12
Hinge Cover (Cobalt Blue) WPL 2203407BU Contact Us For Availability
12
Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability
12
Bracket, Door Stop (Black) WPL 2220082B Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Screw (4) (Black) WPL 3400899 Contact Us For Availability
13
Screw (4) (Chrome) WPL 3400897 Contact Us For Availability
13
Screw (4) (White) WPL 3400898 Contact Us For Availability
13
Screw (4) (Biscuit) WPL 8281135 Contact Us For Availability
13
Screw (4) (Cobalt Blue) WPL 8281178 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
14
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
14
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
14
Filler, Wrapper (Cobalt Blue) WPL 2205991 Contact Us For Availability
15
Grille (Cobalt Blue) WPL 2186881BU Contact Us For Availability
15
Grille (Biscuit) WPL 2186881T Contact Us For Availability
17
Cover, Evaporator WPL 2206314 Contact Us For Availability
17
Lever, Water Dispenser (Cobalt Blue (Cobalt B WPL 2207149 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Butter, Dish WPL 2165792 Contact Us For Availability
18
Switch Assembly (Not Available, Order No.23) WPL ARI102000A Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Overlay, Front Cover (Not Available, Order No WPL ARI102001A Contact Us For Availability
20
Latch, Bin WPL 2212371 Contact Us For Availability
20
Unit Cover, Bottom WPL 2206281 Contact Us For Availability
20
Gasket WPL 2159124 Contact Us For Availability
21
Endcap (Black) WPL 2207111B Contact Us For Availability
21
Endcap (Satin Chrome) WPL 2207111CH Contact Us For Availability
21
Endcap (Biscuit) WPL 2207111T Contact Us For Availability
21
Endcap (White) WPL 2207111W Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI102002A Contact Us For Availability
22
Cabinet (Not A Serviceable Part) WPL ARI101996A Contact Us For Availability
23
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
23
Clip WPL 2161324 Contact Us For Availability
23
Hinge Cover (Cobalt Blue) WPL 2203408BU Contact Us For Availability
23
Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2207153B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2207153BU Contact Us For Availability
23
WPL 2207153T WPL 2207153T Contact Us For Availability
23
WPL 2207153W WPL 2207153W Contact Us For Availability
24
Holder WPL 2212369 Contact Us For Availability
26
Harness, Unit WPL 2187398 Contact Us For Availability
28
Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability
30
Cap, Water Filter (Cobalt Blue) WPL 2186884BU Contact Us For Availability
31
Bracket, Motor WPL 2198655 Contact Us For Availability
32
Dispenser, Motor WPL 2198594 Contact Us For Availability
33
Cover WPL 2198626 Contact Us For Availability
34
Screw WPL 8281162 Contact Us For Availability
34
Clip, Heater WPL 2161330 Contact Us For Availability
37
Screw WPL 489473 Contact Us For Availability
40
WPL 80051 WPL 80051 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
Torx Key WPL 1117510 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
50
Guard, Fan WPL 2186495 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2208280 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
