Model Whirlpool KSRS25IHBT02 REFRIGERATOR – Common Parts & Diagrams

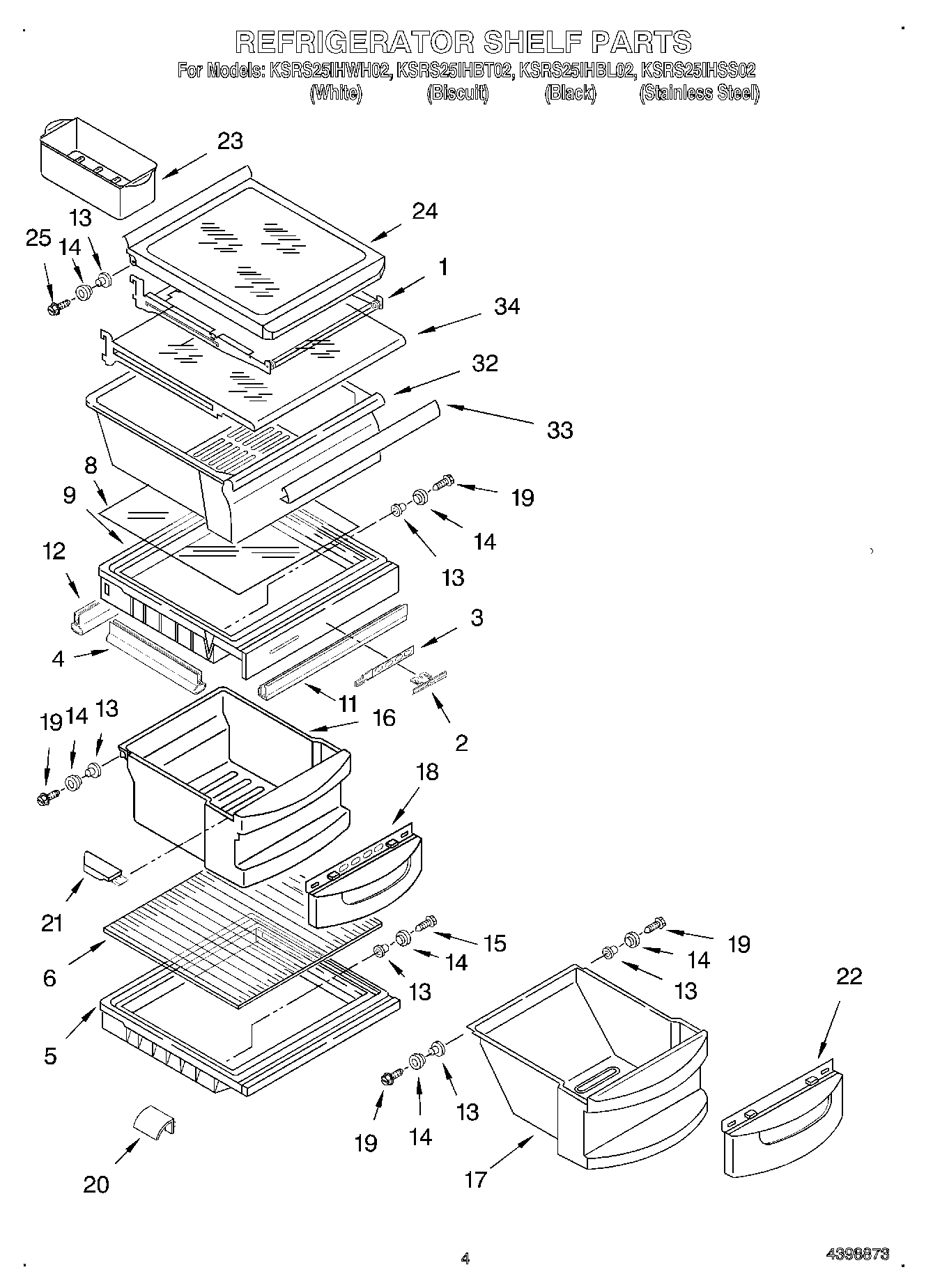

03 - REFRIGERATOR SHELF
04 - FREEZER LINER
12 - ICEMAKER, OPTIONAL
07 - FREEZER DOOR
02 - REFRIGERATOR LINER
05 - MOTOR AND ICE CONTAINER
06 - REFRIGERATOR DOOR
09 - AIR FLOW
11 - UNIT
01 - CABINET, LITERATURE
08 - DISPENSER FRONT
10 - CONTROL
Common parts from model Whirlpool KSRS25IHBT02 REFRIGERATOR
Icemaker WPL LIT787316 Contact Us For Availability
Refrigerator WPL LIT787808 Contact Us For Availability
1
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2198683 Contact Us For Availability
1
LITERATURE PARTS (Owner`s Manual) WPL LIT2206106 Contact Us For Availability
1
LITERATURE PARTS (Energy Guide) WPL LIT2211899 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI101898A Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
Crusher Bin WPL 2212367 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Air Scoop WPL 2198595 Contact Us For Availability
3
Condenser Assembly WPL 2204242B Contact Us For Availability
4
Air Duct, Upper WPL 2198581 Contact Us For Availability
5
Dispenser Harness WPL 2206178 Contact Us For Availability
5
Air Duct Freezer WPL 2198580 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149294 Contact Us For Availability
7
Door Mechanism Assembly WPL 2206423 Contact Us For Availability
8
Delay Mechanism WPL 2205686 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2207109T Contact Us For Availability
9
Grille, Overflow (White) WPL 2207109W Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Bracket, Door Stop WPL 2200082 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Screw (4) WPL 3400898 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
14
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
14
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
15
Grille (Biscuit) WPL 2186881T Contact Us For Availability
17
Cover, Evaporator WPL 2206314 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Tray, Butter WPL 2165792 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Overlay, Front Cover (Black) WPL 2207154B Contact Us For Availability
19
Overlay, Front Cover (Biscuit) WPL 2207154T Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2207154W Contact Us For Availability
20
Gasket WPL 2159124 Contact Us For Availability
20
Unit Cover, Bottom WPL 2206281 Contact Us For Availability
20
Harness, Control Box WPL 2206517 Contact Us For Availability
21
Endcap (Black) WPL 2207111B Contact Us For Availability
21
Endcap (Biscuit) WPL 2207111T Contact Us For Availability
21
Endcap (White) WPL 2207111W Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI101899A Contact Us For Availability
22
Cabinet (Not A Serviceable Part) WPL ARI101895A Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
23
Clip WPL 2161324 Contact Us For Availability
23
Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2207153B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2207153T Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2207153W Contact Us For Availability
24
Holder WPL 2212369 Contact Us For Availability
25
Escutcheon, Control Box WPL 2200099 Contact Us For Availability
26
Harness, Intermediate WPL 2217051 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
28
Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability
30
Retainer, Light Lens WPL 2200097 Contact Us For Availability
31
P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability
34
Clip, Heater WPL 2161330 Contact Us For Availability
37
Screw WPL 489473 Contact Us For Availability
40
WPL 80051 WPL 80051 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
Torx Key WPL 1117510 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 2186495 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2208280 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
