Model Whirlpool KSRS25FGBT00 REFRIGERATOR – Common Parts & Diagrams

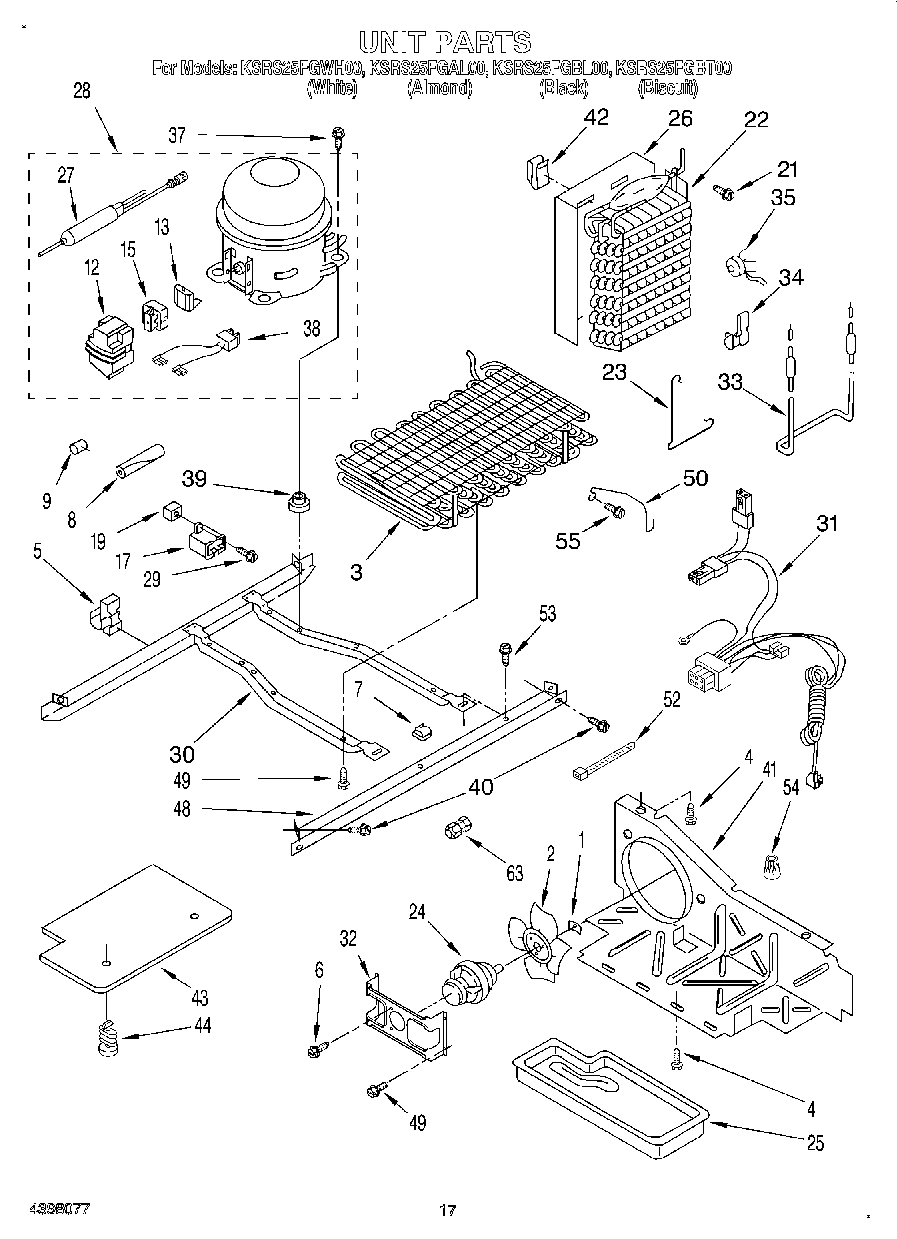

11 - UNIT

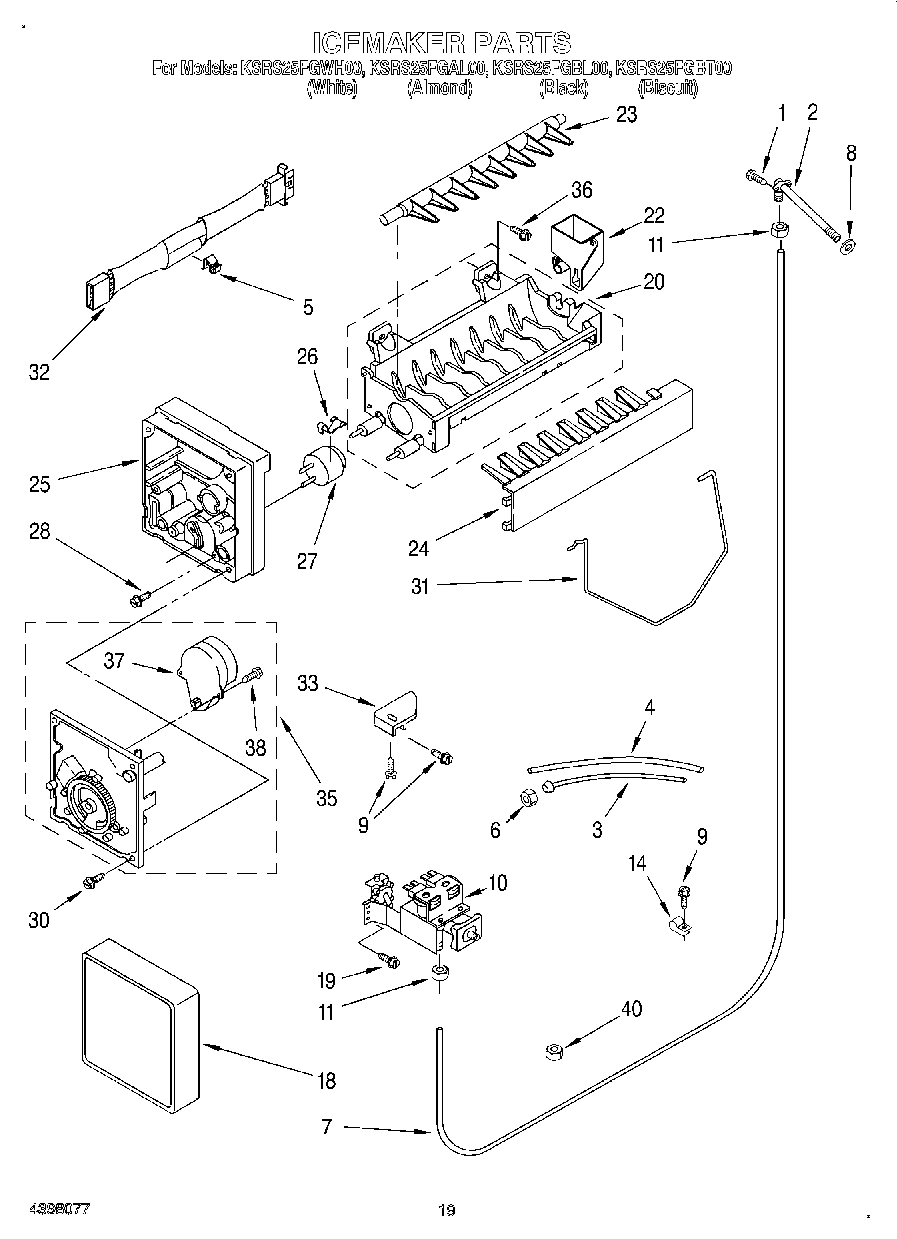

12 - ICEMAKER, LIT/OPTIONAL

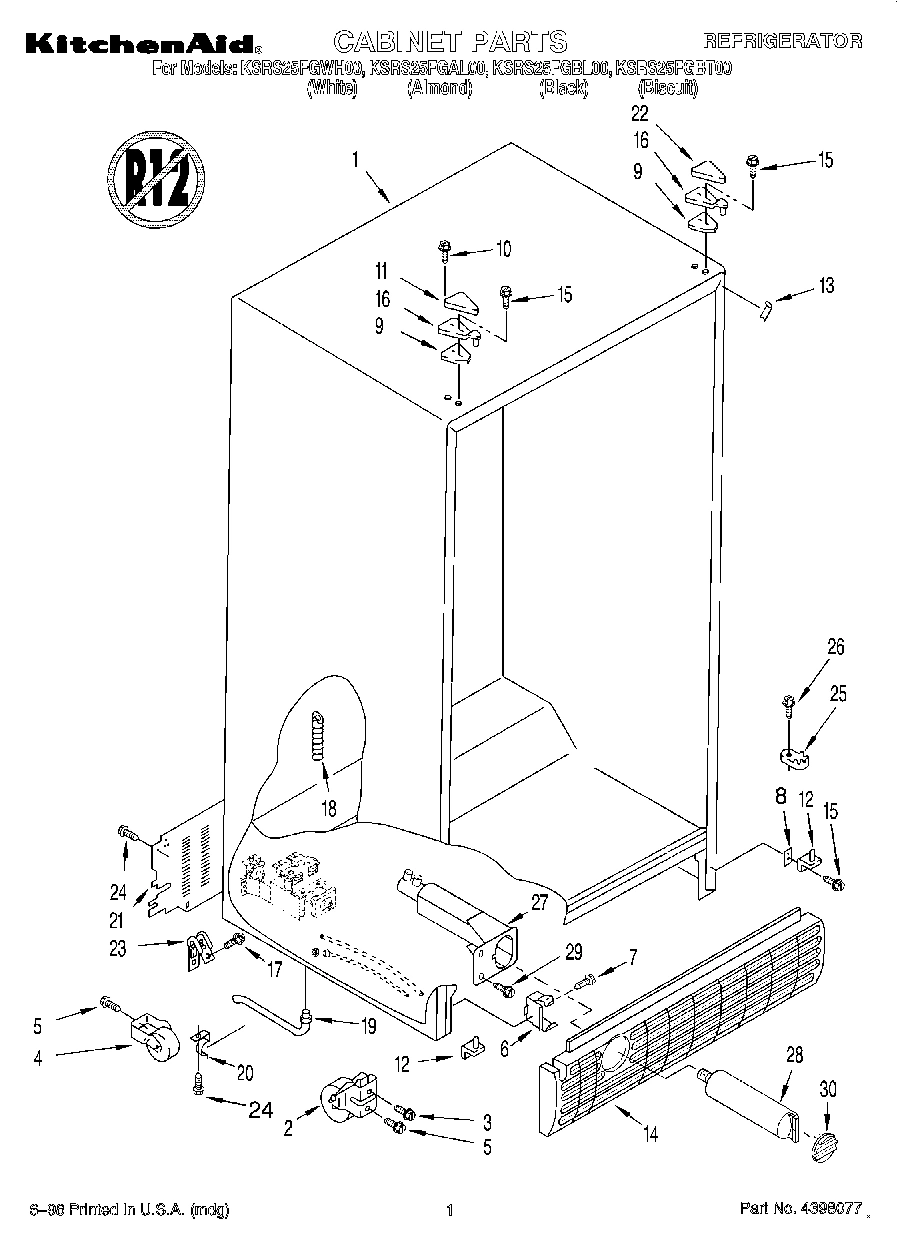

01 - CABINET

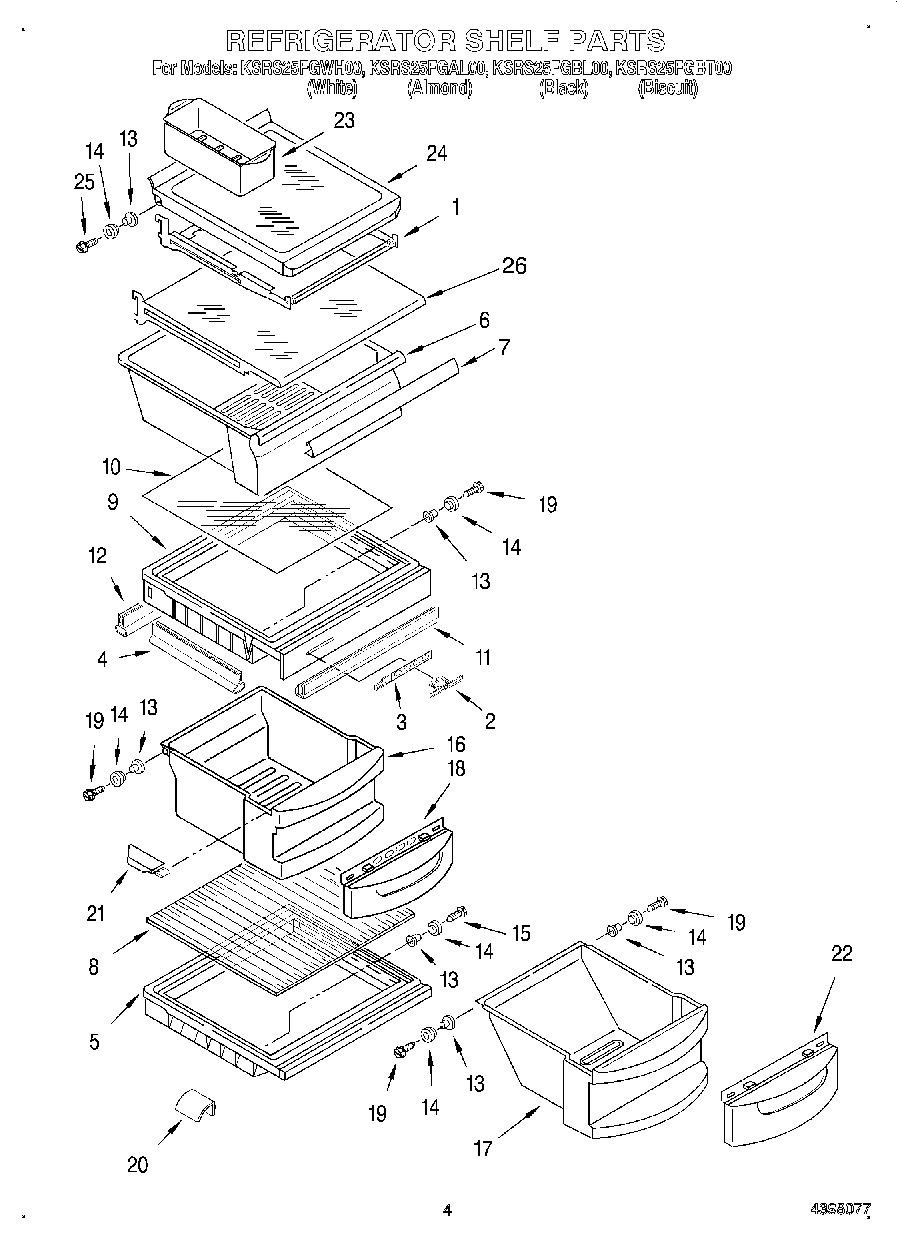

03 - REFRIGERATOR SHELF
08 - DISPENSER FRONT
09 - AIR FLOW

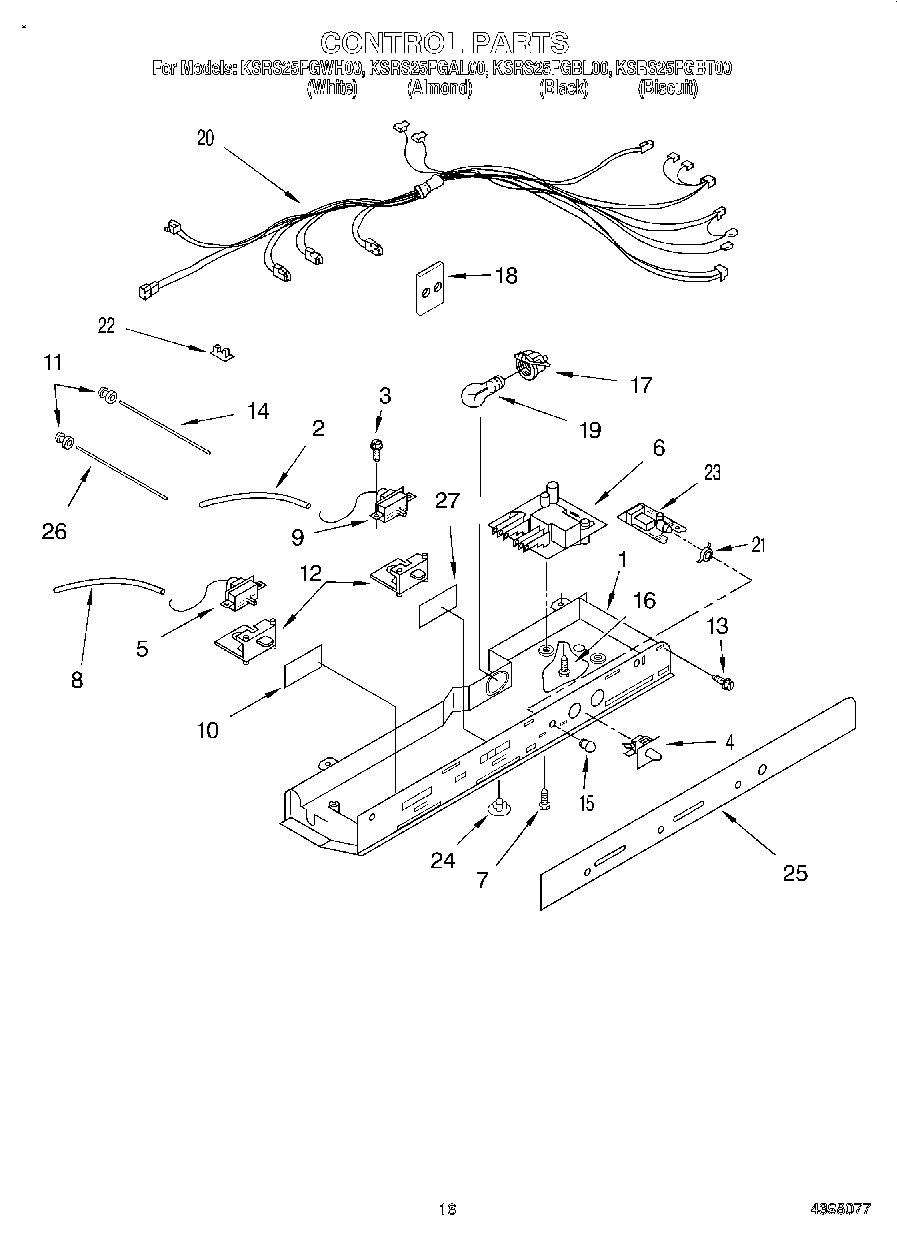

10 - CONTROL
06 - REFRIGERATOR DOOR

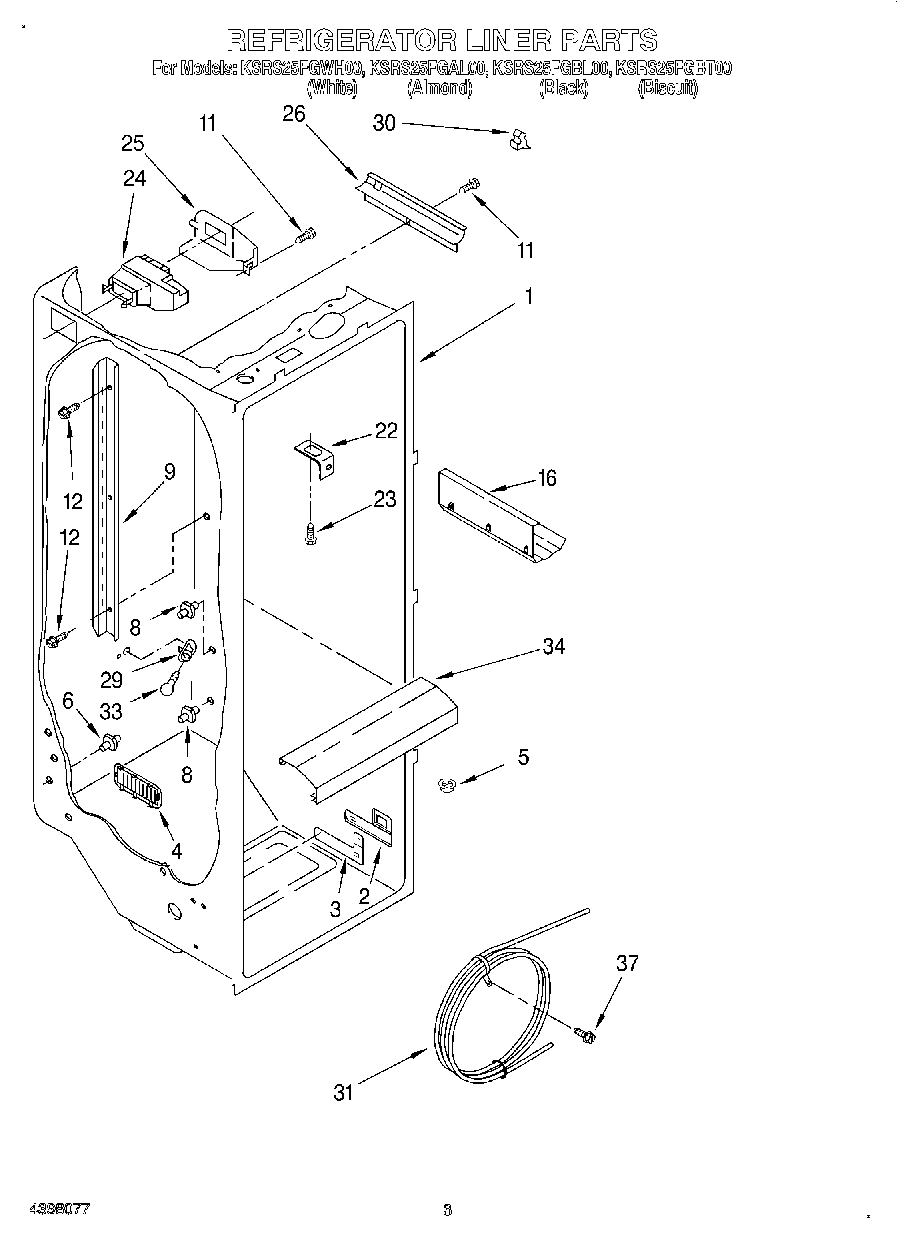

02 - REFRIGERATOR LINER
04 - FREEZER LINER

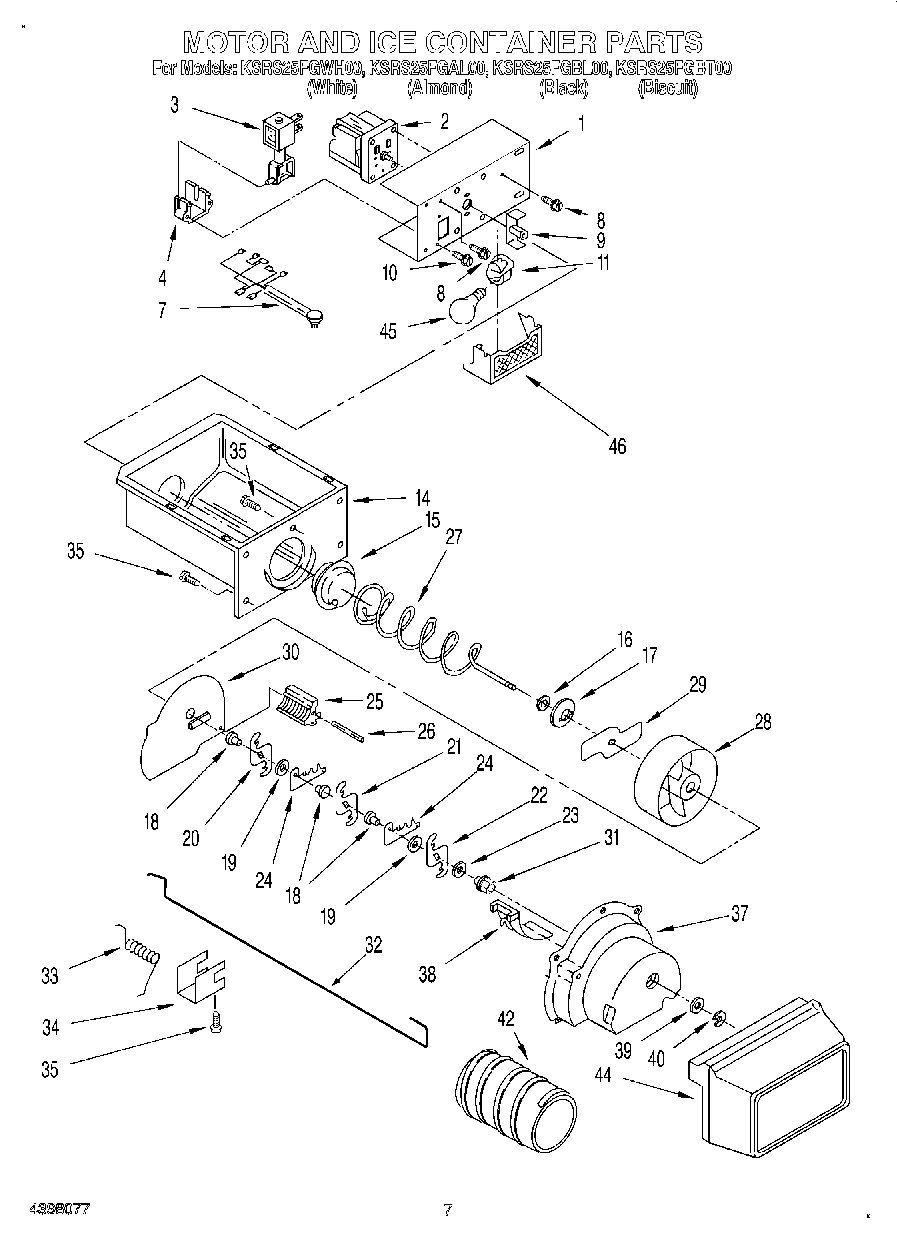

05 - MOTOR AND ICE CONTAINER

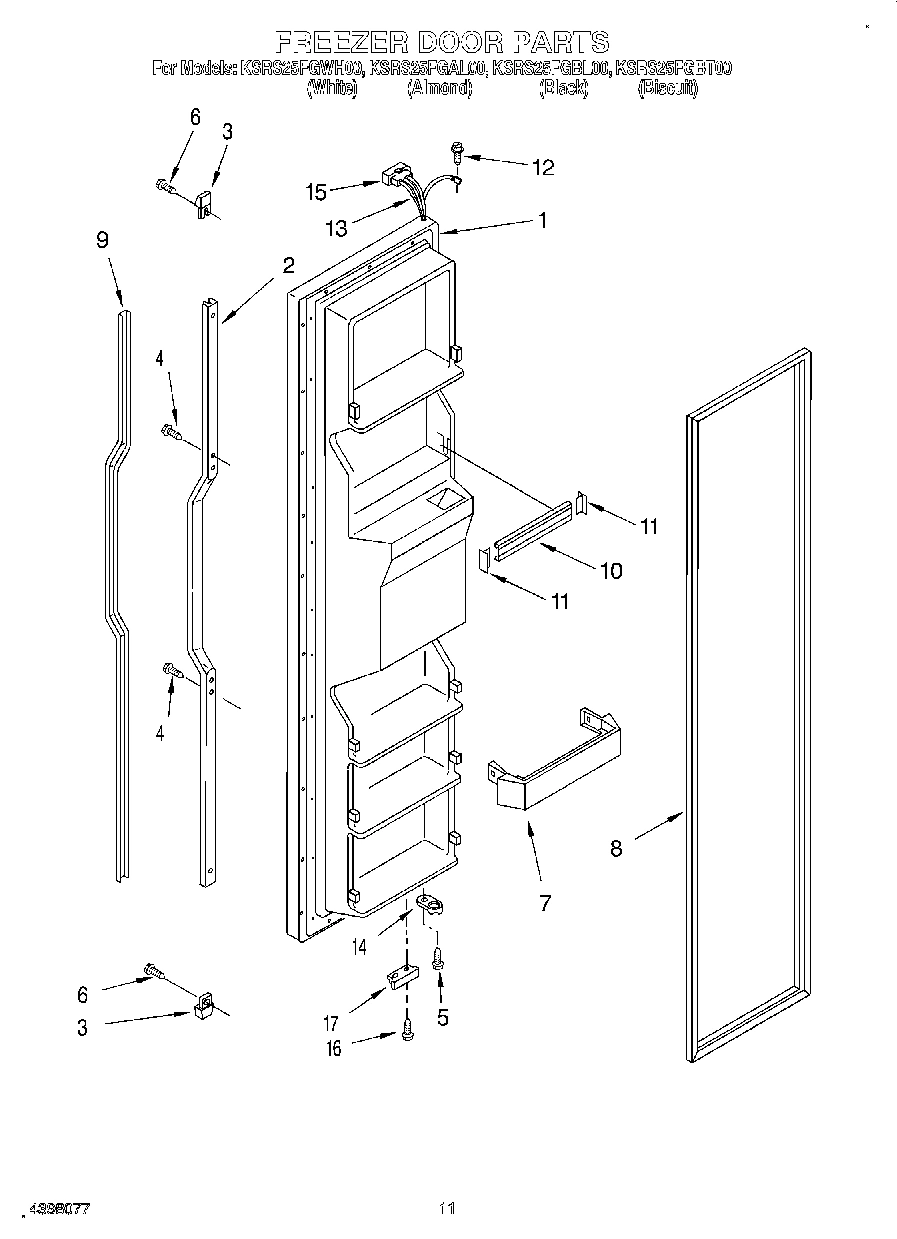

07 - FREEZER DOOR
Common parts from model Whirlpool KSRS25FGBT00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Black) WPL 2194233B Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2194233N Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Biscuit) WPL 2194233T Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2194233W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI101608A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI101609A Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2186519B Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2186519N Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2186519T Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2186519W Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Load Lock WPL 2195497 Contact Us For Availability
2
Retainer, Insert (Black) WPL 2194777B Contact Us For Availability
2
Retainer, Insert (Almond) WPL 2194777N Contact Us For Availability
2
Retainer, Insert (Biscuit) WPL 2194777T Contact Us For Availability
2
Retainer, Insert (White) WPL 2194777W Contact Us For Availability
2
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
End Cap (2) (Black) WPL 2194778B Contact Us For Availability
3
End Cap (2) (Almond) WPL 2194778N Contact Us For Availability
3
End Cap (2) (Biscuit) WPL 2194778T Contact Us For Availability
3
End Cap (2) (White) WPL 2194778W Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
Air Duct Freezer WPL 2196122 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Insert, Handle (White) WPL 2173825 Contact Us For Availability
9
Insert, Handle (Almond) WPL 2173828 Contact Us For Availability
9
Insert, Handle (Black) WPL 2173829 Contact Us For Availability
9
Insert, Handle (Biscuit) WPL 2186863T Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Gasket WPL 2159124 Contact Us For Availability
13
Wire Harness WPL 2180229 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Grille (Biscuit) WPL 2198468T Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
15
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Cover, Evaporator WPL 2196144 Contact Us For Availability
17
Bracket, Door Stop (Chrome) WPL 2195952 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
20
Control Box Harness WPL 2200109 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI101611A Contact Us For Availability
21
Retainer, Light Lens WPL 2200097 Contact Us For Availability
21
Basket, Shallow WPL 2181763 Contact Us For Availability
22
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Front, Basket WPL 2171767 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2186511B Contact Us For Availability
23
WPL 2186511N WPL 2186511N Contact Us For Availability
23
WPL 2186511T WPL 2186511T Contact Us For Availability
23
WPL 2186511W WPL 2186511W Contact Us For Availability
23
P.C. Board Filter Indicator WPL 2200098 Contact Us For Availability
23
Basket, Square WPL 2181765 Contact Us For Availability
24
Hole PLug WPL 2200379 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Escutcheon, Control Box WPL 2200099 Contact Us For Availability
25
Basket, Sloped WPL 2181764 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
37
Screw WPL 488280 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
× ![]()
