Model Whirlpool KSRS25CHBT00 REFRIGERATOR – Common Parts & Diagrams
09 - AIR FLOW

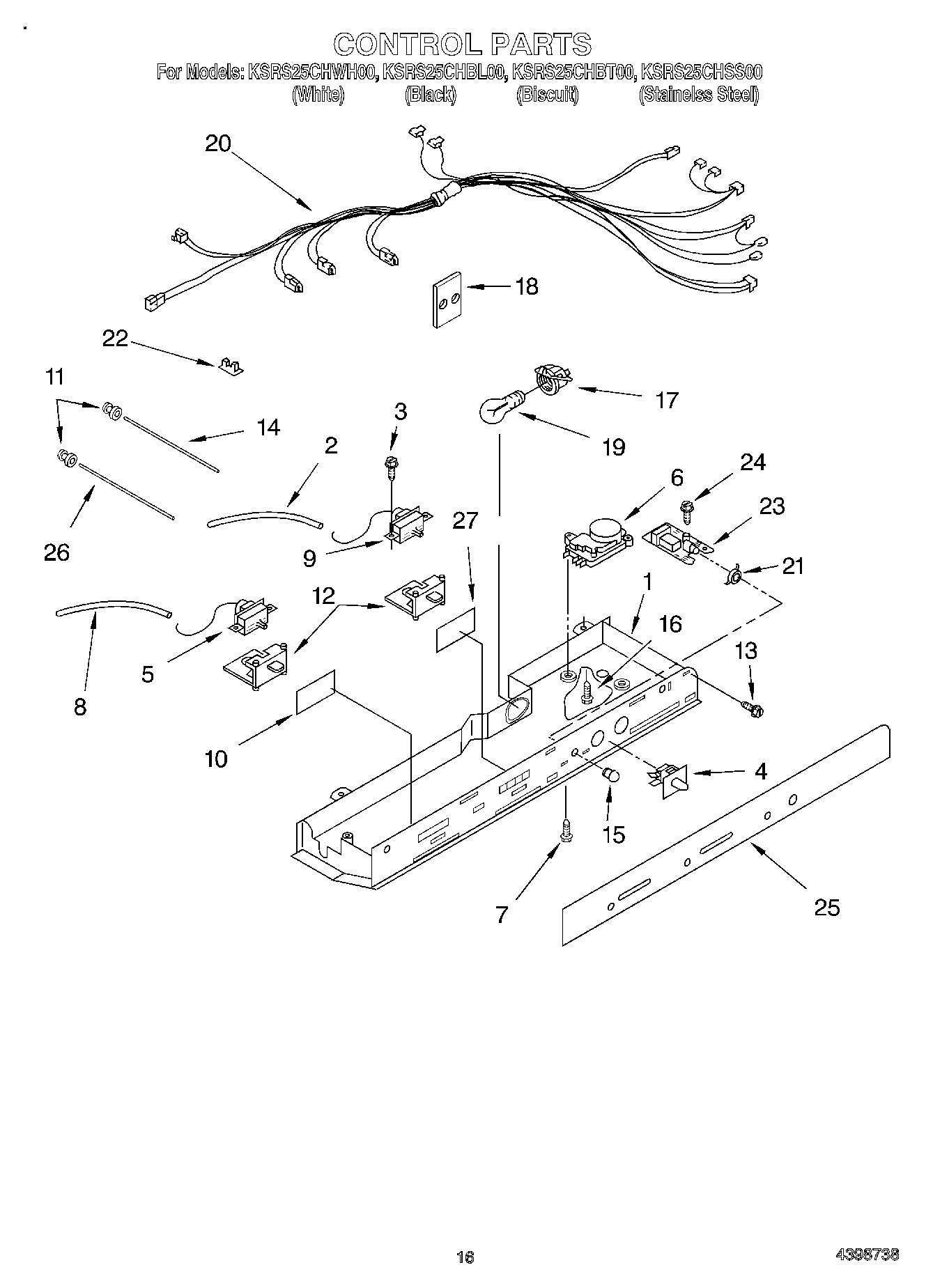

10 - CONTROL

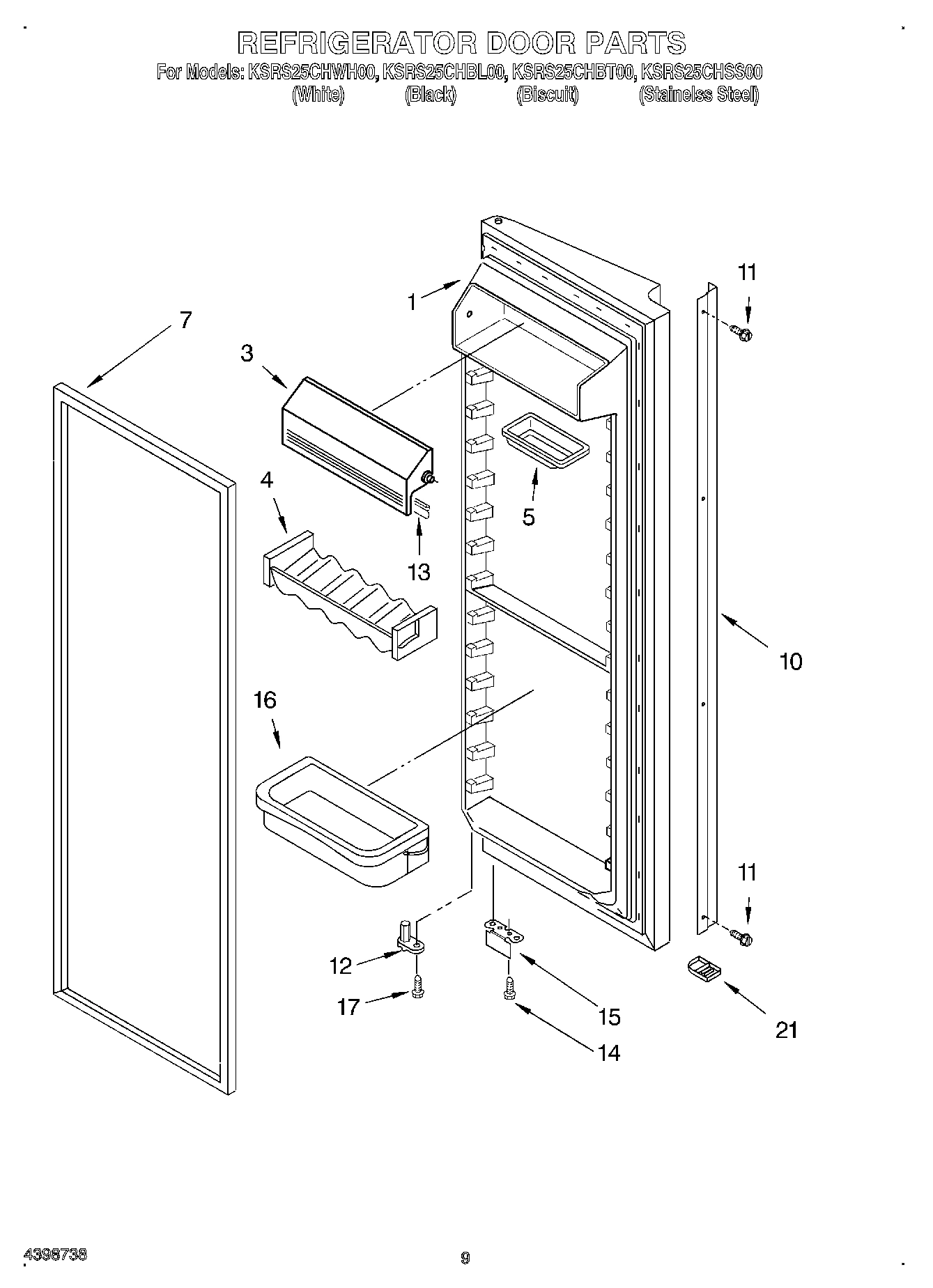

06 - REFRIGERATOR DOOR

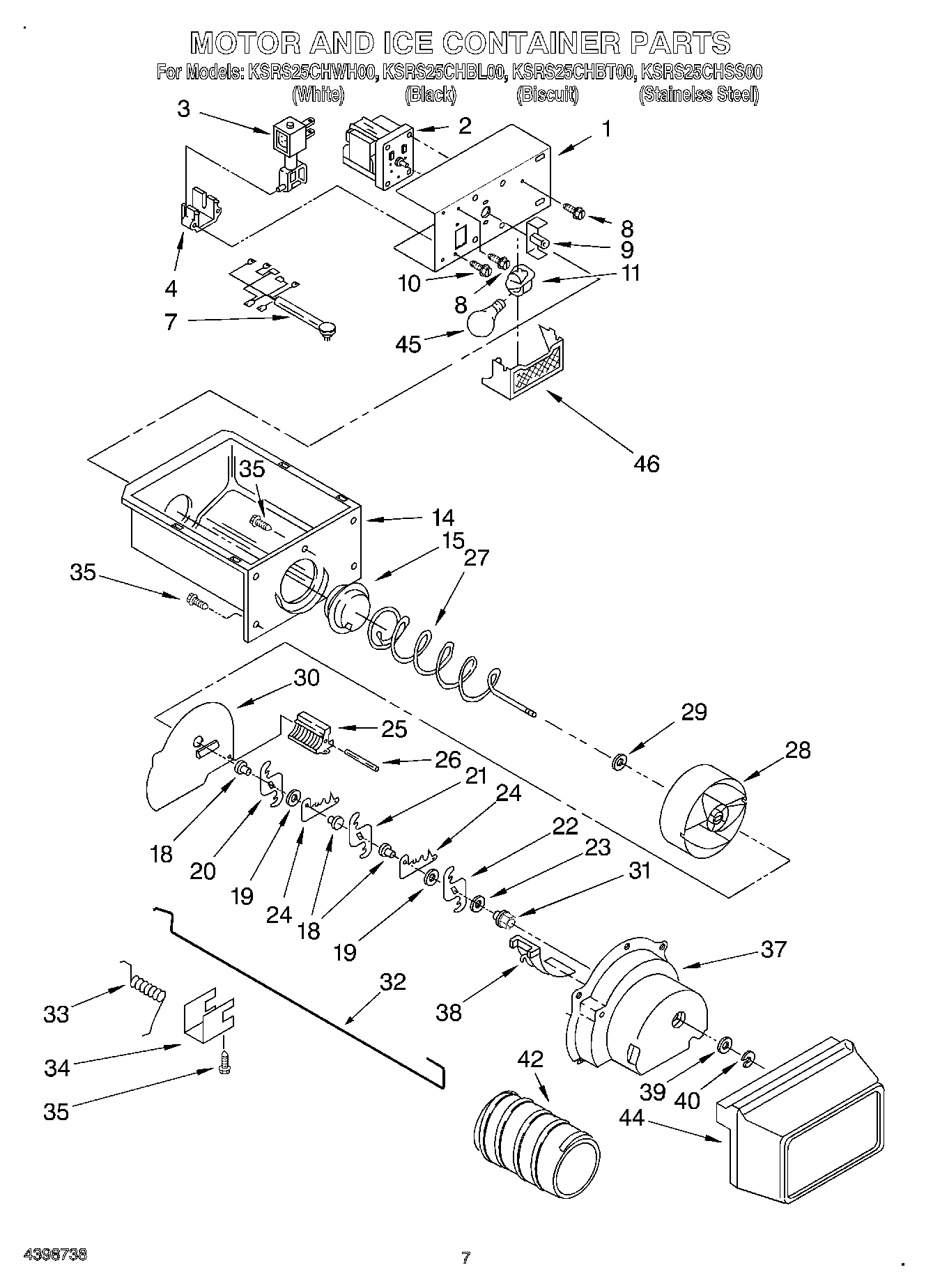

05 - MOTOR AND ICE CONTAINER

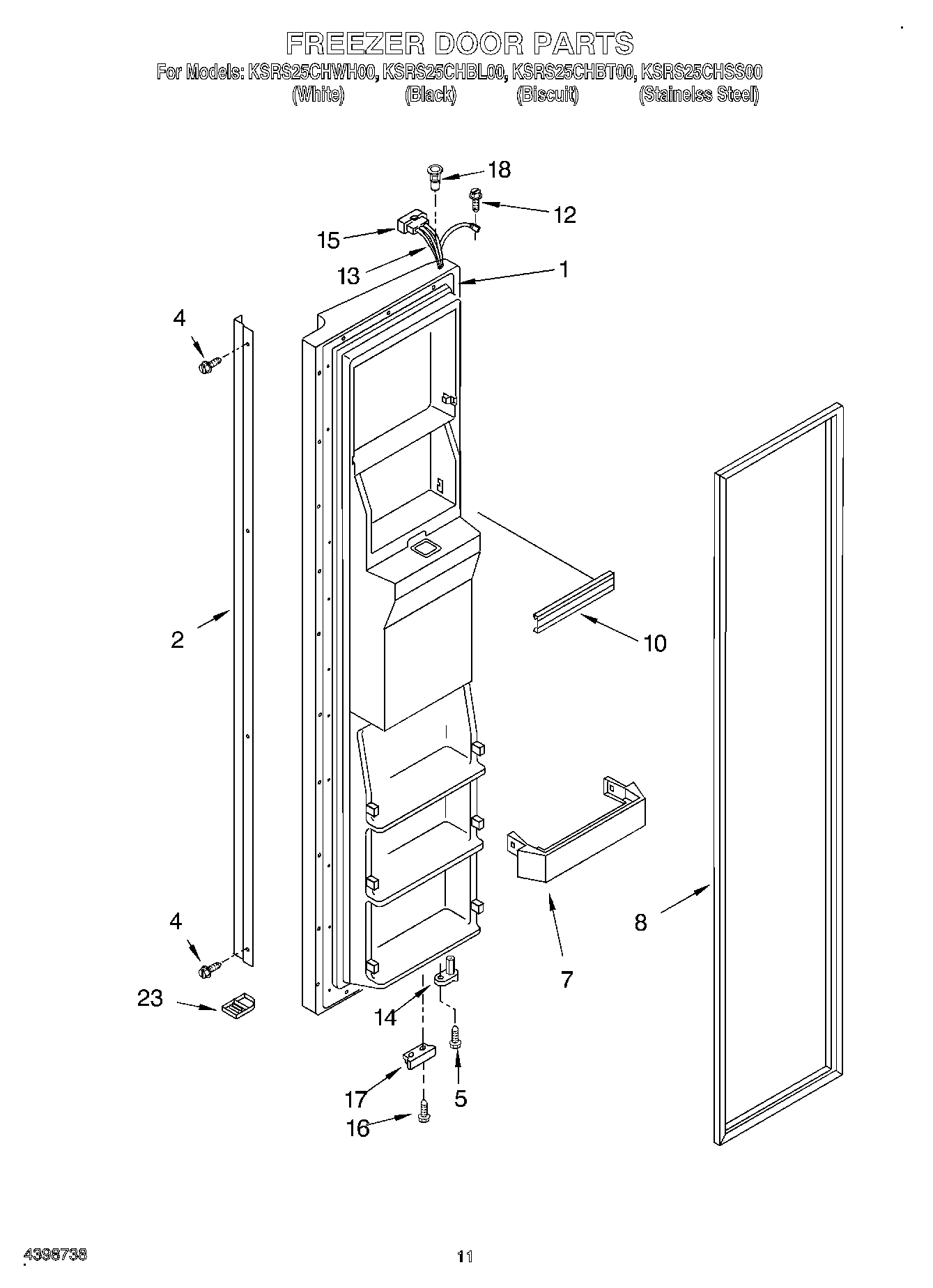

07 - FREEZER DOOR
12 - ICE MAKER, OPTIONAL
02 - REFRIGERATOR LINER

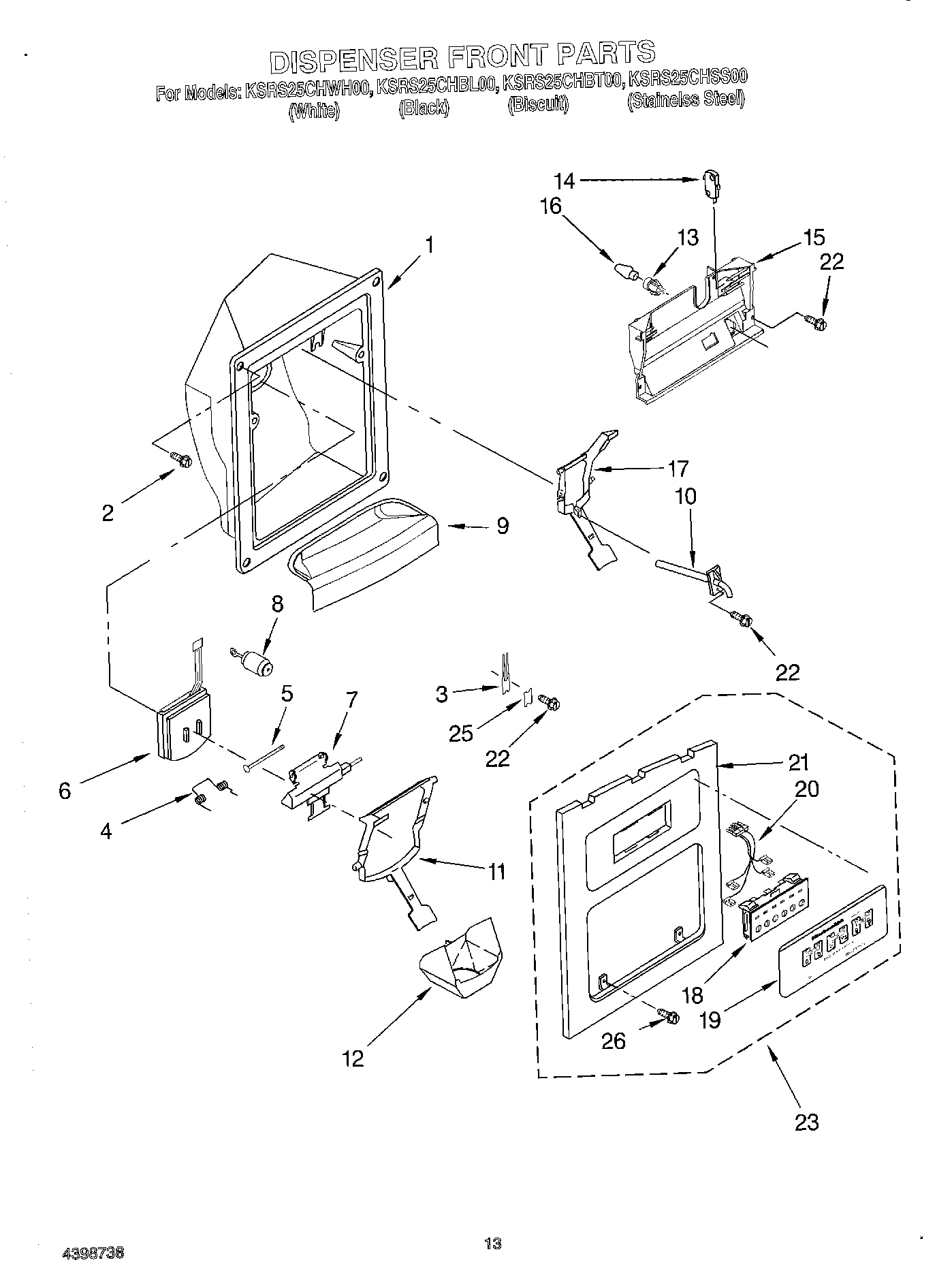

08 - DISPENSER FRONT

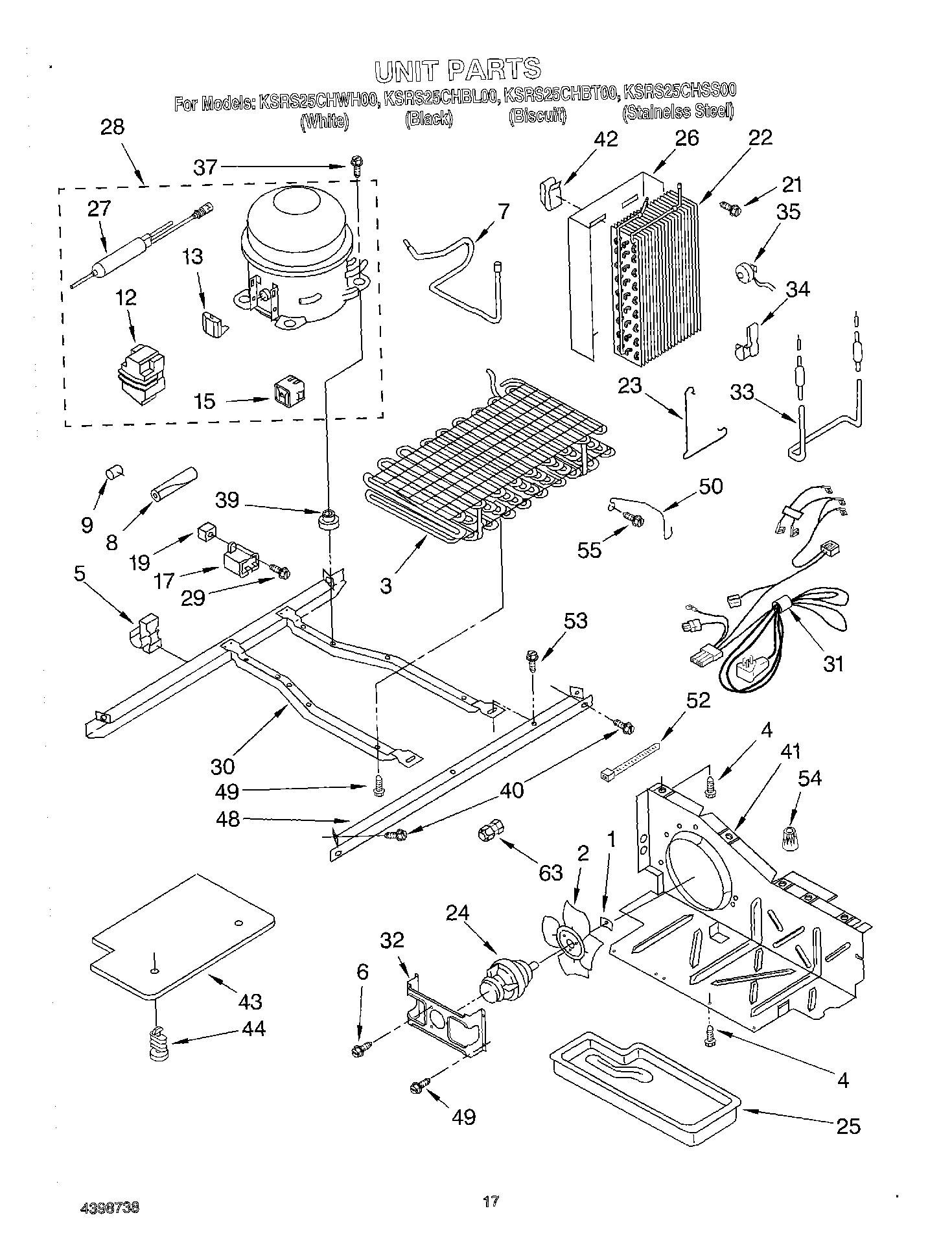

11 - UNIT
04 - FREEZER LINER

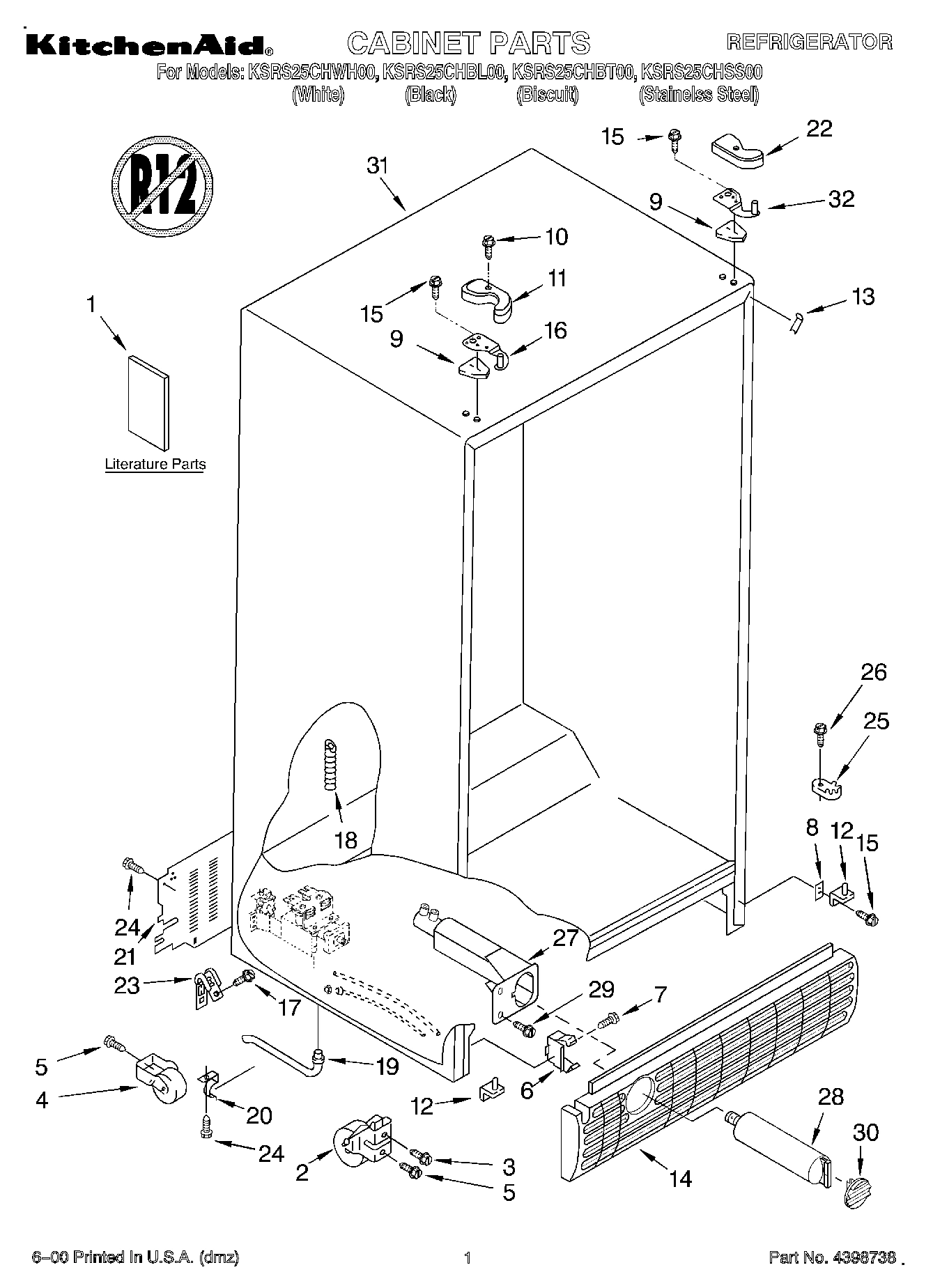

01 - CABINET, LITERATURE
03 - REFRIGERATOR SHELF
Common parts from model Whirlpool KSRS25CHBT00 REFRIGERATOR
LITERATURE PARTS WPL ARI101080A Contact Us For Availability
Service & Wiring Sheet WPL LIT2200279 Contact Us For Availability
Energy Label WPL LIT2211901 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI101083A Contact Us For Availability
1
Use & Care Guide WPL LIT2206106 Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 2195978 Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2204242B Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
5
Clip, Wire & Tube WPL 2208280 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Shim, Hinge Top WPL 2196048 Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
10
Glass, Cover WPL 2174148 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
13
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
13
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Grille (Biscuit) WPL 2186881T Contact Us For Availability
14
Roller WPL 2188212 Contact Us For Availability
15
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
16
Bracket, Fill Tube WPL 2209674 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Overlay, Front Cover (Black) WPL 2207187B Contact Us For Availability
19
Overlay, Front Cover (Biscuit) WPL 2207187T Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2207187W Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI101085A Contact Us For Availability
21
Basket, Shallow WPL 2181763 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
22
Front, Basket WPL 2171767 Contact Us For Availability
22
Hinge Cover (RC) (Biscuit) WPL 2203408T Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2207186B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2207186T Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2207186W Contact Us For Availability
23
Basket, Square WPL 2181765 Contact Us For Availability
24
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Basket, Sloped WPL 2181764 Contact Us For Availability
25
Screw WPL 489439 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Shelf, Snack Bin WPL 2208298 Contact Us For Availability
27
Stud, Rear WPL 2196207 Contact Us For Availability
31
Unit, Harness WPL 2188346 Contact Us For Availability
31
Cabinet (Not A Serviceable Part) WPL ARI101081A Contact Us For Availability
34
Light Lens WPL 2203266 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2206281 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 2186495 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
× ![]()
