Model Whirlpool KSRP27QDBL01 – Common Parts & Diagrams
07 - FREEZER DOOR
10 - CONTROL

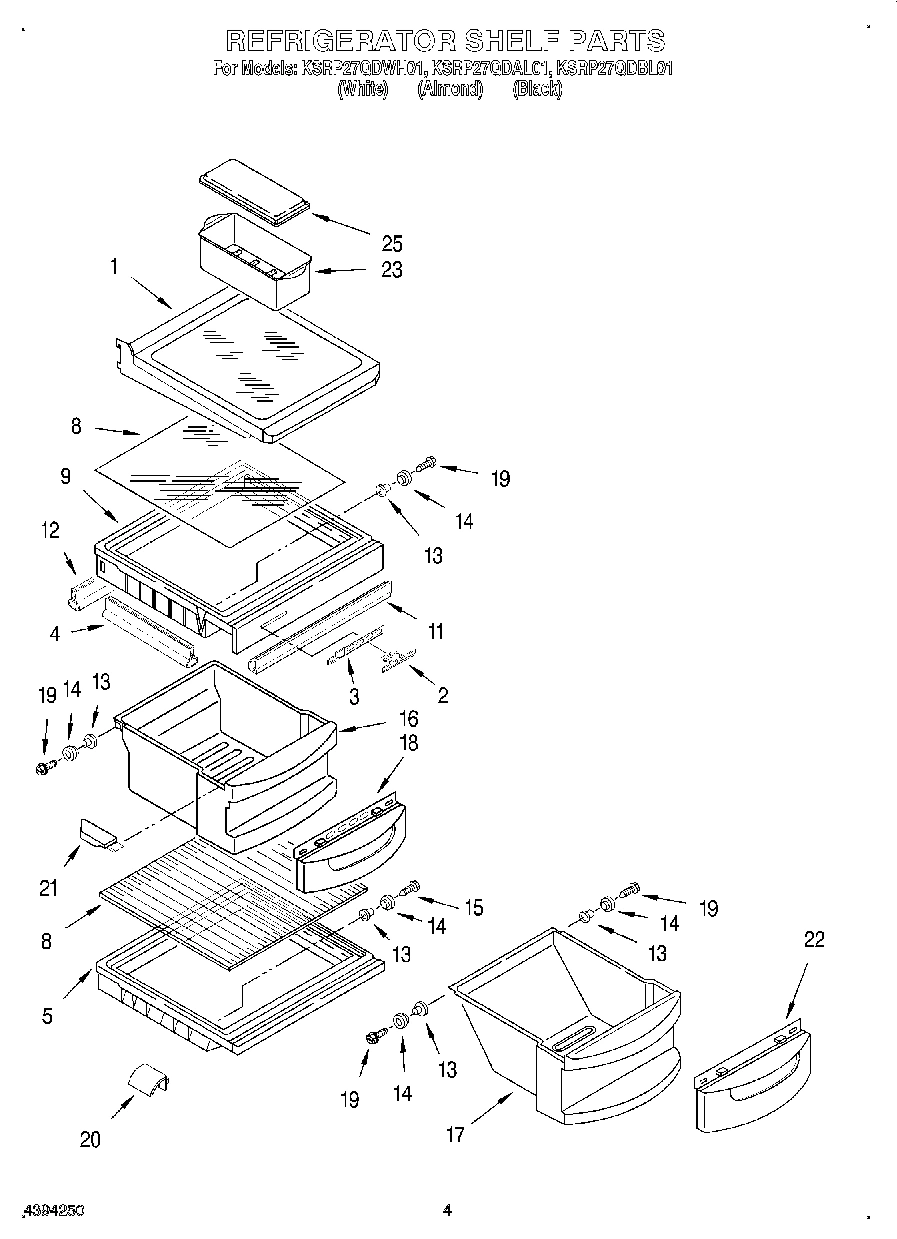

03 - REFRIGERATOR SHELF

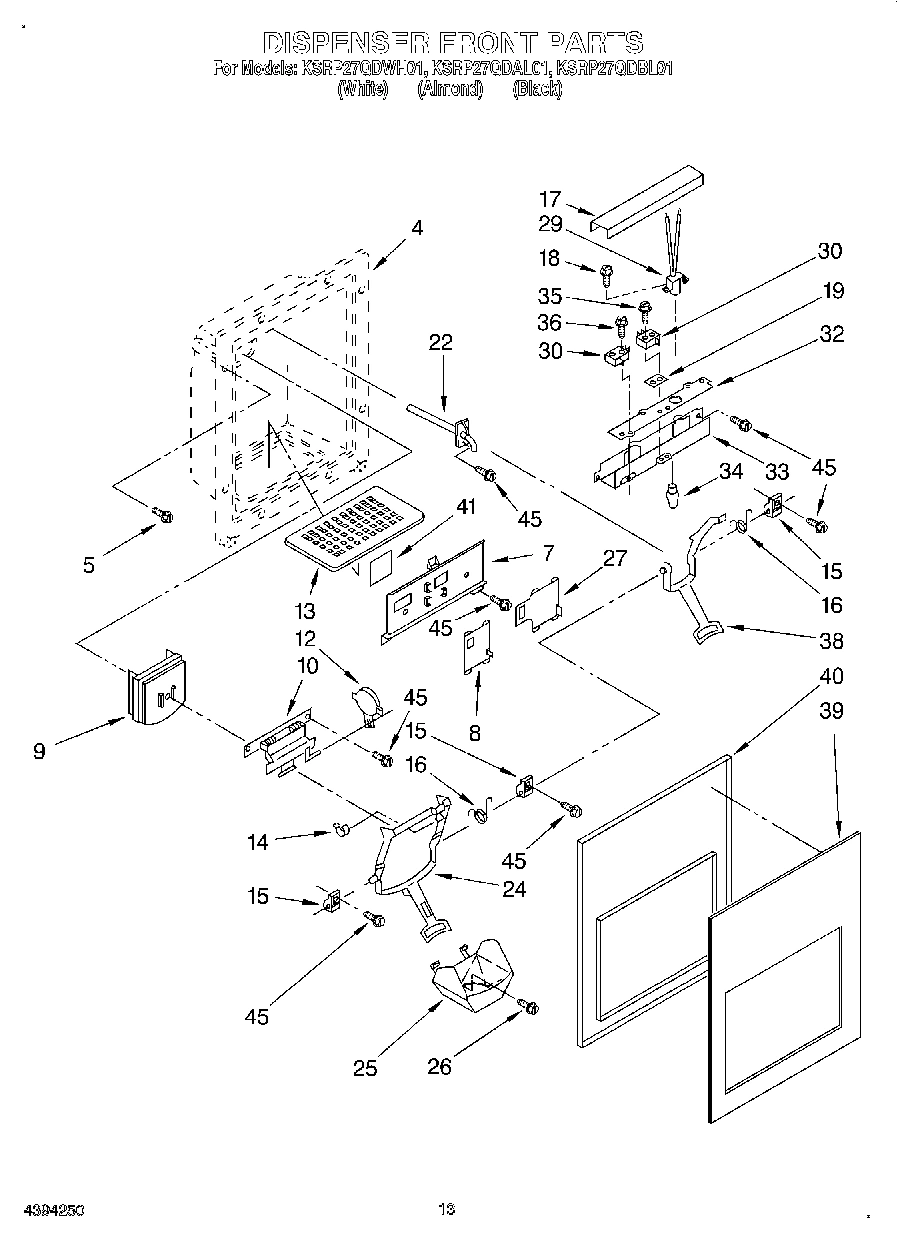

08 - DISPENSER FRONT
09 - AIRFLOW
05 - MOTOR AND ICE CONTAINER
12 - ICEMAKER, LIT/OPTIONAL

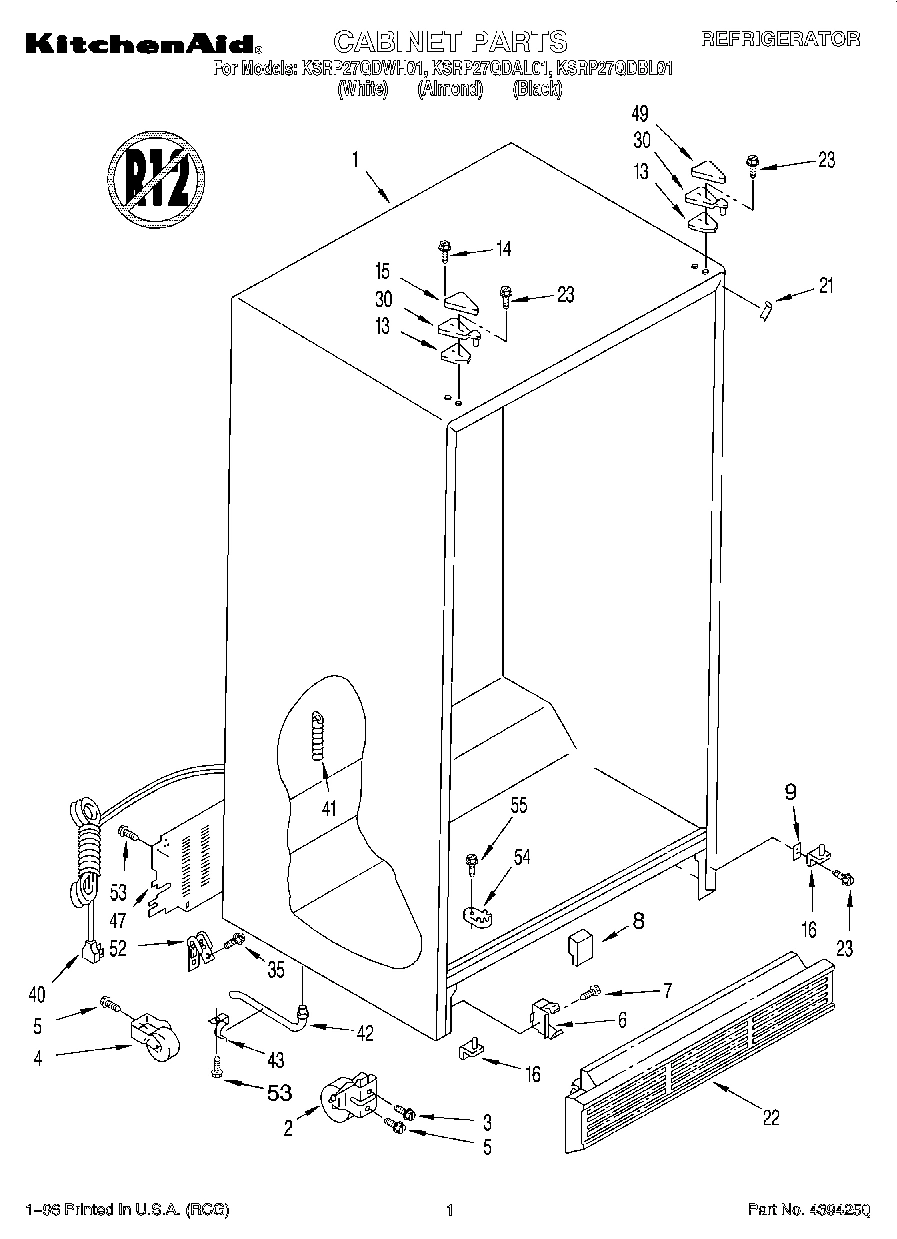

01 - CABINET

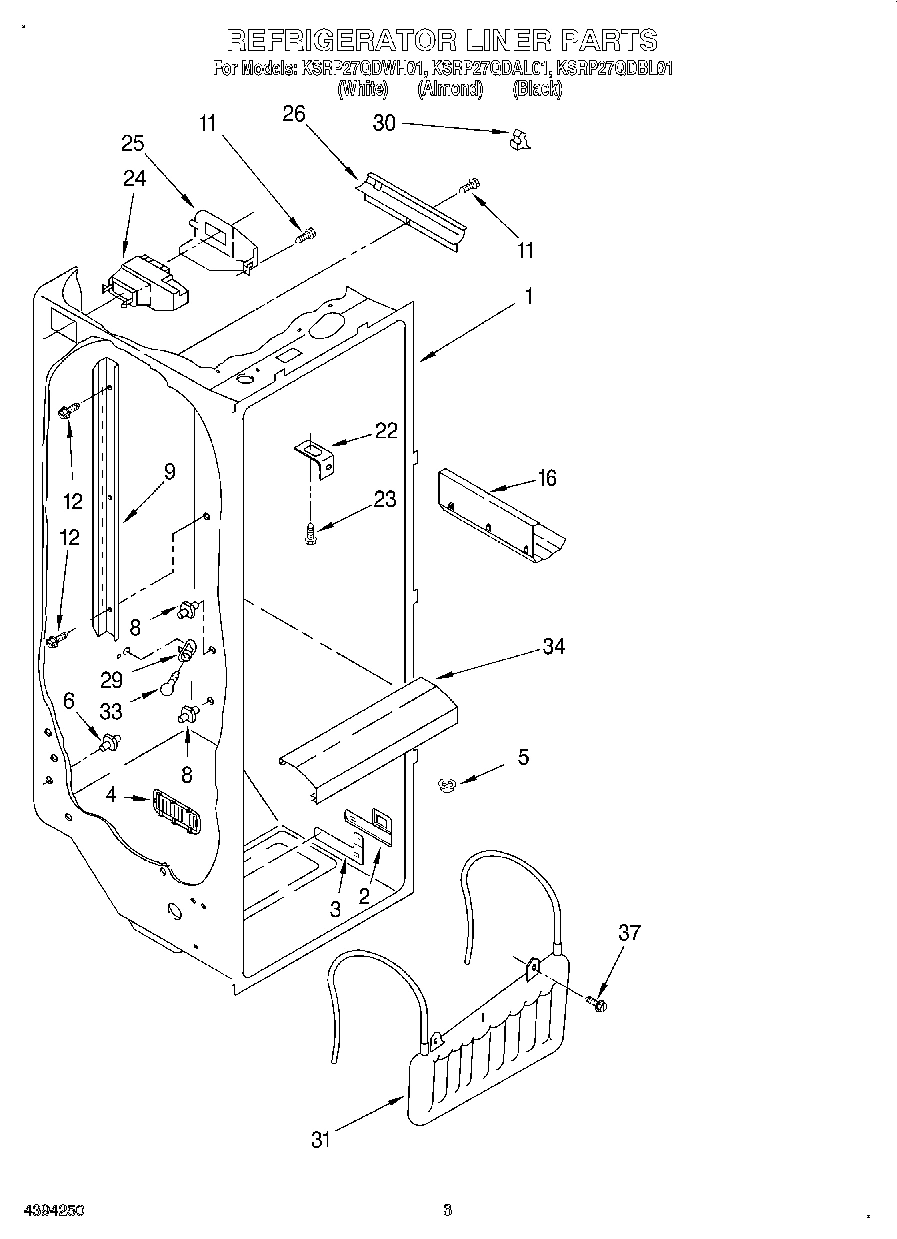

02 - REFRIGERATOR LINER

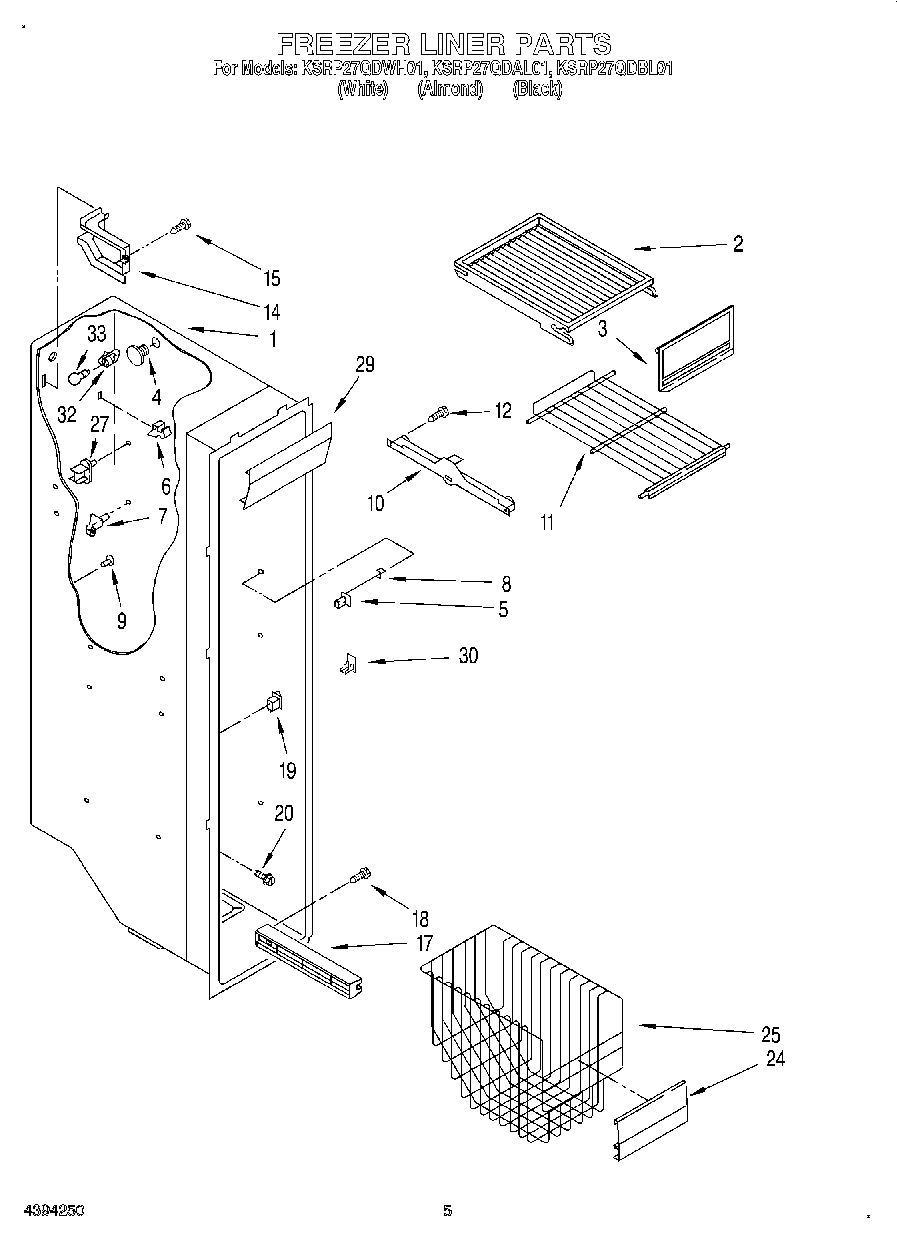

04 - FREEZER LINER

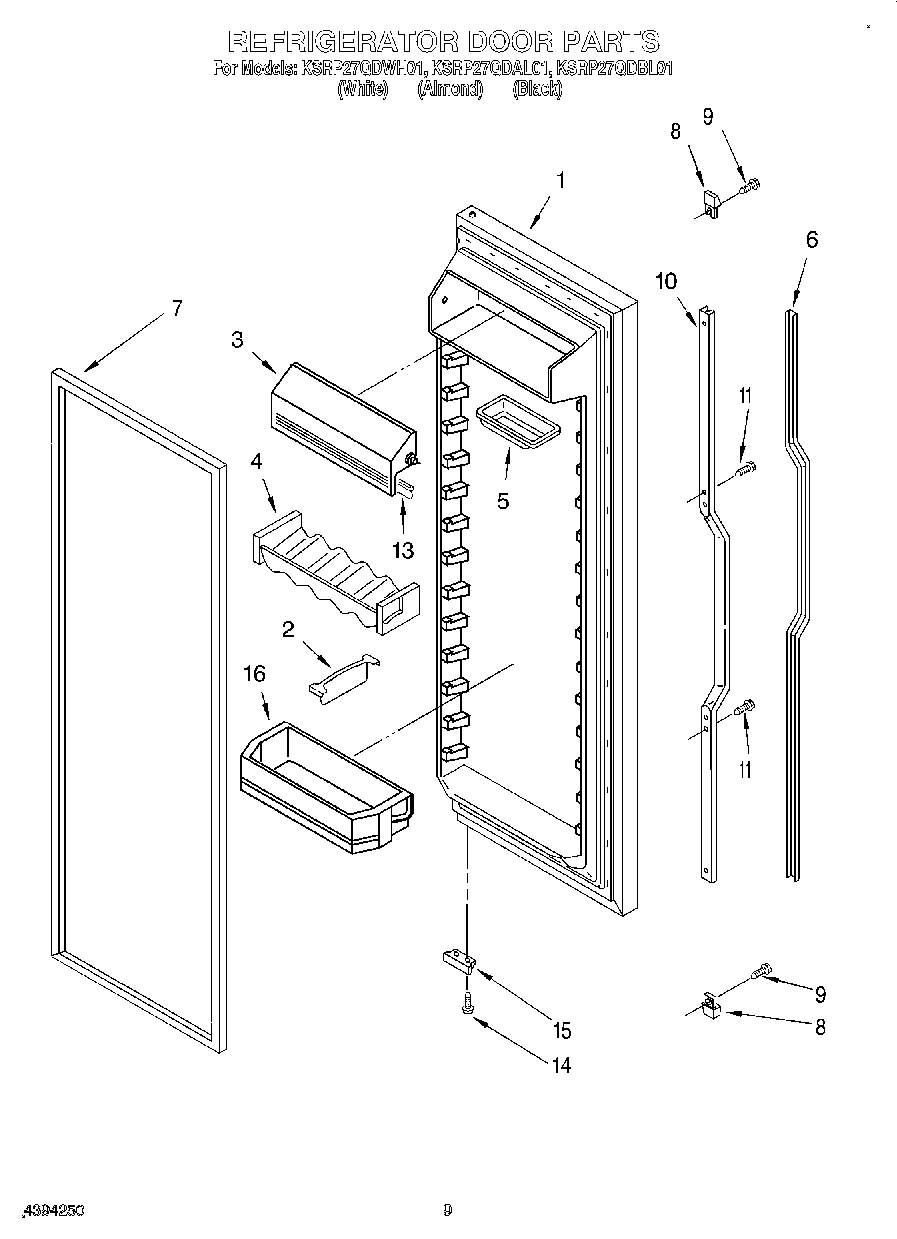

06 - REFRIGERATOR DOOR

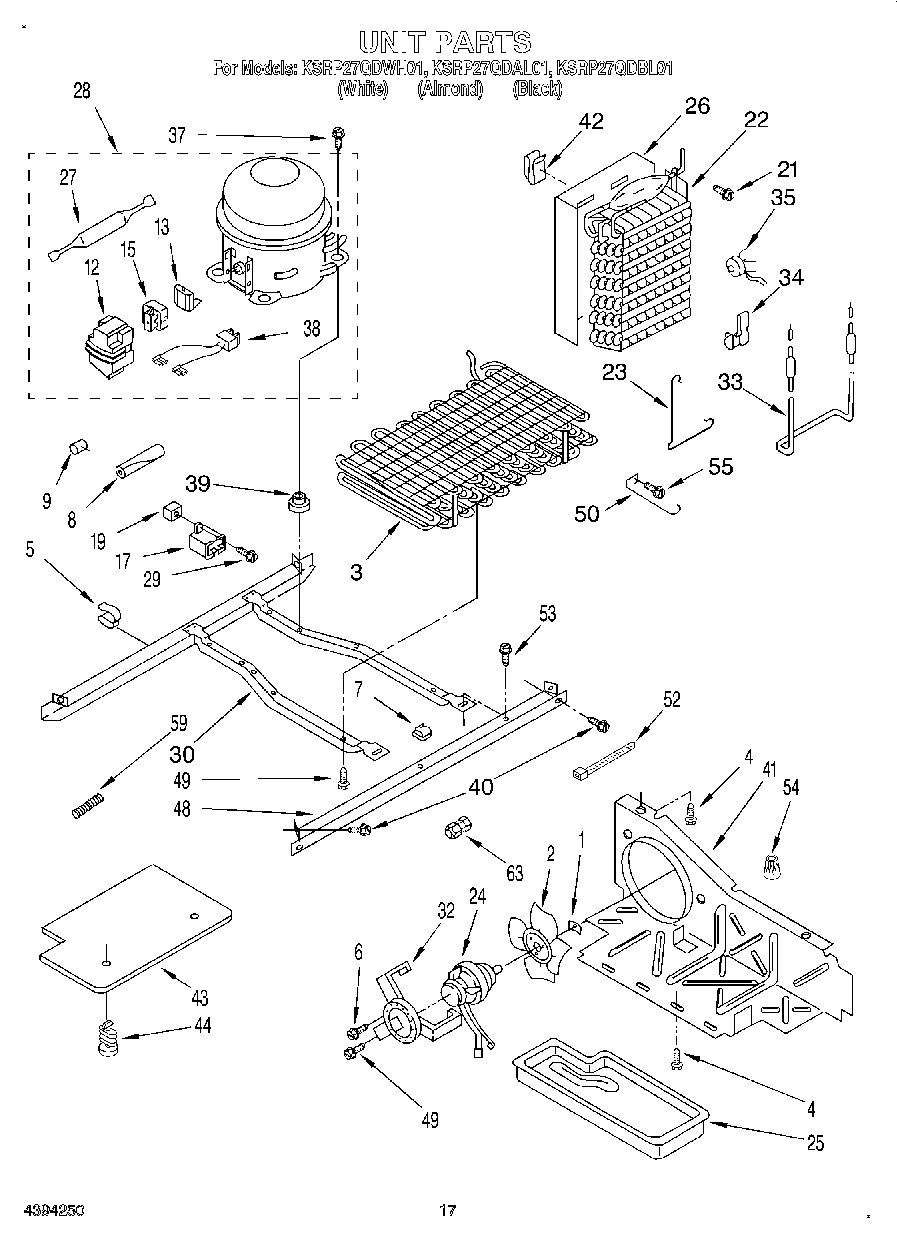

11 - UNIT
Common parts from model Whirlpool KSRP27QDBL01
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2176787 WPL LIT2176787 Contact Us For Availability
WPL LIT2180082 WPL LIT2180082 Contact Us For Availability
WPL LIT2189603 WPL LIT2189603 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2181737 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI100707A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI100708A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI100709A Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2189688 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2189689 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Black) WPL 2194018 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
2
Load, Lock (4) WPL 2171283 Contact Us For Availability
3
Door, Compartment WPL 2171078 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
4
Louver WPL 1127161 Contact Us For Availability
4
Holder, Beverage WPL 1125981 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Butter, Tray WPL 1125936 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Insert, Handle (White) WPL 2173825 Contact Us For Availability
6
Insert, Handle (Almond) WPL 2173828 Contact Us For Availability
6
Insert, Handle (Black) WPL 2173829 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
End Cap, Handle WPL 2173826 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
9
Screw WPL 489075 Contact Us For Availability
10
Retainer, Insert WPL 2173824 Contact Us For Availability
11
Shelf (2) WPL 2174268 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Gasket WPL 2159124 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Bracket, Door Stop (Black) WPL 2155329 Contact Us For Availability
15
Bracket, Door Stop (Chrome) WPL 2155331 Contact Us For Availability
15
Relay (See Overload) WPL ARI100711A Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Shelf Bin (4) WPL 2171062 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Black Acrylic Panel Kit WPL 4210348 Contact Us For Availability
16
Almond Acrylic Panel Kit WPL 4211147 Contact Us For Availability
16
White Acrylic Panel Kit WPL 4211148 Contact Us For Availability
16
Trim Kit WPL 4318336 Contact Us For Availability
16
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
16
Woodgrain Handle Inserts WPL 4318340 Contact Us For Availability
16
Black Grille Kit WPL 4318417 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Shelf Track (Left Side) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side) WPL 2181760 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Basket, Lower WPL 2181764 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Service Cord WPL 2181709 Contact Us For Availability
41
Housing Filler WPL 2152700 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enam WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
