Model Whirlpool KSRL25FTSS01 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 8171358 WPL 8171358 Contact Us For Availability

WPL 8201806 WPL 8201806 Contact Us For Availability

WPL ARI99361A1 WPL ARI99361A1 Contact Us For Availability

WPL ARI99362A6 WPL ARI99362A6 Contact Us For Availability

WPL ARI99363A4 WPL ARI99363A4 Contact Us For Availability

WPL ARI99364A4 WPL ARI99364A4 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $138.23

1

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

1

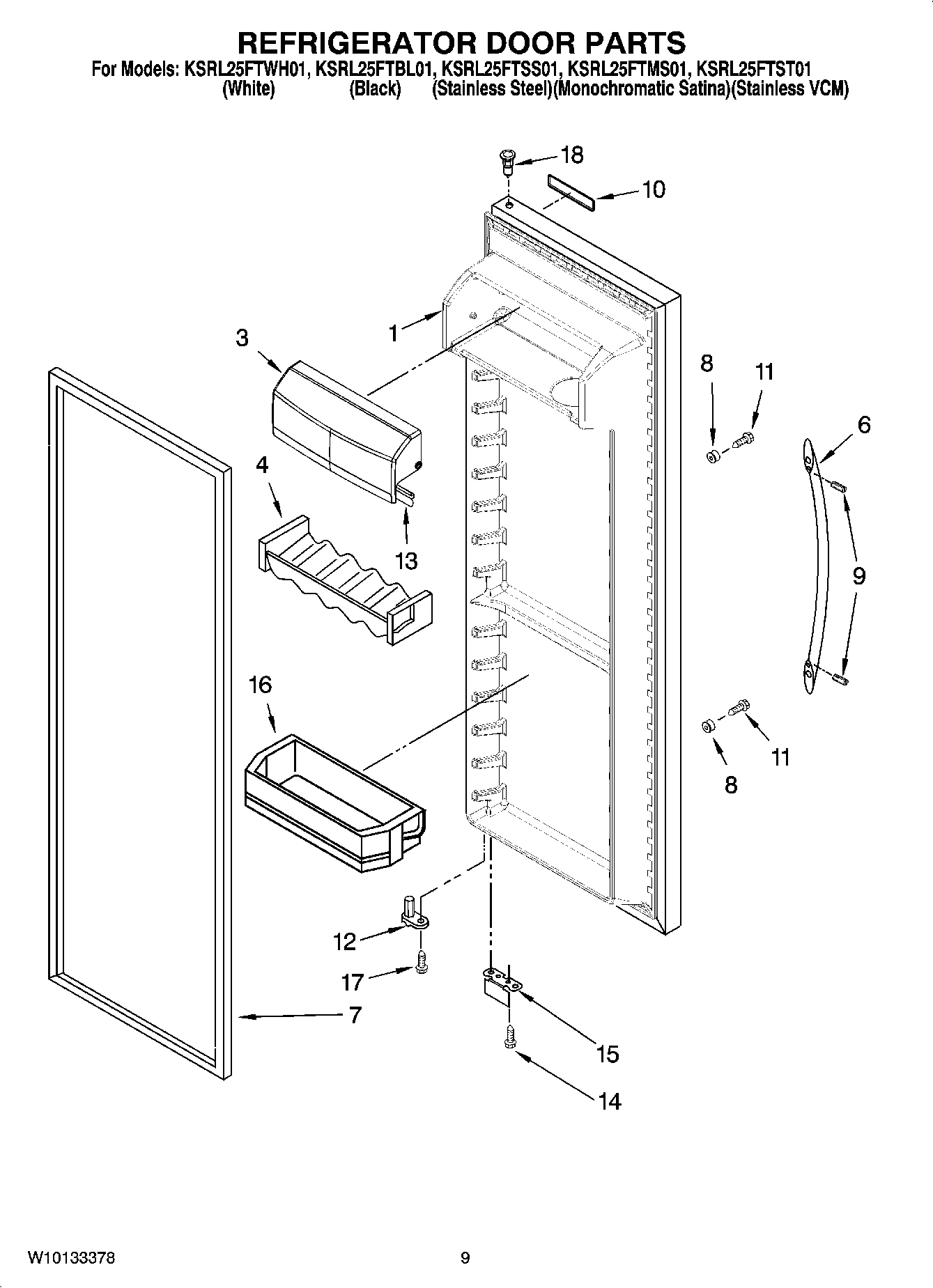

Refrigerator Door (Includes 7) (Stainless-VCM WPL 2301184LG Contact Us For Availability

1

Refrigerator Door (Includes 7) (Stainless Ste WPL 2301184S Contact Us For Availability

1

Refrigerator Door (Includes 7) (Monochromatic WPL 2301184SZ Contact Us For Availability

1

Refrigerator Door (Includes 7) (Black) WPL 2313299B Contact Us For Availability

1

Refrigerator Door (Includes 7) (White) WPL 2313299W Contact Us For Availability

1

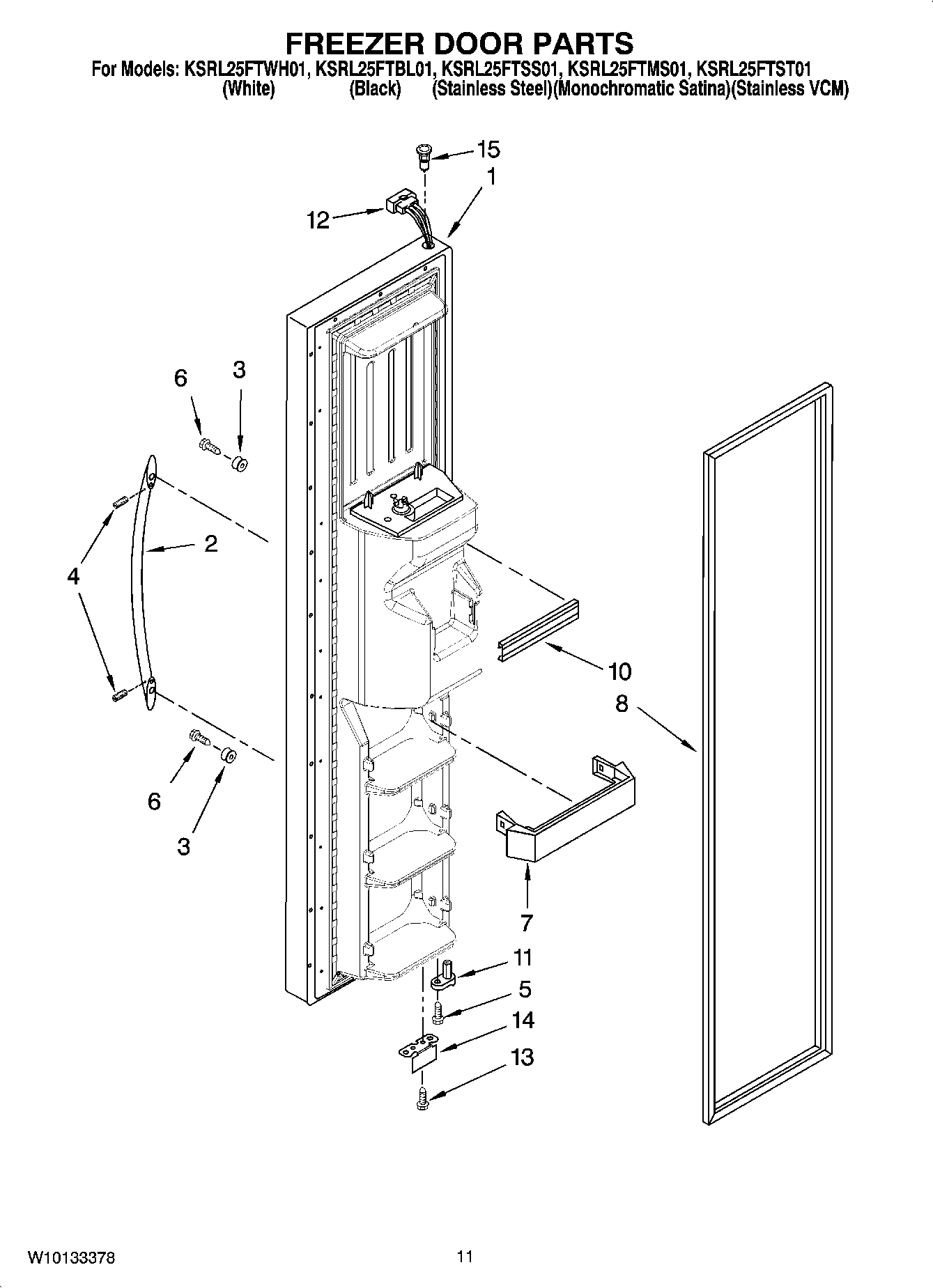

Freezer Door (Includes 8 And Dispenser Front WPL 2327659B Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2327659LG Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2327659W Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2327660SAP Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2327660SB Contact Us For Availability

2

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $4.52

2

WPW10130497 Whirlpool Refrigerator Crush Bin Backorder WPL WPW10130497 $90.66

2

NLA:SCREW Backorder WPL WPW10141645 $3.70

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Handle (White) WPL 2319727W Contact Us For Availability

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.10

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $61.42

3

Door, Compartment WPL 2301486 Contact Us For Availability

4

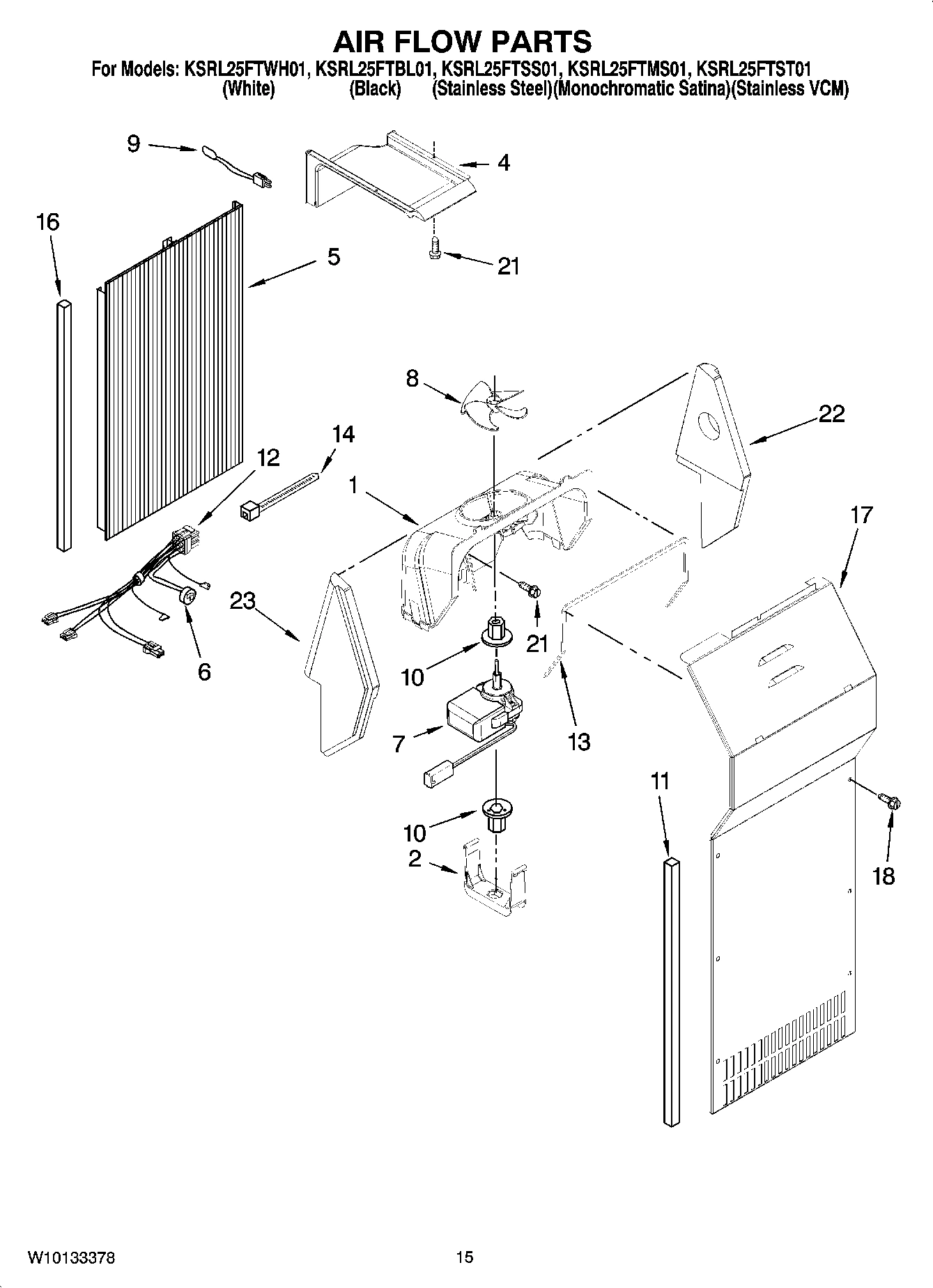

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

4

Washer WPL 2258220 Contact Us For Availability

4

Beverage Holder (2) WPL 2193409K Contact Us For Availability

5

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $73.70

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $171.59

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

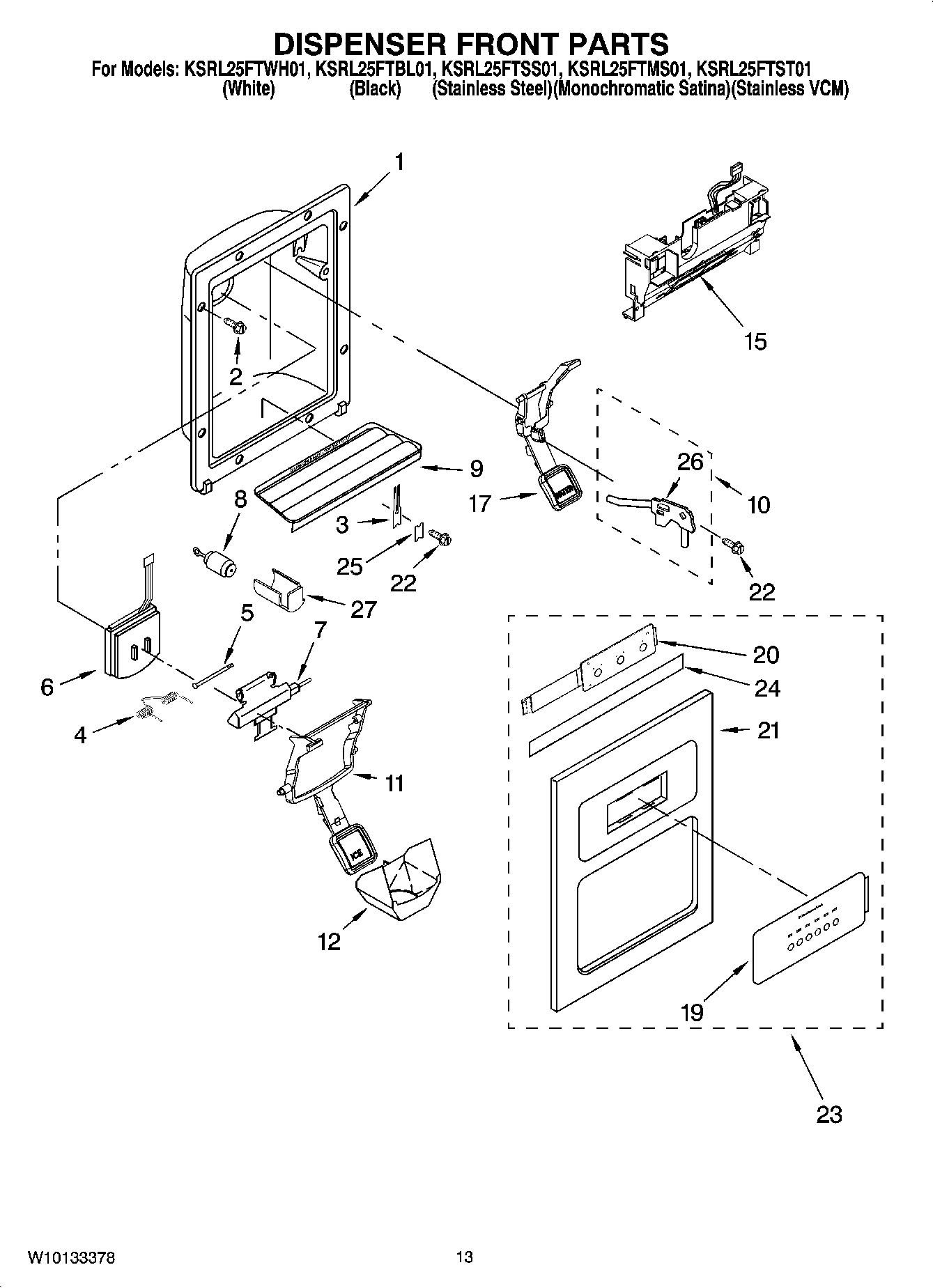

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.03

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

6

Handle (Stainless Steel) WPL 2319727S Contact Us For Availability

6

Handle (Black) WPL 2319727B Contact Us For Availability

6

Cover, Crusher WPL 2317248 Contact Us For Availability

6

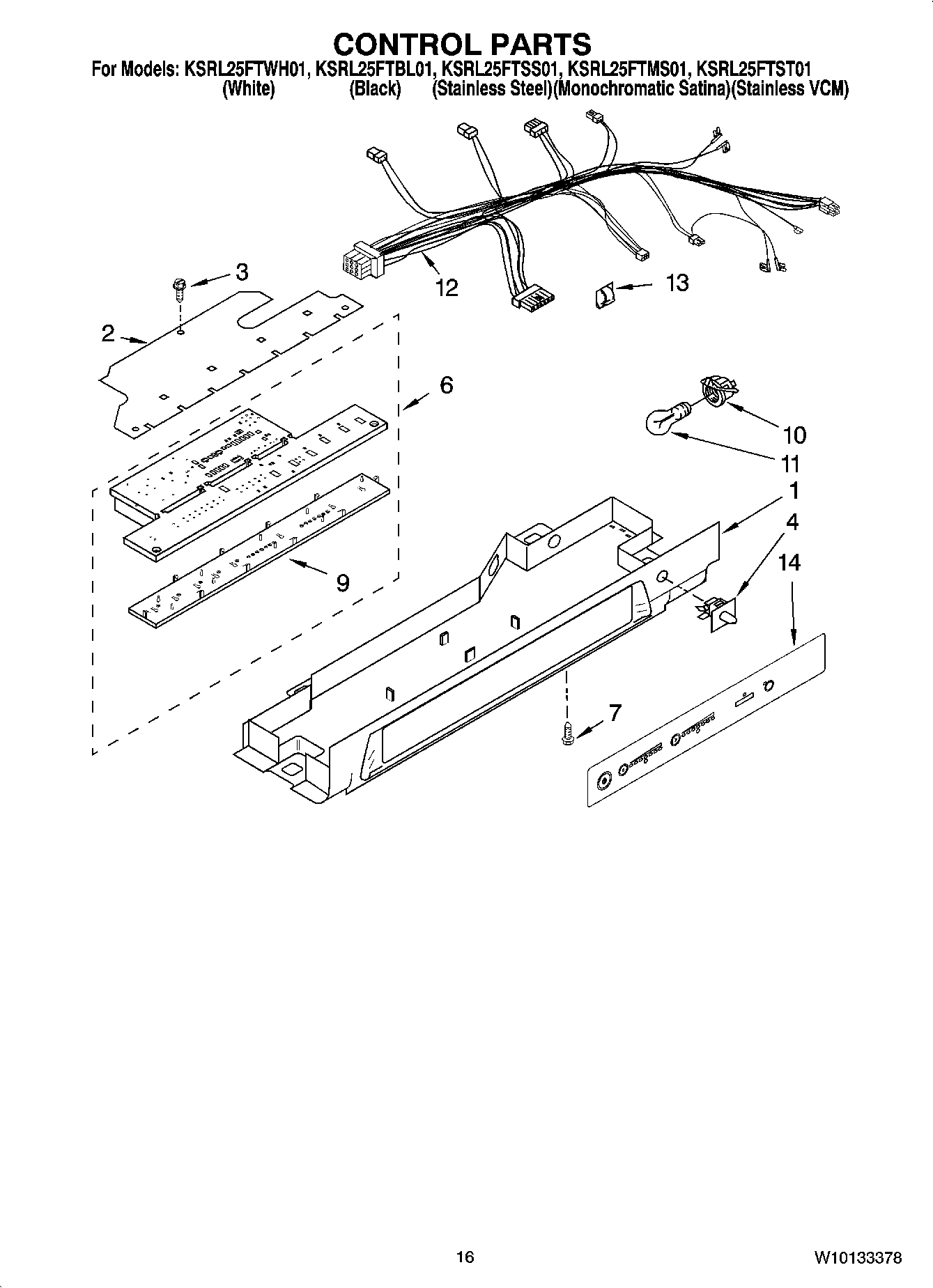

Electronic Control WPL 2321724 Contact Us For Availability

7

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

7

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $142.79

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $142.38

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

7

Shelf Bin (3) WPL 2171070K Contact Us For Availability

7

TUBE, SUCTION WPL 2205765 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $148.70

8

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $30.65

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $5.40

8

Glass, Cover WPL 2255144 Contact Us For Availability

9

W11106297 Whirlpool Refrigerator Grille Backorder WPL W11106297 $49.63

9

W11366418 Whirlpool Screw In Stock WPL W11366418 $10.41

9

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.92

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $21.01

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

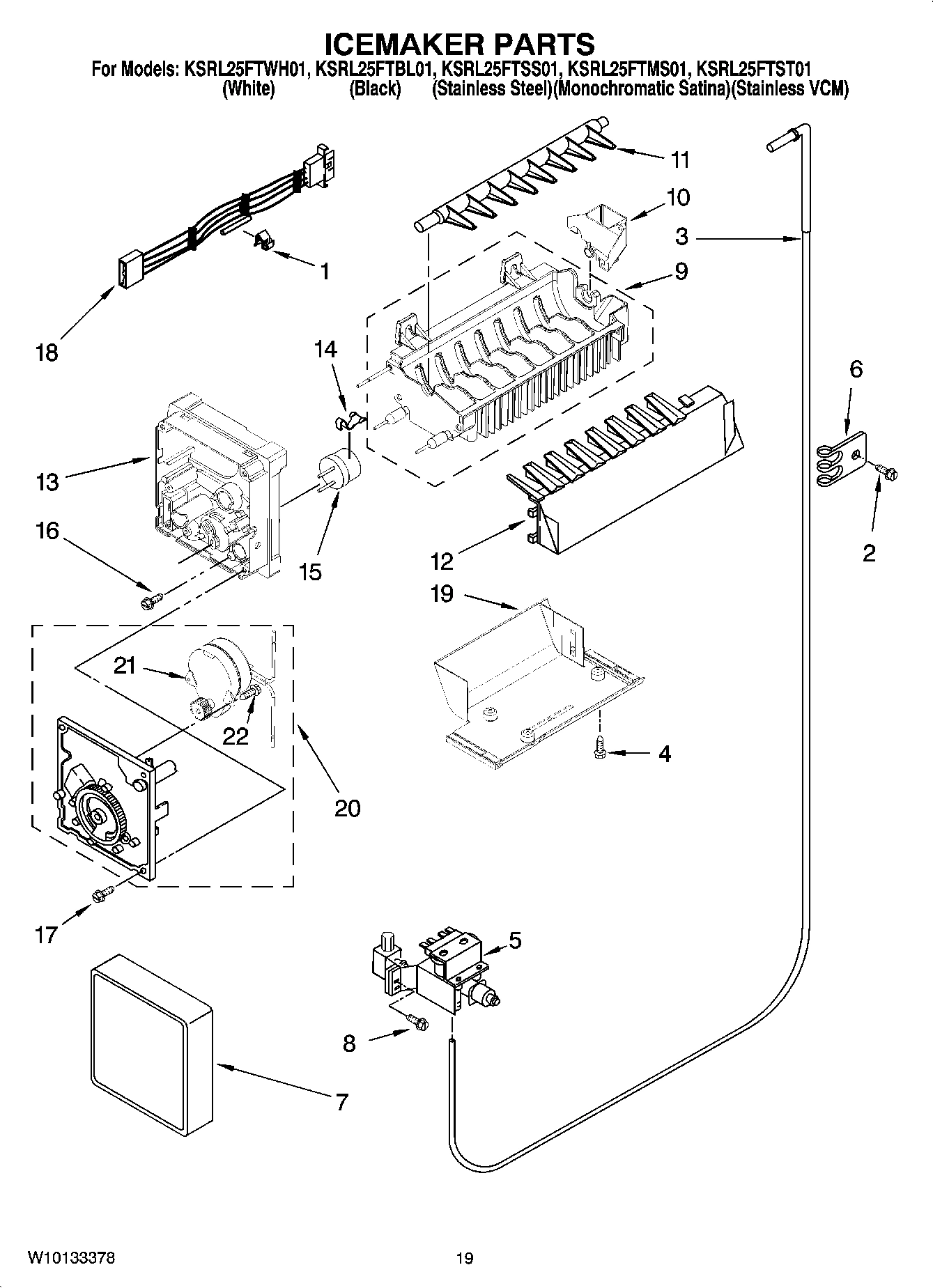

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $145.60

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2319866 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

Nameplate (Grey) WPL W10046610 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

2305580K Whirlpool Refrigerator Basket Trim Backorder WPL 2305580K $29.92

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $42.77

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

Harness, Fan Evaporator (Includes 6) WPL 2310238 Contact Us For Availability

Connector WPL 1128252 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $108.99

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

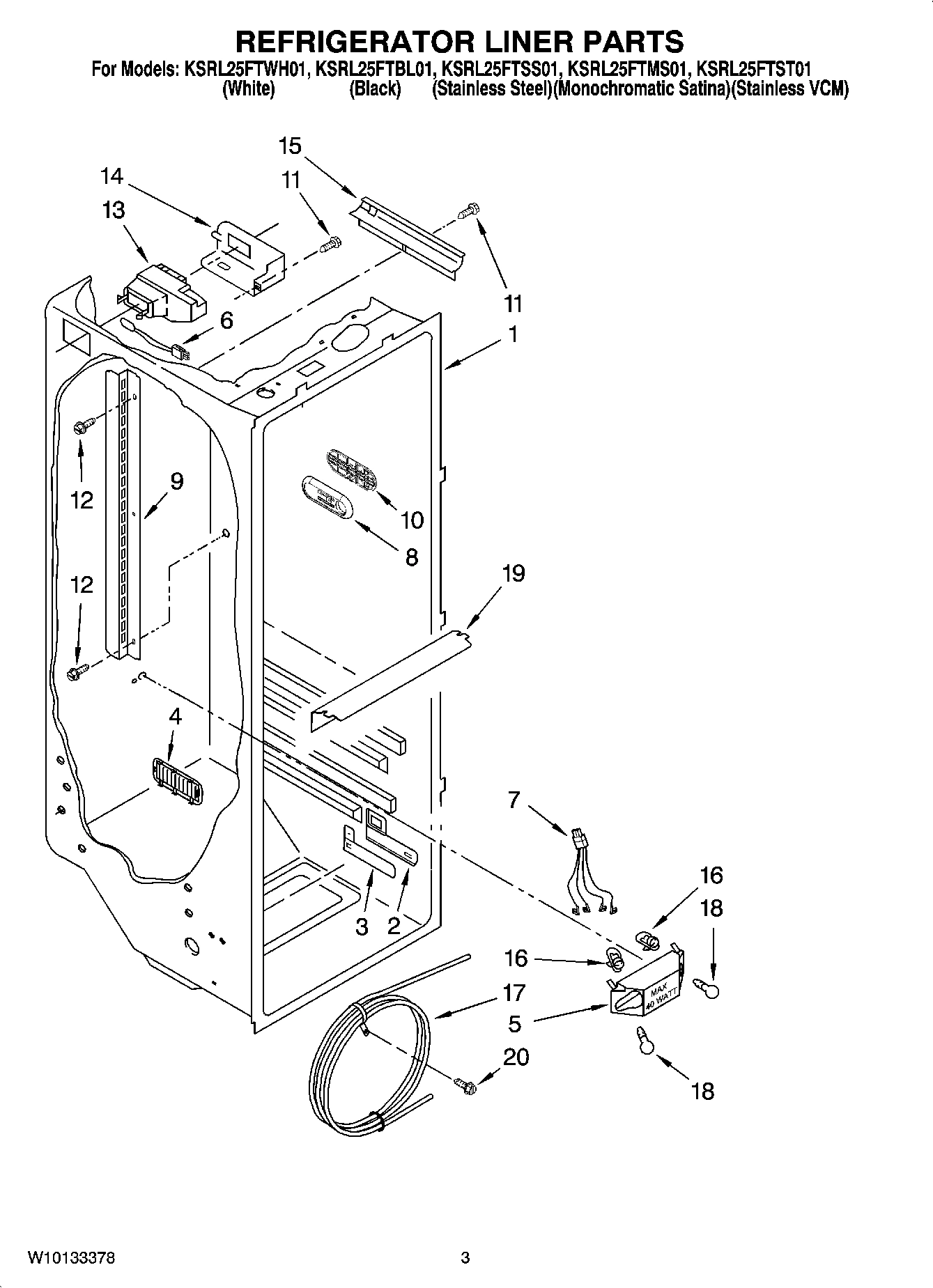

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

14

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

14

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

14

Overlay, Control Box WPL 2318980 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $5.38

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W11629923 Whirlpool Coupling In Stock WPL W11629923 $13.54

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

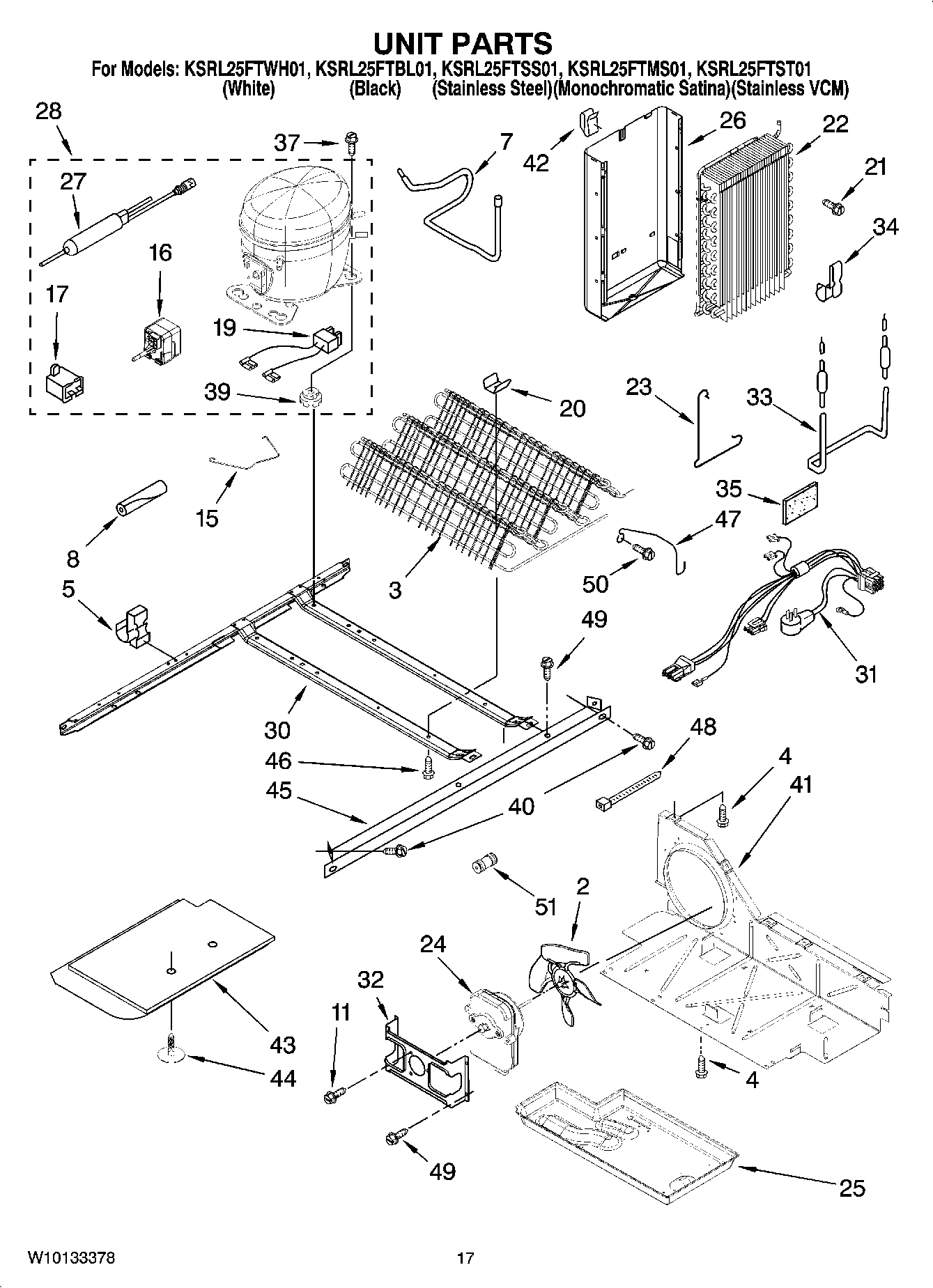

WP2304885 Whirlpool Refrigerator Start Device In Stock WPL WP2304885 $63.35

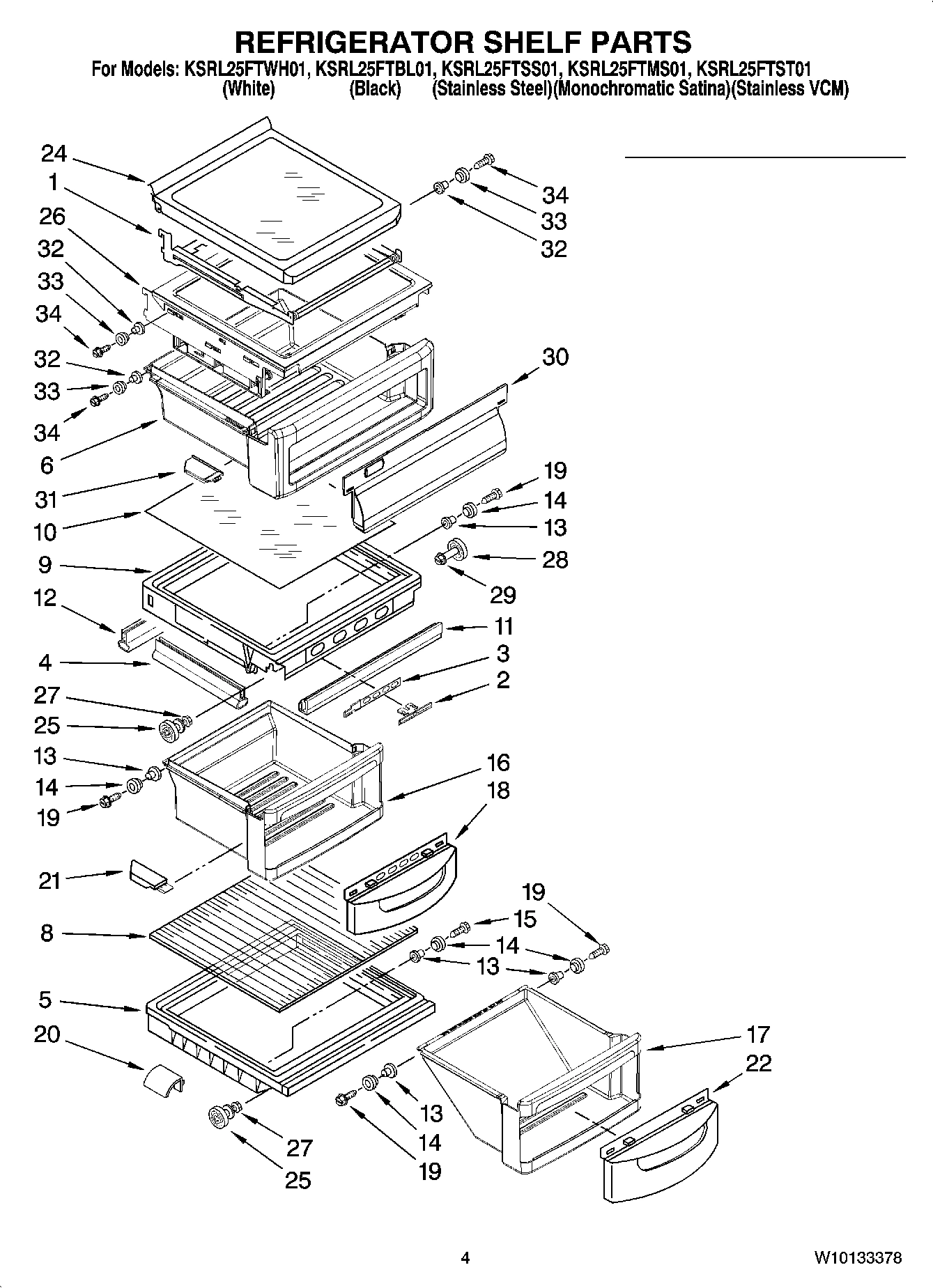

Crisper Pan (Includes 13, 14 18, 19 & 21) WPL 2301481 Contact Us For Availability

Door Bin (4) WPL 2205821K Contact Us For Availability

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.33

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

Meat Pan (Includes 13, 14, 19 & 22) WPL 2301482 Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $20.64

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Window, Crisper WPL 2174076 Contact Us For Availability

Thimble-Top (For Stainless Steel and Monochro WPL 2301049 Contact Us For Availability

19

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

19

Tube, Extension WPL 2304937 Contact Us For Availability

19

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

20

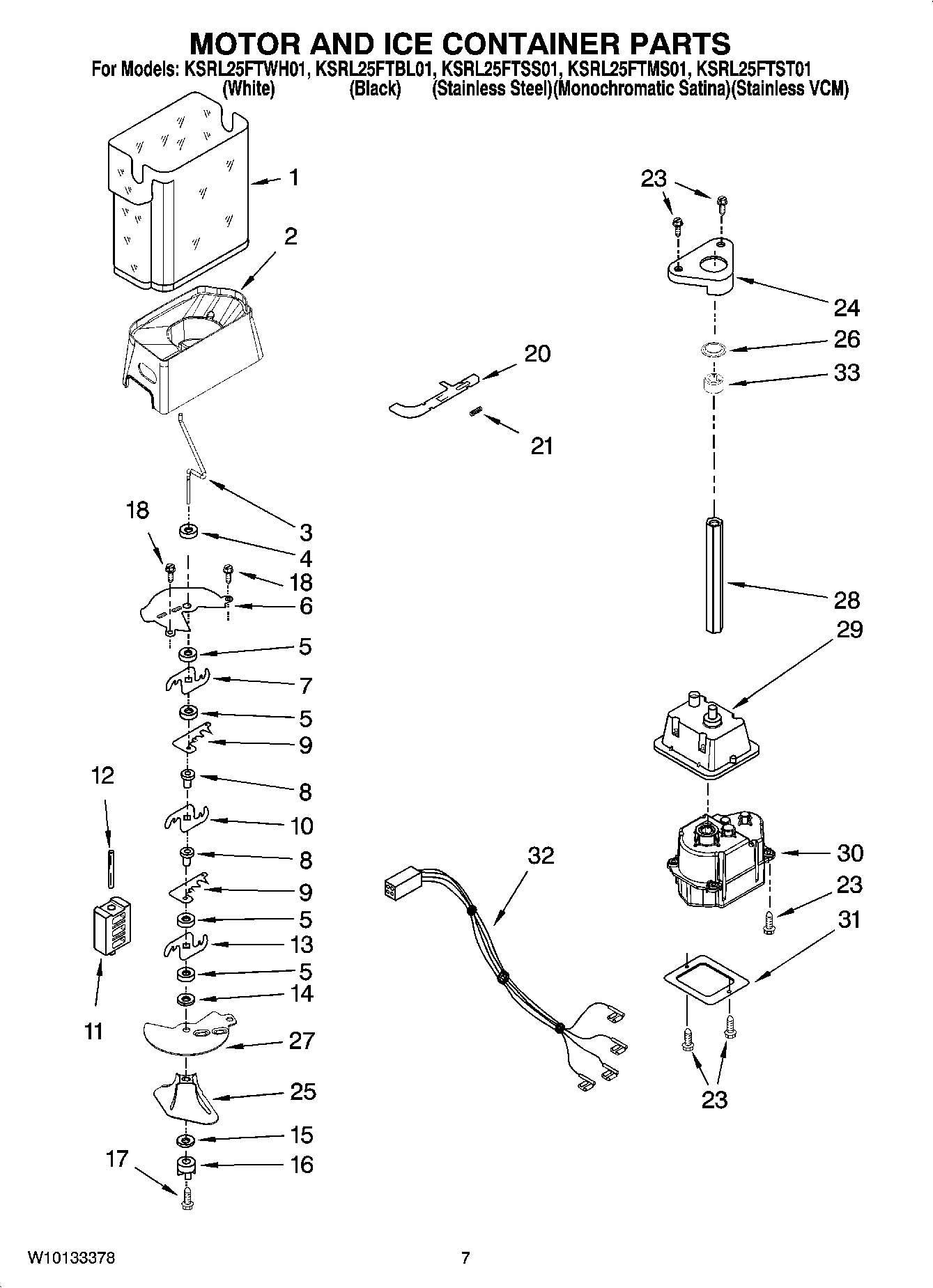

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

20

Latch, Bin WPL 2317272 Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $55.08

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Front Cover Assembly (Includes Items 19, 20, WPL 2318947B Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

24

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $4.52

25

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $30.25

25

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

27

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

27

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

29

Enclosure, Motor WPL 2256154 Contact Us For Availability

30

W10271509 Whirlpool Refrigerator Ice Maker Au In Stock WPL W10271509 $116.47

30

WP2260518AP Whirlpool Filter Cap Assembly In Stock WPL WP2260518AP $21.77

30

Window, Snack Pan WPL 2301006 Contact Us For Availability

31

Cover WPL 2212305 Contact Us For Availability

32

W10683539 Whirlpool Refrigerator Dispensing H Backorder WPL W10683539 $13.56

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

33

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $37.44

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

39

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

46

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

50

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $119.51

100

Ice Container (Complete) WPL 2317273 Contact Us For Availability
