Model Whirlpool KSRG27FKBL01 REFRIGERATOR – Common Parts & Diagrams

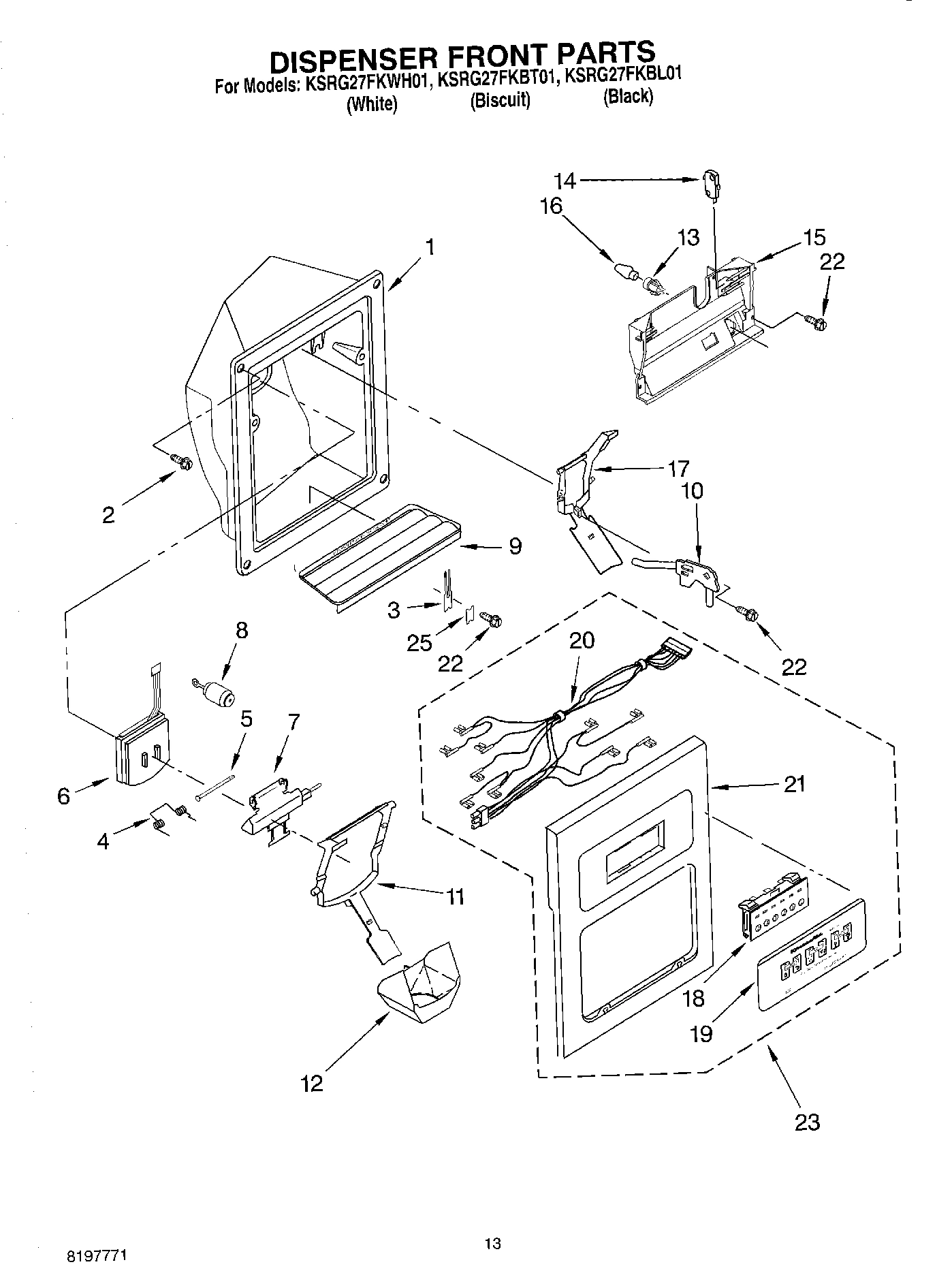

08 - DISPENSER FRONT

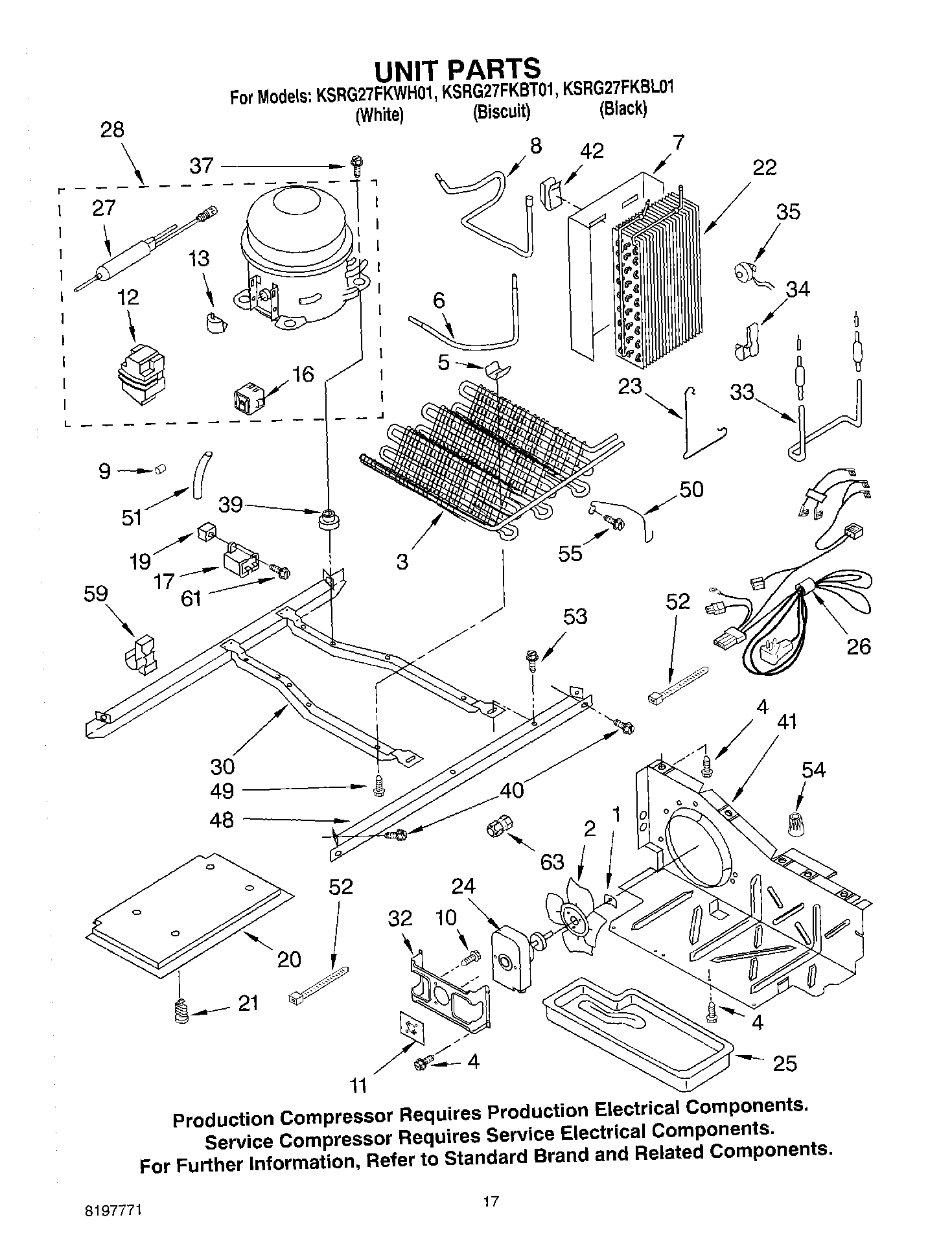

11 - UNIT
12 - ICEMAKER, OPTIONAL
06 - REFRIGERATOR DOOR
09 - AIR FLOW
10 - CONTROL
01 - CABINET, LITERATURE
03 - REFRIGERATOR SHELF
02 - REFRIGERATOR LINER
04 - FREEZER LINER
05 - MOTOR AND ICE CONTAINER
07 - FREEZER DOOR
Common parts from model Whirlpool KSRG27FKBL01 REFRIGERATOR
Icemaker WPL LIT787316 Contact Us For Availability
Refrigerator WPL LIT787808 Contact Us For Availability
1
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2216952 Contact Us For Availability
1
Literature Parts (Owner`s Manual) WPL LIT2219908 Contact Us For Availability
1
Literature Parts (Energy Guide) WPL LIT2219922 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 2195975 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI97641A4 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI97642A4 Contact Us For Availability
1
Ice Bin WPL 2198646 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2216570B Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2216570T Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2216570W Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
2
Crusher Bin WPL 2212368 Contact Us For Availability
2
Handle, Insert (White) WPL 2173825 Contact Us For Availability
2
Handle, Insert (Black) WPL 2173829 Contact Us For Availability
2
Insert, Handle (Biscuit) WPL 2186863T Contact Us For Availability
3
Shelf Bin (4) WPL 2171062 Contact Us For Availability
3
Shelf Bin (3) WPL 2171070 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
4
Blade, Stirring WPL 2198603 Contact Us For Availability
5
Dispenser Harness WPL 2206178 Contact Us For Availability
5
Shelf, Slide Out Upper WPL 2211746 Contact Us For Availability
6
Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability
6
Glass, Cover WPL 2174148 Contact Us For Availability
6
Basket, Tall WPL 2181765 Contact Us For Availability
6
Cover, Crusher WPL 2198591 Contact Us For Availability
7
Track, Basket-Dual (Right Side) WPL 2216106 Contact Us For Availability
7
Track, Basket-Dual (Left Side) WPL 2216107 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Shelf Ladder WPL 2206273 Contact Us For Availability
9
Blade, Fixed WPL 2198601 Contact Us For Availability
10
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Retainer, Insert (Black) WPL 2194777B Contact Us For Availability
11
Retainer, Insert (Biscuit) WPL 2194777T Contact Us For Availability
11
Retainer, Insert (White) WPL 2194777W Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Shelf Track (Left Side) WPL 2181759 Contact Us For Availability
13
Shelf Track (Right Side) WPL 2181760 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
14
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
14
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
14
Roller WPL 2188212 Contact Us For Availability
14
Shelf WPL 2205837 Contact Us For Availability
14
Bracket, Door Stop WPL 2206630 Contact Us For Availability
15
Grille (Biscuit) WPL 2186881T Contact Us For Availability
15
Basket, Sloped WPL 2181764 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Tube, Extension WPL 2172932 Contact Us For Availability
20
Latch, Bin WPL 2212371 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
21
Light Lens WPL 2206269 Contact Us For Availability
22
Cabinet (Not A Serviceable Part) WPL ARI97640A1 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
22
Screw WPL 488280 Contact Us For Availability
23
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
23
Clip WPL 2161324 Contact Us For Availability
23
Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability
23
End Cap (Black) WPL 2194778B Contact Us For Availability
23
End Cap (Biscuit) WPL 2194778T Contact Us For Availability
23
End Cap (White) WPL 2194778W Contact Us For Availability
24
Holder WPL 2212369 Contact Us For Availability
24
Shelf & Roller Assembly WPL 2216102 Contact Us For Availability
28
Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability
28
Pin WPL 2198666 Contact Us For Availability
31
P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability
31
Tube, P.C. Board WPL 2198665 Contact Us For Availability
31
Bracket, Motor WPL 2198655 Contact Us For Availability
32
Dispenser, Motor WPL 2198594 Contact Us For Availability
33
Cover WPL 2198626 Contact Us For Availability
34
Shelf, Snack Pan WPL 2206346 Contact Us For Availability
34
Screw WPL 8281162 Contact Us For Availability
36
Cover, Receiver WPL 2198588 Contact Us For Availability
40
WPL 80051 WPL 80051 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
Torx Key WPL 1117510 Contact Us For Availability
40
Light Shield WPL 2198589 Contact Us For Availability
41
Light Lens WPL 2212340 Contact Us For Availability
45
Ladder (Left Side) WPL 2198609 Contact Us For Availability
45
Ladder (Right Side) WPL 2198610 Contact Us For Availability
46
Shield, Wiring WPL 2219878 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
