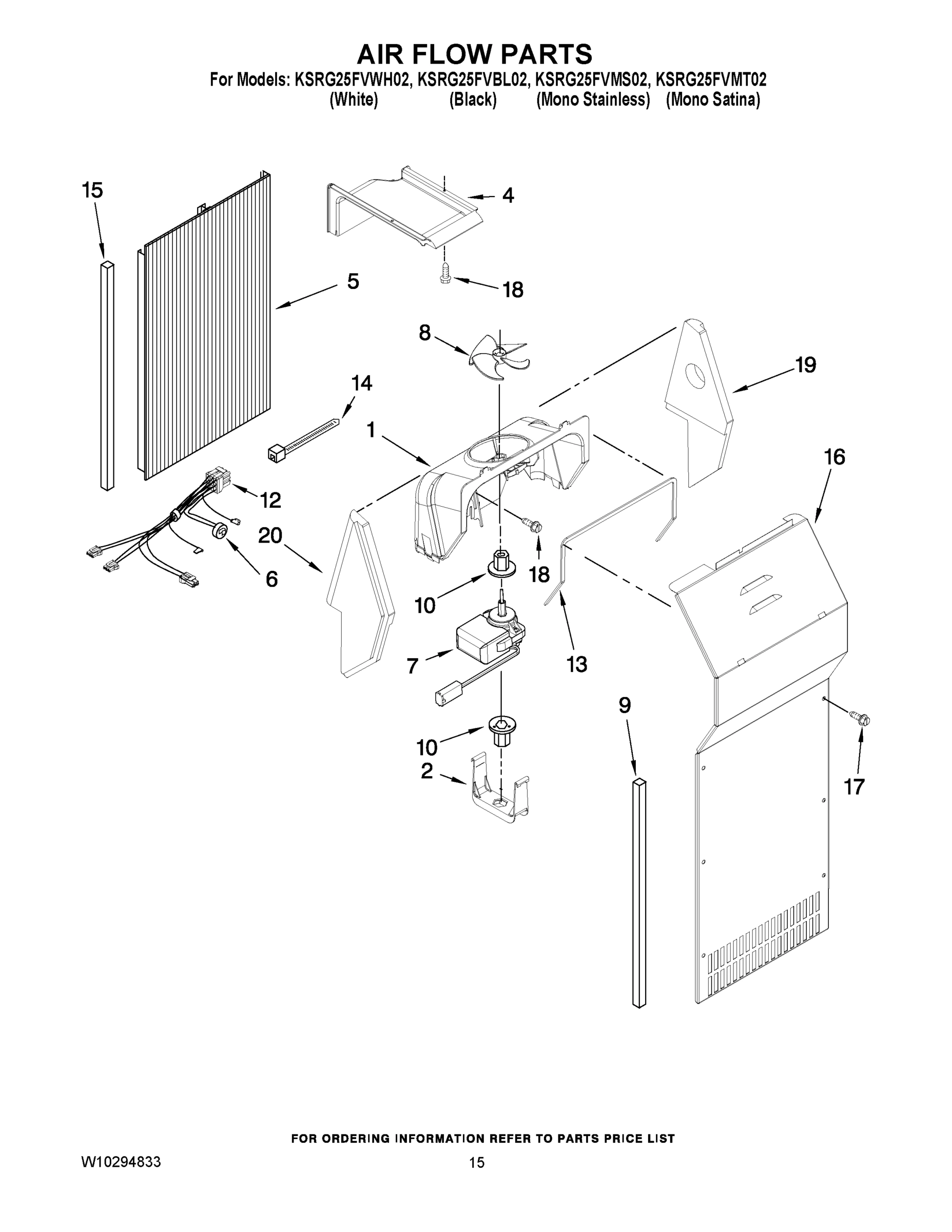

Model Whirlpool KSRG25FVMT02 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $138.23

1

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

1

Frame Assembly, Slide Out (2) WPL 2195975 Contact Us For Availability

1

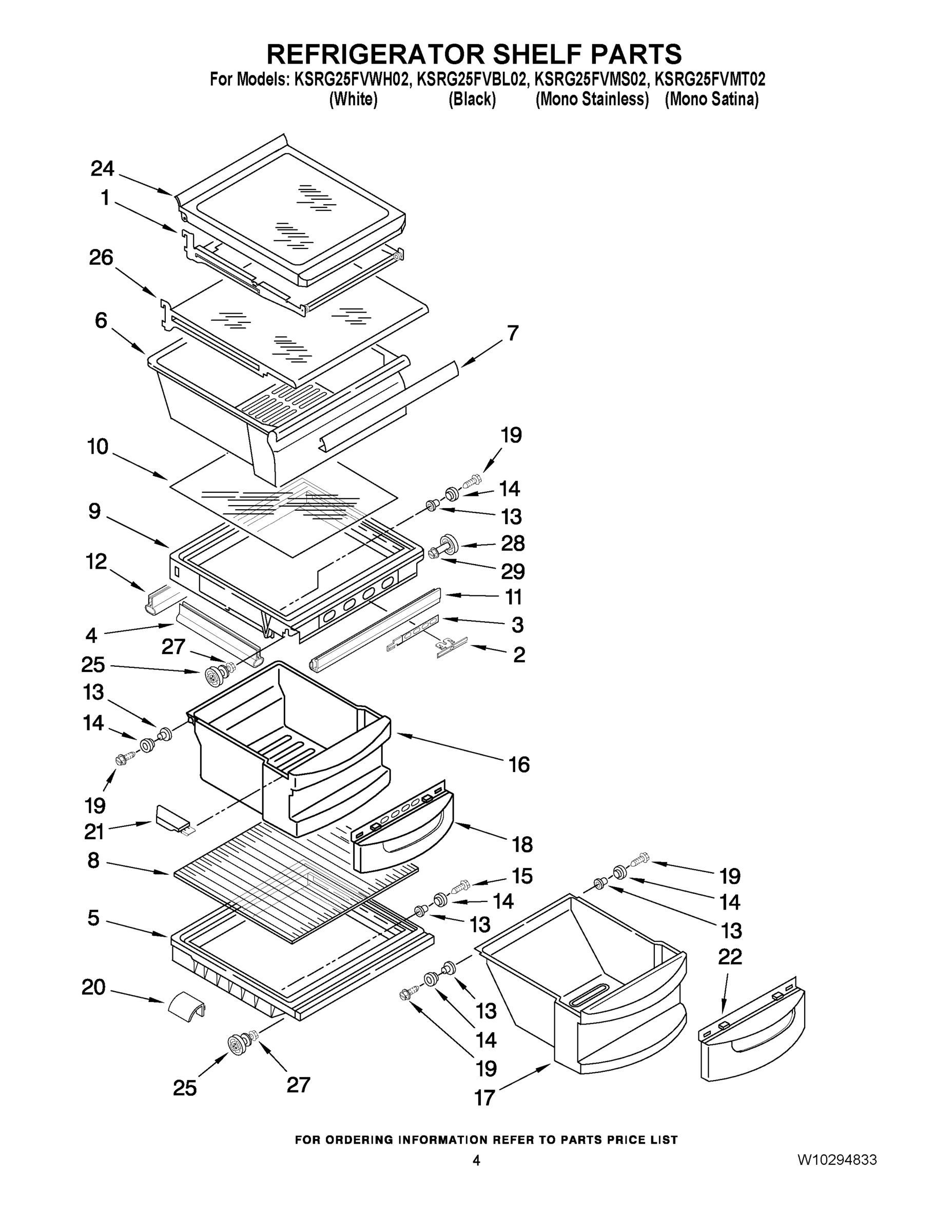

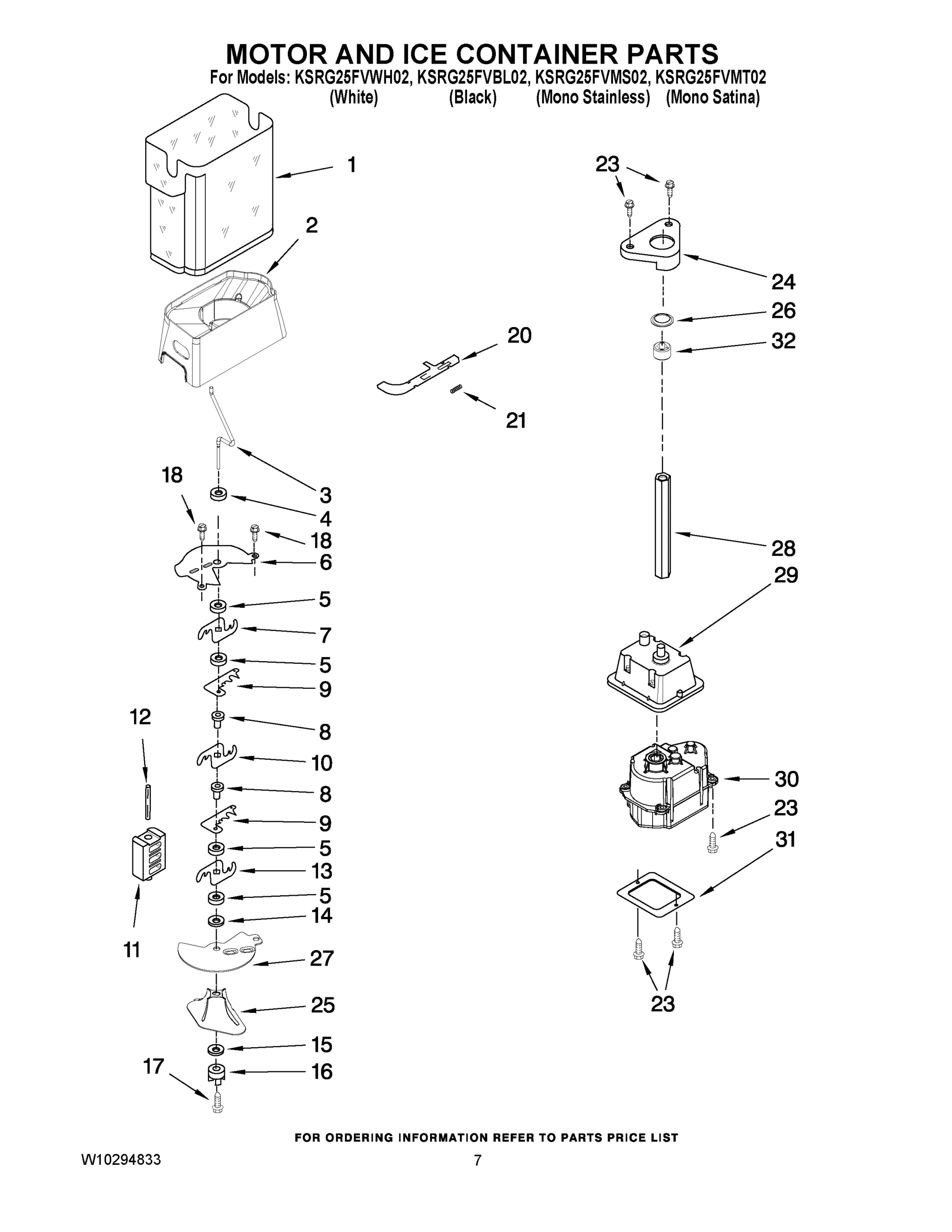

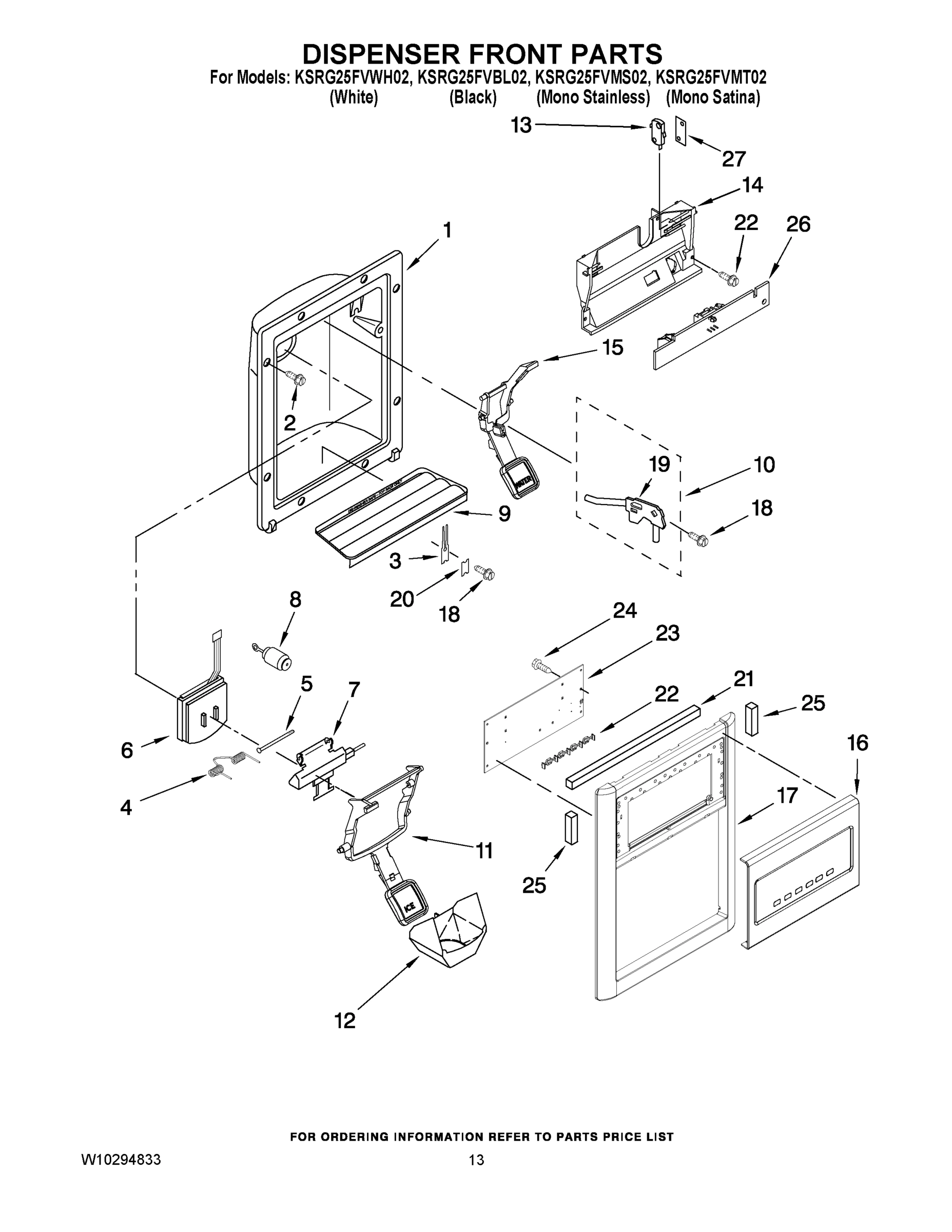

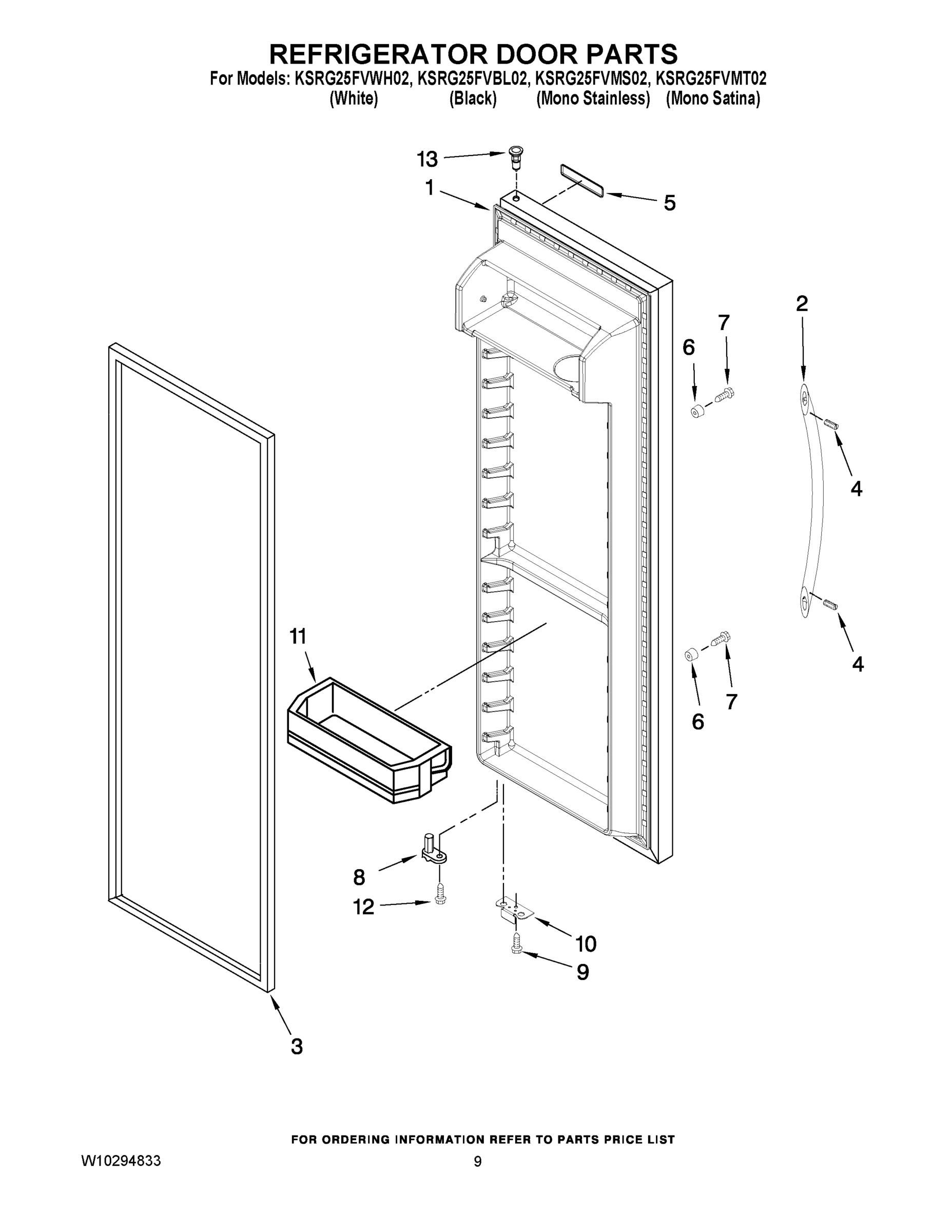

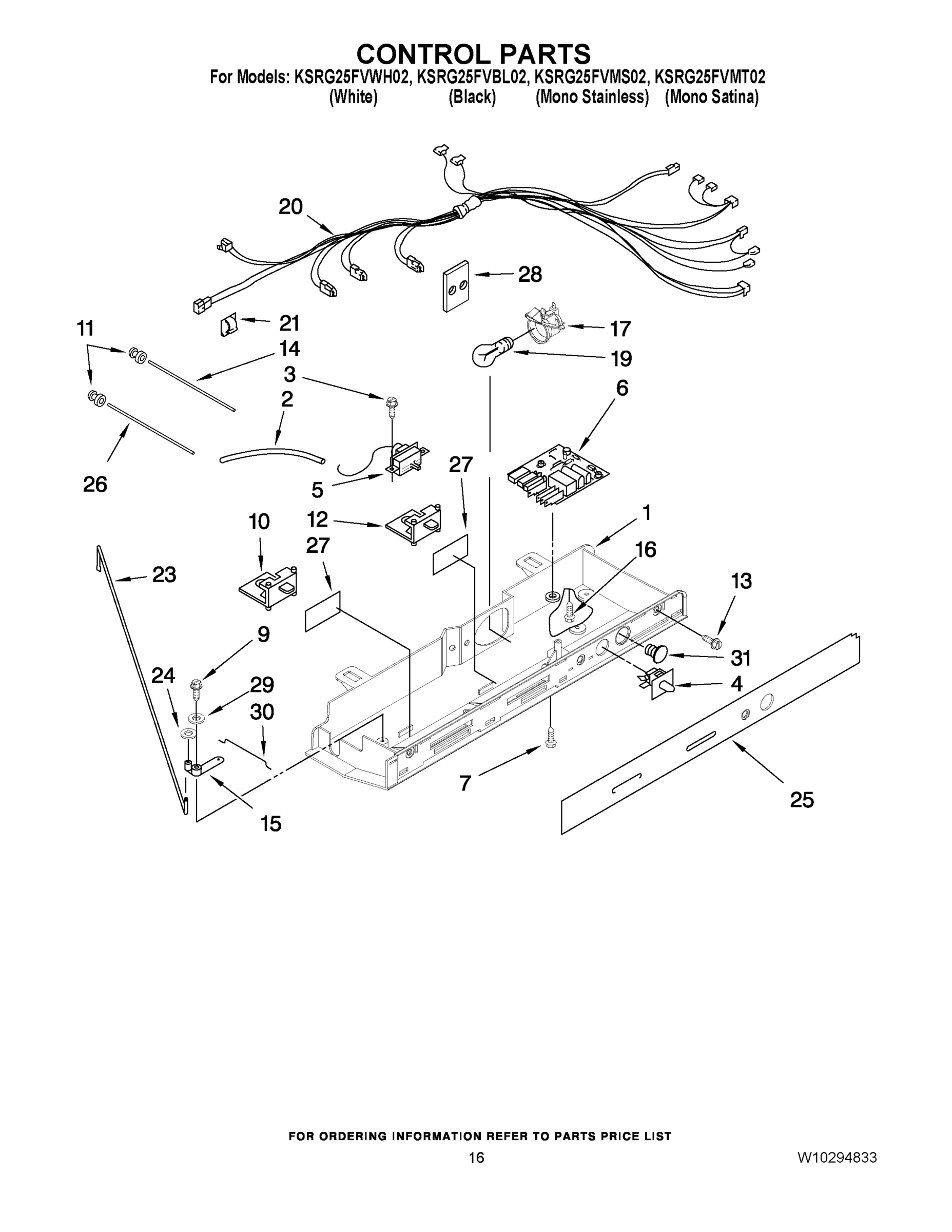

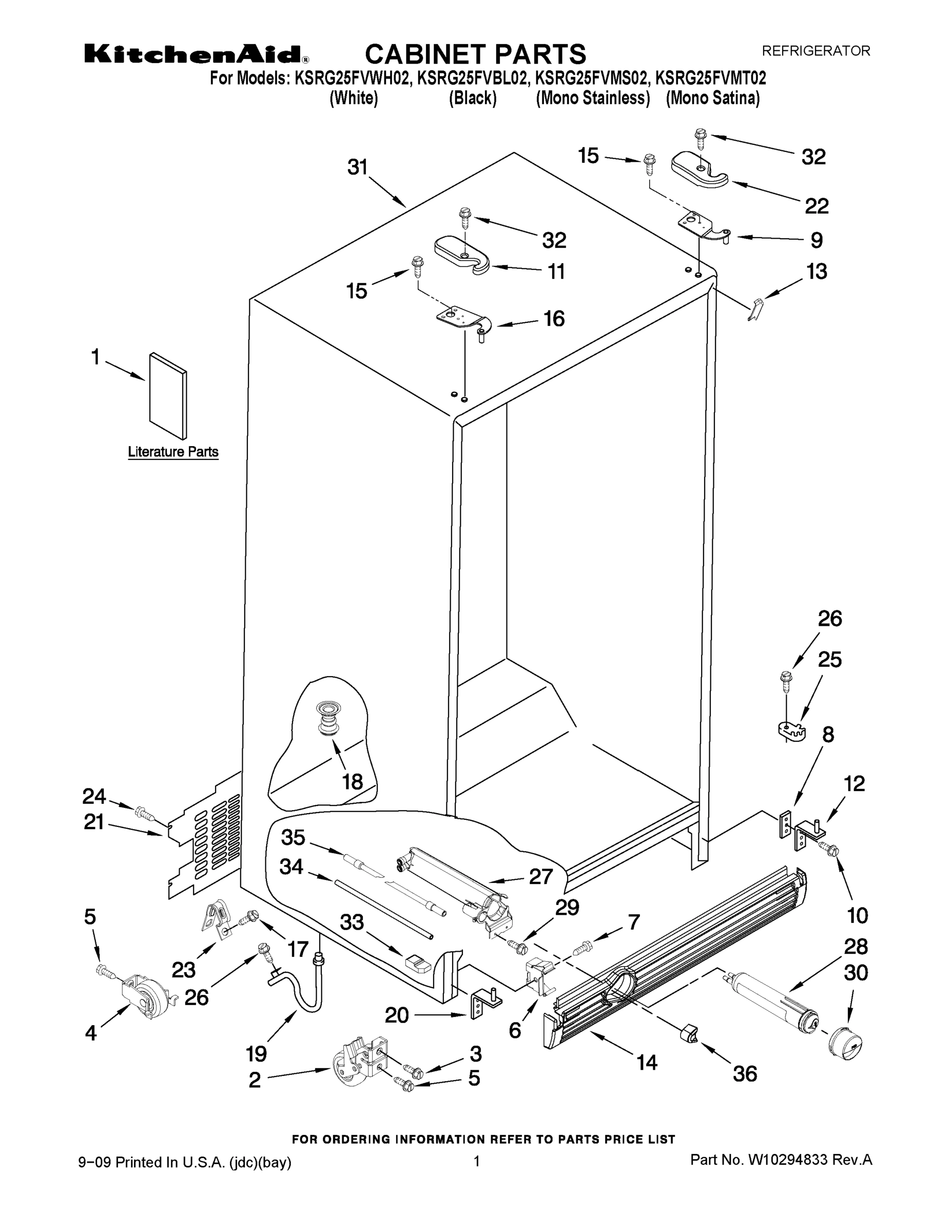

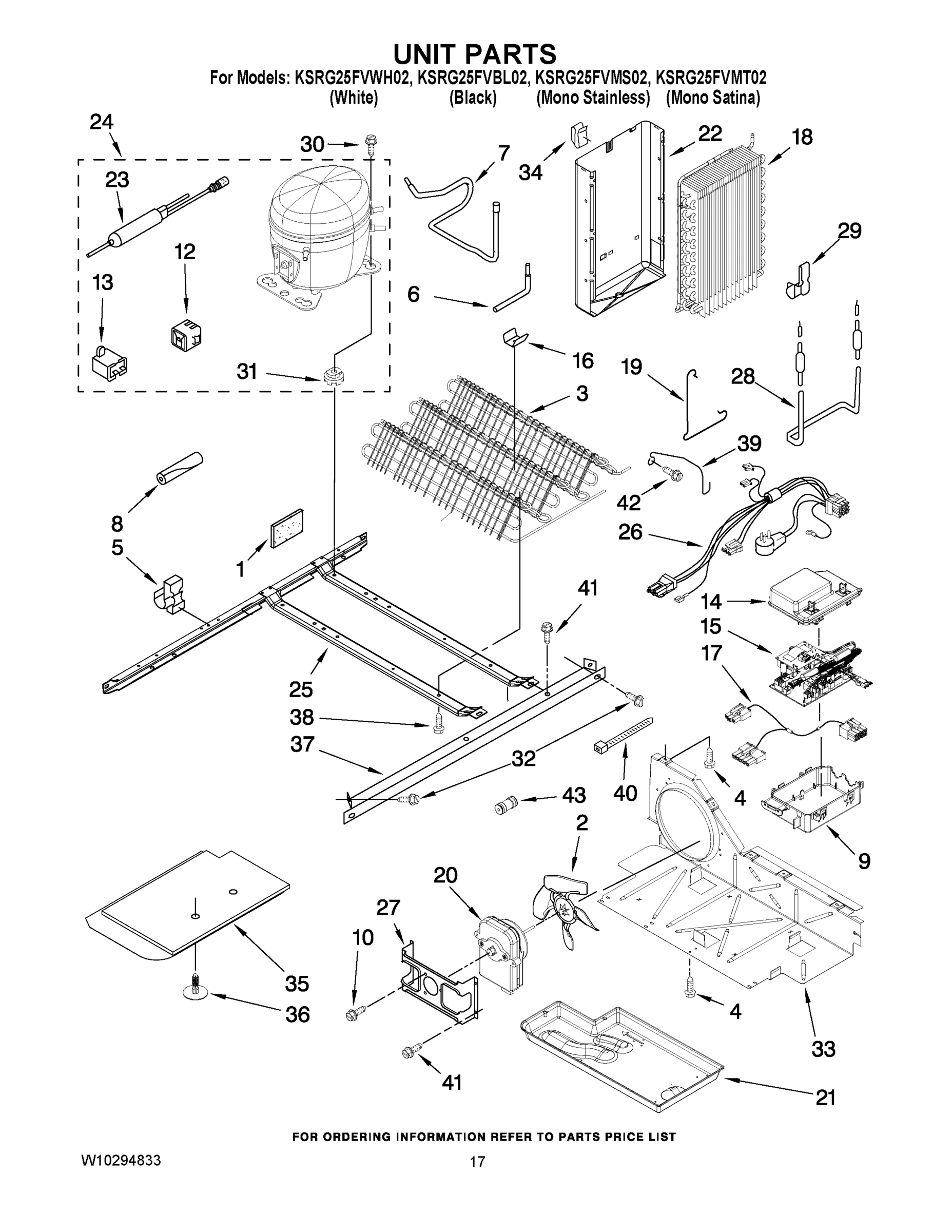

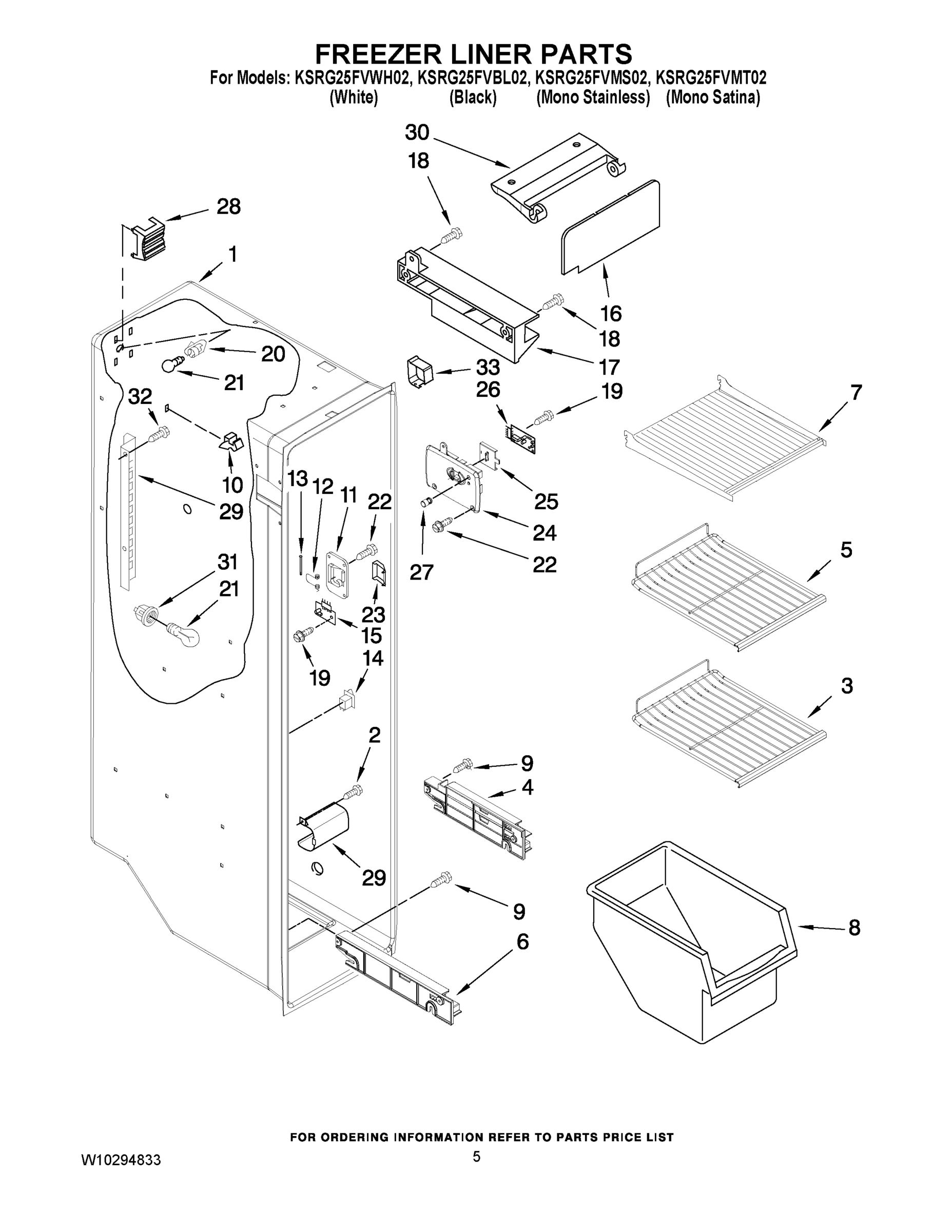

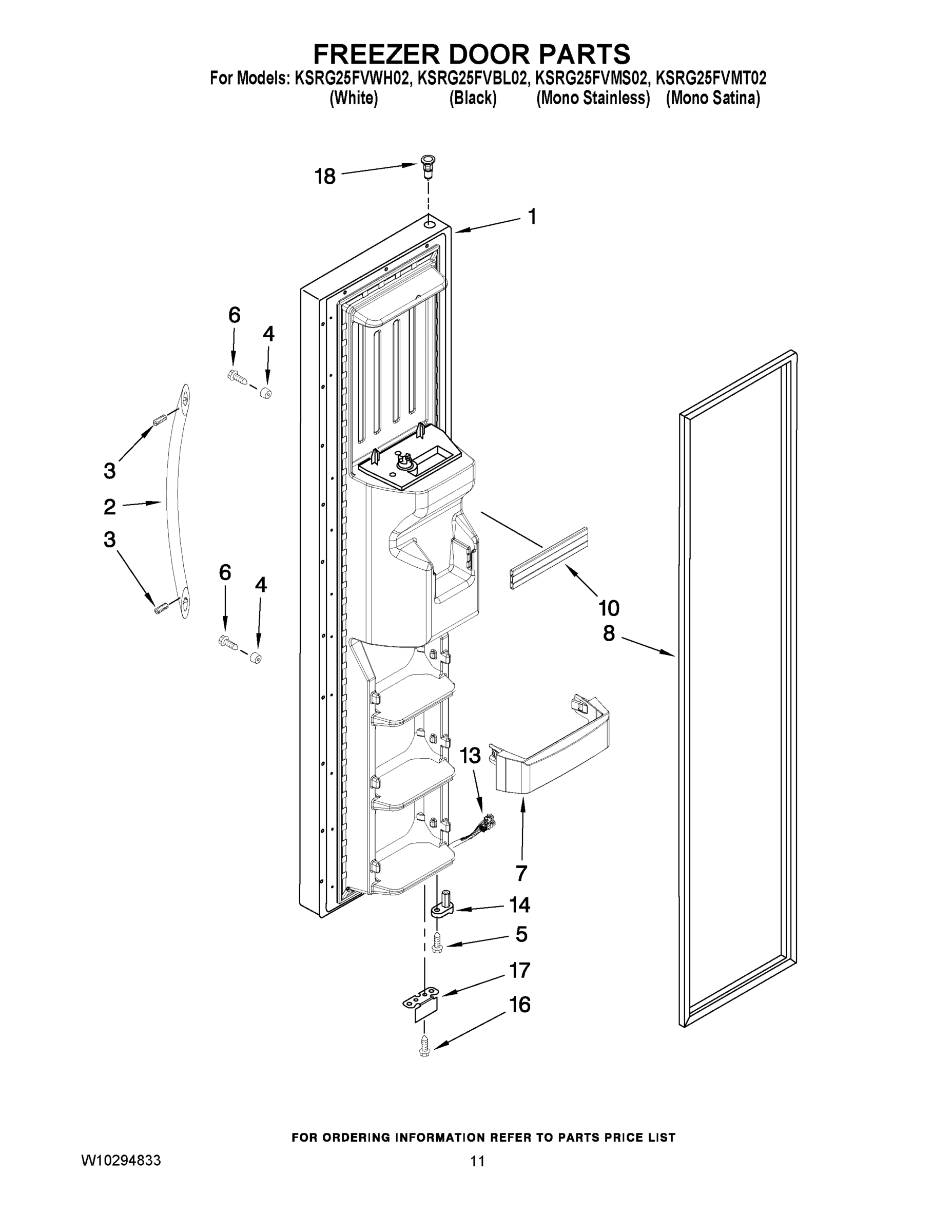

FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRO WPL W10214271B Contact Us For Availability

1

FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRO WPL W10214271LG Contact Us For Availability

1

FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRO WPL W10214271W Contact Us For Availability

1

FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRO WPL W10257794 Contact Us For Availability

2

W11700295 Whirlpool Refrigerator Retainer Backorder WPL W11700295 $9.24

2

WPW10130497 Whirlpool Refrigerator Crush Bin Backorder WPL WPW10130497 $90.66

2

Handle (Stainless) WPL 2319727S Contact Us For Availability

2

Handle (Black) WPL 2319727B Contact Us For Availability

2

Button, Humidity WPL 2319720 Contact Us For Availability

2

Handle (White) WPL 2319727W Contact Us For Availability

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.15

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $61.42

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Tube, Water WPL 2303216 Contact Us For Availability

4

W11366418 Whirlpool Screw In Stock WPL W11366418 $10.41

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $33.21

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $171.59

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $57.79

5

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

5

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

5

Nameplate (Stainless) WPL W10046610 Contact Us For Availability

6

W10141596 Whirlpool Screw Assembly Backorder WPL W10141596 $5.65

6

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.03

6

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $5.40

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

6

Track, Basket (Right Side) WPL 2301289 Contact Us For Availability

6

Track, Basket (Left Side) WPL 2301290 Contact Us For Availability

6

Cover, Crusher WPL 2317248 Contact Us For Availability

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

7

WPW10236142 Whirlpool Refrigerator Evaporator In Stock WPL WPW10236142 $138.30

7

Shelf Bin (3) WPL 2171070K Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $148.70

8

W10136735 Whirlpool Refrigerator Door Gasket In Stock WPL W10136735 $124.28

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

8

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $75.48

8

Glass, Cover WPL 2255144 Contact Us For Availability

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $21.01

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL W10160318 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2319866 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $39.71

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WPW10272168 Whirlpool Refrigerator Water Fill Backorder WPL WPW10272168 $32.15

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

BRACKET, DOOR STOP (CHROME) WPL W10185570 Contact Us For Availability

Bracket, Door Stop (Black) WPL W10185571 Contact Us For Availability

Glass, Cover WPL 2255143 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $52.25

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $36.65

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $26.52

Door Bin (4) WPL W10169669 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $31.29

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $68.49

WPW10272161 Whirlpool Refrigerator Stripper A Backorder WPL WPW10272161 $31.09

GASKET (REAR) WPL 2223362 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.63

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WPW10193328 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10193328 $58.46

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

Light Bar (RC) WPL 2179920 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP489497 Whirlpool Screw In Stock WPL WP489497 $5.40

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $34.13

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $5.38

ELEC CONTROL WPL W10259855 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W11629923 Whirlpool Coupling In Stock WPL W11629923 $13.54

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

CRISPER PAN (INCLUDES 13, 14,18,19 & 21) WPL W10142714 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2323534 Whirlpool Refrigerator Bracket Backorder WPL 2323534 $59.21

W10136850 Whirlpool Refrigerator Front Cover Backorder WPL W10136850 $75.95

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Bezel, Disp (Stainless) WPL W10139842 Contact Us For Availability

MEAT PAN (INCLUDES 13, 14,19 & 22) WPL W10149982 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

W11566763 Whirlpool Fitting In Stock WPL W11566763 $20.64

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Window, Crisper WPL 2174076 Contact Us For Availability

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.85

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $30.25

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

Latch, Bin WPL 2317277 Contact Us For Availability

21

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

21

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $38.12

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

Window, Meat Pan WPL 2174362 Contact Us For Availability

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.65

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Control Board WPL 2321704 Contact Us For Availability

24

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $4.52

24

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $173.34

24

Cover, Receiver WPL W10173569 Contact Us For Availability

25

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

25

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $30.25

25

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

26

Shelf, Snack Pan WPL W10141750 Contact Us For Availability

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

Spacer, Switch WPL 625834 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

W11527119 Whirlpool Refrigerator Shelf Stud Backorder WPL W11527119 $4.12

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

29

Enclosure, Motor WPL 2322488 Contact Us For Availability

29

Screw WPL W10191952 Contact Us For Availability

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

W10822606 Whirlpool Refrigerator Dispenser Mo In Stock WPL W10822606 $101.65

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $28.57

31

Cover WPL 2212305 Contact Us For Availability

32

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $37.44

32

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

33

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

36

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

36

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

36

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

38

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

39

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.39

42

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

100

W11512149 Whirlpool Ice Maker Assembly In Stock WPL W11512149 $78.53

100

Ice Container (Complete) WPL 2317273 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Previous Architect Series Handle Kit (Stainle WPL 8201806 Contact Us For Availability
