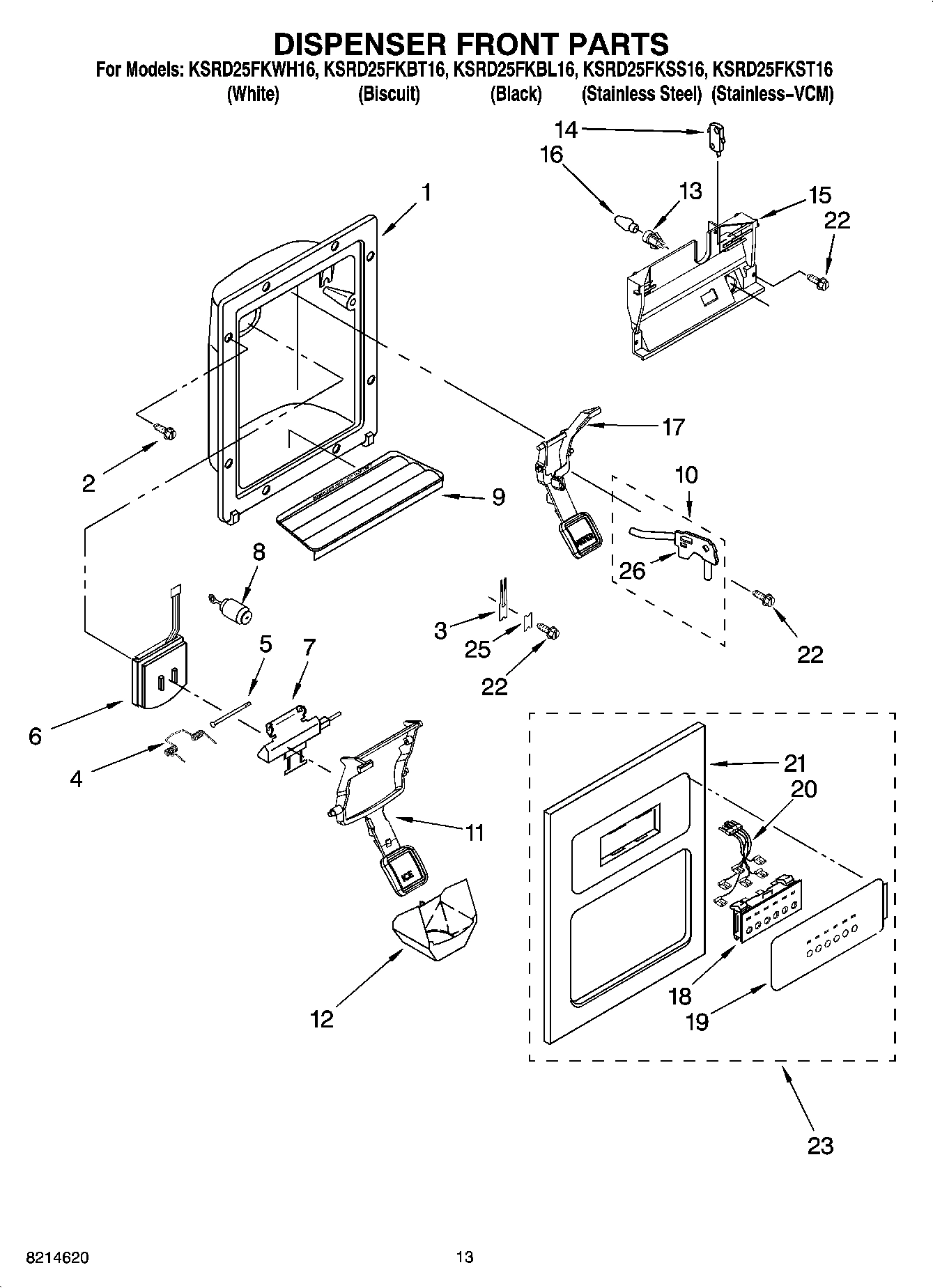

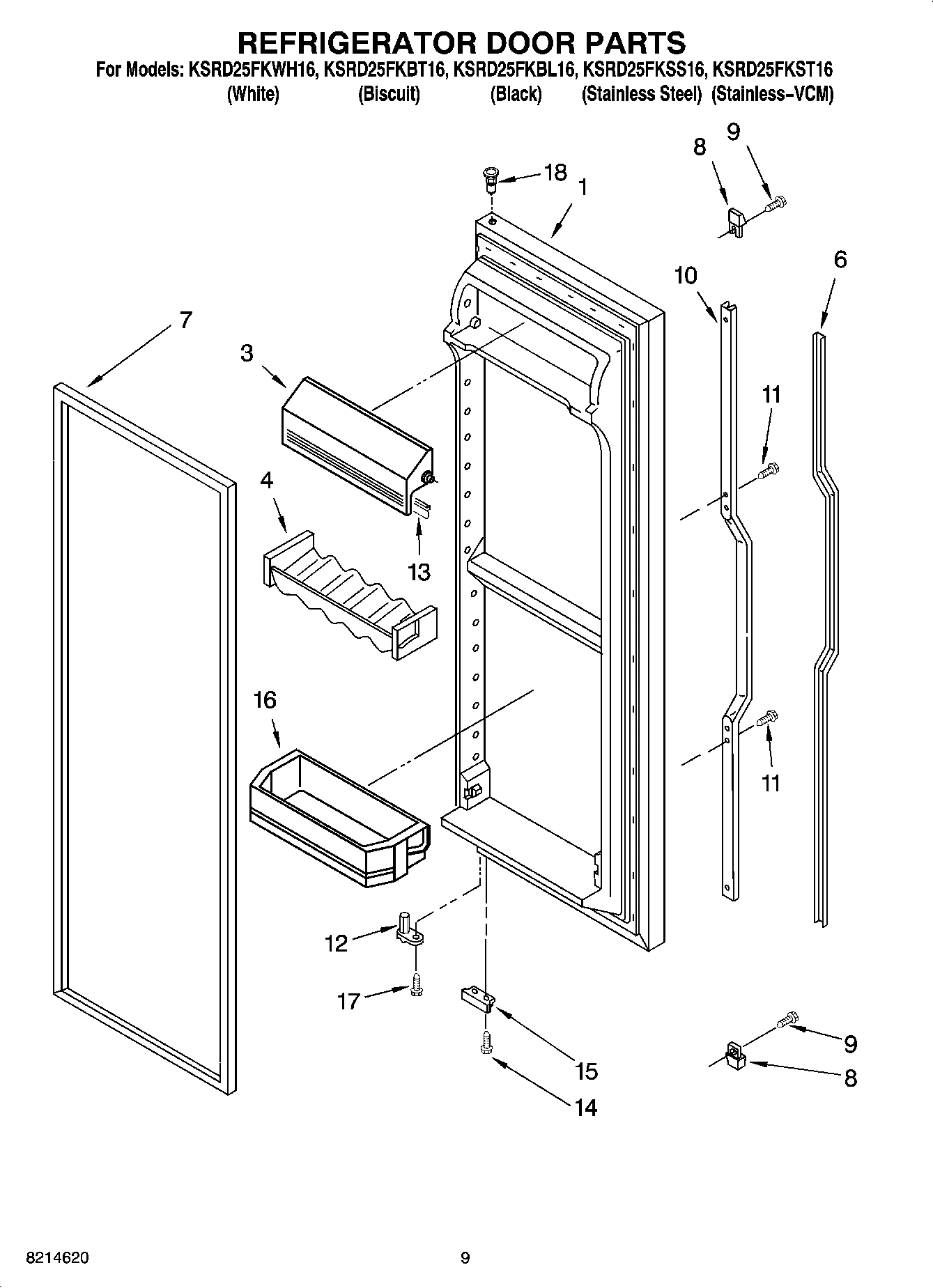

Model Whirlpool KSRD25FKST16 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPW10312300 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312300 $219.89

KIT, FOAM SLAB (30`` WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL ARI96005A9 WPL ARI96005A9 Contact Us For Availability

WPL ARI96006A5 WPL ARI96006A5 Contact Us For Availability

WPL ARI96007A1 WPL ARI96007A1 Contact Us For Availability

WPL ARI96008A6 WPL ARI96008A6 Contact Us For Availability

WPL ARI96009A9 WPL ARI96009A9 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2216263B Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2216263L Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2216263S Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2216263T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2216263W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

Retainer, Insert (Black) WPL 2194777B Contact Us For Availability

2

Retainer, Insert (Biscuit) WPL 2194777T Contact Us For Availability

2

Retainer, Insert (White) WPL 2194777W Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

End Cap (2) (Black) WPL 2194778B Contact Us For Availability

3

End Cap (2) (Biscuit) WPL 2194778T Contact Us For Availability

3

End Cap (2) (White) WPL 2194778W Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

6

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

Shelf Bin (4) WPL 2171070K Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

8

2159082 Whirlpool Freezer Door Gasket Black In Stock WPL 2159082 $147.90

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Cover, Meat Pan WPL 2217039 Contact Us For Availability

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $36.29

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

Frame, Shelf WPL 2195975 Contact Us For Availability

9

Insert, Handle (White) WPL 2173825 Contact Us For Availability

9

Insert, Handle (Black) WPL 2173829 Contact Us For Availability

9

Insert, Handle (Biscuit) WPL 2186863T Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $37.83

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $125.38

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $51.73

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $70.03

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

Grommet WPL 2176134 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

WP2188664 Whirlpool Dishwasher Meat Crisper P In Stock WPL WP2188664 $45.77

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $46.04

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

Wire Harness WPL 2200400 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Light Bar (RC) WPL 2179920 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

W10920279 Whirlpool Refrigerator Start Relay In Stock WPL W10920279 $40.48

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

Shelf, Snack Bin WPL 2206346 Contact Us For Availability

8201786 Whirlpool Relay and Overload Start Ki In Stock WPL 8201786 $38.92

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Shelf Bin (4) WPL 2171063K Contact Us For Availability

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

W11497323 Whirlpool Snack Pan In Stock WPL W11497323 $109.31

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $47.93

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Thimble-Top (For Stainless Steel Only) WPL 2301049 Contact Us For Availability

19

2223314 Whirlpool Refrigerator Clip Backorder WPL 2223314 $8.31

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

20

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

22

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

22

Grille (Biscuit) WPL 2198468T Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Front Cover Assembly (Includes Items 18, 19, WPL 2220096B Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

24

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

24

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $61.57

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Heat Shield WPL 2304289 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Stud, Rear WPL 2196207 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $298.57

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $105.40

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

Unit, Harness (Includes Power Cord) WPL 2187510 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

50

Guard, Fan WPL 2186495 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI96002A9 Contact Us For Availability

a WPL ARI96003A5 Contact Us For Availability

WPL ARI96004A2 WPL ARI96004A2 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
