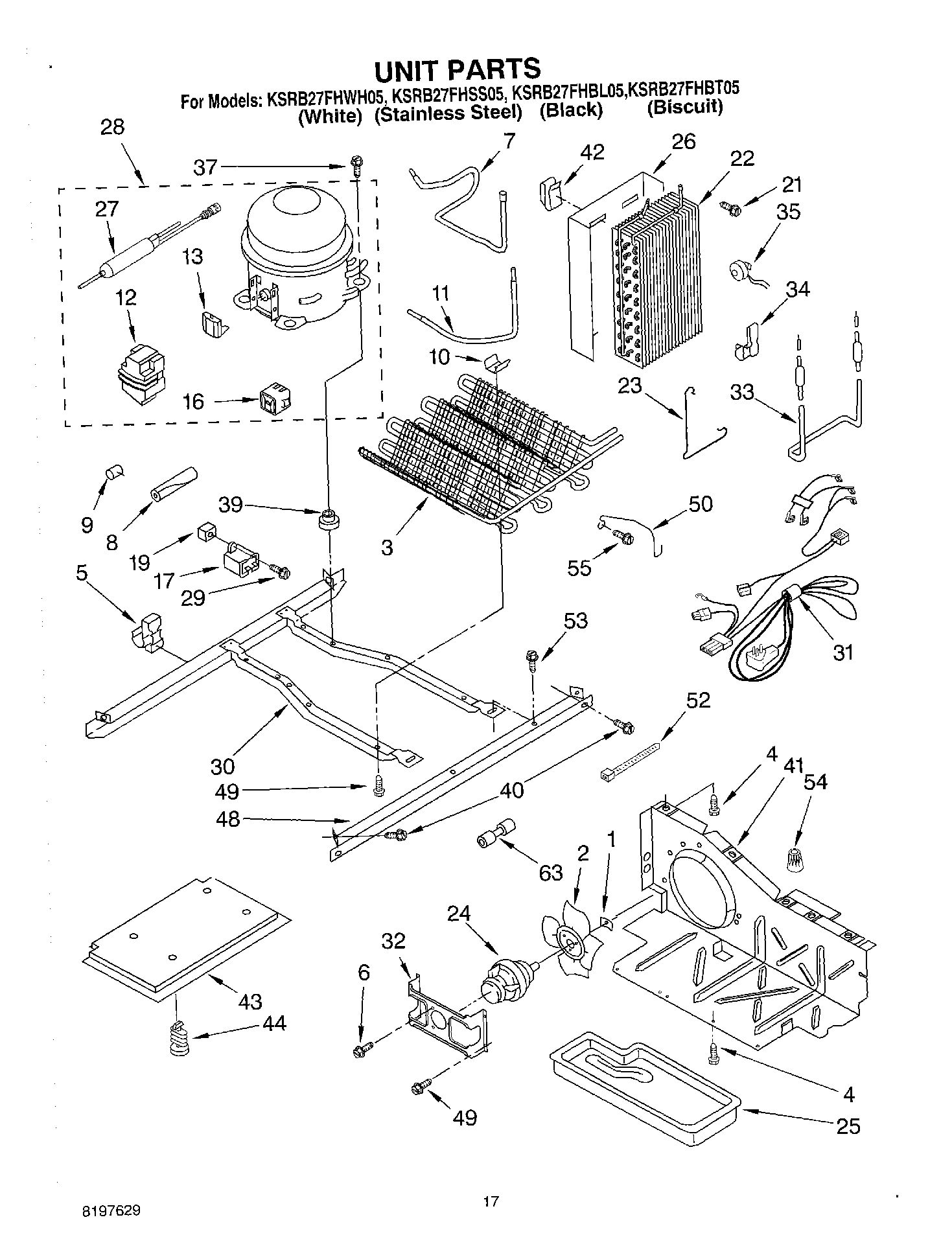

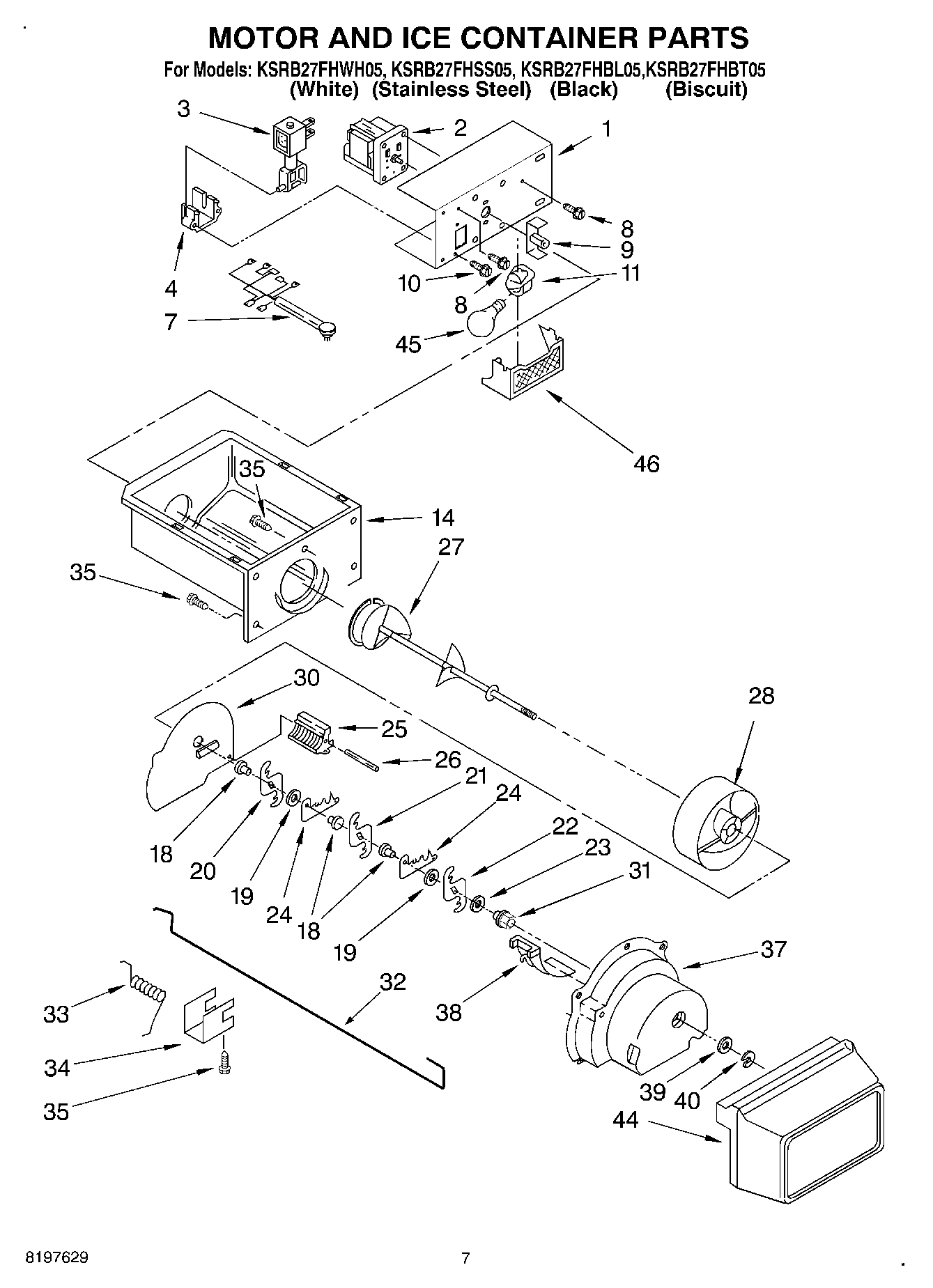

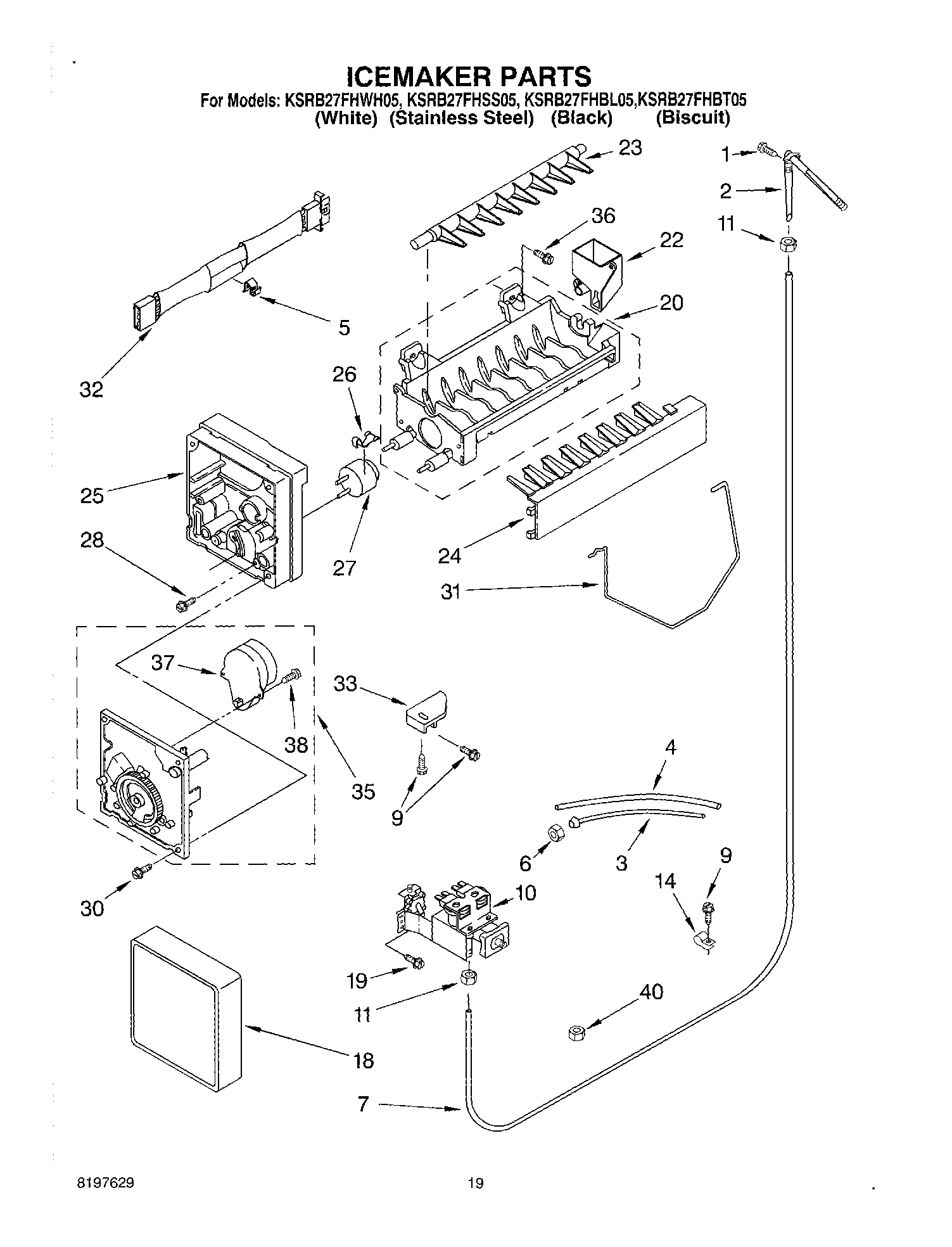

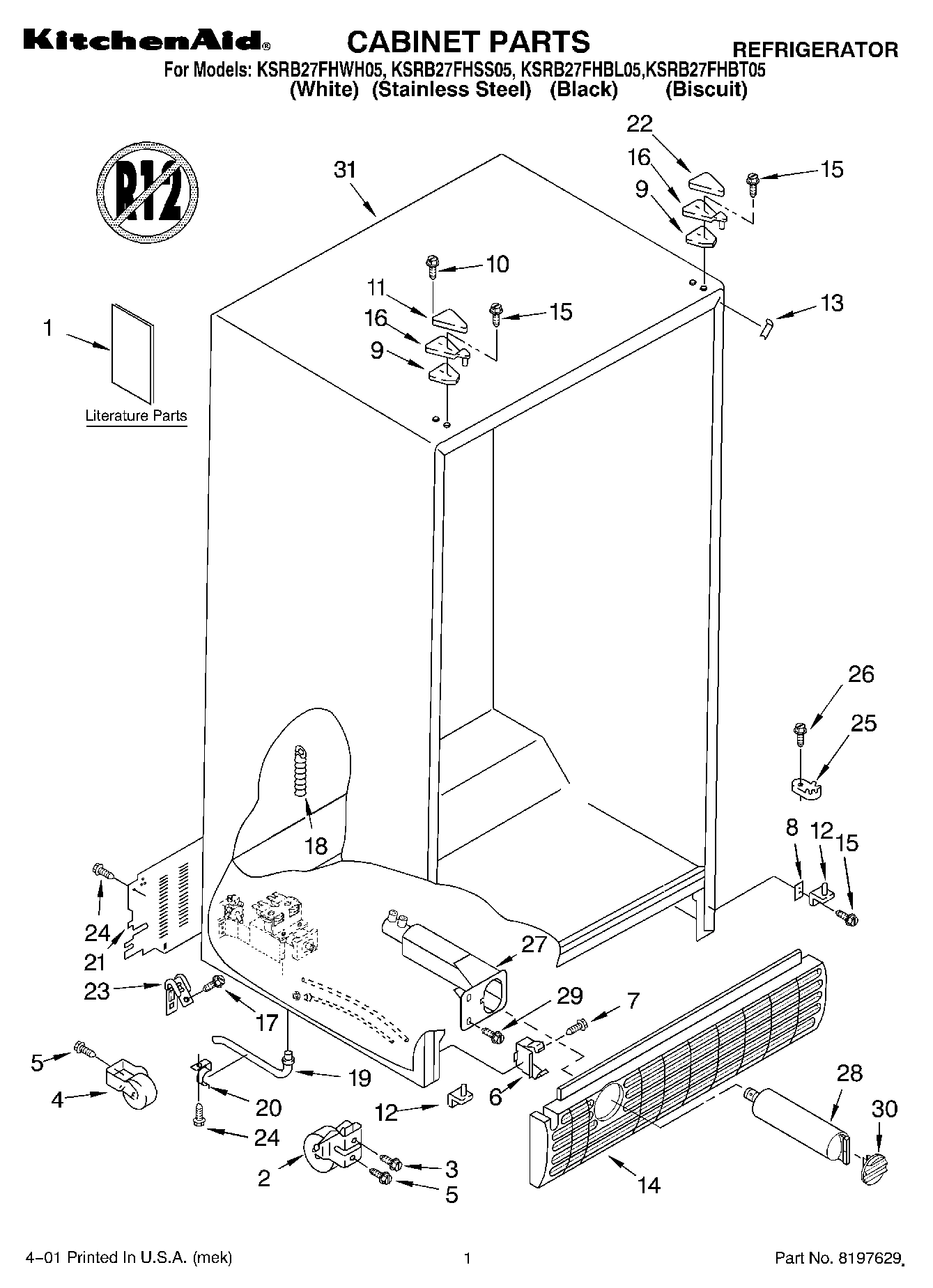

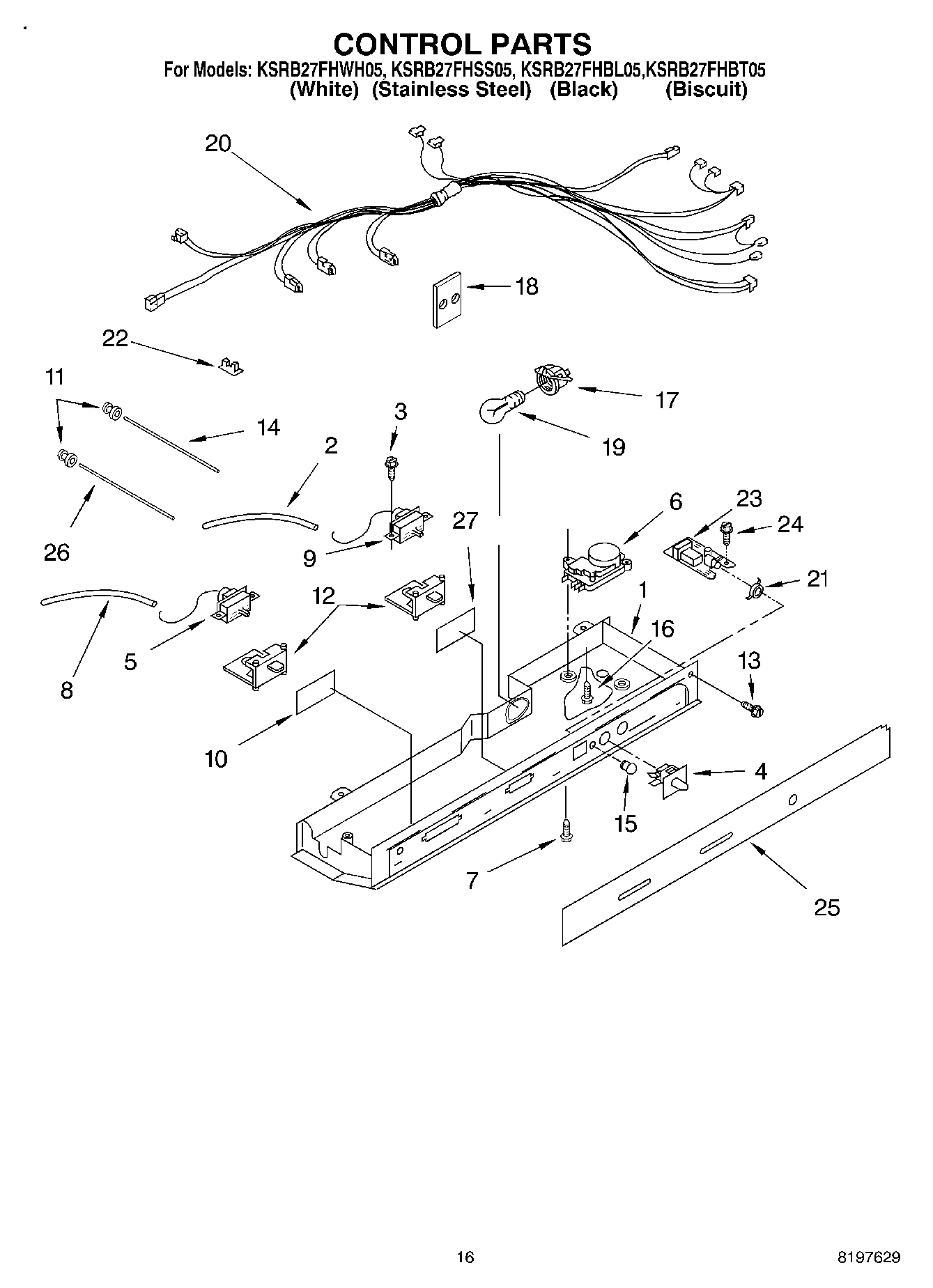

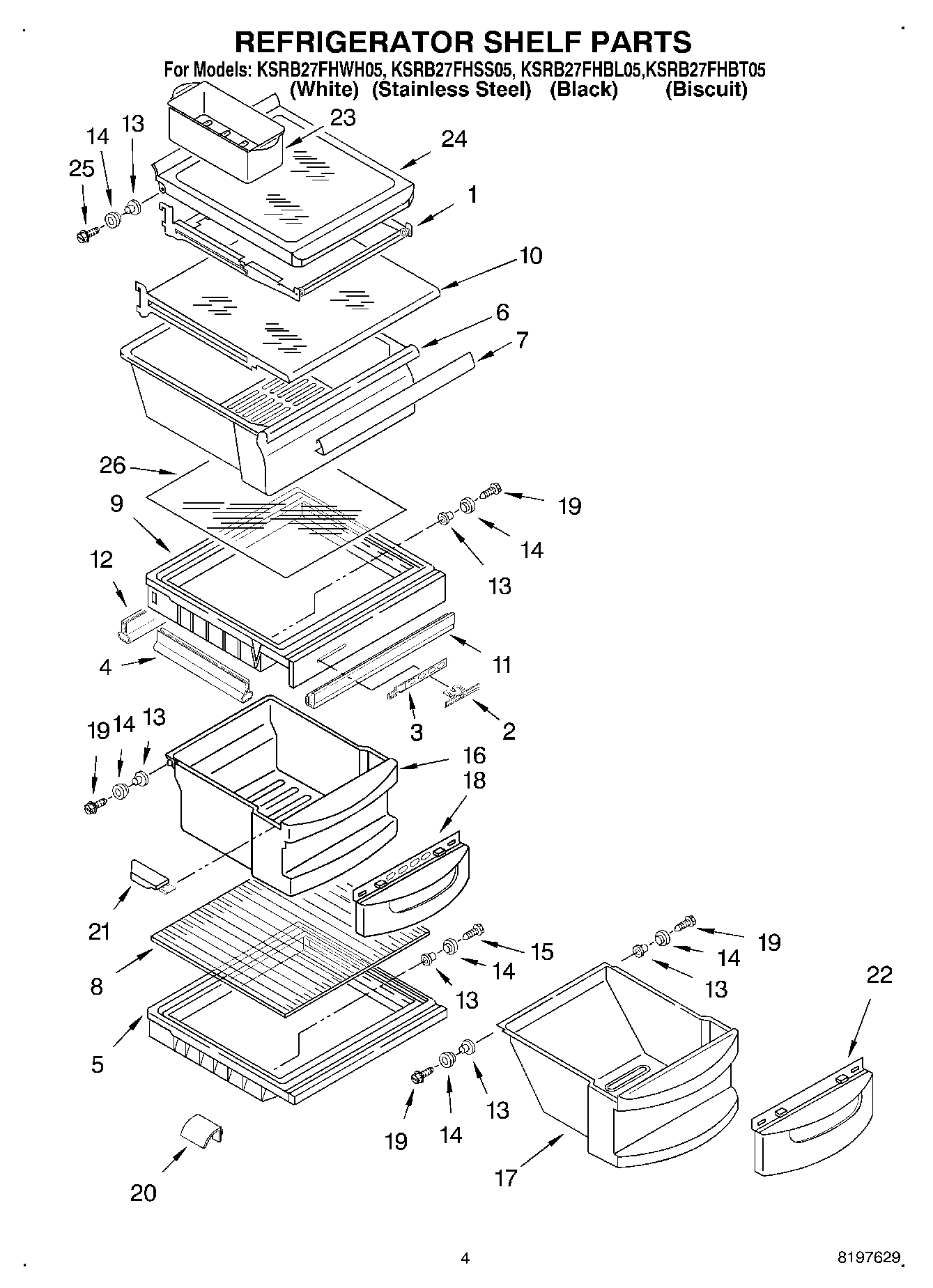

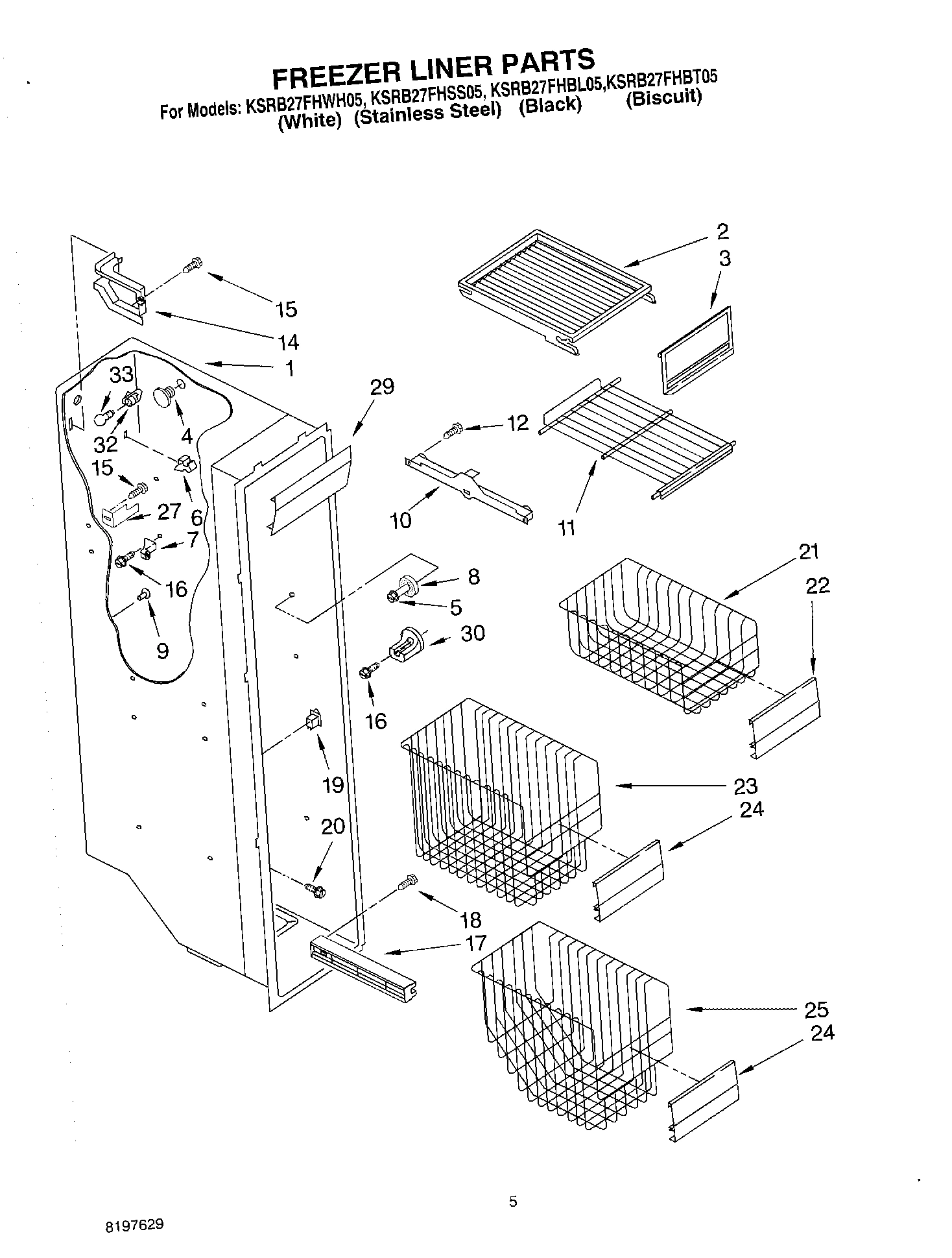

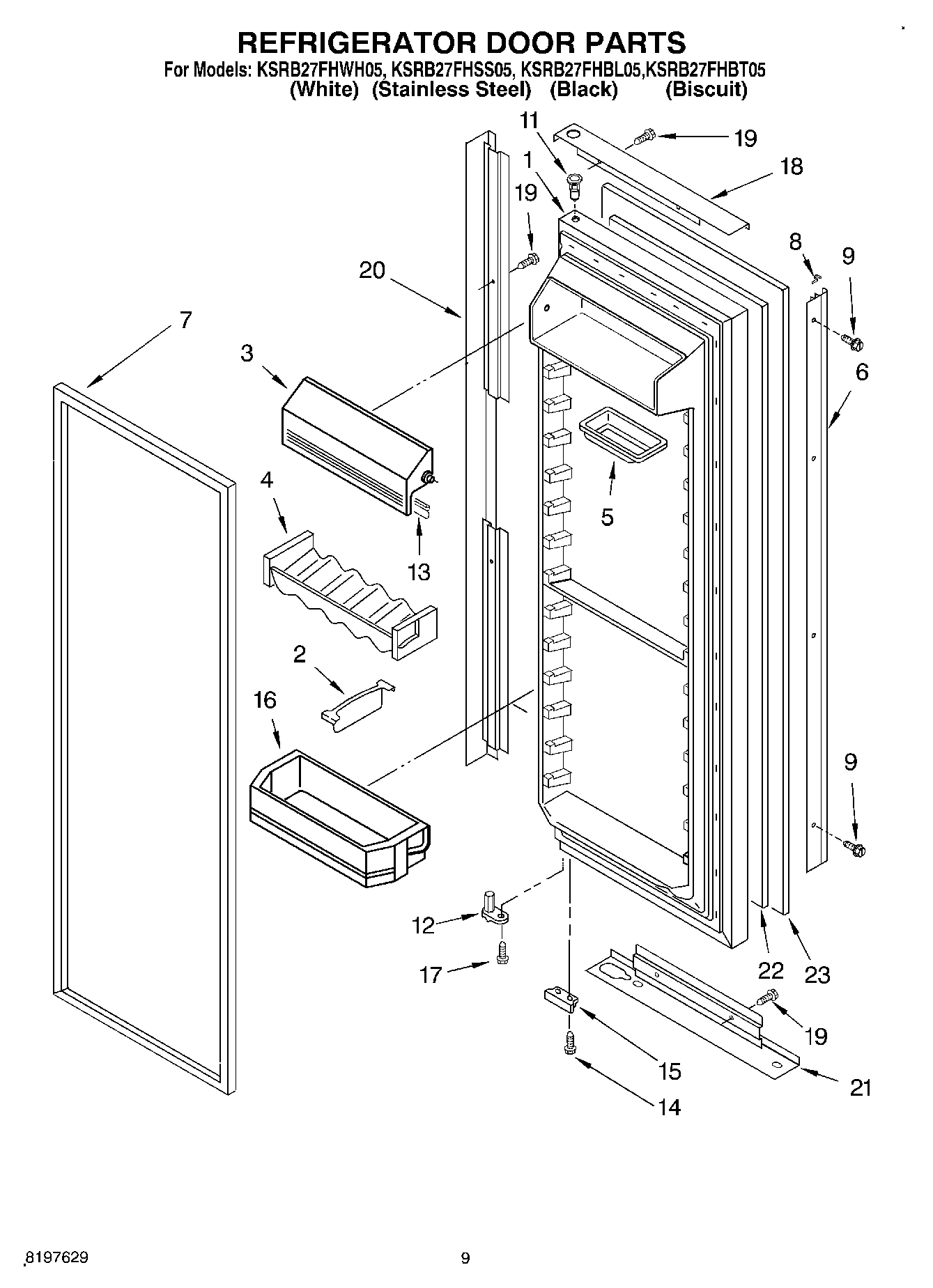

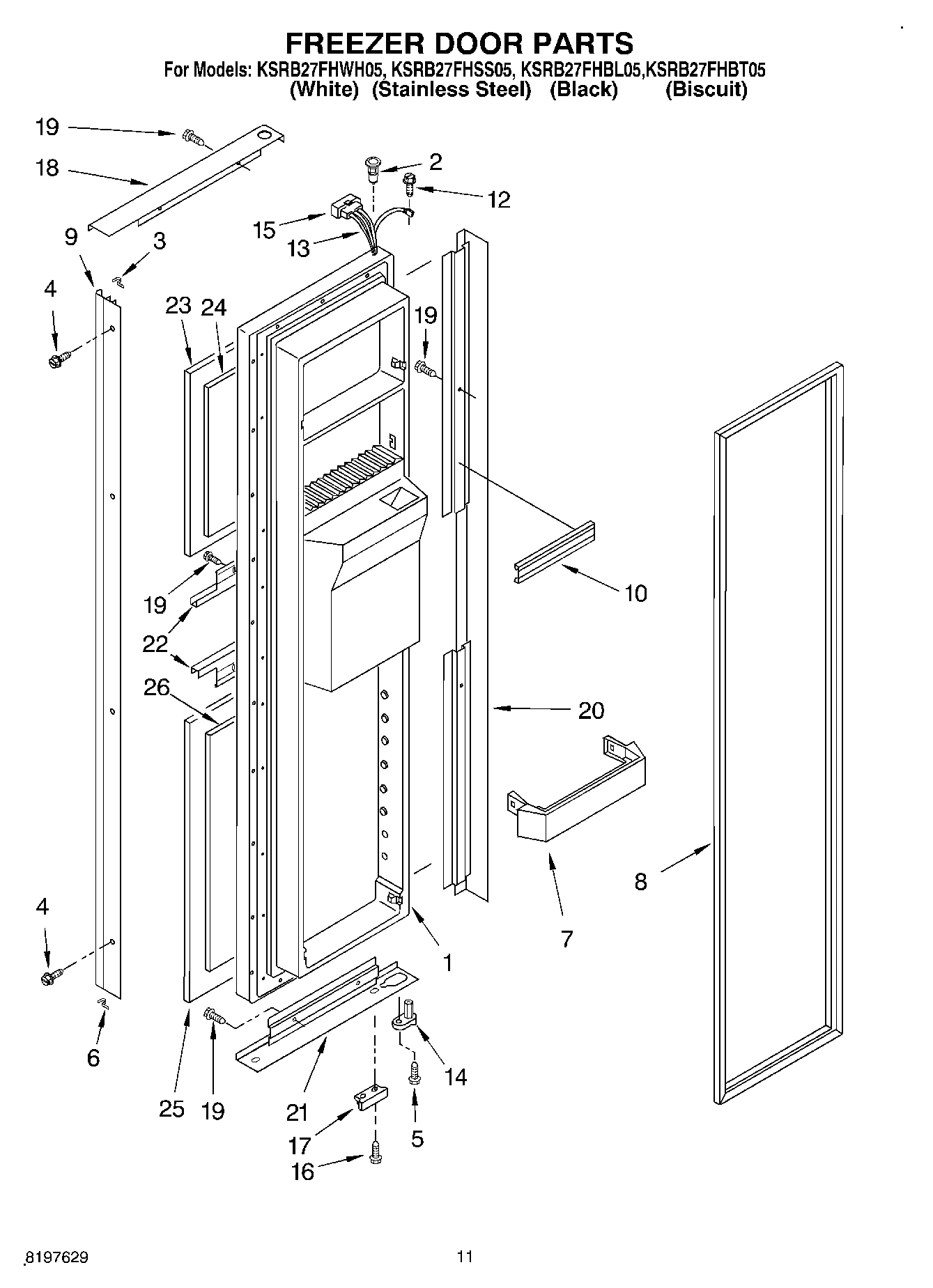

Model Whirlpool KSRB27FHWH05 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Bracket, Motor WPL 2183726 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI95069A3 Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Black) WPL 2203357B Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Biscuit) WPL 2203357T Contact Us For Availability

1

Refrigerator Door (Includes No.7) (White) WPL 2203357W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $153.53

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Shelf, Top Compartment WPL 2174493 Contact Us For Availability

2

Load Lock WPL 2195497 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $12.61

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $145.59

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $25.33

4

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Screw (Black) WPL 3400899 Contact Us For Availability

4

Beverage Holder WPL 2193409 Contact Us For Availability

5

WP2161491 Whirlpool Crisper Drawer Cover Backorder WPL WP2161491 $78.23

5

WP2182770 Whirlpool Refrigerator Thermostat Backorder WPL WP2182770 $115.91

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

5

Tray, Butter WPL 2165792 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

Adaptive Defrost Control WPL 2162046 Contact Us For Availability

6

Nut, Compression WPL 2200083 Contact Us For Availability

6

Handle (Black) WPL 2203811B Contact Us For Availability

6

Handle (Biscuit) WPL 2203811T Contact Us For Availability

6

Handle (White) WPL 2203811W Contact Us For Availability

6

Handle (Stainless) WPL 2203817S Contact Us For Availability

7

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

7

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $129.94

7

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $113.83

7

4388405 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388405 $4.36

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

7

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

8

2159082 Whirlpool Freezer Door Gasket Black In Stock WPL 2159082 $147.90

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Edging, Panel (Black) WPL 2204374B Contact Us For Availability

8

Edging, Panel (Biscuit) WPL 2204374T Contact Us For Availability

8

Edging, Panel (White) WPL 2204374W Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $137.81

9

WP2180325 Whirlpool Dispenser Grille In Stock WPL WP2180325 $39.03

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grommet (2) WPL 2176134 Contact Us For Availability

9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability

9

Screw (Stainless) WPL 3400897 Contact Us For Availability

9

Screw (White) WPL 3400898 Contact Us For Availability

9

Screw (Biscuit) WPL 8281135 Contact Us For Availability

2172940 Whirlpool Window Backorder WPL 2172940 $10.25

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $51.73

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $47.20

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $60.33

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $76.54

Light Bar (RC) WPL 2179920 Contact Us For Availability

Grille (Biscuit) WPL 2198468T Contact Us For Availability

Cover, Wiring WPL 2155572 Contact Us For Availability

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

Bracket, Door Stop WPL 2155331 Contact Us For Availability

8201786 Whirlpool Relay and Overload Start Ki In Stock WPL 8201786 $38.92

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

WP2179227 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2179227 $127.47

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $33.95

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

Shelf Bin (4) WPL 2171062 Contact Us For Availability

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability

Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Window, Crisper WPL 2174076 Contact Us For Availability

Trim, Door (Top) (Black) WPL 2203382B Contact Us For Availability

Trim, Door (Top) (Biscuit) WPL 2203382T Contact Us For Availability

Trim, Door (Top) (White) WPL 2203382W Contact Us For Availability

Trim, Door (Top) (Stainless) WPL 2203383S Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

Screw Grommet WPL 509812 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Control Box Harness WPL 2206516 Contact Us For Availability

Trim, Door (Hinge Side) (Black) WPL 2186689B Contact Us For Availability

Trim, Door (Hinge Side) (Biscuit) WPL 2186689T Contact Us For Availability

Trim, Door (Hinge Side) (White) WPL 2186689W Contact Us For Availability

Trim, Door (Hinge Side) (Stainless) WPL 2186766S Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Retainer, Light Lens WPL 2200097 Contact Us For Availability

Basket, Shallow WPL 2181763 Contact Us For Availability

Trim, Door (Bottom) (Black) WPL 2203378B Contact Us For Availability

Trim, Door (Bottom) (Biscuit) WPL 2203378T Contact Us For Availability

Trim, Door (Bottom) (White) WPL 2203378W Contact Us For Availability

Trim, Door (Bottom) (Stainless) WPL 2203379S Contact Us For Availability

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

Front, Basket WPL 2171767 Contact Us For Availability

Filler, Panel WPL 2208279 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Clamp WPL 2161324 Contact Us For Availability

P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability

Basket, Square WPL 2181765 Contact Us For Availability

Panel (Black) WPL 2203288B Contact Us For Availability

Panel (Biscuit) WPL 2203288T Contact Us For Availability

Panel (White) WPL 2203288W Contact Us For Availability

Panel (Stainless) WPL 2203294S Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

2305580K Whirlpool Refrigerator Basket Trim Backorder WPL 2305580K $28.49

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $131.83

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2209751 Whirlpool Refrigerator Air Diffuser In Stock WPL WP2209751 $174.78

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $80.31

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

Escutcheon, Control Box WPL 2200099 Contact Us For Availability

Basket, Sloped WPL 2181764 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Light Bar (FC) WPL 2179921 Contact Us For Availability

Heat Shield WPL 2149294 Contact Us For Availability

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $97.41

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Window WPL 2172941 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

Bracket, Fill Tube WPL 2209674 Contact Us For Availability

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $30.73

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $298.57

29

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

29

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

Stud, Rear WPL 2196207 Contact Us For Availability

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

Unit, Harness WPL 2216406 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2206269 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

WPW10185018 Whirlpool Refrigerator Housing Backorder WPL WPW10185018 $52.10

Screw WPL 488280 Contact Us For Availability

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

40

Nut, Compression WPL 1129179 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Front Cover, Ice Container WPL 2204321 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Guard, Fan WPL 2186495 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 227991 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $13.54

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10312300 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312300 $219.89

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability
