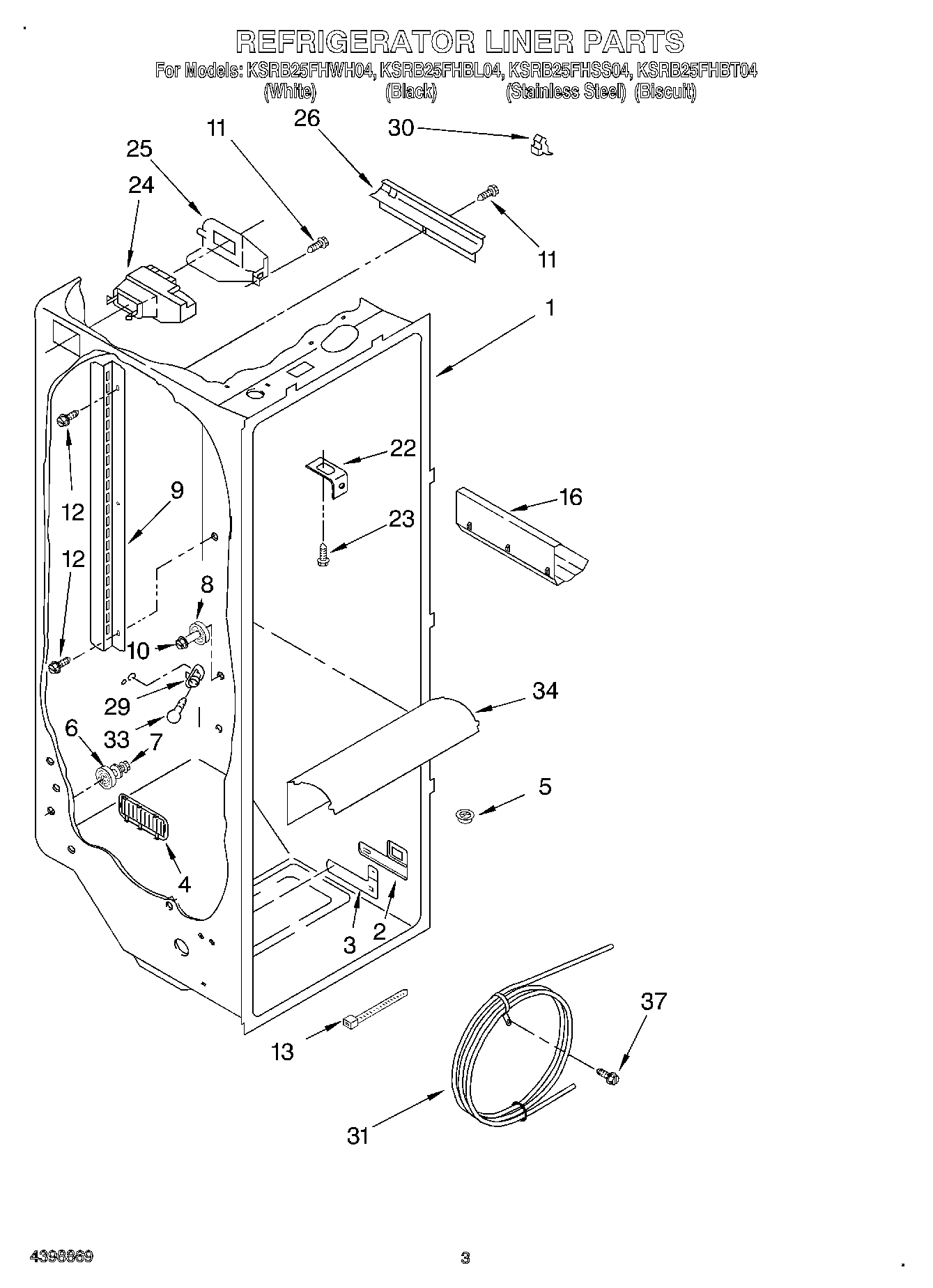

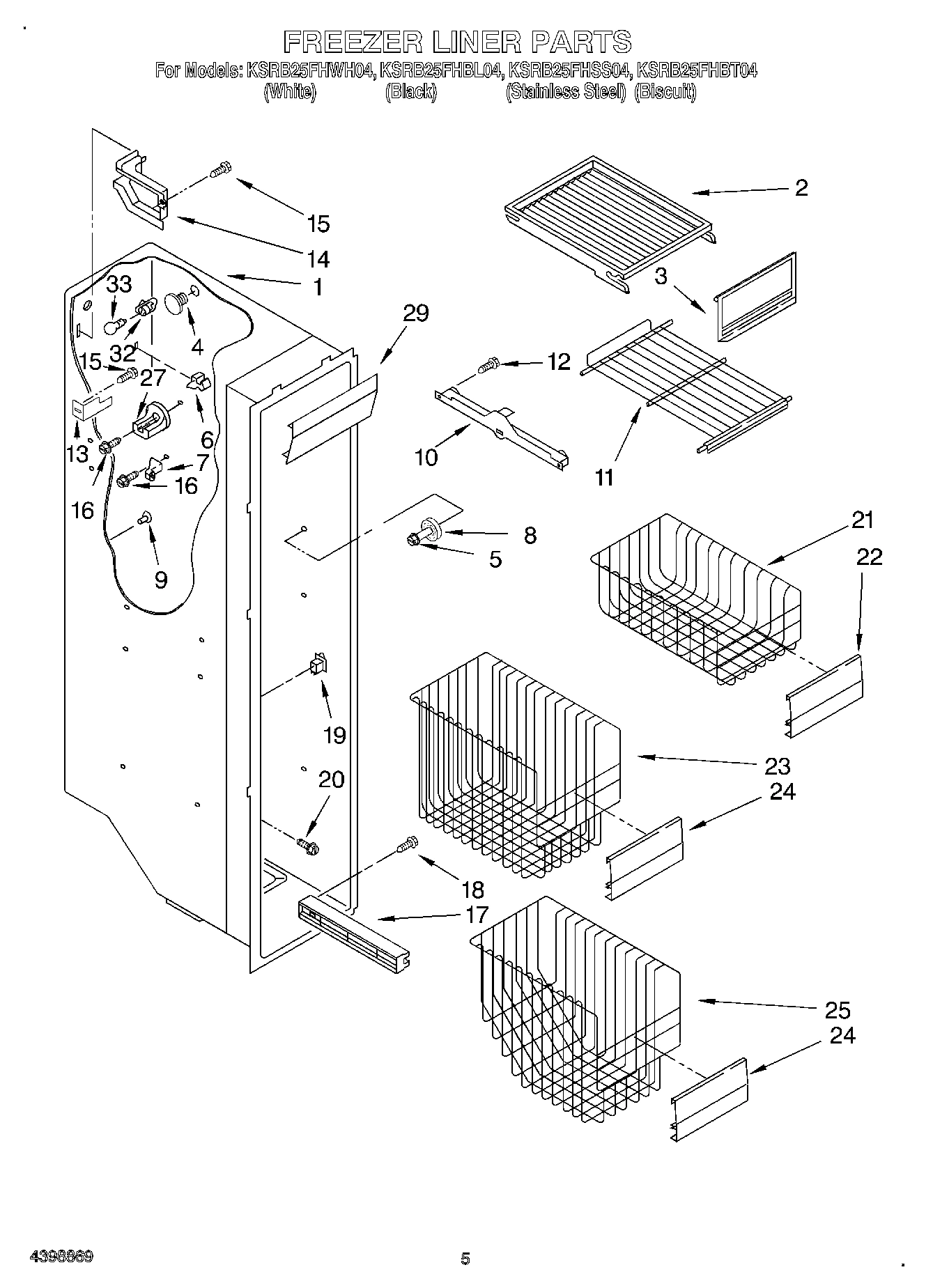

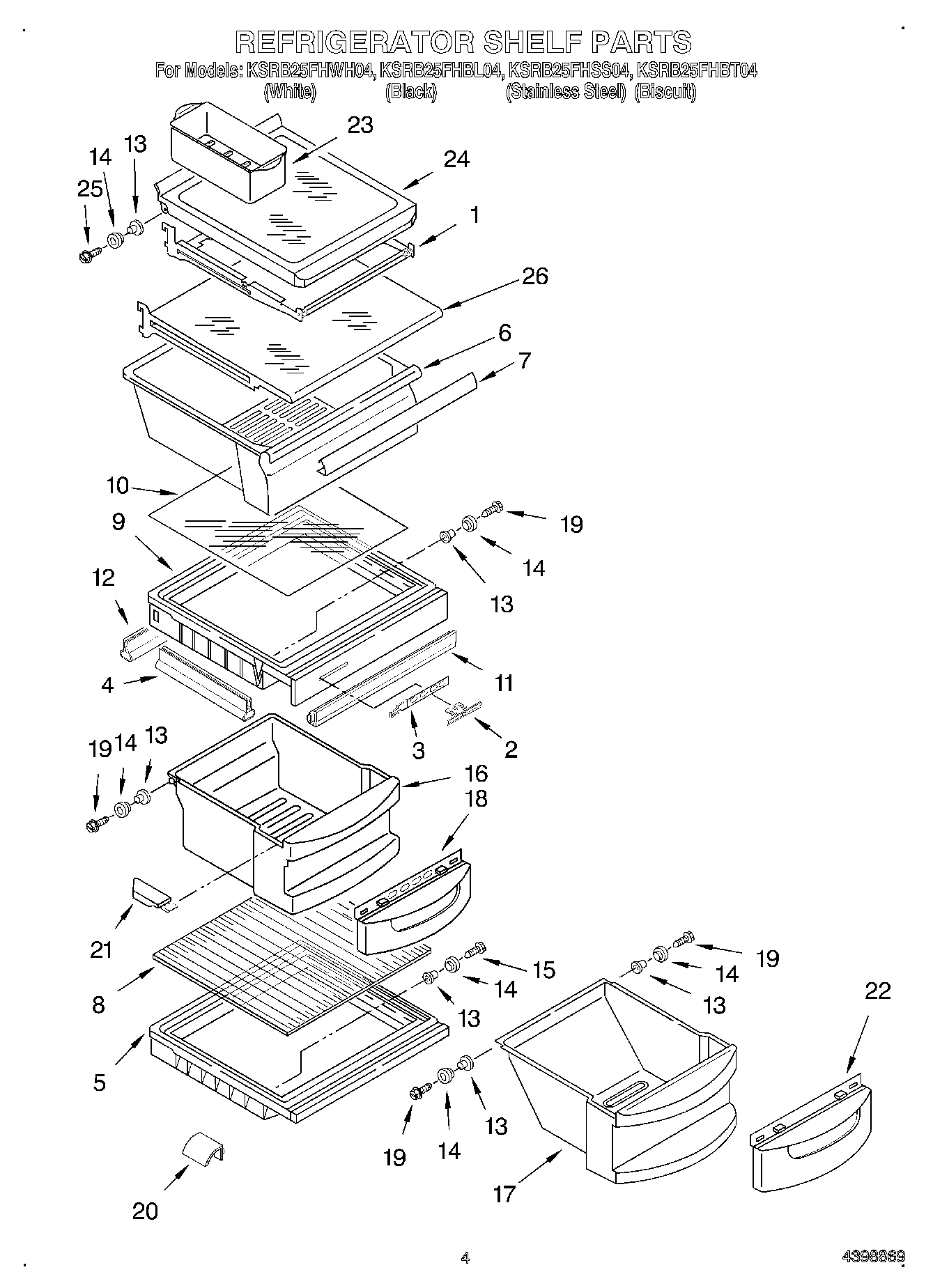

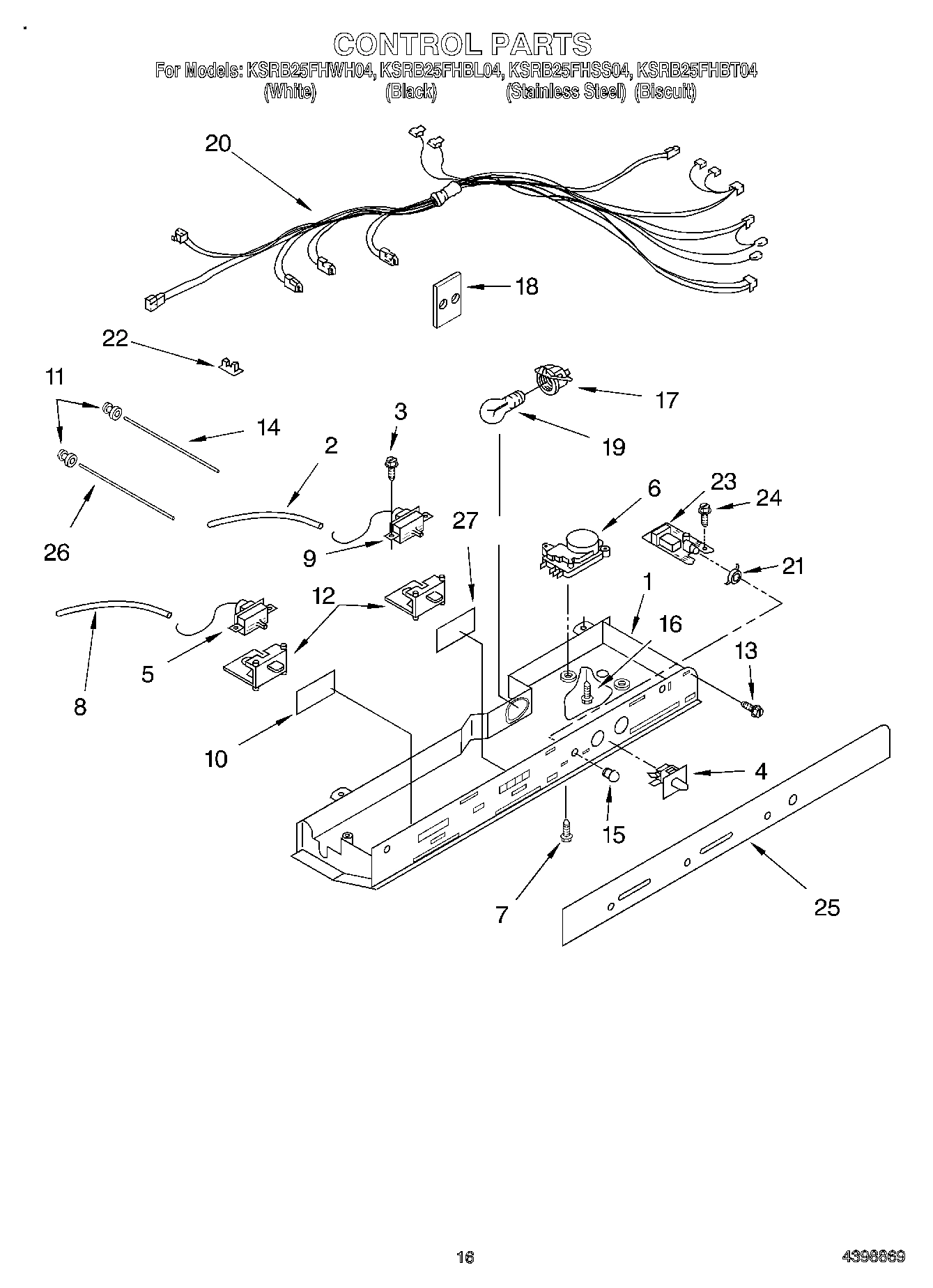

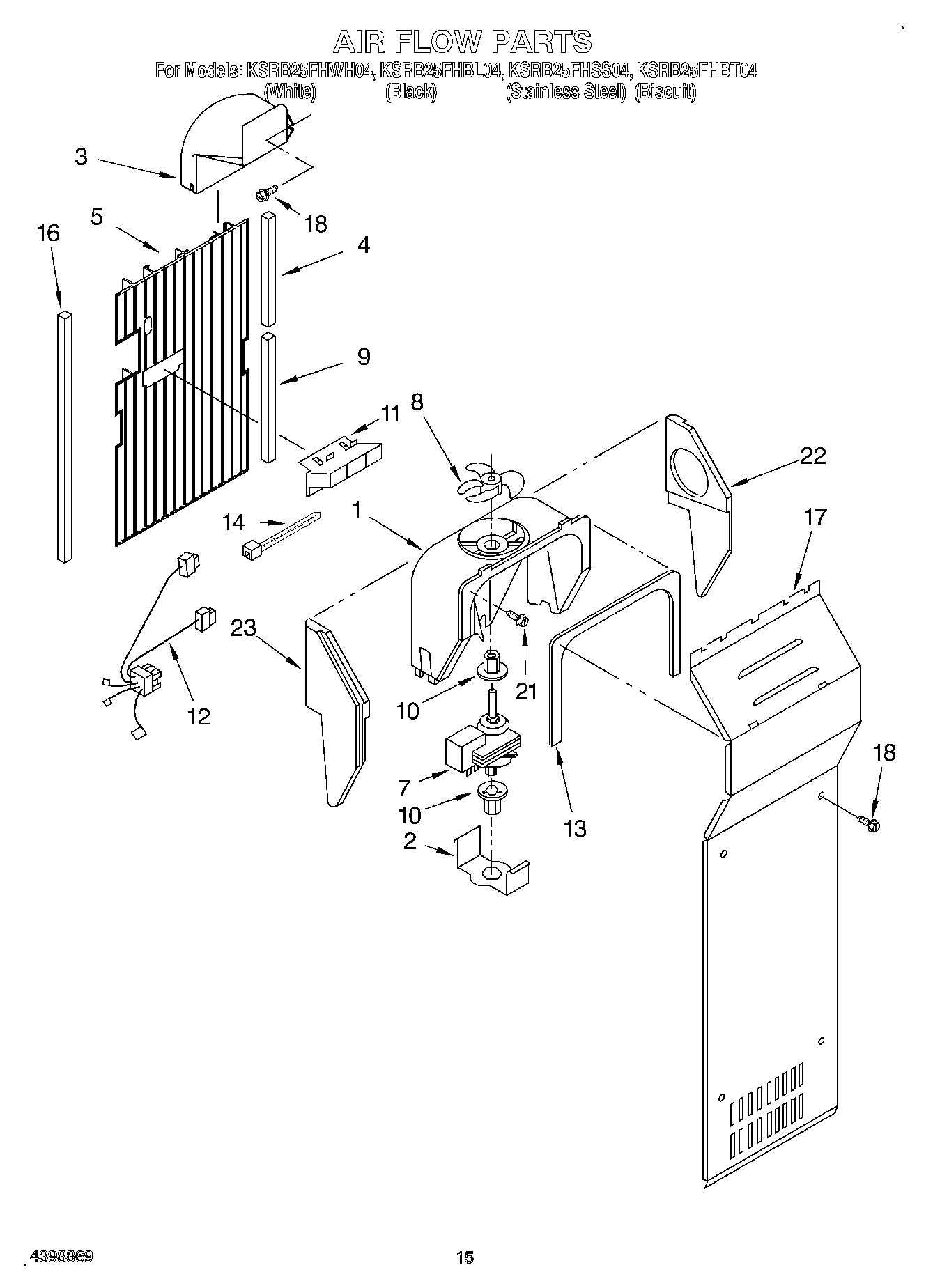

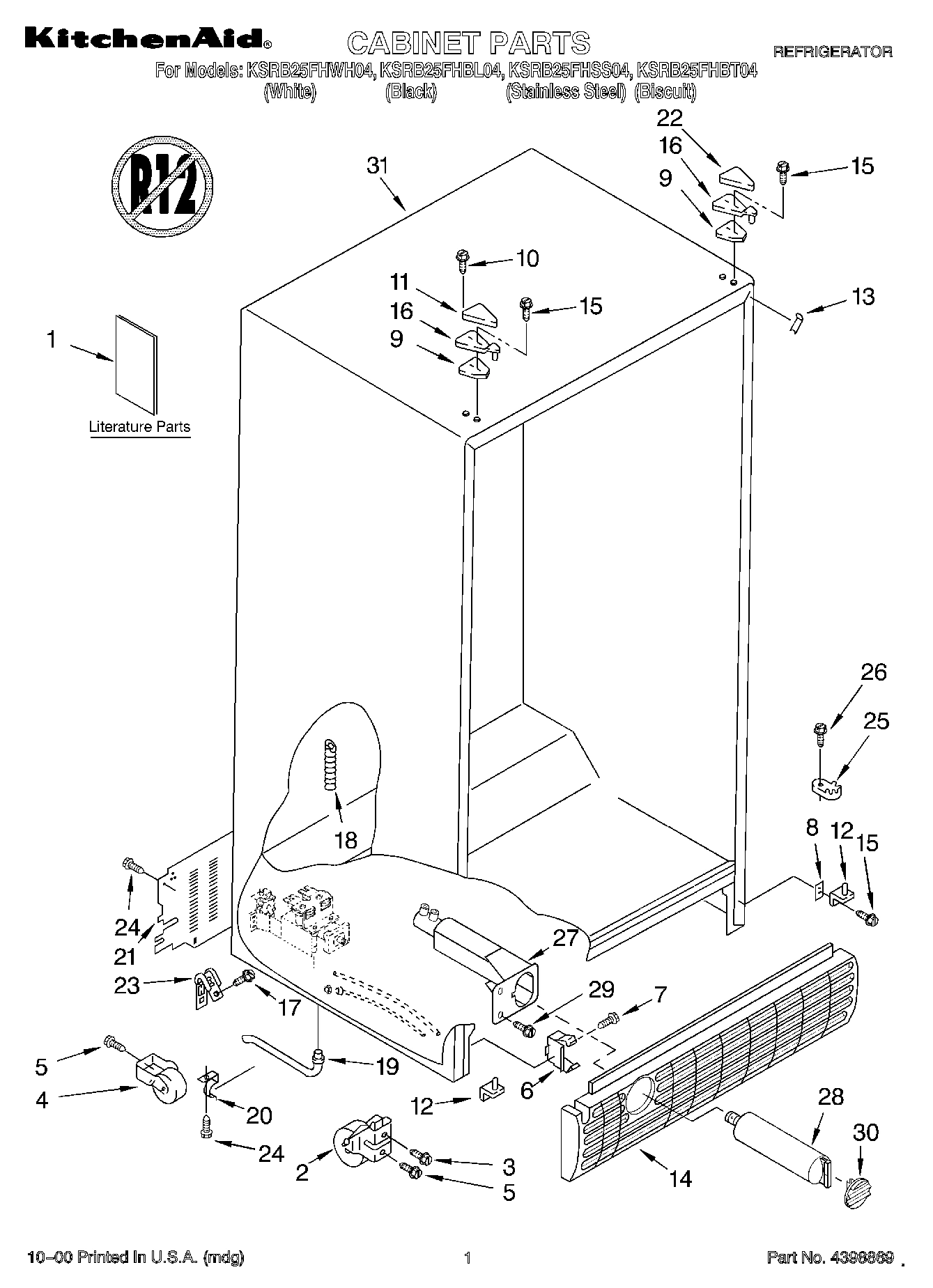

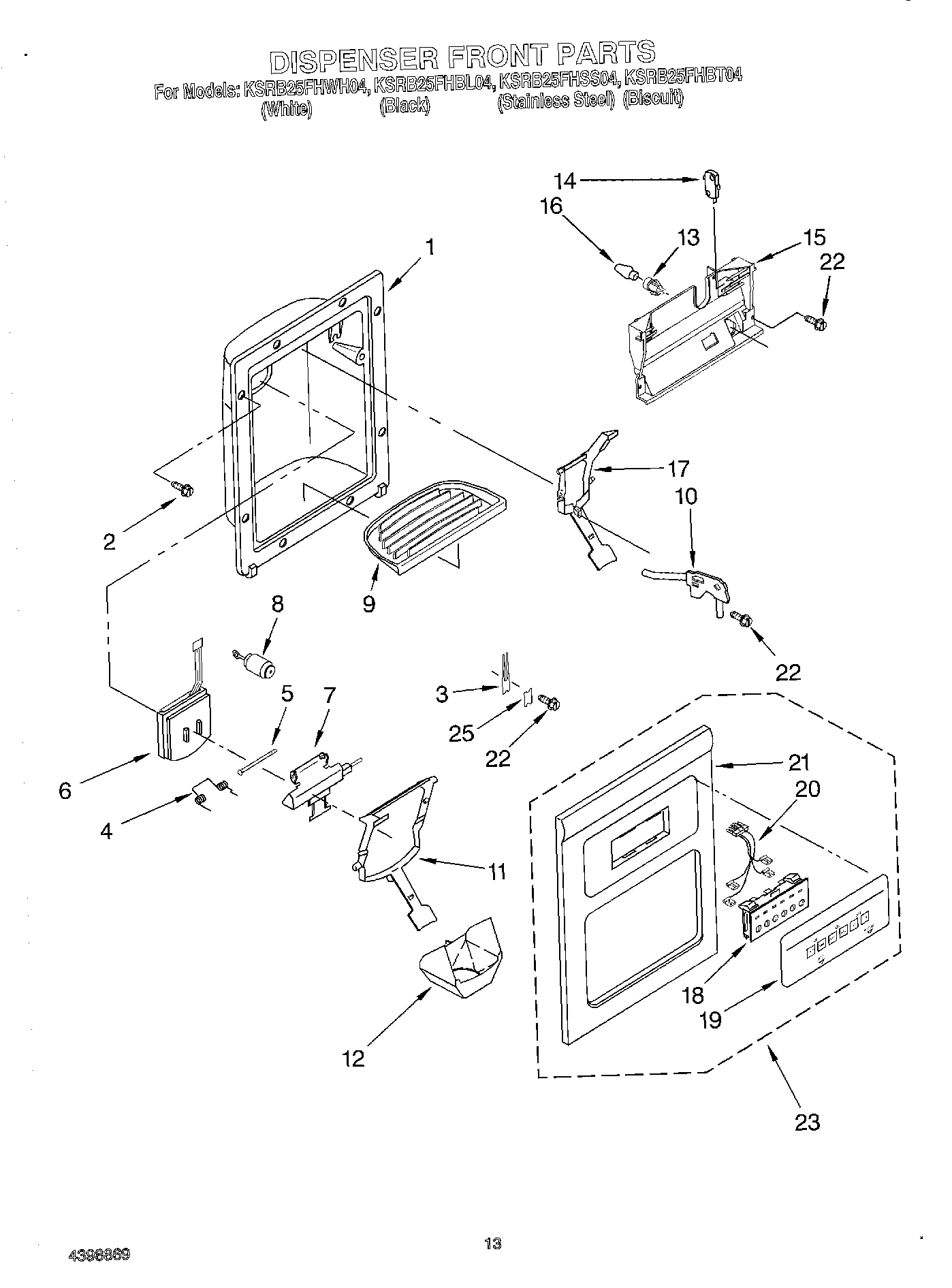

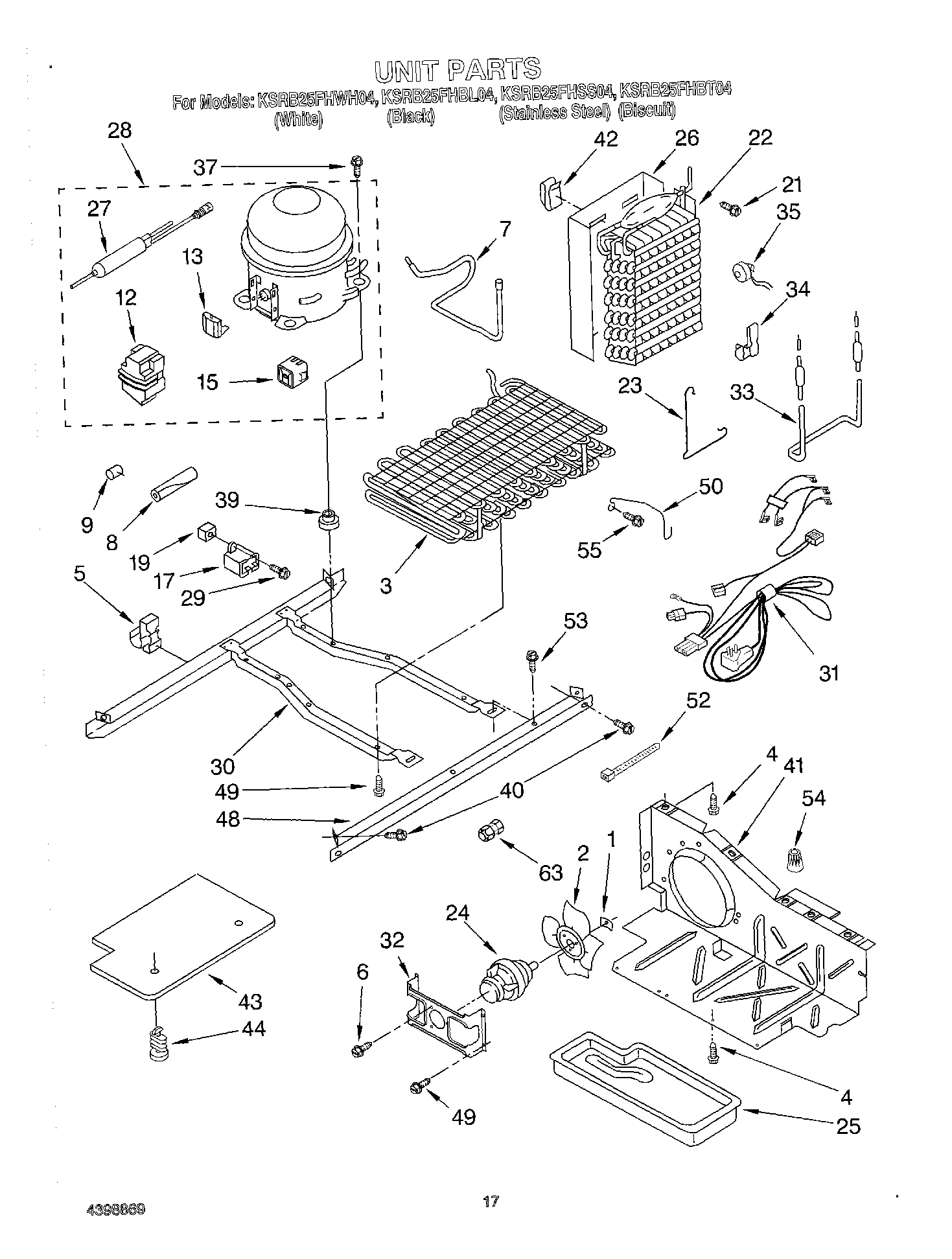

Model Whirlpool KSRB25FHWH04 – Common Parts & Diagrams

1
Housing, Dispenser (Not a Serviceable Part)
Housing, Dispenser (Not a Serviceable Part) WPL ARI94652A5 Contact Us For Availability
View on Model
1
LITERATURE PARTS (Service & Wiring Sheet)
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2200279 Contact Us For Availability
View on Model
1
Literature Parts (Use & Care Guide)
Literature Parts (Use & Care Guide) WPL LIT2206106 Contact Us For Availability
View on Model
1
Energy Label
Energy Label WPL LIT2211861 Contact Us For Availability
View on Model
1
Modular Icemaker Service Sheet
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
View on Model

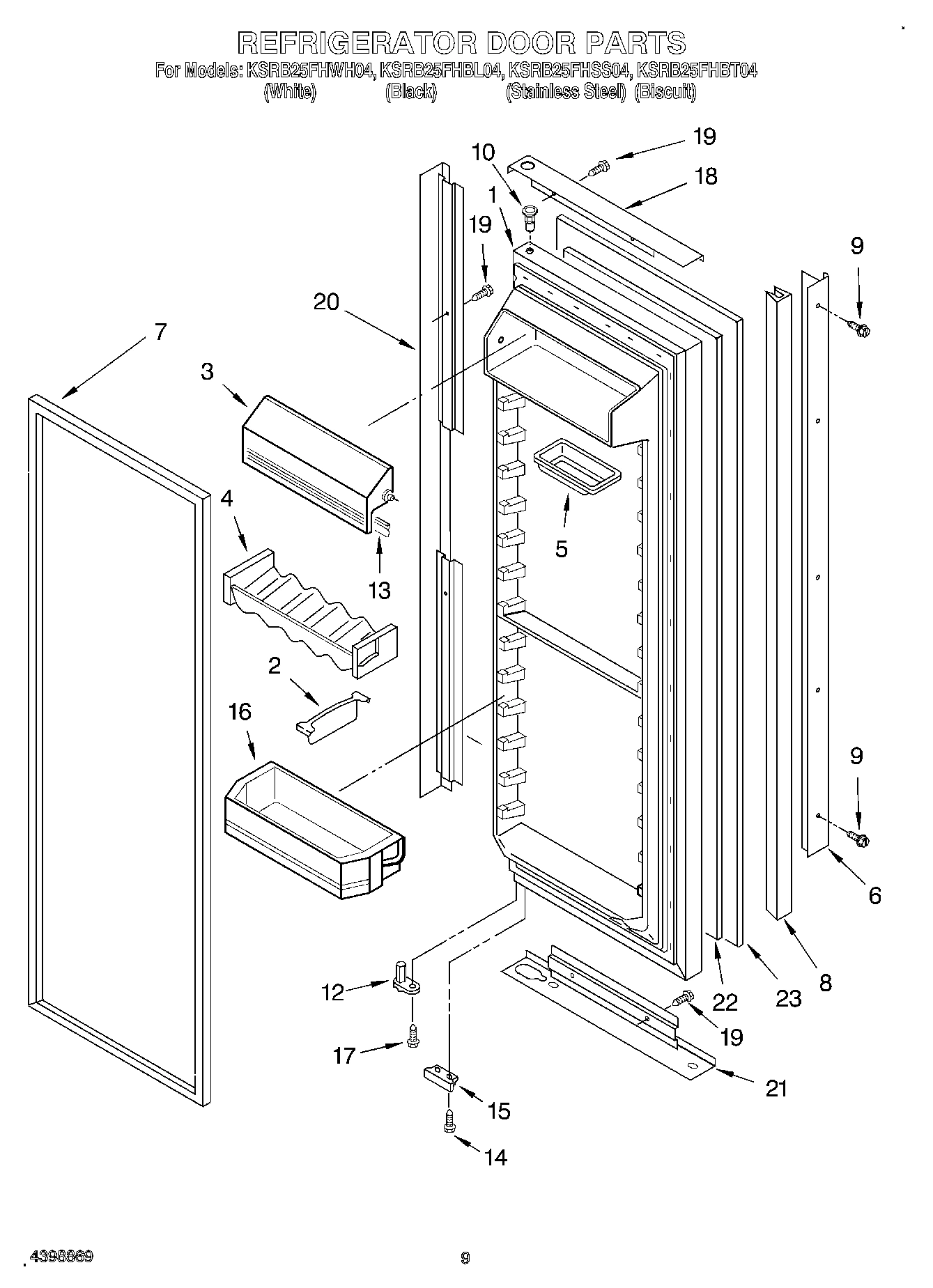

1
Refrigerator Door (Includes No.7) (Black)
Refrigerator Door (Includes No.7) (Black) WPL 2203356B Contact Us For Availability
View on Model
1
Refrigerator Door (Includes No.7) (Biscuit)
Refrigerator Door (Includes No.7) (Biscuit) WPL 2203356T Contact Us For Availability
View on Model
1
Refrigerator Door (Includes No.7) (White)
Refrigerator Door (Includes No.7) (White) WPL 2203356W Contact Us For Availability
View on Model
2
Blade, Fan
Blade, Fan WPL 2190685 Contact Us For Availability
View on Model
2
Front Roller (2)
Front Roller (2) WPL 2174748 Contact Us For Availability
View on Model
2
Load Lock
Load Lock WPL 2195497 Contact Us For Availability
View on Model
3
Condenser Assembly
Condenser Assembly WPL 2204242B Contact Us For Availability
View on Model
4
Beverage Holder
Beverage Holder WPL 2193409 Contact Us For Availability
View on Model
5
Clip, Wire & Tube
Clip, Wire & Tube WPL 2208280 Contact Us For Availability
View on Model
5
Tray, Butter
Tray, Butter WPL 2165792 Contact Us For Availability
View on Model
6
Adaptive Defrost Control
Adaptive Defrost Control WPL 2162046 Contact Us For Availability
View on Model
6
Nut, Compression
Nut, Compression WPL 2200083 Contact Us For Availability
View on Model
6
Handle (Black)
Handle (Black) WPL 2203810B Contact Us For Availability
View on Model
6
Handle (Biscuit)
Handle (Biscuit) WPL 2203810T Contact Us For Availability
View on Model
6
Handle (White)
Handle (White) WPL 2203810W Contact Us For Availability
View on Model
6
Handle (Stainless Steel)
Handle (Stainless Steel) WPL 2203816S Contact Us For Availability
View on Model
7
Door Mechanism Assembly
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
View on Model
8
Delay Mechanism
Delay Mechanism WPL 2205686 Contact Us For Availability
View on Model
8
Edging, Panel (Black)
Edging, Panel (Black) WPL 2204374B Contact Us For Availability
View on Model
8
Edging, Panel (Biscuit)
Edging, Panel (Biscuit) WPL 2204374T Contact Us For Availability
View on Model
8
Edging, Panel (White)
Edging, Panel (White) WPL 2204374W Contact Us For Availability
View on Model
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13,
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
View on Model
9
Grommet (2)
Grommet (2) WPL 2176134 Contact Us For Availability
View on Model
9
Screw (Black)
Screw (Black) WPL 3400899 Contact Us For Availability
View on Model
9
Grille, Overflow (White)
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
View on Model
9
Grille, Overflow (Biscuit)
Grille, Overflow (Biscuit) WPL 2186860 Contact Us For Availability
View on Model
9
Shim, Hinge Top
Shim, Hinge Top WPL 2196049 Contact Us For Availability
View on Model
9
Screw (Stainless)
Screw (Stainless) WPL 3400897 Contact Us For Availability
View on Model
9
Screw (White)
Screw (White) WPL 3400898 Contact Us For Availability
View on Model
9
Screw (Biscuit)
Screw (Biscuit) WPL 8281135 Contact Us For Availability
View on Model
10
Screw
Screw WPL 489284 Contact Us For Availability
View on Model
11
Lever, Ice Dispenser (White (White Shadow Pad
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
View on Model
11
Lever, Ice Dispenser (Black (Storm Grey Pad))
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability
View on Model
11
Lever, Ice Dispenser (Biscuit (Almond Shadow
Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability
View on Model
11
Grommet, Light Bar
Grommet, Light Bar WPL 2172906 Contact Us For Availability
View on Model
11
Hinge Cover (Black)
Hinge Cover (Black) WPL 2171947 Contact Us For Availability
View on Model
11
Hinge Cover (Biscuit)
Hinge Cover (Biscuit) WPL 2171947T Contact Us For Availability
View on Model
11
Hinge Cover (White)
Hinge Cover (White) WPL 2171947W Contact Us For Availability
View on Model
13
Eyelet, Roller
Eyelet, Roller WPL 2174478 Contact Us For Availability
View on Model
13
Filler, Wrapper (White)
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
View on Model
13
Filler, Wrapper (Black)
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
View on Model
13
Filler, Wrapper (Biscuit)
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
View on Model
13
Gasket
Gasket WPL 2159124 Contact Us For Availability
View on Model
14
Light Bar (RC)
Light Bar (RC) WPL 2179920 Contact Us For Availability
View on Model
14
Grille (Biscuit)
Grille (Biscuit) WPL 2198468T Contact Us For Availability
View on Model
15
COVER, LIGHT LENS
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
View on Model
15
Bracket, Control
Bracket, Control WPL 2180227 Contact Us For Availability
View on Model
15
Bracket, Door Stop (Chrome)
Bracket, Door Stop (Chrome) WPL 2195952 Contact Us For Availability
View on Model
16
Shelf Bin (4)
Shelf Bin (4) WPL 2171063 Contact Us For Availability
View on Model
17
Bracket, Door Stop (Black)
Bracket, Door Stop (Black) WPL 2195950 Contact Us For Availability
View on Model
17
Capacitor (Production)
Capacitor (Production) WPL 2169137 Contact Us For Availability
View on Model
18
Window, Crisper
Window, Crisper WPL 2174076 Contact Us For Availability
View on Model
18
Trim, Door (Top) (Black)
Trim, Door (Top) (Black) WPL 2203380B Contact Us For Availability
View on Model
18
Trim, Door (Top) (Biscuit)
Trim, Door (Top) (Biscuit) WPL 2203380T Contact Us For Availability
View on Model
18
Trim, Door (Top) (White)
Trim, Door (Top) (White) WPL 2203380W Contact Us For Availability
View on Model
18
Trim, Door (Top) (Stainless Steel)
Trim, Door (Top) (Stainless Steel) WPL 2203381S Contact Us For Availability
View on Model
19
Screw Grommet
Screw Grommet WPL 509812 Contact Us For Availability
View on Model
19
Overlay, Front Cover (Black)
Overlay, Front Cover (Black) WPL 2186718B Contact Us For Availability
View on Model
19
Overlay, Front Cover (Biscuit)
Overlay, Front Cover (Biscuit) WPL 2186718T Contact Us For Availability
View on Model
19
Overlay, Front Cover (White)
Overlay, Front Cover (White) WPL 2186718W Contact Us For Availability
View on Model
20
Control Box Harness
Control Box Harness WPL 2206516 Contact Us For Availability
View on Model
20
Trim, Door (Hinge Side) (Black)
Trim, Door (Hinge Side) (Black) WPL 2186688B Contact Us For Availability
View on Model
20
Trim, Door (Hinge Side) (Biscuit)
Trim, Door (Hinge Side) (Biscuit) WPL 2186688T Contact Us For Availability
View on Model
20
Trim, Door (Hinge Side) (White)
Trim, Door (Hinge Side) (White) WPL 2186688W Contact Us For Availability
View on Model
20
Trim, Door (Hinge Side) (Stainless Steel)
Trim, Door (Hinge Side) (Stainless Steel) WPL 2186765S Contact Us For Availability
View on Model
21
Front Cover, Housing (Not Available, Order No
Front Cover, Housing (Not Available, Order No WPL ARI94653A8 Contact Us For Availability
View on Model
21
Retainer, Light Lens
Retainer, Light Lens WPL 2200097 Contact Us For Availability
View on Model
21
Trim, Door (Bottom) (Black)
Trim, Door (Bottom) (Black) WPL 2203376B Contact Us For Availability
View on Model
21
Trim, Door (Bottom) (Biscuit)
Trim, Door (Bottom) (Biscuit) WPL 2203376T Contact Us For Availability
View on Model
21
Trim, Door (Bottom) (White)
Trim, Door (Bottom) (White) WPL 2203376W Contact Us For Availability
View on Model
21
Trim, Door (Bottom) (Stainless Steel)
Trim, Door (Bottom) (Stainless Steel) WPL 2203377S Contact Us For Availability
View on Model
22
Hinge Cover (Black)
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
View on Model
22
CLIP, WIRING
CLIP, WIRING WPL 1115375 Contact Us For Availability
View on Model
22
Filler, Panel
Filler, Panel WPL 2208279 Contact Us For Availability
View on Model
23
Clamp
Clamp WPL 2161324 Contact Us For Availability
View on Model
23
Front Cover Assembly (Includes Items 18, 19,
Front Cover Assembly (Includes Items 18, 19, WPL 2186714B Contact Us For Availability
View on Model
23
Front Cover Assembly (Includes Items 18, 19,
Front Cover Assembly (Includes Items 18, 19, WPL 2186714T Contact Us For Availability
View on Model
23
Front Cover Assembly (Includes Items 18, 19,
Front Cover Assembly (Includes Items 18, 19, WPL 2186714W Contact Us For Availability
View on Model
23
P.C. Board Filter Indicator
P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability
View on Model
23
Panel (Black)
Panel (Black) WPL 2203288B Contact Us For Availability
View on Model
23
Panel (Biscuit)
Panel (Biscuit) WPL 2203288T Contact Us For Availability
View on Model
23
Panel (White)
Panel (White) WPL 2203288W Contact Us For Availability
View on Model
23
Panel (S
Panel (S WPL 2203294S Contact Us For Availability
View on Model
25
Escutcheon, Control Box
Escutcheon, Control Box WPL 2200099 Contact Us For Availability
View on Model
26
Heat Shield
Heat Shield WPL 2149294 Contact Us For Availability
View on Model
26
Light Bar (FC)
Light Bar (FC) WPL 2179921 Contact Us For Availability
View on Model
27
Stud, Rear
Stud, Rear WPL 2196207 Contact Us For Availability
View on Model
27
Window
Window WPL 2172941 Contact Us For Availability
View on Model
27
Cement Alumilastic)
Cement Alumilastic) WPL 542369 Contact Us For Availability
View on Model
31
Unit, Harness
Unit, Harness WPL 2217051 Contact Us For Availability
View on Model
31
Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI94649A3 Contact Us For Availability
View on Model
34
Clip
Clip WPL 2161330 Contact Us For Availability
View on Model
37
Screw
Screw WPL 489473 Contact Us For Availability
View on Model
40
Nut, Compression
Nut, Compression WPL 1129179 Contact Us For Availability
View on Model
42
Clip, Heat Shield
Clip, Heat Shield WPL 2155547 Contact Us For Availability
View on Model
43
Unit Cover, Bottom
Unit Cover, Bottom WPL 2206281 Contact Us For Availability
View on Model
49
Screw
Screw WPL 488624 Contact Us For Availability
View on Model
50
Guard, Fan
Guard, Fan WPL 2186495 Contact Us For Availability
View on Model
54
Wire Connector
Wire Connector WPL 227991 Contact Us For Availability
View on Model
63
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
63
VALVE, ACCESS (1/2``)
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
View on Model
100
WPL  876029
WPL 876029 WPL 876029 Contact Us For Availability
View on Model
100
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
100
Torx Key
Torx Key WPL 1117510 Contact Us For Availability
View on Model
100
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
View on Model
100
CEMENT, ALUMILASTIC (1 1/4 OZ.)
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
View on Model
100
WPL  799340
WPL 799340 WPL 799340 Contact Us For Availability
View on Model
100
WPL  799833
WPL 799833 WPL 799833 Contact Us For Availability
View on Model
100
WPL  978883
WPL 978883 WPL 978883 Contact Us For Availability
View on Model
