Model Whirlpool KSRB25FHWH00 – Common Parts & Diagrams

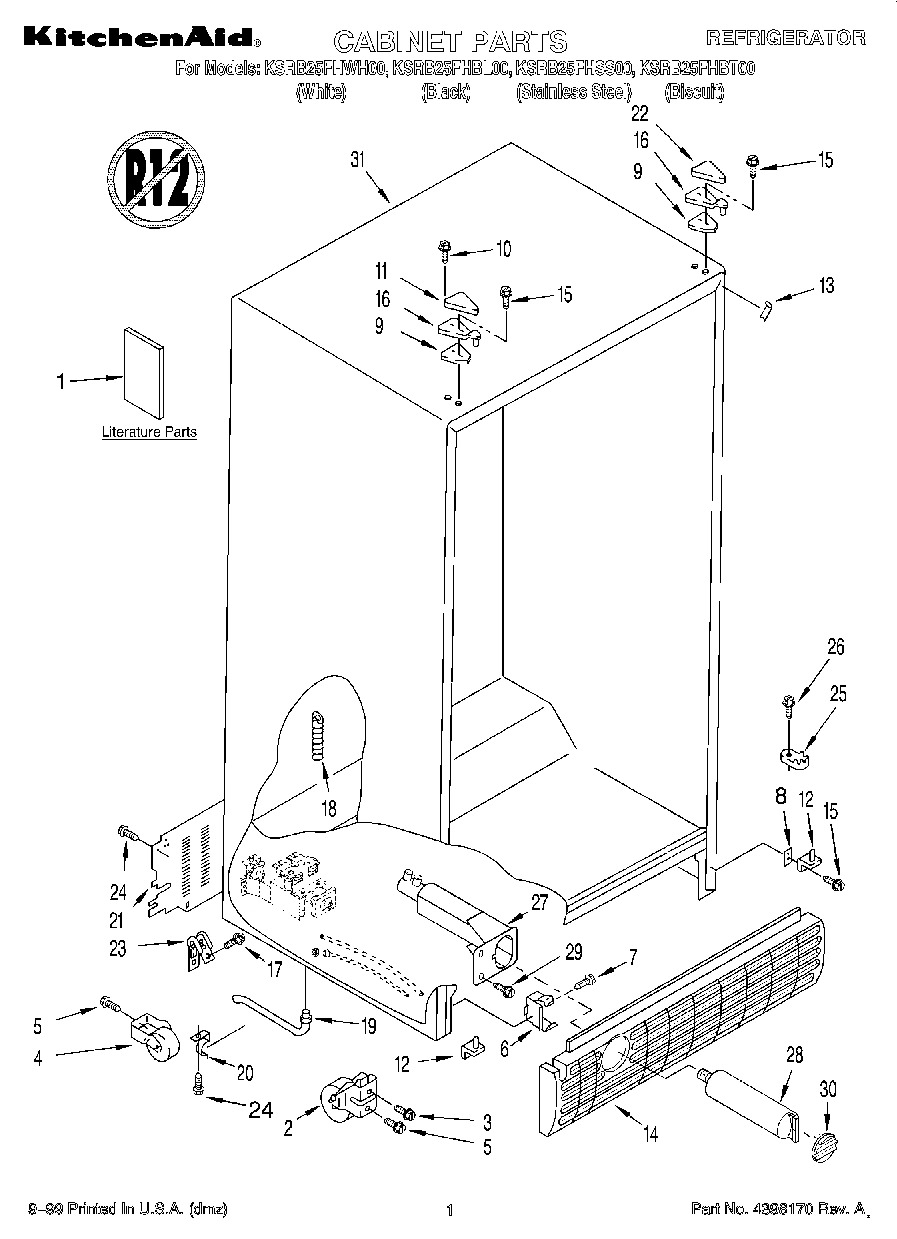

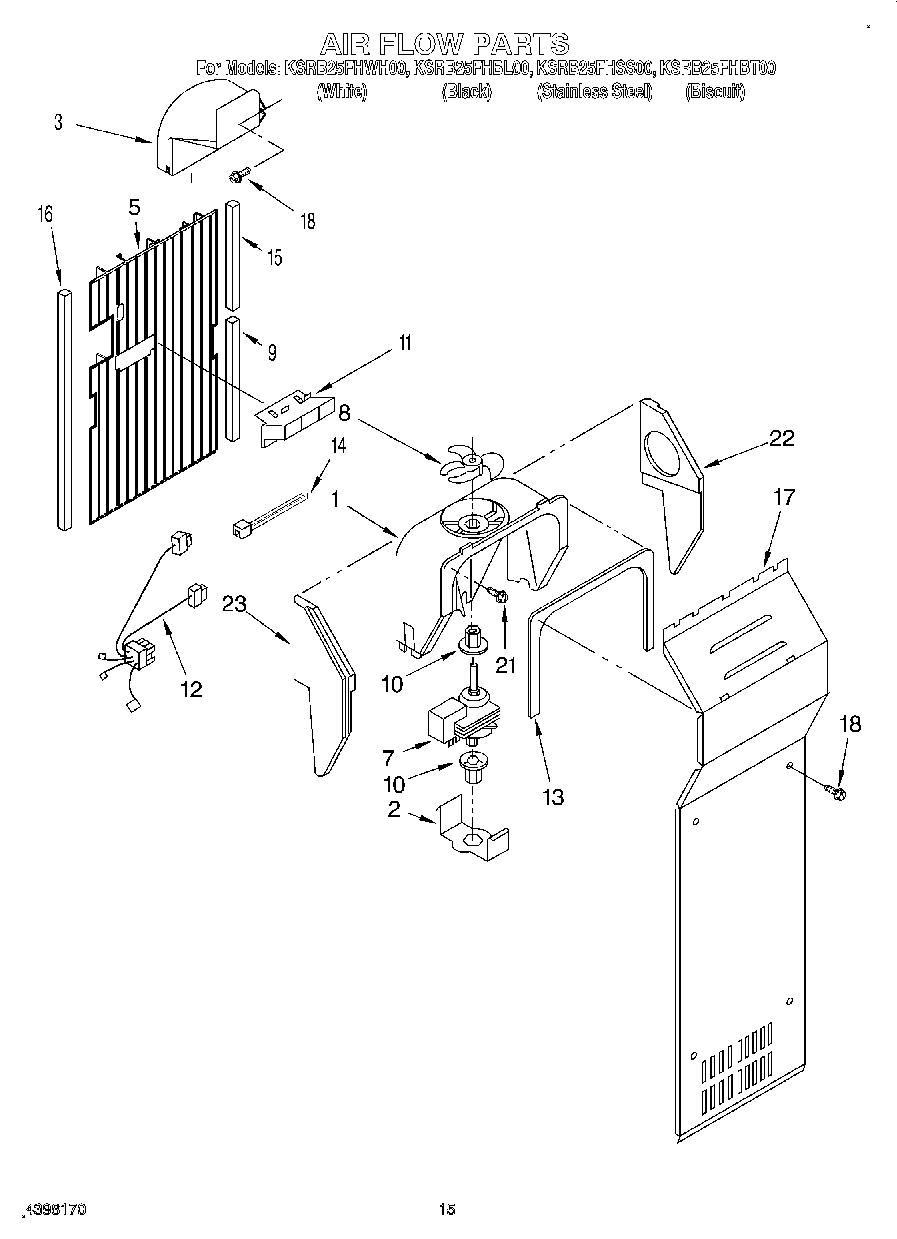

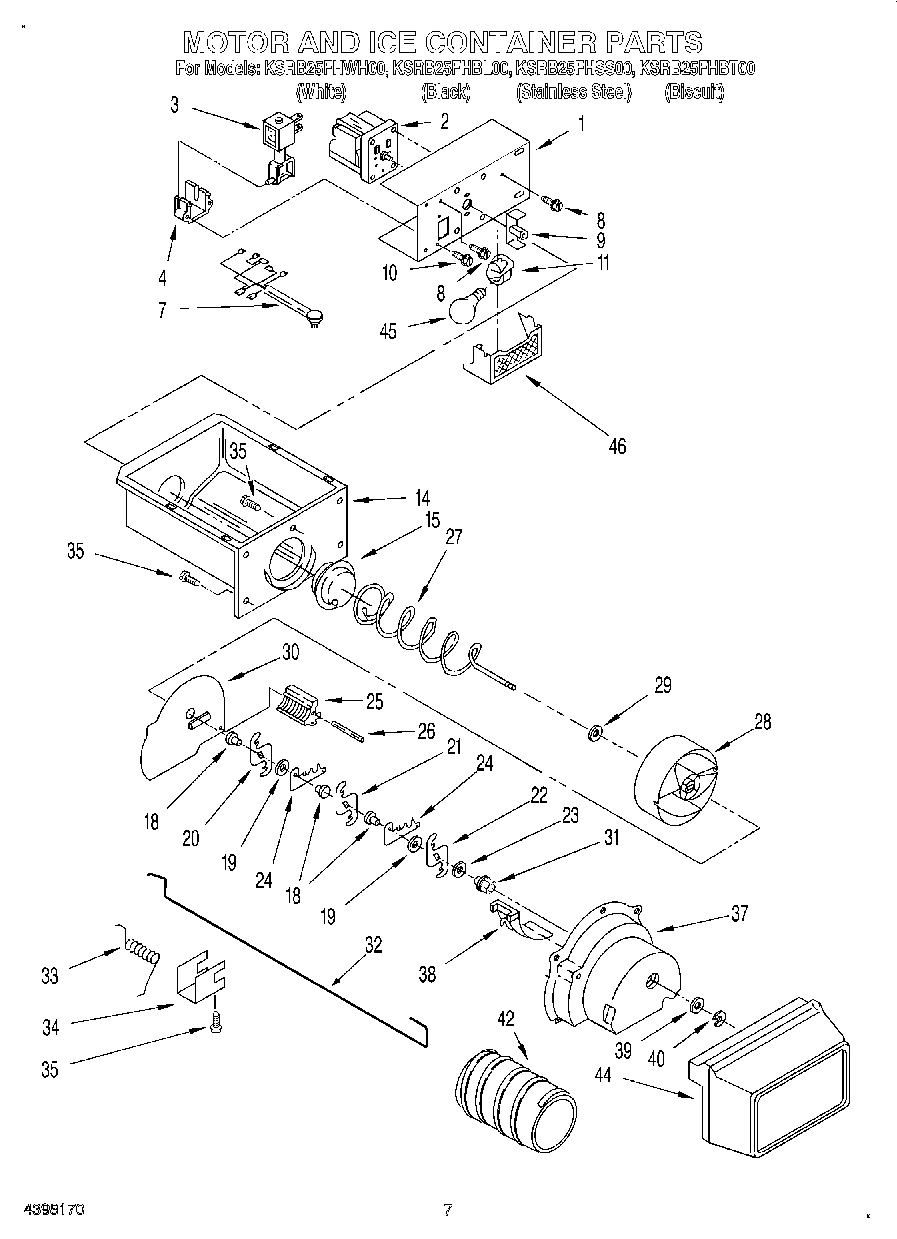

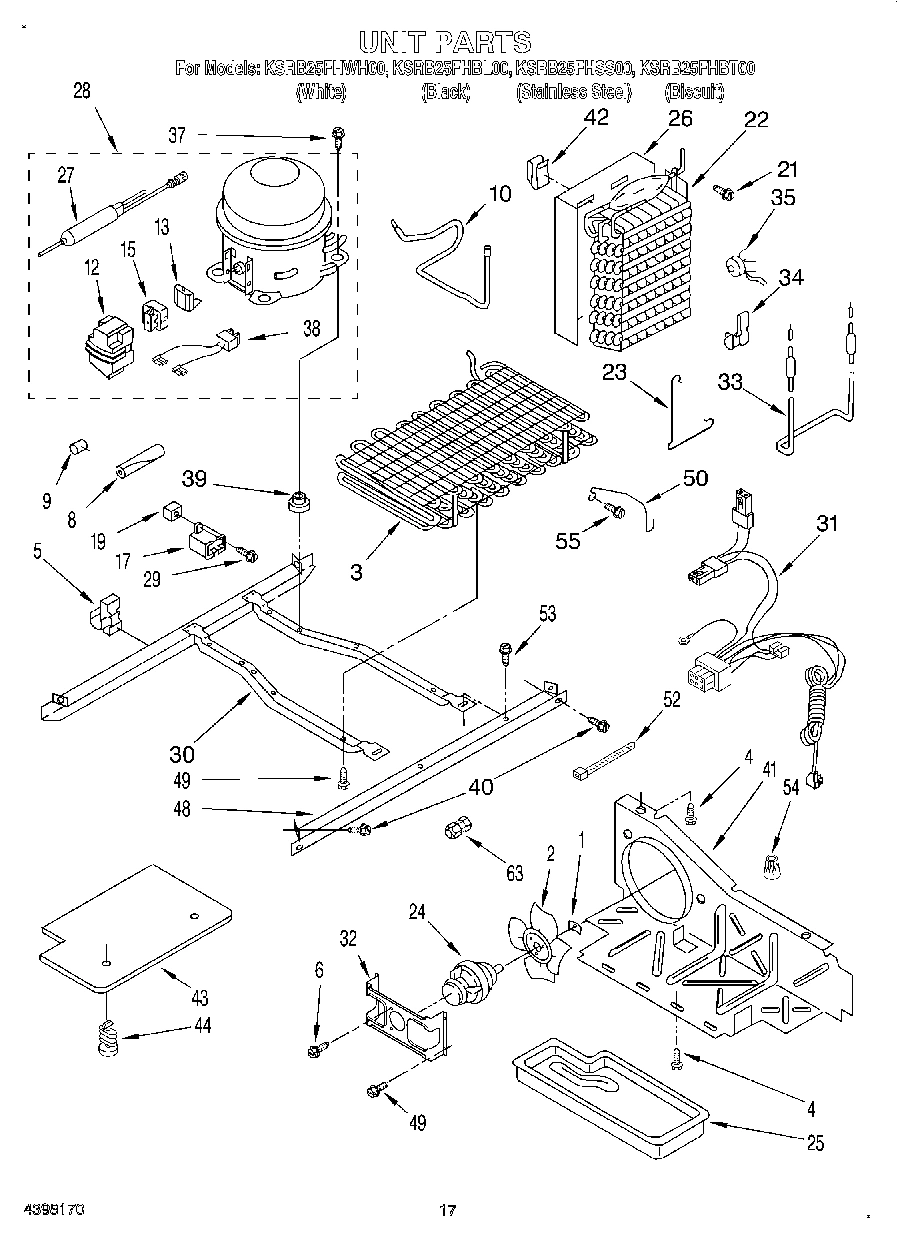

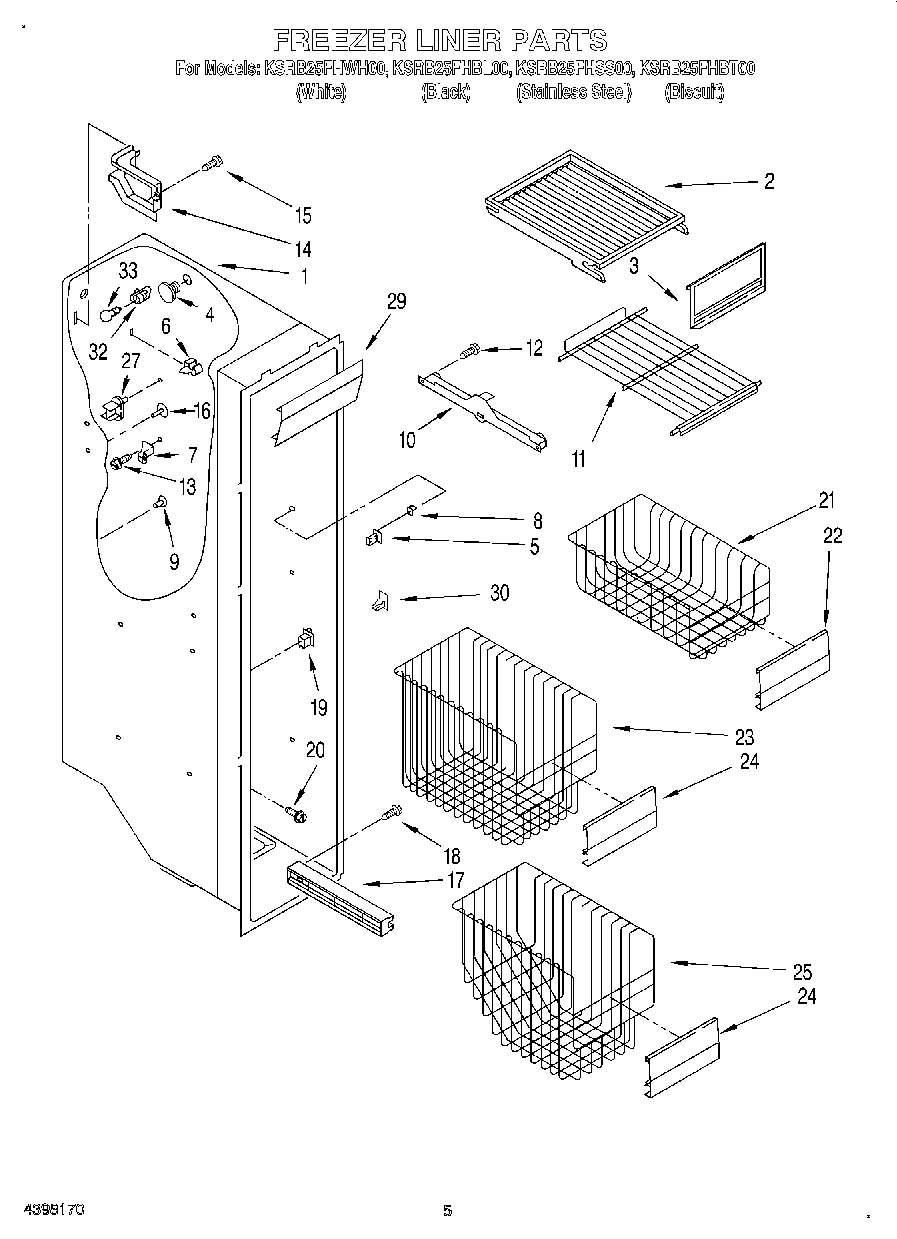

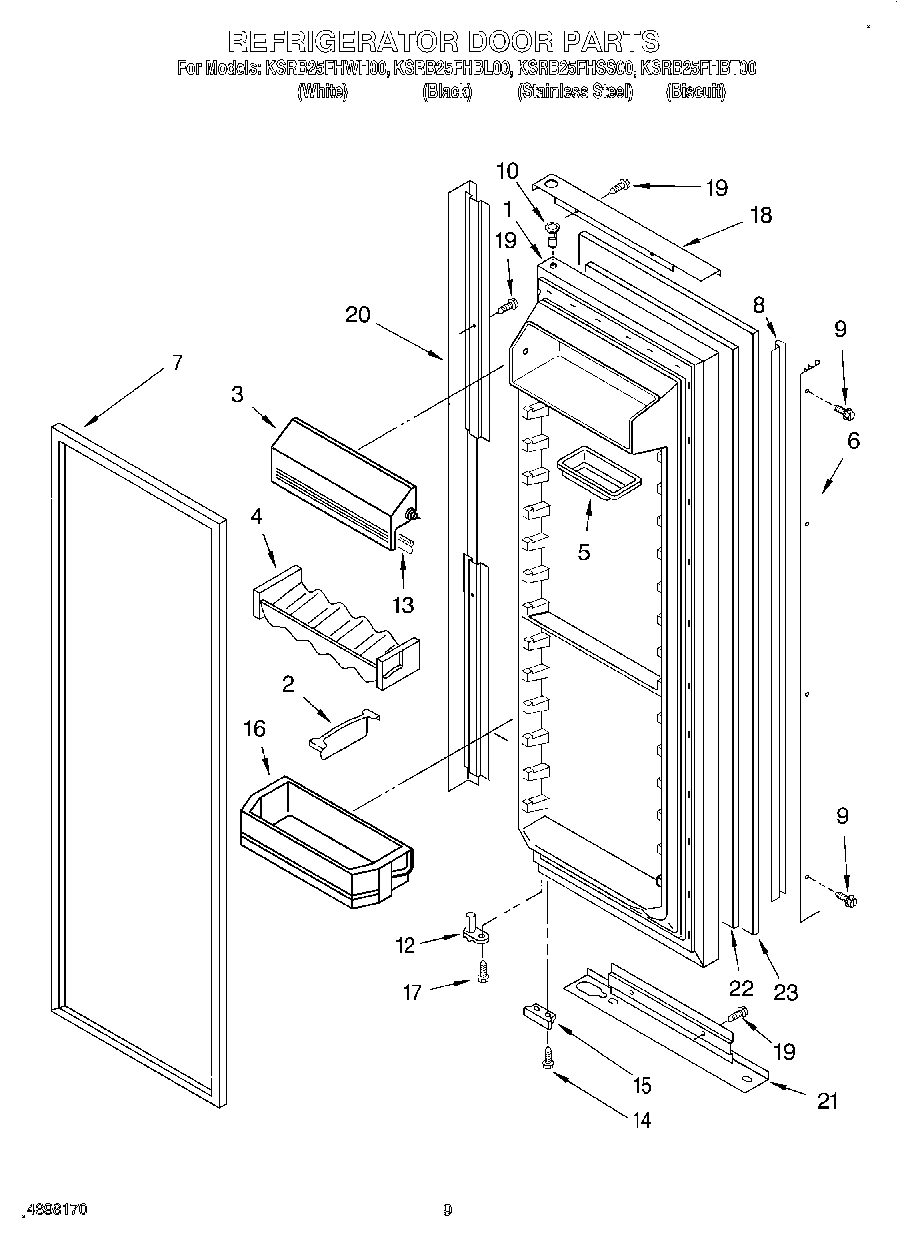

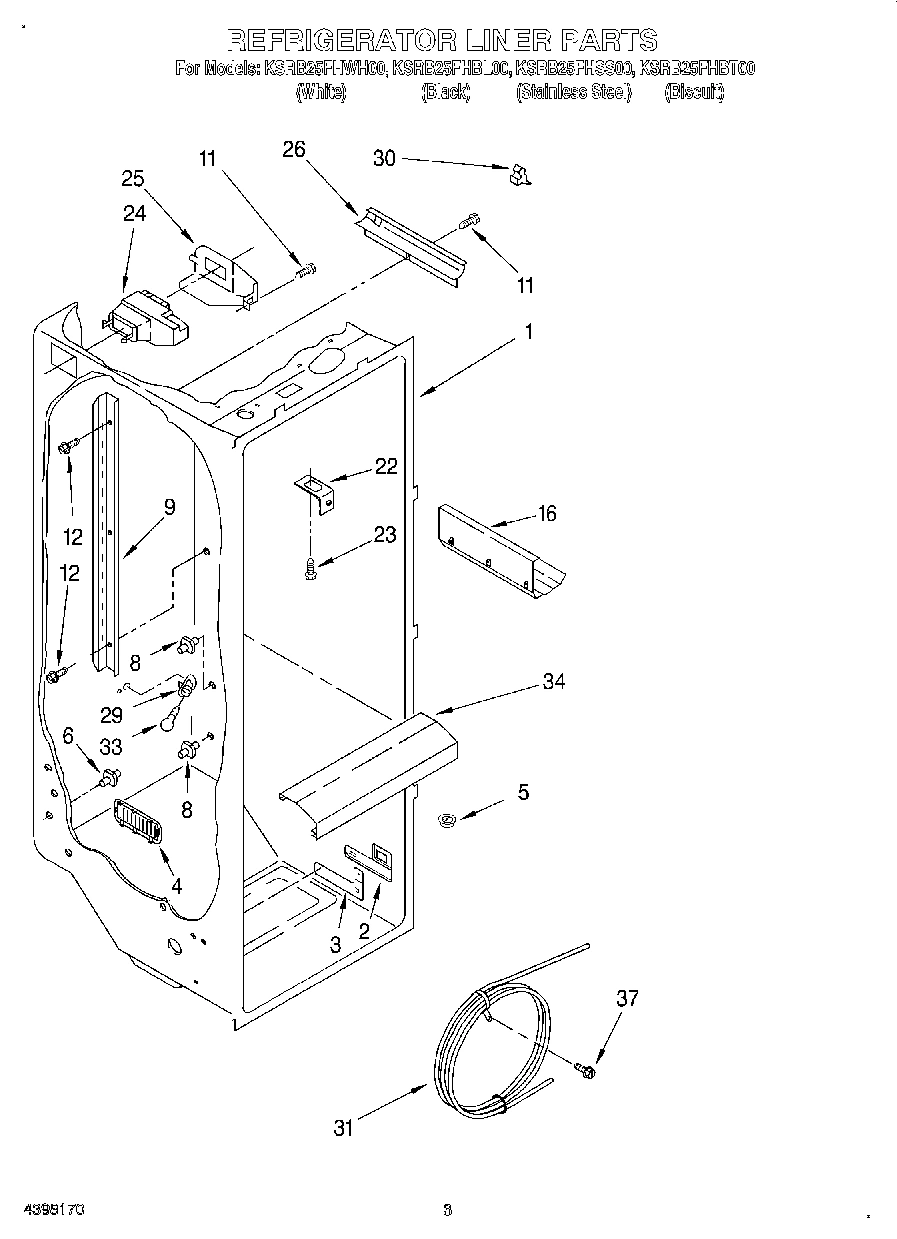

Common parts from model Whirlpool KSRB25FHWH00
1

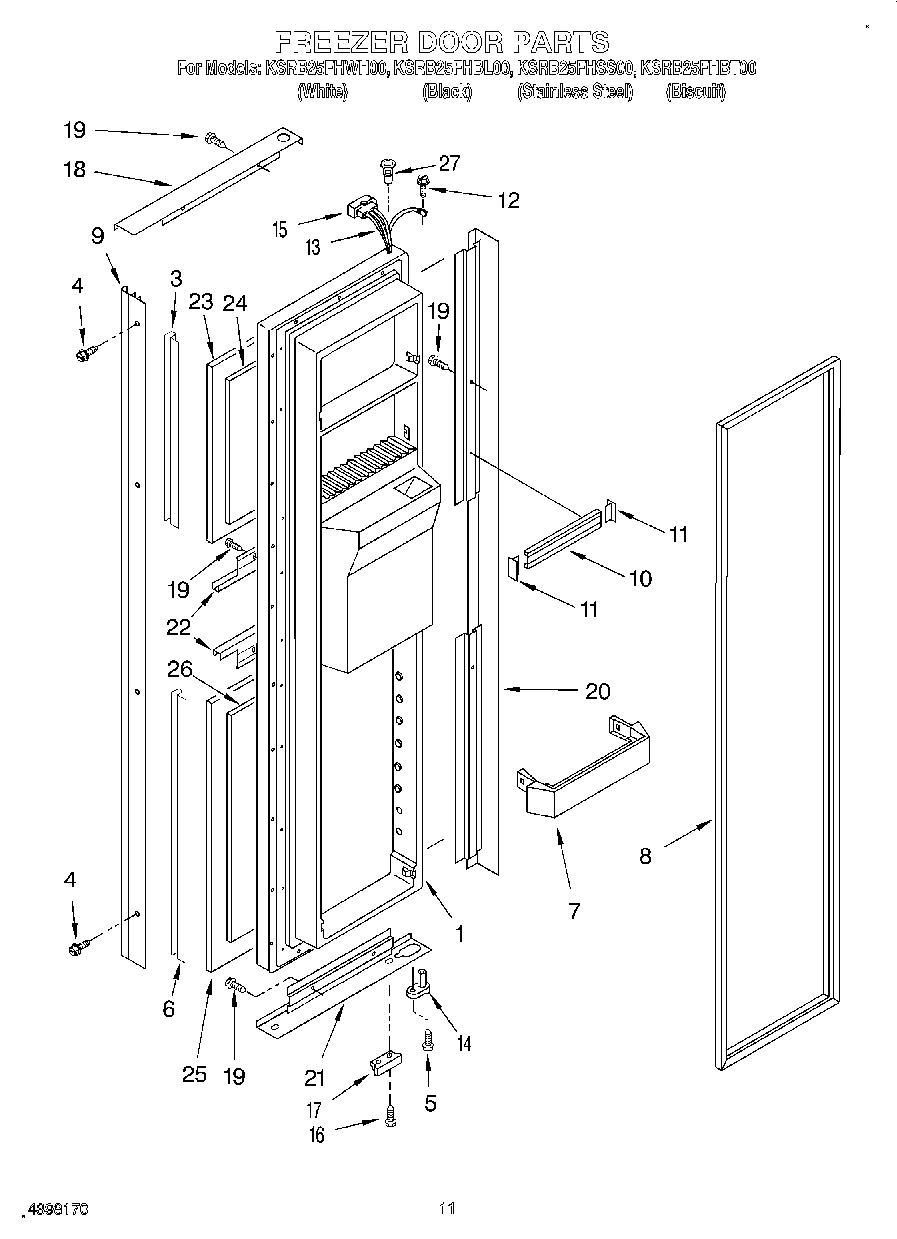

Freezer Door (Includes No.8 And Dispenser Fro WPL 2203347B Contact Us For Availability
1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2203347S Contact Us For Availability
1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2203347T Contact Us For Availability
1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2203347W Contact Us For Availability
1

Liner (Not A Serviceable Part) WPL ARI94630A4 Contact Us For Availability
1

Shelf Assembly, Cantilever (3) WPL 2195978 Contact Us For Availability
1

Bracket, Motor WPL 2183726 Contact Us For Availability
2

Blade, Fan WPL 2190685 Contact Us For Availability
2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2

Shelf, Top Compartment WPL 2174493 Contact Us For Availability
2

Button, Humidity WPL 2174253 Contact Us For Availability
3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3

Edging, Panel (Top) (Black) WPL 2204372B Contact Us For Availability
3

Edging, Panel (Top) (Biscuit) WPL 2204372T Contact Us For Availability
3

Edging, Panel (Top) (White) WPL 2204372W Contact Us For Availability
3

Air Scoop WPL 2161231 Contact Us For Availability
3

Condenser Assembly WPL 2204242B Contact Us For Availability
4

Screw (Stainless) WPL 3400897 Contact Us For Availability
4

Screw (White) WPL 3400898 Contact Us For Availability
4

Screw (Biscuit) WPL 8281135 Contact Us For Availability
4

Gasket, Side (2) WPL 2174273 Contact Us For Availability
5

Air Duct Freezer WPL 2203593 Contact Us For Availability
5

Stud, R.S. Front WPL 946356 Contact Us For Availability
5

Clip, Wire WPL 2155658 Contact Us For Availability
6

Edging, Panel (Bottom) (Black) WPL 2204375B Contact Us For Availability
6

Edging, Panel (Bottom) (Biscuit) WPL 2204375T Contact Us For Availability
6

Edging, Panel (Bottom) (White) WPL 2204375W Contact Us For Availability
7

Shelf Bin (4) WPL 2171070 Contact Us For Availability
7

Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8

Support, Stud (2) WPL 946355 Contact Us For Availability
8

Glass, Cover WPL 2189526 Contact Us For Availability
9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9

Grommet (2) WPL 2176134 Contact Us For Availability
9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9

Screw (Black) WPL 3400899 Contact Us For Availability
9

Handle (Black) WPL 2203813B Contact Us For Availability
9

Handle (Biscuit) WPL 2203813T Contact Us For Availability
9

Handle (White) WPL 2203813W Contact Us For Availability
9

Handle (Stainless Steel) WPL 2203819S Contact Us For Availability
10

Glass, Cover WPL 2174148 Contact Us For Availability
11

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability
11

Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability
12

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
12

Gasket, (Rear) WPL 2174274 Contact Us For Availability
13

Eyelet, Roller WPL 2174478 Contact Us For Availability
13

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
13

Wire Harness WPL 2180229 Contact Us For Availability
14

Light Bar (RC) WPL 2179920 Contact Us For Availability
14

Grille (Biscuit) WPL 2198468T Contact Us For Availability
14

Cover, Wiring WPL 2155572 Contact Us For Availability
14

Roller WPL 2188212 Contact Us For Availability
15

Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
15

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
15

Relay WPL 2183454 Contact Us For Availability
17

Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability
17

Cover, Evaporator WPL 2203841 Contact Us For Availability
17

Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
17

Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
17

Capacitor (Production) WPL 2169137 Contact Us For Availability
17

Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
18

Window, Crisper WPL 2174076 Contact Us For Availability
18

Trim, Door (Top) (Black) WPL 2203372B Contact Us For Availability
18

Trim, Door (Top) (Biscuit) WPL 2203372T Contact Us For Availability
18

Trim, Door (Top) (White) WPL 2203372W Contact Us For Availability
18

Trim, Door (Top) (Stainless Steel) WPL 2203373S Contact Us For Availability
19

Overlay, Front Cover (Black) WPL 2186718B Contact Us For Availability
19

Overlay, Front Cover (Biscuit) WPL 2186718T Contact Us For Availability
19

Overlay, Front Cover (White) WPL 2186718W Contact Us For Availability
19

Screw Grommet WPL 509812 Contact Us For Availability
20

Trim, Door (Hinge Side) (Black) WPL 2186688B Contact Us For Availability
20

Trim, Door (Hinge Side) (Biscuit) WPL 2186688T Contact Us For Availability
20

Trim, Door (Hinge WPL 2186688W Contact Us For Availability
20

WPL 2186765S WPL 2186765S Contact Us For Availability
21

Front Cover, Housing (Not Available, Order No WPL ARI94632A9 Contact Us For Availability
21

WPL 2203366B WPL 2203366B Contact Us For Availability
21

WPL 2203366T WPL 2203366T Contact Us For Availability
21

WPL 2203366W WPL 2203366W Contact Us For Availability
21

WPL 2203367S WPL 2203367S Contact Us For Availability
21

Basket, Shallow WPL 2181763 Contact Us For Availability
21

Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21

Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
22

Hinge Cover (Black) WPL 2155938 Contact Us For Availability
22

WPL 2186702B WPL 2186702B Contact Us For Availability
22

WPL 2186702T WPL 2186702T Contact Us For Availability
22

WPL 2186702W WPL 2186702W Contact Us For Availability
22

WPL 2186778S WPL 2186778S Contact Us For Availability
22

Front, Basket WPL 2171767 Contact Us For Availability
22

Window, Meat Pan WPL 2174362 Contact Us For Availability
23

Clamp WPL 2161324 Contact Us For Availability
23

Front Cover Assembly (Includes Items 18, 19, WPL 2186714B Contact Us For Availability
23

Front Cover Assembly (Includes Items 18, 19, WPL 2186714T Contact Us For Availability
23

Front Cover Assembly (Includes Items 18, 19, WPL 2186714W Contact Us For Availability
23

WPL 2203284B WPL 2203284B Contact Us For Availability
23

WPL 2203284T WPL 2203284T Contact Us For Availability
23

WPL 2203284W WPL 2203284W Contact Us For Availability
23

WPL 2203290S WPL 2203290S Contact Us For Availability
23

Basket, Square WPL 2181765 Contact Us For Availability
24

WPL 2208277 WPL 2208277 Contact Us For Availability
24

Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
24

Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25

WPL 2203286B WPL 2203286B Contact Us For Availability
25

WPL 2203286T WPL 2203286T Contact Us For Availability
25

WPL 2203286W WPL 2203286W Contact Us For Availability
25

WPL 2203292S WPL 2203292S Contact Us For Availability
25

Basket, Sloped WPL 2181764 Contact Us For Availability
25

Tray, Evaporator WPL 1110674 Contact Us For Availability
25

Screw WPL 489439 Contact Us For Availability
26

WPL 2208278 WPL 2208278 Contact Us For Availability
26

Heat Shield WPL 2149294 Contact Us For Availability
26

Shelf, Snack Bin WPL 2208298 Contact Us For Availability
27

Stud, Shelf (4) WPL 1115386 Contact Us For Availability
30

Stud, R.S. Rear WPL 1106982 Contact Us For Availability
31

Unit, Harness WPL 2194749 Contact Us For Availability
34

Light Lens WPL 2174436 Contact Us For Availability
34

Clip WPL 2161330 Contact Us For Availability
37

Screw WPL 489387 Contact Us For Availability
42

Clip, Heat Shield WPL 2155547 Contact Us For Availability
43

Unit Cover, Bottom WPL 2182058 Contact Us For Availability
44

Front Cover, Ice Container WPL 2171708 Contact Us For Availability
49

Screw WPL 488624 Contact Us For Availability
50

Guard, Fan WPL 2186495 Contact Us For Availability
54

Wire Connector WPL 227991 Contact Us For Availability
63

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100

WPL 876029 WPL 876029 Contact Us For Availability
100

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100

WPL 799344 WPL 799344 Contact Us For Availability
100

Torx Key WPL 1117510 Contact Us For Availability
× ![]()
