Model Whirlpool KSRB25FHBL05 REFRIGERATOR – Common Parts & Diagrams

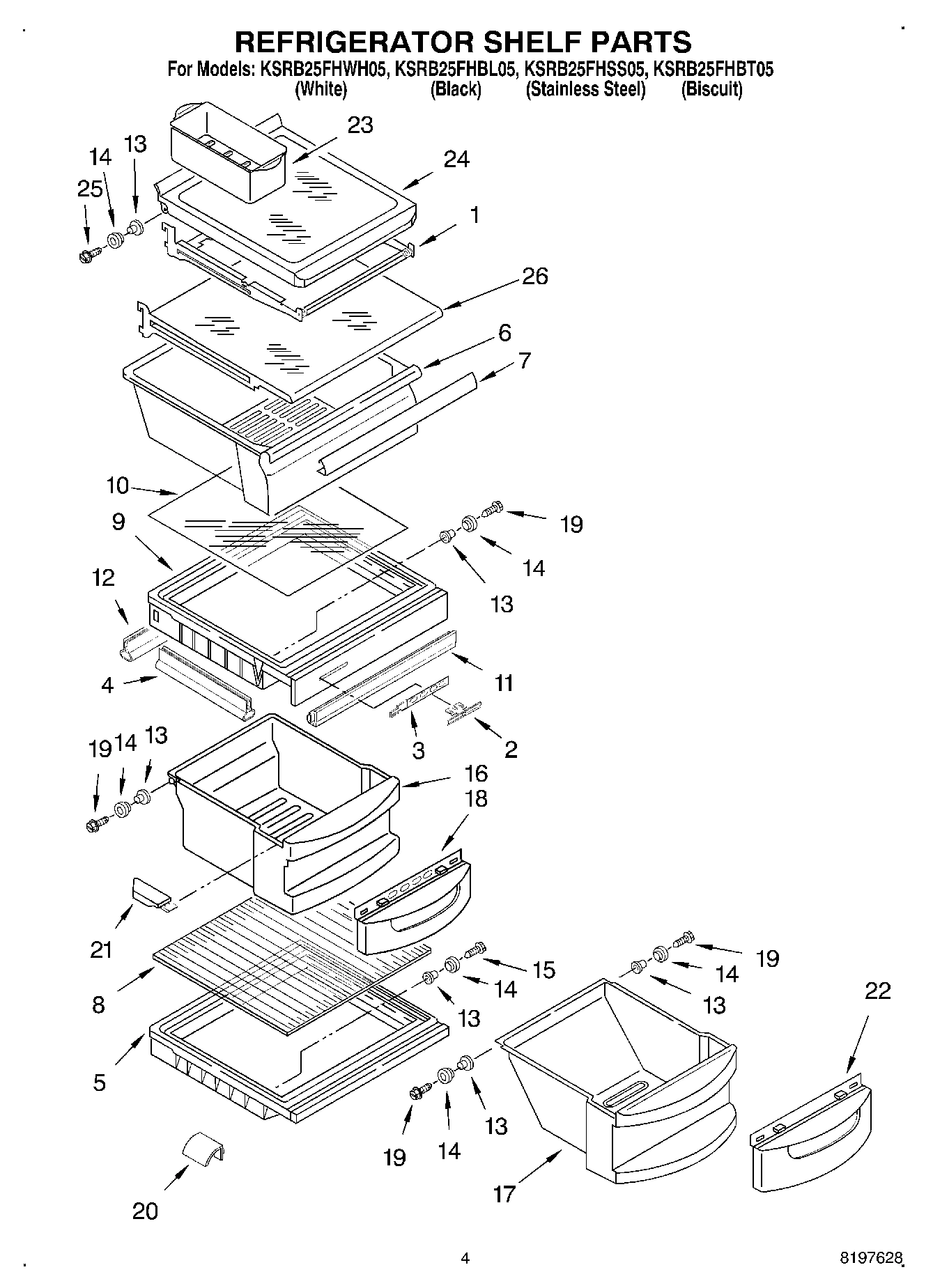

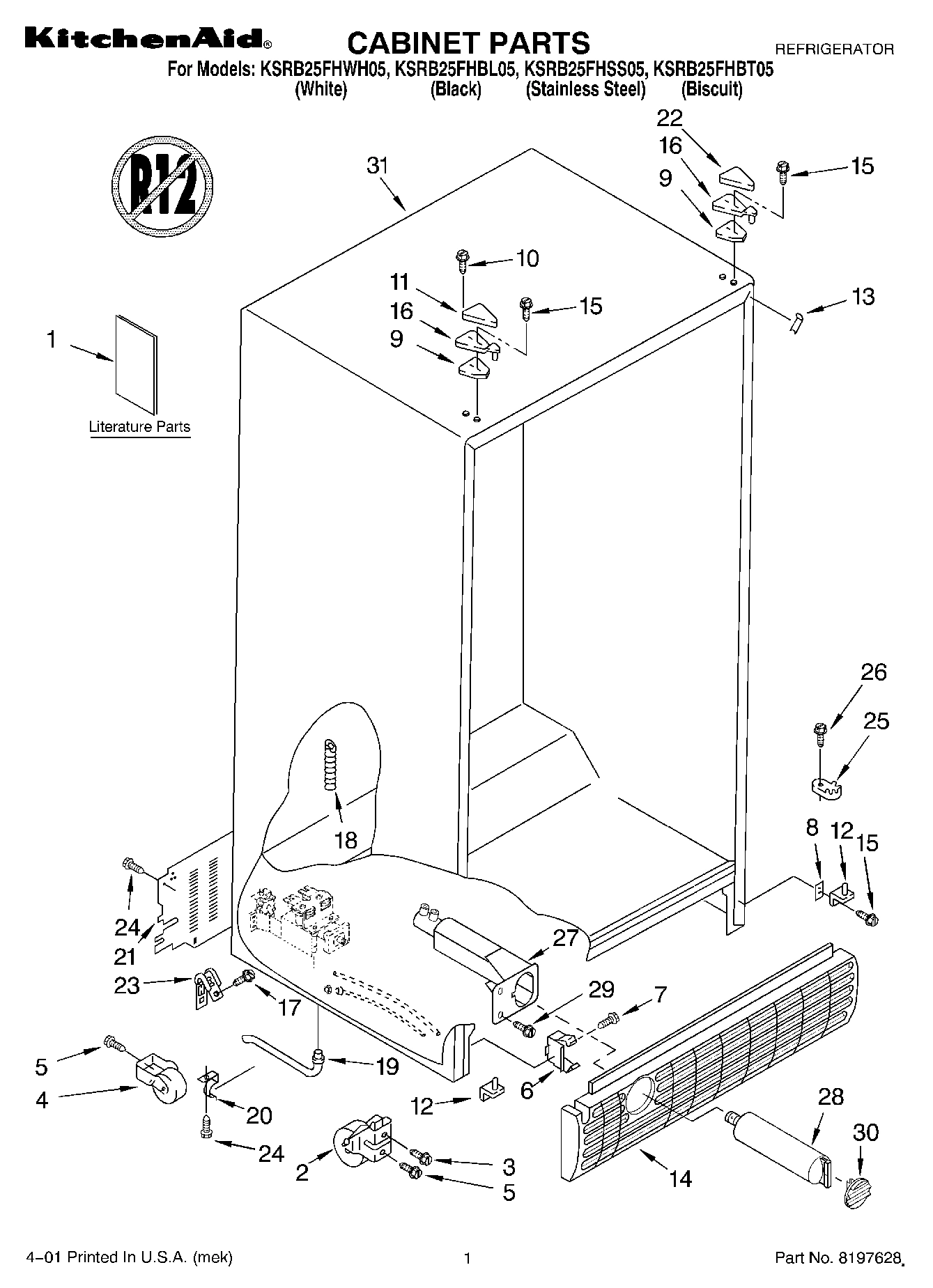

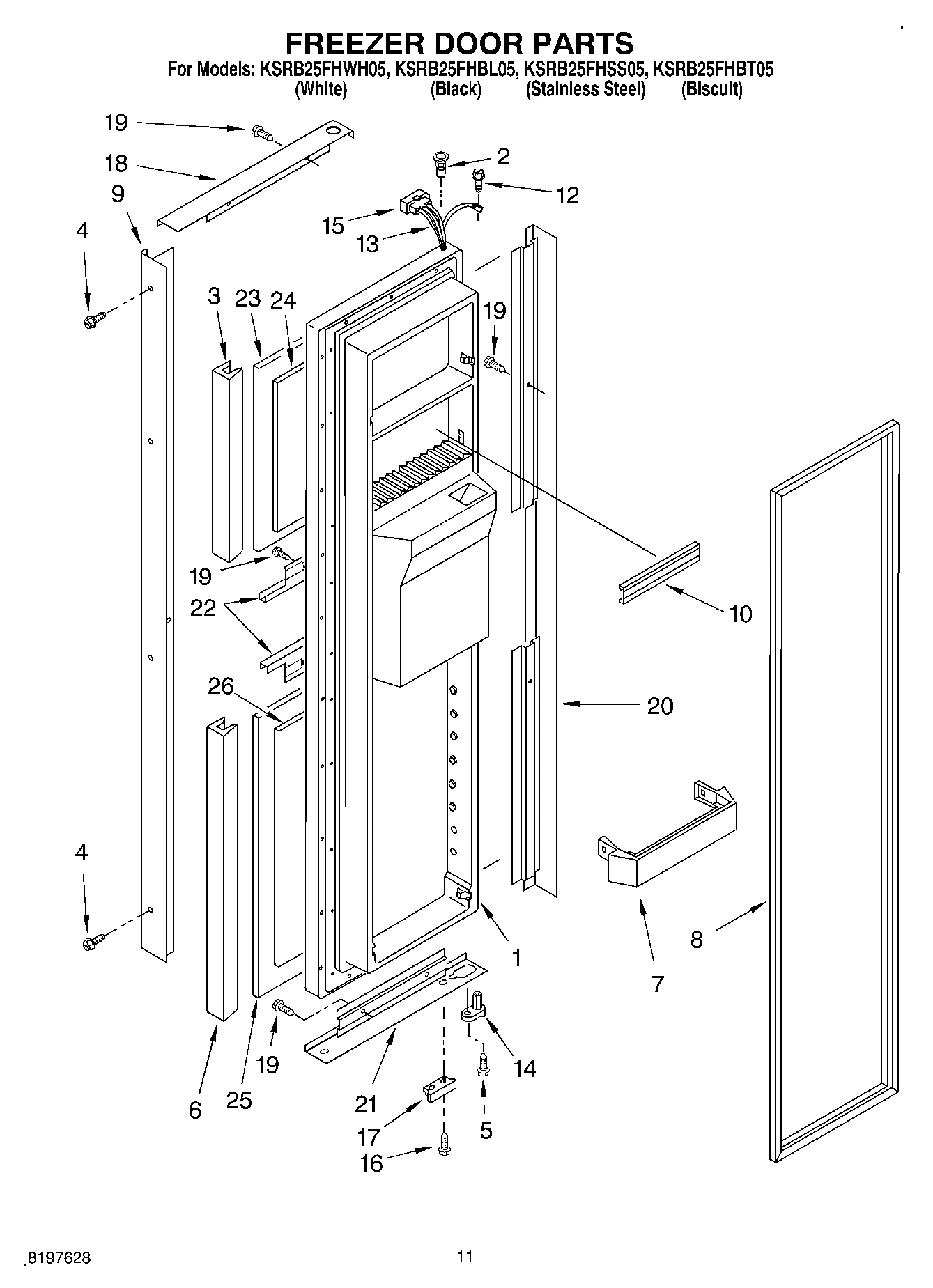

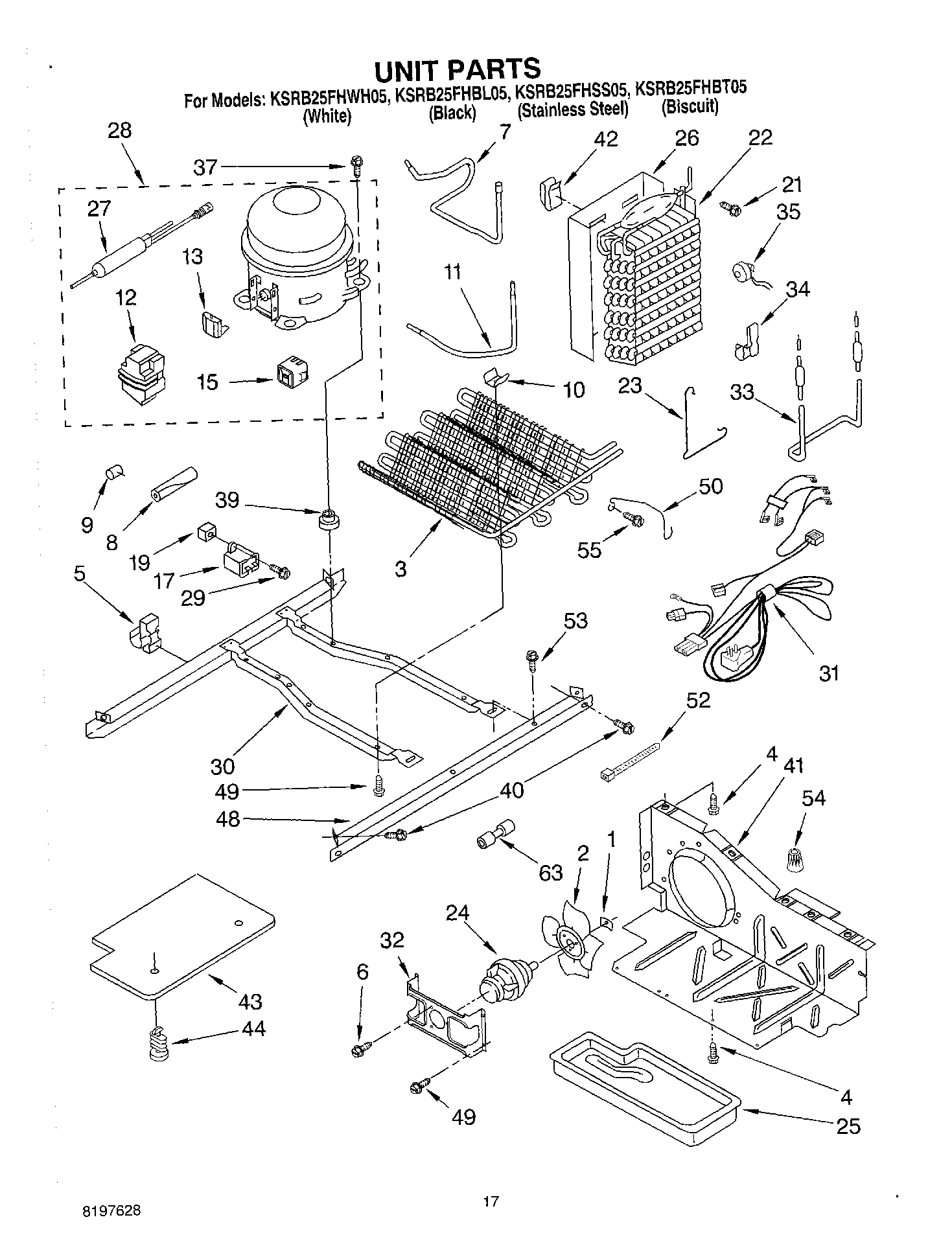

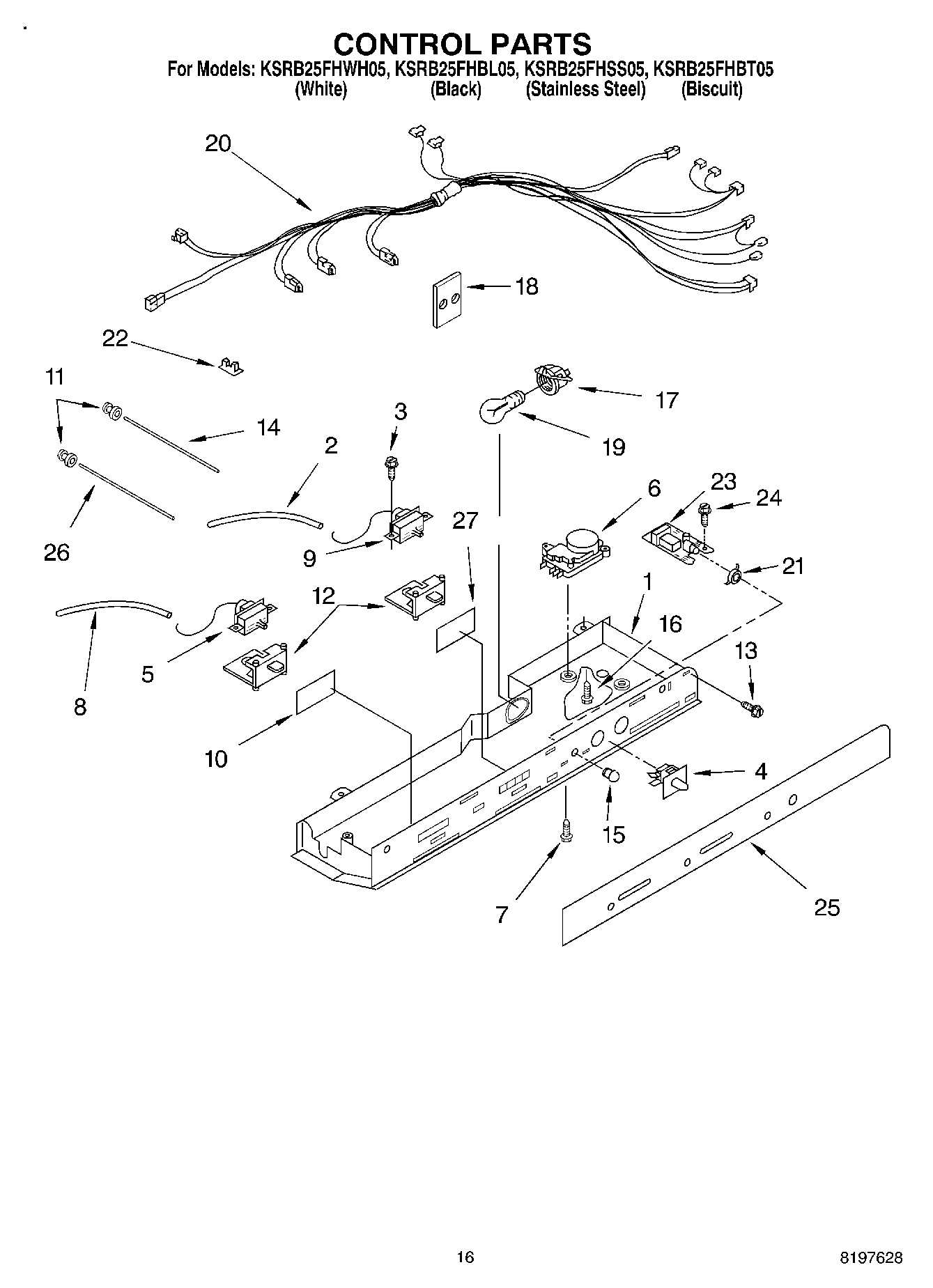

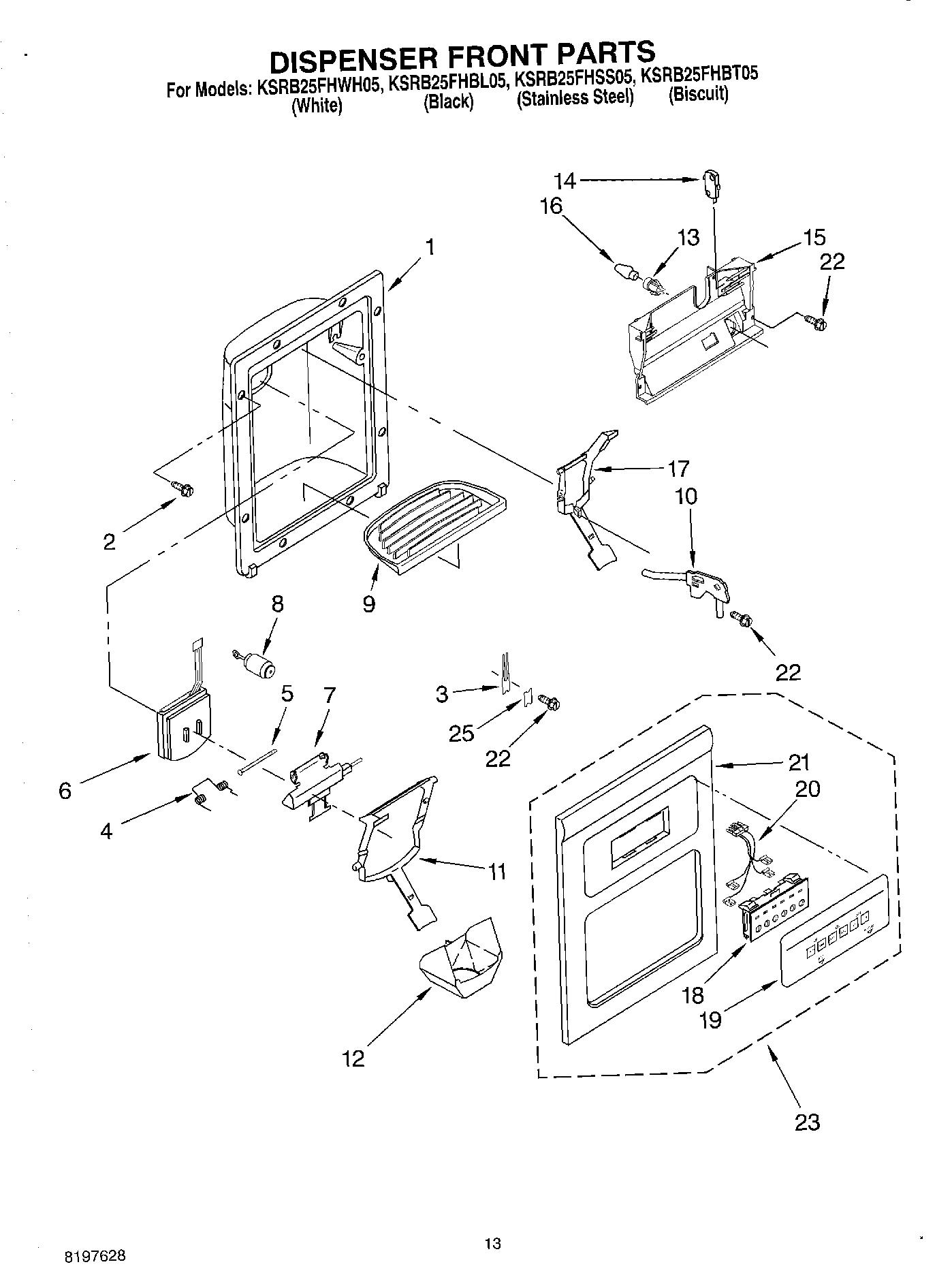

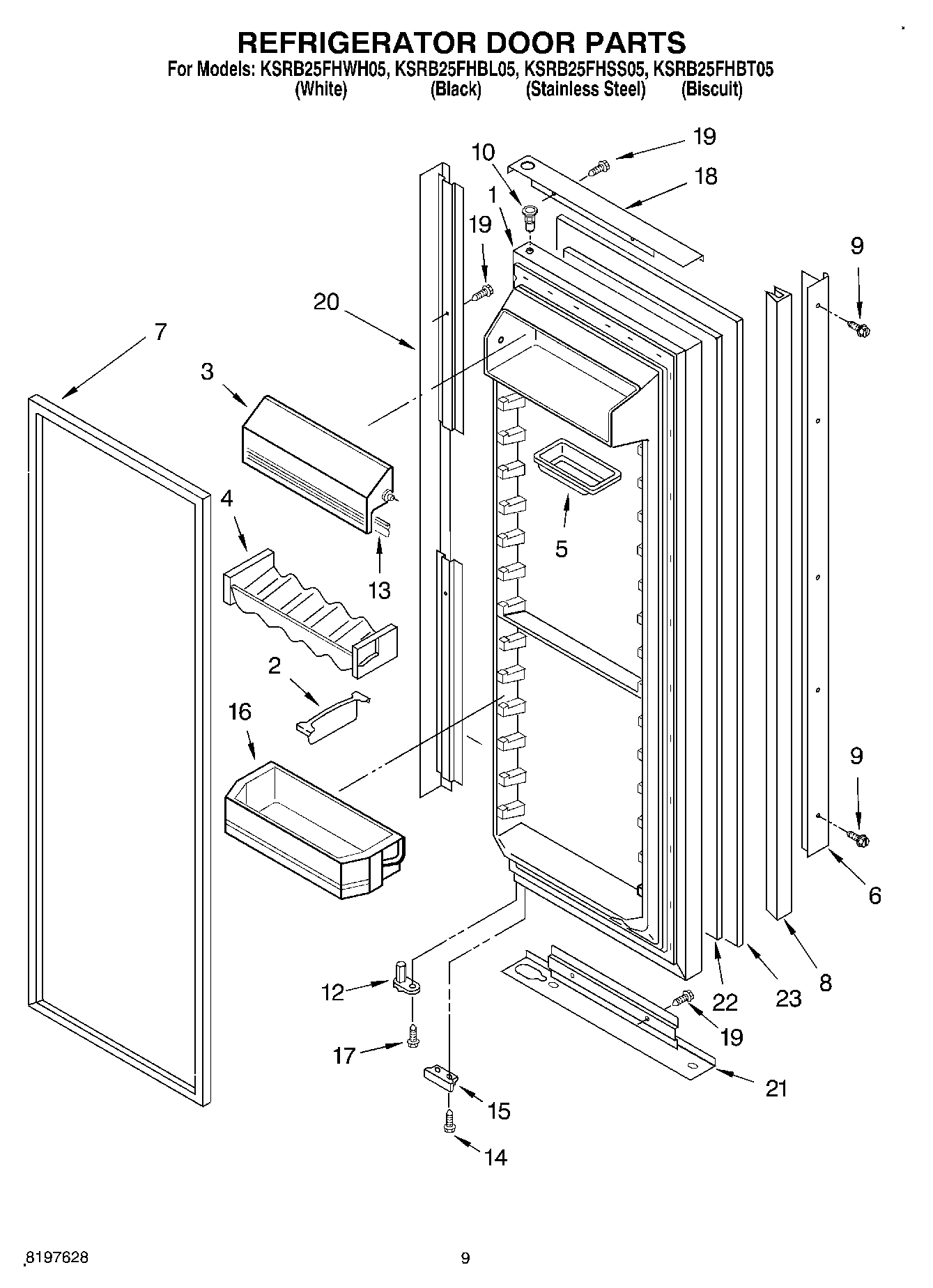

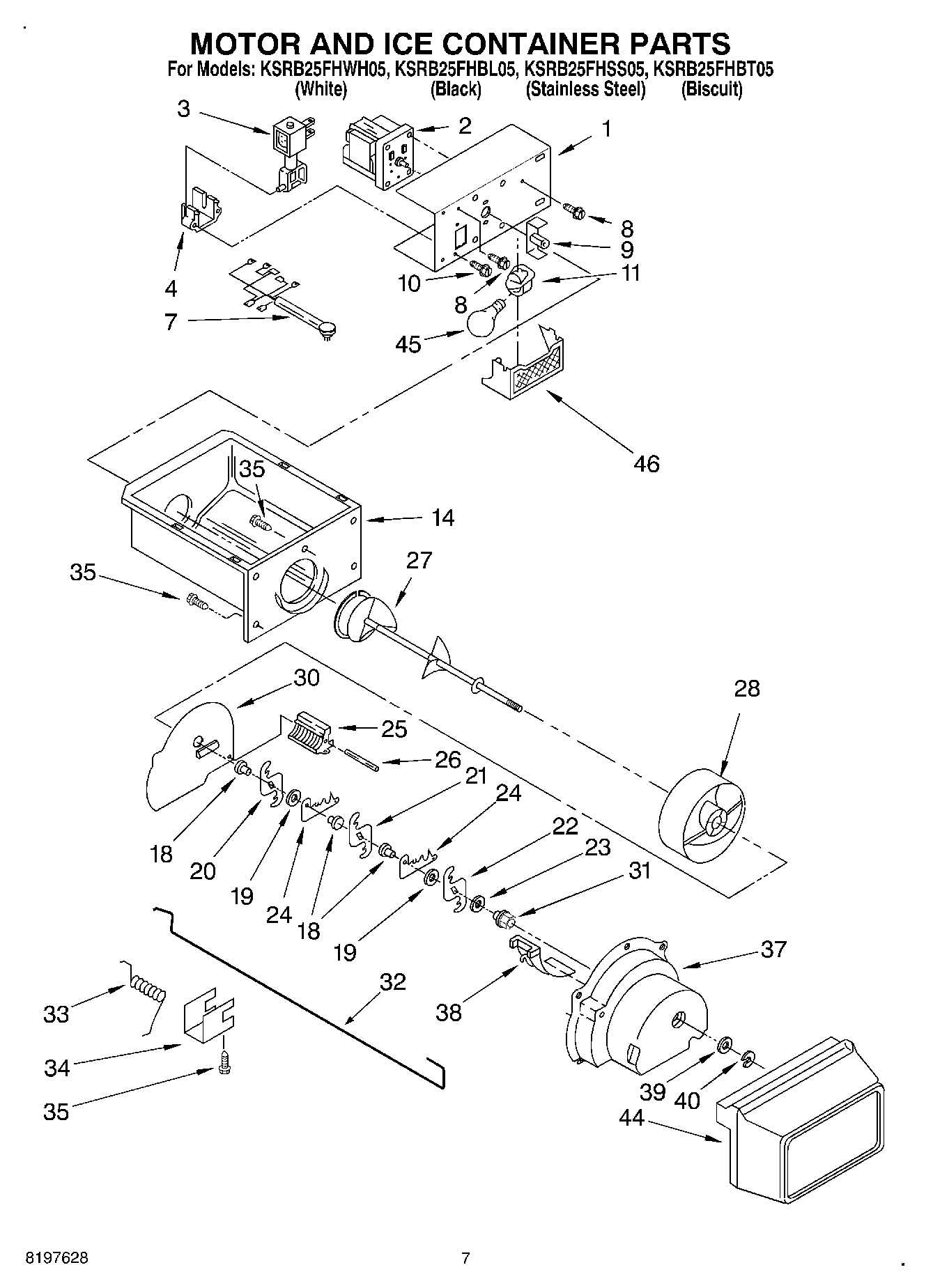

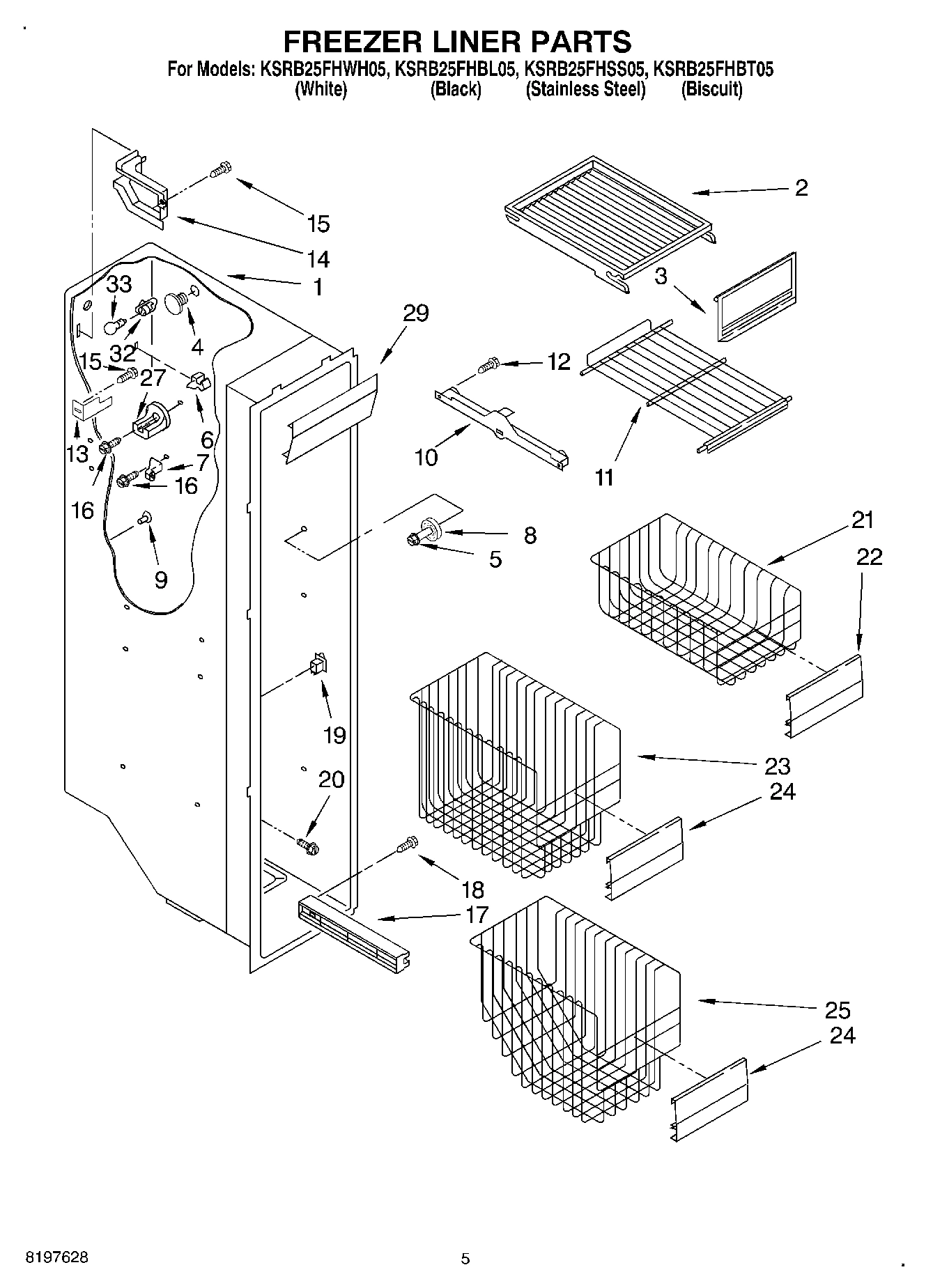

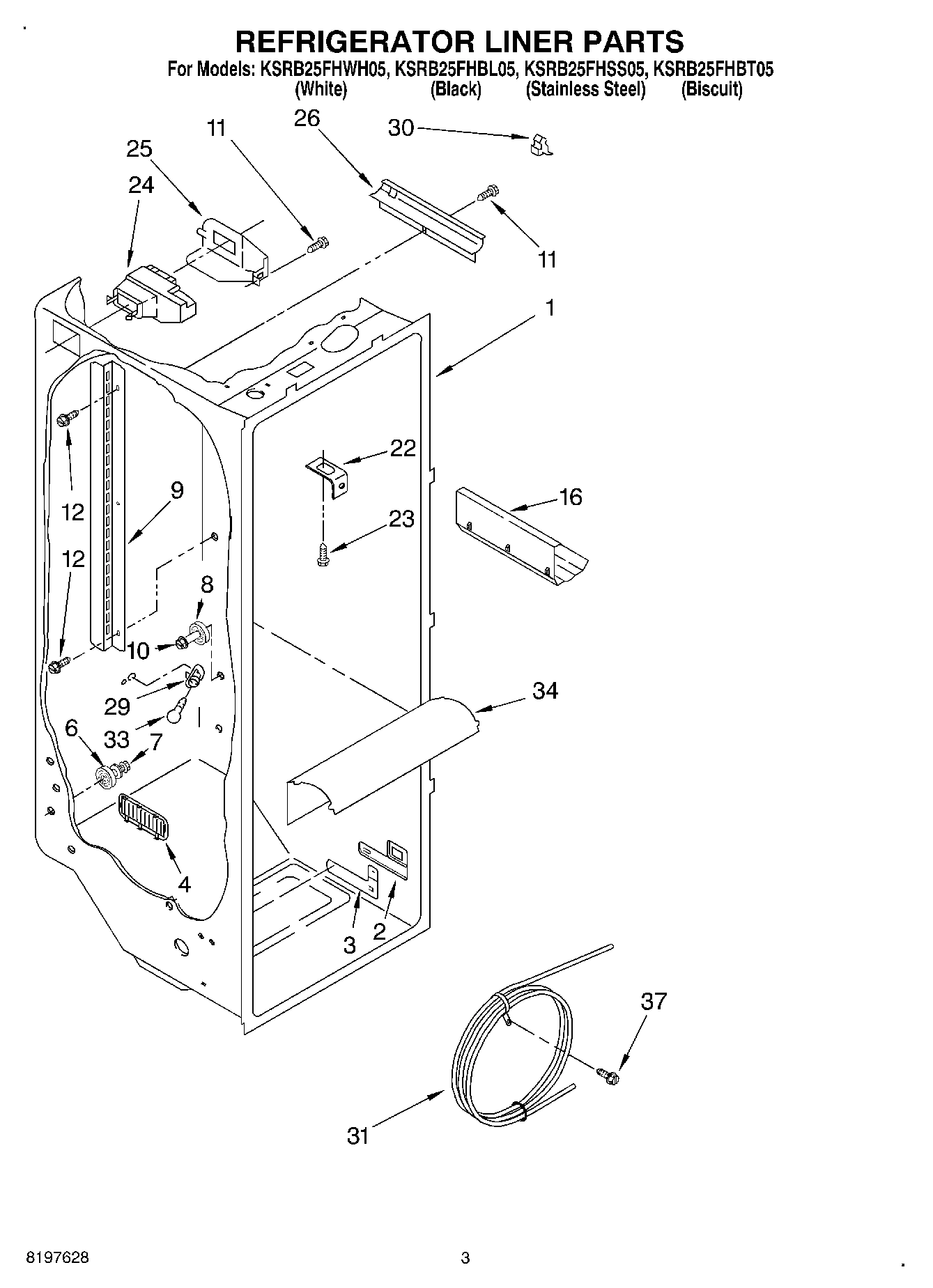

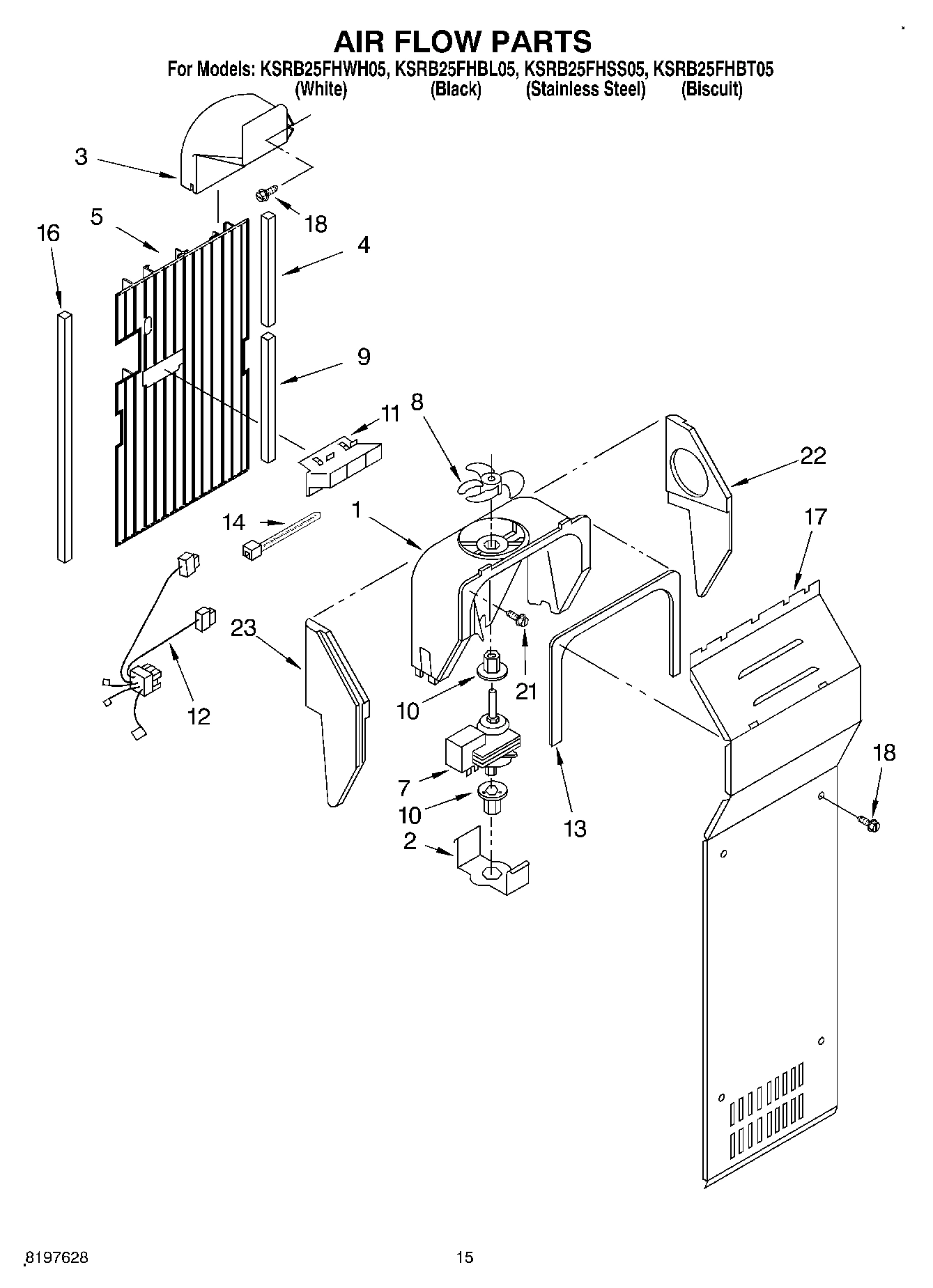

Common parts from model Whirlpool KSRB25FHBL05 REFRIGERATOR
 1


Literature Parts (Use & Care Guide) WPL  LIT2206106 Contact Us For Availability
  1


Energy Label WPL  LIT2211861 Contact Us For Availability
  1


LITERATURE PARTS (Service & Wiring Sheet) WPL  LIT2216975 Contact Us For Availability
  1


Modular Icemaker Service Sheet WPL  LIT628370 Contact Us For Availability
  1


Housing, Dispenser (Not a Serviceable Part) WPL  ARI94564A2 Contact Us For Availability
  1


Liner (Not A Serviceable Part) WPL  ARI94563A9 Contact Us For Availability
  1


Bracket, Motor WPL  2183726 Contact Us For Availability
  2


Blade, Fan WPL  2190685 Contact Us For Availability
  2


RETAINER, FAN MOTOR WPL  2155590 Contact Us For Availability
  2


Front Roller (2) WPL  2174748 Contact Us For Availability
  2


Shelf, Top Compartment WPL  2174493 Contact Us For Availability
  3


SLIDE MEAT PAN CONTROL WPL  2182757 Contact Us For Availability
  6


Edging, Panel (White) WPL  2204375W Contact Us For Availability
  6


Nut, Compression WPL  2200083 Contact Us For Availability
  6


Adaptive Defrost Control WPL  2162046 Contact Us For Availability
  7


Shelf Bin (4) WPL  2171070 Contact Us For Availability
  7


Door Mechanism Assembly WPL  2206423 Contact Us For Availability
  8


Delay Mechanism WPL  2205686 Contact Us For Availability
  9


Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL  2174250 Contact Us For Availability
  9


Grommet (2) WPL  2176134 Contact Us For Availability
  9


Grille, Overflow (White) WPL  2180323 Contact Us For Availability
  9


Screw (Black) WPL  3400899 Contact Us For Availability
  9


Handle (Black) WPL  2203813B Contact Us For Availability
  9


Handle (Biscuit) WPL  2203813T Contact Us For Availability
  9


Handle (White) WPL  2203813W Contact Us For Availability
  9


Handle (Stainless Steel) WPL  2203819S Contact Us For Availability
  9


Shim, Hinge Top WPL  2196049 Contact Us For Availability
  9


Grille, Overflow (Biscuit) WPL  2186860 Contact Us For Availability
  10


Screw WPL  489284 Contact Us For Availability
  11


Lever, Ice Dispenser (White (White Shadow Pad WPL  2180259 Contact Us For Availability
  11


Tube, Condenser to Heat Loop WPL  2211760 Contact Us For Availability
  11


Hinge Cover (Black) WPL  2171947 Contact Us For Availability
  11


Hinge Cover (Biscuit) WPL  2171947T Contact Us For Availability
  11


Hinge Cover (White) WPL  2171947W Contact Us For Availability
  11


Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL  2180261 Contact Us For Availability
  11


Lever, Ice Dispenser (Biscuit (Almond Shadow  WPL  2186850 Contact Us For Availability
  11


Grommet, Light Bar WPL  2172906 Contact Us For Availability
  13


Eyelet, Roller WPL  2174478 Contact Us For Availability
  13


Filler, Wrapper (White) WPL  2196094 Contact Us For Availability
  13


Wire Harness WPL  2180229 Contact Us For Availability
  13


Filler, Wrapper (Black) WPL  2196097 Contact Us For Availability
  13


Filler, Wrapper (Biscuit) WPL  2196150 Contact Us For Availability
  13


Bracket, Fill Tube WPL  2209674 Contact Us For Availability
  14


Light Bar (RC) WPL  2179920 Contact Us For Availability
  14


Grille (Biscuit) WPL  2198468T Contact Us For Availability
  14


Cover, Wiring WPL  2155572 Contact Us For Availability
  15


Bracket, Door Stop (Black) WPL  2195950 Contact Us For Availability
  15


COVER, LIGHT LENS WPL  2200096 Contact Us For Availability
  15


Bracket, Control WPL  2180227 Contact Us For Availability
  17


Bracket, Door Stop (Chrome) WPL  2195952 Contact Us For Availability
  17


Shelf Track (Left Side (3)) WPL  2181759 Contact Us For Availability
  17


Shelf Track (Right Side (3)) WPL  2181760 Contact Us For Availability
  18


Window, Crisper WPL  2174076 Contact Us For Availability
  18


Trim, Door (Top) (Black) WPL  2203372B Contact Us For Availability
  18


Trim, Door (Top) (Biscuit) WPL  2203372T Contact Us For Availability
  18


Trim, Door (Top) (White) WPL  2203372W Contact Us For Availability
  18


Trim, Door (Top) (Stainless Steel) WPL  2203373S Contact Us For Availability
  19


Overlay, Front Cover (Black) WPL  2186718B Contact Us For Availability
  19


Overlay, Front Cover (Biscuit) WPL  2186718T Contact Us For Availability
  19


Overlay, Front Cover (White) WPL  2186718W Contact Us For Availability
  20


Trim, Door (Hinge Side) (Black) WPL  2186688B Contact Us For Availability
  20


Trim, Door (Hinge Side) (Biscuit) WPL  2186688T Contact Us For Availability
  20


Trim, Door (Hinge Side) (White) WPL  2186688W Contact Us For Availability
  20


Trim, Door (Hinge Side) (Stainless Steel) WPL  2186765S Contact Us For Availability
  20


Control Box Harness WPL  2206516 Contact Us For Availability
  21


Trim, WPL  2203366B Contact Us For Availability
  21


WPL  2203366T WPL  2203366T Contact Us For Availability
  21


WPL  2203366W WPL  2203366W Contact Us For Availability
  21


WPL  2203367S WPL  2203367S Contact Us For Availability
  21


Front Cover, Housing (Not Available, Order No WPL  ARI94565A1 Contact Us For Availability
  21


Basket, Shallow WPL  2181763 Contact Us For Availability
  21


Retainer, Light Lens WPL  2200097 Contact Us For Availability
  22


Hinge Cover (Black) WPL  2155938 Contact Us For Availability
  22


WPL  2186702B WPL  2186702B Contact Us For Availability
  22


WPL  2186702T WPL  2186702T Contact Us For Availability
  22


WPL  2186702W WPL  2186702W Contact Us For Availability
  22


WPL  2186778S WPL  2186778S Contact Us For Availability
  22


Front, Basket WPL  2171767 Contact Us For Availability
  22


CLIP, WIRING WPL  1115375 Contact Us For Availability
  23


Clamp WPL  2161324 Contact Us For Availability
  23


WPL  2203284B WPL  2203284B Contact Us For Availability
  23


WPL  2203284T WPL  2203284T Contact Us For Availability
  23


WPL  2203284W WPL  2203284W Contact Us For Availability
  23


WPL  2203290S WPL  2203290S Contact Us For Availability
  23


Front Cover Assembly (Includes Items 18, 19,  WPL  2186714B Contact Us For Availability
  23


Front Cover Assembly (Includes Items 18, 19,  WPL  2186714T Contact Us For Availability
  23


Front Cover Assembly (Includes Items 18, 19,  WPL  2186714W Contact Us For Availability
  23


Basket, Square WPL  2181765 Contact Us For Availability
  23


P.C. Board Filter Indicator WPL  2203384 Contact Us For Availability
  24


WPL  2208277 WPL  2208277 Contact Us For Availability
  24


Blade, Fixed (2) WPL  1119009 Contact Us For Availability
  25


WPL  2203286B WPL  2203286B Contact Us For Availability
  25


WPL  2203286T WPL  2203286T Contact Us For Availability
  25


WPL  2203286W WPL  2203286W Contact Us For Availability
  25


WPL  2203292S WPL  2203292S Contact Us For Availability
  25


Basket, Sloped WPL  2181764 Contact Us For Availability
  25


Escutcheon, Control Box WPL  2200099 Contact Us For Availability
  26


WPL  2208278 WPL  2208278 Contact Us For Availability
  26


Light Bar (FC) WPL  2179921 Contact Us For Availability
  27


Stud, Rear WPL  2196207 Contact Us For Availability
  27


Cement Alumilastic) WPL  542369 Contact Us For Availability
  27


Window WPL  2172941 Contact Us For Availability
  31


Cabinet (Not A Serviceable Part) WPL  ARI94561A9 Contact Us For Availability
  40


Nut, Compression WPL  1129179 Contact Us For Availability
  44


Front Cover, Ice Container WPL  2204321 Contact Us For Availability
  63


VALVE, ACCESS (5/8``) WPL  978029 Contact Us For Availability
  100


WPL  876029 WPL  876029 Contact Us For Availability
  100


TAPE, VINYL (3/4 X 108``) WPL  479502 Contact Us For Availability
  100


WPL  799344 WPL  799344 Contact Us For Availability
  100


Torx Key WPL  1117510 Contact Us For Availability
  100


PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL  4392900 Contact Us For Availability
  100


CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL  542639 Contact Us For Availability
  100


WPL  799340 WPL  799340 Contact Us For Availability
  100


WPL  799833 WPL  799833 Contact Us For Availability
  100


WPL  978883 WPL  978883 Contact Us For Availability
 × ![]()
