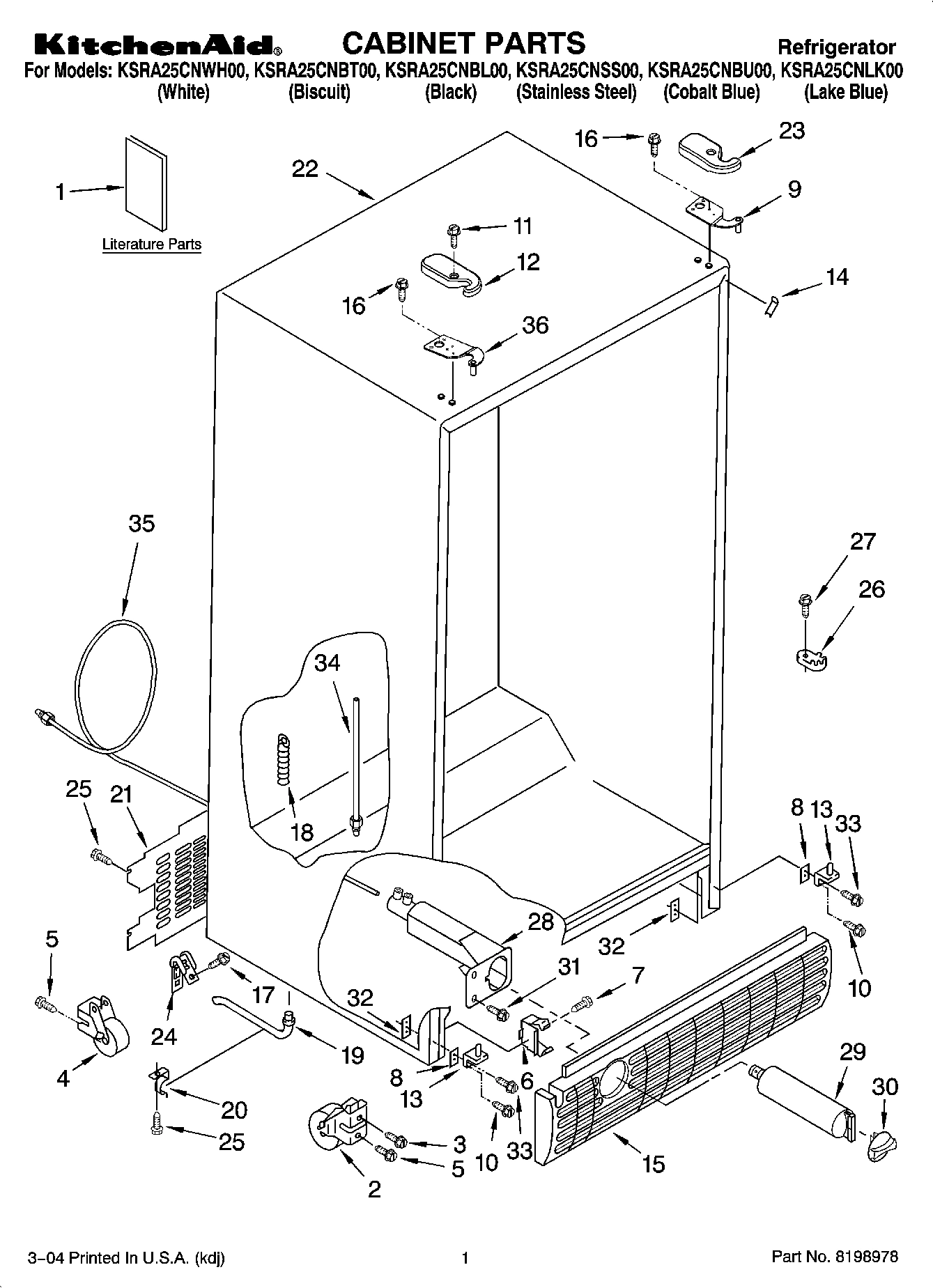

Model Whirlpool KSRA25CNBL00 Refrigerator – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $14.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WPL 80051 WPL 80051 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cleaner, Stainless Steel WPL 2006783 Contact Us For Availability

Ice Container Assembly WPL 2301343 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, WPL 799833 Contact Us For Availability

WPL 8171358 WPL 8171358 Contact Us For Availability

WPL ARI93175A8 WPL ARI93175A8 Contact Us For Availability

WPL ARI93176A9 WPL ARI93176A9 Contact Us For Availability

WPL ARI93177A1 WPL ARI93177A1 Contact Us For Availability

WPL ARI93178A6 WPL ARI93178A6 Contact Us For Availability

WPL ARI93179A6 WPL ARI93179A6 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

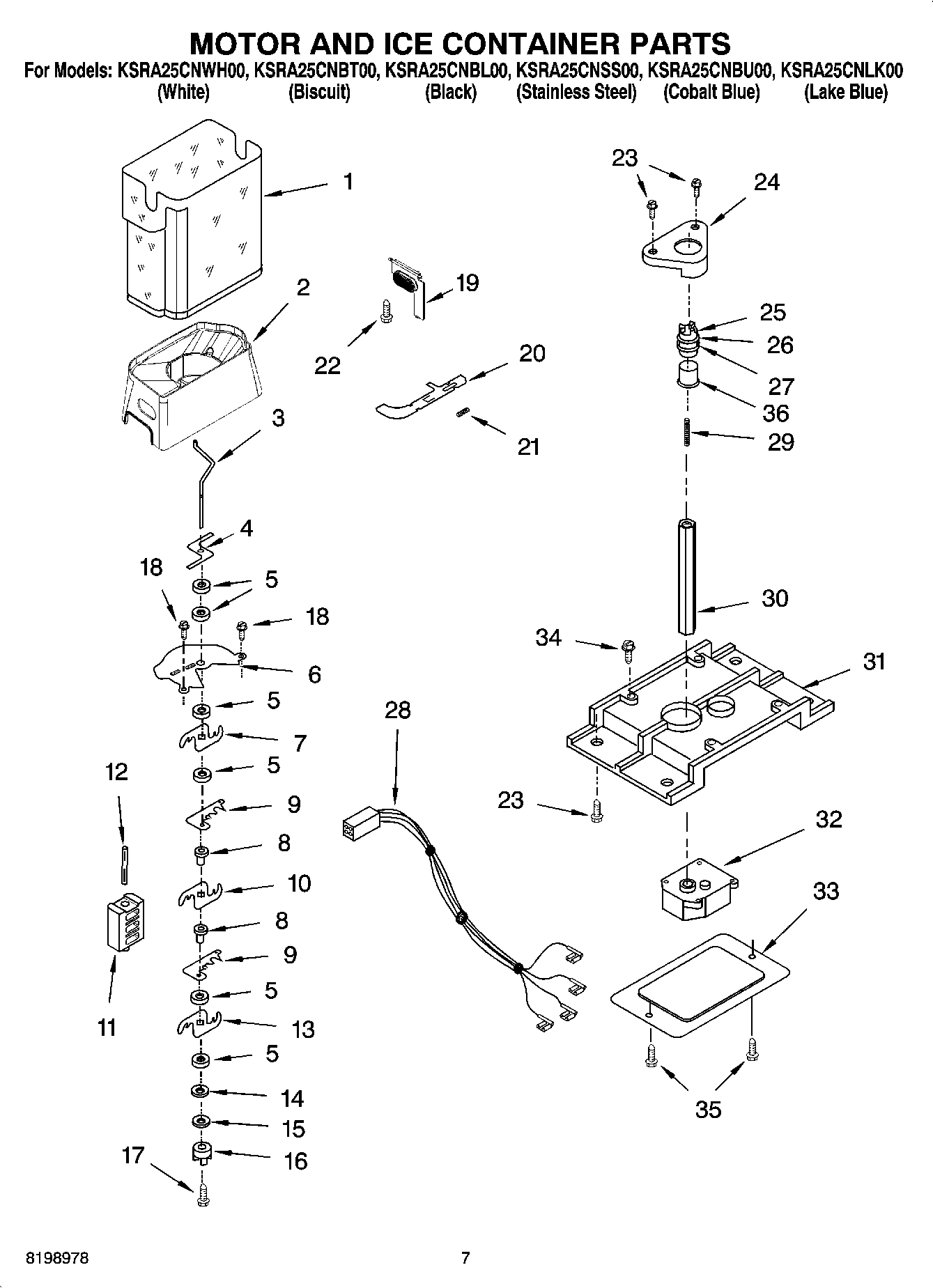

WP2198573 Whirlpool Refrigerator Ice Bin In Stock WPL WP2198573 $137.43

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

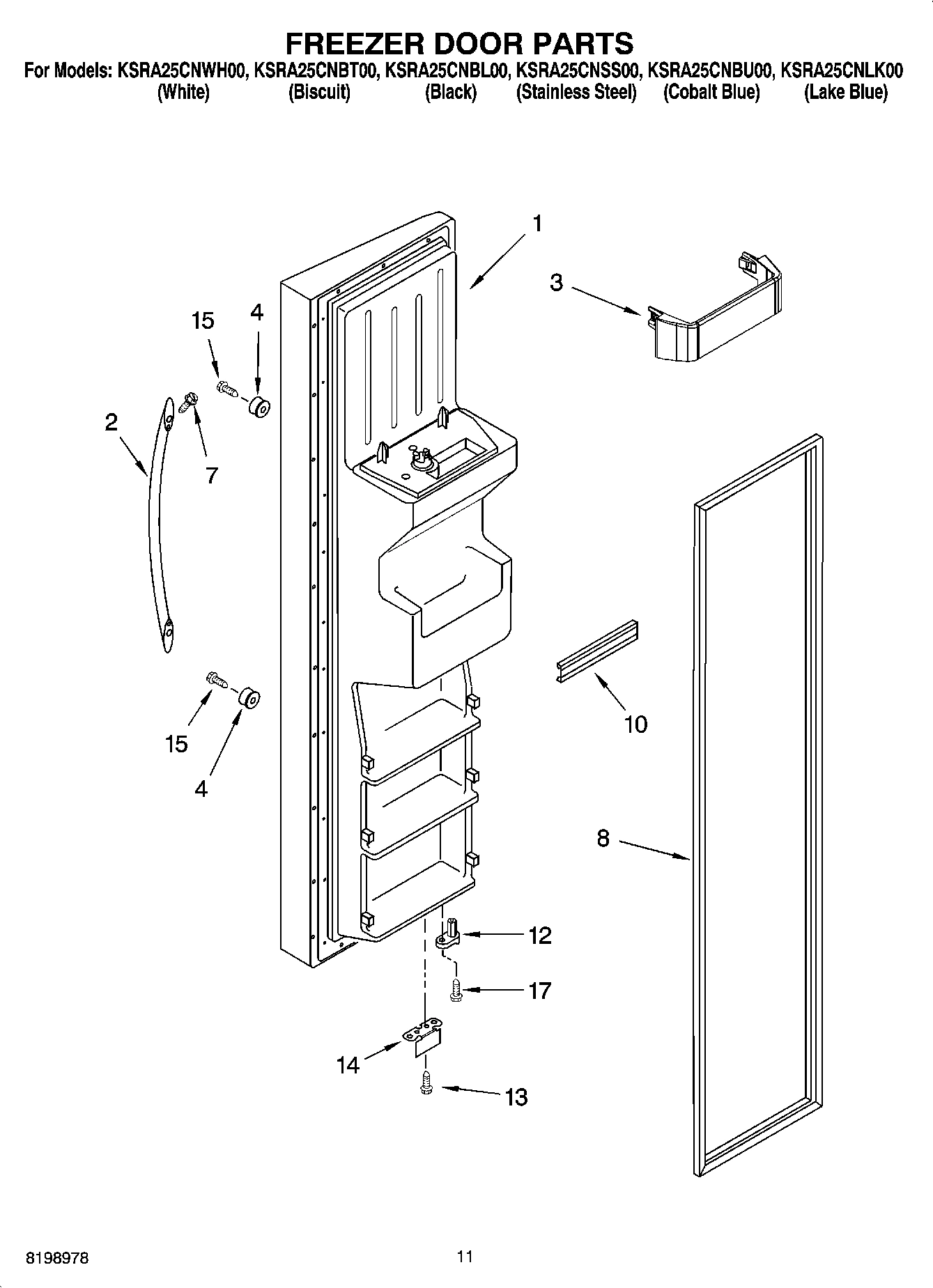

Freezer Door (Includes 8 And Dispenser Front WPL 2301203B Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2301203BU Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2301203LK Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2301203SB Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2301203T Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2301203W Contact Us For Availability

1

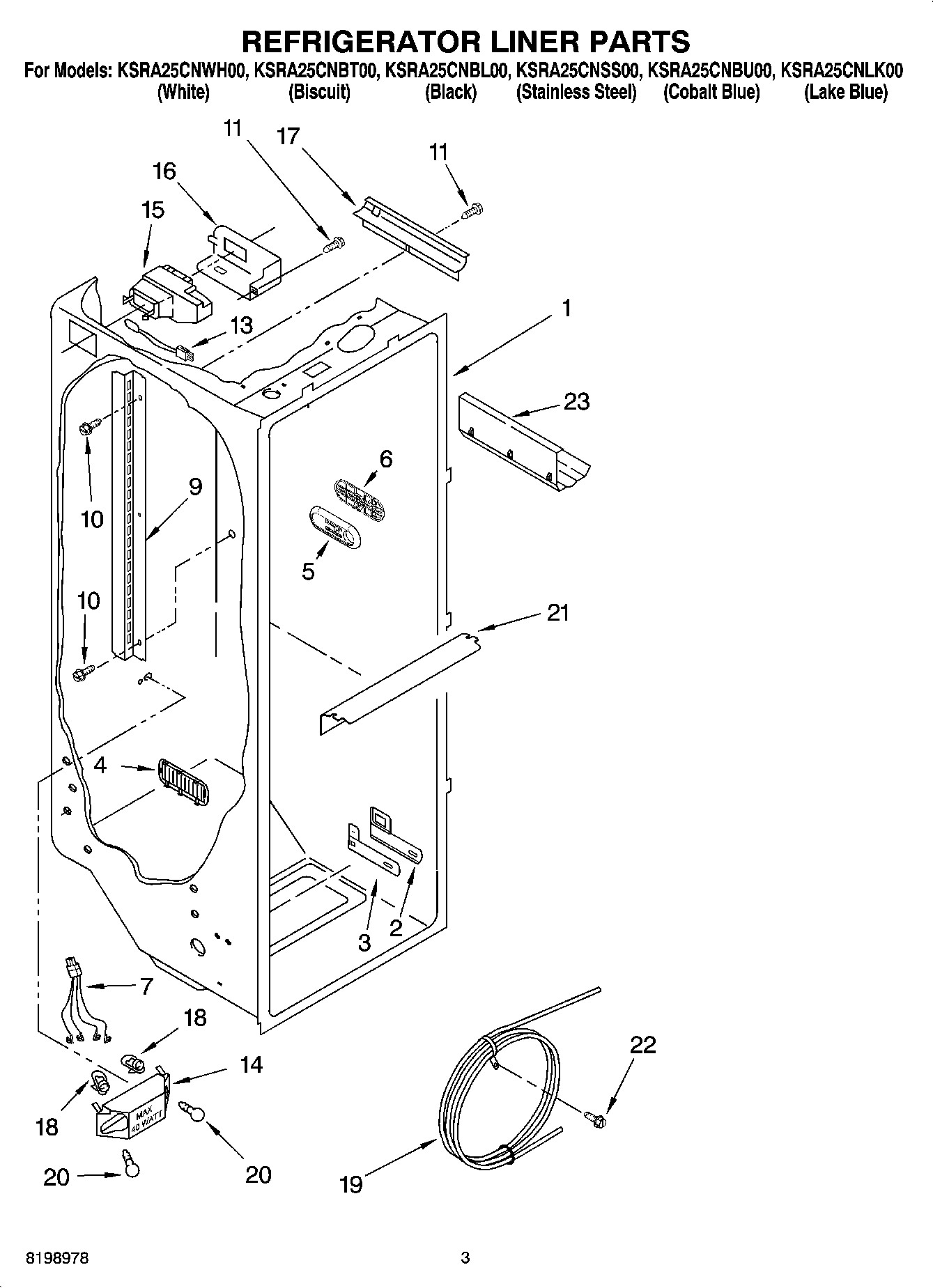

Liner (Not A Seviceable Part) WPL ARI93167A2 Contact Us For Availability

1

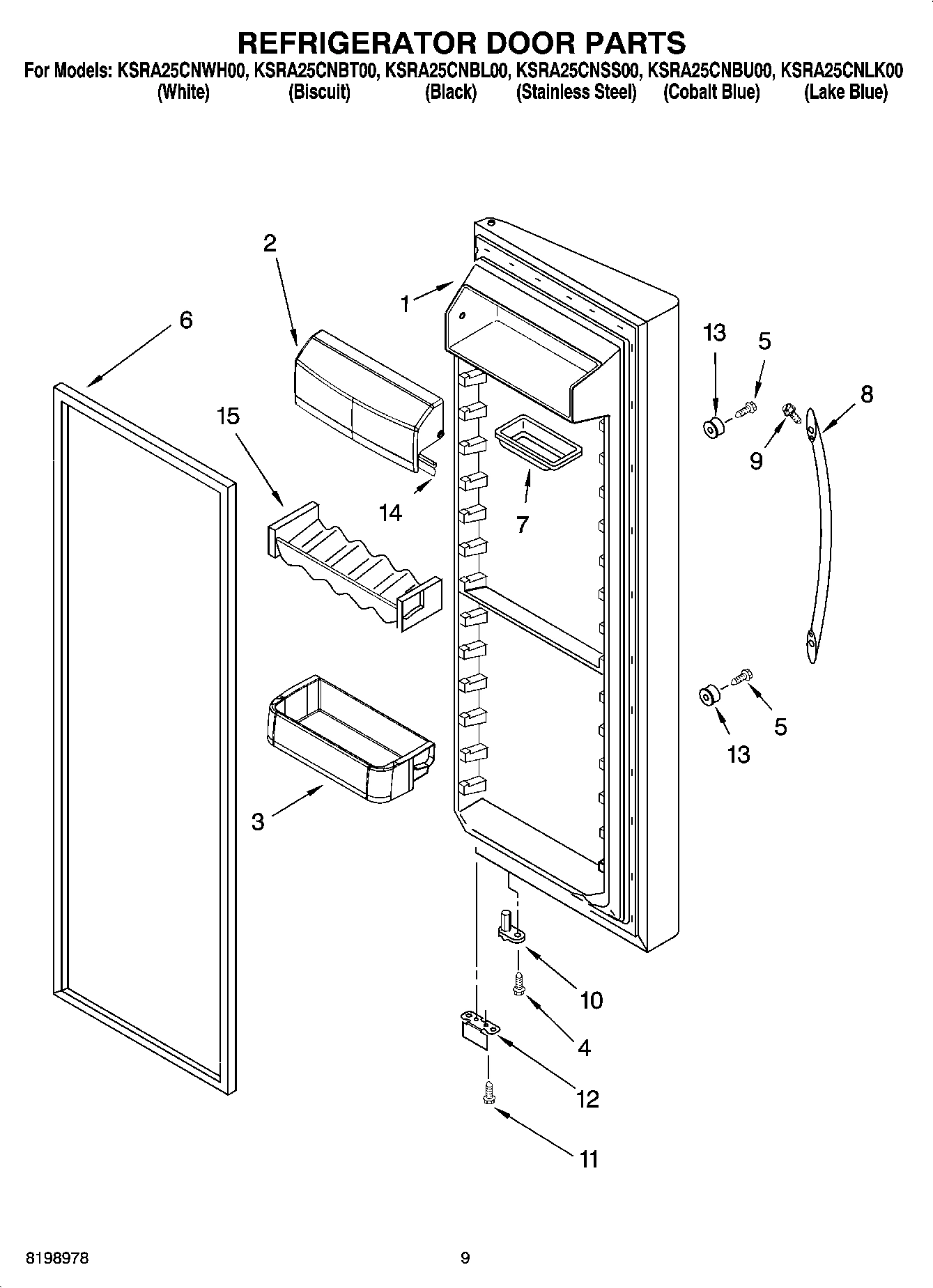

Refrigerator Door (Includes Item 6) (Black) WPL 2301168B Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Cobalt B WPL 2301168BU Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Lake Blu WPL 2301168LK Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Stainles WPL 2301168SB Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Biscuit) WPL 2301168T Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (White) WPL 2301168W Contact Us For Availability

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $62.32

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Gasket WPL 2198697 Contact Us For Availability

2

Compartment Door WPL 2301486 Contact Us For Availability

3

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2223434K Whirlpool Refrigerator Door Shelf In Stock WPL WP2223434K $55.82

3

Air Scoop WPL 2198595 Contact Us For Availability

3

Trivet (4) WPL 2223559 Contact Us For Availability

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Blade, Stirring WPL 2257021 Contact Us For Availability

4

Air Duct, Upper WPL 2212377 Contact Us For Availability

5

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $30.65

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Air Duct Freezer WPL 2198580 Contact Us For Availability

5

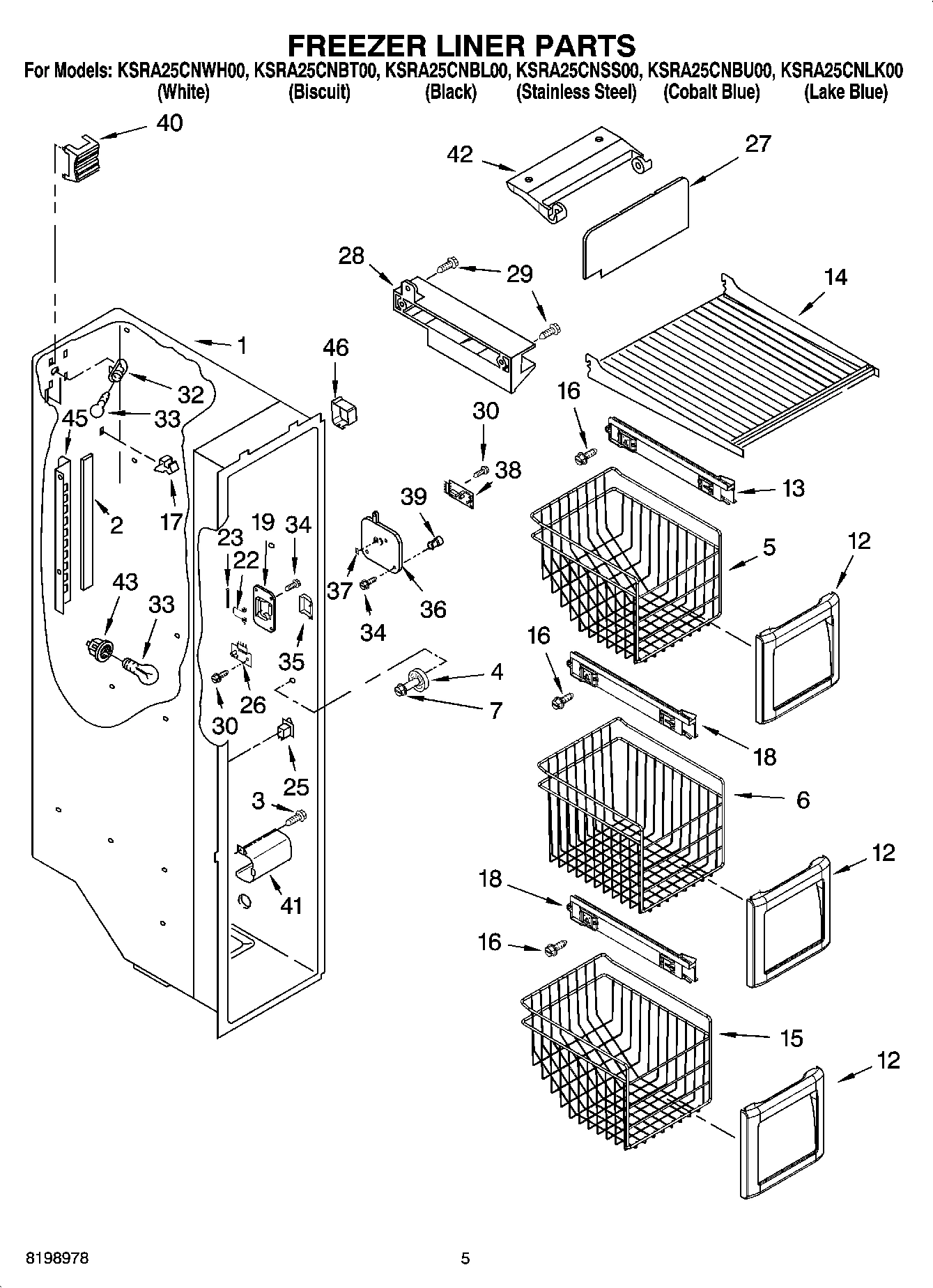

Basket, Top (Includes 12) WPL 2301143 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $136.44

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

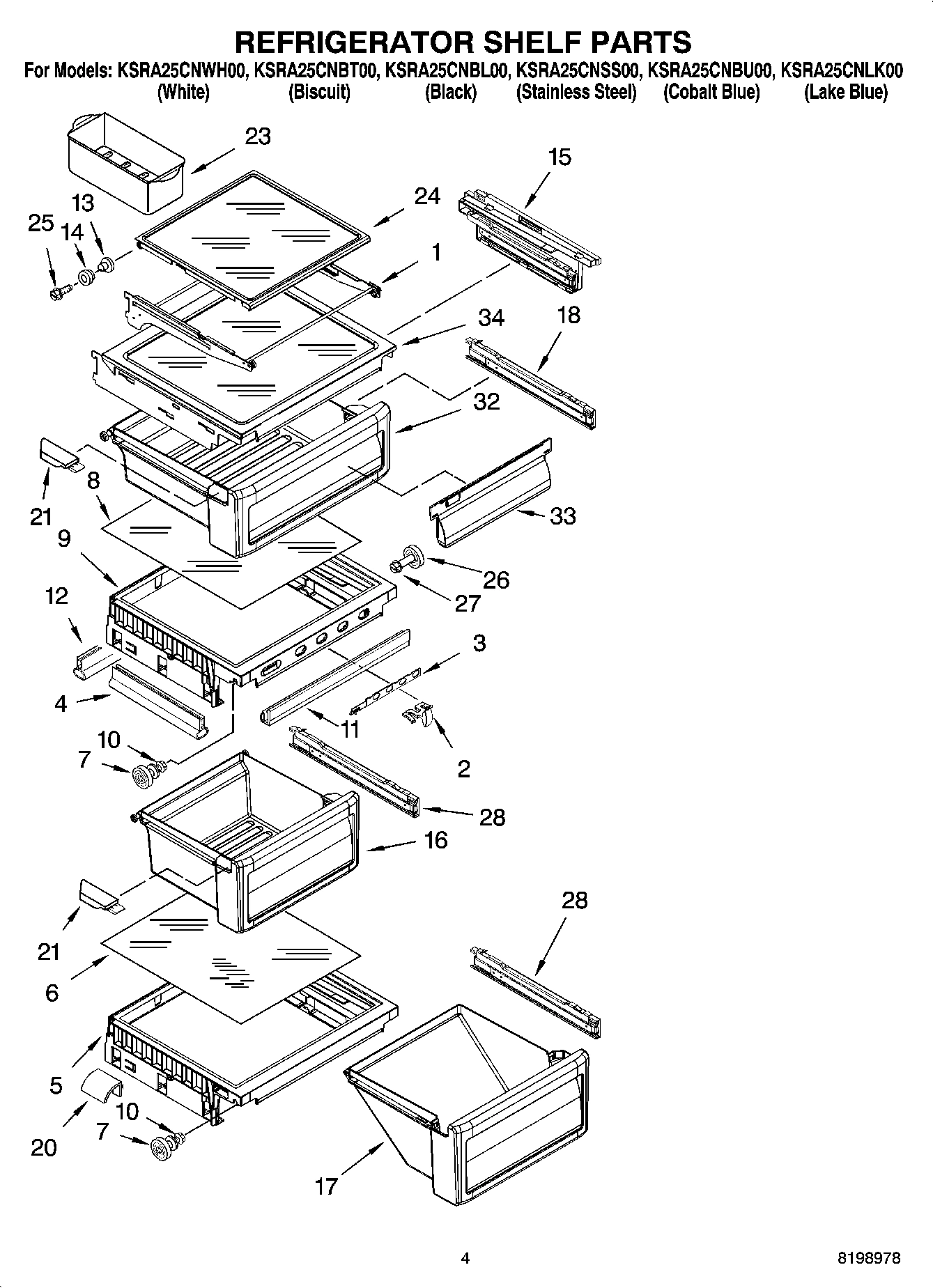

Glass, Meat Pan Cover WPL 2301028 Contact Us For Availability

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

Basket, Deep (Includes 12) WPL 2301144 Contact Us For Availability

7

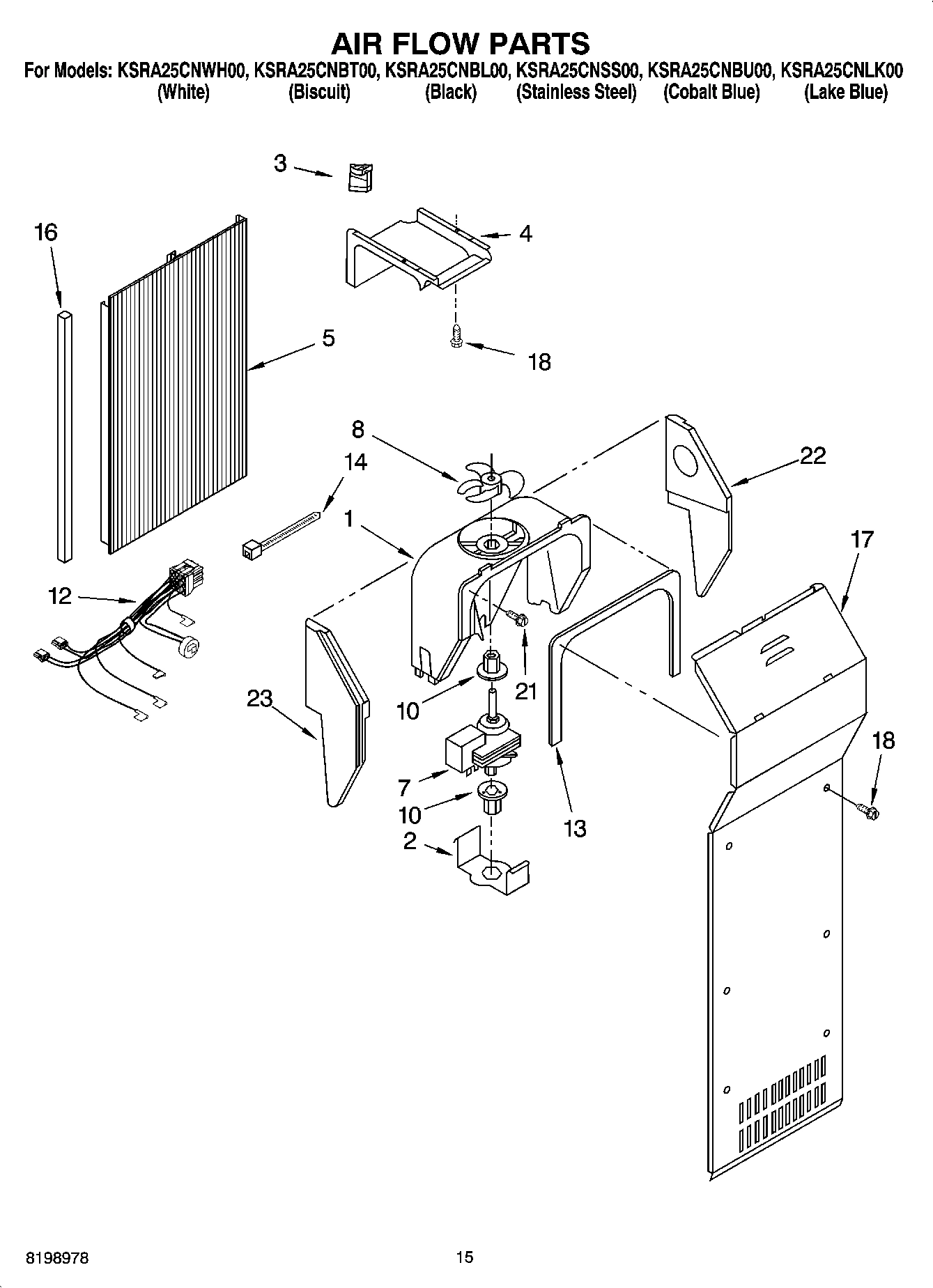

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

7

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

7

Butter, Dish WPL 2165792 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $147.90

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $165.68

8

Handle (Black) WPL 2255512B Contact Us For Availability

8

Handle (European Silver) WPL 2255512ES Contact Us For Availability

8

Handle (Stainless) WPL 2255512S Contact Us For Availability

8

Handle (Biscuit) WPL 2255512T Contact Us For Availability

8

Handle (White) WPL 2255512W Contact Us For Availability

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

9

WP2207007B Whirlpool Refrigerator Grille In Stock WPL WP2207007B $37.75

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Grille, Overflow (White) WPL 2207007W Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability

9

Grille, Overflow (Cobalt Blue) WPL 2207007BU Contact Us For Availability

9

Set Screw WPL 8533976 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $54.70

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $54.32

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

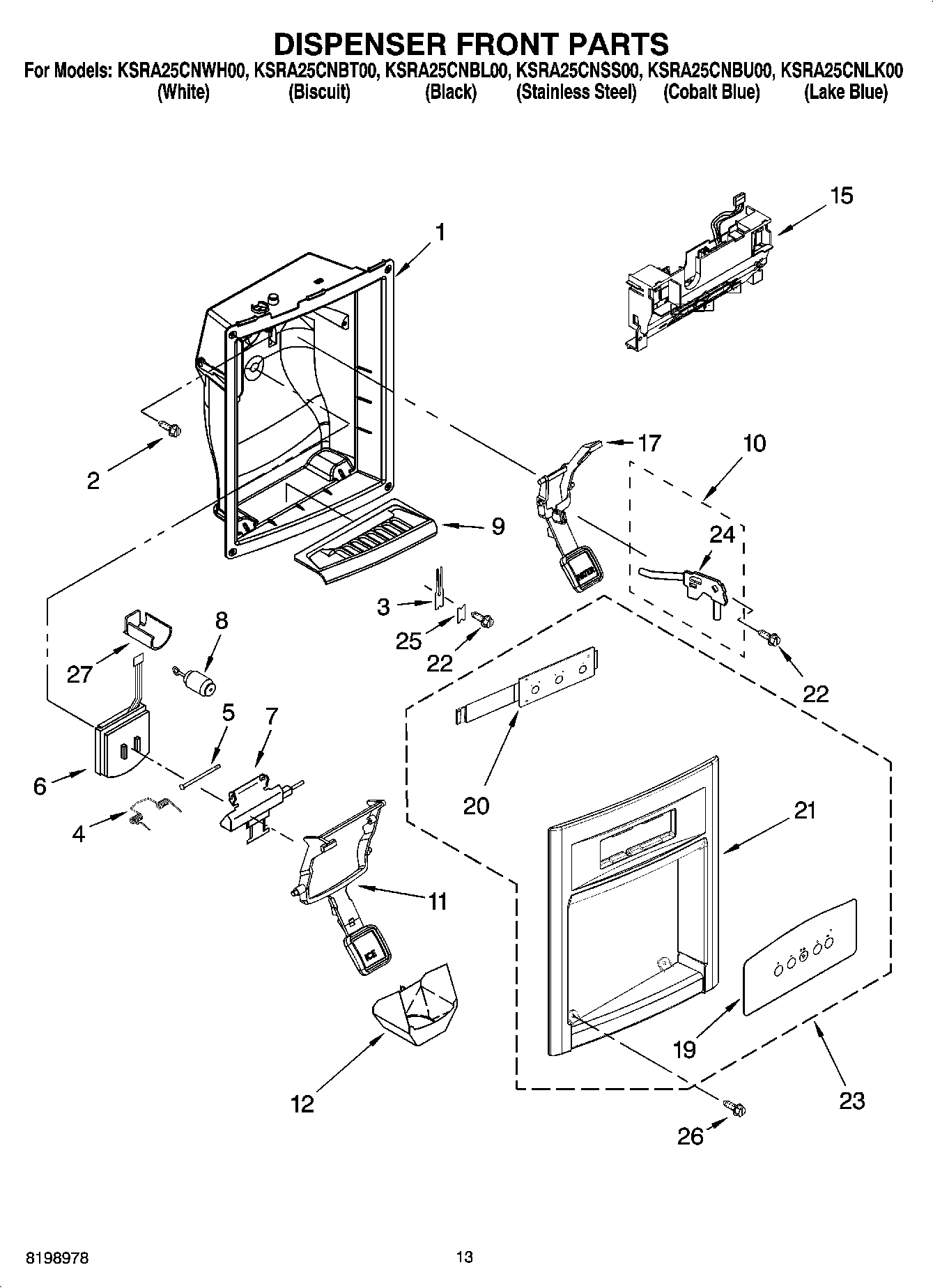

Lever, Ice Dispenser (Black (Black Pad)) WPL 2259396B Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Lever, Ice Dispenser (Graphite) WPL 2259396J Contact Us For Availability

Lever, Ice Dispenser (Biscuit (Biscuit Pad)) WPL 2259396T Contact Us For Availability

Lever, Ice Dispenser (White (Cody Grey Pad)) WPL 2259396W Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

Front, Assembly Basket WPL 2301134 Contact Us For Availability

Harness, Fan Evaporator And Heater WPL 2187825 Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $48.35

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

Eyelet, Roller WPL 2174478 Contact Us For Availability

Glide Assy, Basket Top (Right Side) WPL 2301540 Contact Us For Availability

Glide Assy, Basket Top (Left Side) WPL 2301541 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Shelf WPL 2205837 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $103.28

Grille (Biscuit) WPL 2198468T Contact Us For Availability

Bracket, Control WPL 2252163 Contact Us For Availability

Basket, Sloped (Includes 12) WPL 2301145 Contact Us For Availability

Beverage Holder WPL 2193409 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

W10916292 Whirlpool Refrigerator Crisper Pan In Stock WPL W10916292 $104.18

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Screw (12) WPL 8533982 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Lever, Water Dispenser (Black (Black Pad)) WPL 2259395B Contact Us For Availability

Lever, Water Dispenser (Biscuit (Biscuit Pad) WPL 2259395T Contact Us For Availability

Lever, Water Dispenser (White (Cody Grey Pad) WPL 2259395W Contact Us For Availability

Cover, Evaporator WPL 2206314 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WPW10289690 Whirlpool Ice Maker Cover In Stock WPL WPW10289690 $2.64

Glide Assembly (Snack Pan) (Left Side) WPL 2301551 Contact Us For Availability

Glide Assy, Basket Middle/Bottom (Right Side) WPL 2301542 Contact Us For Availability

Glide Assy, Basket Middle/Bottom (Left Side) WPL 2301543 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Overlay, Front Cover (Not Available, Order 23 WPL ARI93169A2 Contact Us For Availability

20

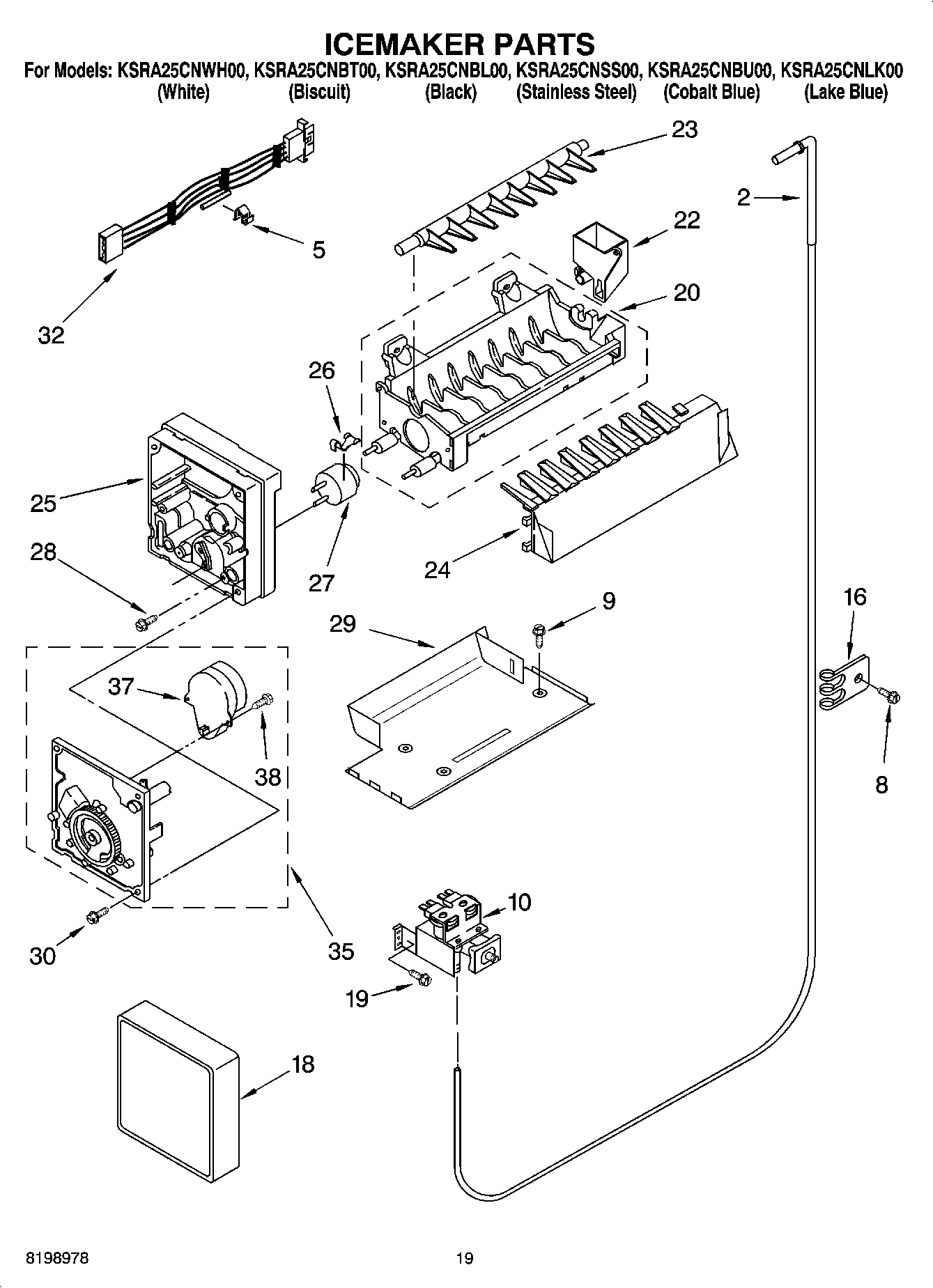

WPW10190929 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10190929 $144.80

20

LED Display with Auto Night Light (Not Availa WPL ARI93170A1 Contact Us For Availability

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

21

Front Cover, Housing (Not Available Order 23 WPL ARI93171A1 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $4.58

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $16.56

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Front Cover Assembly (Includes Items 19, 20 & WPL 2252084B Contact Us For Availability

Clip WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20 & WPL 2252084ES Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20 & WPL 2252084T Contact Us For Availability

Front Cover Assembly (Includes Items WPL 2252084W Contact Us For Availability

24

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $41.94

24

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

24

Holder WPL 2212369 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

W10757851-includeCORE Whirlpool W10757851 Dis Backorder WPL W10757851-includeCORE $203.15

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP3400065 Whirlpool Refrigerator Screw In Stock WPL WP3400065 $2.51

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

WPL 2252127 WPL 2252127 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Glide Asm, Pan (Right Side) WPL 2301548 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $37.44

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $19.18

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $40.31

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP2252129 Whirlpool Refrigerator Motor In Stock WPL WP2252129 $151.07

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

33

Window, Snack Pan WPL 2301006 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $15.13

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

36

Cover, Receiver WPL 2255561 Contact Us For Availability

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

37

Slide, Ice Maker Shut Off WPL 2301340 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

40

Light Shield WPL 2198589 Contact Us For Availability

41

Light Lens WPL 2212340 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

43

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $35.48

45

Ladder (Left Side) WPL 2198609 Contact Us For Availability

45

Ladder (Right Side) WPL 2198610 Contact Us For Availability

46

Shield, Wiring WPL 2219878 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $28.53

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $89.56
