Model Whirlpool KSCS27QFAL01 – Common Parts & Diagrams
09 - DISPENSER FRONT

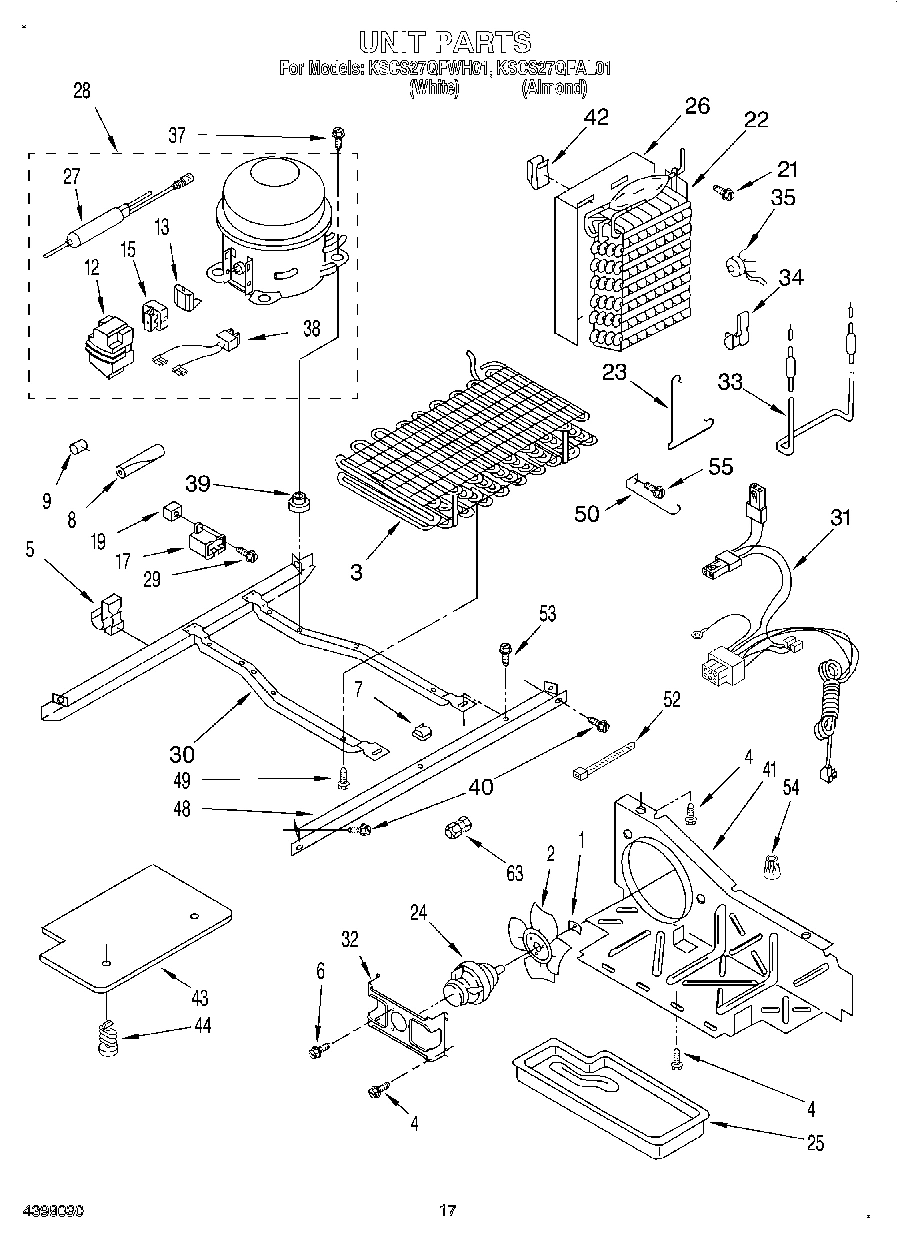

10 - UNIT

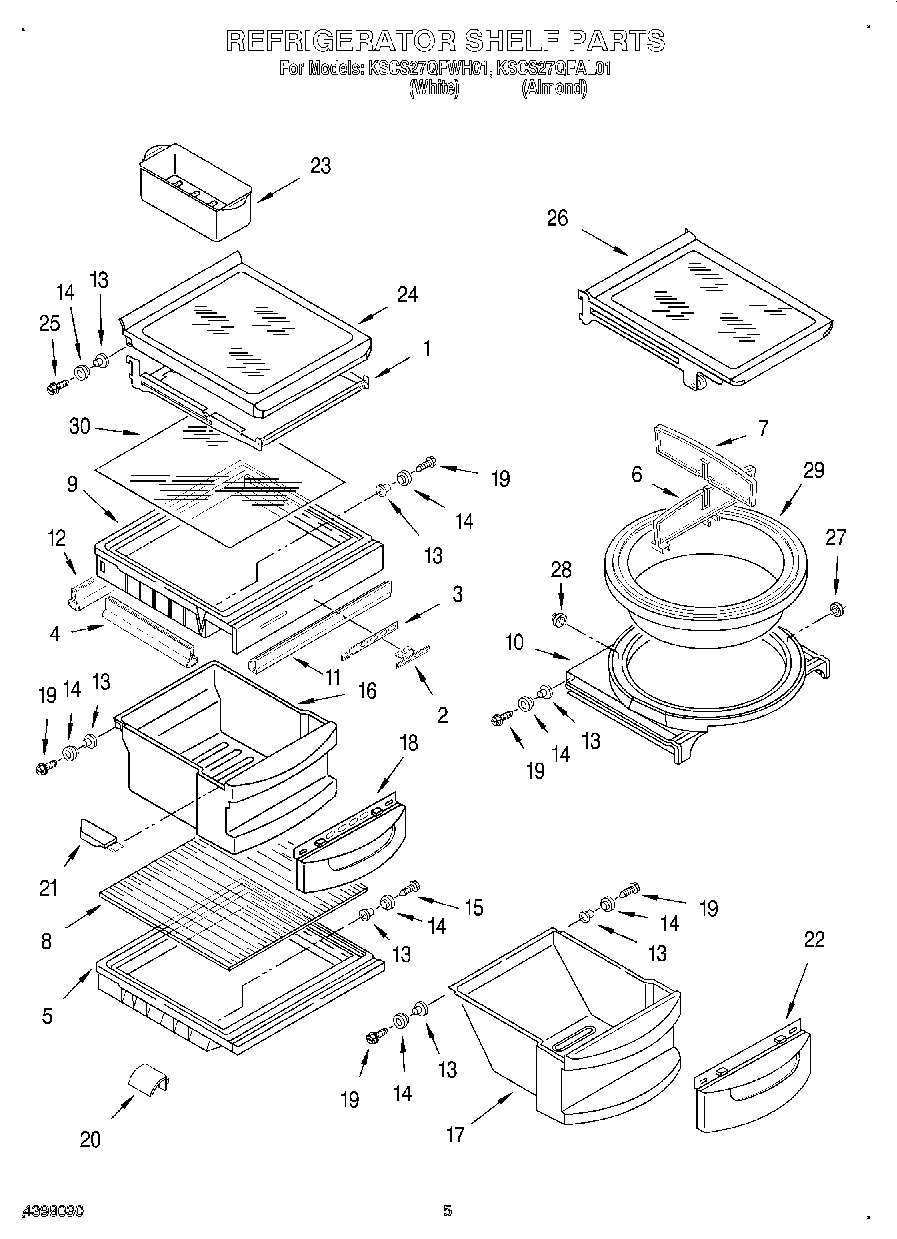

04 - REFRIGERATOR SHELF

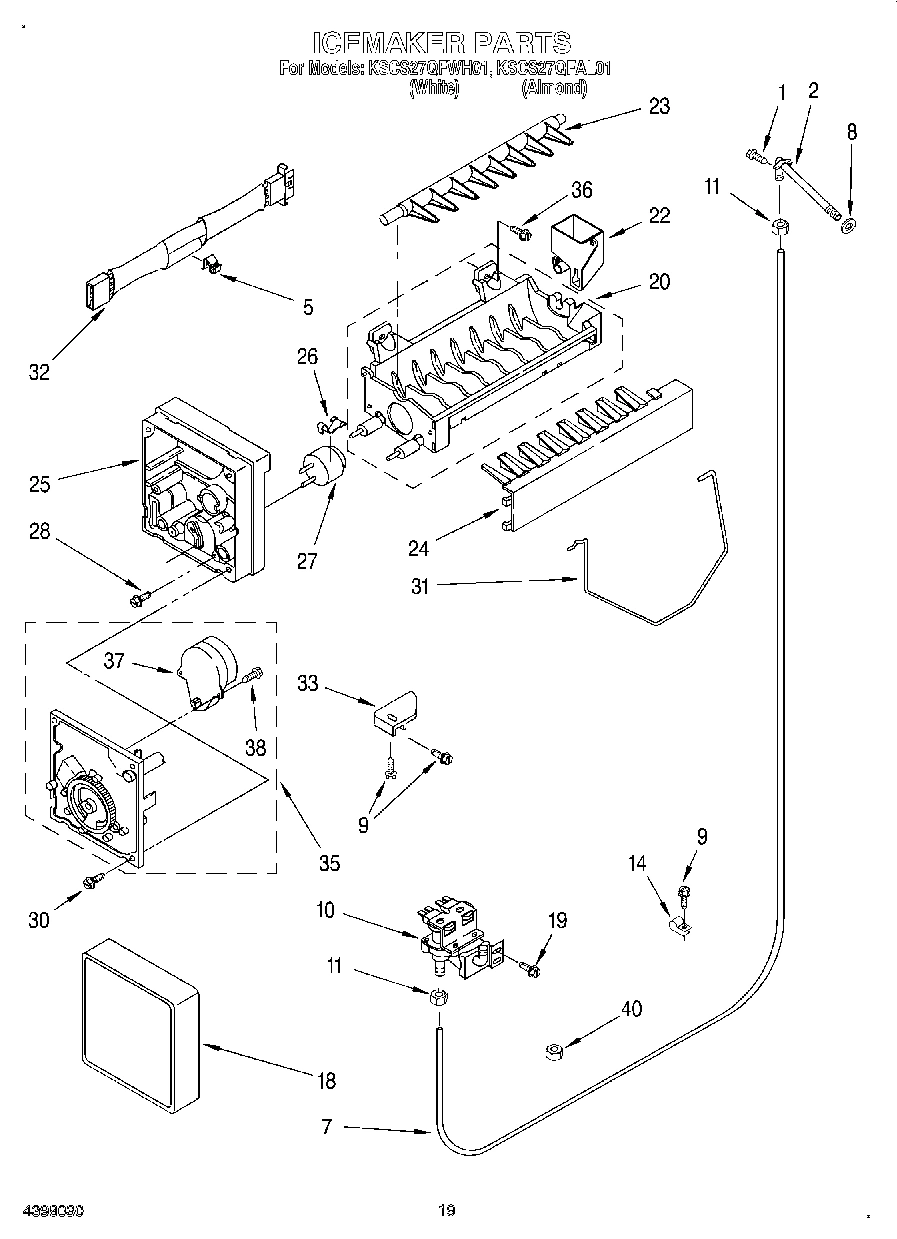

11 - ICE MAKER

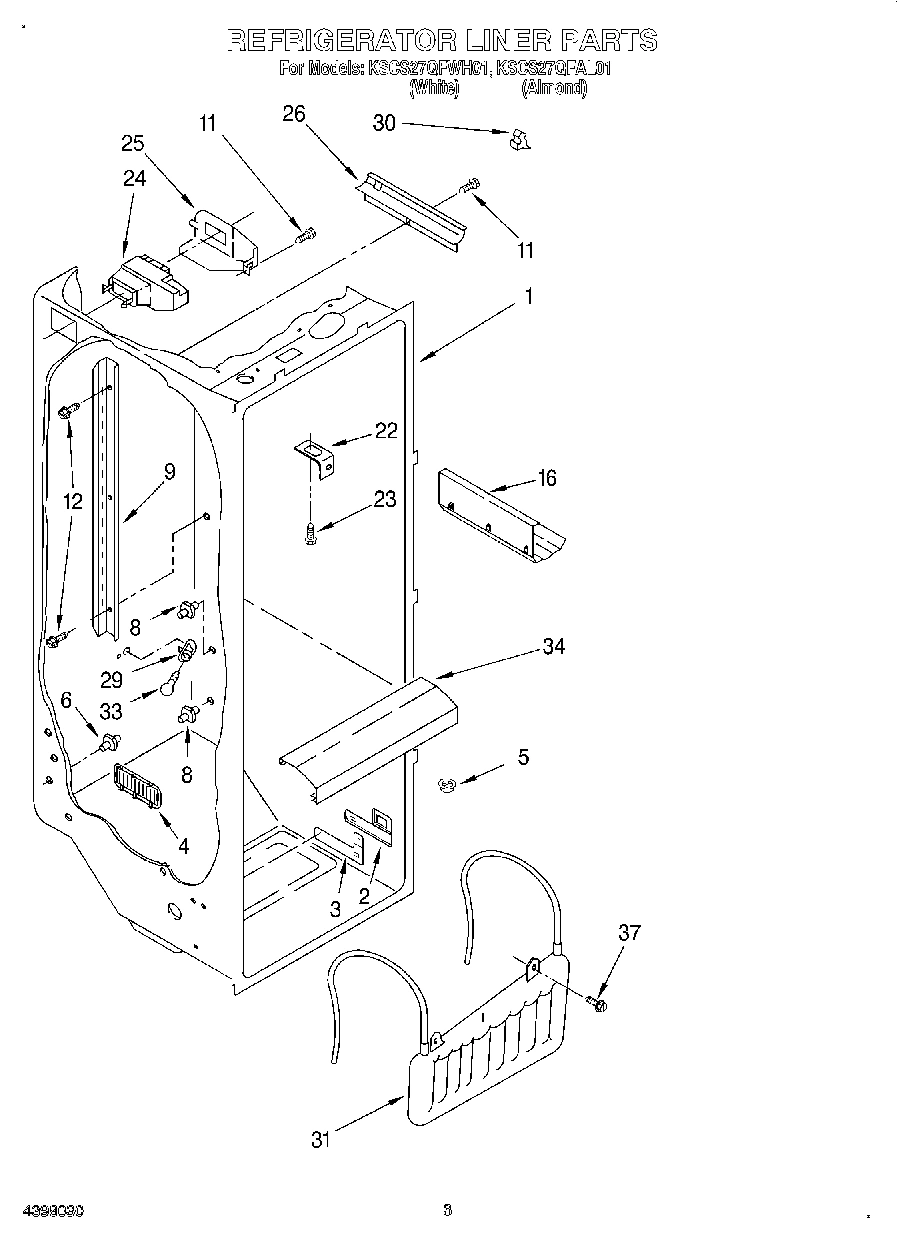

02 - REFRIGERATOR LINER

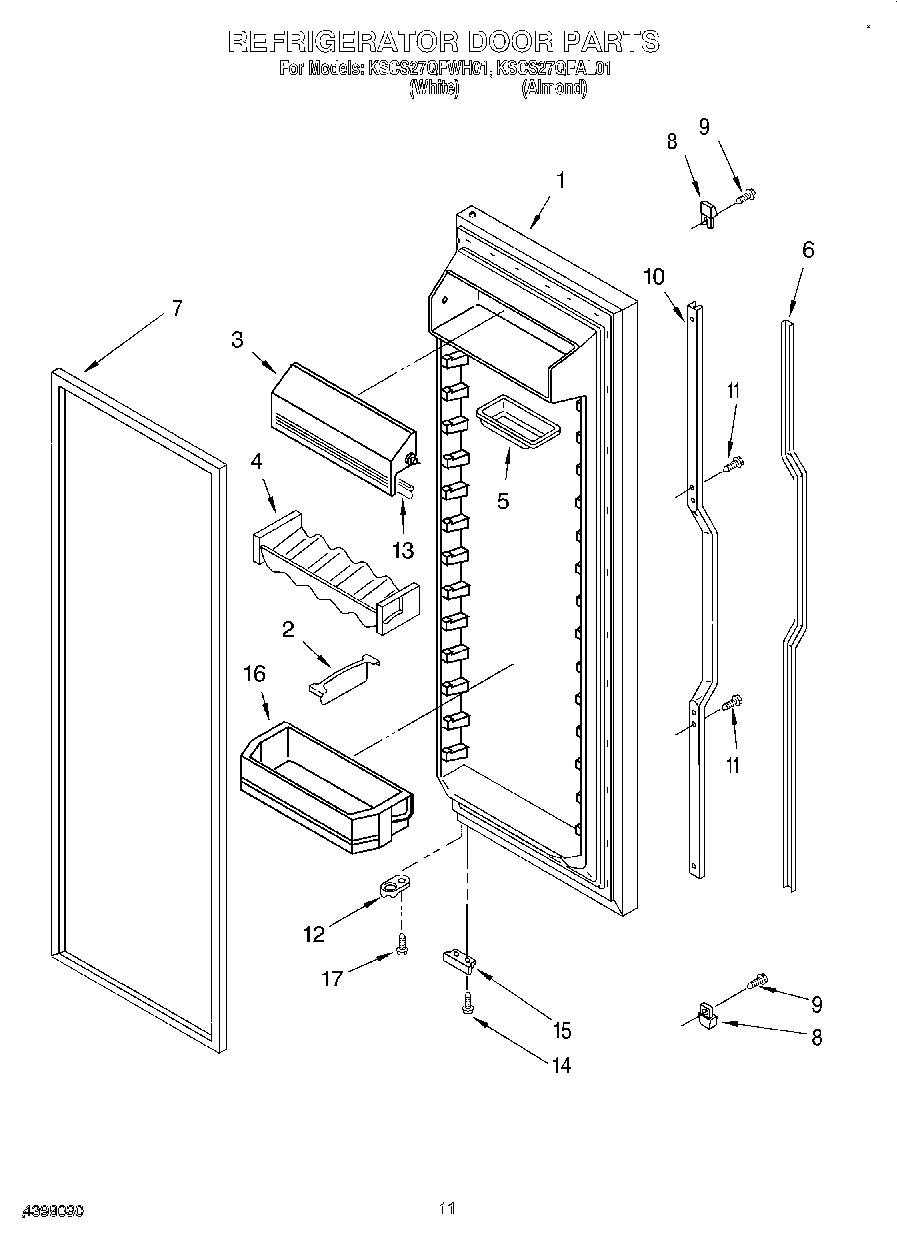

07 - REFRIGERATOR DOOR

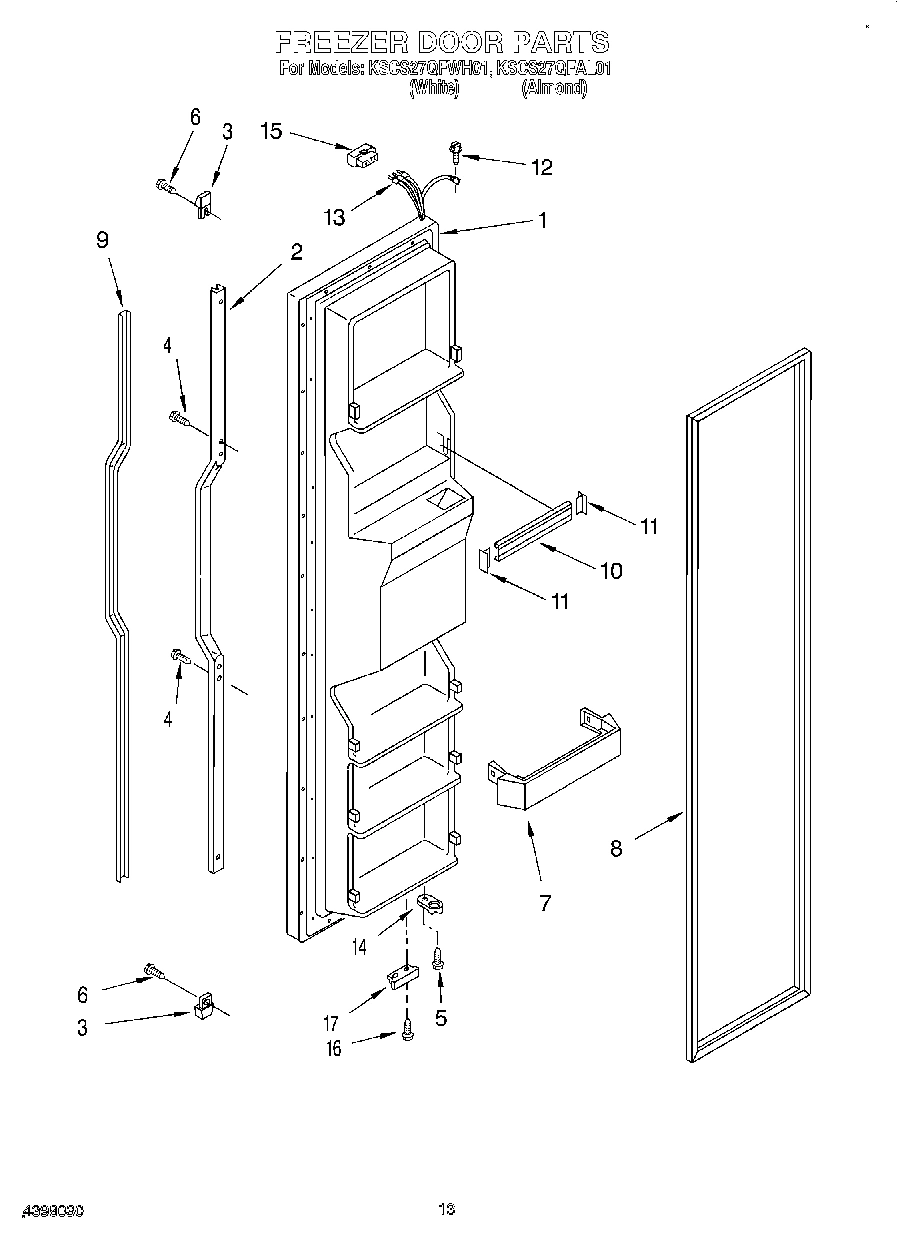

08 - FREEZER DOOR

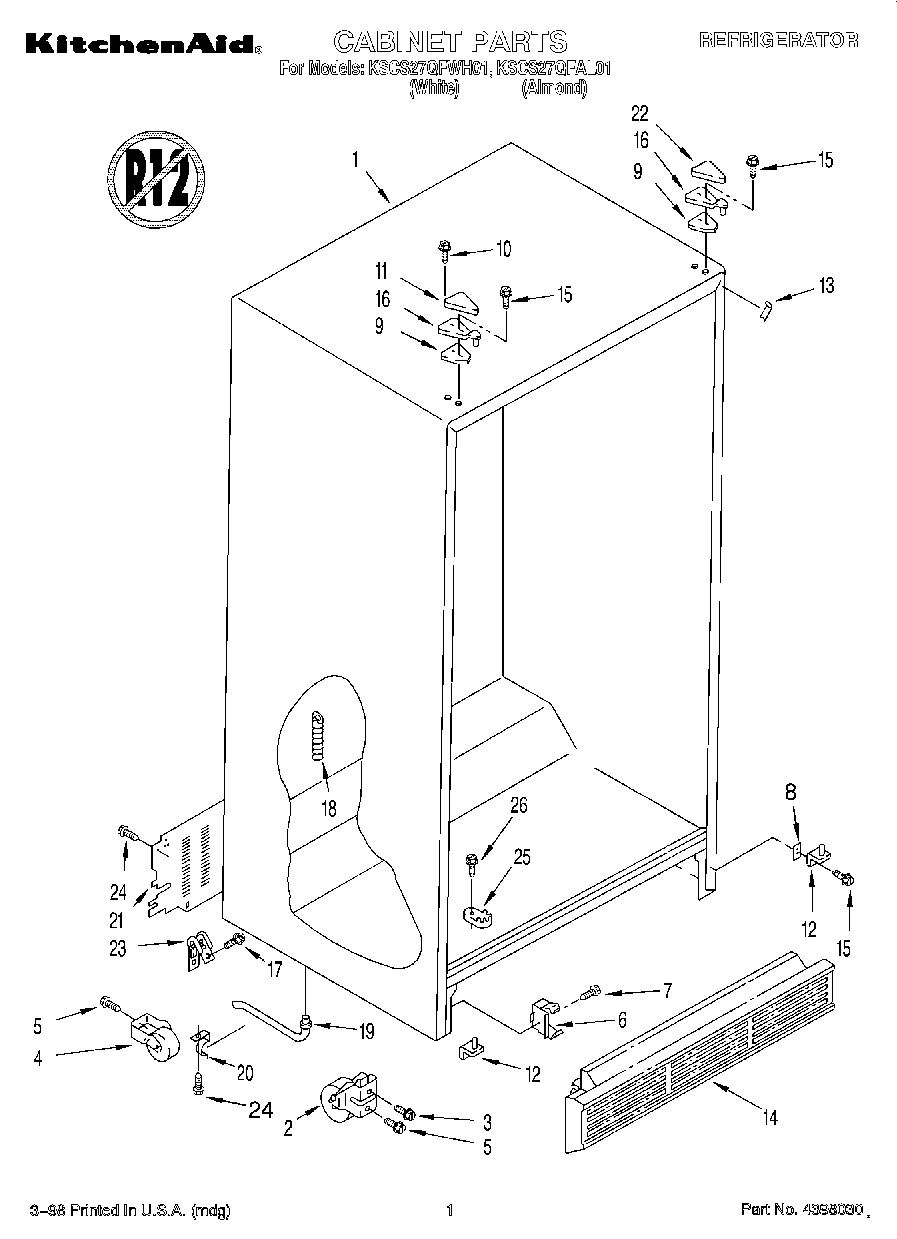

01 - CABINET
06 - MOTOR AND ICE CONTAINER

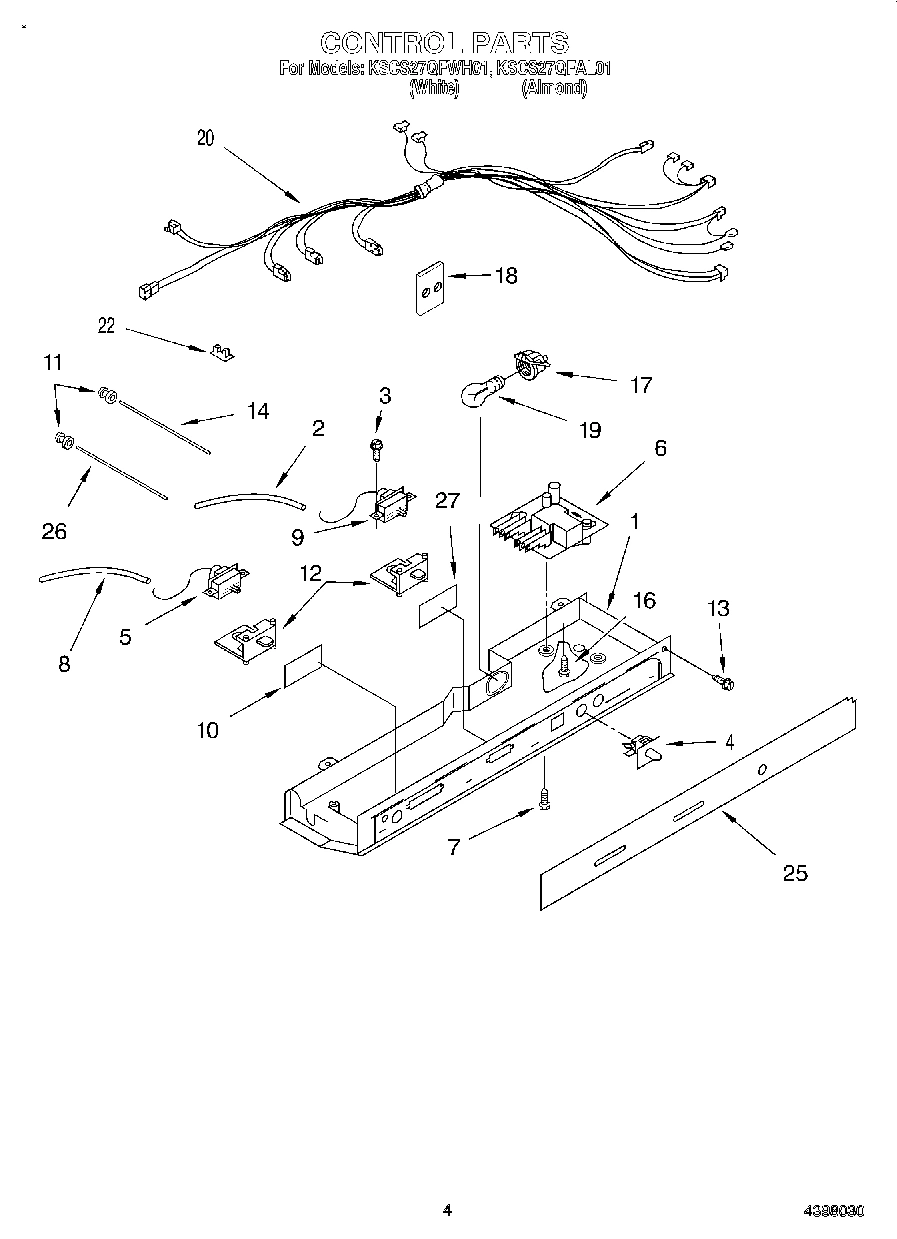

03 - CONTROL
05 - FREEZER LINER
12 - AIR FLOW, LIT/OPTIONAL
Common parts from model Whirlpool KSCS27QFAL01
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2186479 WPL LIT2186479 Contact Us For Availability
WPL LIT2186928 WPL LIT2186928 Contact Us For Availability
WPL LIT2198168 WPL LIT2198168 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2182904 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2182905 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI92033A8 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI92035A4 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Retainer, Insert (Almond) WPL 2194777N Contact Us For Availability
2
Retainer, Insert (White) WPL 2194777W Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
End Cap (2) (Almond) WPL 2194778N Contact Us For Availability
3
End Cap (2) (White) WPL 2194778W Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Insert, Handle (White) WPL 2173825 Contact Us For Availability
9
Insert, Handle (Almond) WPL 2173828 Contact Us For Availability
9
Shim, Hinge Top WPL 2196048 Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
11
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Gasket WPL 2159124 Contact Us For Availability
13
Wire Harness WPL 2180229 Contact Us For Availability
13
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
13
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Grille (White) WPL 2155486 Contact Us For Availability
14
Grille (Almond) WPL 2155487 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
16
Shelf Bin (4) WPL 2171062 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Bracket, Door Stop WPL 2155331 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
20
Control Box Harness WPL 2172953 Contact Us For Availability
21
Basket, Shallow WPL 2181763 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Front, Basket WPL 2171767 Contact Us For Availability
23
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
23
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
23
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Basket, Square WPL 2181765 Contact Us For Availability
23
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
23
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
23
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
23
WPL 978883 WPL 978883 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161486 Contact Us For Availability
25
Basket, Sloped WPL 2181764 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
