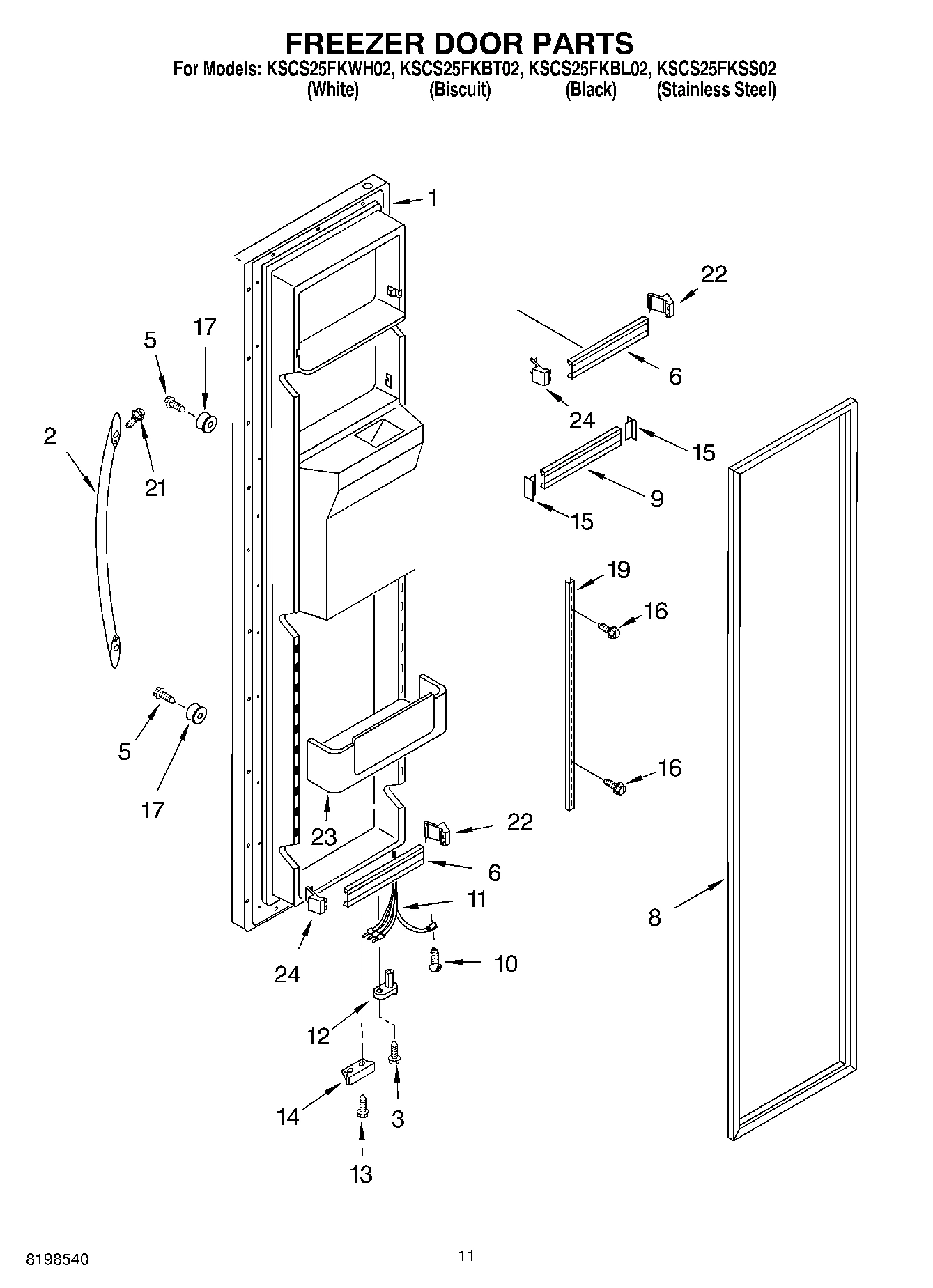

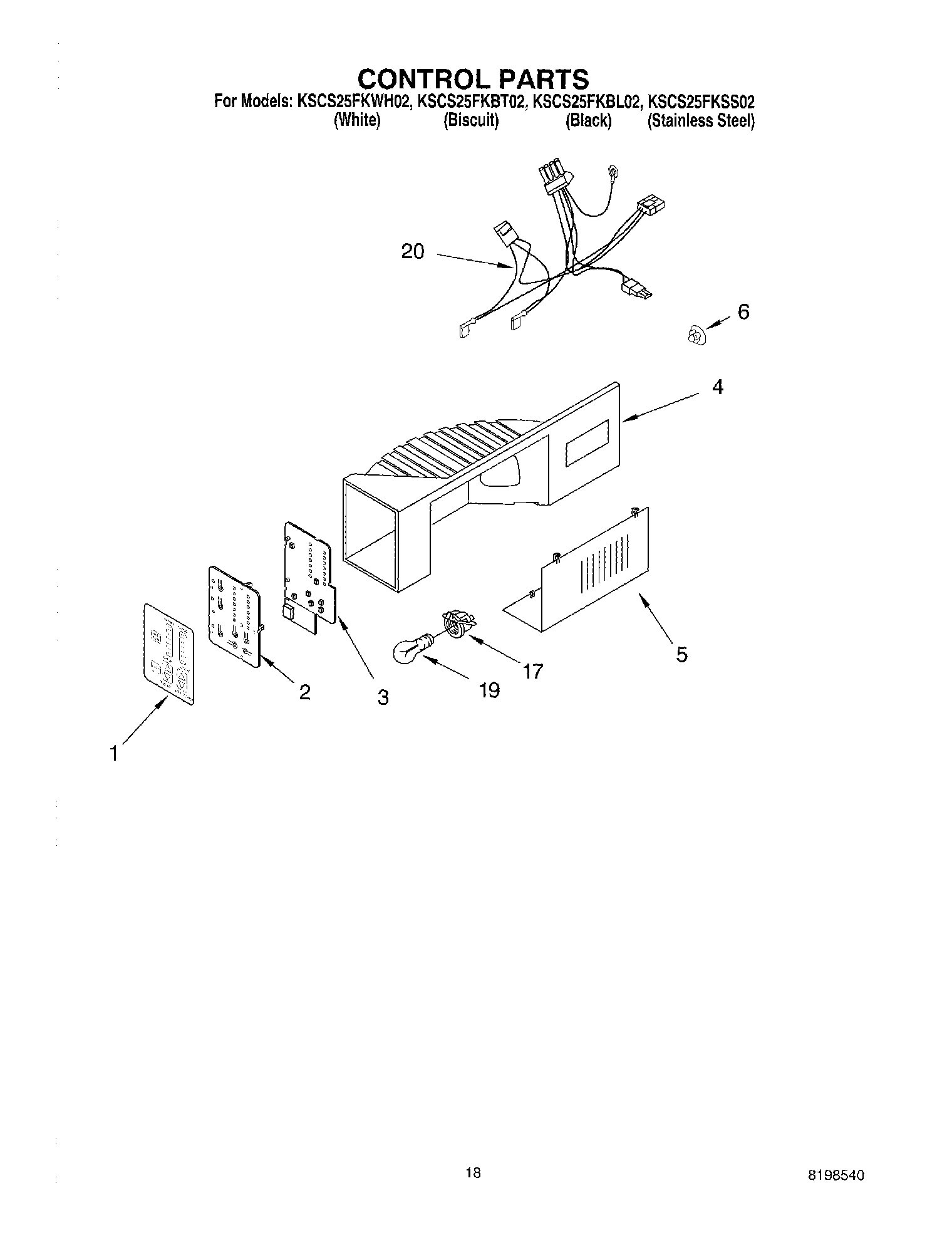

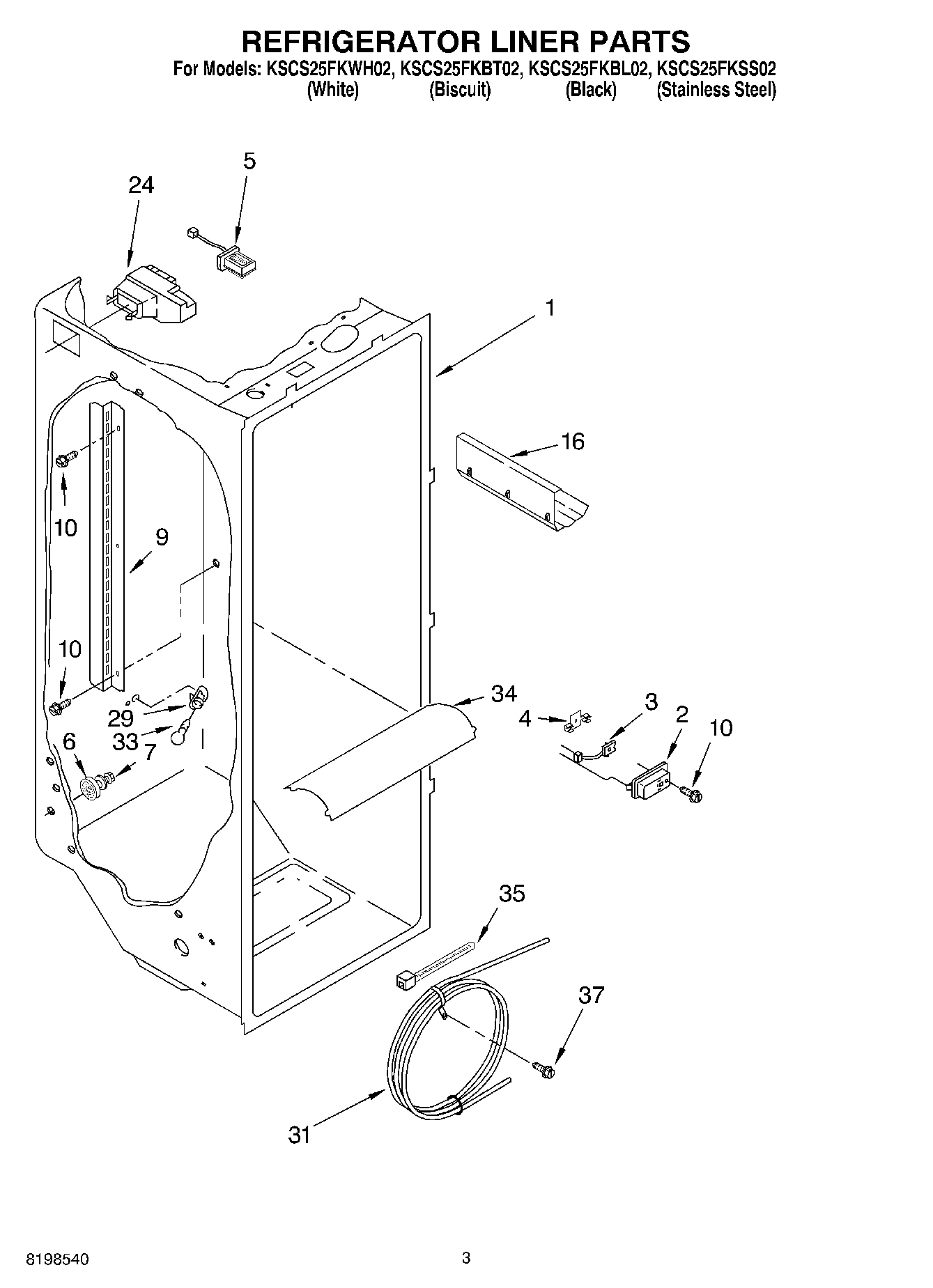

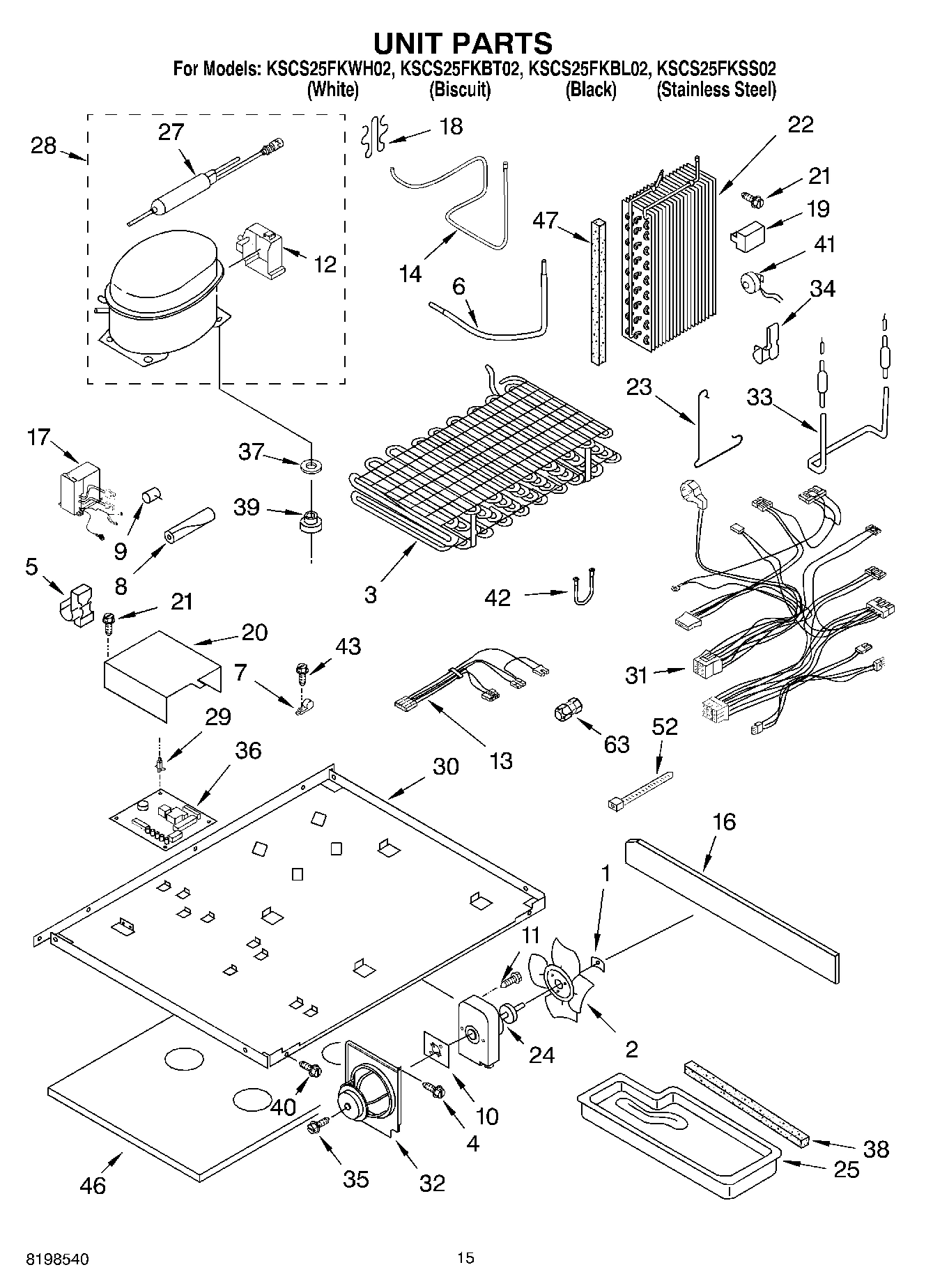

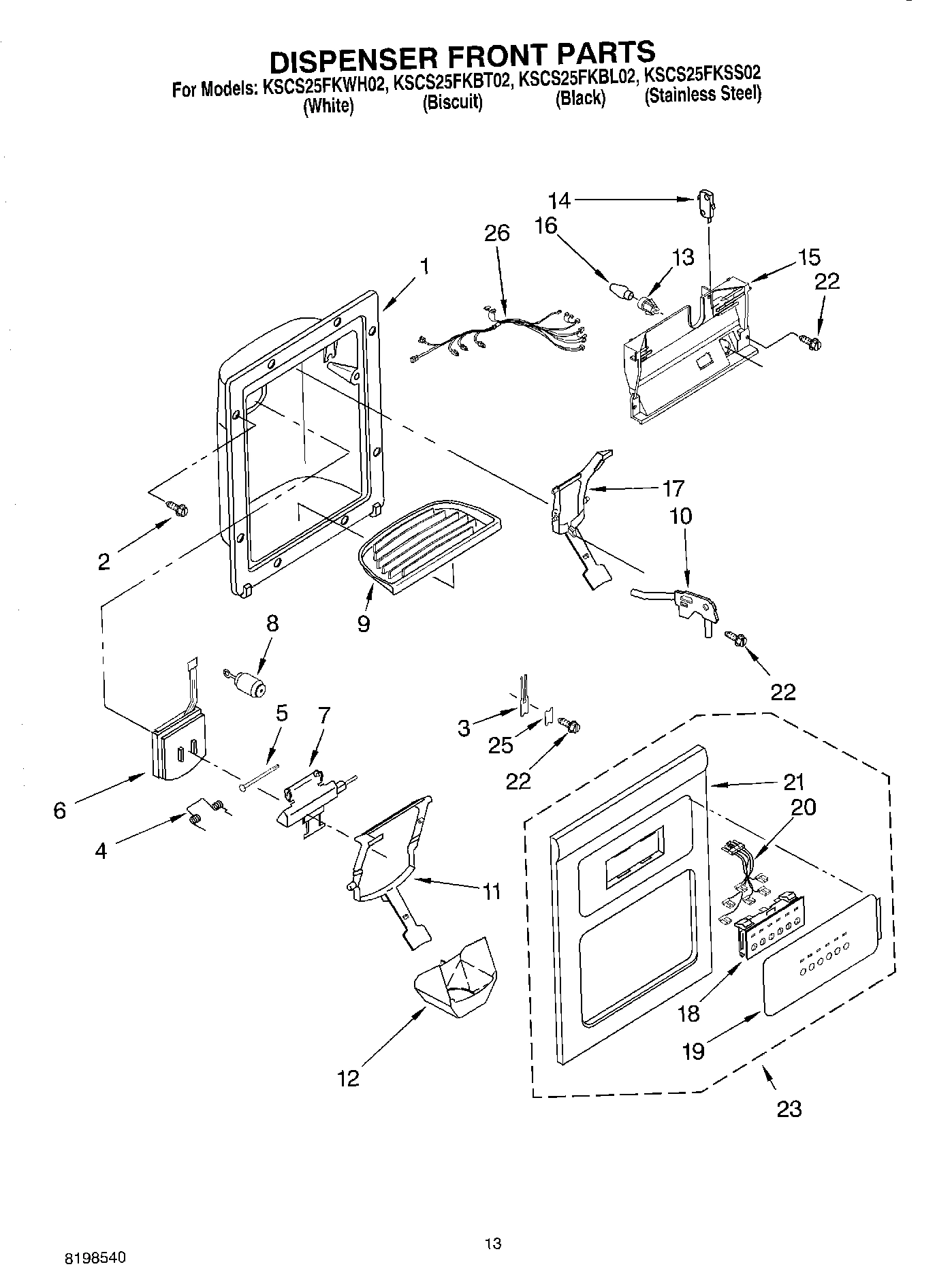

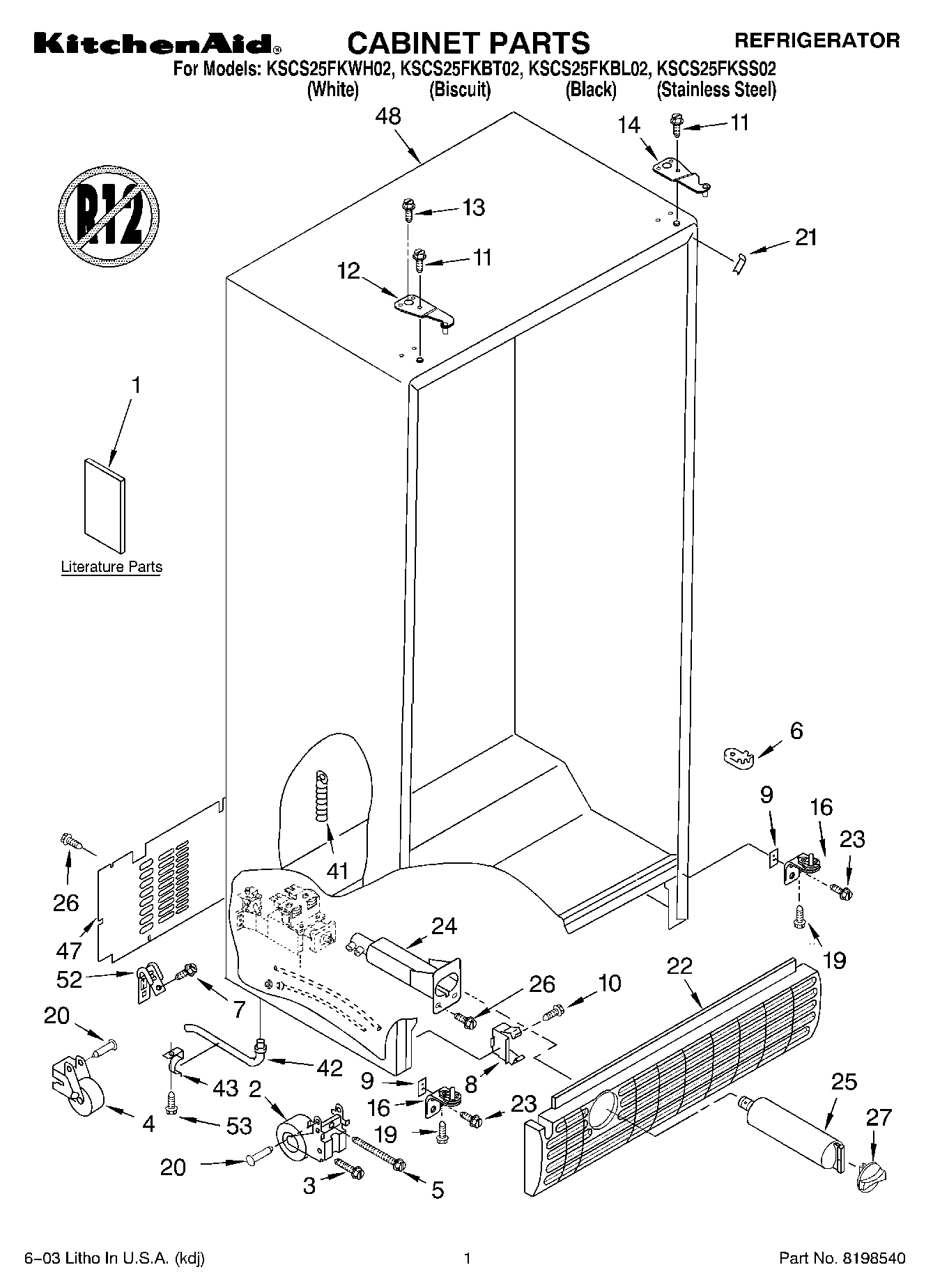

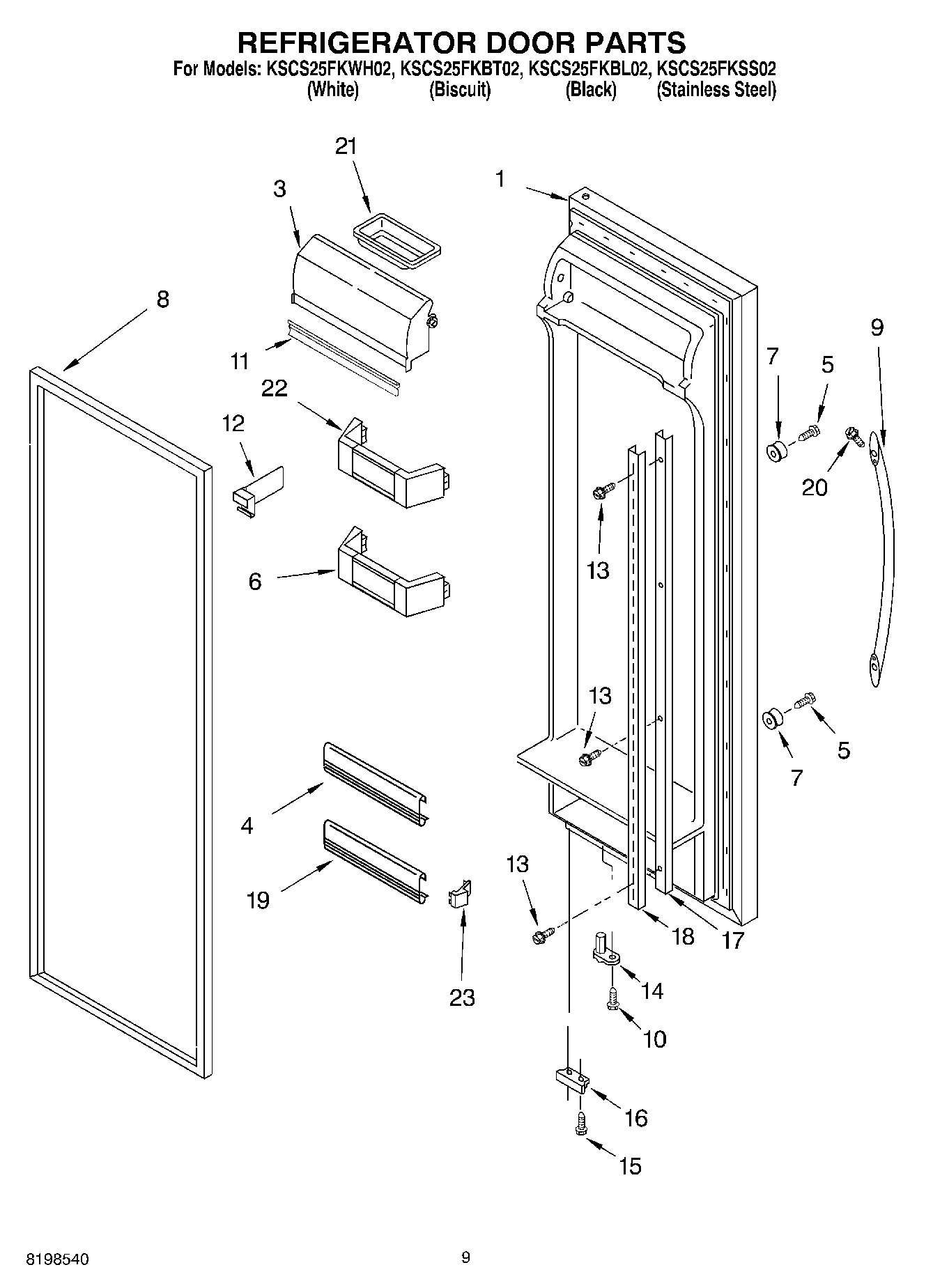

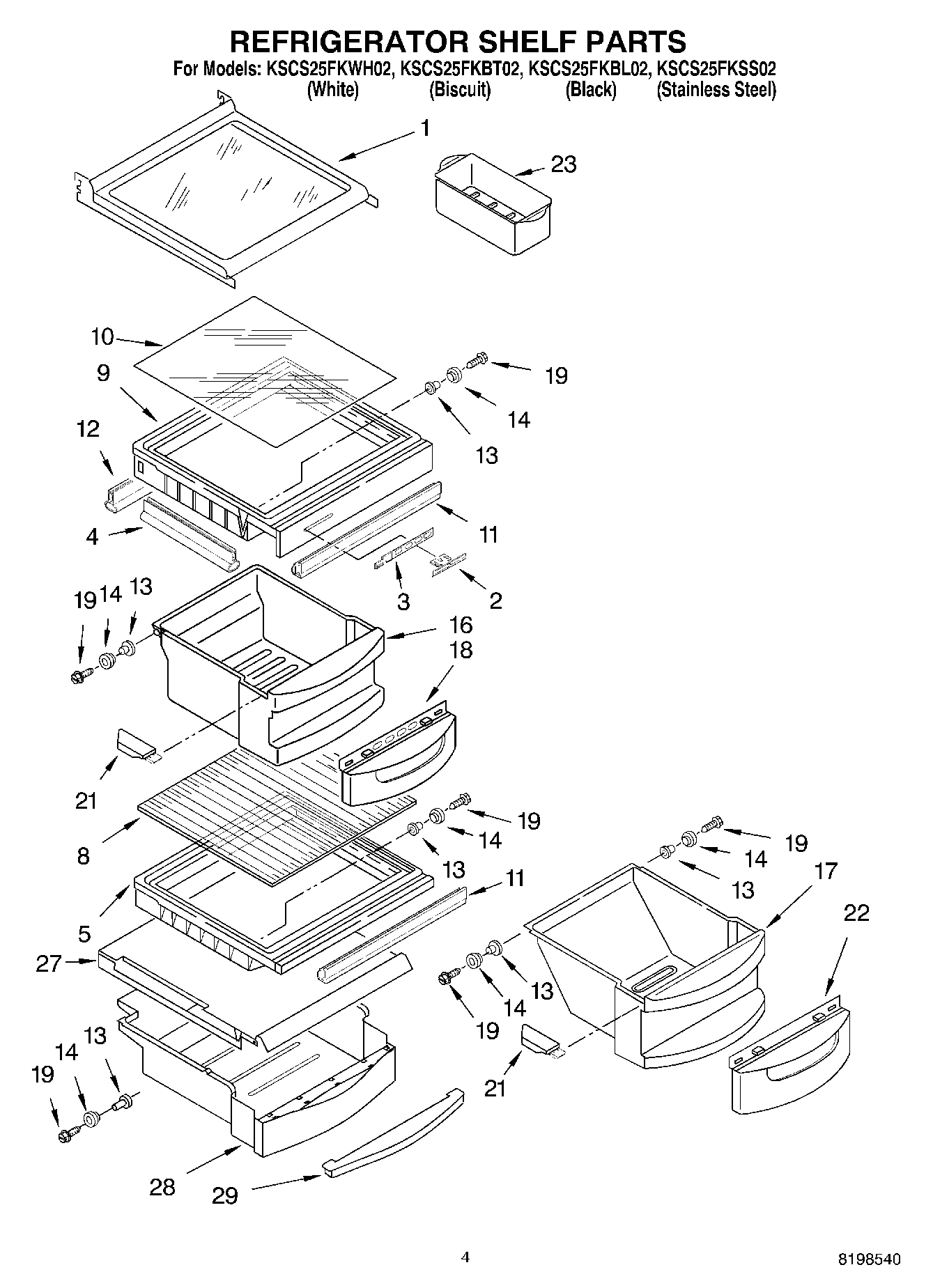

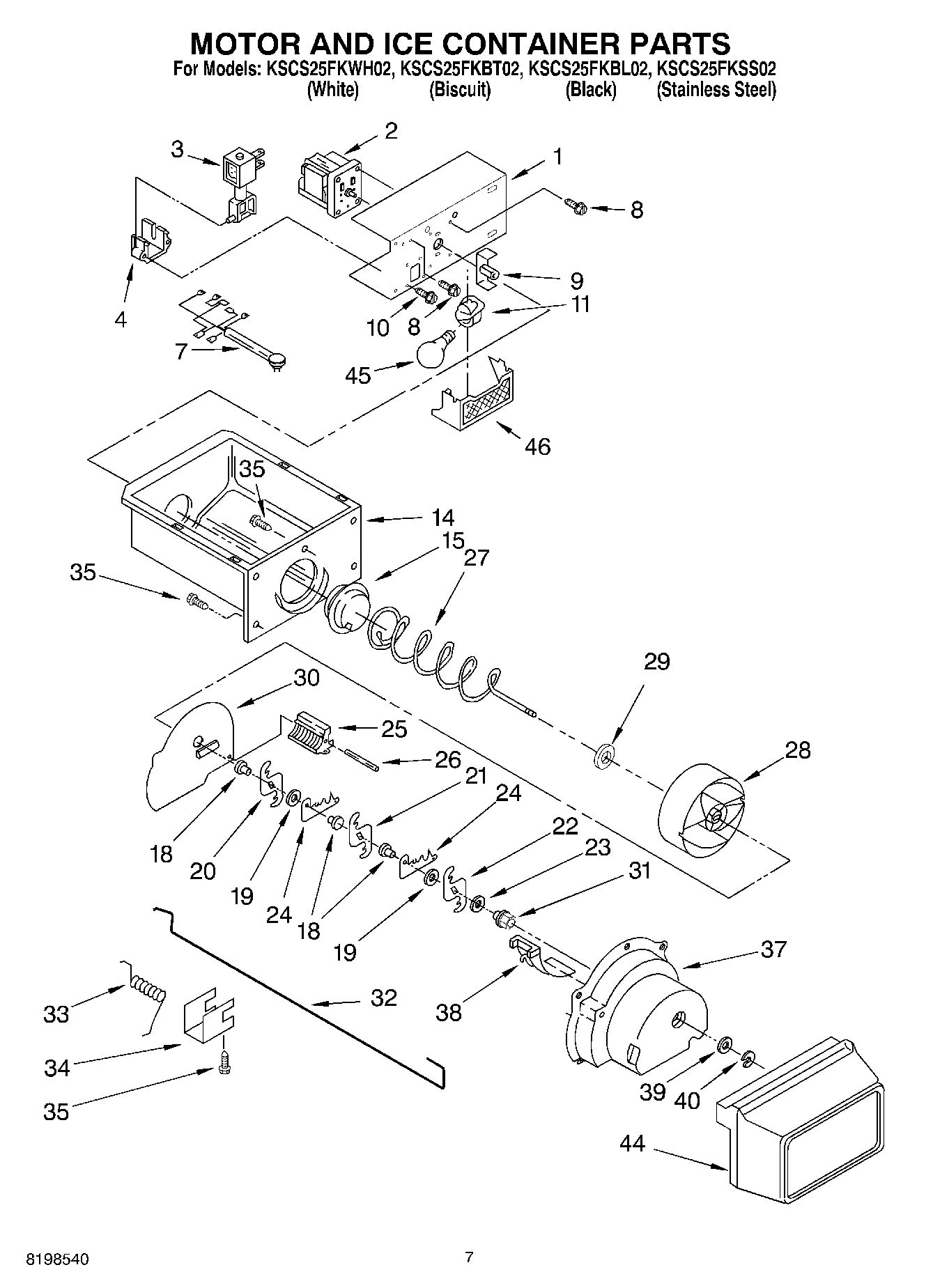

Model Whirlpool KSCS25FKWH02 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

LITERATURE PARTS WPL ARI91117A4 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Seviceable Part) WPL ARI91120A5 Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Stainles WPL 2214482S Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Black) WPL 2221551B Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Biscuit) WPL 2221551T Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (White) WPL 2221551W Contact Us For Availability

1

Shelf Assembly Cantilever WPL 2203054 Contact Us For Availability

1

Bracket, Motor WPL 2214579 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2221544 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2221548 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT2260953 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Housing, Dispenser (Not Serviced) WPL ARI91121A3 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI91119A5 Contact Us For Availability

2

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $153.53

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Button, Humidity WPL 2174253 Contact Us For Availability

2

Front Roller (2) WPL 2203007 Contact Us For Availability

2

Screw WPL 3369138 Contact Us For Availability

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.15

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Door, Ice Compartment WPL 2199860 Contact Us For Availability

3

Door, Compartment WPL 2218122 Contact Us For Availability

3

Bolt WPL 3400512 Contact Us For Availability

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2256010 Whirlpool Door Shelf Trim Backorder WPL WP2256010 $34.66

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

Clip, Thermistor WPL 2209204 Contact Us For Availability

4

Gasket, Side WPL 2174273 Contact Us For Availability

4

Roller (Rear) (2) WPL 2203008 Contact Us For Availability

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $173.69

5

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Cover, Meat Pan (Includes Items 13, 14 & 19) WPL 2203034 Contact Us For Availability

5

Bolt WPL 3400511 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2257017 Whirlpool Refrigerator Cantilever B Backorder WPL WP2257017 $72.36

6

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

7

4388405 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388405 $4.36

7

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

7

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

7

Stud, Handle WPL 2203690 Contact Us For Availability

7

Wiring Assembly, Ice Dispenser WPL 2206503 Contact Us For Availability

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Glass, Cover WPL 2203038 Contact Us For Availability

8

Clip WPL 2209558 Contact Us For Availability

8

Door Gasket, Magnetic (Mist Beige) WPL 2221305 Contact Us For Availability

8

Door Gasket, Magnetic (Black) WPL 2221310 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2180325 Whirlpool Dispenser Grille In Stock WPL WP2180325 $39.03

9

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability

9

Trim, Basket WPL 2199867 Contact Us For Availability

9

Handle (Black) WPL 2188635B Contact Us For Availability

9

Handle (Stainless Steel) WPL 2188635S Contact Us For Availability

9

Handle (Biscuit) WPL 2188635T Contact Us For Availability

9

Handle (White) WPL 2188635W Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2186860 Contact Us For Availability

9

Ladder, Shelf WPL 2181796 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

Basket (2) WPL 2199863 Contact Us For Availability

Glass, Cover WPL 2174148 Contact Us For Availability

Screw WPL 3400515 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

3400108 Whirlpool Refrigerator Screw Backorder WPL 3400108 $9.59

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $49.76

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Basket, Shallow WPL 2199892 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Biscuit) WPL 2186850 Contact Us For Availability

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $28.80

2307007AP Whirlpool Refrigerator Hinge Backorder WPL 2307007AP $52.83

2307007B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007B $44.38

2307007T Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007T $45.27

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

Divider, Bin WPL 2195497 Contact Us For Availability

Gasket, (Rear) WPL 2174274 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

W10853301 Whirlpool Refrigerator Screw Backorder WPL W10853301 $4.48

Eyelet, Roller WPL 2174478 Contact Us For Availability

Tube, Water Inlet WPL 2203024 Contact Us For Availability

2307008AP Whirlpool Refrigerator Hinge Backorder WPL 2307008AP $53.91

2307008B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008B $15.96

2307008T Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008T $44.38

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

Roller WPL 2188212 Contact Us For Availability

Wiring Cover WPL 2203111 Contact Us For Availability

Ice Container WPL 2199895 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Backorder WPL 2179404 $8.47

WP2179227 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2179227 $127.47

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

Hinge & Cam Assy. WPL 2208137 Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 2210774 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2214451 Contact Us For Availability

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

Slide, Basket (Left Side (2)) WPL 2208197 Contact Us For Availability

Slide, Basket (Right Side (2)) WPL 2208198 Contact Us For Availability

Retainer, Shelf Ladder (2) WPL 1113948 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Ladder, Shelf (2) WPL 1113949 Contact Us For Availability

Switch Assembly (Not Available, Order 23) WPL ARI91122A4 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Trim, Door Shelf WPL 2203087 Contact Us For Availability

Overlay, Front Cover (Not Available, Order 23 WPL ARI91123A2 Contact Us For Availability

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $28.80

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

Control Box Harness WPL 2214376 Contact Us For Availability

Screw WPL 98654 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

Butter, Dish WPL 2165792 Contact Us For Availability

Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability

Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability

Filler, Wrapper (Black) WPL 2203067B Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2203067T Contact Us For Availability

Filler, Wrapper (White) WPL 2203067W Contact Us For Availability

Front Cover, Housing (Not Available, Order 23 WPL ARI91124A4 Contact Us For Availability

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Grille (Black) WPL 2199904B Contact Us For Availability

Window, Meat Pan WPL 2174076 Contact Us For Availability

Stop, Roller WPL 1113169 Contact Us For Availability

Bin, Door (3) WPL 2199983 Contact Us For Availability

Grille (Biscuit) WPL 2199904T Contact Us For Availability

Grille (White) WPL 2199904W Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Clamp WPL 2161324 Contact Us For Availability

Shelf, Top Compartment WPL 2209533 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2219823B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2219823T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2219823W Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2199840 Whirlpool Refrigerator Housing In Stock WPL WP2199840 $108.46

Light Lens WPL 2199965 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

Air Diffuser Assembly WPL 2214367 Contact Us For Availability

25

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

25

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

26

Wire Harness, Cntrl Mtg Bracket WPL 2203091 Contact Us For Availability

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

WPW10270150 Whirlpool Crisper Drawer Cover Backorder WPL WPW10270150 $211.76

Conveyor WPL 2160602 Contact Us For Availability

2006518 Whirlpool Refrigerator Track Backorder WPL 2006518 $10.38

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $30.73

Slide, Container (Right Side) WPL 2002720 Contact Us For Availability

Beverage Pan WPL 2203028 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Handle, Beverage WPL 2203029 Contact Us For Availability

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

31

Shelf WPL 2199861 Contact Us For Availability

32

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

32

Control Arm WPL 2002728 Contact Us For Availability

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP2210737 Whirlpool Refrigerator Heater Backorder WPL WP2210737 $63.40

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2203266 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

35

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

37

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

37

WPW10185018 Whirlpool Refrigerator Housing Backorder WPL WPW10185018 $52.10

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

42

Extension Tube WPL 2199954 Contact Us For Availability

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

43

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

44

Front Cover, Ice Container WPL 2199913 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

47

Cover, Unit WPL 2214385 Contact Us For Availability

48

Cabinet (Not A Serviceable Part) WPL ARI91118A2 Contact Us For Availability

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
