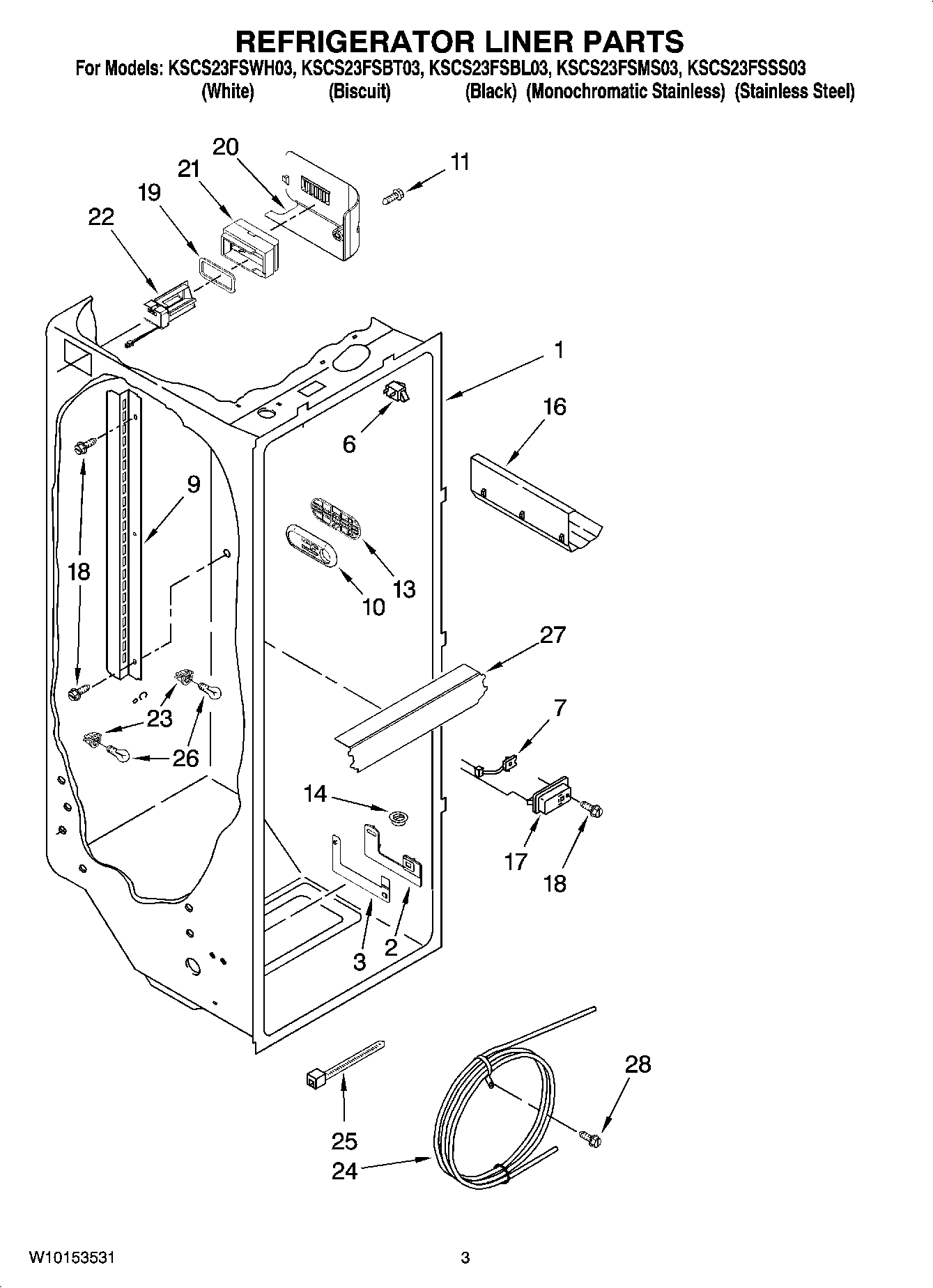

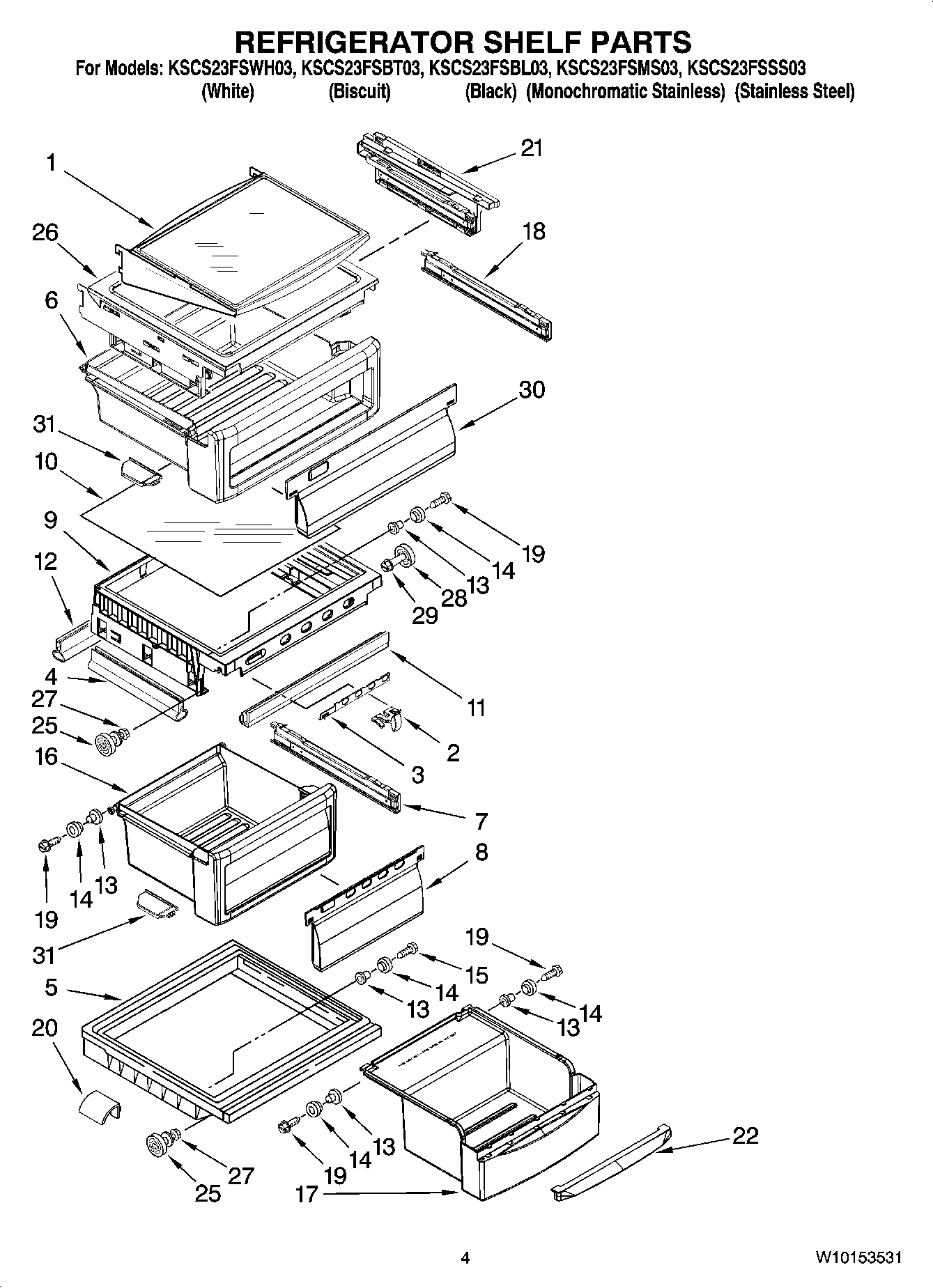

Model Whirlpool KSCS23FSBT03 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $7.48

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 8171358 WPL 8171358 Contact Us For Availability

WPL ARI90360A4 WPL ARI90360A4 Contact Us For Availability

WPL ARI90361A8 WPL ARI90361A8 Contact Us For Availability

WPL ARI90362A3 WPL ARI90362A3 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

Ice Bin WPL 2223317 Contact Us For Availability

1

Refrigerator Door (Includes 7) (Stainless Ste WPL 2307199S Contact Us For Availability

1

Refrigerator Door (Includes 7) (Monochromatic WPL 2307199SAP Contact Us For Availability

1

Refrigerator Door (Includes 7) (White) WPL W10128346 Contact Us For Availability

1

Refrigerator Door (Includes 7) (Black) WPL W10128348 Contact Us For Availability

1

Refrigerator Door (Includes 7) (Biscuit) WPL W10128350 Contact Us For Availability

1

Control Box (Includes 3) WPL 2319753 Contact Us For Availability

2

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $37.22

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $59.35

2

Trim, Shelf WPL 2203087K Contact Us For Availability

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $57.58

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

Control Board Asm WPL 2307037 Contact Us For Availability

3

Dairy Door WPL 2255421 Contact Us For Availability

3

Air Scoop WPL 2223298 Contact Us For Availability

3

Front, Basket WPL 2224053 Contact Us For Availability

4

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

4

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $52.72

4

Washer WPL 2258220 Contact Us For Availability

4

Caddy, Can WPL 2223883 Contact Us For Availability

5

3400524 Whirlpool Refrigerator Screw Backorder WPL 3400524 $7.80

5

W10247725 Whirlpool Water Inlet Valve In Stock WPL W10247725 $107.74

5

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $4.39

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $2.51

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

6

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $5.97

6

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

Cover, Crusher WPL 2317248 Contact Us For Availability

6

Housing, Control Board WPL 2223703 Contact Us For Availability

7

2301548 Whirlpool Refrigerator Glide Backorder WPL 2301548 $98.93

7

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

7

Door Gasket, Magnetic (Mist Beige) WPL 2223841 Contact Us For Availability

7

Door Gasket, Magnetic (Black) WPL 2223911 Contact Us For Availability

7

Door Gasket, Magnetic (Apollo Grey) WPL 2326342 Contact Us For Availability

8

2223545 Whirlpool Refrigerator Shim Backorder WPL 2223545 $31.71

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2319727B Whirlpool Refrigerator Handle Backorder WPL WP2319727B $122.04

8

WP2319727W Whirlpool Refrigerator Handle Backorder WPL WP2319727W $111.68

8

Handle (Stainless Steel) WPL 2319727S Contact Us For Availability

8

Window, Crisper Pan WPL 2301001 Contact Us For Availability

8

Handle (Biscuit) WPL 2319727T Contact Us For Availability

9

2307008B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008B $15.96

9

2307008T Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008T $44.38

9

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $36.29

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WPW10010150 Whirlpool Refrigerator Screw Backorder WPL WPW10010150 $2.51

9

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2301567 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2319866 Contact Us For Availability

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $29.19

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2223879 Whirlpool Refrigerator Compressor D Backorder WPL WP2223879 $54.88

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Plate, Mounting WPL 2301979 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $28.80

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

W10297244 Whirlpool Refrigerator Arm Strip Backorder WPL W10297244 $39.95

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

Hinge Assembly, Bottom-RC WPL 2307179 Contact Us For Availability

Door Closer, Upper Cam WPL 2307050 Contact Us For Availability

Door Closer, Upper Cam WPL 2307048 Contact Us For Availability

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

Eyelet, Roller WPL 2174478 Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

2306940 Whirlpool Refrigerator Bracket Backorder WPL 2306940 $32.79

2306940B Whirlpool Refrigerator Bracket Backorder WPL 2306940B $13.10

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

2307007B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007B $44.38

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

W10916292 Whirlpool Refrigerator Crisper Pan Backorder WPL W10916292 $99.22

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP2223860 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2223860 $51.22

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Meat Pan (Includes 13, 14, 19 & 22) WPL 2223790 Contact Us For Availability

2301544 Whirlpool Refrigerator Glide Backorder WPL 2301544 $116.07

2301545 Whirlpool Refrigerator Glide Backorder WPL 2301545 $58.23

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

WP2224173 Whirlpool Refrigerator Cantilever B In Stock WPL WP2224173 $45.64

Glide Assembly (Snack Pan) (Left Side) WPL 2301551 Contact Us For Availability

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $33.09

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $35.74

Cover, Emitter WPL 2259487 Contact Us For Availability

Tube, Extension WPL 2254566 Contact Us For Availability

Gasket, Air Baffle WPL 2304597 Contact Us For Availability

Nameplate (Gray) WPL W10046610 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Nameplate (Biscuit) WPL W10046700 Contact Us For Availability

20

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Support Assembly (Right Side) WPL 2301569 Contact Us For Availability

Cover, Unit WPL 2223409 Contact Us For Availability

Air Diffuser Assembly WPL 2224076 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $173.69

Handle WPL 2203031 Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 13, 19, WPL 2318821US Contact Us For Availability

24

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

24

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $28.80

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

Hinge Assembly, Bottom-FC WPL 2307152 Contact Us For Availability

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Shelf, Snack Pan WPL 2301566 Contact Us For Availability

27

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

27

Sleeve, Mech WPL 2252127 Contact Us For Availability

27

Light Lens WPL 2223663 Contact Us For Availability

28

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

28

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

28

Slide, Ice Maker Mounting (Right Side) WPL 2212321 Contact Us For Availability

29

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

29

Door Closer, FC WPL 2307051 Contact Us For Availability

WP2260518AP Whirlpool Filter Cap Assembly In Stock WPL WP2260518AP $20.74

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $16.27

Window, Snack Pan WPL 2301006 Contact Us For Availability

Cap, Water Filter (Biscu WPL 2260518T Contact Us For Availability

31

Harness, Main Control WPL 2187849 Contact Us For Availability

31

Enclosure, Motor WPL 2256154 Contact Us For Availability

32

W10271509 Whirlpool Refrigerator Ice Maker Au In Stock WPL W10271509 $128.94

33

Heater, Defrost WPL 2323199 Contact Us For Availability

33

Cover WPL 2212305 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

WPL 2307049 WPL 2307049 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

36

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $26.70

37

W10683539 Whirlpool Refrigerator Dispensing H Backorder WPL W10683539 $13.56

38

Tube, Discharge WPL 2223352 Contact Us For Availability

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

43

2187737 Whirlpool Refrigerator Wire Harness Backorder WPL 2187737 $54.34

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $88.79

100

Ice Container (Complete) WPL 2317268 Contact Us For Availability
