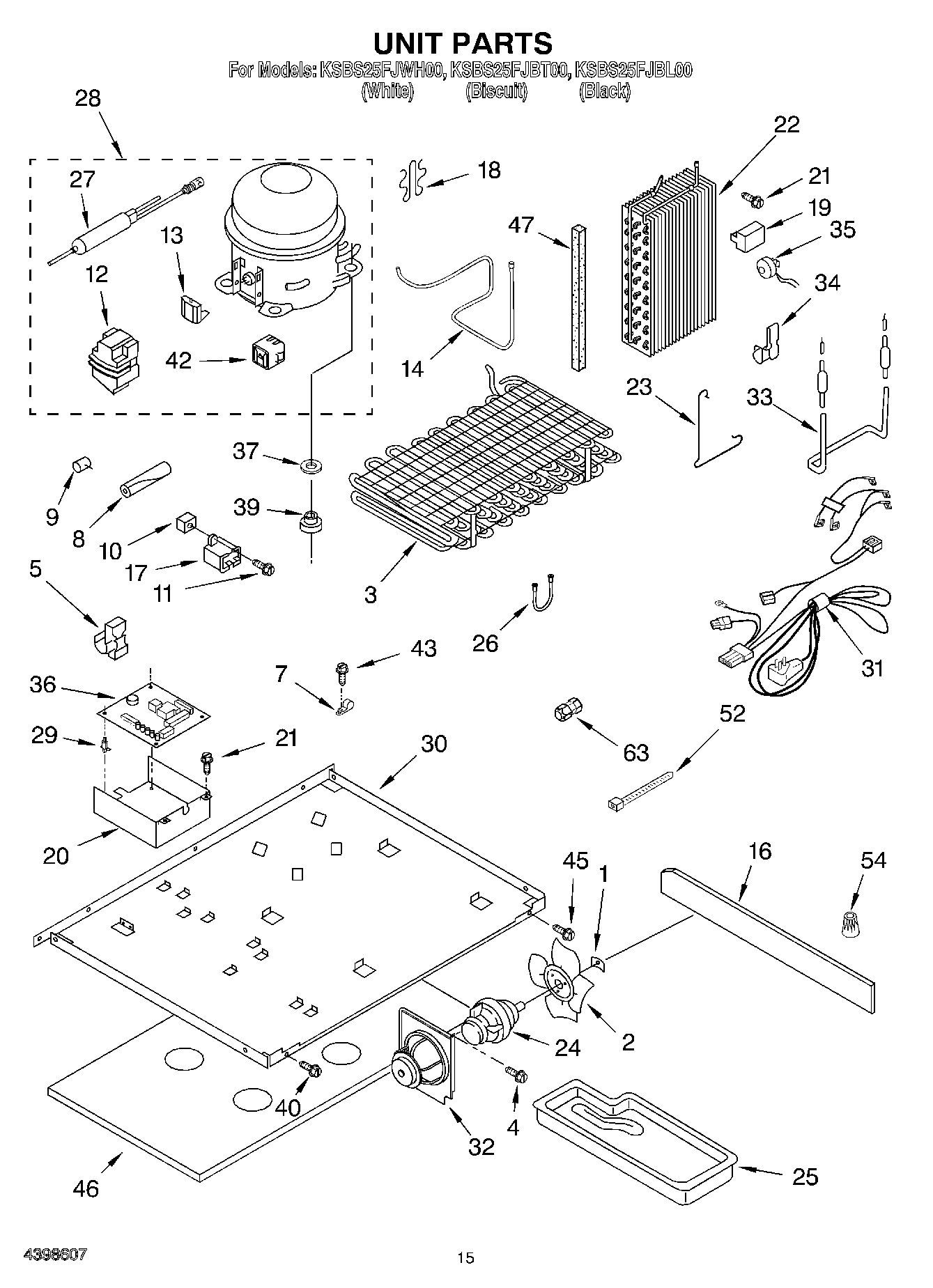

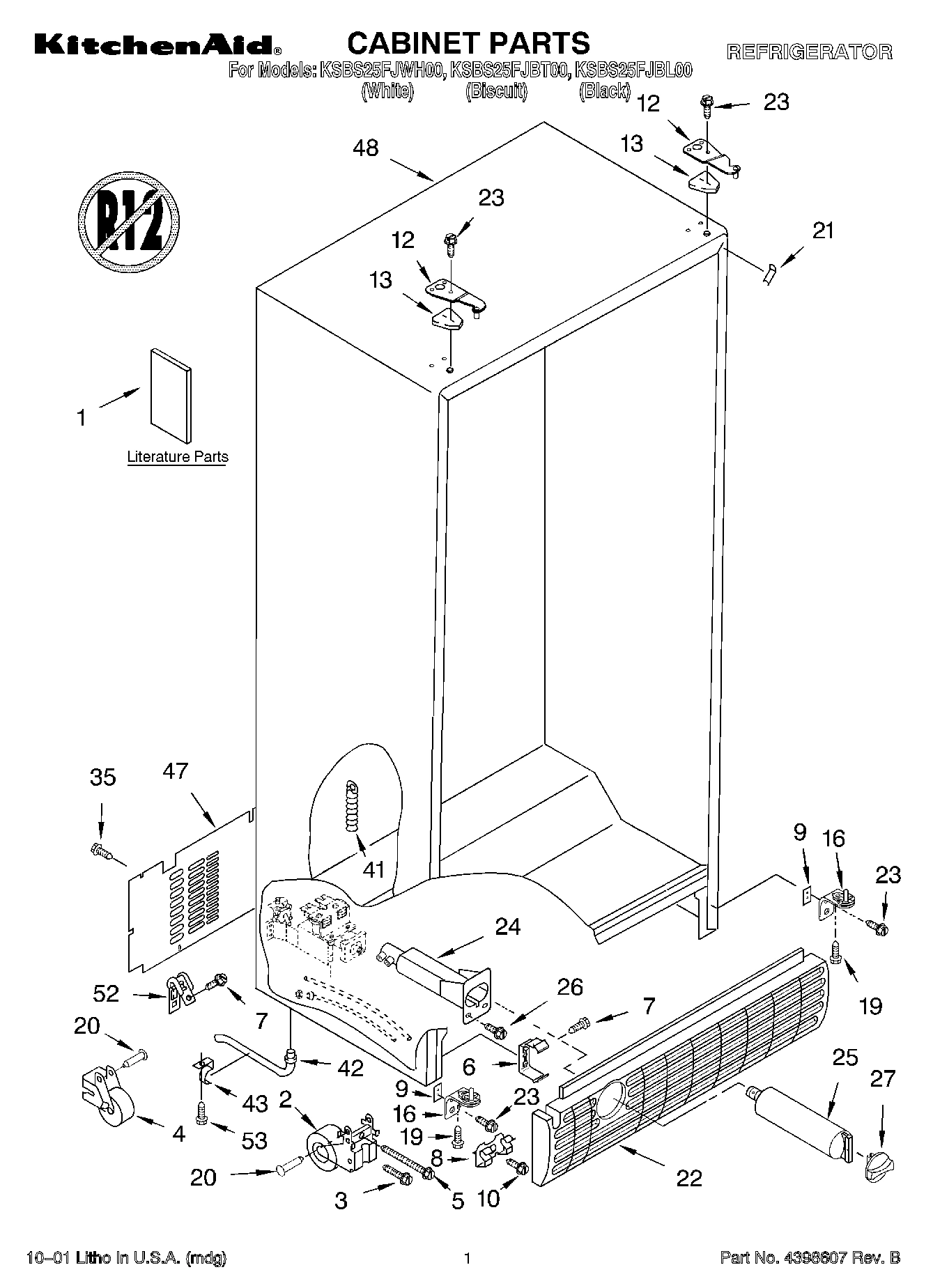

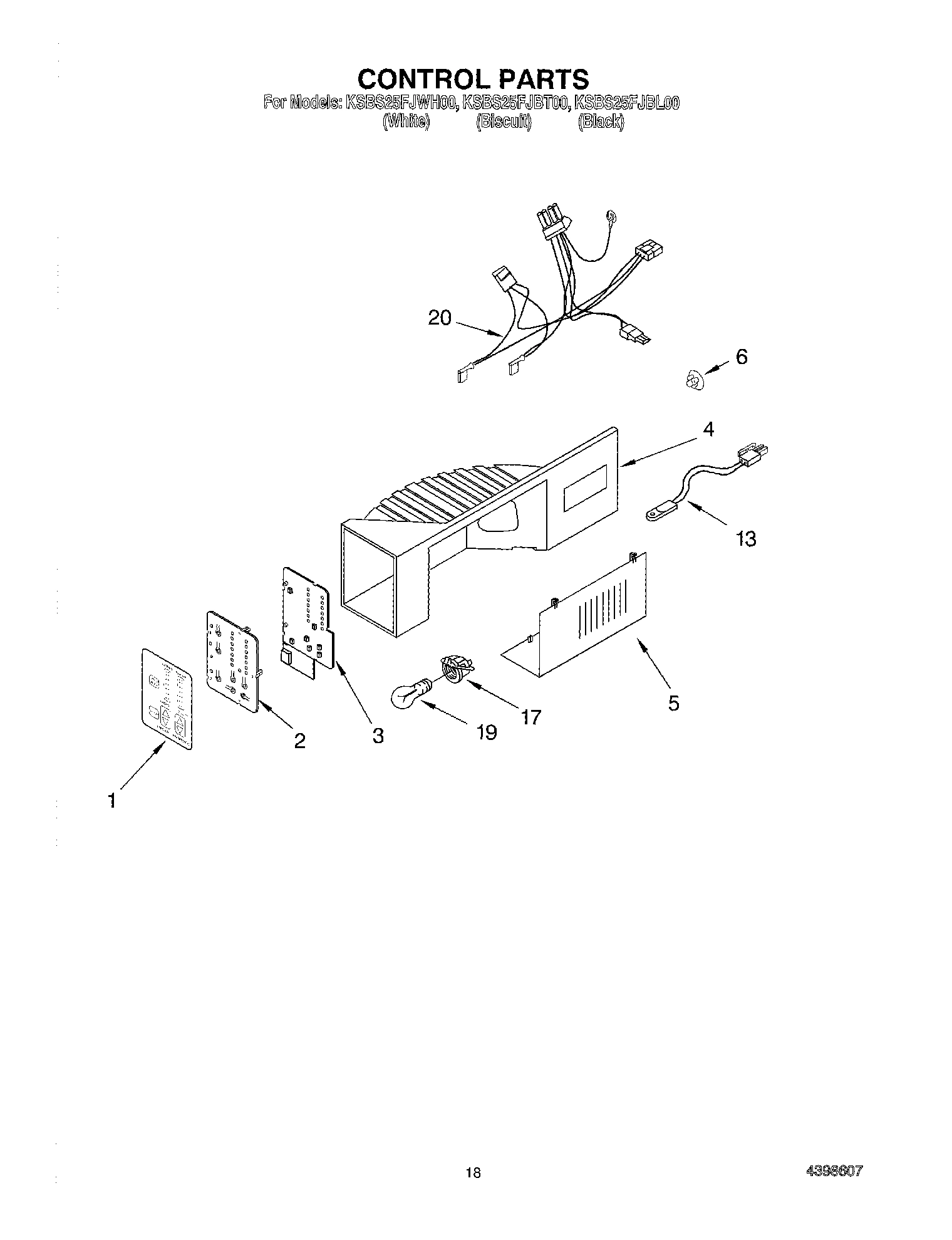

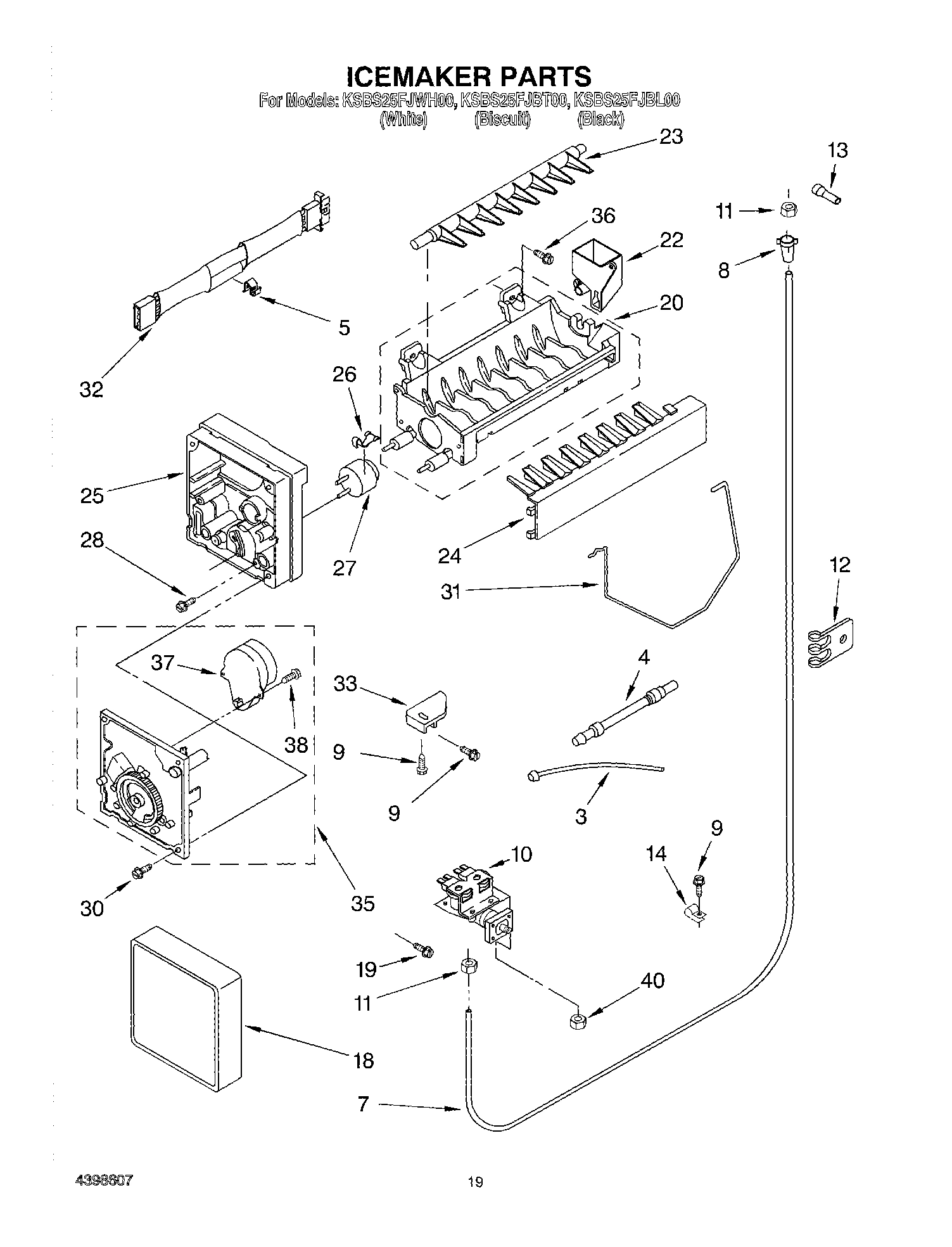

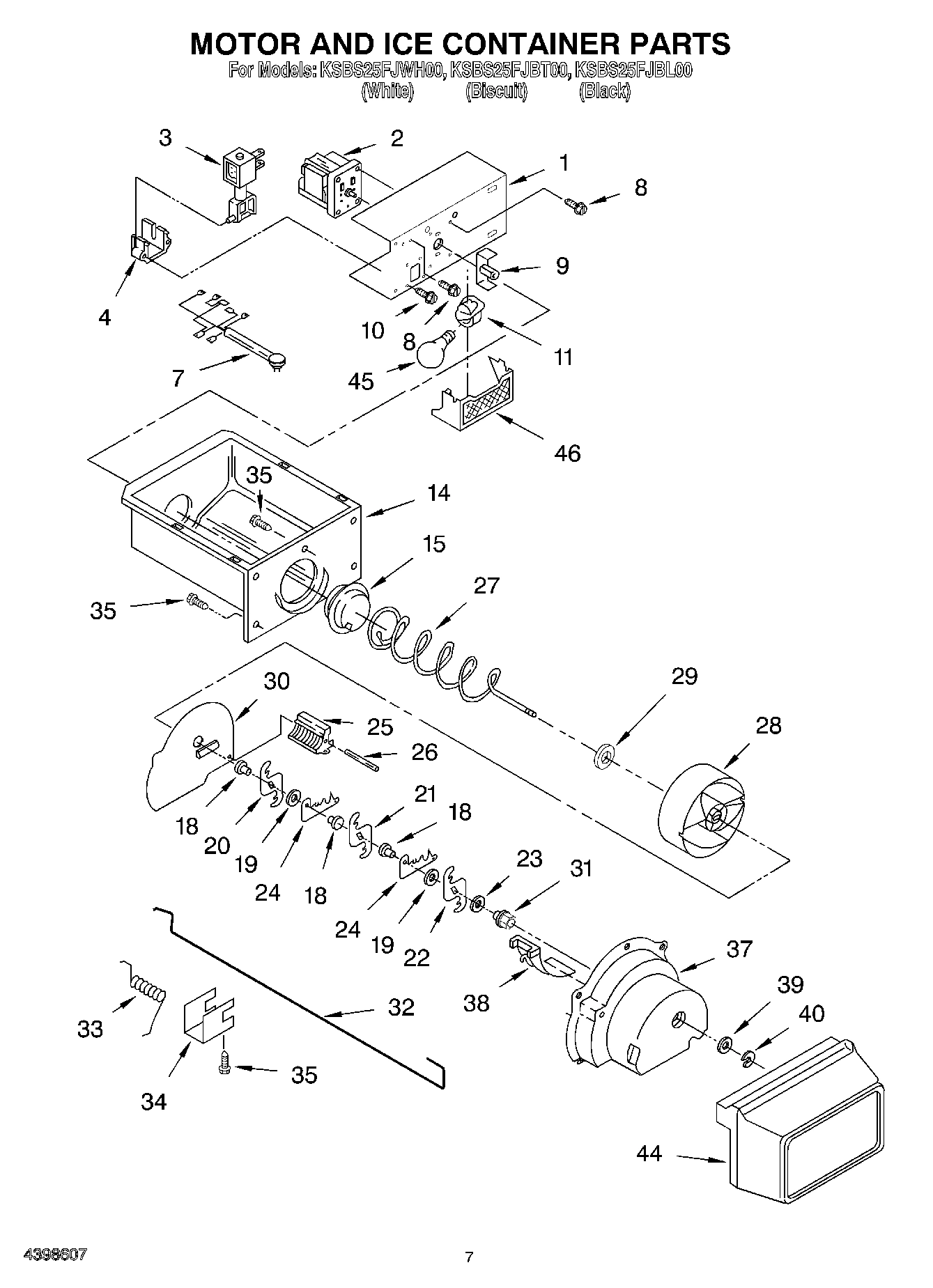

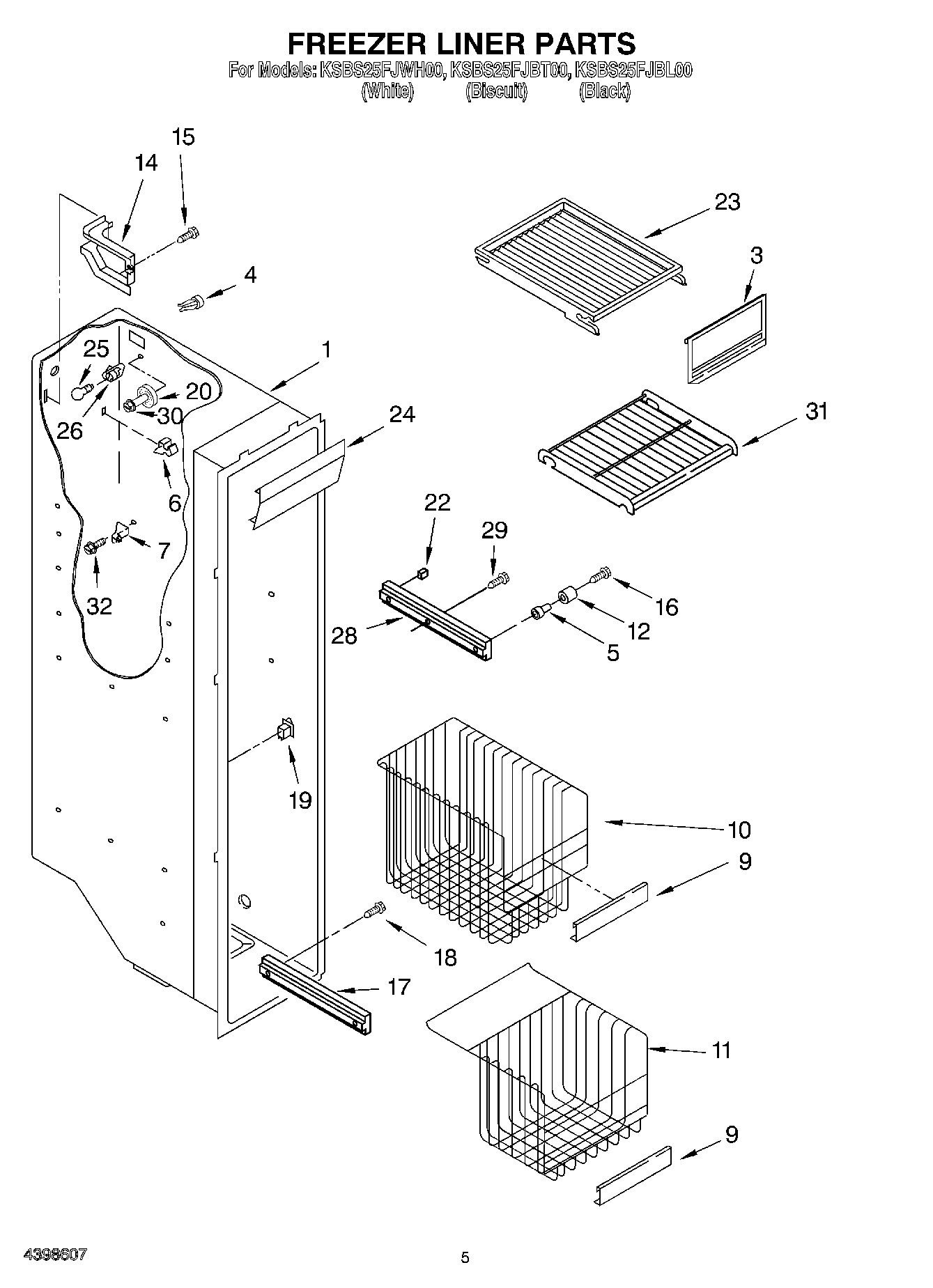

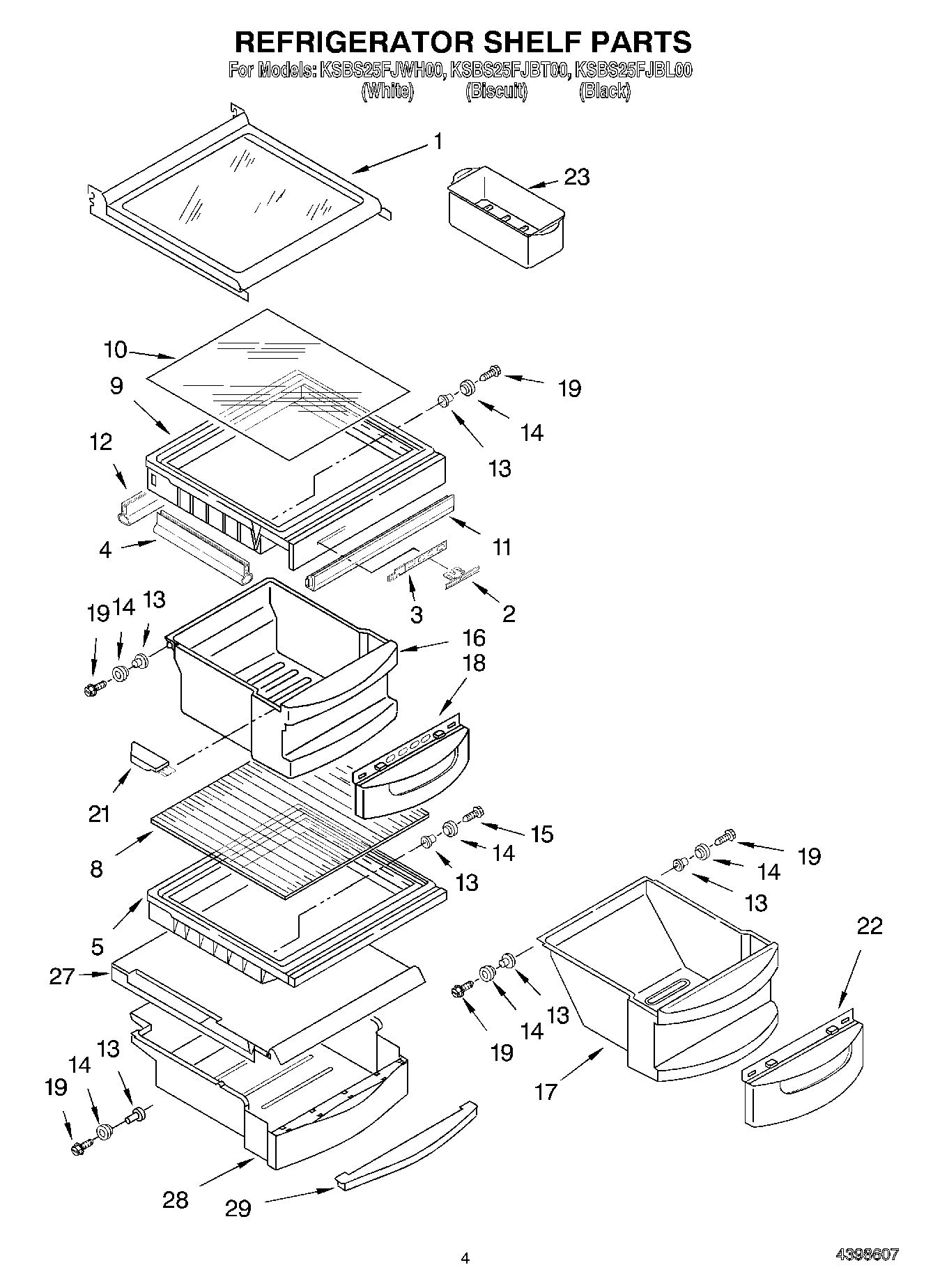

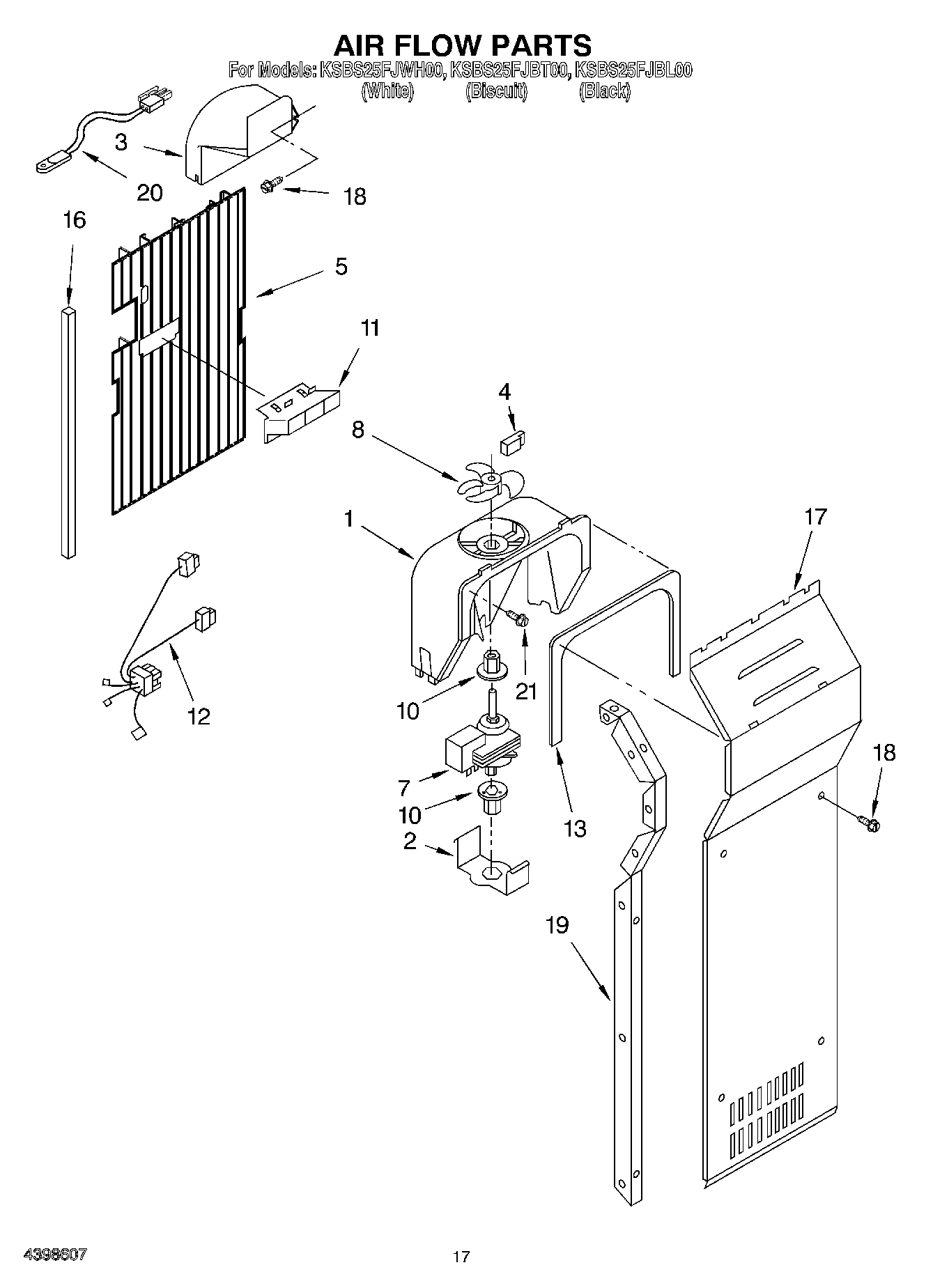

Model Whirlpool KSBS25FJWH00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

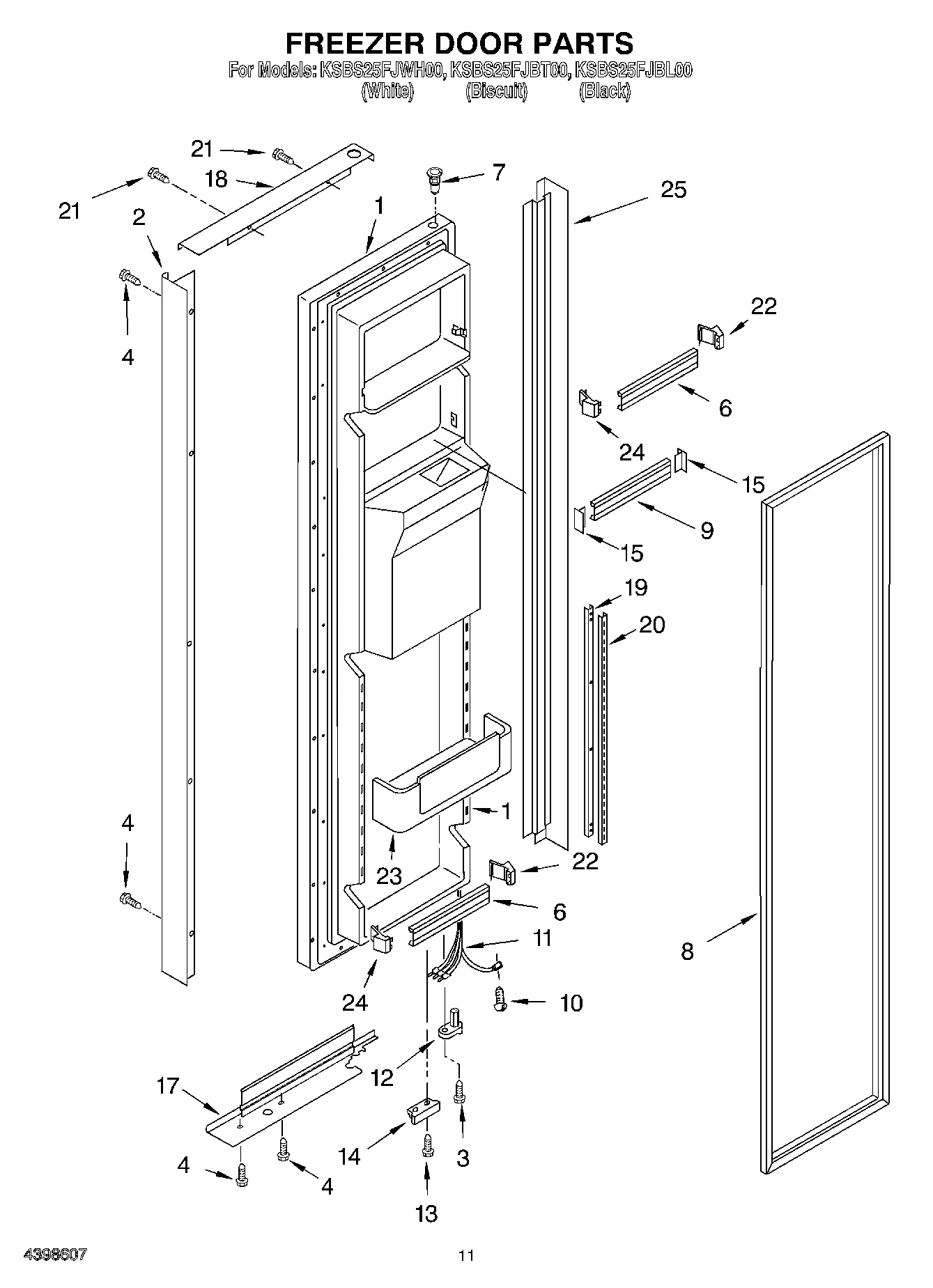

Freezer Door (Includes Item No.8 And Dispense WPL 2209551B Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2209551T Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2209551W Contact Us For Availability

1

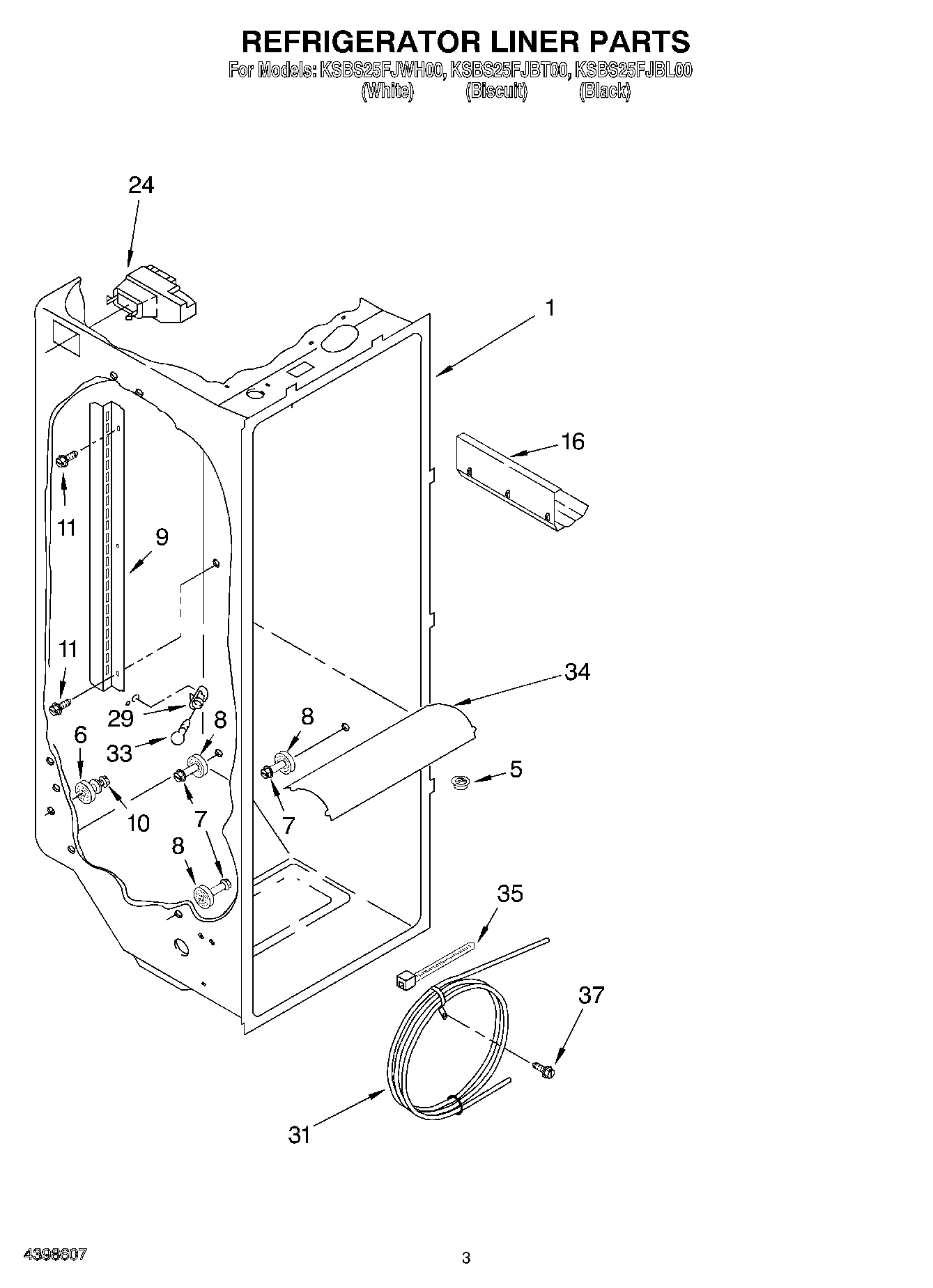

Liner (Not A Serviceable Part) WPL ARI89742A2 Contact Us For Availability

1

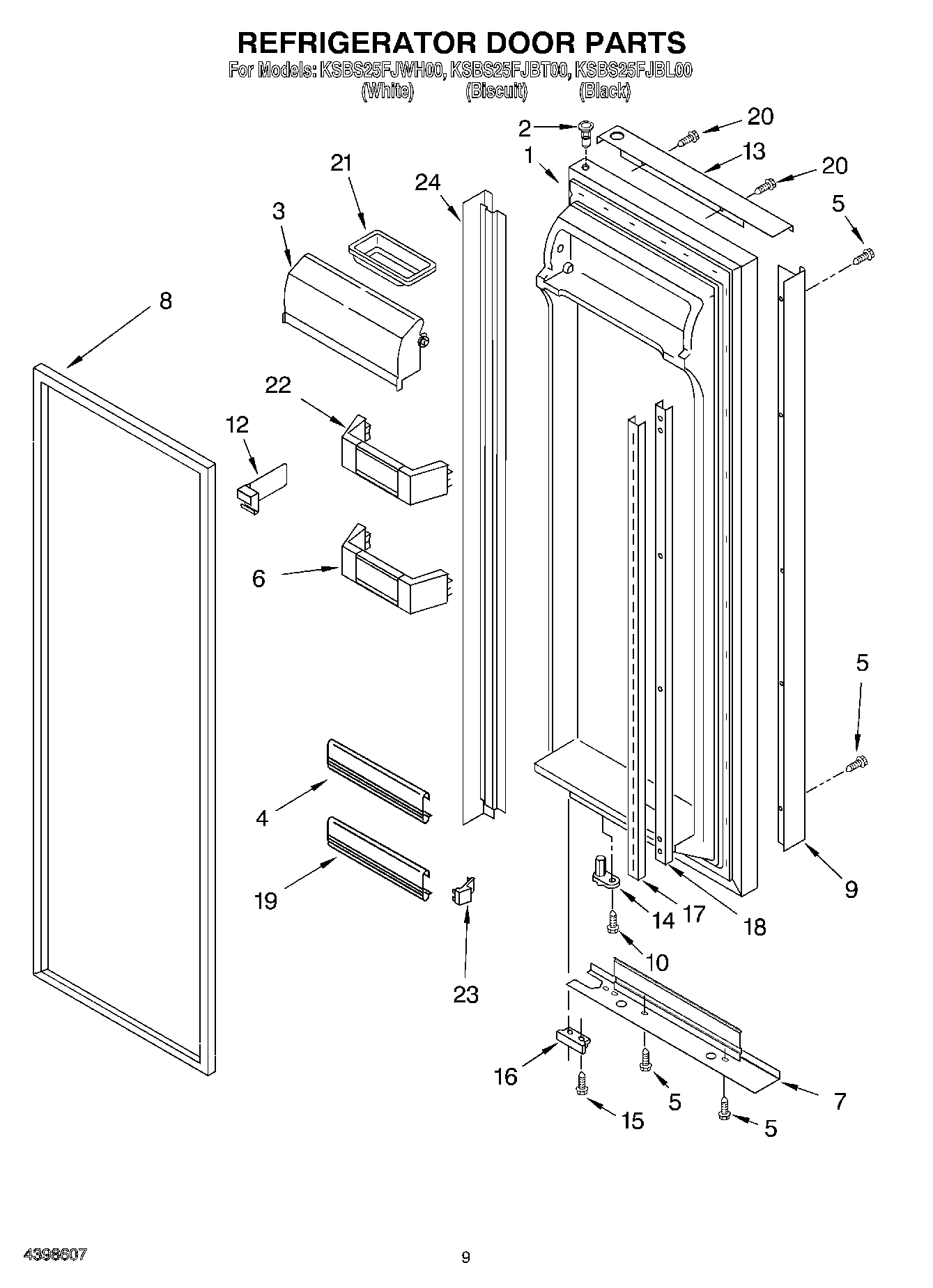

Refrigerator Door (Includes Item No.8) (Black WPL 2199766B Contact Us For Availability

1

Refrigerator Door (Includes Item No.8) (Biscu WPL 2199766T Contact Us For Availability

1

Refrigerator Door (Includes Item No.8) (White WPL 2199766W Contact Us For Availability

1

Housing, Dispenser (Not a Serviceable Part) WPL ARI89743A6 Contact Us For Availability

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Handle (Black) WPL 2208121B Contact Us For Availability

2

Handle (Biscuit) WPL 2208121T Contact Us For Availability

2

Handle (White) WPL 2208121W Contact Us For Availability

3

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $12.61

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $145.59

3

Circuit Board, Interface WPL 2203080 Contact Us For Availability

3

Door, Ice Compartment WPL 2199860 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2256010 Whirlpool Door Shelf Trim Backorder WPL WP2256010 $34.66

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

Tube, Filter Inlet WPL 2209707 Contact Us For Availability

4

Grommet WPL 2172803 Contact Us For Availability

4

Block, Fan Scroll WPL 2208184 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Air Duct Freezer WPL 2199931 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2257017 Whirlpool Refrigerator Cantilever B Backorder WPL WP2257017 $72.36

6

Trim, Door Shelf WPL 2199990 Contact Us For Availability

7

4388405 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388405 $4.36

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

7

Trim, Door (Bottom) (Black) WPL 2208114B Contact Us For Availability

7

Trim, Door (Bottom) (Biscuit) WPL 2208114T Contact Us For Availability

7

Trim, Door (Bottom) (White) WPL 2208114W Contact Us For Availability

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

8

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Glass, Cover WPL 2203038 Contact Us For Availability

8

Door Gasket, Magnetic (Mist Beige) WPL 2209560 Contact Us For Availability

8

Door Gasket, Magnetic (Black) WPL 2209562 Contact Us For Availability

8

Door Gasket, Magnetic (Mist Beige) WPL 2209561 Contact Us For Availability

8

Door Gasket, Magnetic (Black) WPL 2209563 Contact Us For Availability

8

Delay Mechanism WPL 2205686 Contact Us For Availability

9

WP2180325 Whirlpool Dispenser Grille In Stock WPL WP2180325 $39.03

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability

9

Trim, Door Shelf WPL 2199991 Contact Us For Availability

9

Trim, Basket WPL 2199867 Contact Us For Availability

9

Handle (Black) WPL 2208124B Contact Us For Availability

9

Handle (Biscuit) WPL 2208124T Contact Us For Availability

9

Handle (White) WPL 2208124W Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2186860 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Valve, Solenoid WPL 2199838 Contact Us For Availability

Basket (2) WPL 2199863 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Wiring Harness WPL 2203170 Contact Us For Availability

Basket, Shallow WPL 2199892 Contact Us For Availability

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Roller WPL 2188212 Contact Us For Availability

Divider, Bin WPL 2195497 Contact Us For Availability

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2203117 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

W11239930 Whirlpool Refrigerator Overload Rel Backorder WPL W11239930 $59.01

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

Eyelet, Roller WPL 2174478 Contact Us For Availability

Tube, Water Inlet WPL 2203024 Contact Us For Availability

Trim, Door (Top) (Black) WPL 2208129B Contact Us For Availability

Trim, Door (Top) (Biscuit) WPL 2208129T Contact Us For Availability

Trim, Door (Top) (White) WPL 2208129W Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

Wiring Cover WPL 2203111 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP2179227 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2179227 $127.47

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

Hinge & Cam Assy. WPL 2208137 Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability

Gasket WPL 2210780 Contact Us For Availability

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

Trim, Door (Bottom) (Black) WPL 2208110B Contact Us For Availability

Trim, Door (Bottom) (Biscuit) WPL 2208110T Contact Us For Availability

Trim, Door (Bottom) (White) WPL 2208110W Contact Us For Availability

Slide, Basket (Left Side (2)) WPL 2208197 Contact Us For Availability

Slide, Basket (Right Side (2)) WPL 2208198 Contact Us For Availability

Retainer, Shelf Ladder (2) WPL 1113948 Contact Us For Availability

Cover, Evaporator WPL 2203122 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $113.83

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Trim, Door (Top) (Black) WPL 2208128B Contact Us For Availability

Trim, Door (Top) (Biscuit) WPL 2208128T Contact Us For Availability

Trim, Door (Top) (White) WPL 2208128W Contact Us For Availability

Ladder, Shelf (2) WPL 1113949 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Trim, Door Shelf WPL 2203087 Contact Us For Availability

Retainer, Shelf Ladder (2) WPL 2208146 Contact Us For Availability

Overlay, Front Cover (Black) WPL 2186718B Contact Us For Availability

Overlay, Front Cover (Biscuit) WPL 2186718T Contact Us For Availability

Overlay, Front Cover (White) WPL 2186718W Contact Us For Availability

Evaporator, Cover Rail (Right) WPL 2199922 Contact Us For Availability

Evaporator, Cover Rail (Left) WPL 2199923 Contact Us For Availability

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $28.80

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Ladder, Shelf (2) WPL 2203012 Contact Us For Availability

Screw WPL 3196180 Contact Us For Availability

Thermistor WPL 2199723 Contact Us For Availability

21

Tray, Butter WPL 2165792 Contact Us For Availability

21

Front Cover, Housing (Not Available, Order No WPL ARI89744A8 Contact Us For Availability

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Grille (Black) WPL 2199904B Contact Us For Availability

Window, Crisper WPL 2174076 Contact Us For Availability

Stop, Roller WPL 1113169 Contact Us For Availability

Bin, Door (3) WPL 2199983 Contact Us For Availability

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Clamp WPL 2161324 Contact Us For Availability

Bin, Door (2) WPL 2199992 Contact Us For Availability

Shelf, Top Compartment WPL 2209533 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2209557B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2209557T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2209557W Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2195917K Whirlpool Refrigerator Endcap Backorder WPL WP2195917K $6.79

WP2199840 Whirlpool Refrigerator Housing In Stock WPL WP2199840 $108.46

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Light Lens WPL 2199965 Contact Us For Availability

Trim, Door (Hinge Side) (Black) WPL 2208127B Contact Us For Availability

Trim, Door (Hinge Side) (Biscuit) WPL 2208127T Contact Us For Availability

Trim, Door (Hinge Side) (White) WPL 2208127W Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

Trim, Door (Hinge Side) (Black) WPL 2208126B Contact Us For Availability

Trim, Door (Hinge Side) (Biscuit) WPL 2208126T Contact Us For Availability

Trim, Door (Hinge Side) (White) WPL 2208126W Contact Us For Availability

26

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Cement Alumilastic) WPL 542369 Contact Us For Availability

2006518 Whirlpool Refrigerator Track Backorder WPL 2006518 $10.38

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

Slide, Container (Right Side) WPL 2002720 Contact Us For Availability

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

29

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

29

Handle, Beverage WPL 2203029 Contact Us For Availability

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

Shelf WPL 2199861 Contact Us For Availability

32

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2203266 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

36

Circuit Board, Dual Temp. WPL 2203076 Contact Us For Availability

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

37

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

37

WPW10185018 Whirlpool Refrigerator Housing Backorder WPL WPW10185018 $52.10

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

40

Nut, Compression WPL 1129179 Contact Us For Availability

43

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

44

Front Cover, Ice Container WPL 2199913 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Ice Crusher Mechanism Assembly WPL 2160606 Contact Us For Availability

Ice Contianer Assembly WPL 2199894 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability
