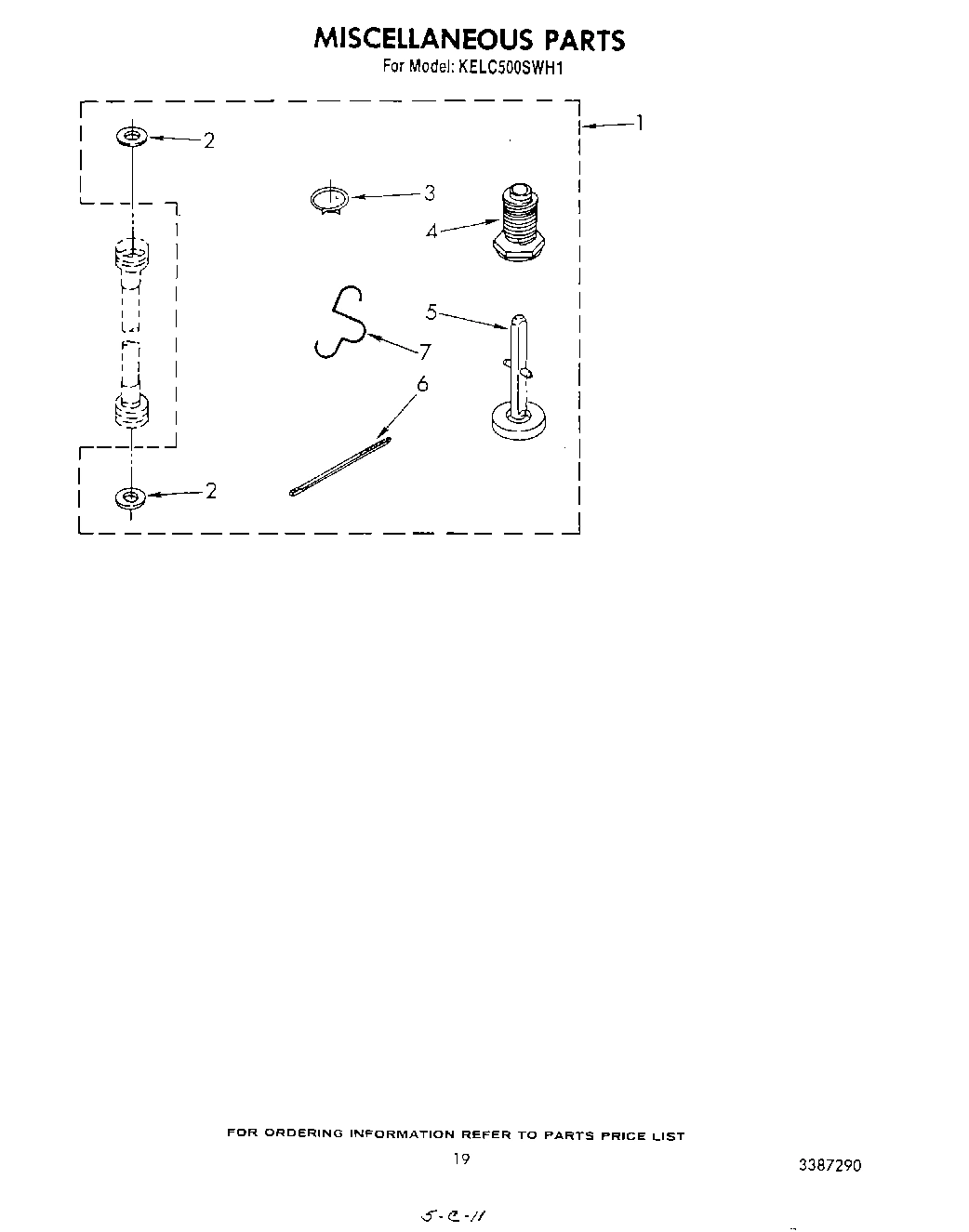

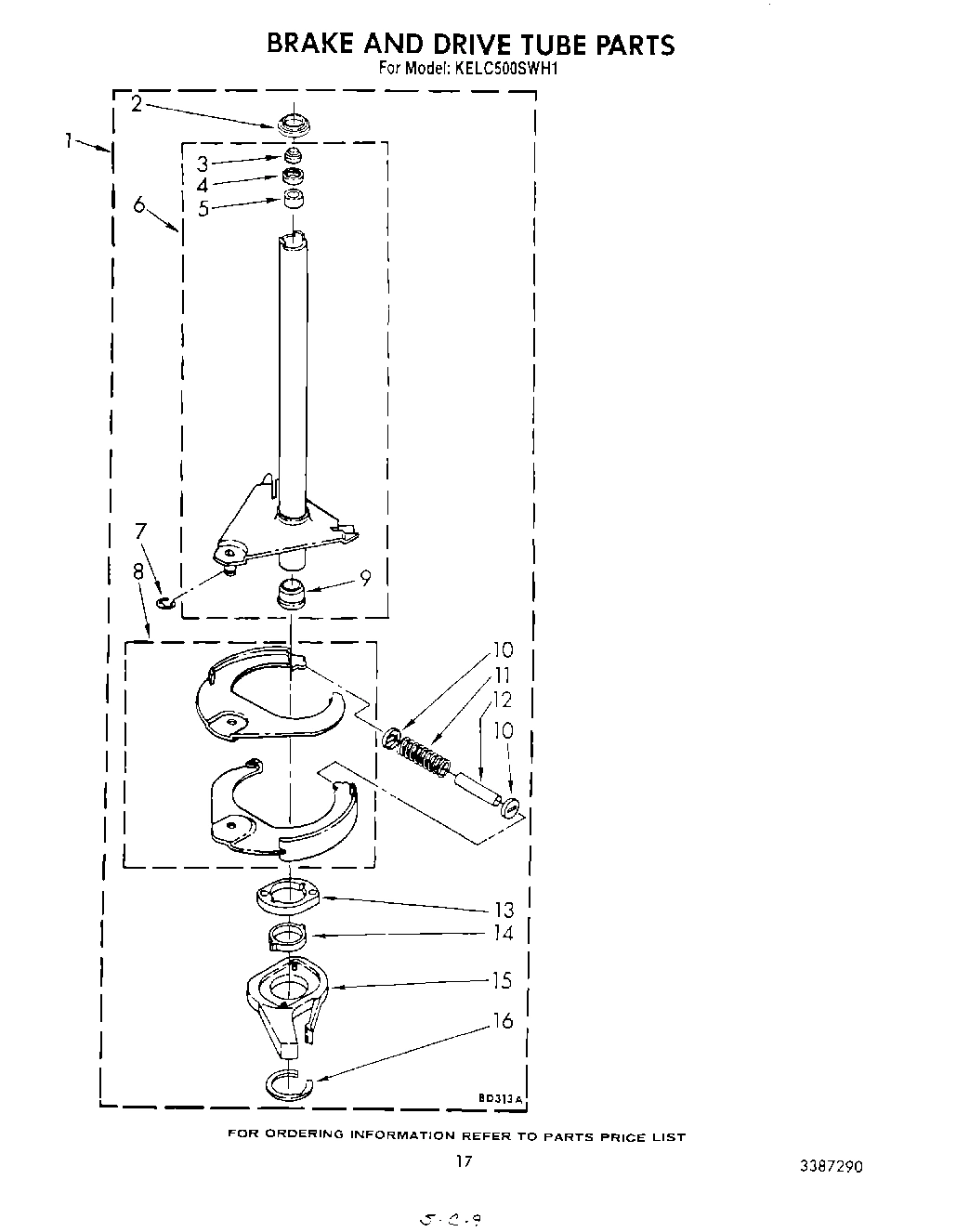

Model Whirlpool KELC500SWH1 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

356746 Whirlpool Clip Backorder WPL 356746 $10.76

1

696073 Whirlpool Connector Backorder WPL 696073 $30.25

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $8.06

1

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

1

Harness, Console Wiring (Automatic) (Includes WPL 3387713 Contact Us For Availability

1

Plug, Terminal (2-Way) (Connects With Main Dr WPL 342529 Contact Us For Availability

2

345396 Whirlpool Clip Backorder WPL 345396 $27.52

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP3946432 Whirlpool Timer In Stock WPL WP3946432 $187.66

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

3

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

3

WP63840 Whirlpool Filter In Stock WPL WP63840 $94.05

3

WP64137 Whirlpool Shield Assembly Backorder WPL WP64137 $12.96

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

3

Air Duct & Bracket WPL 696547 Contact Us For Availability

3

Motor, Timer (60 Hz.) WPL 63491 Contact Us For Availability

4

279872 Whirlpool Resistor In Stock WPL 279872 $27.52

4

285314 Whirlpool O/S1 Panel In Stock WPL 285314 $203.91

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

4

Panel, Front (Almond) WPL 692620 Contact Us For Availability

4

Panel, Front (Toast) WPL 692621 Contact Us For Availability

4

Panel, Front (Platinum) WPL 692622 Contact Us For Availability

4

Panel, Front (Harvest Wheat) WPL 692623 Contact Us For Availability

4

Agitator WPL 3347667 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $31.44

5

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.31

5

384458 Whirlpool Hinge Assembly Backorder WPL 384458 $30.89

5

696541 Whirlpool Base Backorder WPL 696541 $30.89

5

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $20.70

5

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

5

Tub Ring & Gasket (Includes Illus. 7, 14 & 15 WPL 64175 Contact Us For Availability

5

Suspension Assembly (3) WPL 63731 Contact Us For Availability

6

280077 Whirlpool Door Backorder WPL 280077 $122.39

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

6

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

6

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

6

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

6

WP8577373 Whirlpool Base Assembly In Stock WPL WP8577373 $134.12

6

Screw, Terminal Block To Bracket (2) WPL ARI154011A Contact Us For Availability

6

Bracket, Control WPL 694338 Contact Us For Availability

6

Panel, Rear WPL 692626 Contact Us For Availability

7

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

7

End Cap, Console (L.H. & R.H.) WPL 692993 No Longer Available

7

WP3359587 Whirlpool Tub Seal Backorder WPL WP3359587 $9.37

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

7

WP692699 Whirlpool Hose In Stock WPL WP692699 $16.56

7

Door, Front (White) WPL 3388269 Contact Us For Availability

7

Door, Front (Almond) WPL 3388270 Contact Us For Availability

7

Door, Front (Harvest Wheat) WPL 3388271 Contact Us For Availability

7

Door, Front (Toast) WPL 3388272 Contact Us For Availability

7

Door, Front (Platinum) WPL 3388273 Contact Us For Availability

8

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $32.39

8

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

8

Cabinet (White) WPL 696013 Contact Us For Availability

8

Cabinet (Almond) WPL 696014 Contact Us For Availability

8

Cabinet (Harvest Wheat) WPL 696015 Contact Us For Availability

8

Cabinet (Toast) WPL 696016 Contact Us For Availability

8

Cabinet (Platinum) WPL 696017 Contact Us For Availability

8

Screw, End Cap Mounting (4) (6-32 x 3/4) WPL 348689 Contact Us For Availability

8

Cover, Terminal Block WPL 307972 Contact Us For Availability

8

Basket WPL 388764 Contact Us For Availability

9

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $54.79

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

9

WP692985 Whirlpool Clip Assembly Backorder WPL WP692985 $3.70

9

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

9

Tub WPL 63782 Contact Us For Availability

279220 Whirlpool Clip In Stock WPL 279220 $11.93

279771 Whirlpool Clip Backorder WPL 279771 $6.20

WP3402293 Whirlpool Panel Assembly Backorder WPL WP3402293 $158.19

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP696710 Whirlpool Hose In Stock WPL WP696710 $25.46

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Switch, Water Level WPL 388990 Contact Us For Availability

Panel, Side (L.H.) (Almond) WPL 692614 Contact Us For Availability

Panel, Side (L.H.) (Toast) WPL 692615 Contact Us For Availability

Panel, Side (L.H.) (Platinum) WPL 692616 Contact Us For Availability

Panel, Side (L.H.) (Harvest Wheat) WPL 692617 Contact Us For Availability

Screw, 5/16-24 x 3/16 (3) (Gearcase To Tub Su WPL 62735 Contact Us For Availability

692790 Whirlpool Plug Backorder WPL 692790 $28.09

W10834213 Whirlpool Hose Backorder WPL W10834213 $16.84

WP62611 Whirlpool Plate In Stock WPL WP62611 $39.14

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Heater Box (120/240 Volts) WPL 685457 Contact Us For Availability

Plug, Side Panel (2) (Almond) WPL 692791 Contact Us For Availability

Plug, Side Panel (2) (Toast) WPL 692792 Contact Us For Availability

Plug, Side Panel (2) (Platinum) WPL 692793 Contact Us For Availability

Plug, Side Panel (2) (Harvest Wheat) WPL 692794 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $3.70

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

Element, Heater WPL 696632 Contact Us For Availability

Switch, Water Temperature (Alt.) WPL 370145 Contact Us For Availability

Switch, Water Temperature (Alt.) WPL 370146 Contact Us For Availability

Switch, Water Temperature WPL 660393 Contact Us For Availability

Wire, Motor Ground WPL 687261 Contact Us For Availability

280120 Whirlpool Hose Backorder WPL 280120 $13.36

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

693711 Whirlpool Sleeve Backorder WPL 693711 $4.59

W11213338 Whirlpool Connector Backorder WPL W11213338 $28.26

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

Bumper, Lid Hinge (2) WPL 19119 Contact Us For Availability

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

8577411 Whirlpool Pad Backorder WPL 8577411 $4.54

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

WP693151 Whirlpool Lock Spring Backorder WPL WP693151 $3.70

WP696426 Whirlpool Wheel In Stock WPL WP696426 $41.34

Clamp, Hose WPL 272855 Contact Us For Availability

Elbow, Upper WPL 695524 Contact Us For Availability

356398 Whirlpool Tube Backorder WPL 356398 $30.25

63636 Whirlpool Bracket Backorder WPL 63636 $28.07

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP356471 Whirlpool Cap In Stock WPL WP356471 $3.70

Handle, Door (White) WPL 3387212 Contact Us For Availability

Handle, Door (Almond) WPL 3387213 Contact Us For Availability

Handle, Door (Harvest Wheat) WPL 3387214 Contact Us For Availability

Handle, Door (Toast) WPL 3387215 Contact Us For Availability

Handle, Door (Platinum) WPL 3387216 Contact Us For Availability

Screw, Console Lock (2) WPL 693710 Contact Us For Availability

WP3388255 Whirlpool Timer In Stock WPL WP3388255 $179.40

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $5.44

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

Support Protector WPL 692846 Contact Us For Availability

Seal, Fan Scroll WPL 696658 Contact Us For Availability

Screw & Washer (Tub Mounting) (4) WPL 98005 Contact Us For Availability

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

3399603 Whirlpool Elbow Backorder WPL 3399603 $44.62

384459 Whirlpool Hinge Backorder WPL 384459 $30.89

63637 Whirlpool Shield Backorder WPL 63637 $12.96

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

WP696418 Whirlpool Fan Scroll Backorder WPL WP696418 $43.37

Fastener, Push (2) WPL 693739 Contact Us For Availability

Strut, Console WPL 693175 Contact Us For Availability

279710 Whirlpool Nut In Stock WPL 279710 $27.52

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

WP696394 Whirlpool Hose In Stock WPL WP696394 $49.21

Switch, Push-To-Start WPL 693169 Contact Us For Availability

693152 Whirlpool Bumper In Stock WPL 693152 $7.06

W10863713 Whirlpool Support In Stock WPL W10863713 $200.80

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

THRMST-FIX WPL 696818 Contact Us For Availability

3394652 Whirlpool Drum Belt In Stock WPL 3394652 $27.45

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

Plug, Multi-Terminal (Connects With Main Drye WPL 692997 Contact Us For Availability

Harness, Thermostat & Heater (Includes Illus. WPL 696820 Contact Us For Availability

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

694037 Whirlpool Clip Backorder WPL 694037 $30.25

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $7.41

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $32.30

Barrier, Harness WPL 693303 Contact Us For Availability

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

3391834 Whirlpool Drum Backorder WPL 3391834 $170.42

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.97

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Insert, Door Handle WPL 389043 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $27.74

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $42.93

WP358652 Whirlpool Link In Stock WPL WP358652 $30.25

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

WP692771 Whirlpool Nut Backorder WPL WP692771 $2.51

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

Panel, Control WPL 694332 Contact Us For Availability

Clip, Motor Shield WPL 3349322 Contact Us For Availability

696044 Whirlpool Block In Stock WPL 696044 $30.89

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.88

BAFFLE-DRM WPL 685207 Contact Us For Availability

Knob & Skirt, Dryer Timer WPL 696353 Contact Us For Availability

Base, Dryer WPL 696046 Contact Us For Availability

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.70

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

Screw, Baffle Mounting (6) (11-16 x 7/8) WPL 690372 Contact Us For Availability

Button, Push-To-Start WPL 3388125 Contact Us For Availability

279735 Whirlpool Dryer Rear Drum Seal White S In Stock WPL 279735 $51.71

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

WP692926 Whirlpool Cover Appliance Backorder WPL WP692926 $30.25

Lock, Top (2) WPL 697701 Contact Us For Availability

279848 Whirlpool Bulkhead Backorder WPL 279848 $137.22

692933 Whirlpool Panel Backorder WPL 692933 $105.81

Panel, Front (White) WPL 692628 Contact Us For Availability

Panel, Front (Almond) WPL 692629 Contact Us For Availability

Panel, Front (Toast) WPL 692630 Contact Us For Availability

Panel, Front (Platinum) WPL 692631 Contact Us For Availability

Panel, Front (Harvest Wheat) WPL 692632 Contact Us For Availability

Knob & Clip, Water Temperature WPL 696345 Contact Us For Availability

Panel, Transition (Almond) WPL 692934 Contact Us For Availability

Panel, Transition (Toast) WPL 692935 Contact Us For Availability

Panel, Transition (Platinum) WPL 692936 Contact Us For Availability

Panel, Transition (Harvest Wheat) WPL 692937 Contact Us For Availability

W10828351 Whirlpool Dryer Filter Lint Screen In Stock WPL W10828351 $33.01

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

WP692641 Whirlpool Dryer Top Assembly Backorder WPL WP692641 $114.70

Dial, Timer WPL 3388678 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

Knob, Timer WPL 697761 Contact Us For Availability

Panel, Side (R.H.) (White) WPL 692607 Contact Us For Availability

Panel, Side (R.H.) (Almond) WPL 692608 Contact Us For Availability

Panel, Side (R.H.) ( WPL 692609 Contact Us For Availability

WPL 692610 WPL 692610 Contact Us For Availability

WPL 692611 WPL 692611 Contact Us For Availability

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

WP693145 Whirlpool Lid Latch Backorder WPL WP693145 $30.25

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

WP692781 Whirlpool Closure Assembly Backorder WPL WP692781 $72.31

WP692983 Whirlpool Console Lock Backorder WPL WP692983 $30.25

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $44.50

Pad, Extruder (2) WPL 694398 Contact Us For Availability

WPL 692782 WPL 692782 Contact Us For Availability

WPL 692783 WPL 692783 Contact Us For Availability

WPL 692784 WPL 692784 Contact Us For Availability

WPL 692785 WPL 692785 Contact Us For Availability

32

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $17.40

32

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

32

WPL 354975 WPL 354975 Contact Us For Availability

33

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

33

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

33

WP693304 Whirlpool Screw Backorder WPL WP693304 $2.51

34

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $44.94

Receptacle, Multi-Terminal (Connects With The WPL 692998 Contact Us For Availability

Harness, Main Dryer Wiring (Includes Illus. 3 WPL 696821 Contact Us For Availability

WPL 717252 WPL 717252 Contact Us For Availability

WPL 717315 WPL 717315 Contact Us For Availability

37

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

37

WPL 693141 WPL 693141 Contact Us For Availability

38

PT220L Whirlpool Dryer Power Cord In Stock WPL PT220L $13.89

38

W11712577 Whirlpool Clip In Stock WPL W11712577 $2.43

38

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

39

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

39

WPL 697728 WPL 697728 Contact Us For Availability

41

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

42

279318 Whirlpool Terminal In Stock WPL 279318 $41.56

45

WPL 61894 WPL 61894 Contact Us For Availability

46

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

47

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

48

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $3.81

49

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.25
