Model Whirlpool KBRA22KRBL00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4396418 Whirlpool Ice Maker Backorder WPL 4396418 $192.72

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL ARI79552A3 WPL ARI79552A3 Contact Us For Availability

WPL ARI79553A5 WPL ARI79553A5 Contact Us For Availability

WPL ARI79554A7 WPL ARI79554A7 Contact Us For Availability

WPL ARI79555A5 WPL ARI79555A5 Contact Us For Availability

WPL ARI79556A7 WPL ARI79556A7 Contact Us For Availability

WPL ARI79557A2 WPL ARI79557A2 Contact Us For Availability

1

12658533BQ Whirlpool Refrigerator FIP Door Backorder WPL 12658533BQ $480.81

1

12658928SQ Whirlpool Refrigerator DOR FIP Backorder WPL 12658928SQ $480.81

1

Use & Care Guide WPL 2300252 Contact Us For Availability

1

Energy Tag WPL 8208372 Contact Us For Availability

1

Tech Sheet WPL 8208373 Contact Us For Availability

1

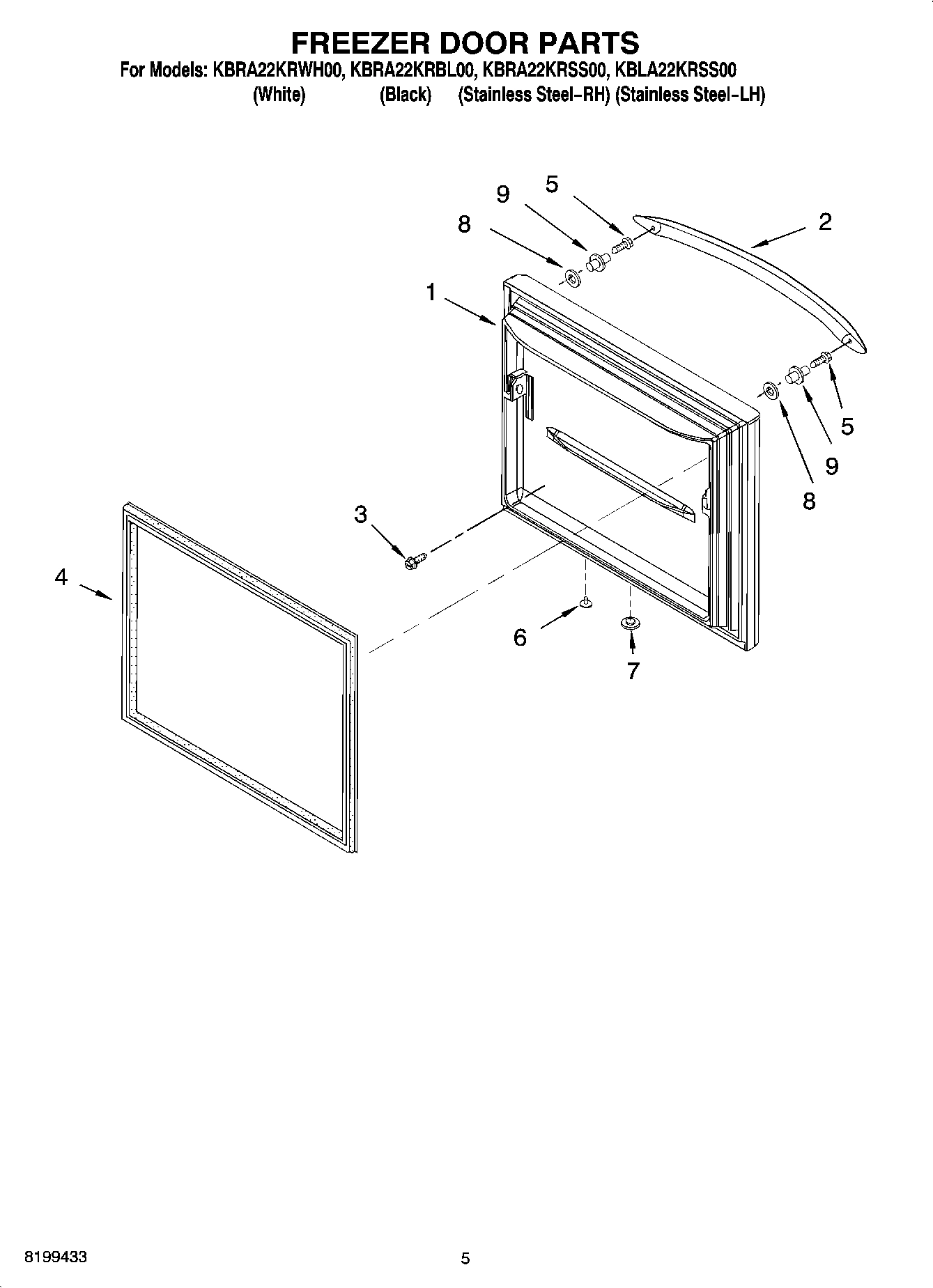

Freezer Door (w/ Insulation) (Black) WPL 8171217 Contact Us For Availability

1

Freezer Door (w/ Insulation) (White) WPL 8171219 Contact Us For Availability

1

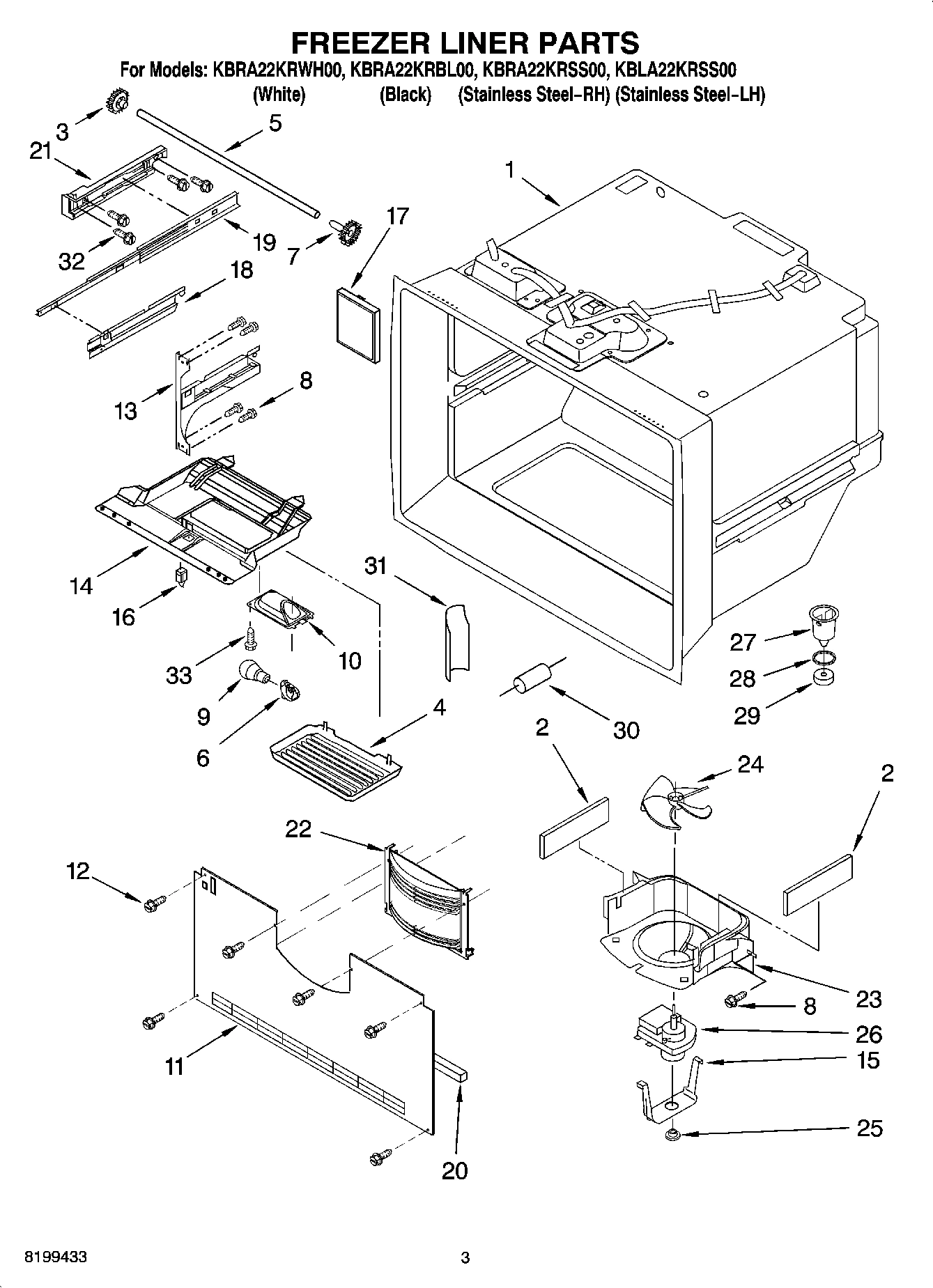

Liner (Not A Seviceable Part) WPL ARI79546A8 Contact Us For Availability

1

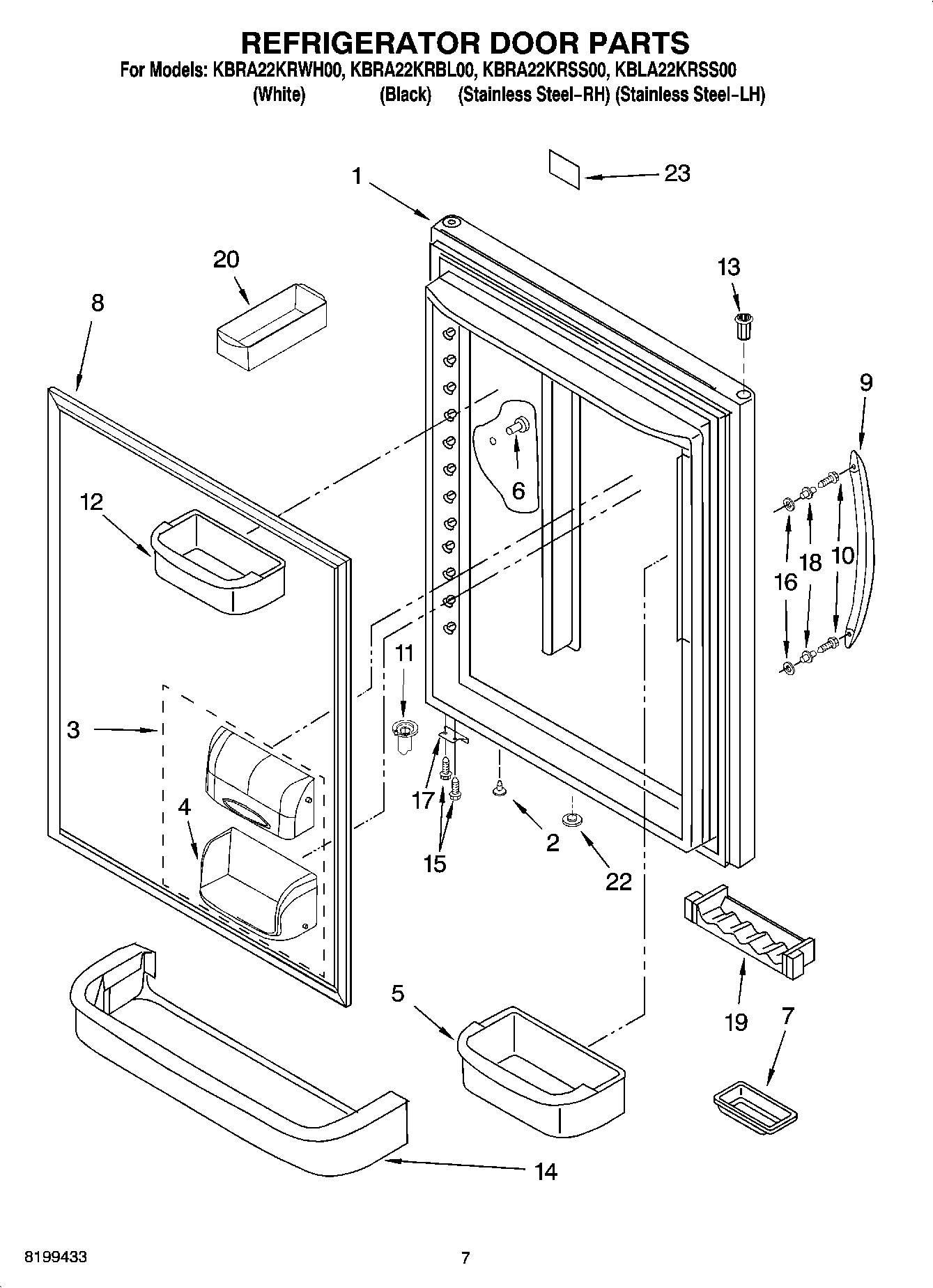

Refrigerator Door (w/ Insulation) (Stainless WPL 8171174 Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (White) WPL 8171194 Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (Stainless WPL 8171195 Contact Us For Availability

1

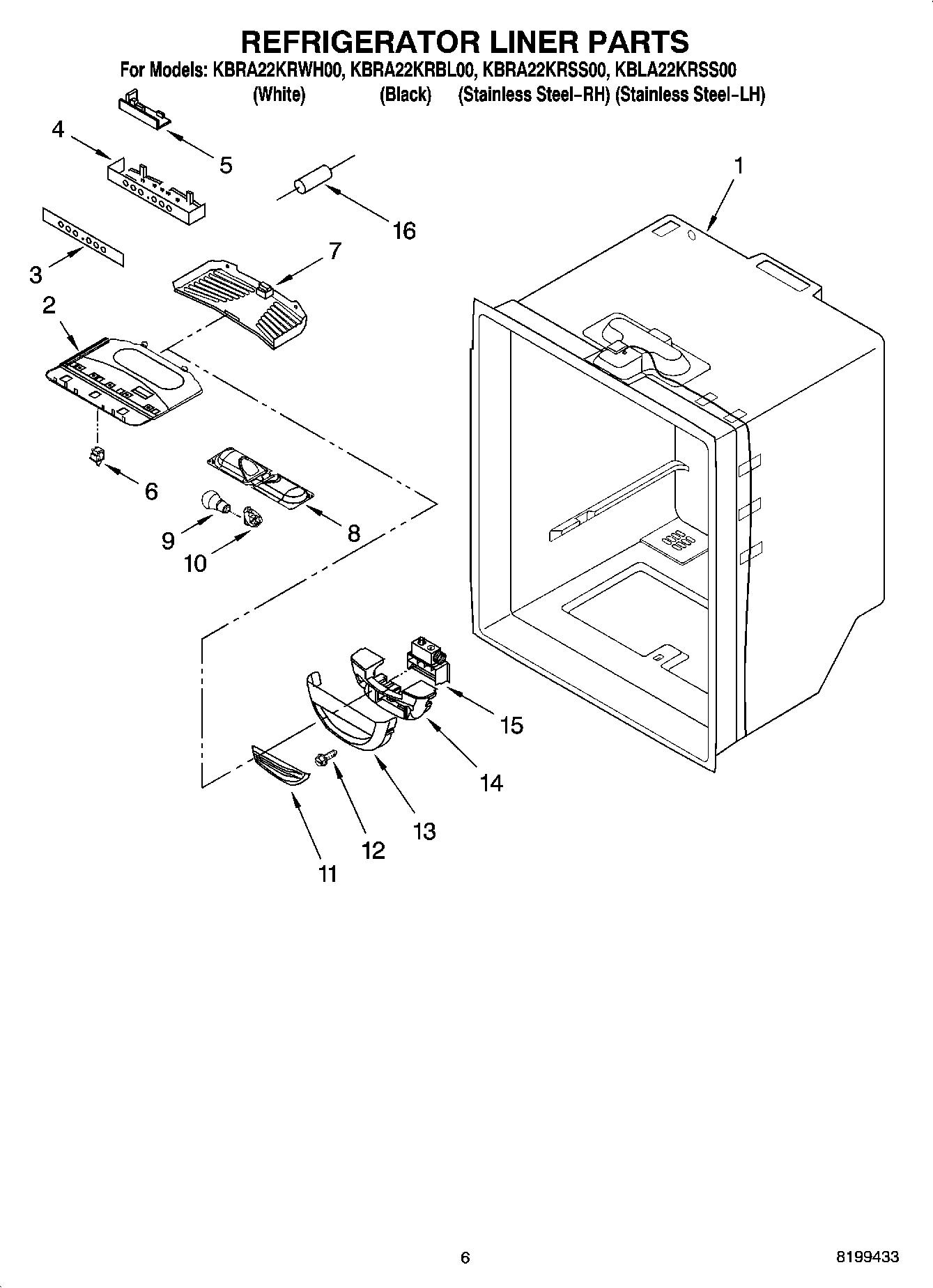

Ladder, Side WPL 8208370 Contact Us For Availability

2

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $4.50

2

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.72

2

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.70

2

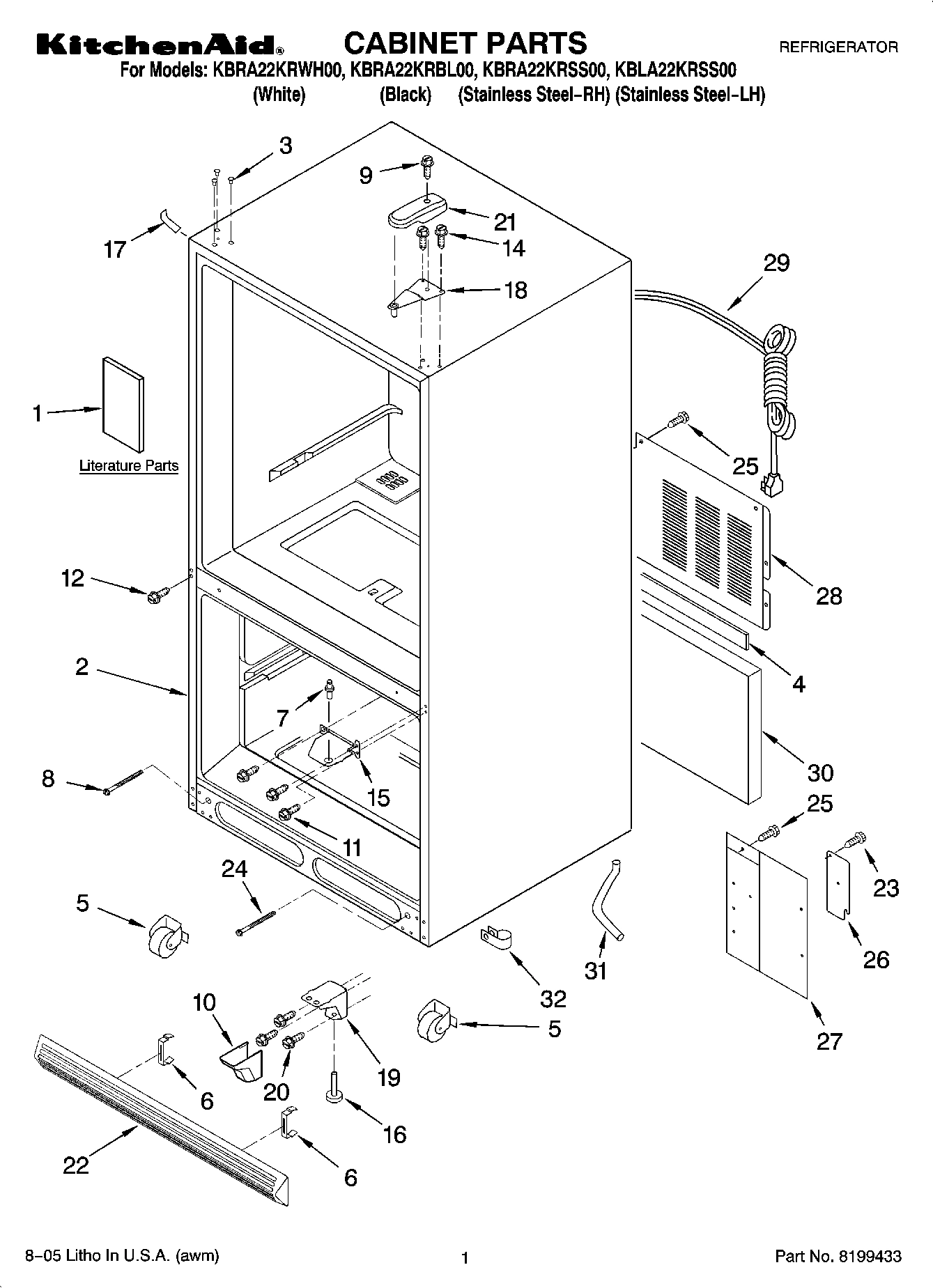

Cabinet (Not A Servicable Part) WPL ARI79545A8 Contact Us For Availability

3

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $28.16

3

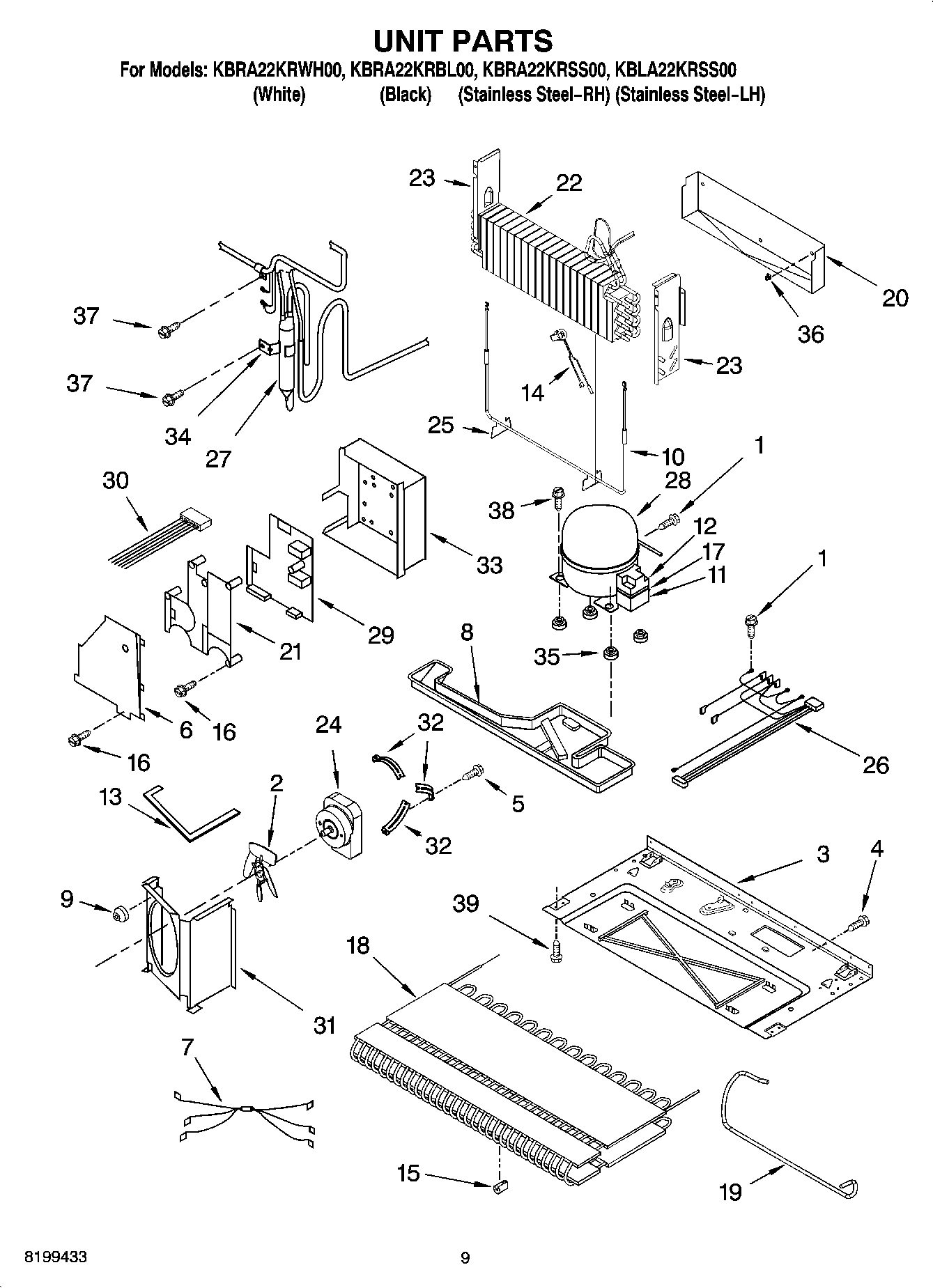

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $53.64

3

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

3

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

3

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

4

W10443315 Whirlpool Door Gasket In Stock WPL W10443315 $107.66

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $46.65

4

WPW10436250 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10436250 $127.04

4

GASKET WPL 8170924 Contact Us For Availability

4

Cover, Light WPL 8208205 Contact Us For Availability

4

Screw WPL 8170578 Contact Us For Availability

5

W11715937 Whirlpool Shaft Backorder WPL W11715937 $37.90

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.51

5

WPW10371195 Whirlpool Refrigerator Cantilever Backorder WPL WPW10371195 $45.71

5

Roller Assembly WPL 8170886 Contact Us For Availability

5

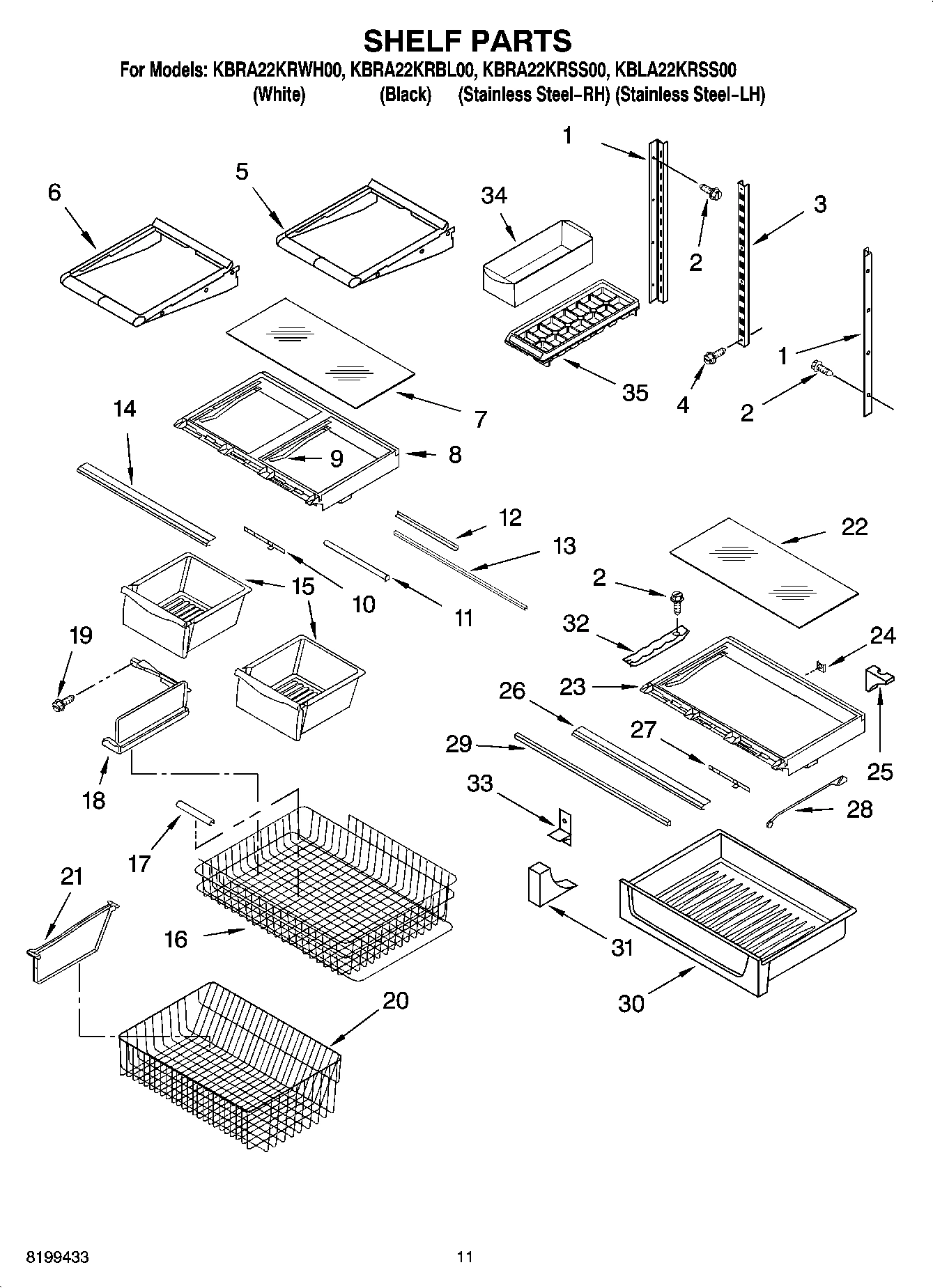

Shelf, Fixed (2) WPL 8208351 Contact Us For Availability

6

67005421 Whirlpool Hoist Cover Backorder WPL 67005421 $28.80

6

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

6

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $3.70

6

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $3.70

6

Clip, Grille WPL 8170869 Contact Us For Availability

6

Shelf, Glide (2) WPL 8208352 Contact Us For Availability

7

12002311 Whirlpool Refrigerator Center Hinge Backorder WPL 12002311 $3.70

7

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

7

Harness, Evap Heater WPL 8208316 Contact Us For Availability

7

Dish, Butter WPL 4344296 Contact Us For Availability

8

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

8

WPW10436248 Whirlpool Door Gasket In Stock WPL WPW10436248 $137.86

8

Drain Pan WPL 8170911 Contact Us For Availability

8

Bolt, Adjusting (Rear) WPL 8208236 Contact Us For Availability

8

Gasket, Door Magnetic (White) WPL 8171197 Contact Us For Availability

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

9

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

9

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $39.36

9

Grommet (3) WPL 8171209 Contact Us For Availability

9

Handle, Door (Stainless Steel) WPL 8171176 Contact Us For Availability

9

Handle, Door (Black) WPL 8171182 Contact Us For Availability

9

Handle, Door (White) WPL 8171184 Contact Us For Availability

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

WP67001794 Whirlpool Refrigerator Defrost Hea Backorder WPL WP67001794 $73.96

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

Hinge Cover, Bottom (Black) WPL 8171002 Contact Us For Availability

Hinge Cover, Bottom (White) WPL 8171004 Contact Us For Availability

Housing, Frz. Light WPL 8170838 Contact Us For Availability

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $3.70

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $27.82

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $2.51

Cover, Evaporator WPL 8208235 Contact Us For Availability

Seal, Front Crisper (2) WPL 8208355 Contact Us For Availability

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $36.61

Screw WPL 4344167 Contact Us For Availability

Bin, Shelf (1) (Small) WPL 8208310 Contact Us For Availability

Seal, Rear Crisper (2) WPL 8208356 Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.76

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $3.70

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.71

Bracket, Door (Left) WPL 8171232 Contact Us For Availability

Bracket, Door (Right) WPL 8171233 Contact Us For Availability

67003906 Whirlpool Refrigerator Control Modul Backorder WPL 67003906 $64.50

W10231483 Whirlpool Refrigerator Trim Shelf Backorder WPL W10231483 $41.52

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $34.02

Trim, Door Shelf WPL 8170795 Contact Us For Availability

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

WP12607103WD Whirlpool Refrigerator Center Hi Backorder WPL WP12607103WD $57.16

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $47.49

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $3.70

Pan, Crisper (2) WPL 8208359 Contact Us For Availability

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.08

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.15

Screw WPL 8208302 Contact Us For Availability

Washer WPL 8171212 Contact Us For Availability

Basket, Freezer (Upper) WPL 8171130 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $27.71

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $10.25

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WP67001098 Whirlpool Refrigerator Tube Cover Backorder WPL WP67001098 $3.70

Strap WPL 8170724 Contact Us For Availability

Handle, Basket WPL 8208220 Contact Us For Availability

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.18

WP67006132 Whirlpool Refrigerator Condenser Backorder WPL WP67006132 $138.54

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $35.12

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $35.12

Stud, Handle WPL 8171220 Contact Us For Availability

Divider, Upper Basket WPL 8171226 Contact Us For Availability

WP67005626 Whirlpool Refrigerator Can Caddy Backorder WPL WP67005626 $43.32

Tube, Drain WPL 8171240 Contact Us For Availability

Hinge Bottom (Black) WPL 8171066 Contact Us For Availability

Hinge Bottom (White) WPL 8171067 Contact Us For Availability

Slide, Drawer (2) WPL 8208214 Contact Us For Availability

Screw WPL 8171073 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

W11159742 Whirlpool Refrigerator Gasket Backorder WPL W11159742 $10.10

WPW10292802 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10292802 $66.34

Screw WPL 8171202 Contact Us For Availability

Basket, Freezer (Lower) WPL 8171225 Contact Us For Availability

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $27.74

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $10.76

Spacer WPL 8208300 Contact Us For Availability

Bracket, Slide (Left) WPL 8208215 Contact Us For Availability

Bracket, Slide (Right) WPL 8208216 Contact Us For Availability

Divider, Lower Basket WPL 8171227 Contact Us For Availability

12001919 Whirlpool Refrigerator Evaporator Re Backorder WPL 12001919 $194.96

WP67006878 Whirlpool Refrigerator Crisper Gla In Stock WPL WP67006878 $115.43

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $28.97

Grille Assembly (Includes Clips) (White) WPL 8170996 Contact Us For Availability

Grille Assembly (Includes Clips) (Black) WPL 8171224 Contact Us For Availability

Plug, Button (Black) WPL 4343926 Contact Us For Availability

Plug, Button (White) WPL 8170953 Contact Us For Availability

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

WPW10568041 Whirlpool Refrigerator Crisper Sh In Stock WPL WPW10568041 $71.73

Dam (Left Side) WPL 8171154 Contact Us For Availability

Dam (Right Side) WPL 8171155 Contact Us For Availability

Shroud, Evap.Fan WPL 8171153 Contact Us For Availability

Nameplate (Black) WPL 8170732 Contact Us For Availability

Nameplate (White) WPL 8170734 Contact Us For Availability

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.85

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.00

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

Gasket, Pantry WPL 8208361 Contact Us For Availability

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

25

WP12531601 Whirlpool Refrigerator Tunnel Backorder WPL WP12531601 $4.15

25

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.70

W10656985 Whirlpool Refrigerator Trim Backorder WPL W10656985 $47.18

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $43.65

Harness, Unit WPL 8208293 Contact Us For Availability

Plate, Cover WPL 8170921 Contact Us For Availability

67002002 Whirlpool Refrigerator Pantry Slide Backorder WPL 67002002 $9.81

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $27.69

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Cover, Water Valve WPL 8170920 Contact Us For Availability

W10309989 Whirlpool Refrigerator Compressor In Stock WPL W10309989 $344.71

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

Cover, Unit WPL 8170910 Contact Us For Availability

Rod, Temperature Control WPL 8208364 Contact Us For Availability

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $42.33

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $17.57

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

Control Board WPL 8208374 Contact Us For Availability

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $22.72

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

Harness, Wiring WPL 8208301 Contact Us For Availability

Drawer, Pantry WPL 8208365 Contact Us For Availability

WP67001721 Whirlpool Refrigerator Support In Stock WPL WP67001721 $3.70

WP67001722 Whirlpool Refrigerator Support Backorder WPL WP67001722 $3.70

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

SHROUD WPL 8170906 Contact Us For Availability

Tube, Drain WPL 8170861 Contact Us For Availability

32

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.41

32

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $29.43

WP67001716 Whirlpool Refrigerator Shelf Suppo In Stock WPL WP67001716 $4.32

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

Box, Control WPL 8208299 Contact Us For Availability

Harness, Lights (Freezer) WPL 8208350 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI79547A8 Contact Us For Availability

34

Clip, Drier WPL 8170901 Contact Us For Availability

34

Bin, Utility WPL 8208348 Contact Us For Availability

35

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

35

Grommet (4) WPL 4343845 Contact Us For Availability

36

Clip, Evaporator WPL 4344219 Contact Us For Availability

37

W10709801 Whirlpool Refrigerator Screw Backorder WPL W10709801 $9.13

38

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.13

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Screw WPL 4344292 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI79550A2 Contact Us For Availability

REFRIGERANT CHARGE 5.00 Ozs. (R-134A) WPL ARI79551A9 Contact Us For Availability
