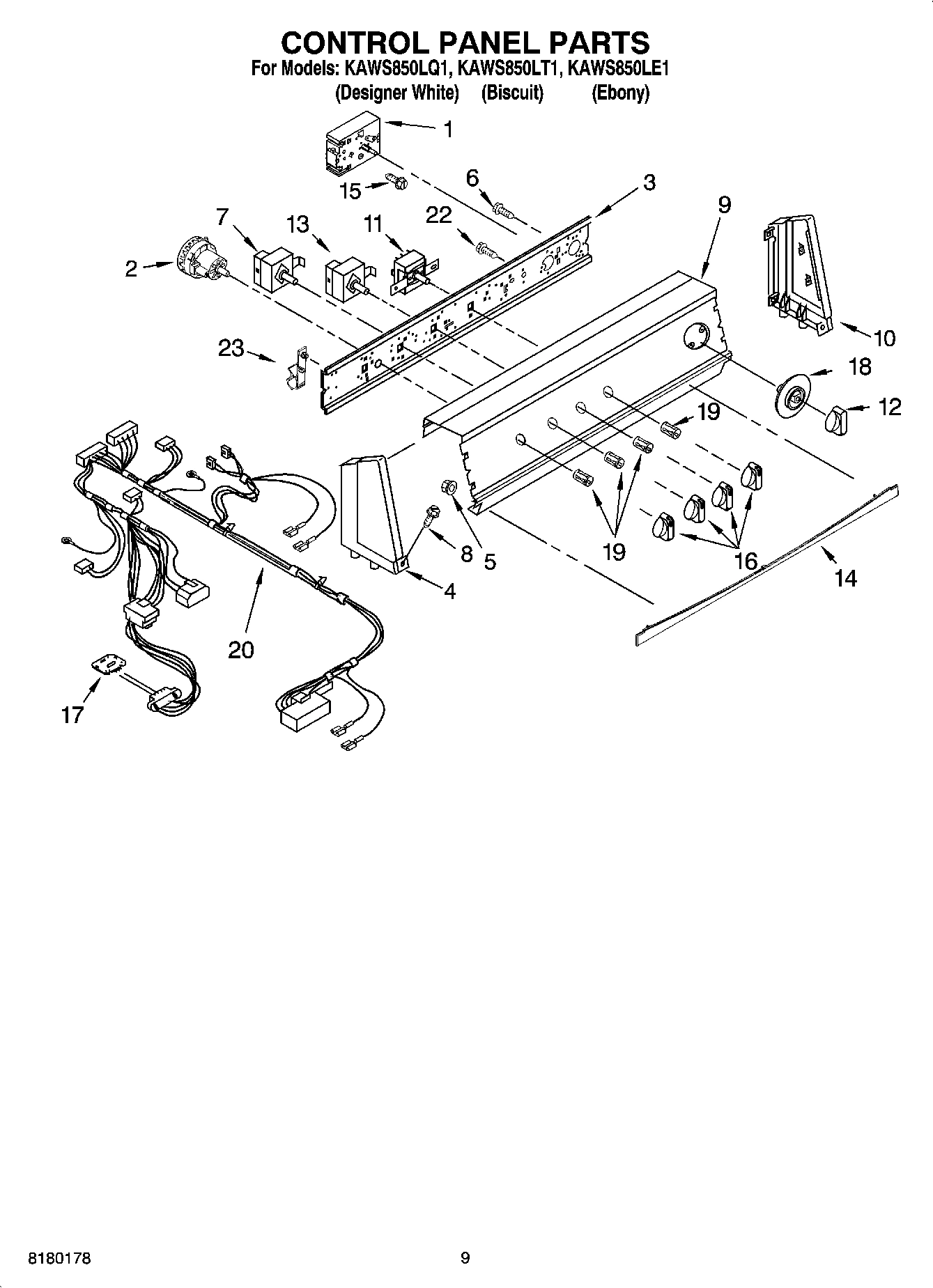

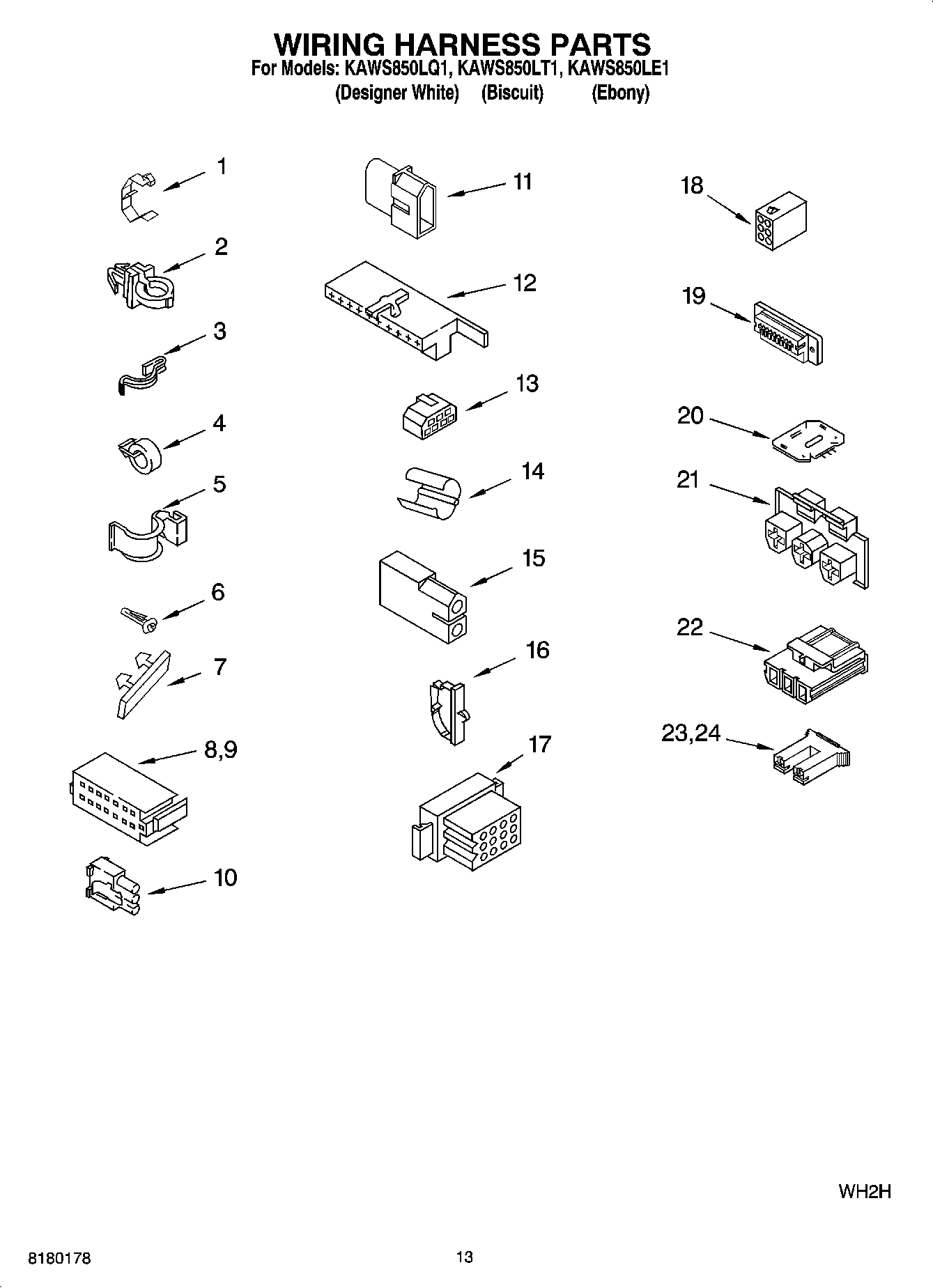

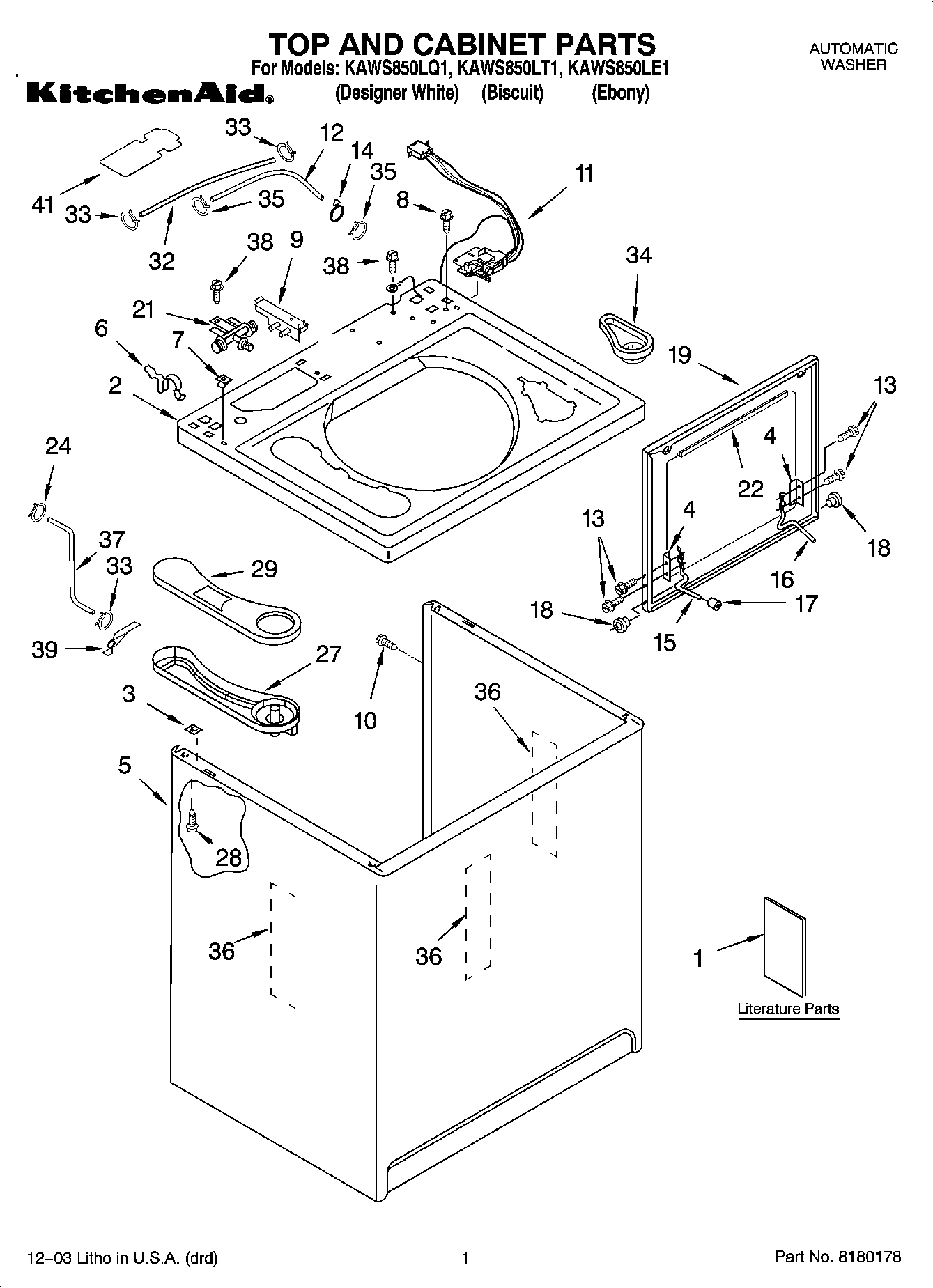

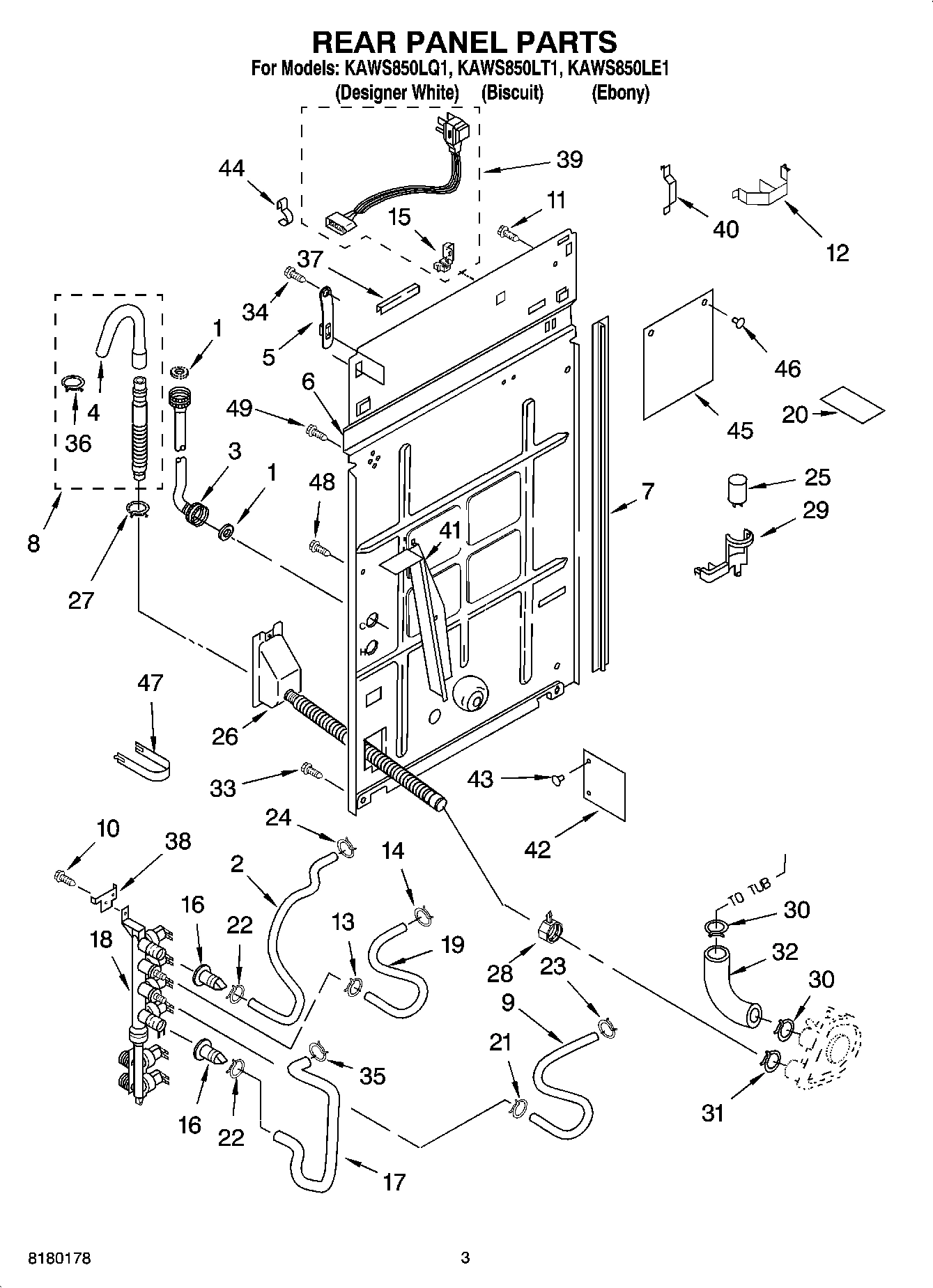

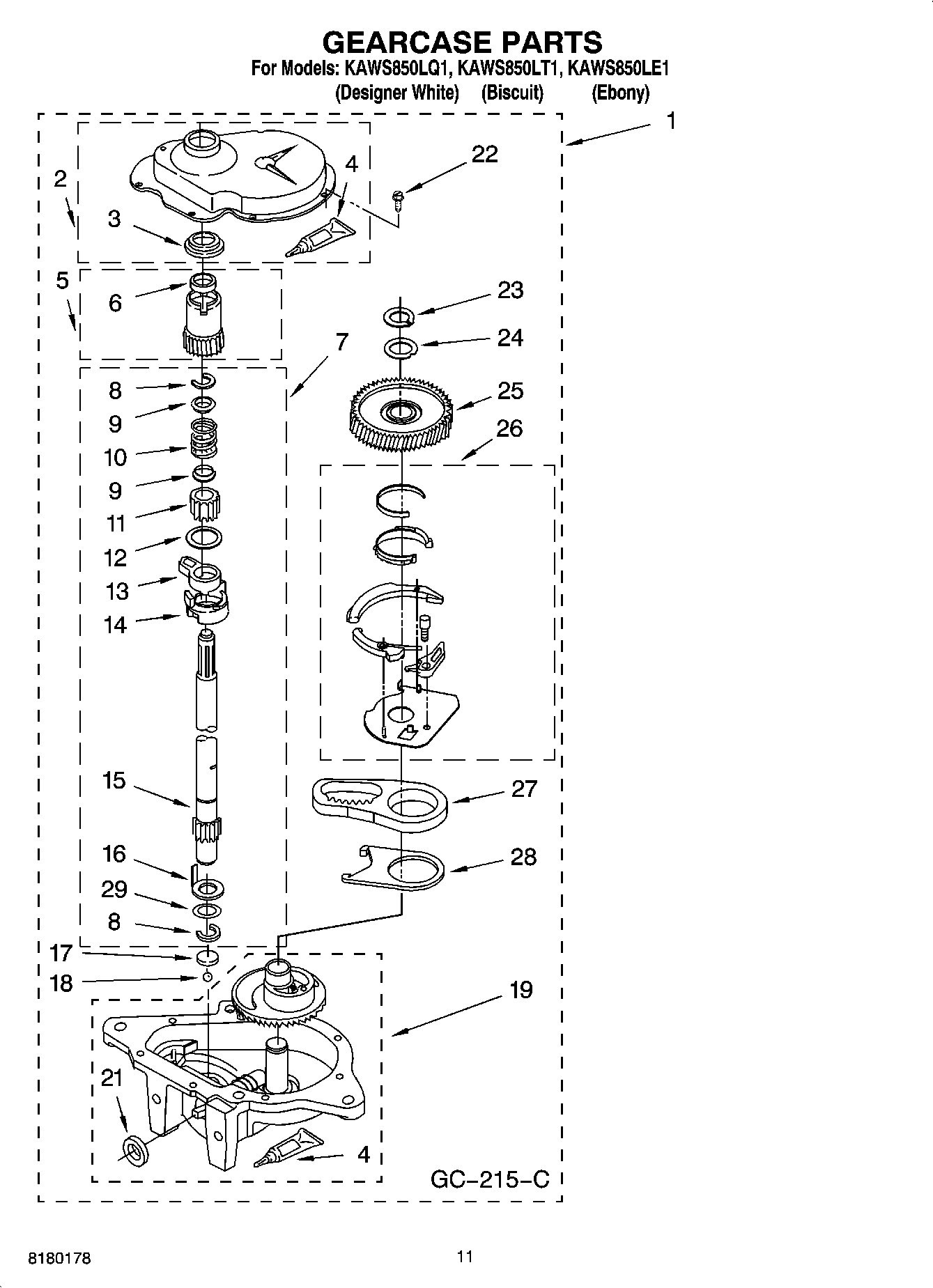

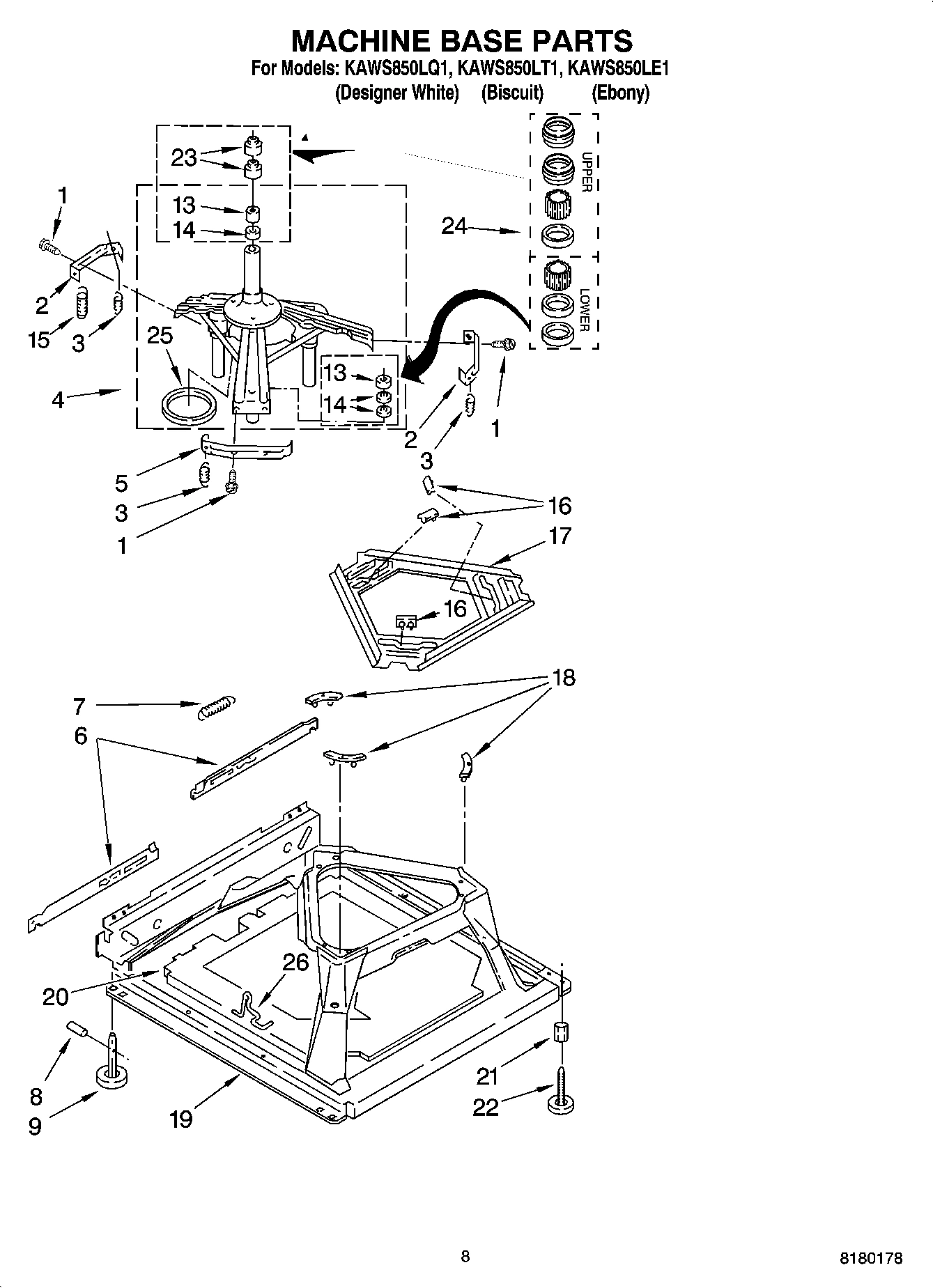

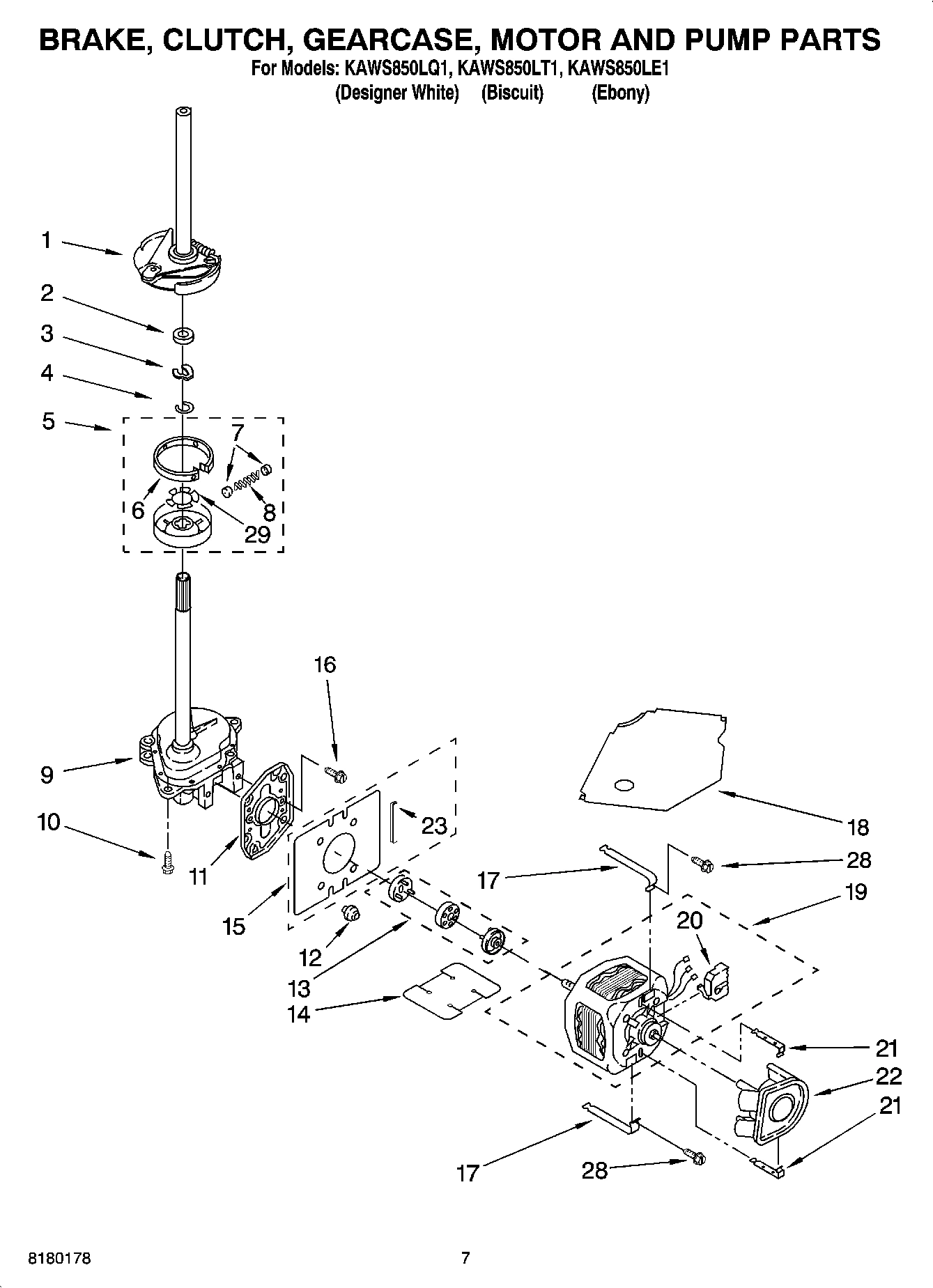

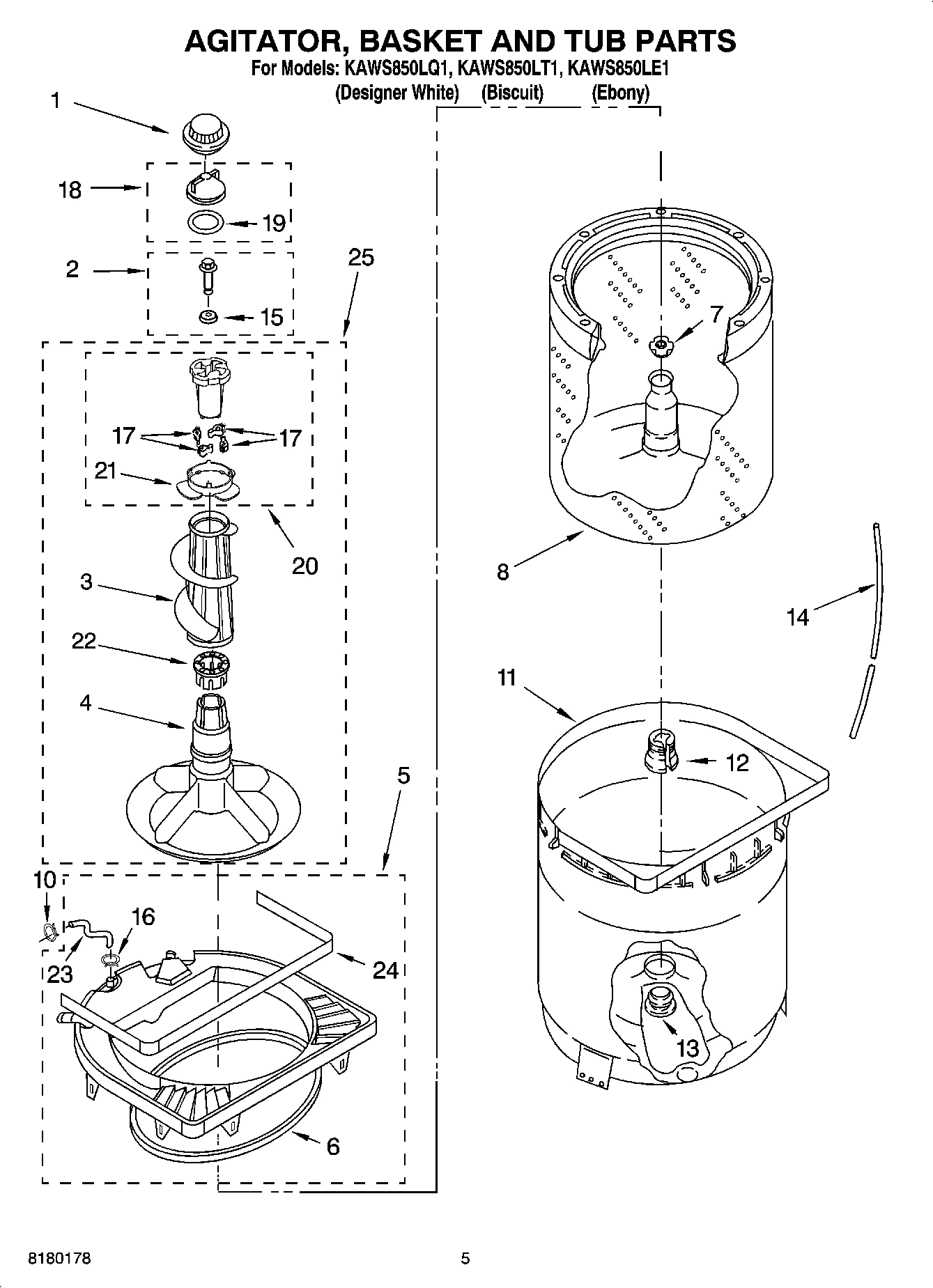

Model Whirlpool KAWS850LE1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

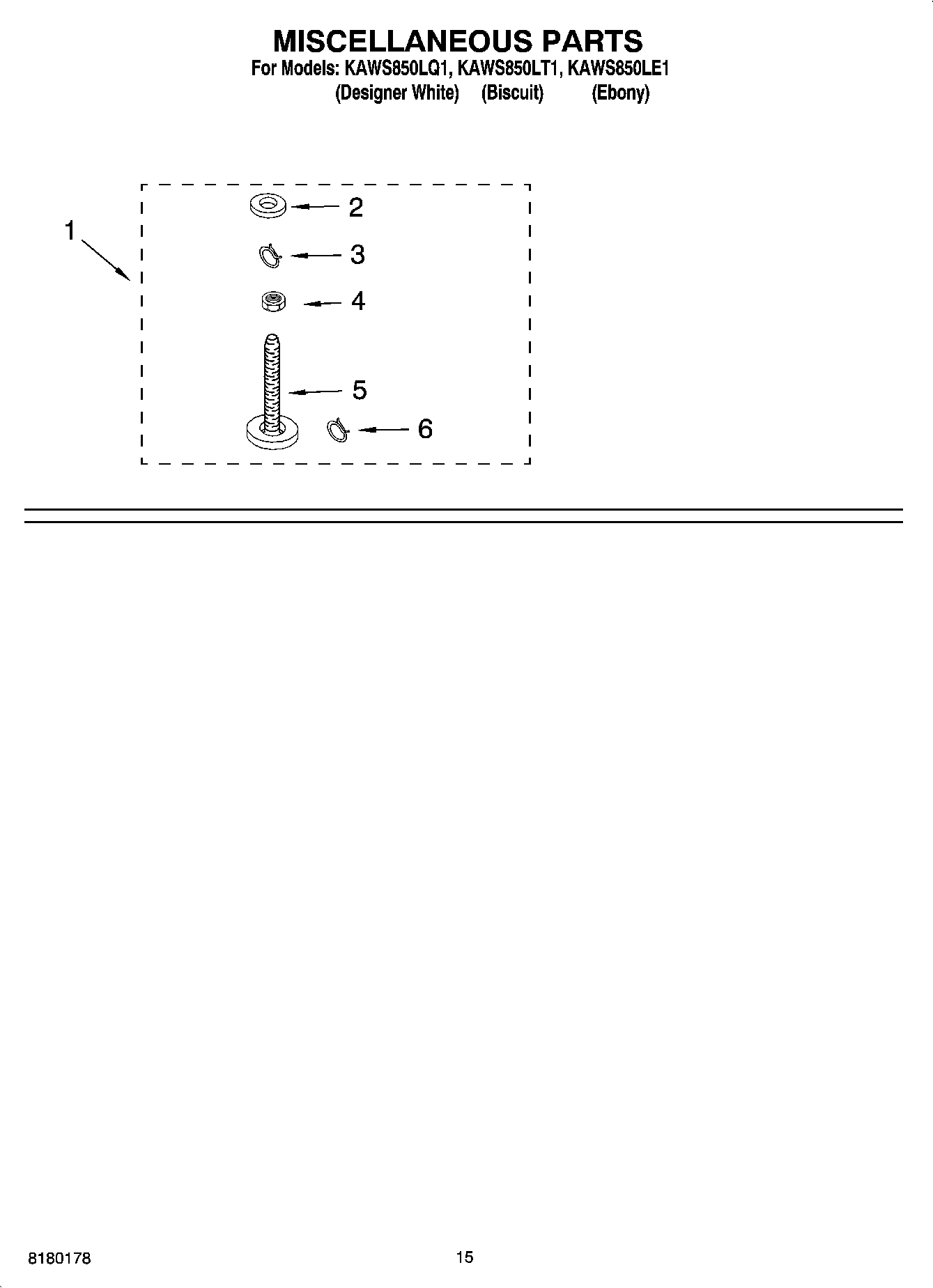

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $3.70

1

Timer, Control (60 Hz) (Motor Not Serviced) WPL 3955761 Contact Us For Availability

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

W10339326 Whirlpool Washer Water Level Switch In Stock WPL W10339326 $40.32

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

Hose, Bleach WPL 8271984 Contact Us For Availability

2

Bracket, Spring Outer (2) WPL 8282552 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $41.82

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $4.98

3

Clothes Mover WPL 3950581 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

4

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

4

Agitator WPL 3950580 Contact Us For Availability

4

Cap, End (L.H.) (Black) WPL 3954772 Contact Us For Availability

4

Cap, End (L.H.) (White) WPL 8274353 Contact Us For Availability

4

Cap, End (L.H.) (Biscuit) WPL 8274355 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $18.42

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 8282550 Contact Us For Availability

5

Tub Ring WPL 8271852 Contact Us For Availability

5

Nut (2) WPL 8533828 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

6

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

6

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

6

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Gasket, Tub Ring WPL 8054355 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

7

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Switch, Water Temperature WPL 3950354 Contact Us For Availability

8

W10389328 Whirlpool Basket Backorder WPL W10389328 $190.38

8

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $10.82

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

Hose, Detergent WPL 8271982 Contact Us For Availability

9

Panel, Console (Includes Illus. 5 & 14) (Whit WPL 3956122 Contact Us For Availability

9

Panel, Console (Includes Illus. 5 & 14) (Bisc WPL 3956123 Contact Us For Availability

9

Panel, Console (Includes Illus. 5 & 14) (Blac WPL 3956142 Contact Us For Availability

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

Cap End (R.H.) (Black) WPL 3954771 Contact Us For Availability

Cap End (R.H.) (White) WPL 8274349 Contact Us For Availability

Cap End (R.H.) (Biscuit) WPL 8274351 Contact Us For Availability

Spring, Agitate WPL 62676 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $93.36

Switch, Rotary WPL 3952578 Contact Us For Availability

Tub WPL 8055061 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Knob, Timer (White) WPL 3956179 Contact Us For Availability

Knob, Timer (Biscuit) WPL 3956180 Contact Us For Availability

Knob, Timer (Black) WPL 3956181 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WPW10168257 Whirlpool Cycle Switch Backorder WPL WPW10168257 $54.41

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Spacer, Console (White) WPL 8536941 Contact Us For Availability

Spacer, Console (Biscuit) WPL 8536942 Contact Us For Availability

Spacer, Console (Black) WPL 8536943 Contact Us For Availability

285901 Whirlpool Spring Kit Assembly In Stock WPL 285901 $27.29

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $2.51

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

Hinge, Lid (L.H.) WPL 8055257 Contact Us For Availability

Shield, Splash (Motor) WPL 8282581 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

Check Valve, Duck Bill WPL 8055306 Contact Us For Availability

Knob, Control (Includes Item 19) (White) WPL 3956182 Contact Us For Availability

Knob, Control (Includes Item 19) (Biscuit) WPL 3956183 Contact Us For Availability

Knob, Control (Includes Item 19) (Black) WPL 3956184 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.10

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Control-ATC/DTC WPL 8541388 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.47

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

Shield, Tub To Motor WPL 8054680 Contact Us For Availability

Dial, Timer (White) WPL 3956230 Contact Us For Availability

Dial, Timer (Biscuit) WPL 3956231 Contact Us For Availability

Dial, Timer (Black) WPL 3956232 Contact Us For Availability

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.70

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.70

Hose, Fabric Softener WPL 8271983 Contact Us For Availability

Motor, Main Drive WPL 8529936 Contact Us For Availability

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3946512 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $8.76

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

Sound Absorber WPL 8544816 Contact Us For Availability

Harness, Wire (For Detail See Pages 13 & 14) WPL 3956131 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.43

3400073 Whirlpool Screw Backorder WPL 3400073 $5.65

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

Seal, Lid (Grey) WPL 8054939 Contact Us For Availability

Seal, Lid (Black) WPL 8283532 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

Hose, Bleach Outlet WPL 8526793 Contact Us For Availability

Edge Protector WPL 303294 Contact Us For Availability

Retainer, Harness WPL 8317975 Contact Us For Availability

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

24

Shield, Splash WPL 8054357 Contact Us For Availability

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Agitator (Complete) WPL 3950579 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

27

WP8055237 Whirlpool Dispenser Backorder WPL WP8055237 $26.72

28

Clamp, Hose WPL 3976395 No Longer Available

28

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

29

Cover, Dispenser WPL 8272009 Contact Us For Availability

29

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

32

Hose, Pump To Tub WPL 8055063 Contact Us For Availability

32

Hose, Fabric Softener WPL 8055266 Contact Us For Availability

34

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

36

Sound-Damper (Cabinet) WPL 3976348 Contact Us For Availability

37

WP8283537 Whirlpool Hose Assembly Backorder WPL WP8283537 $12.15

38

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

38

Bracket, Valve WPL 8271909 Contact Us For Availability

39

Cord, Power WPL 661661 Contact Us For Availability

40

Clip, Harness WPL 8054658 Contact Us For Availability

41

Shield, Upper Valve (Incl. 42 & 43) WPL 8280536 Contact Us For Availability

42

Shield, Splash Valve WPL 8272150 Contact Us For Availability

43

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

44

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

45

Drape, Rear Panel WPL 8282565 Contact Us For Availability

46

Clip, Drape WPL 8282566 Contact Us For Availability

47

Restraint, Hose WPL 8272128 Contact Us For Availability

48

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92
