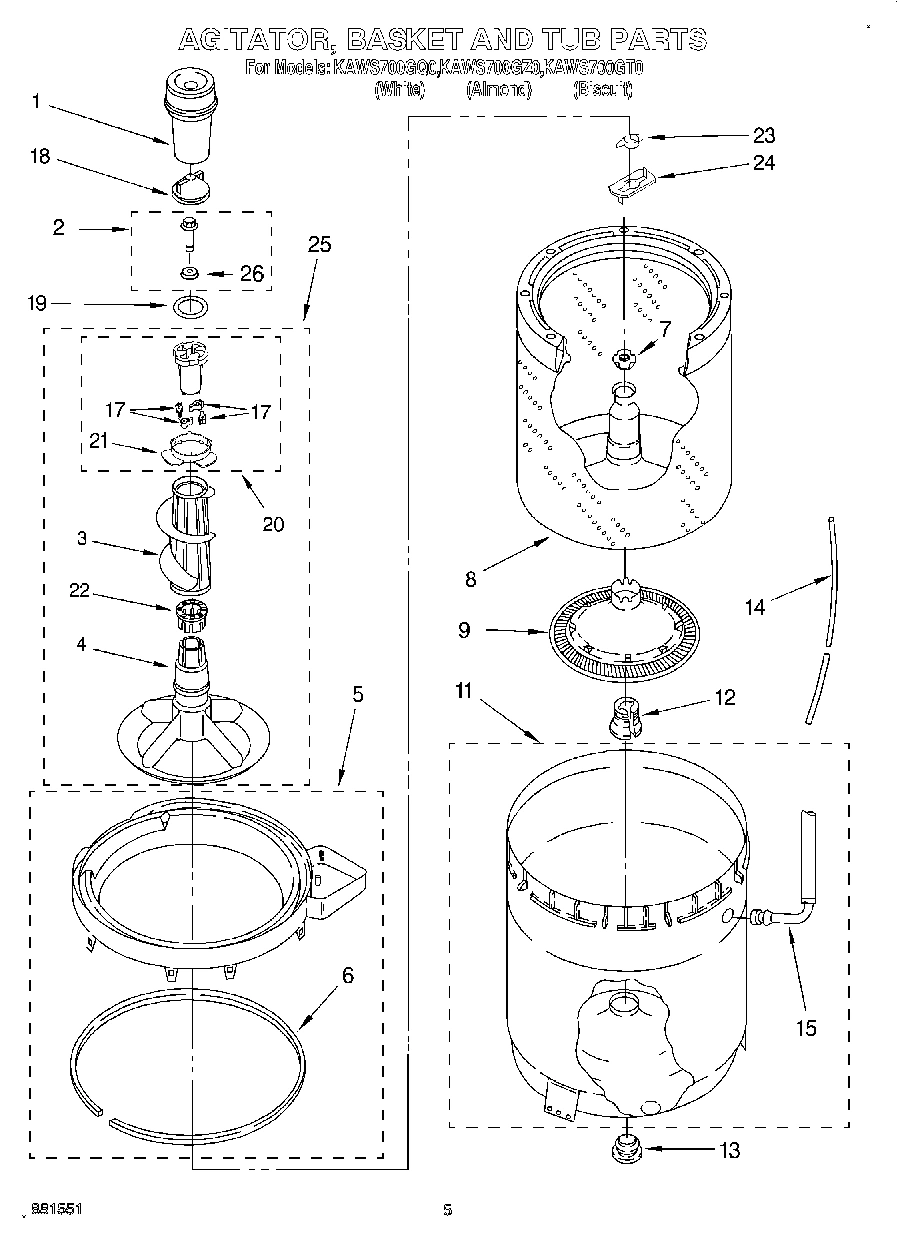

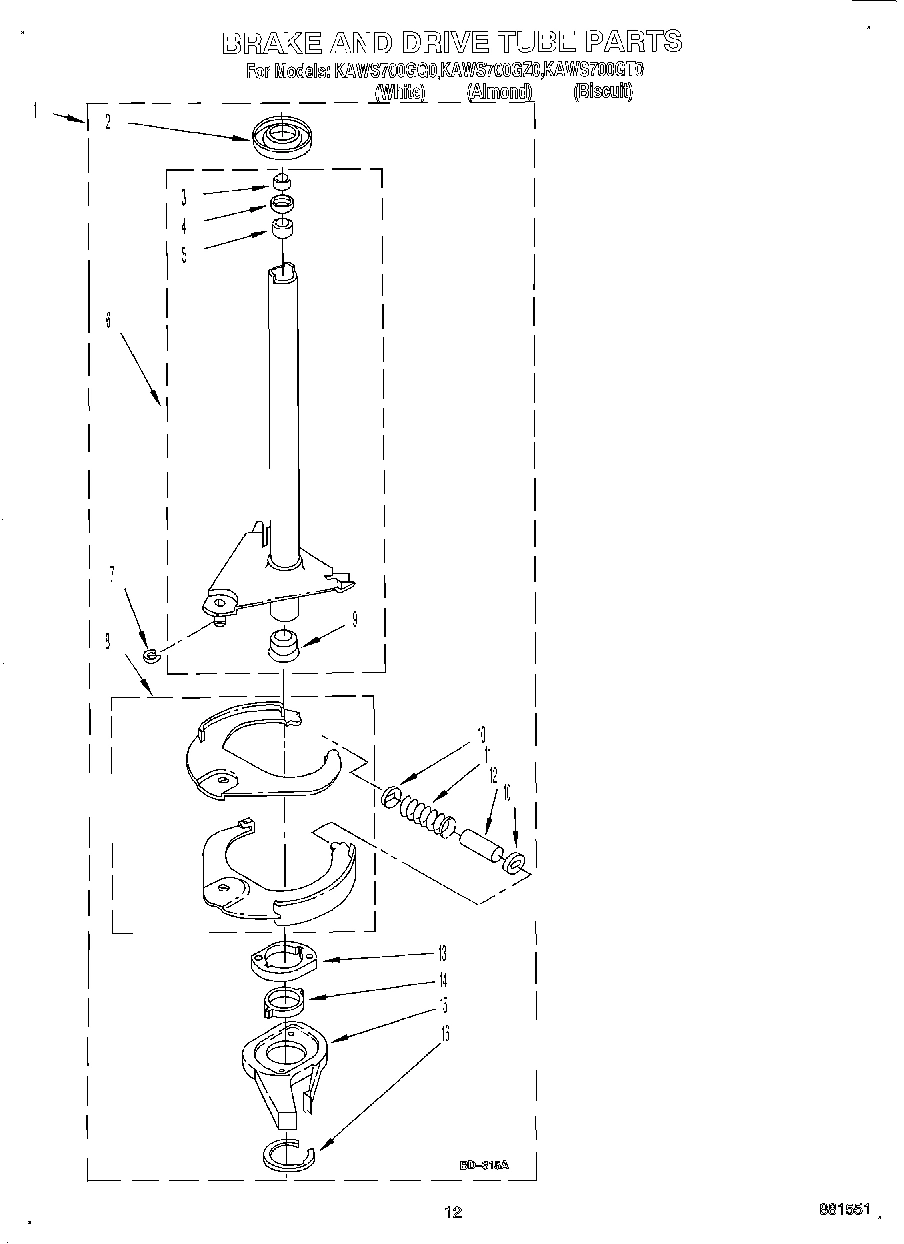

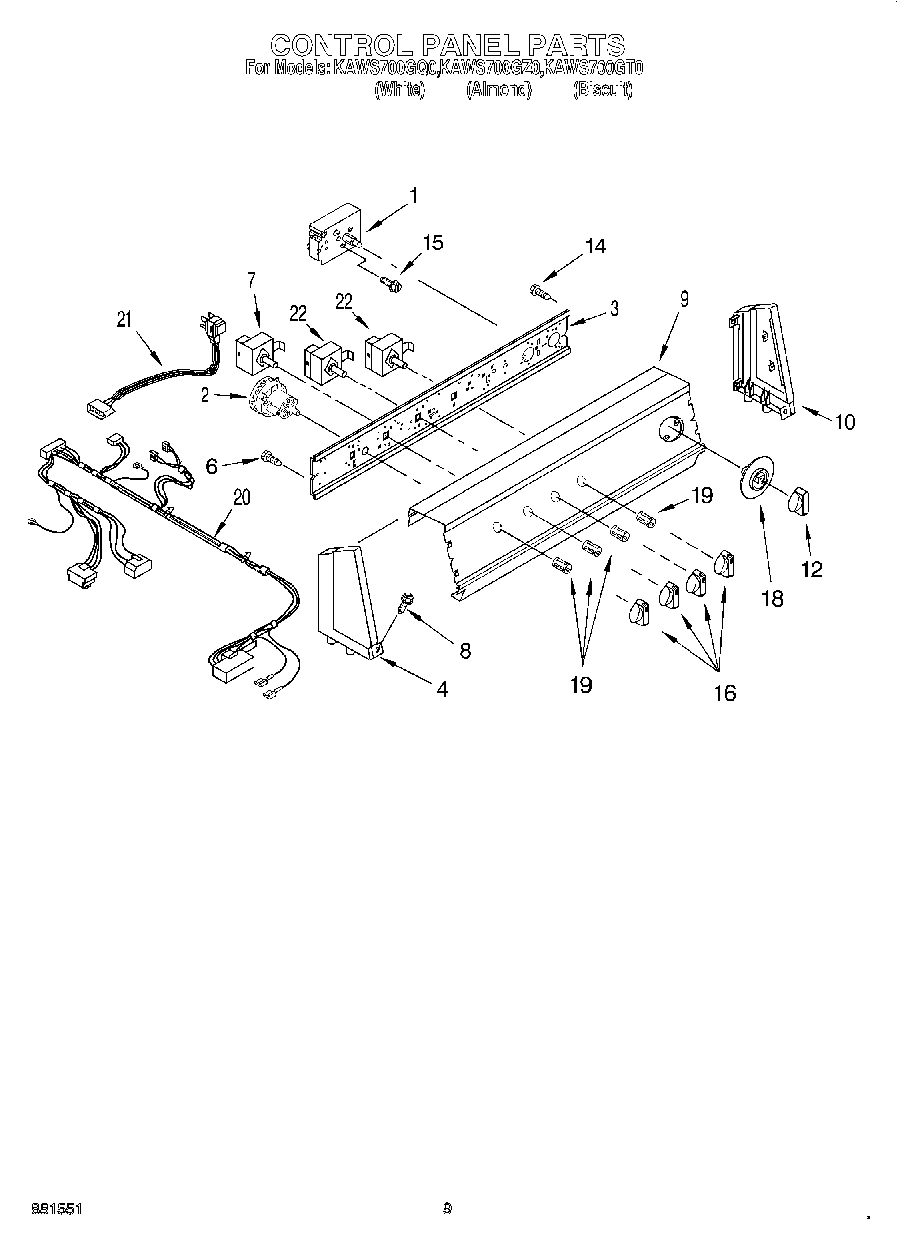

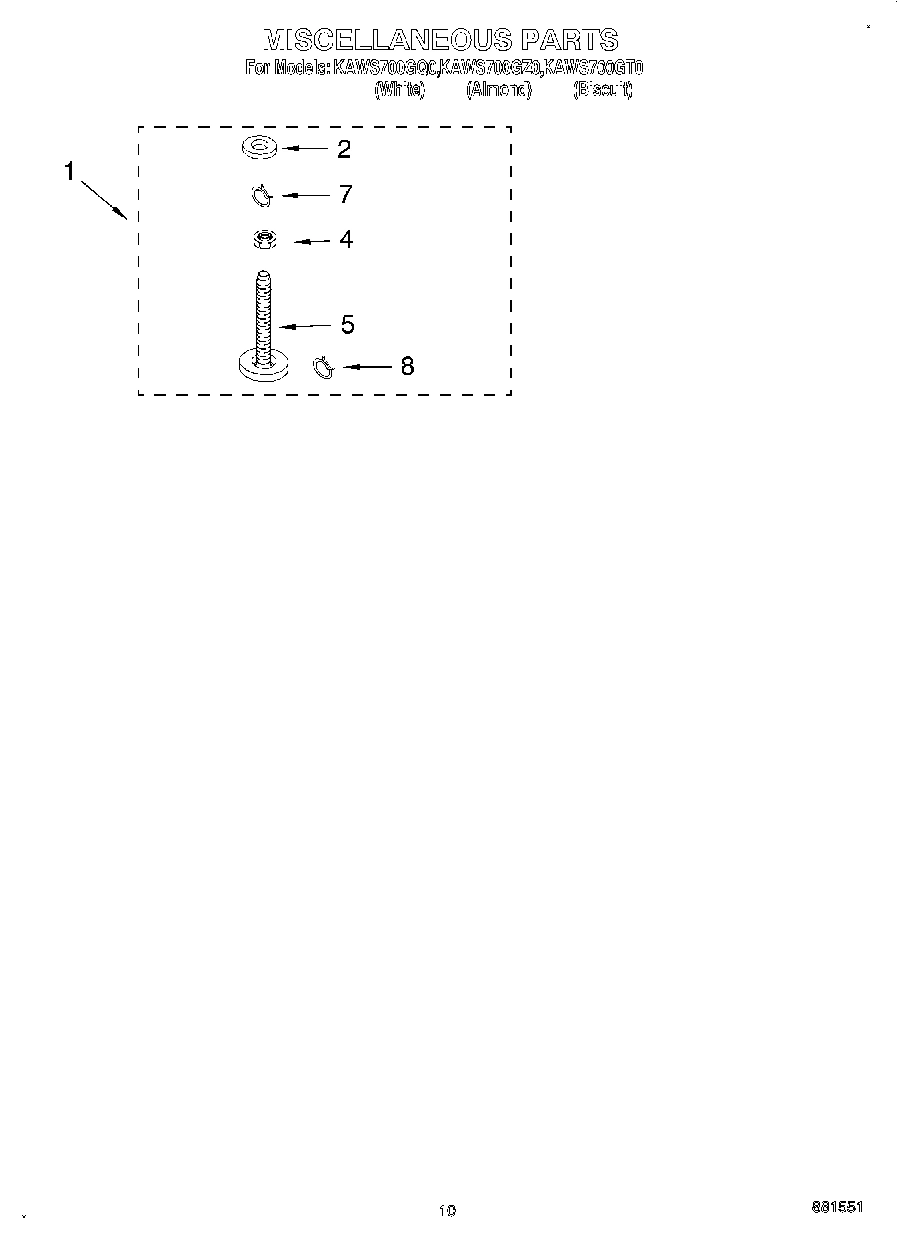

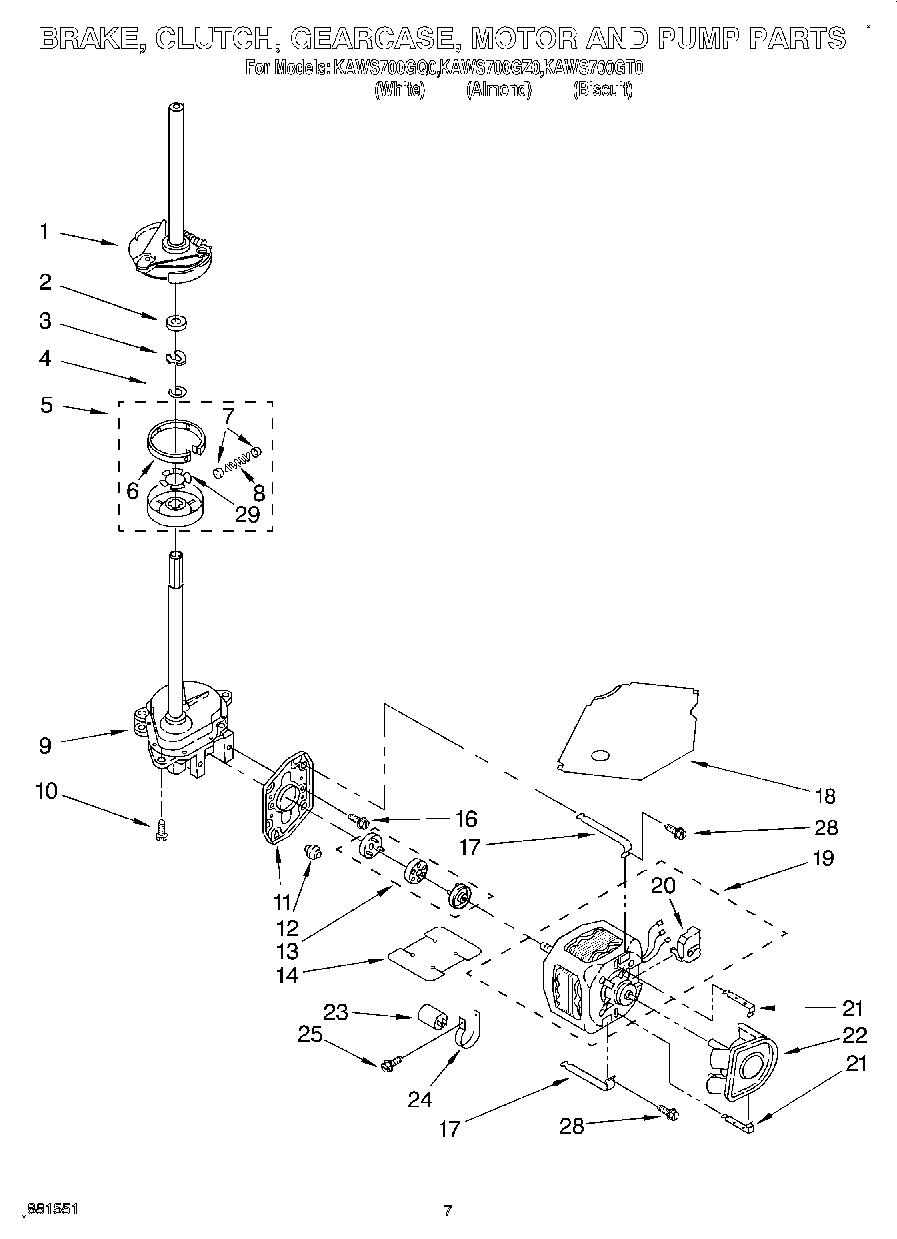

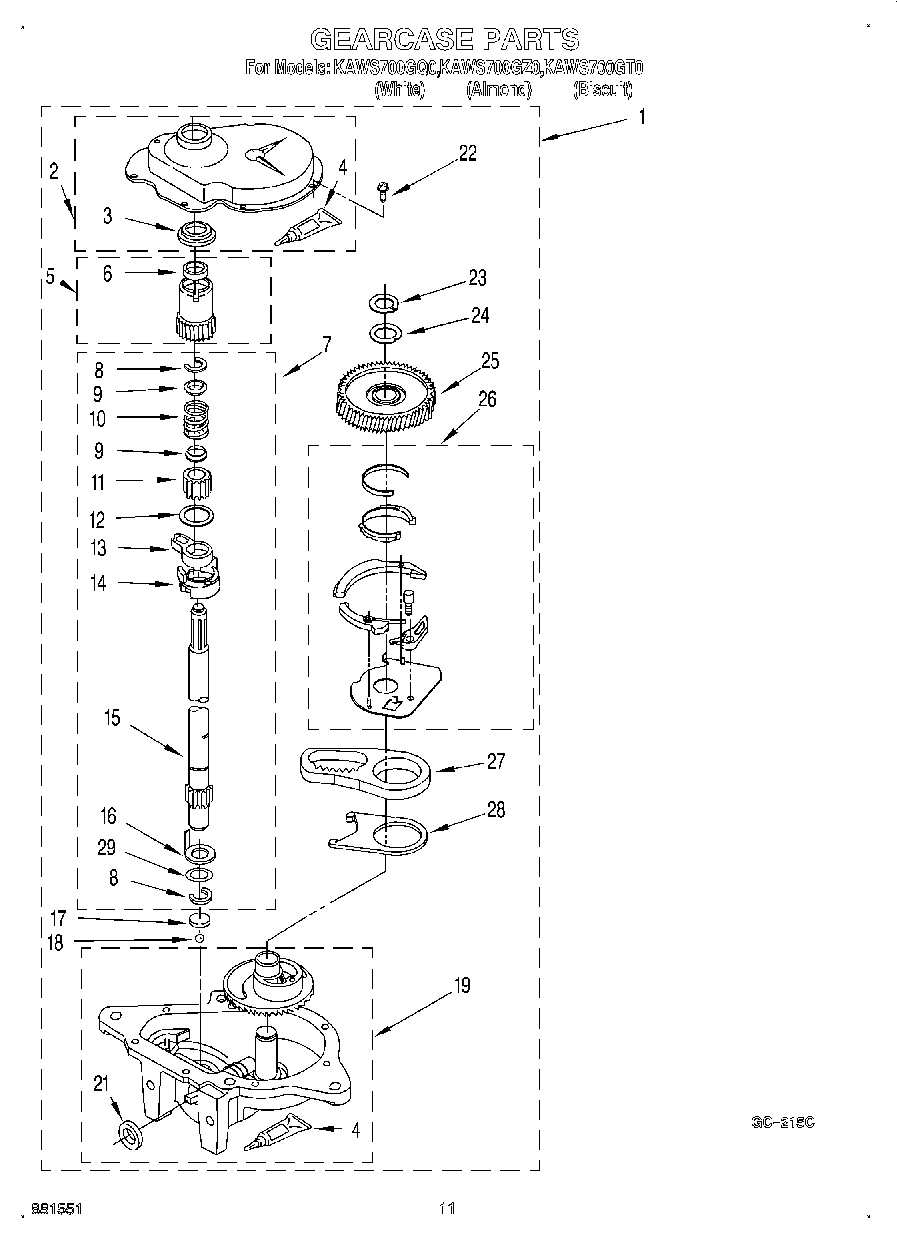

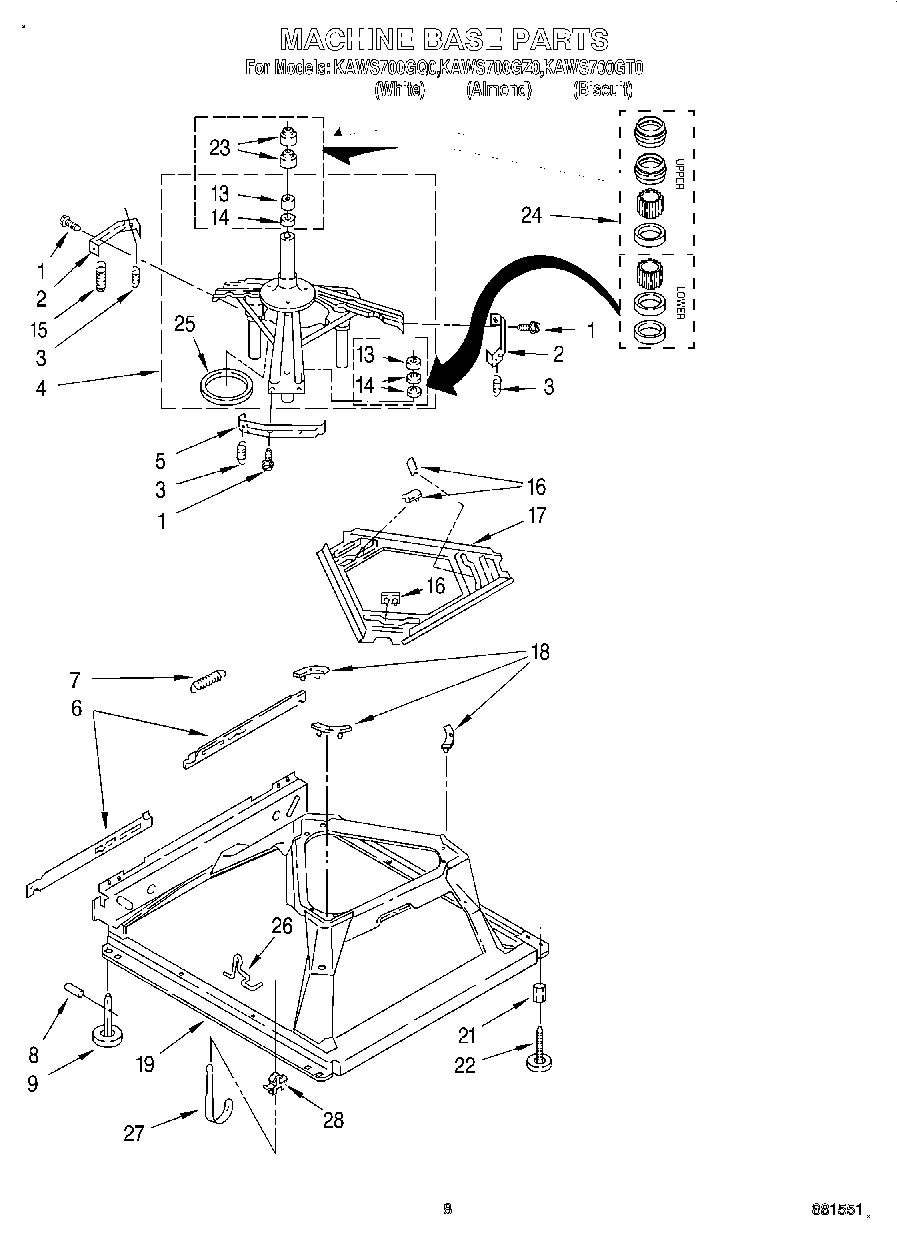

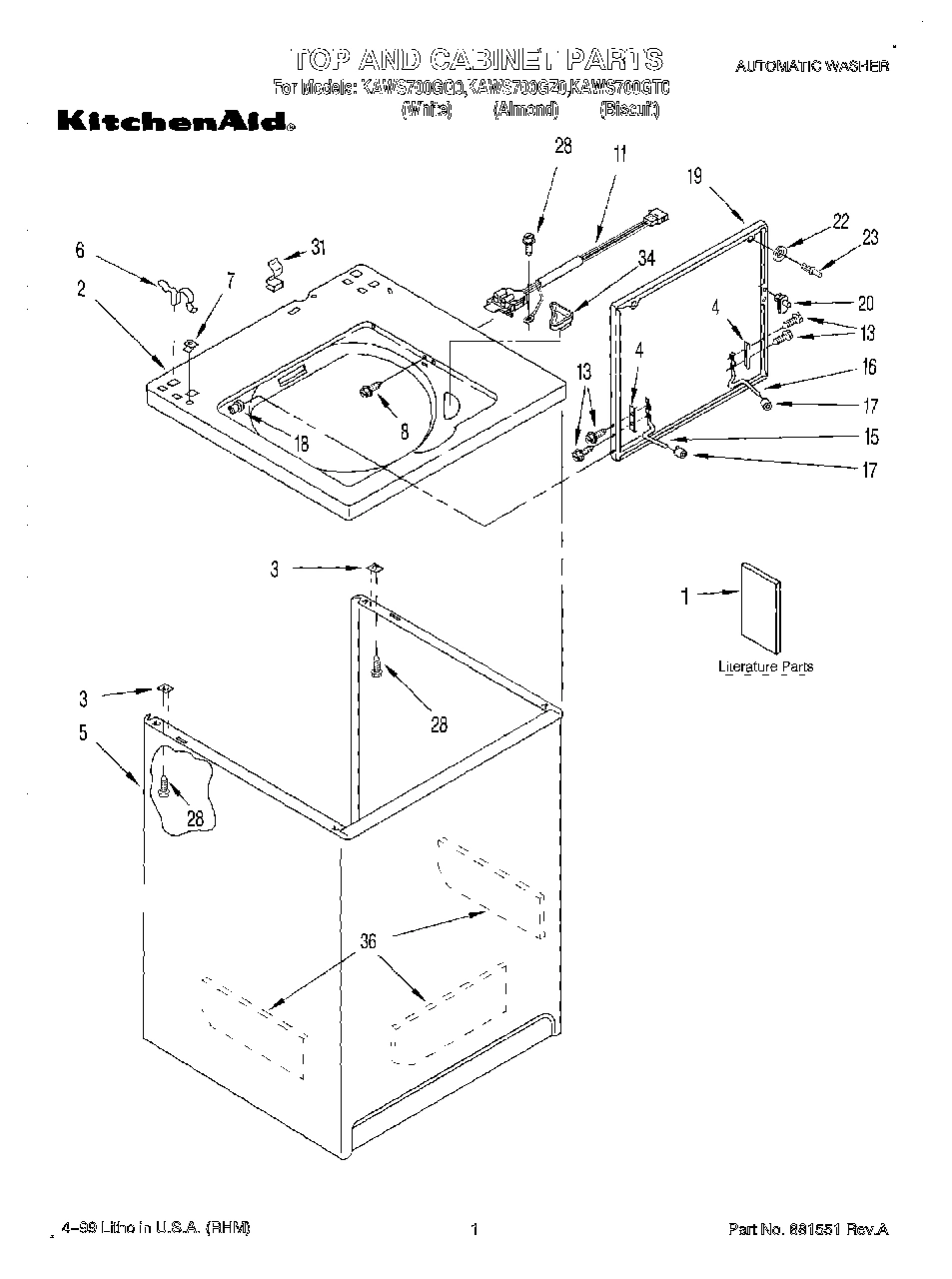

Model Whirlpool KAWS700GT0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

Timer, Control 60Hz. (Motor Not Serviced) WPL 3950736 Contact Us For Availability

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 3976259 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

W10337780 Whirlpool Pressure Switch In Stock WPL W10337780 $43.32

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $41.82

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $4.98

3

Clothes Mover WPL 3950581 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

4

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

4

Cap, End (L.H.) (White) WPL 3360570 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 3360572 Contact Us For Availability

4

Cap, End (L.H.) (Biscuit) WPL 3360574 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $18.42

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $152.90

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

7

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Switch, Water Temperature WPL 661614 Contact Us For Availability

8

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

8

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

8

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

8

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

8

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

8

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

8

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

8

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

8

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $2.51

8

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85

8

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

8

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

8

New Gold WPL 261890 Contact Us For Availability

8

New Gold (Uncut) WPL 261891 Contact Us For Availability

8

Shipping Kit WPL 3348675 Contact Us For Availability

8

Drain Protector WPL 367031 Contact Us For Availability

8

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

8

Stand-Pipe Kit WPL 89121 Contact Us For Availability

8

Almond (Uncut) WPL 978883 Contact Us For Availability

8

Spring, Clutch (Not Serviced) WPL ARI153143A Contact Us For Availability

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

Console, Panel (White) WPL 3952525 Contact Us For Availability

9

Console, Panel (Almond) WPL 3952526 Contact Us For Availability

9

Console, Panel (Biscuit) WPL 3952535 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

Cap End (R.H.) (White) WPL 3360567 Contact Us For Availability

Cap End (R.H.) (Almond) WPL 3360569 Contact Us For Availability

Cap, End (R.H.) (Biscuit) WPL 3360573 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

11

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Knob, Timer (White Model) WPL 3361052 Contact Us For Availability

Knob, Timer (Almond Model) WPL 3361053 Contact Us For Availability

Knob, Timer (Biscuit) WPL 3952694 Contact Us For Availability

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

13

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

13

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

14

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Hose, Bleach WPL 3948705 Contact Us For Availability

Strain Relief, Power Cord WPL 3949468 Contact Us For Availability

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Knob, Control (White) WPL 3949700 Contact Us For Availability

Knob, Control (Almond Model) WPL 3949701 Contact Us For Availability

Knob, Control (Biscuit) WPL 3949704 Contact Us For Availability

17

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

17

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

17

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

Dial, Timer (White Model) WPL 3361174 Contact Us For Availability

Dial, Timer (Almond Model) WPL 3361175 Contact Us For Availability

Dial, Timer (Biscuit) WPL 3952695 Contact Us For Availability

19

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

19

Motor, Main Drive WPL 3350418 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Harness, Wire (For Detail See Page 13 & 14) WPL 3952665 Contact Us For Availability

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

W10820044 Whirlpool Power Cord Backorder WPL W10820044 $56.25

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

W10851055 Whirlpool Cycle Switch Backorder WPL W10851055 $59.35

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $41.25

23

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

23

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

23

WP8572720 Whirlpool Capacitor In Stock WPL WP8572720 $35.57

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

24

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

Agitator (Complete Asy.) WPL 3950579 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

27

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

28

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

28

Hose, Pump To Drain Connector WPL 3359816 Contact Us For Availability

29

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

34

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

34

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

35

Sheild, Suds WPL 3348424 Contact Us For Availability

36

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70
