Model Whirlpool KAWE950VWH0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

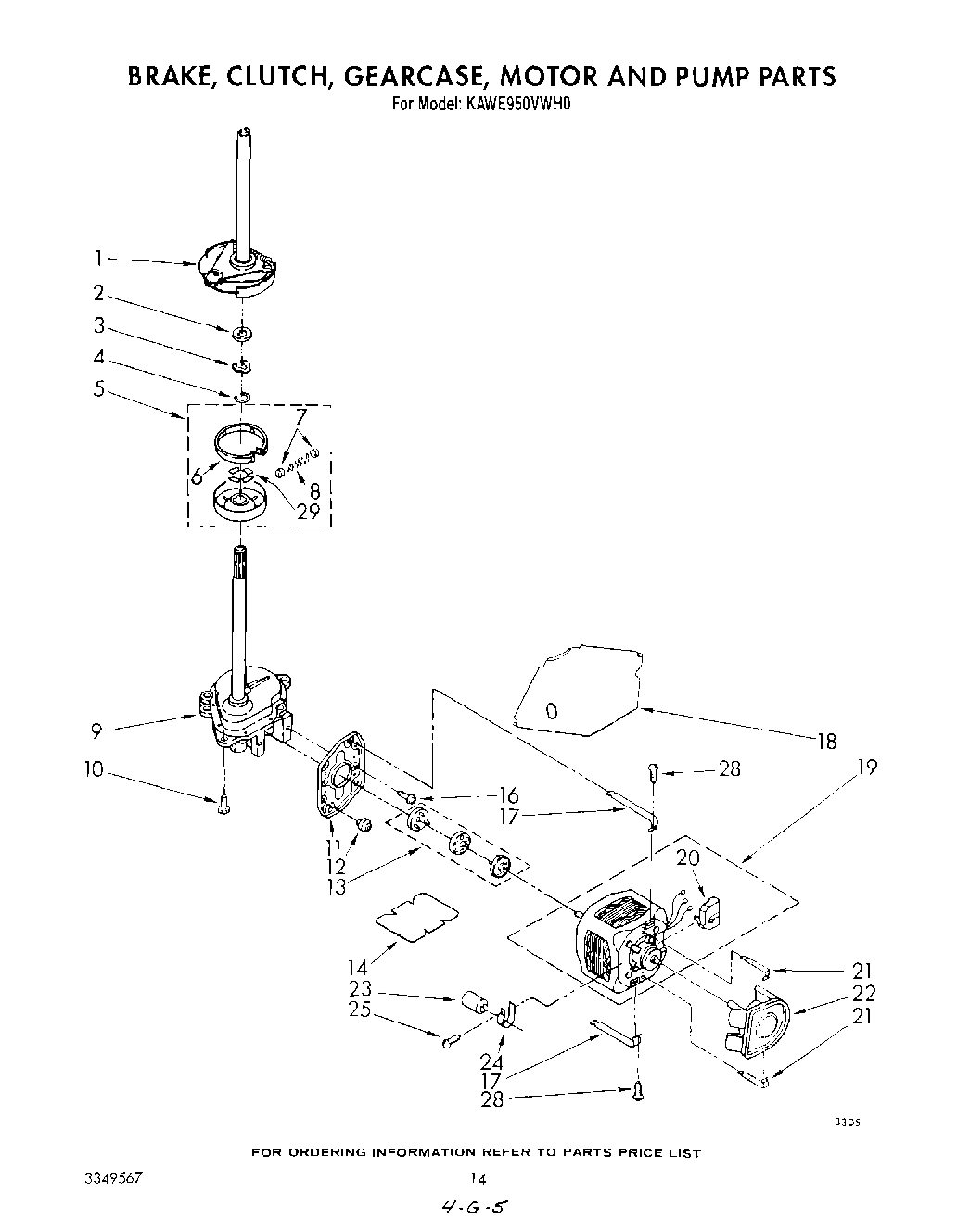

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

Clip, Harness WPL 62732 Contact Us For Availability

1

Hinge, Lamp Cover WPL 3347112 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 387980 Contact Us For Availability

2

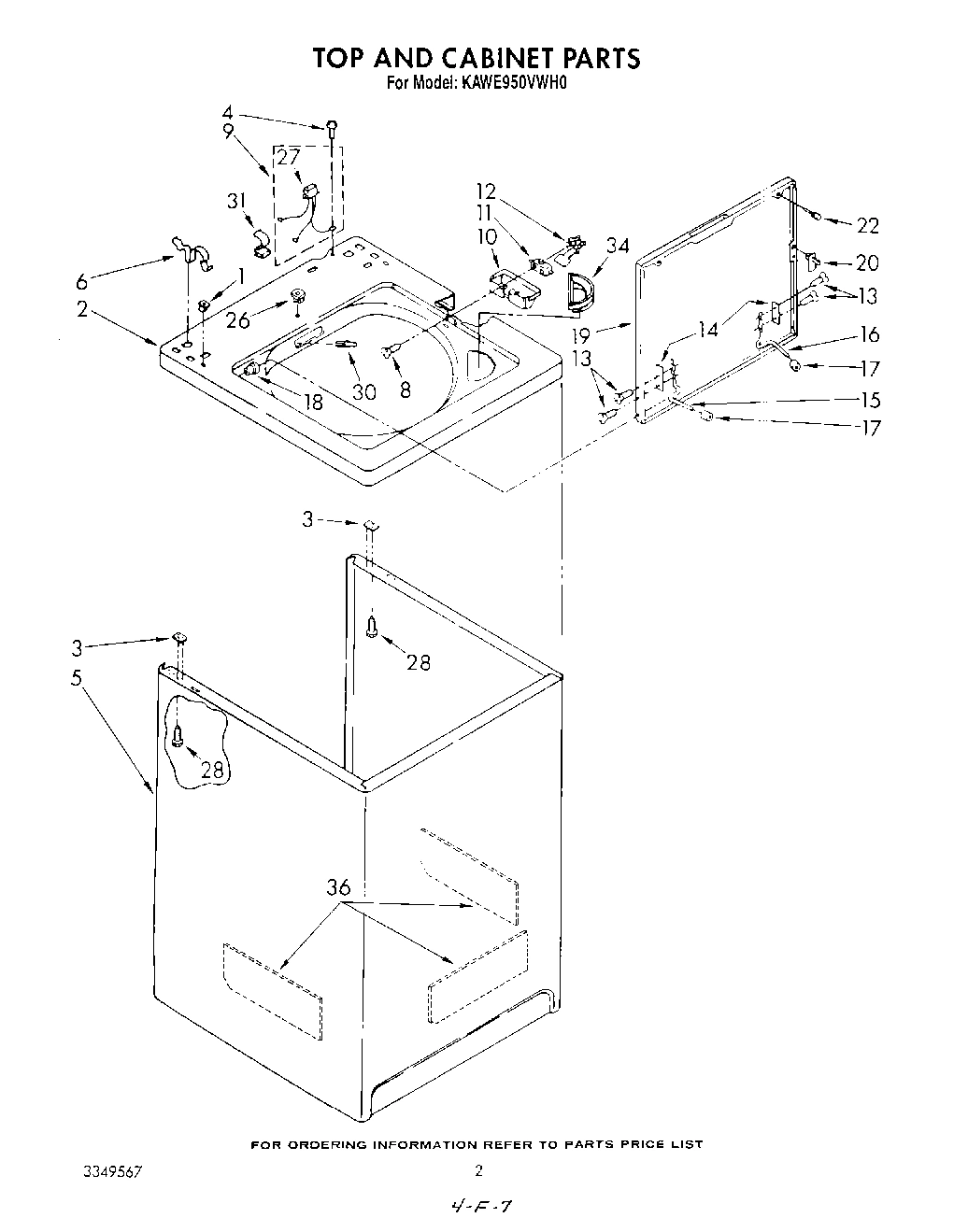

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Pin, Cabinet Guide (2) WPL 63162 Contact Us For Availability

2

Pad, Console (Includes Illus. 29) WPL 3350414 Contact Us For Availability

2

Clip, Harness WPL 62749 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

Cover, Lamp WPL 3348529 Contact Us For Availability

3

(R.H.) WPL 3351826 Contact Us For Availability

3

(L.H.) WPL 389226 Contact Us For Availability

3

Clothes Mover WPL 3349582 Contact Us For Availability

3

Strap, Ground WPL 22965 Contact Us For Availability

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

4

Speaker WPL 3347694 Contact Us For Availability

4

Agitator WPL 3349583 Contact Us For Availability

4

Clip, Harness (3) WPL 387551 Contact Us For Availability

4

Support & Brake, Tub WPL 389350 Contact Us For Availability

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $76.64

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Plug, Latch WPL 387887 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Panel, Rear WPL 3348430 Contact Us For Availability

6

Protector, Harness WPL 63523 Contact Us For Availability

6

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

7

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Trim, End Cap (L.H.) WPL 388745 Contact Us For Availability

7

Wiring Harness & Pressure Switch Hose (Base) WPL 3351609 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

W10389328 Whirlpool Basket Backorder WPL W10389328 $190.38

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

8

Cap, End (L.H.) WPL 388503 Contact Us For Availability

8

Receptacle, Terminal (2 Way) WPL 3348075 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $10.82

9

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $9.92

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

Retainer, Drain Hose WPL 3350222 Contact Us For Availability

9

Plug, Terminal (15 Way) WPL 96894 Contact Us For Availability

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

Lock, Filter WPL 62942 Contact Us For Availability

Spring, Agitator WPL 62676 Contact Us For Availability

Bracket, End Cap (2) WPL 3349048 Contact Us For Availability

3361596 Whirlpool Outer Tub Primary Backorder WPL 3361596 $180.24

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

Bracket, Control WPL 3348550 Contact Us For Availability

Bracket, Control (Alt.) WPL 3349590 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Support, Circuit Board WPL 313087 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Connector, Two Terminal WPL 3407005 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Cord, Power WPL 62734 Contact Us For Availability

Board, Control WPL 3407044 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

Shaft, Agitator WPL 389231 Contact Us For Availability

Switch, Water Level WPL 3347693 Contact Us For Availability

Hose, Bleach WPL 63323 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

Support, Circuit Board WPL 772566 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.10

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Relay, Power Control Board To Board WPL 3407054 Contact Us For Availability

Harness, Wiring (Console) WPL 3351596 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.47

Cap, Terminal (15 Way) WPL 96895 Contact Us For Availability

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.70

Motor, Main Drive WPL 3350418 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability

Support, Power Control WPL 3349370 Contact Us For Availability

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3351807 Contact Us For Availability

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $8.76

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Gear, Main Drive WPL 62528 Contact Us For Availability

Trim, Console Panel WPL 3347052 Contact Us For Availability

Terminal WPL 388499 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

Seal, Agitator WPL 357574 Contact Us For Availability

Touch Module WPL 3407031 Contact Us For Availability

Connector, 8 Terminal (Uses Terminal 388499) WPL 388501 Contact Us For Availability

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.43

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

Lamp, Flourescent WPL 387693 Contact Us For Availability

Connector, 3 Terminal WPL 388947 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

Ring, Retaining WPL 95082 Contact Us For Availability

Nut, Knurled WPL 3347687 Contact Us For Availability

Cap, 10 Pin (Uses Terminal 772581) WPL 772579 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

Washer Kit, Thrust WPL 285292 Contact Us For Availability

Terminal WPL 772581 Contact Us For Availability

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

Nut, No.10 Thread WPL 388744 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

Cap, End (R.H.) WPL 388504 Contact Us For Availability

Plug, Terminal (2 Way) WPL 717251 Contact Us For Availability

27

Trim, End Cap (R.H.) WPL 388746 Contact Us For Availability

27

Receptacle, Terminal (4 Way) WPL 717315 Contact Us For Availability

27

Sound, Absorber (Includes Illus. No. 32) WPL 3349774 Contact Us For Availability

28

Switch, Flourescent WPL 3347115 Contact Us For Availability

28

Receptacle, Terminal 2 Way WPL 696669 Contact Us For Availability

28

S-Clip (Bottm Pan) WPL 3349669 Contact Us For Availability

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

Insert, Console Pad WPL 3350411 Contact Us For Availability

Hanger, Drain Hose WPL 3350281 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

30

Panel, Control WPL 3347184 Contact Us For Availability

30

Clip (Drain Hose) WPL 3350282 Contact Us For Availability

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

31

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $33.23

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

32

Clip, Bottom Pad WPL 3349857 Contact Us For Availability

33

Protector (2) WPL 303294 Contact Us For Availability

34

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

35

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

36

Screw, 8-18 (2) WPL 64211 Contact Us For Availability

37

Screw 8-32 x (2) WPL 310629 Contact Us For Availability

38

Ballast WPL 772572 Contact Us For Availability

39

Nut (8) WPL 3407038 Contact Us For Availability

40

Wire, Ground WPL 388853 Contact Us For Availability

41

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

50

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

54

Wire, Ground WPL 364089 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

56

Sheild, Suds WPL 3348424 Contact Us For Availability

57

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85

58

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

60

Clip, Wire Harness WPL 356387 Contact Us For Availability
