Model Maytag JFC2089WTB7 REFRIGERATOR – Common Parts & Diagrams

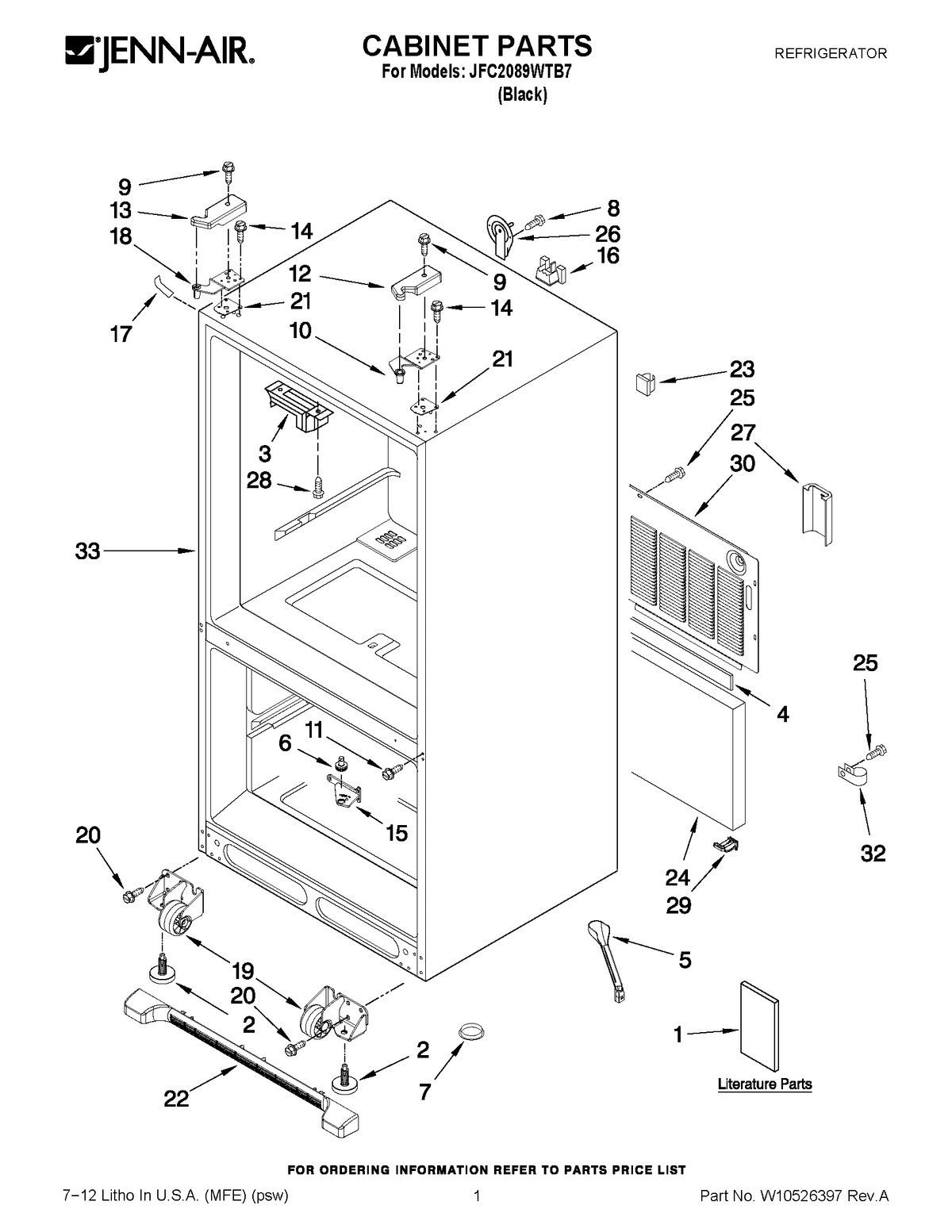

01 - CABINET PARTS

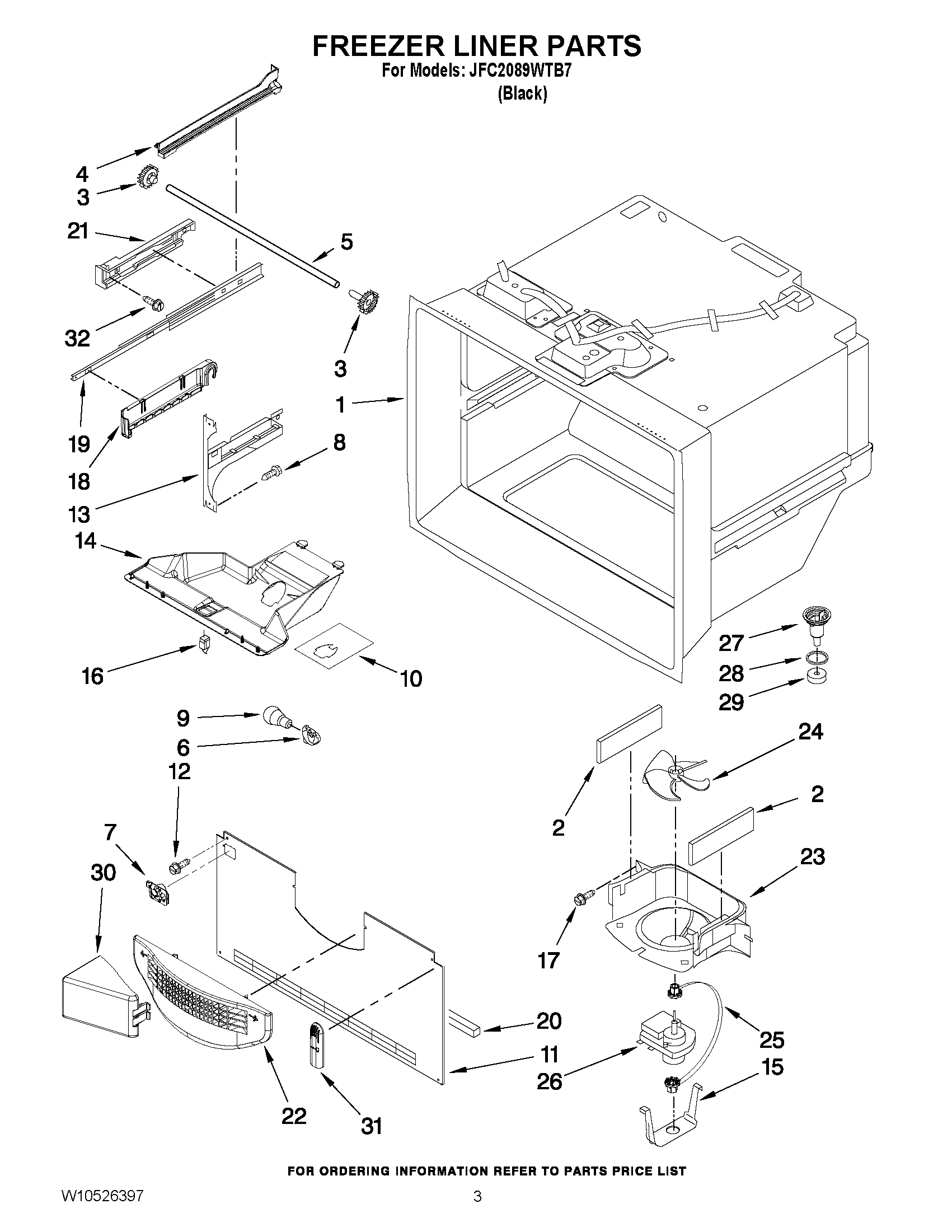

02 - FREEZER LINER PARTS

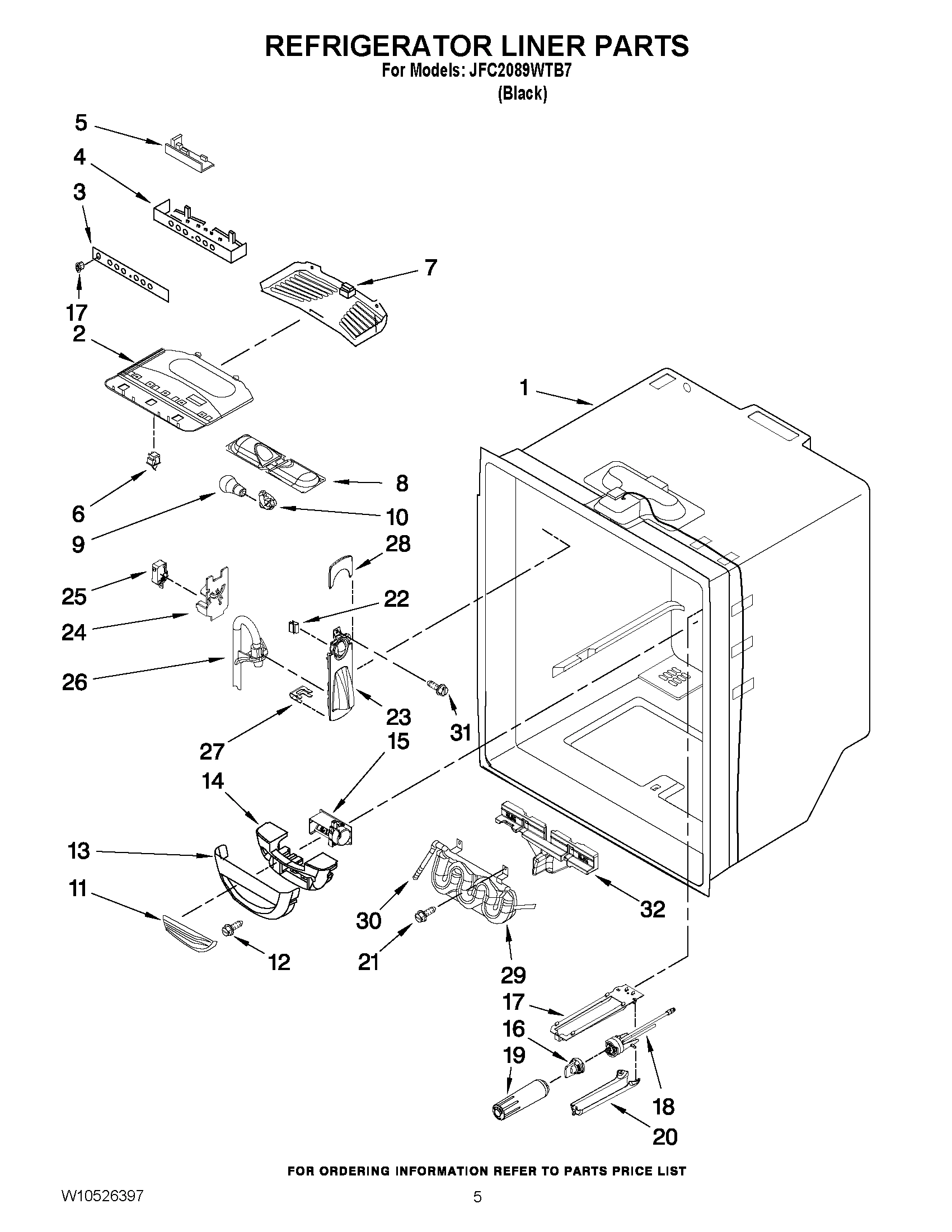

03 - REFRIGERATOR LINER PARTS

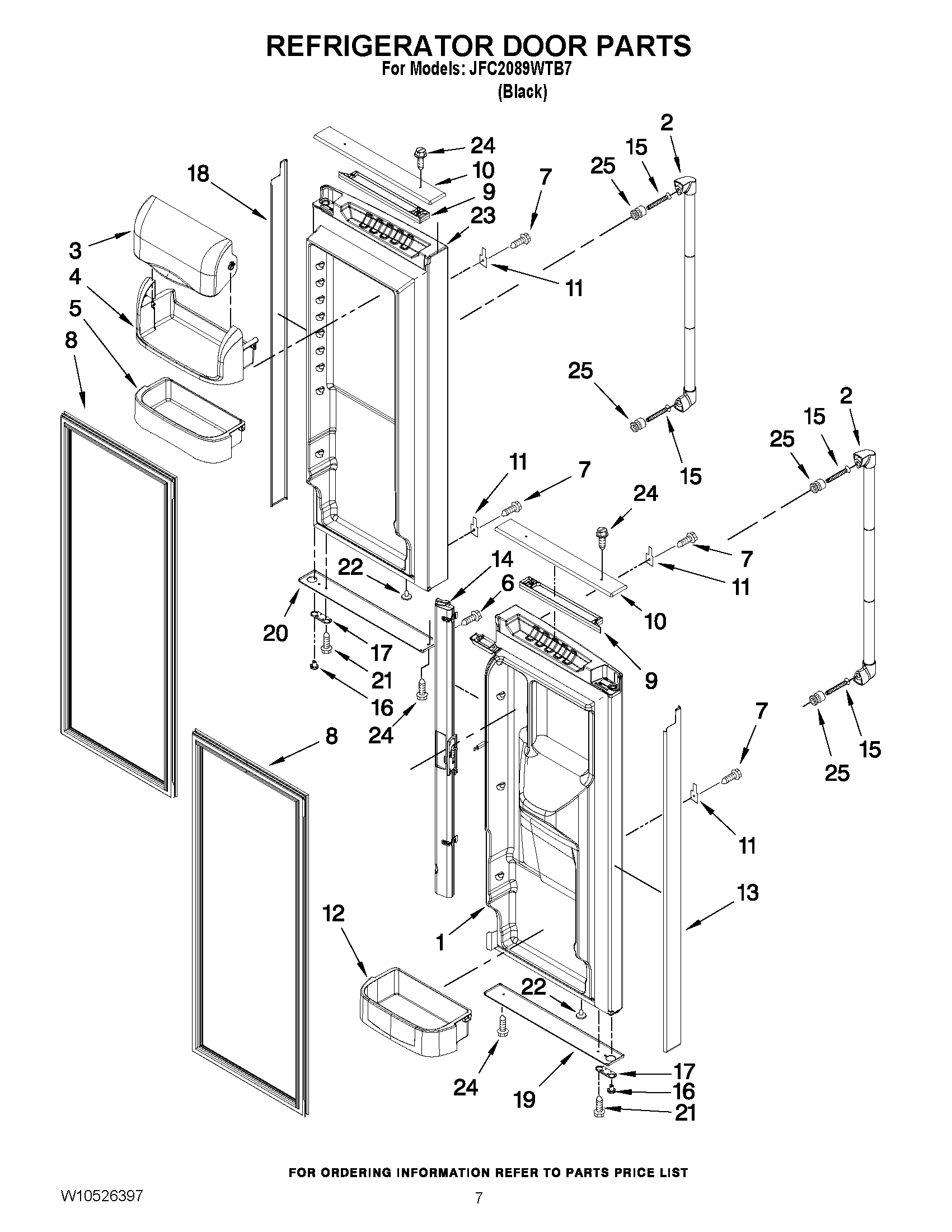

04 - REFRIGERATOR DOOR PARTS

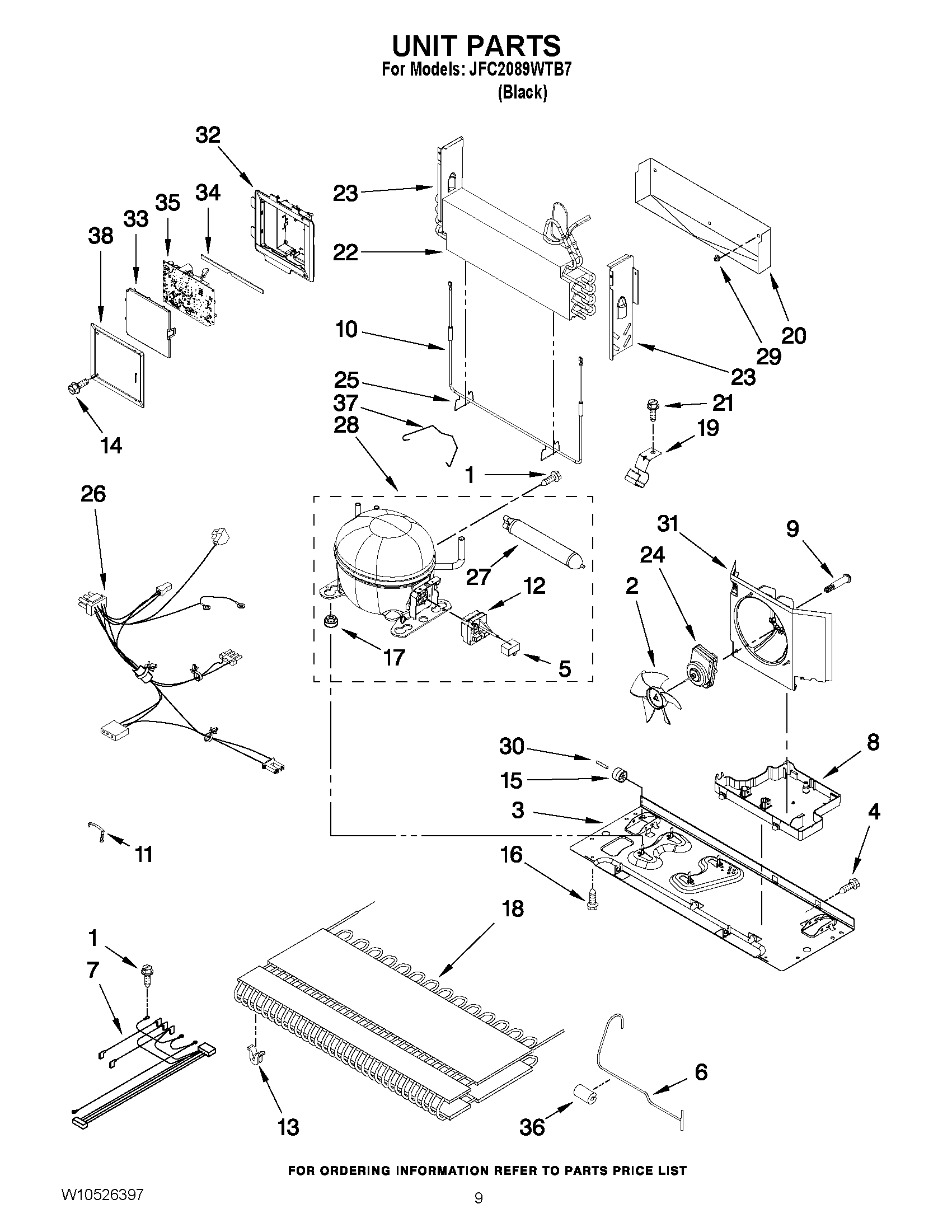

05 - UNIT PARTS

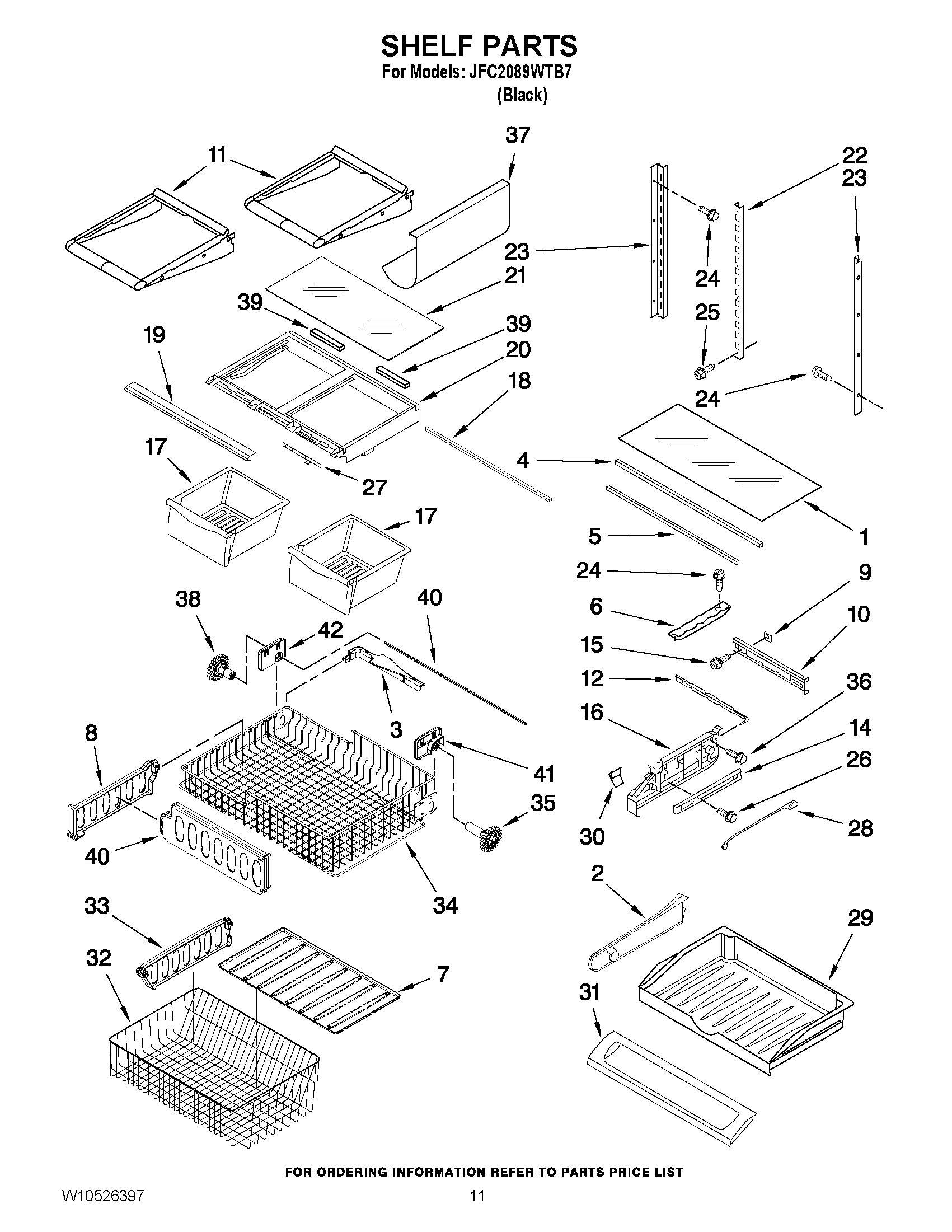

06 - SHELF PARTS

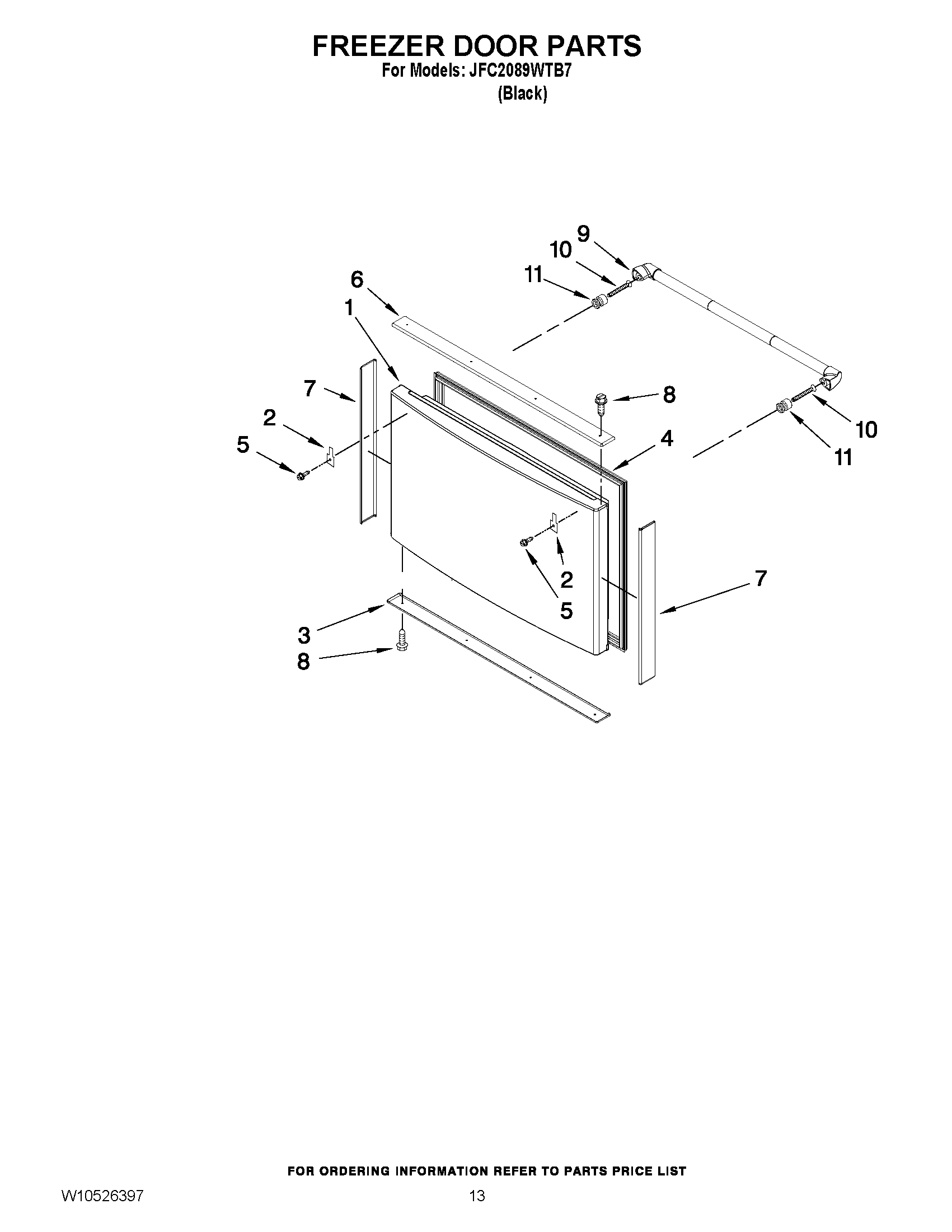

07 - FREEZER DOOR PARTS

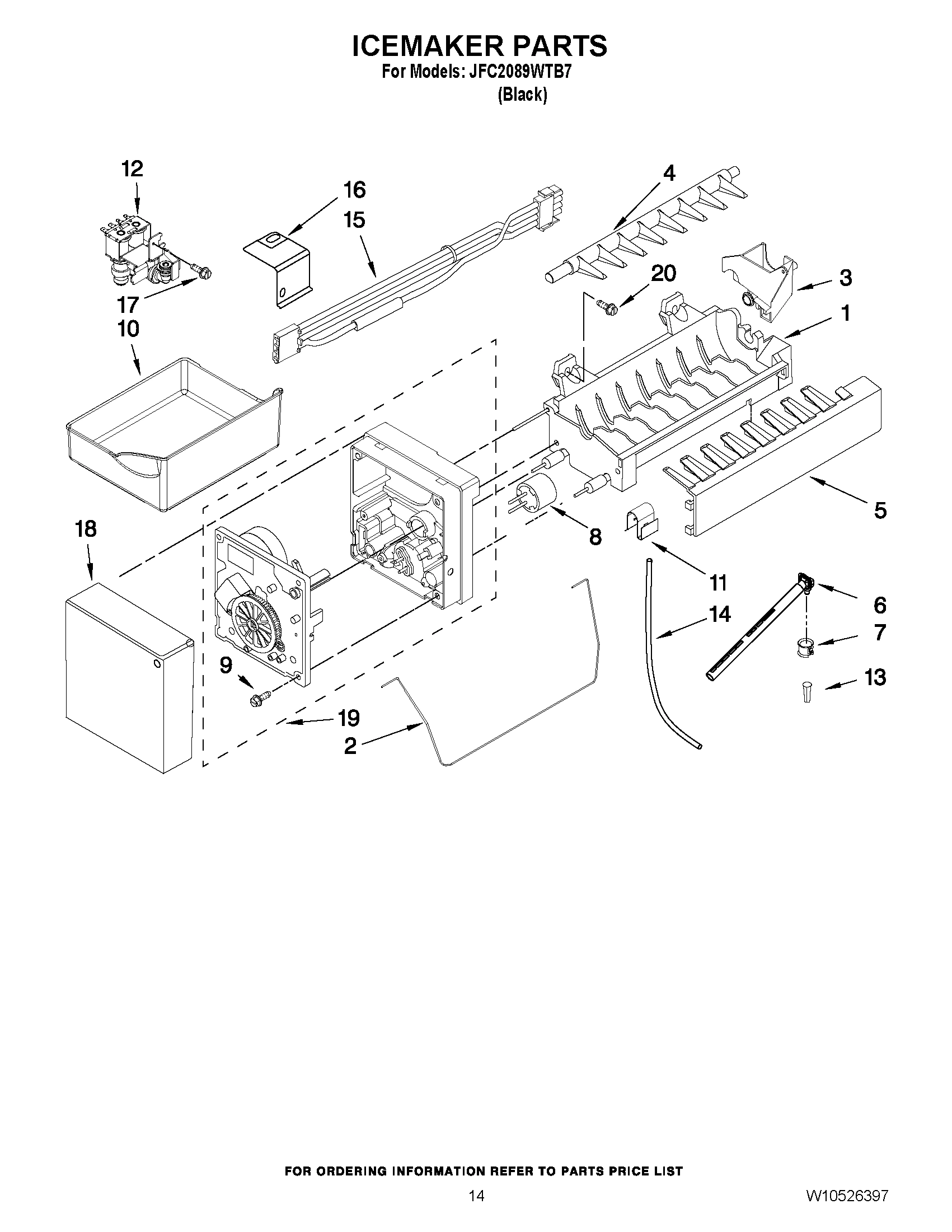

08 - ICEMAKER PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JFC2089WTB7 REFRIGERATOR
1
MAY 13109307B MAY 13109307B Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY 12204829 MAY 12204829 Contact Us For Availability
1
MAY 13109205B MAY 13109205B Contact Us For Availability
1
MAY W10300025 MAY W10300025 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MAY W10464764 MAY W10464764 Contact Us For Availability
2
HANDLE, STAINLESS MAY W10298244N Contact Us For Availability
2
MAY 12315104 MAY 12315104 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
DIVIDER, PANTRY DRAWER MAY 12709301N Contact Us For Availability
2
MAY W10512602 MAY W10512602 Contact Us For Availability
3
OVERLAY MAY W10316408 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10480111 MAY W10480111 Contact Us For Availability
3
MAY W10149389N MAY W10149389N Contact Us For Availability
3
Trim, Bottom MAY 12521108S1 Contact Us For Availability
3
CUP, FILL MAY W10410073 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
RACK, SIDE (LEFT) MAY W10284696 Contact Us For Availability
4
RACK, SIDE (RIGHT) MAY W10284697 Contact Us For Availability
4
MAY W10464767 MAY W10464767 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY 12655902SP MAY 12655902SP Contact Us For Availability
4
MAY W10436252 MAY W10436252 Contact Us For Availability
4
MAY W10318914 MAY W10318914 Contact Us For Availability
5
SHAFT MAY 12812903WD Contact Us For Availability
5
MAY W10428901 MAY W10428901 Contact Us For Availability
5
BIN, SHELF (3) (MEDIUM) MAY 12801904 Contact Us For Availability
5
MAY 12992701 MAY 12992701 Contact Us For Availability
5
MAY 2264017 MAY 2264017 Contact Us For Availability
5
BRACE, PANTRY (2) MAY 12227305WH Contact Us For Availability
5
ICE STRIPPER MAY W10122563 Contact Us For Availability
6
Trim, Top MAY 12521109S1 Contact Us For Availability
6
SWITCH, LIGHT (2) MAY C3680310V Contact Us For Availability
6
MAY 12990204 MAY 12990204 Contact Us For Availability
6
MAY W10233569 MAY W10233569 Contact Us For Availability
6
TRACK, PANTRY MAY 12531901 Contact Us For Availability
6
MAY 10463203 MAY 10463203 Contact Us For Availability
7
MAY 12932103 MAY 12932103 Contact Us For Availability
7
MAY 12806501N MAY 12806501N Contact Us For Availability
7
HARNESS, EVAP. (HEATER) MAY W10292242 Contact Us For Availability
7
MAY 12727304 MAY 12727304 Contact Us For Availability
7
MAY 12694508S1 MAY 12694508S1 Contact Us For Availability
7
MAY M0114003 MAY M0114003 Contact Us For Availability
8
MAY W10443023 MAY W10443023 Contact Us For Availability
8
MAY W10435968 MAY W10435968 Contact Us For Availability
8
MAY W10296785 MAY W10296785 Contact Us For Availability
8
Divider, Upper Basket MAY W10241046 Contact Us For Availability
8
MAY 12991102 MAY 12991102 Contact Us For Availability
8
THERMOSTAT (ALSO ORDER 542369 CEMENT) MAY W10290336 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
BULB, LIGHT MAY W10311505 Contact Us For Availability
9
MAY W10311505N MAY W10311505N Contact Us For Availability
9
MAY 12752801B MAY 12752801B Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
MAY 12656901 MAY 12656901 Contact Us For Availability
9
HANDLE, STAINLESS MAY W10298179N Contact Us For Availability
9
Screw (3) MAY 489464 Contact Us For Availability
10
Hinge, Top Right MAY 12626910ED Contact Us For Availability
10
MAY W10277466 MAY W10277466 Contact Us For Availability
10
MAY 12570701V MAY 12570701V Contact Us For Availability
10
MAY 12752907S1 MAY 12752907S1 Contact Us For Availability
10
MAY 12752908S1 MAY 12752908S1 Contact Us For Availability
10
SCREW, HANDLE MAY W10160454 Contact Us For Availability
10
MAY 12729129 MAY 12729129 Contact Us For Availability
10
MAY 12656202 MAY 12656202 Contact Us For Availability
10
MAY W10171529N MAY W10171529N Contact Us For Availability
11
SCREW (6) MAY W10339086 Contact Us For Availability
11
MAY W10308416 MAY W10308416 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY 13001201 MAY 13001201 Contact Us For Availability
11
MAY W10174384 MAY W10174384 Contact Us For Availability
11
SHELF, GLIDE (4) MAY 12463911 Contact Us For Availability
11
Clip MAY 628379 Contact Us For Availability
12
Cover, Right Hinge (Black) MAY 12629801B Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
BIN, SHELF (2) (GALLON) MAY 12840002 Contact Us For Availability
12
MAY W10448874 MAY W10448874 Contact Us For Availability
12
SLIDE, TEMPERATURE MAY 12655402 Contact Us For Availability
12
VALVE, WATER INLET MAY W10420083 Contact Us For Availability
13
MAY W10217485 MAY W10217485 Contact Us For Availability
13
BRACKET, DOOR (LEFT) MAY W10330991 Contact Us For Availability
13
BRACKET, DOOR (RIGHT) MAY W10330993 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
MAY 12694502S1 MAY 12694502S1 Contact Us For Availability
13
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
13
MAY A3223101 MAY A3223101 Contact Us For Availability
14
SCREW (6) MAY 12992403 Contact Us For Availability
14
MAY W10277025 MAY W10277025 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
MAY 12722803BN MAY 12722803BN Contact Us For Availability
14
MAY 12990702 MAY 12990702 Contact Us For Availability
14
GLIDE, DRAWER (2) MAY W10235370 Contact Us For Availability
14
MAY B5705333 MAY B5705333 Contact Us For Availability
15
HINGE, CENTER (BLACK) MAY 12692302ED Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
MAY W10207517 MAY W10207517 Contact Us For Availability
15
Roller (2) MAY 12477102 Contact Us For Availability
15
MAY W10458985 MAY W10458985 Contact Us For Availability
16
MAY 12777701 MAY 12777701 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
PLUG, BYPASS MAY 12664501SP Contact Us For Availability
16
MAY 12028505B MAY 12028505B Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
TRACK, PANTRY (RIGHT) MAY 12656018 Contact Us For Availability
16
TRACK, PANTRY (LEFT) MAY 12656105 Contact Us For Availability
16
MAY 2256086 MAY 2256086 Contact Us For Availability
17
COVER, CORNER (2) (BLACK) MAY 12587703B Contact Us For Availability
17
PLATE MAY 12704801 Contact Us For Availability
17
Stop, Door (Black) MAY 10447112 Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
17
Pan, Crisper (2) MAY 12531105SP Contact Us For Availability
17
MAY 12991604 MAY 12991604 Contact Us For Availability
18
Hinge, Top Left MAY 12626911ED Contact Us For Availability
18
CRADLE, BASKET (LEFT) MAY W10281115 Contact Us For Availability
18
CRADLE, BASKET (RIGHT) MAY W10281116 Contact Us For Availability
18
MAY 12590620 MAY 12590620 Contact Us For Availability
18
MAY 12694501S1 MAY 12694501S1 Contact Us For Availability
18
MAY W10346415 MAY W10346415 Contact Us For Availability
18
Brace, Crisper MAY 12227304WD Contact Us For Availability
18
COVER MAY W10377174 Contact Us For Availability
19
ROLLER ASSY. (FRONT) (RIGHT) MAY W10275849 Contact Us For Availability
19
ROLLER ASSY. (FRONT) (LEFT) MAY W10275850 Contact Us For Availability
19
MAY W10488001N MAY W10488001N Contact Us For Availability
19
MAY UKF8001 MAY UKF8001 Contact Us For Availability
19
MAY 12752909S1 MAY 12752909S1 Contact Us For Availability
19
MAY W10281329 MAY W10281329 Contact Us For Availability
19
MAY W10231478N MAY W10231478N Contact Us For Availability
19
MODULE ASSEMBLY MAY W10281342 Contact Us For Availability
20
Screw (8) MAY 12991302 Contact Us For Availability
20
GASKET, BOTTOM MAY A3189396 Contact Us For Availability
20
MAY 12752910S1 MAY 12752910S1 Contact Us For Availability
20
MAY W10292803 MAY W10292803 Contact Us For Availability
20
MAY 12531202SP MAY 12531202SP Contact Us For Availability
20
Screw (3) MAY W10001240 Contact Us For Availability
21
MAY 12579702 MAY 12579702 Contact Us For Availability
21
MAY 12990521 MAY 12990521 Contact Us For Availability
21
ADAPTER, SLIDE (LEFT) MAY W10284692 Contact Us For Availability
21
ADAPTER, SLIDE (RIGHT) MAY W10284693 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY 12204821N MAY 12204821N Contact Us For Availability
22
MAY W10244561N MAY W10244561N Contact Us For Availability
22
Grille, Fz Air MAY 13024803 Contact Us For Availability
22
Clip, Facade (2) MAY B8390302 Contact Us For Availability
22
MAY 12699301B MAY 12699301B Contact Us For Availability
22
MAY W10317014 MAY W10317014 Contact Us For Availability
22
MAY W10273463 MAY W10273463 Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
MAY 12706909 MAY 12706909 Contact Us For Availability
23
MAY 13109308B MAY 13109308B Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
23
MAY W10251971 MAY W10251971 Contact Us For Availability
24
Insulation, Sound MAY 12820505 Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability
24
MAY 12707303 MAY 12707303 Contact Us For Availability
24
Screw (6) MAY 12990513 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
25
MAY W10121318 MAY W10121318 Contact Us For Availability
25
SCREW (2) MAY W10215666 Contact Us For Availability
26
Screw (4) MAY 12990504 Contact Us For Availability
26
MAY 12726003 MAY 12726003 Contact Us For Availability
26
MAY W10128551 MAY W10128551 Contact Us For Availability
26
MAY 12707206 MAY 12707206 Contact Us For Availability
26
HARNESS, UNIT (INCLUDES POWER CORD & THERMIST MAY W10234025 Contact Us For Availability
27
GUARD-WATER VALVE MAY W10208593 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
CLIP, WATERLINE MAY 12251001 Contact Us For Availability
27
Drier MAY W10177049 Contact Us For Availability
27
MAY 12530805SP MAY 12530805SP Contact Us For Availability
28
SCREW (2) MAY 12990303 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
FACADE, DISP (TOP) MAY 12707005 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 11,12,17,27) MAY W10445422 Contact Us For Availability
28
ROD, TEMPERATURE CONTROL MAY 12655303 Contact Us For Availability
29
MAY 12831101 MAY 12831101 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
MAY 12706112 MAY 12706112 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
MAY 12655702N MAY 12655702N Contact Us For Availability
30
MAY W10211855 MAY W10211855 Contact Us For Availability
30
MAY W10157765 MAY W10157765 Contact Us For Availability
30
Axle, Roller (2) MAY 12477202 Contact Us For Availability
30
MAY 12655204 MAY 12655204 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
31
DOOR, PANTRY DRAWER MAY 12656813 Contact Us For Availability
32
MAY M0108107 MAY M0108107 Contact Us For Availability
32
Screw (6) MAY 12990501 Contact Us For Availability
32
Insulation, Water Tank MAY W10163893 Contact Us For Availability
32
MAY W10257665 MAY W10257665 Contact Us For Availability
32
MAY W10150040 MAY W10150040 Contact Us For Availability
33
MAY 12957702SP MAY 12957702SP Contact Us For Availability
33
DIVIDER, LOWER BASKET MAY W10150061 Contact Us For Availability
34
MAY 12957801SP MAY 12957801SP Contact Us For Availability
34
MAY W10348245 MAY W10348245 Contact Us For Availability
35
BOARD, CONTROL MAY W10317076 Contact Us For Availability
35
GEAR MAY W10474715 Contact Us For Availability
36
Screw (4) MAY 12990512 Contact Us For Availability
36
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
37
MAY W10236396 MAY W10236396 Contact Us For Availability
37
MAY W10367642 MAY W10367642 Contact Us For Availability
38
MAY 12961602 MAY 12961602 Contact Us For Availability
38
GEAR MAY W10474716 Contact Us For Availability
39
MAY 10685512 MAY 10685512 Contact Us For Availability
40
SHAFT MAY 12812904WD Contact Us For Availability
41
MOUNT, RIGHT MAY W10348260 Contact Us For Availability
42
MOUNT, LEFT MAY W10348259 Contact Us For Availability
100
ICEMAKER ASSEMBLY MAY W10469286 Contact Us For Availability
NI
REFRIGERANT CHARGE (5.25 OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
HARNESS, CONTROL (REFRIGERATOR) MAY W10224292 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
Cleaner, Stnls Steel Magic MAY 20000008 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
MAY 876305 MAY 876305 Contact Us For Availability
NI
MAY 876370 MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
