Model Maytag JBD2286KEB3 REFRIGERATOR – Common Parts & Diagrams

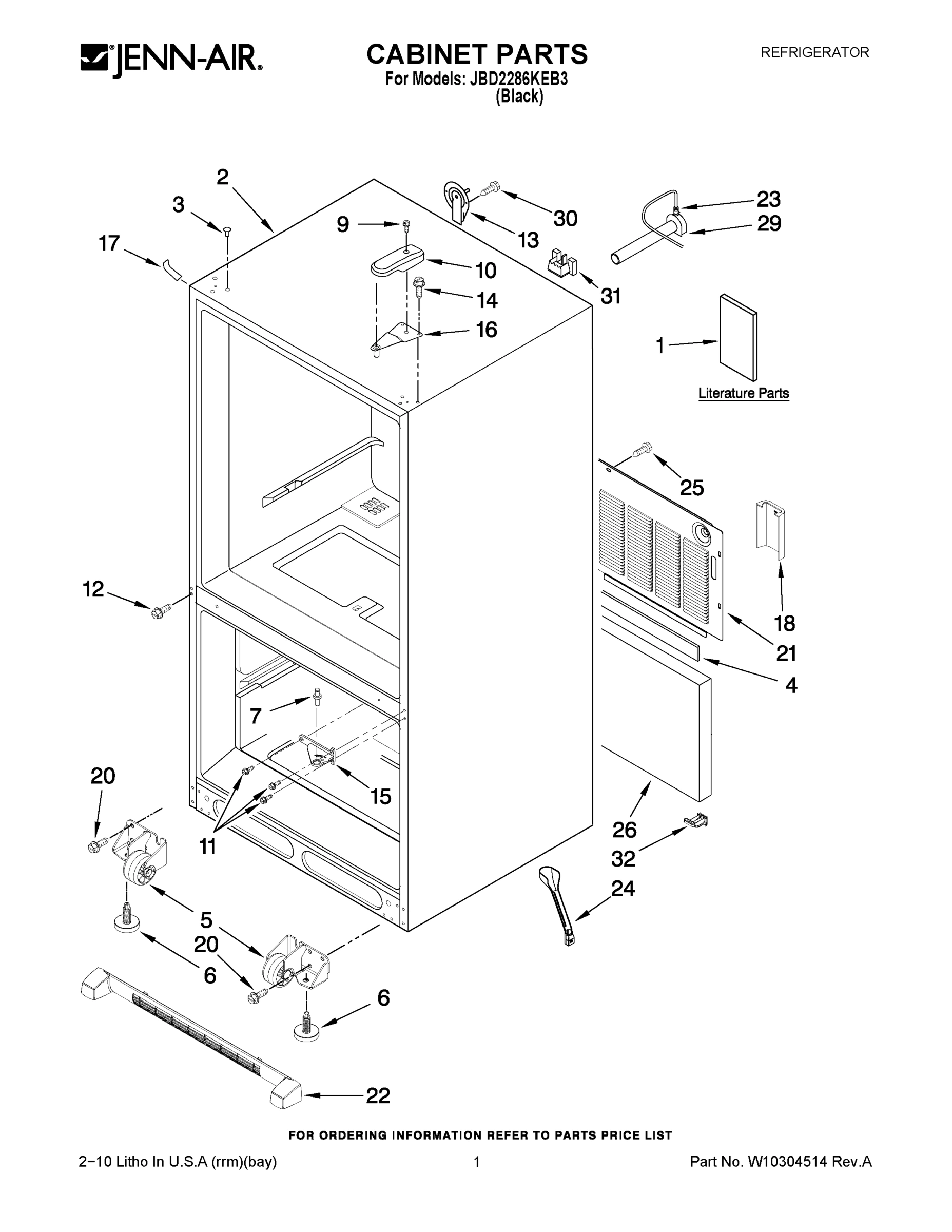

01 - CABINET PARTS

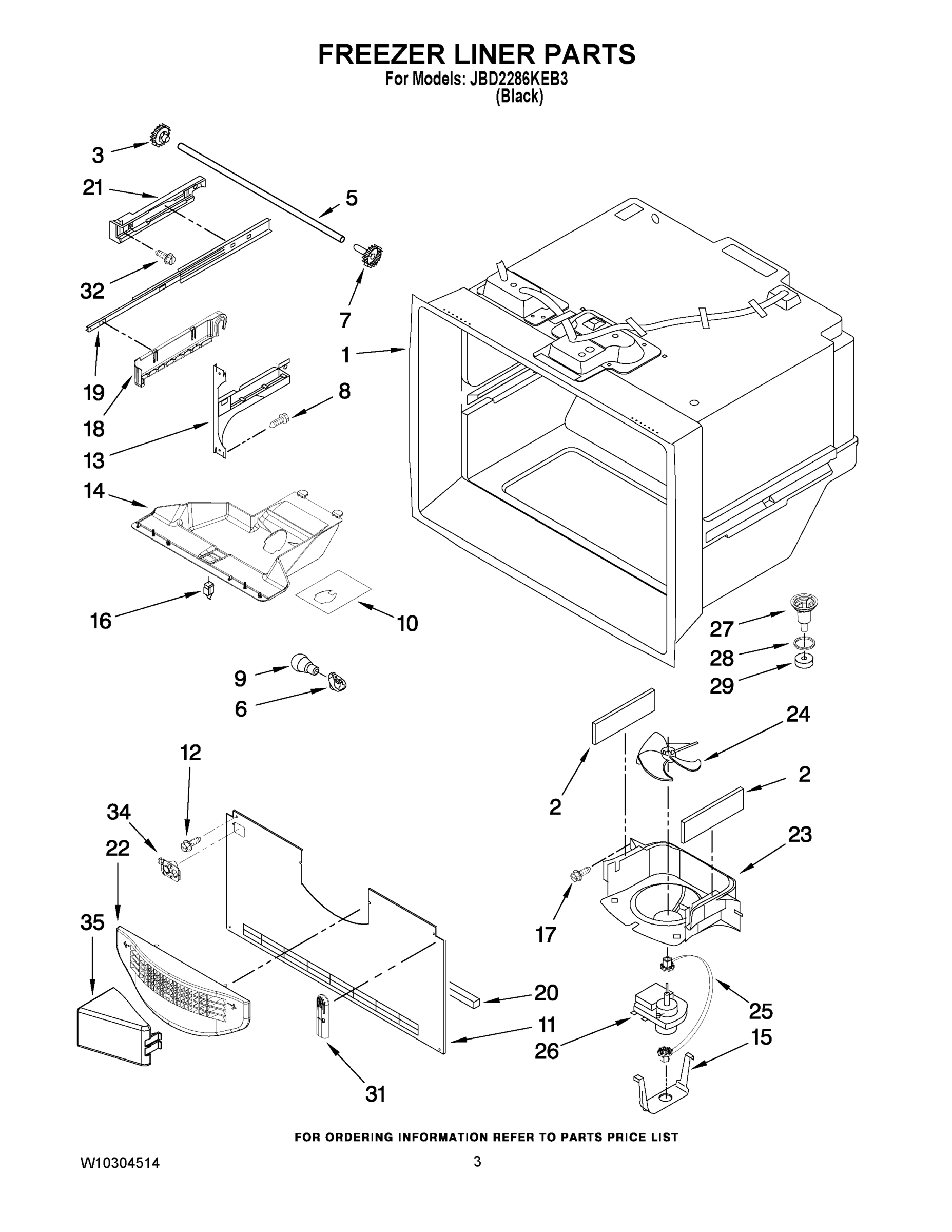

02 - FREEZER LINER PARTS

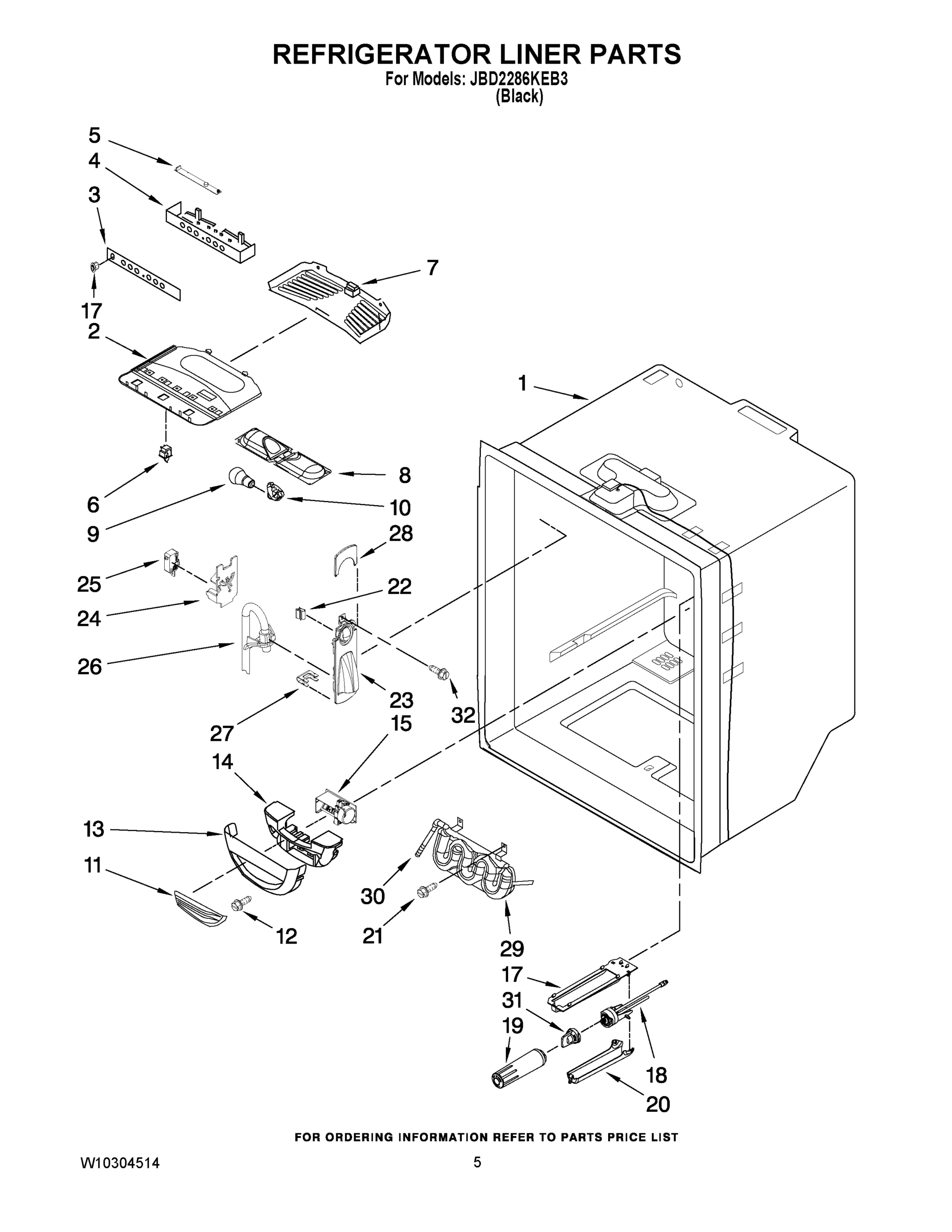

03 - REFRIGERATOR LINER PARTS

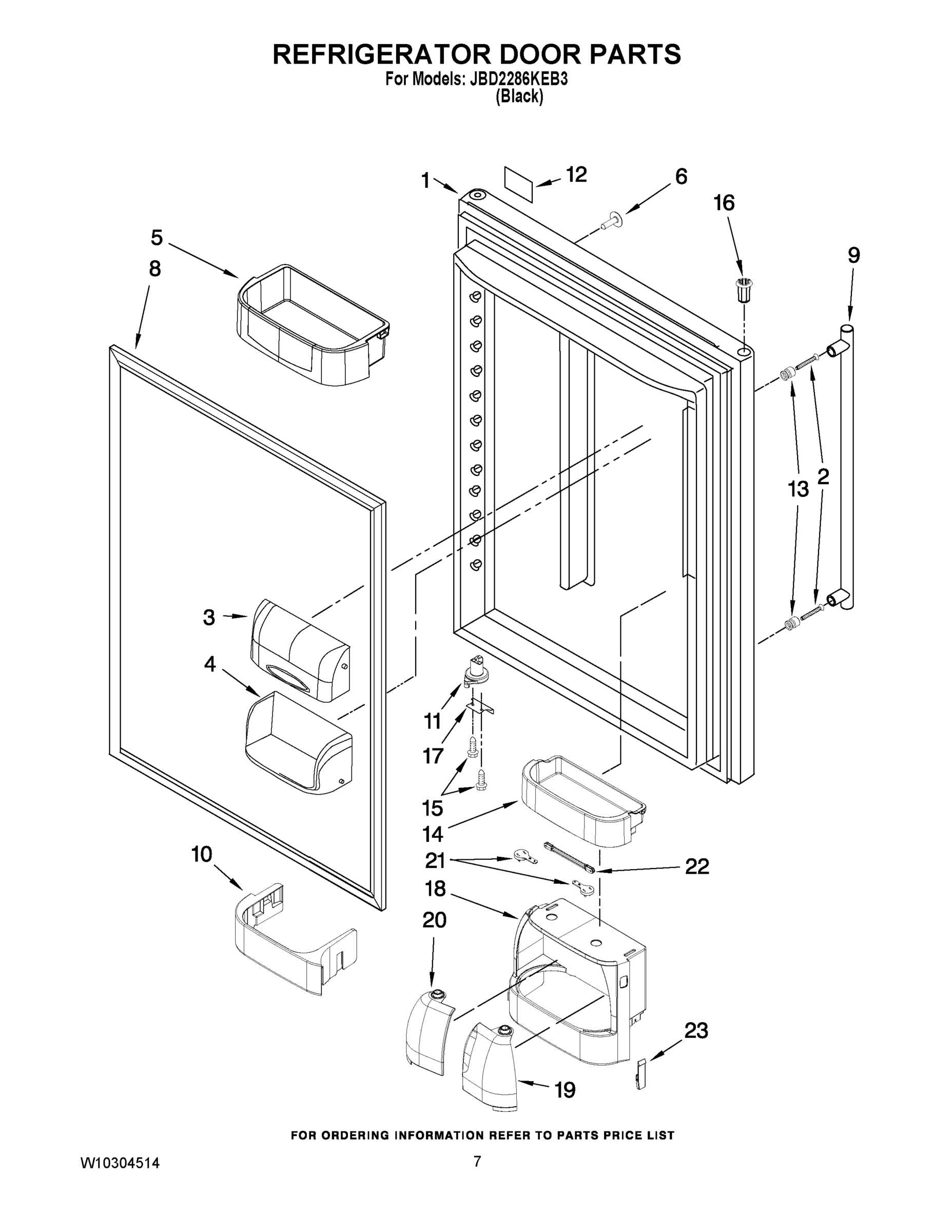

04 - REFRIGERATOR DOOR PARTS

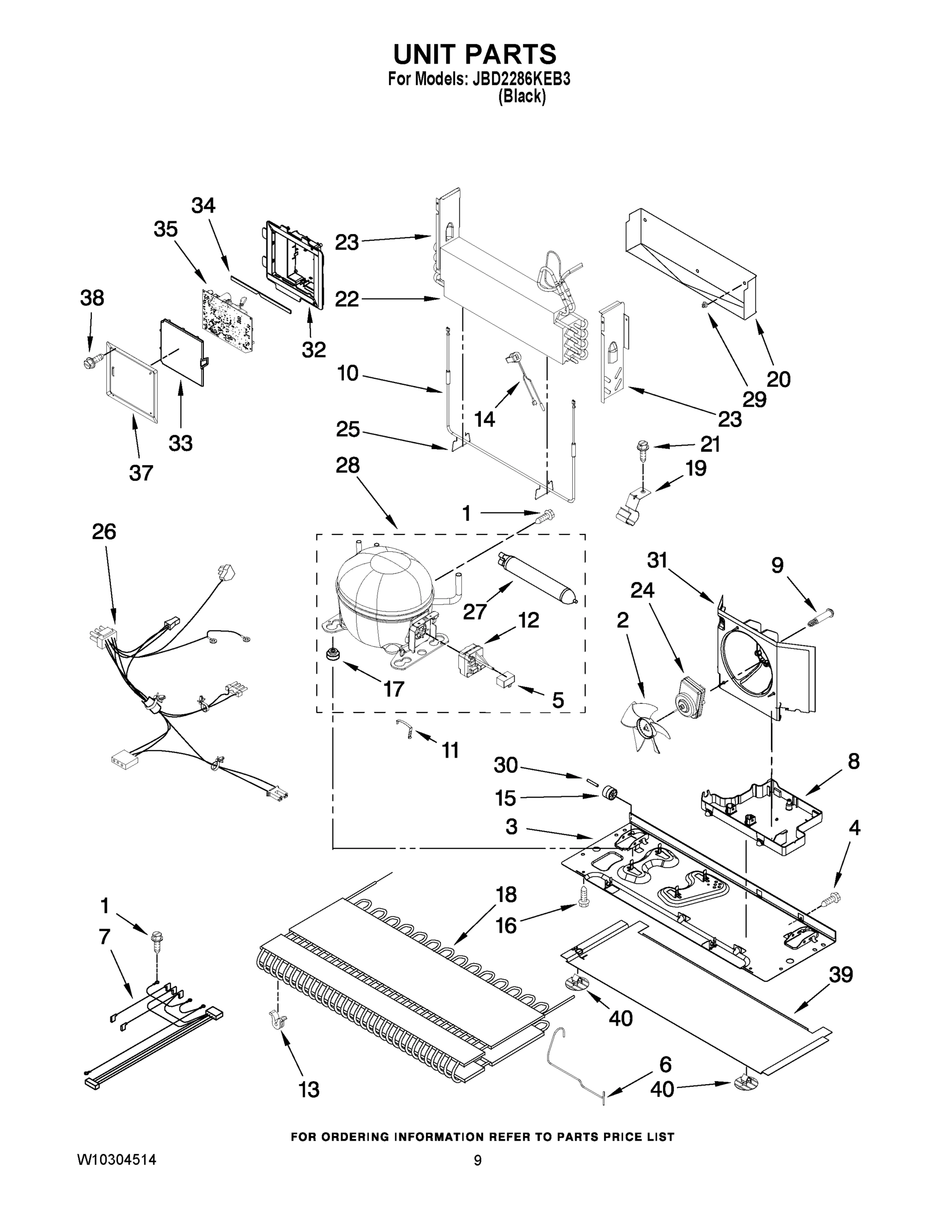

05 - UNIT PARTS

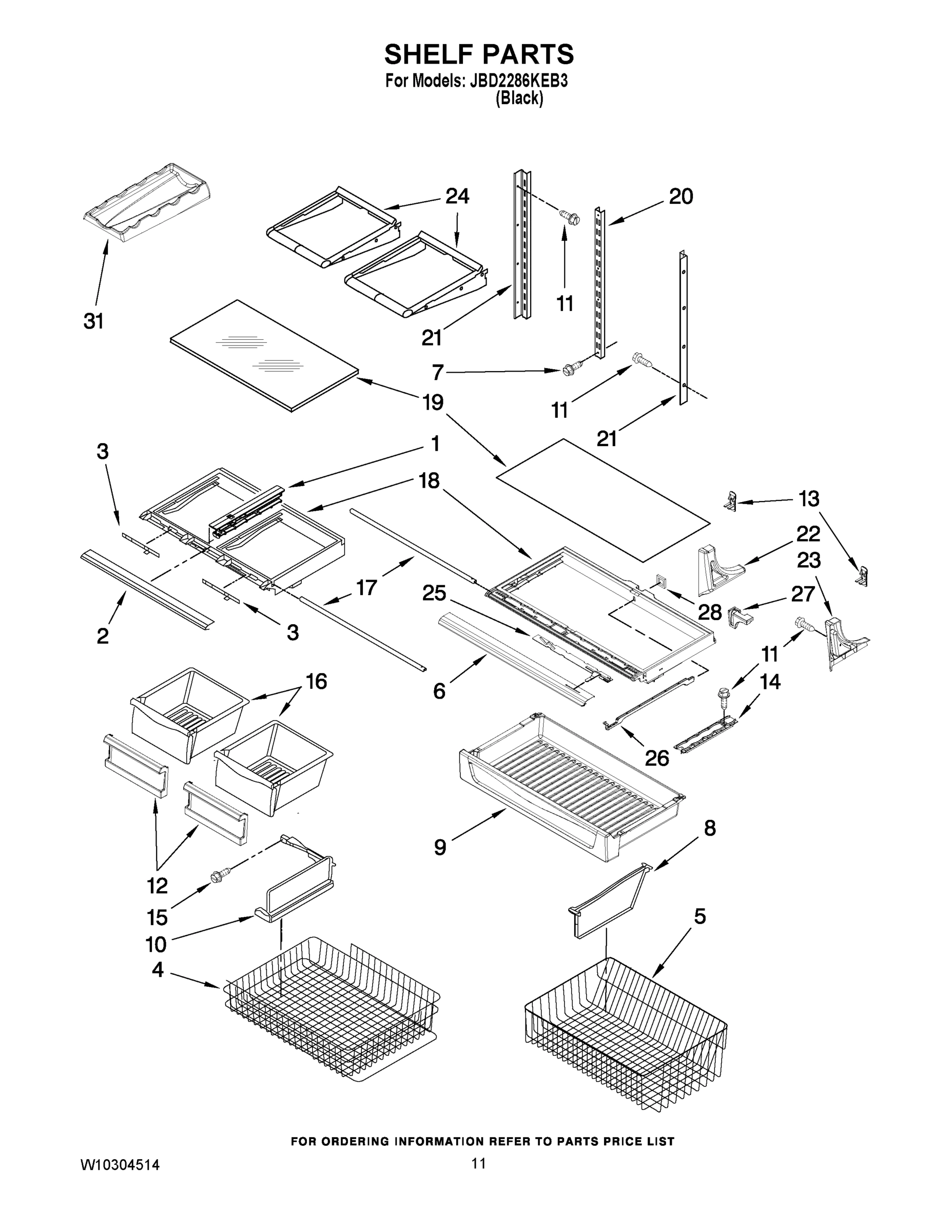

06 - SHELF PARTS

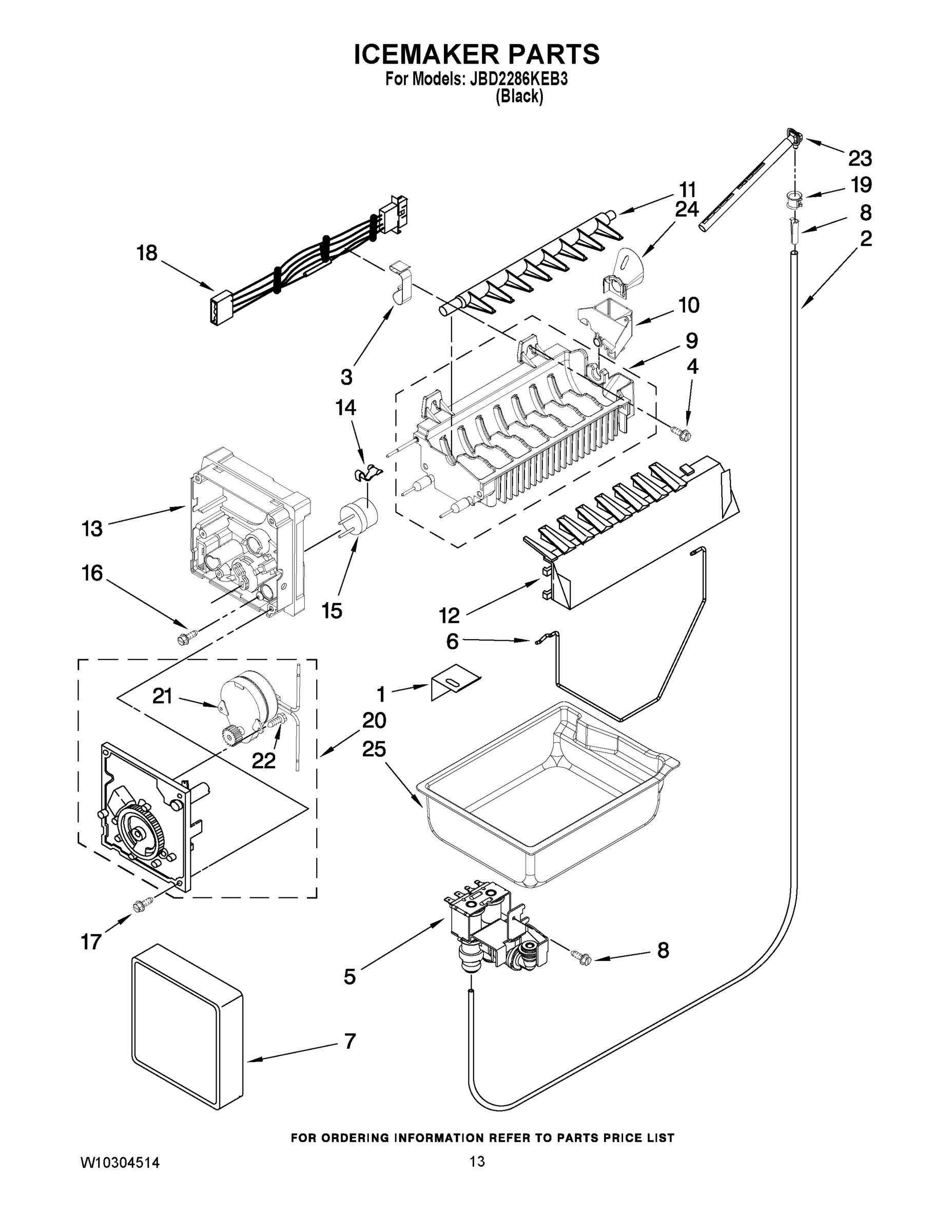

07 - ICEMAKER PARTS

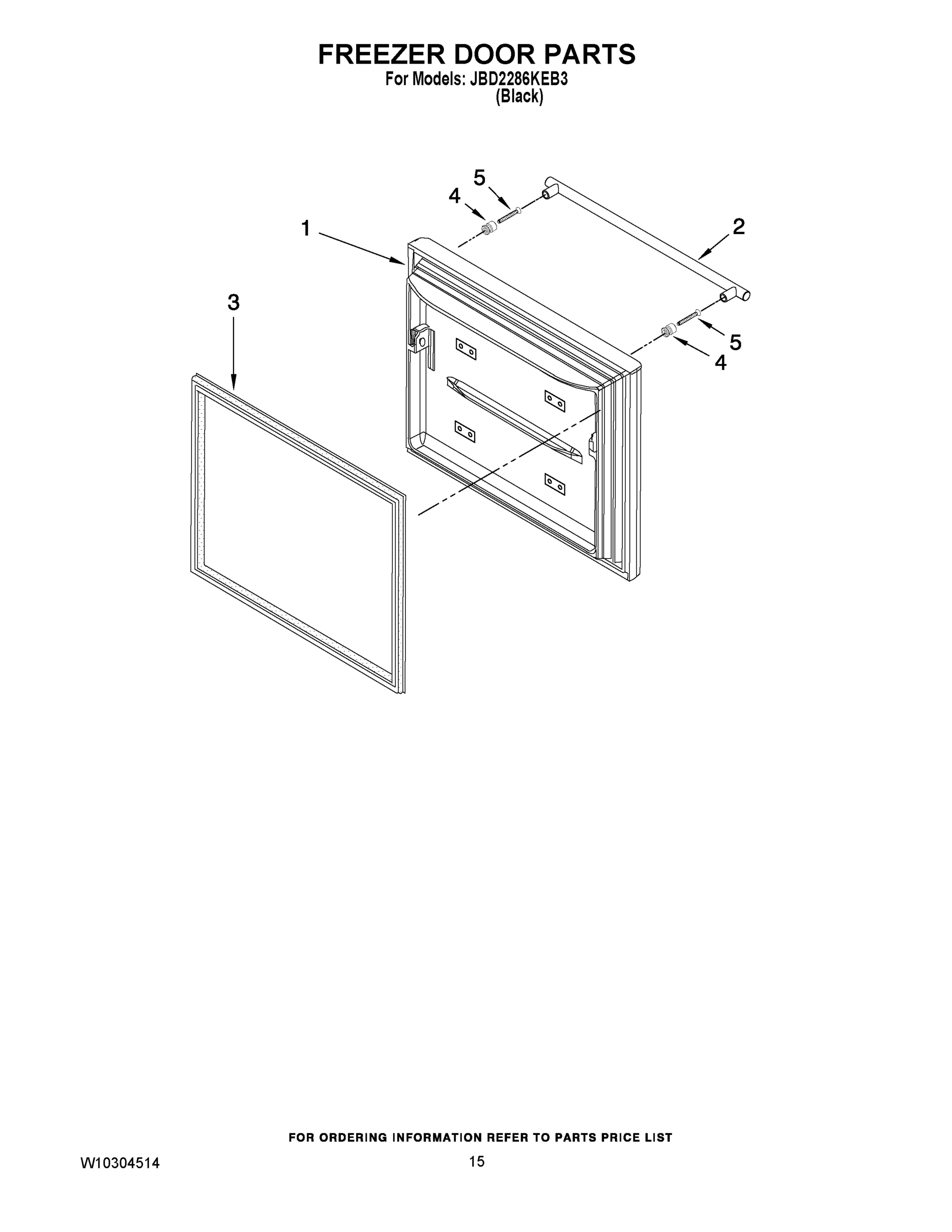

08 - FREEZER DOOR PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag JBD2286KEB3 REFRIGERATOR
1
DOOR, REFRIGERATOR (BLACK) MAY 12658533BQ Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
Rail, Center Crisper MAY 12530701 Contact Us For Availability
1
MAY 2256086 MAY 2256086 Contact Us For Availability
1
DOOR, FREEZER (BLACK) MAY 13092225BQ Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MODULE, LIGHT MAY 12806301 Contact Us For Availability
2
MAY 12850915 MAY 12850915 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY W10231343 MAY W10231343 Contact Us For Availability
2
MAY B5705333SP MAY B5705333SP Contact Us For Availability
3
MAY W10269084 MAY W10269084 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10210983 MAY W10210983 Contact Us For Availability
3
MAY 12530805SP MAY 12530805SP Contact Us For Availability
3
MAY 10526702 MAY 10526702 Contact Us For Availability
3
MAY W10164037 MAY W10164037 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY 12806405 MAY 12806405 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY 12945201 MAY 12945201 Contact Us For Availability
4
BASKET, FREEZER UPPER MAY 12896402 Contact Us For Availability
4
MAY 489276 MAY 489276 Contact Us For Availability
5
ROLLER ASSY. (2) (RIGHT) MAY W10275849 Contact Us For Availability
5
ROLLER ASSY. (2) (LEFT) MAY W10275850 Contact Us For Availability
5
SHAFT MAY 12812902WD Contact Us For Availability
5
MAY W10217475 MAY W10217475 Contact Us For Availability
5
MAY 12991202 MAY 12991202 Contact Us For Availability
5
BUCKET, MEDIUM (4) MAY 12801902V Contact Us For Availability
5
MAY 2264017 MAY 2264017 Contact Us For Availability
5
MAY 13016002 MAY 13016002 Contact Us For Availability
5
MAY 12544124 MAY 12544124 Contact Us For Availability
6
FOOT, BRAKE MAY W10141622 Contact Us For Availability
6
SWITCH, LIGHT (2) MAY C3680310V Contact Us For Availability
6
PLUG, HANDLE HOLE (BLACK) MAY 12246608 Contact Us For Availability
6
MAY W10217745 MAY W10217745 Contact Us For Availability
6
TRIM-PANTRY-FRONT MAY W10231333 Contact Us For Availability
6
ARM-SHUT OFF MAY W10202524 Contact Us For Availability
7
MAY 10351006 MAY 10351006 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY W10280418 MAY W10280418 Contact Us For Availability
7
MAY 12990515 MAY 12990515 Contact Us For Availability
7
MAY 12582501 MAY 12582501 Contact Us For Availability
8
Screw (8) MAY 12990521 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
MAY W10164035 MAY W10164035 Contact Us For Availability
8
MAY W10296784 MAY W10296784 Contact Us For Availability
8
DIVIDER, BASKET LOWER MAY 12659608 Contact Us For Availability
8
MAY A3223101SP MAY A3223101SP Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
Bulb, Light (2) MAY W10194422V Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
MAY 12645017 MAY 12645017 Contact Us For Availability
9
Mold & Heater Assembly (Also Order 542638) MAY W10122527 Contact Us For Availability
10
COVER, HINGE(BLACK) MAY 12477601B Contact Us For Availability
10
MAY 12570701V MAY 12570701V Contact Us For Availability
10
FOIL-FZ LIGHT MAY W10277466 Contact Us For Availability
10
MAY 12805701 MAY 12805701 Contact Us For Availability
10
MAY 12729128 MAY 12729128 Contact Us For Availability
10
DIVIDER, BASKET (UPPER) MAY 12693802N Contact Us For Availability
10
CUP, WATER FILL MAY 628515 Contact Us For Availability
11
MAY 12992201 MAY 12992201 Contact Us For Availability
11
MAY 12990513 MAY 12990513 Contact Us For Availability
11
MAY 12226111 MAY 12226111 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY 12028505B MAY 12028505B Contact Us For Availability
11
MAY W10174384 MAY W10174384 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
START DEVICE MAY W10197426 Contact Us For Availability
12
MAY 12802302SP MAY 12802302SP Contact Us For Availability
12
MAY 2182124 MAY 2182124 Contact Us For Availability
13
MAY 12726003 MAY 12726003 Contact Us For Availability
13
BRACKET, DOOR (LEFT) MAY W10122147 Contact Us For Availability
13
BRACKET, DOOR (RIGHT) MAY W10122148 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
13
MAY 12531802 MAY 12531802 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
14
Screw (3) MAY 12992403 Contact Us For Availability
14
MODULE-FZ LIGHT MAY W10277025 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
MAY 12830302SP MAY 12830302SP Contact Us For Availability
14
MAY 12639324SP MAY 12639324SP Contact Us For Availability
14
MAY 12531901 MAY 12531901 Contact Us For Availability
14
Retainer MAY 2315522 Contact Us For Availability
15
MAY 12607104ED MAY 12607104ED Contact Us For Availability
15
MAY 12990504 MAY 12990504 Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
MAY W10207517 MAY W10207517 Contact Us For Availability
15
Roller (2) MAY 12477102 Contact Us For Availability
15
MAY 12990601N MAY 12990601N Contact Us For Availability
15
THERMOSTAT ORDER 542369 CEMENT ALUMILASTIC MAY 628397 Contact Us For Availability
16
Hinge, Top MAY 12566604ED Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 10961006B MAY 10961006B Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
PAN, CRISPER MAY 12530505SP Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
PLATE MAY 12704801 Contact Us For Availability
17
Stop, Door (Black) MAY 10447112 Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
17
Brace, Crisper MAY 12227303WD Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
GUARD-WATER VALVE MAY W10208593 Contact Us For Availability
18
CRADLE, BASKET (LEFT) MAY W10280608 Contact Us For Availability
18
CRADLE, BASKET (RIGHT) MAY W10280613 Contact Us For Availability
18
MAY 12590620 MAY 12590620 Contact Us For Availability
18
MAY 12805801SP MAY 12805801SP Contact Us For Availability
18
MAY W10135027 MAY W10135027 Contact Us For Availability
18
FRAME, CRISPER MAY 12530401SP Contact Us For Availability
18
MAY D7813011 MAY D7813011 Contact Us For Availability
19
MAY M0114003SP MAY M0114003SP Contact Us For Availability
19
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
19
DOOR, RH CHILLER MAY 12805301SP Contact Us For Availability
19
MAY 10547003 MAY 10547003 Contact Us For Availability
19
Glass, Crisper Cover MAY 12204822 Contact Us For Availability
20
Screw (8) MAY 12991302 Contact Us For Availability
20
MAY A3189395 MAY A3189395 Contact Us For Availability
20
DOOR, LH CHILLER MAY 12805402SP Contact Us For Availability
20
MAY W10292802 MAY W10292802 Contact Us For Availability
20
MAY W10273463 MAY W10273463 Contact Us For Availability
20
MODULE ASSEMBLY (INCLUDES ITEMS 21& 22) MAY W10223929 Contact Us For Availability
21
MAY W10210980 MAY W10210980 Contact Us For Availability
21
MOTOR (NOT AVAILABLE, ORDER No.20) MAY N/P Contact Us For Availability
21
MAY W10261199 MAY W10261199 Contact Us For Availability
21
MAY W10261200 MAY W10261200 Contact Us For Availability
21
SCREW (2) MAY 12990512 Contact Us For Availability
21
LINKAGE, CHILLER MAY 12568401SP Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY W10251969 MAY W10251969 Contact Us For Availability
22
Grille, Toe (Black) MAY W10236196 Contact Us For Availability
22
Grille, Fz Air MAY 13024803 Contact Us For Availability
22
MAY B8390302SP MAY B8390302SP Contact Us For Availability
22
LINKAGE, CHILLER CENTER MAY 12568502SP Contact Us For Availability
22
MAY 12726402 MAY 12726402 Contact Us For Availability
22
SUPPORT-LH MAY 12531001 Contact Us For Availability
22
Screw MAY 489136 Contact Us For Availability
23
MAY 10463203SP MAY 10463203SP Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
MAY 12706909SP MAY 12706909SP Contact Us For Availability
23
HOOK, CHILLER FRAME MAY 12827501SP Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
23
SUPPORT-RH MAY 12531002 Contact Us For Availability
24
MAY W10210988 MAY W10210988 Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability
24
MAY 12707303SP MAY 12707303SP Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
24
SHELF, GLIDE OUT (4) MAY 12463310V Contact Us For Availability
24
MAY 12918001 MAY 12918001 Contact Us For Availability
25
MAY W10121318 MAY W10121318 Contact Us For Availability
25
Slide,Pantry MAY 12531502 Contact Us For Availability
25
MAY 12695001N MAY 12695001N Contact Us For Availability
26
Fiber, Acoustic MAY 12820505 Contact Us For Availability
26
MAY W10128551 MAY W10128551 Contact Us For Availability
26
GUIDE, WATERLINE MAY 12707205SP Contact Us For Availability
26
MAY W10234025 MAY W10234025 Contact Us For Availability
26
BAR, CONTROL MAY 12531401 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
MAY 12251001SP MAY 12251001SP Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
27
MAY 12531601 MAY 12531601 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
FACADE, DISP (TOP) MAY 12707005 Contact Us For Availability
28
Compressor (Includes items 11,12,17,27) MAY W10130129 Contact Us For Availability
28
MAY 12531701 MAY 12531701 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
MAY 12706111 MAY 12706111 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
30
Axle, Roller (2) MAY 12477202 Contact Us For Availability
31
BLOCK, FILTER (2) MAY 12777701 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
PLUG, BYPASS MAY 12664501SP Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
31
MAY 10448903N MAY 10448903N Contact Us For Availability
32
MAY 12831101 MAY 12831101 Contact Us For Availability
32
Screw (6) MAY 12990501 Contact Us For Availability
32
MAY W10257665 MAY W10257665 Contact Us For Availability
33
LID, HV BOX MAY W10296541 Contact Us For Availability
34
MAY 12932103 MAY 12932103 Contact Us For Availability
34
GASKET-HV BOX MAY 12957801 Contact Us For Availability
35
MAY W10157765 MAY W10157765 Contact Us For Availability
35
MAY W10205552 MAY W10205552 Contact Us For Availability
37
MAY 12961602 MAY 12961602 Contact Us For Availability
38
MAY 12990702 MAY 12990702 Contact Us For Availability
39
MAY W10206337 MAY W10206337 Contact Us For Availability
40
MAY W10206339 MAY W10206339 Contact Us For Availability
100
MAY W10190978 MAY W10190978 Contact Us For Availability
NI
MAY W10224290 MAY W10224290 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Cleaner, Stainless Steel MAY 2217192 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Biscuit) MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
