Model Huebsch HWR261*H Washer – Common Parts & Diagrams
Control Panel and Controls
Cabinet Top and Control Cabinet

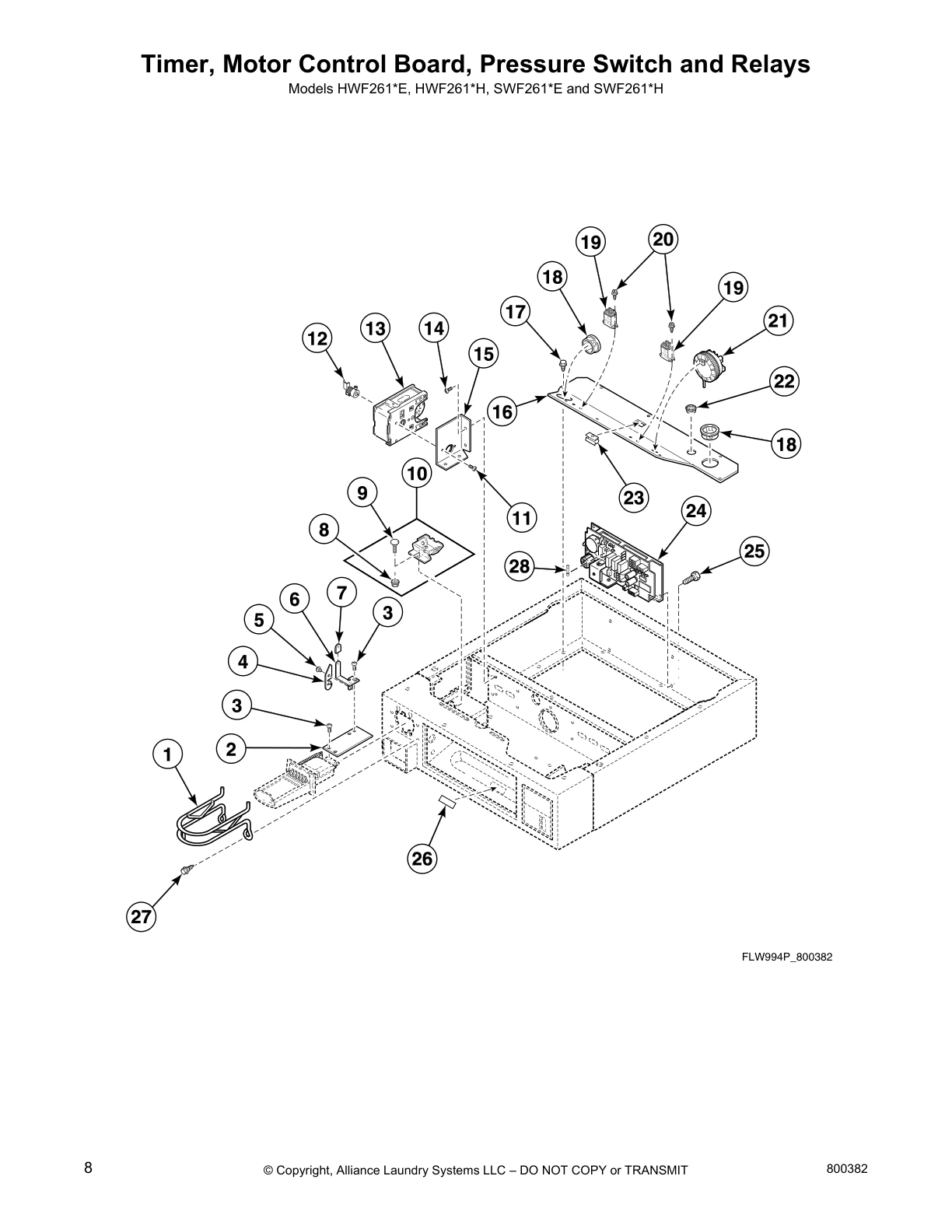

Timer, Motor Control Board, Pressure Switch and Relays

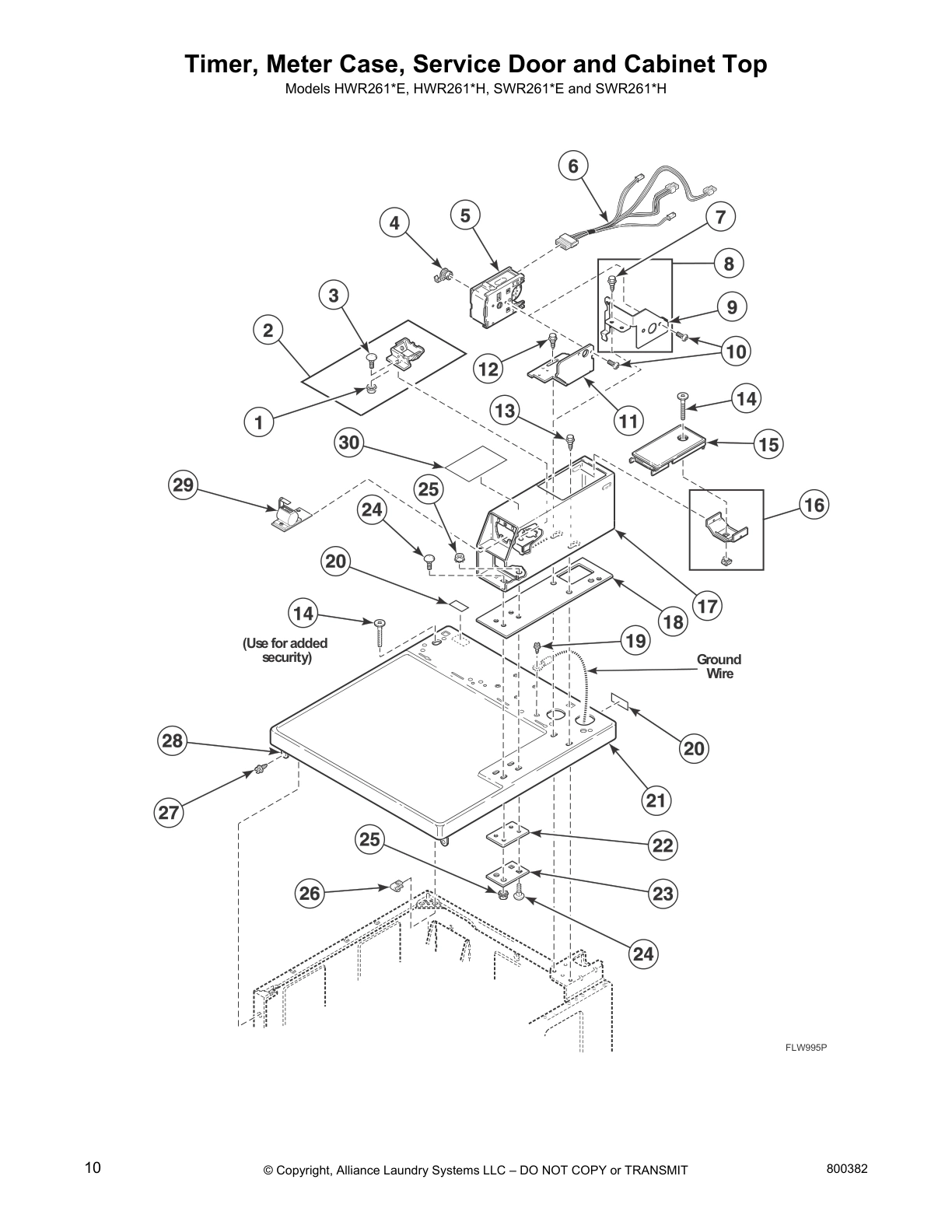

Timer, Meter Case, Service Door and Cabinet Top
Coin Drop, Meter Case, Service Door and Cabinet Top

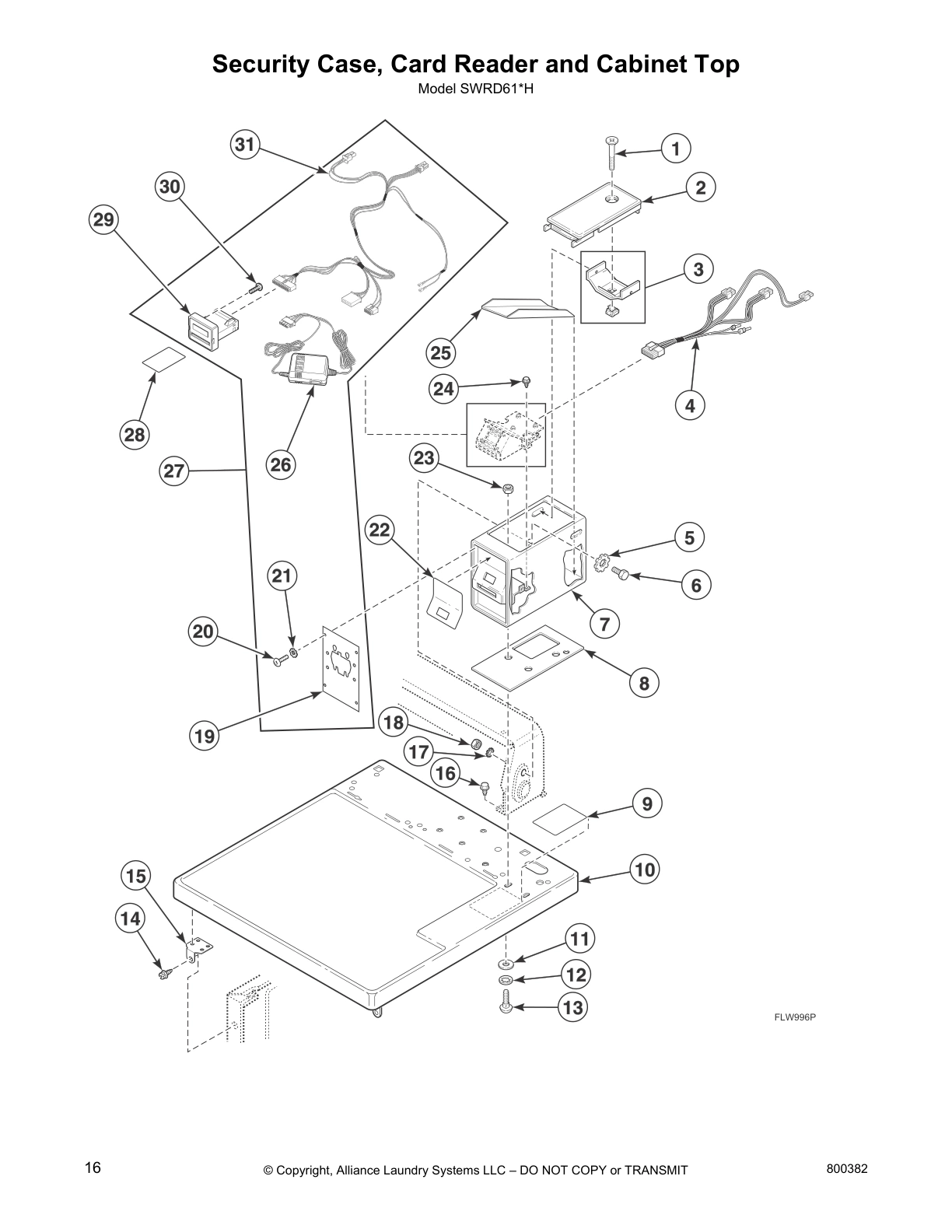

Security Case, Card Reader and Cabinet Top
Control Panel, Control Hood, Controls and Timer Case

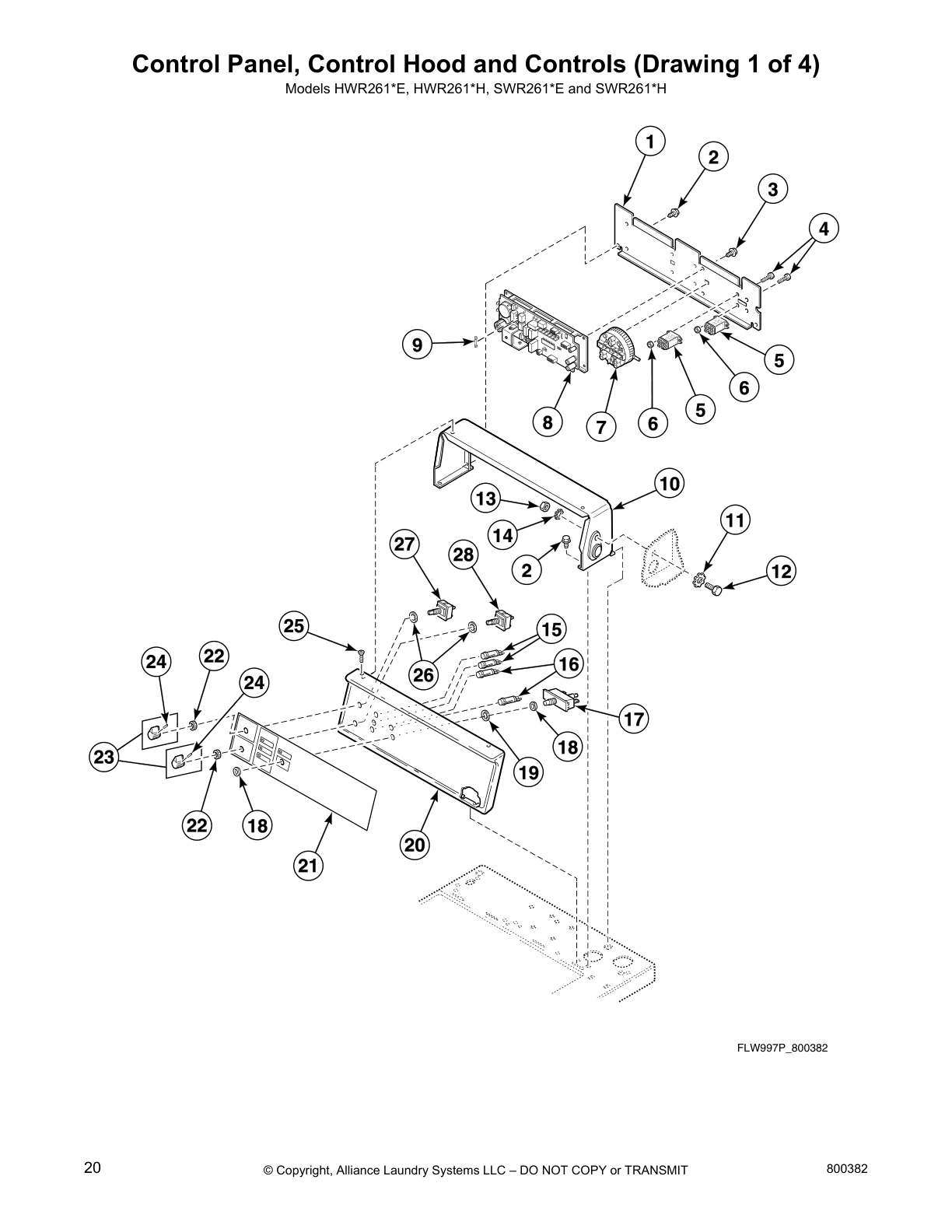

Control Panel, Control Hood and Controls (Drawing 1 of 4)

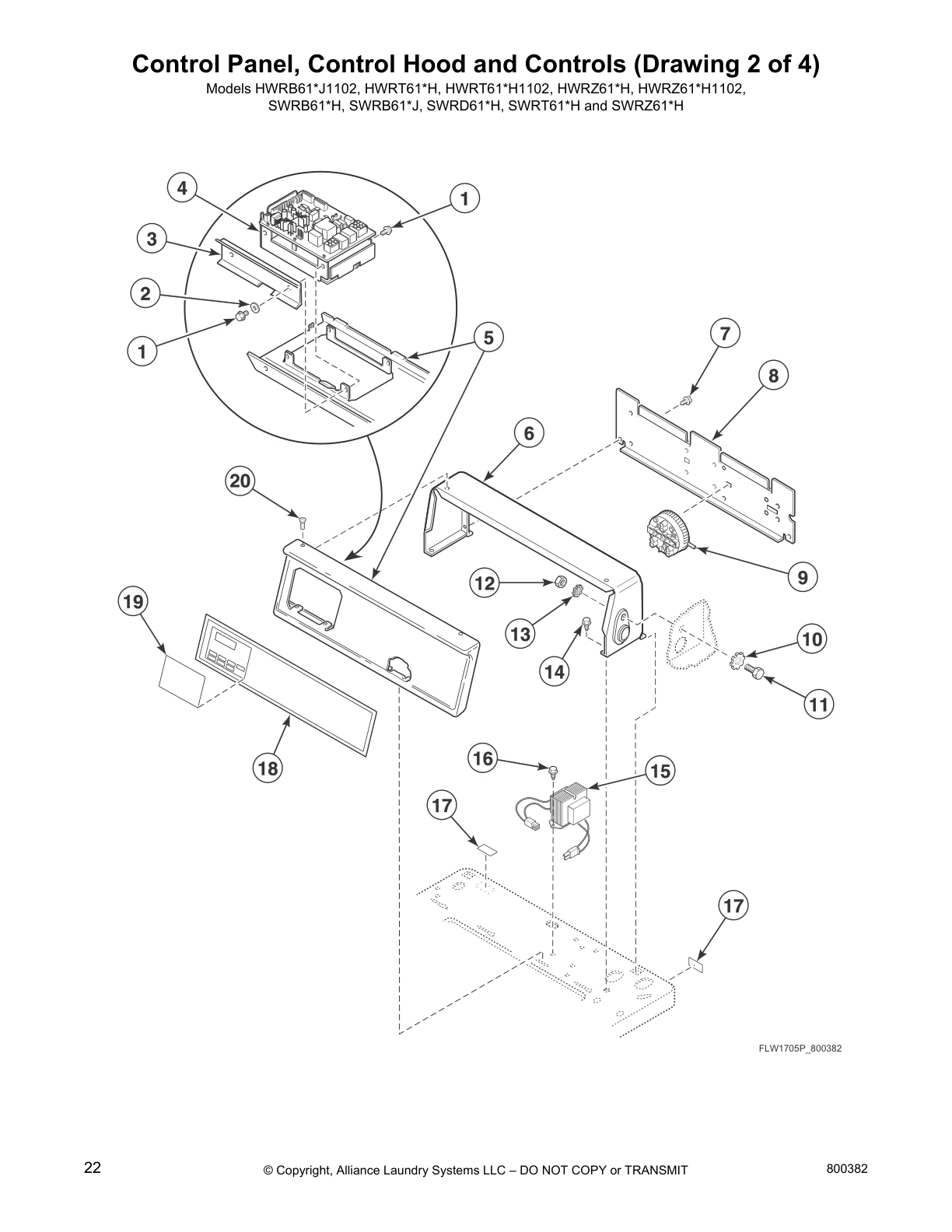

Control Panel, Control Hood and Controls (Drawing 2 of 4)

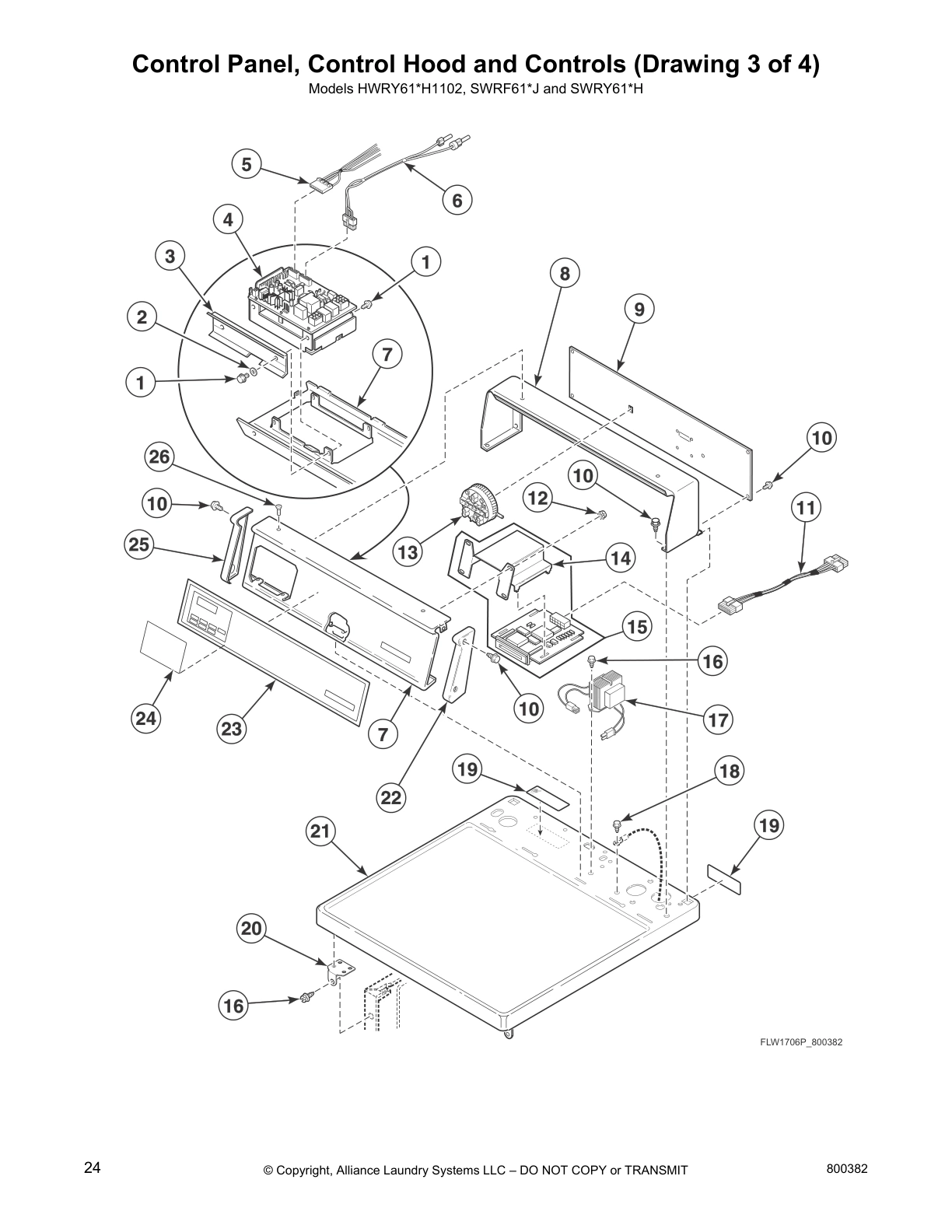

Control Panel, Control Hood and Controls (Drawing 3 of 4)

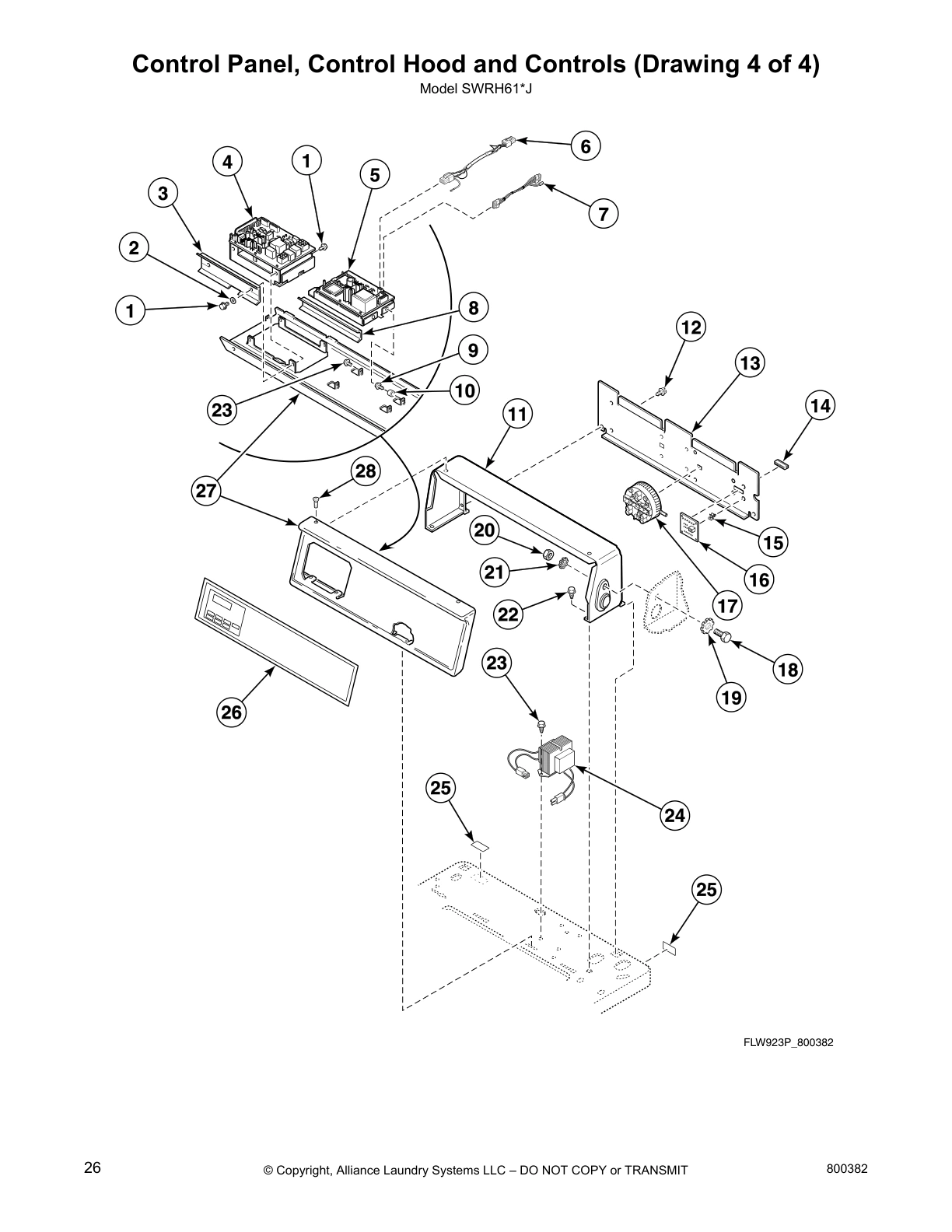

Control Panel, Control Hood and Controls (Drawing 4 of 4)

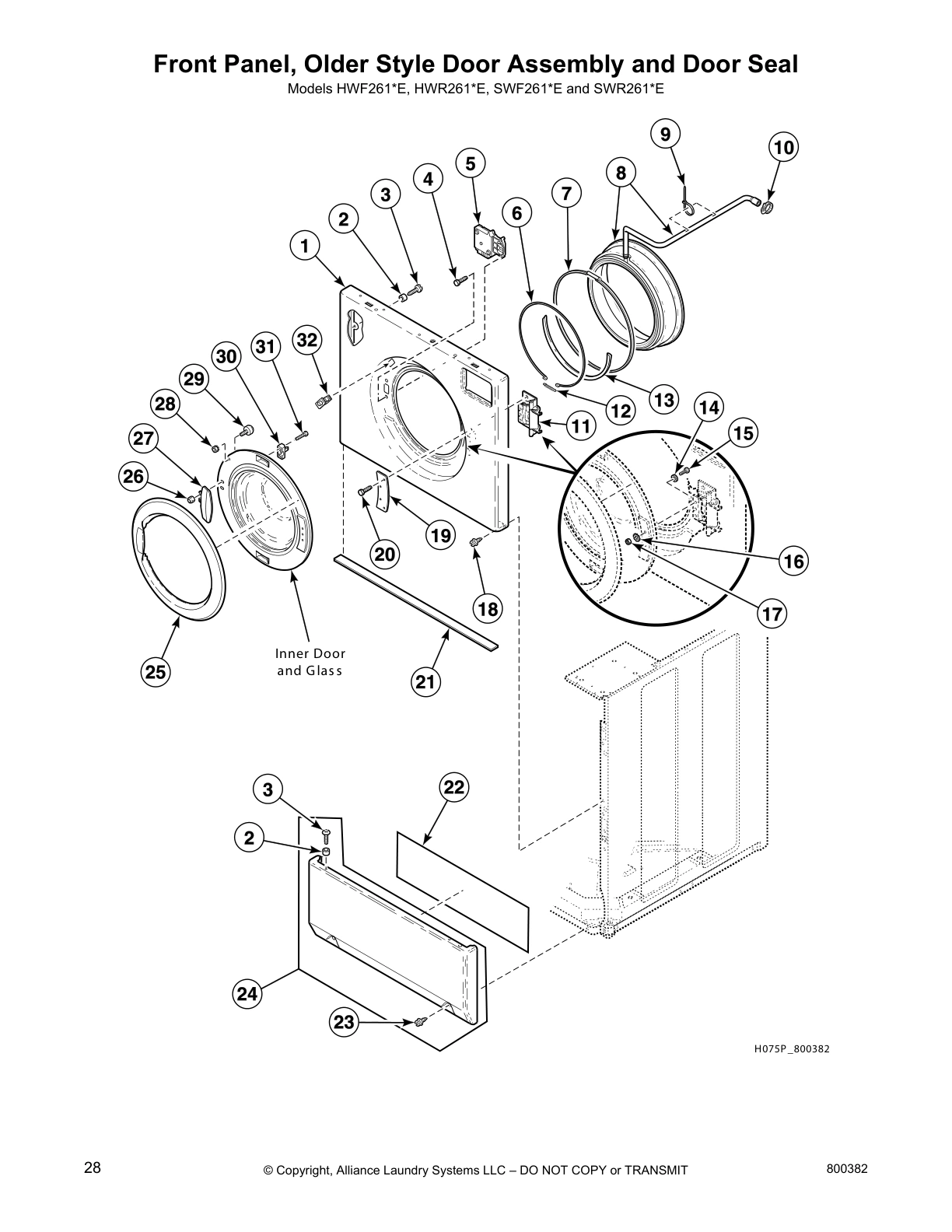

Front Panel, Older Style Door Assembly and Door Seal

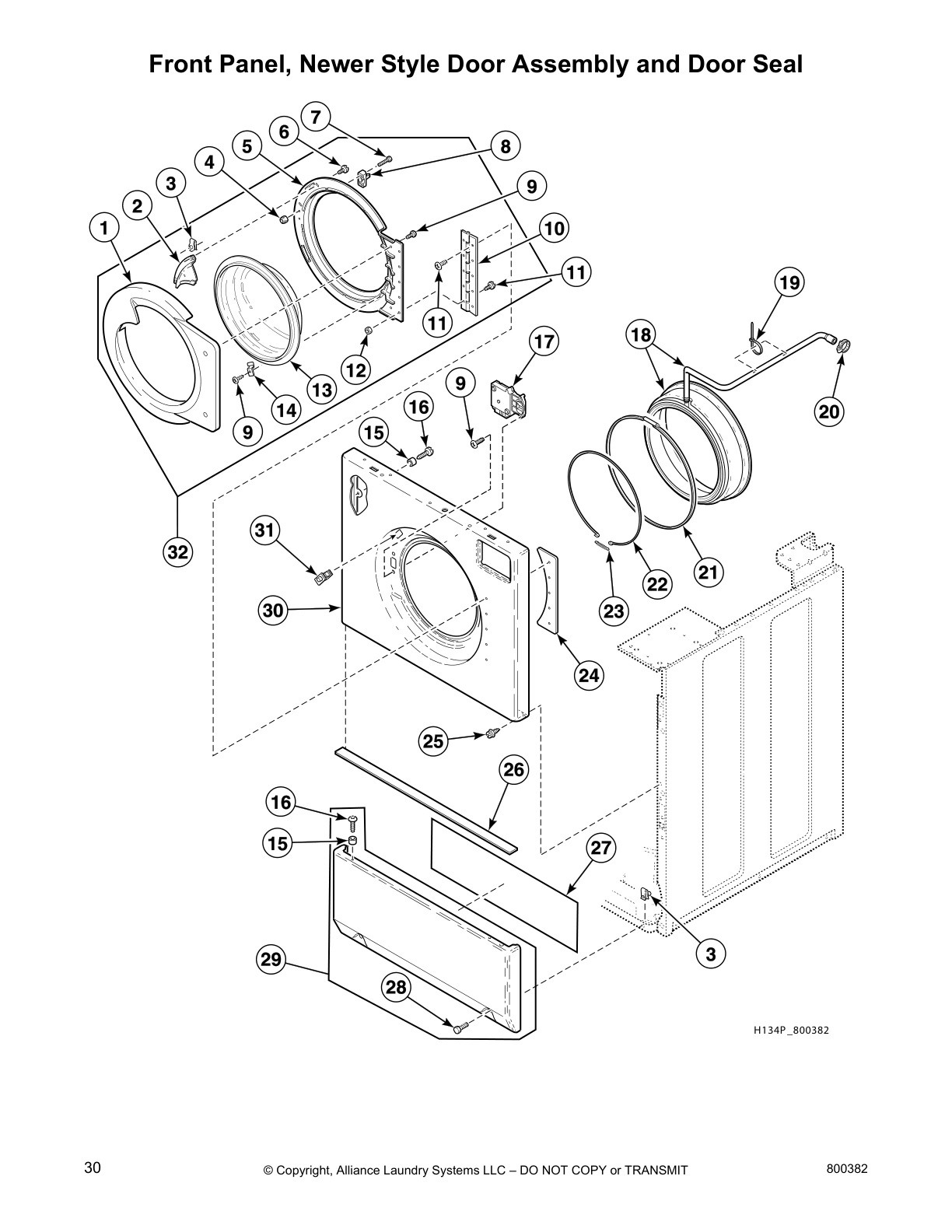

Front Panel, Newer Style Door Assembly and Door Seal
Dispenser Assembly

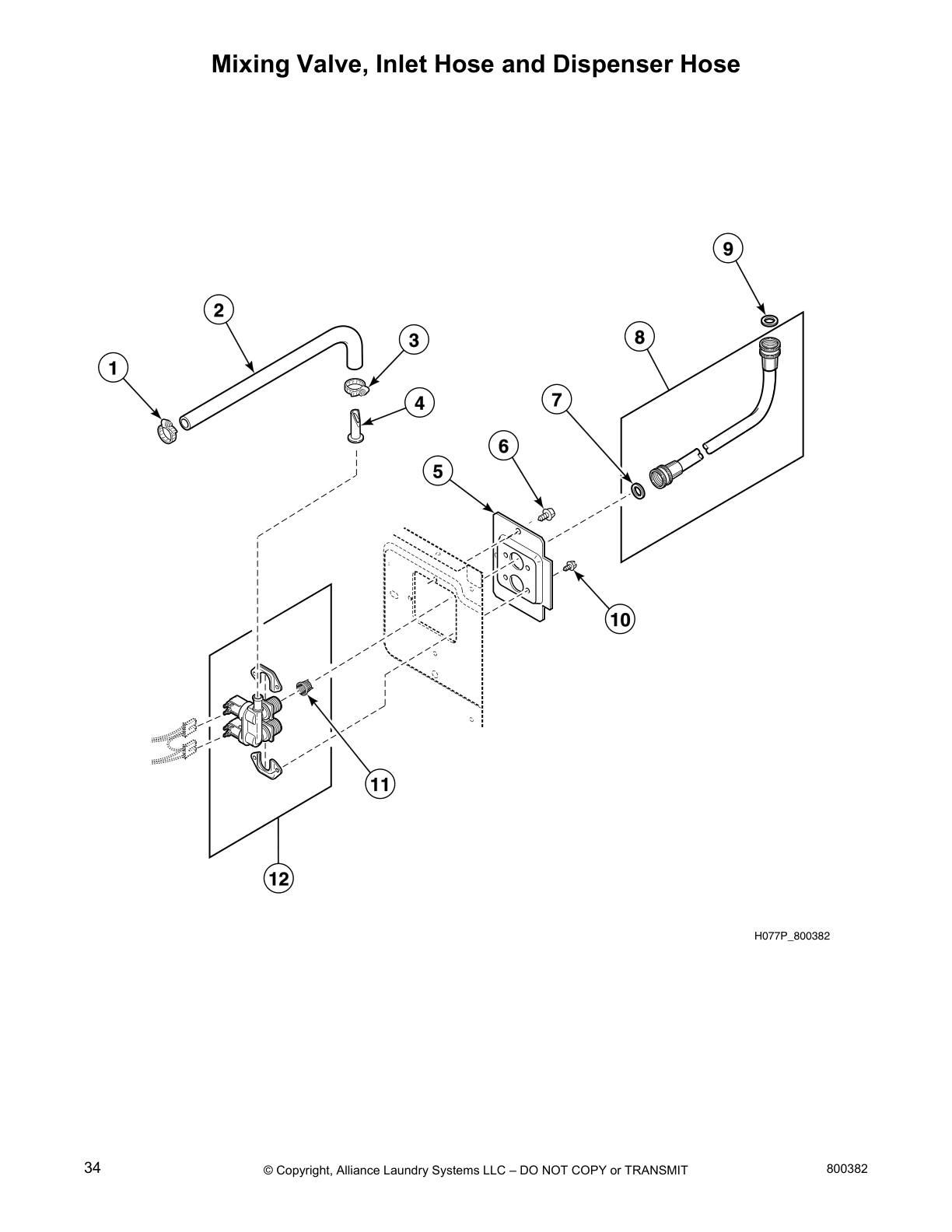

Mixing Valve, Inlet Hose and Dispenser Hose

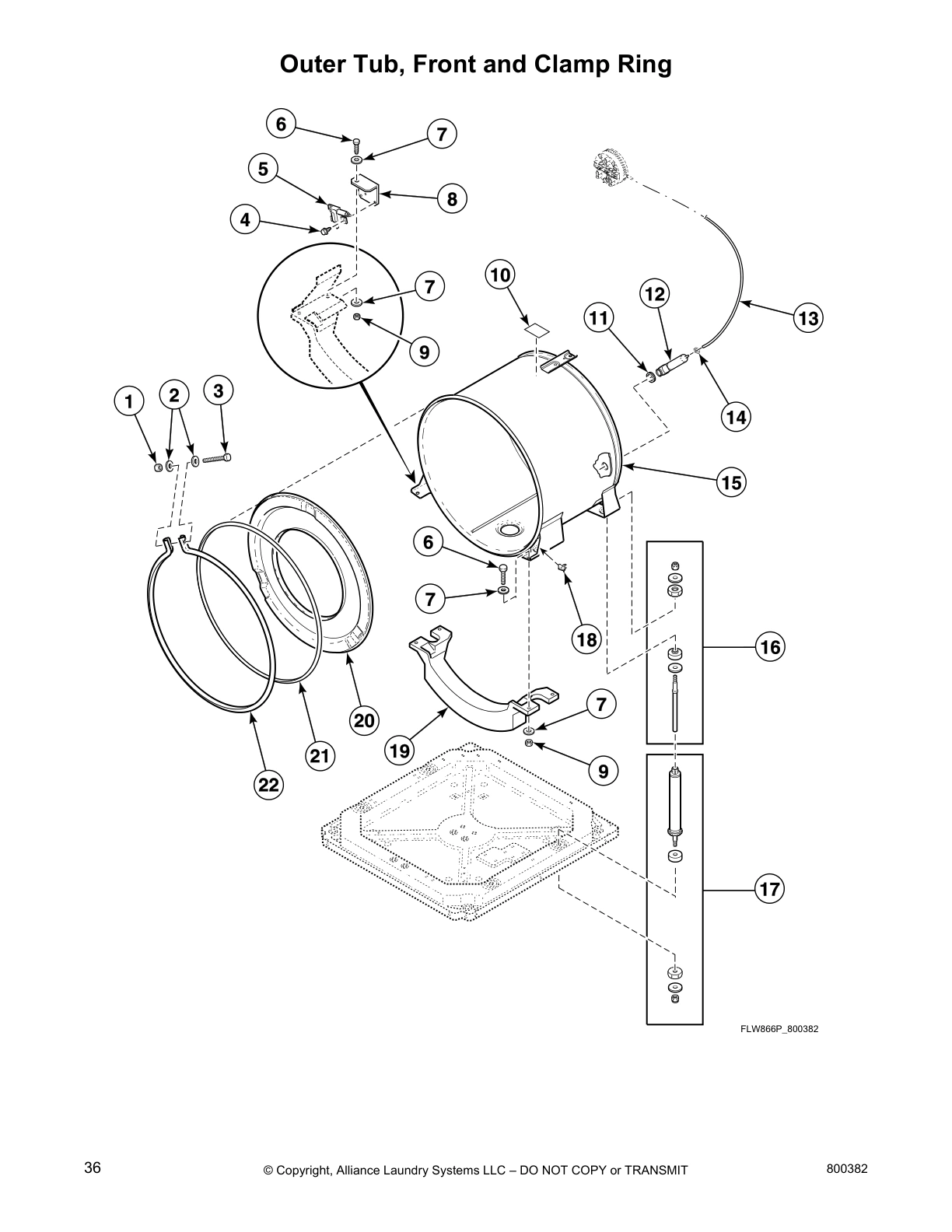

Outer Tub, Front and Clamp Ring
Inner Basket, Trunnion, Bearing Housing and Pulley

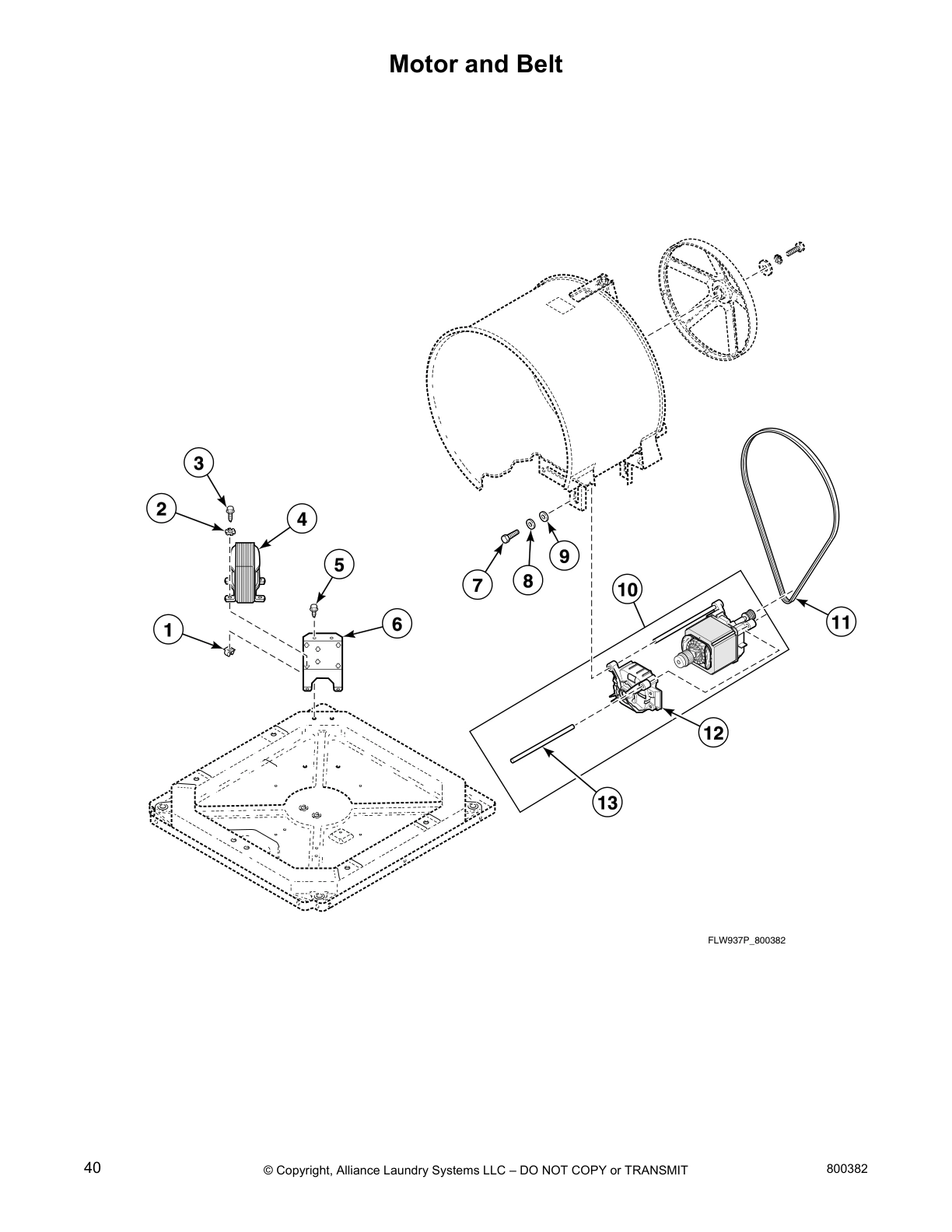

Motor and Belt

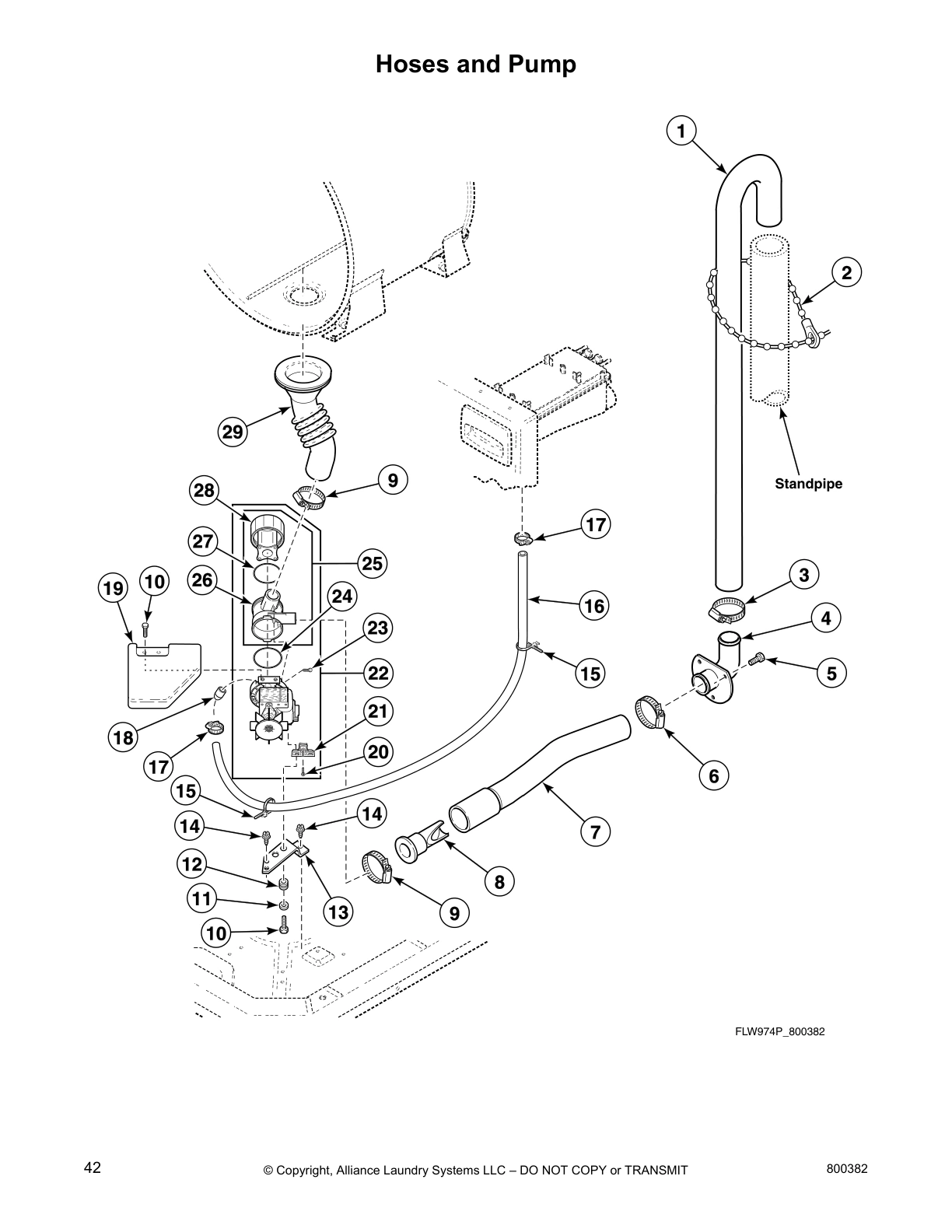

Hoses and Pump

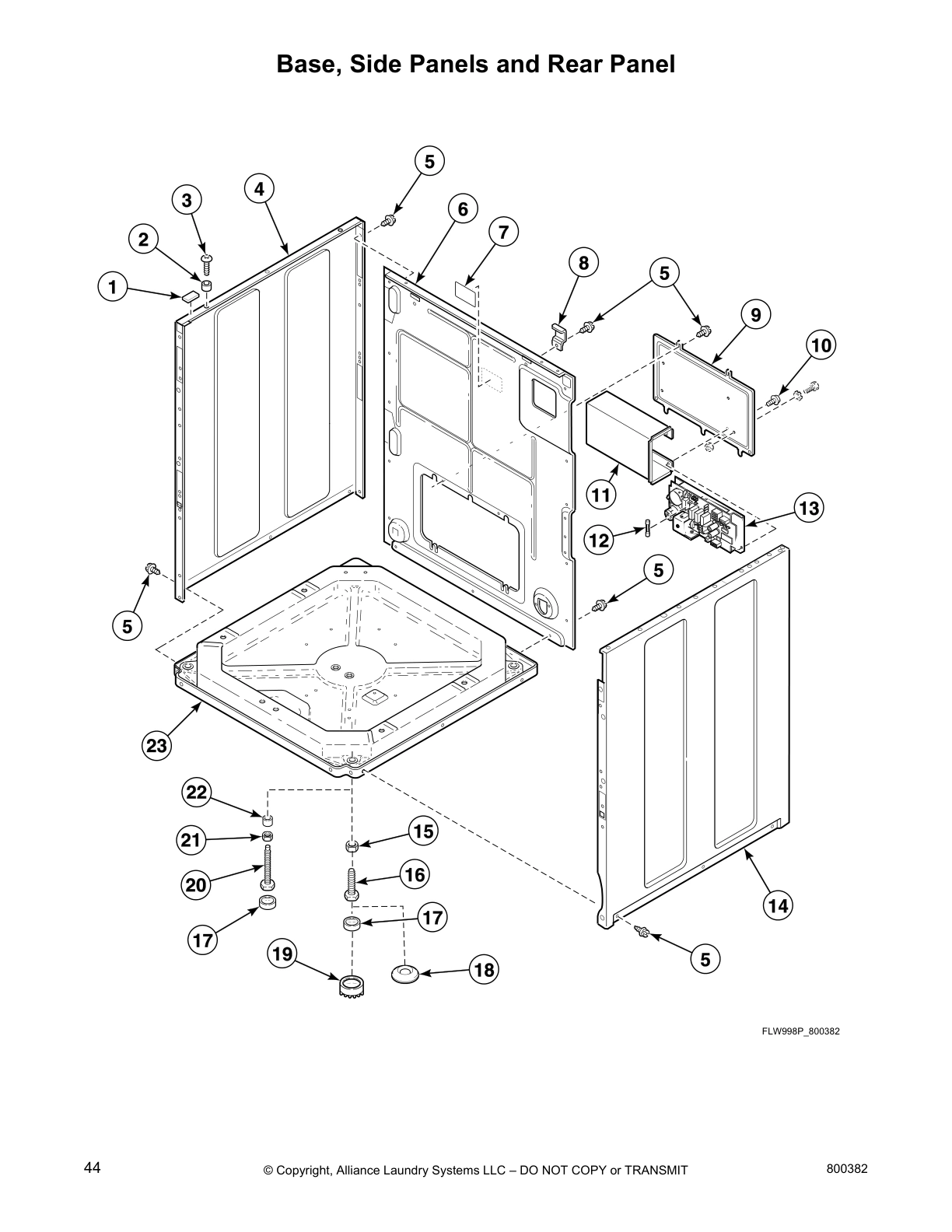

Base, Side Panels and Rear Panel

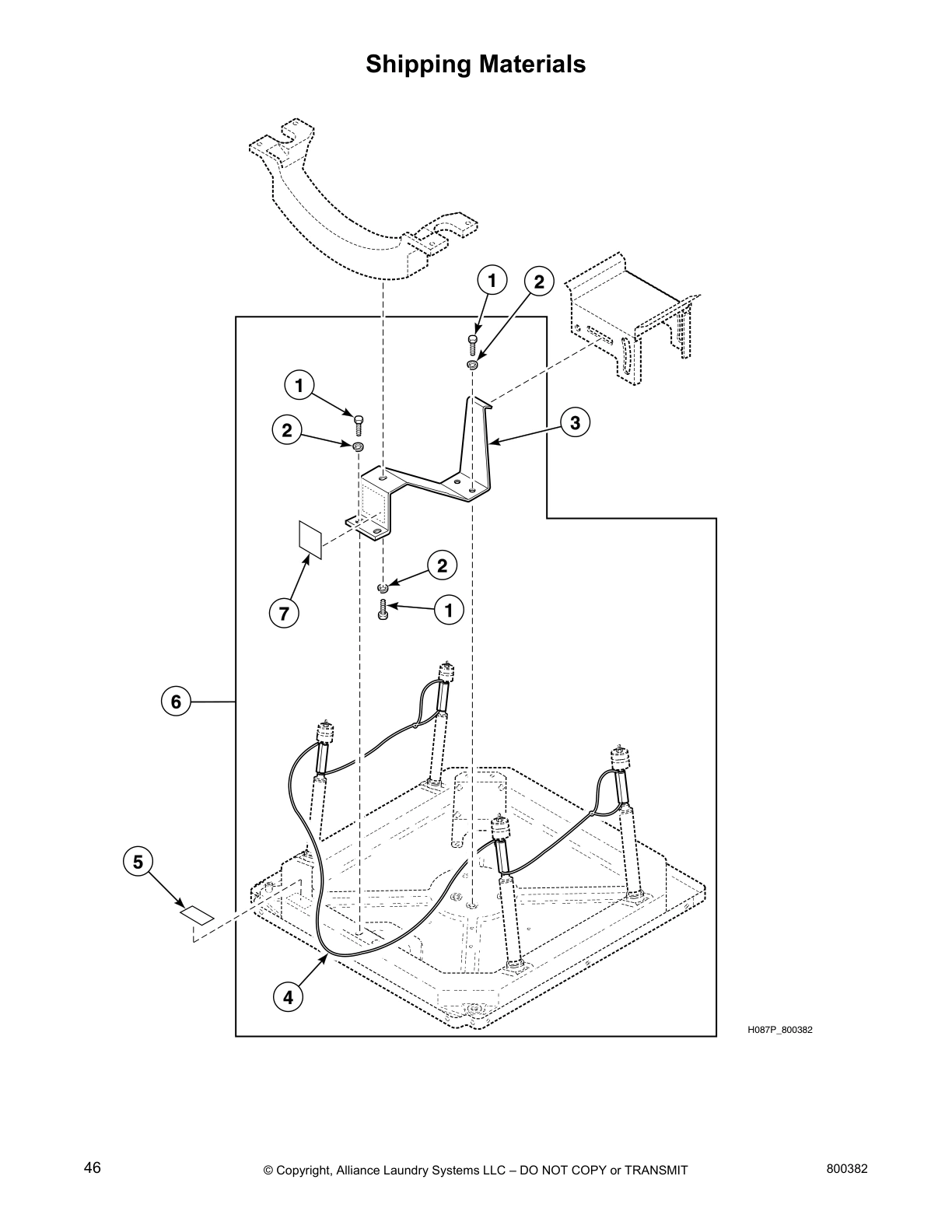

Shipping Materials

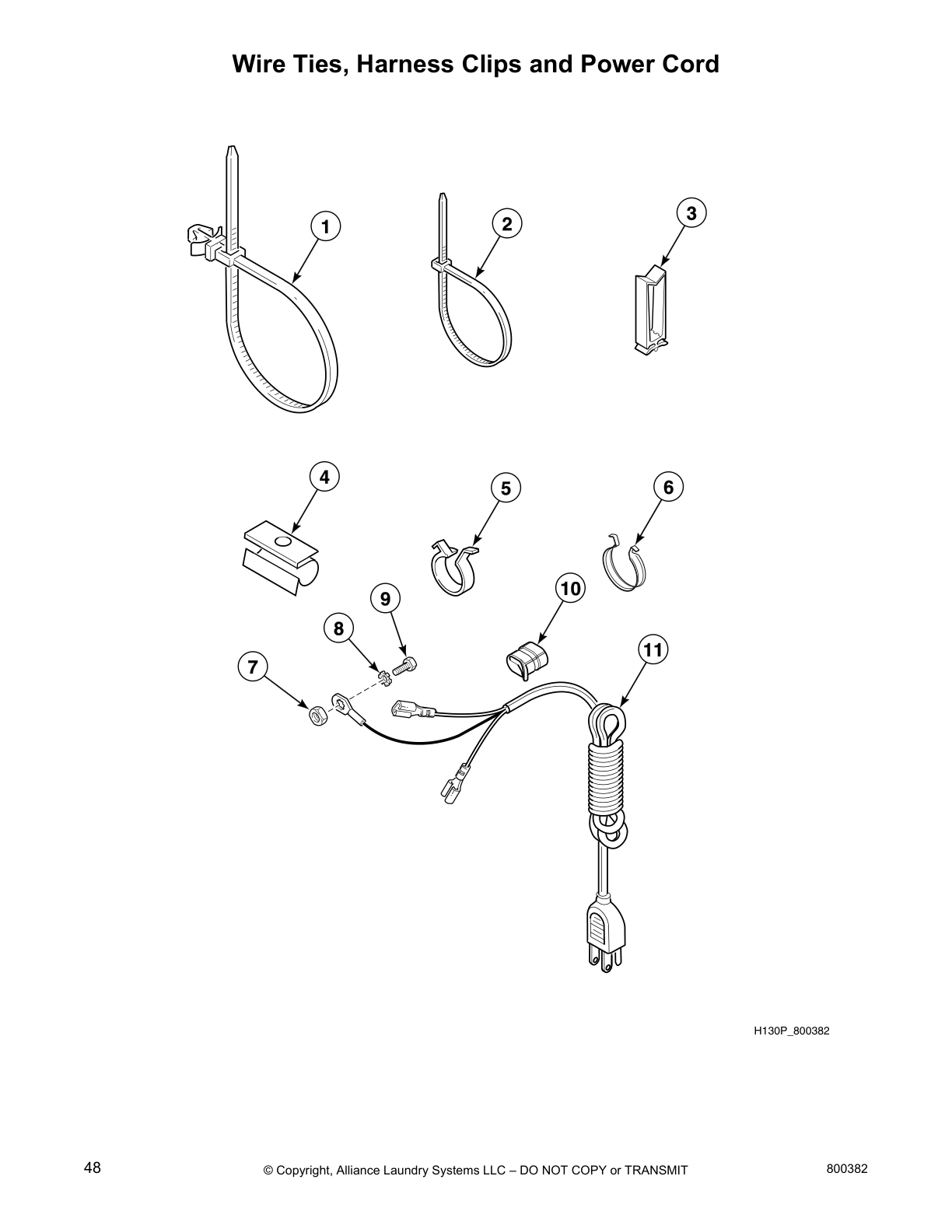

Wire Ties, Harness Clips and Power Cord
Special Tools

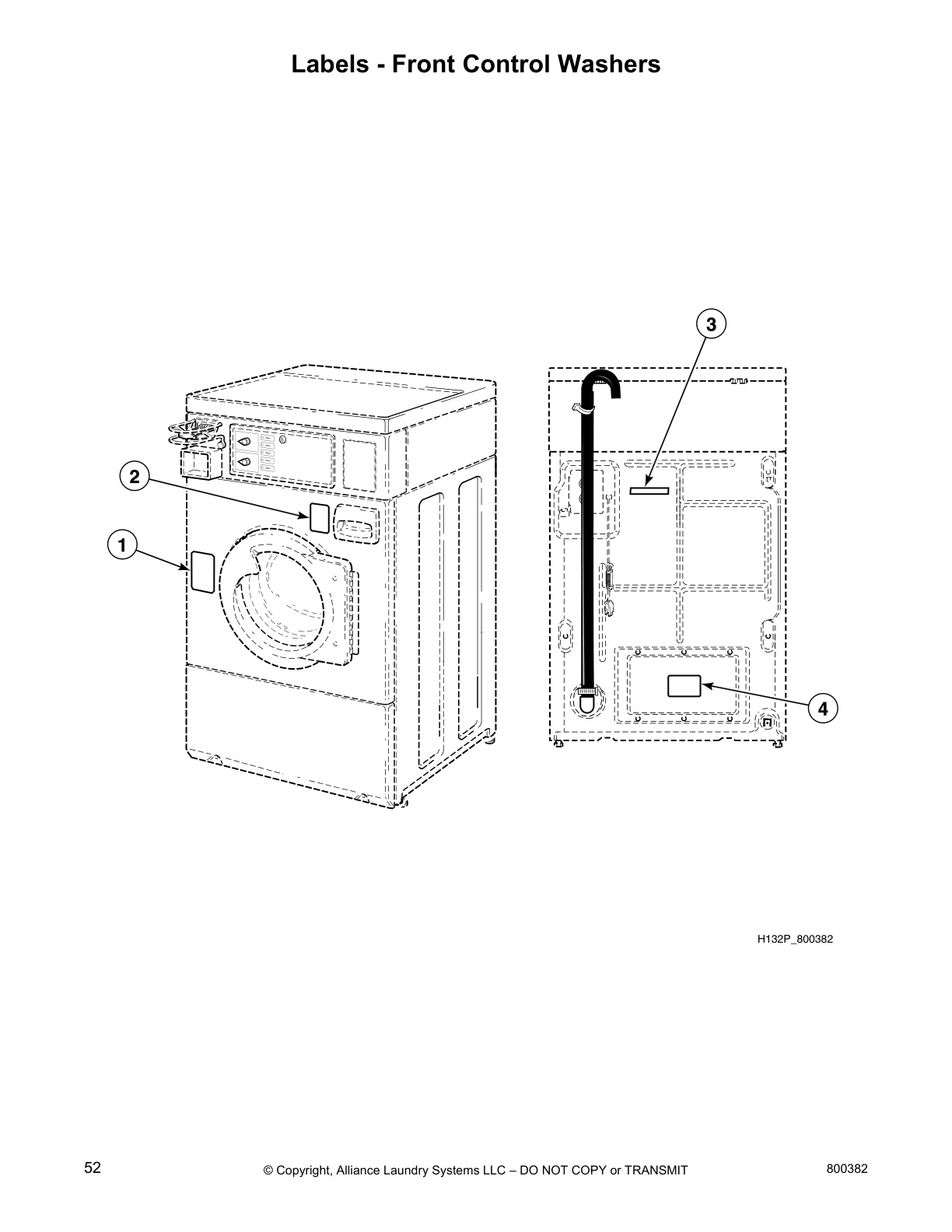

Labels - Front Control Washers

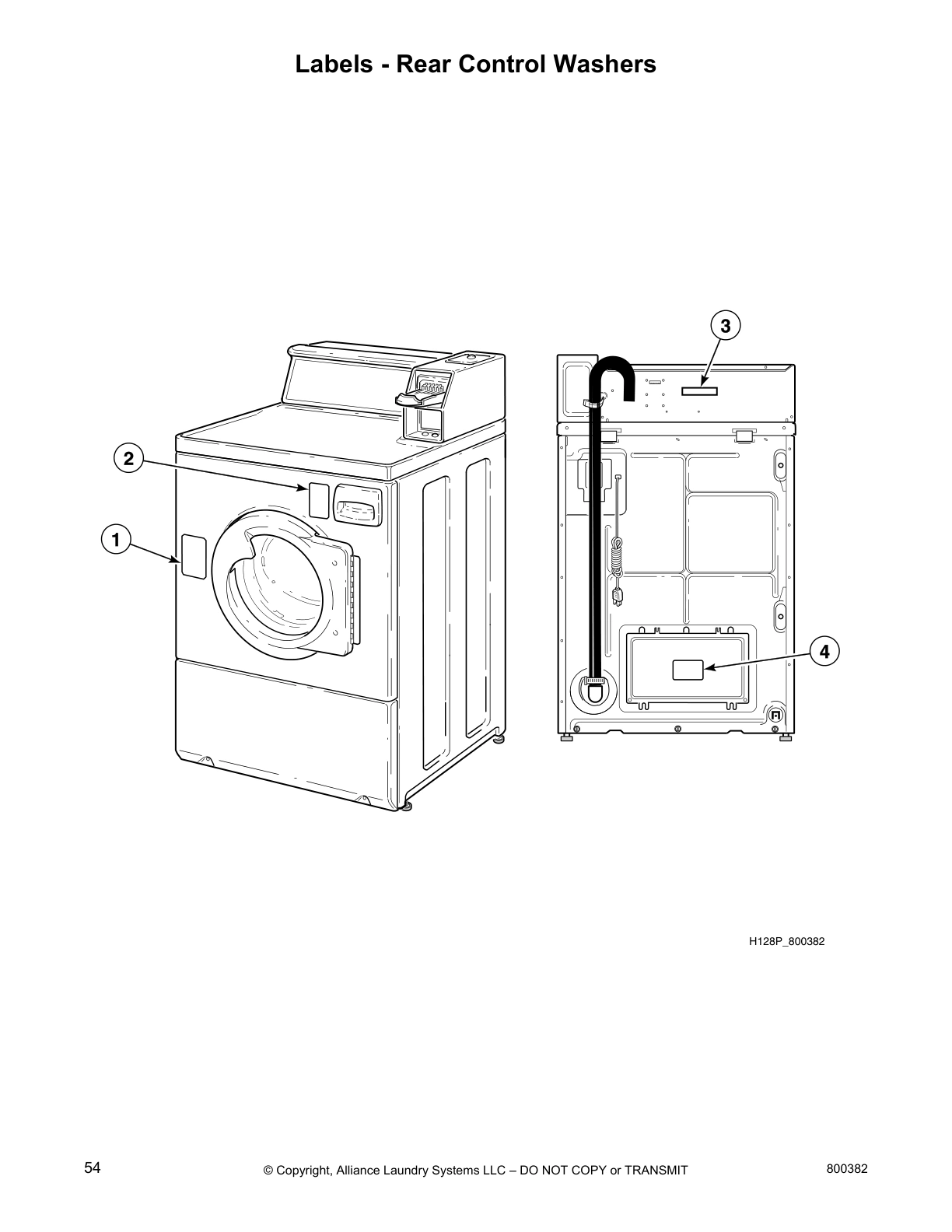

Labels - Rear Control Washers
Wire Harnesses and Wires
Common parts from model Huebsch HWR261*H Washer
2
Hose Clamp SPQ 801784P Contact Us For Availability
3
SPQ 91176 SPQ 91176 Contact Us For Availability
7
SPQ 800211 SPQ 800211 Contact Us For Availability
16
Inner Basket Assembly SPQ 800428P Contact Us For Availability
16
Dispenser Drawer Front SPQ 801476P Contact Us For Availability
16
Meter Case Gasket SPQ 39874LP Contact Us For Availability
17
Control Panel Overlay SPQ 32464 Contact Us For Availability
20
Door Seal Clamp SPQ 800232P Contact Us For Availability
23
Bolt SPQ 201010QP Contact Us For Availability
29
Sealant SPQ 802434P Contact Us For Availability
× ![]()
