Model Huebsch HWF261*E Washer – Common Parts & Diagrams

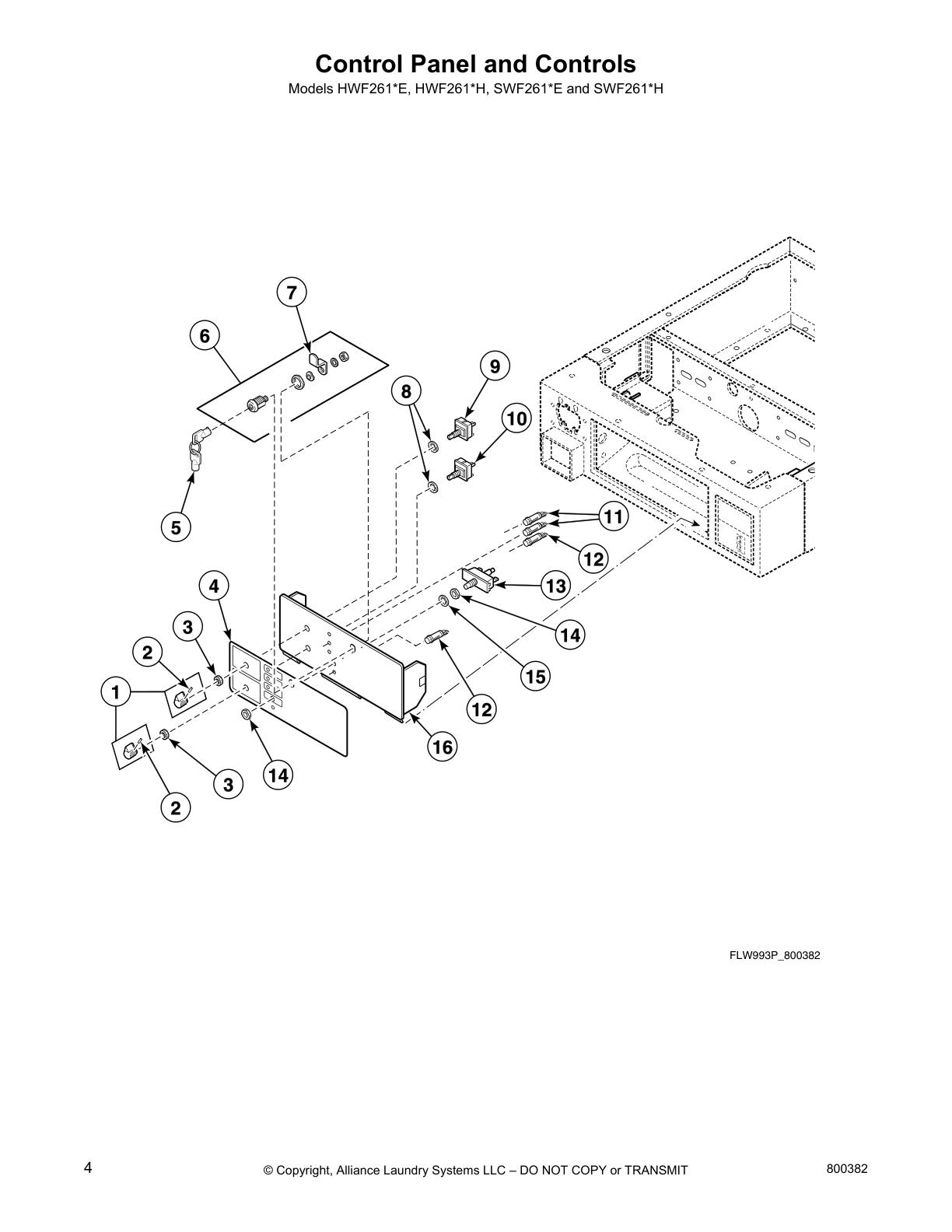

Control Panel and Controls

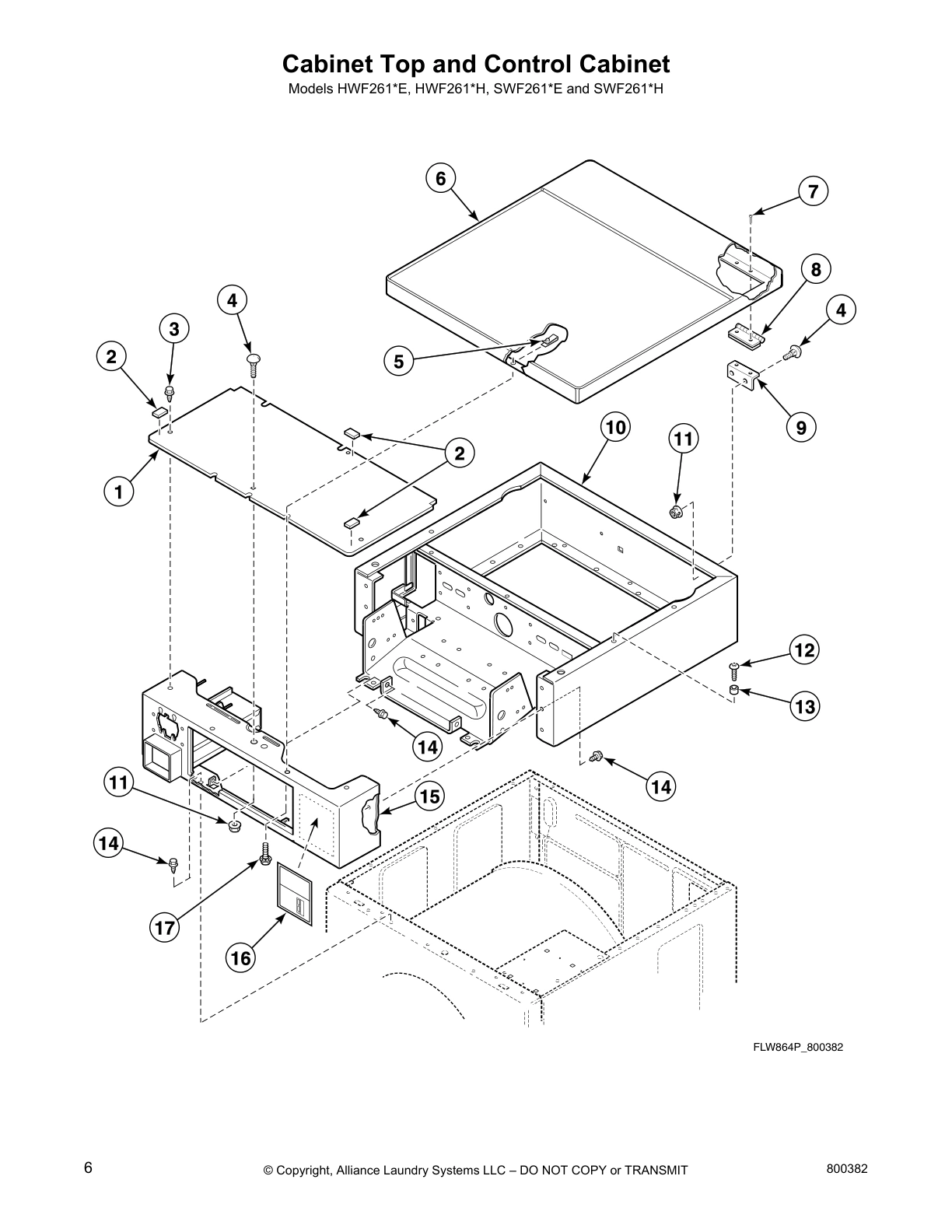

Cabinet Top and Control Cabinet

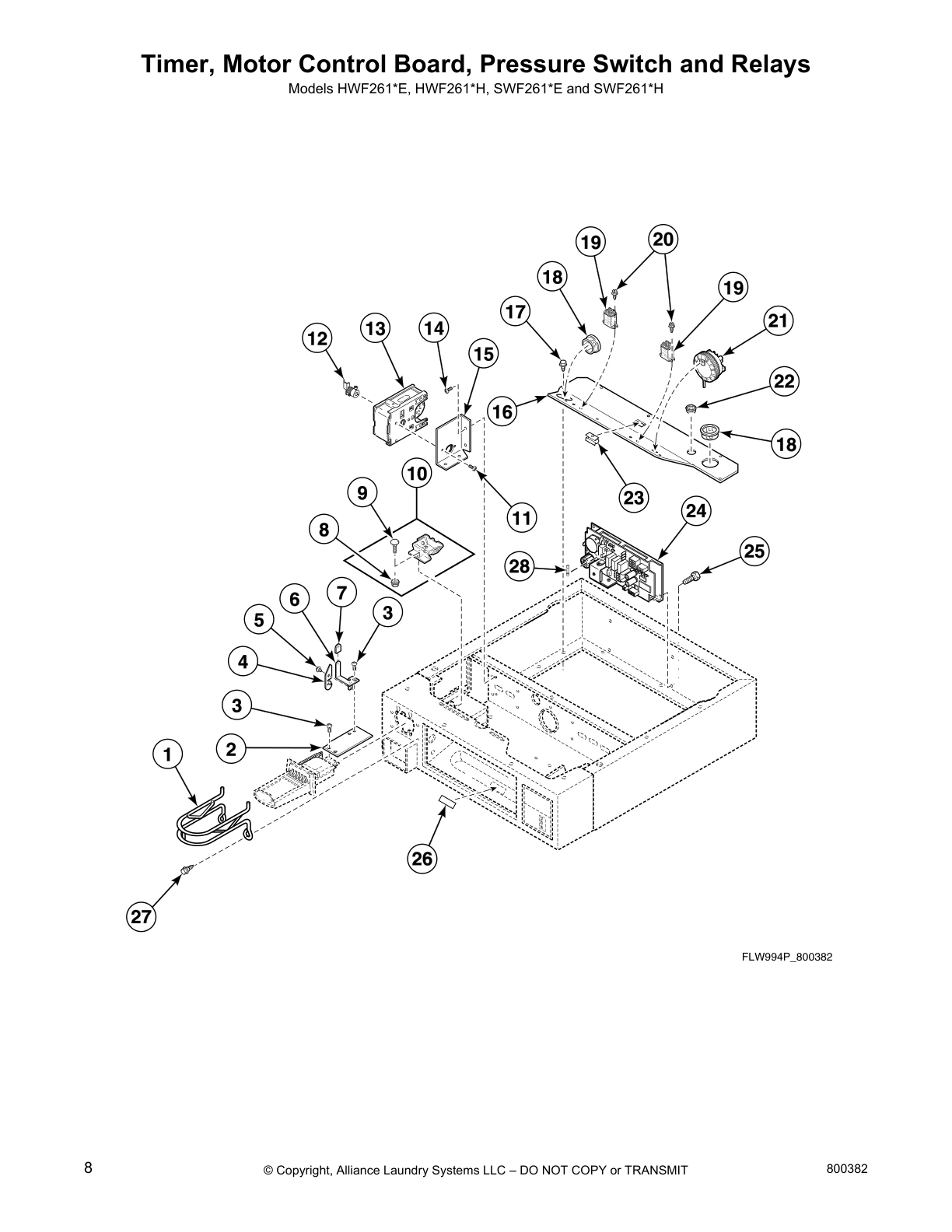

Timer, Motor Control Board, Pressure Switch and Relays

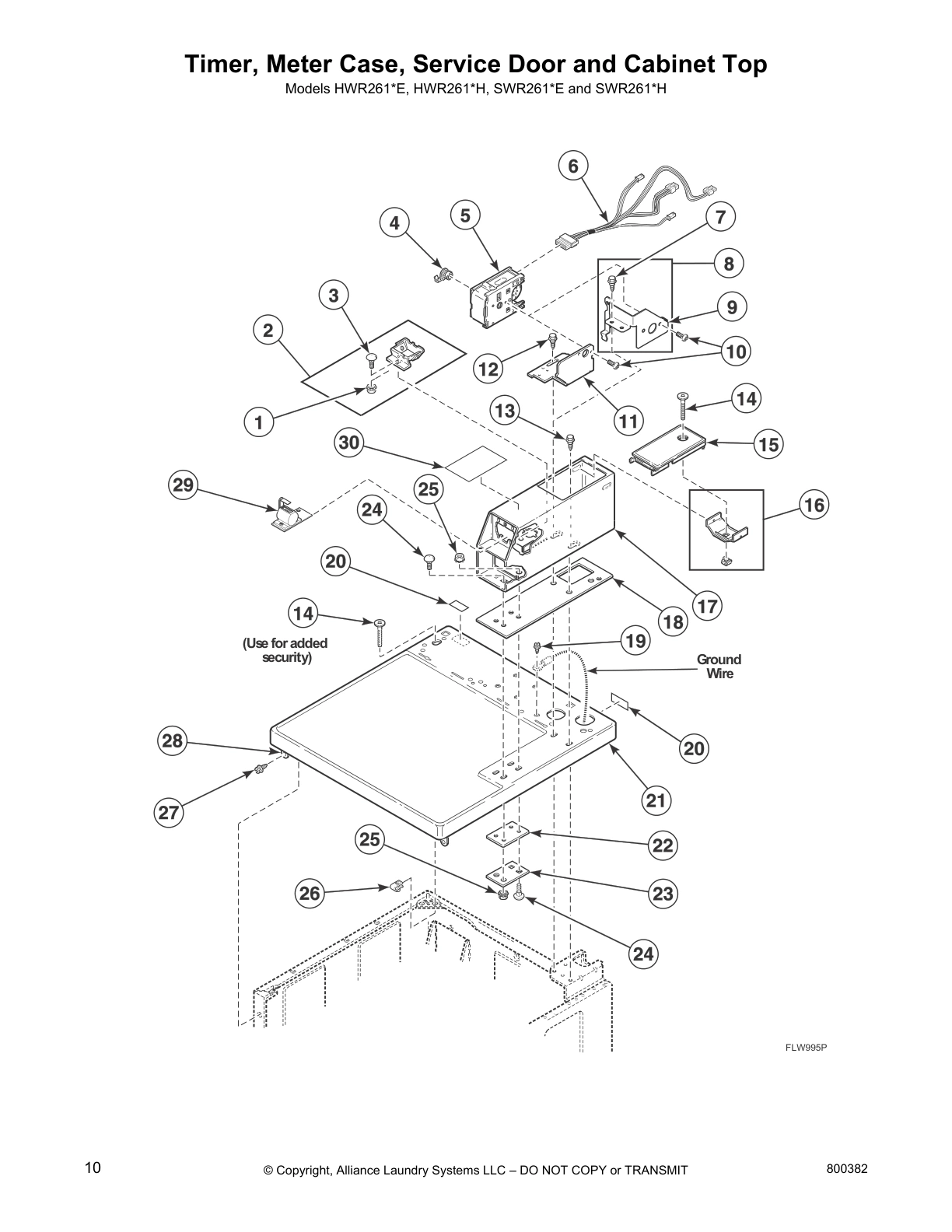

Timer, Meter Case, Service Door and Cabinet Top

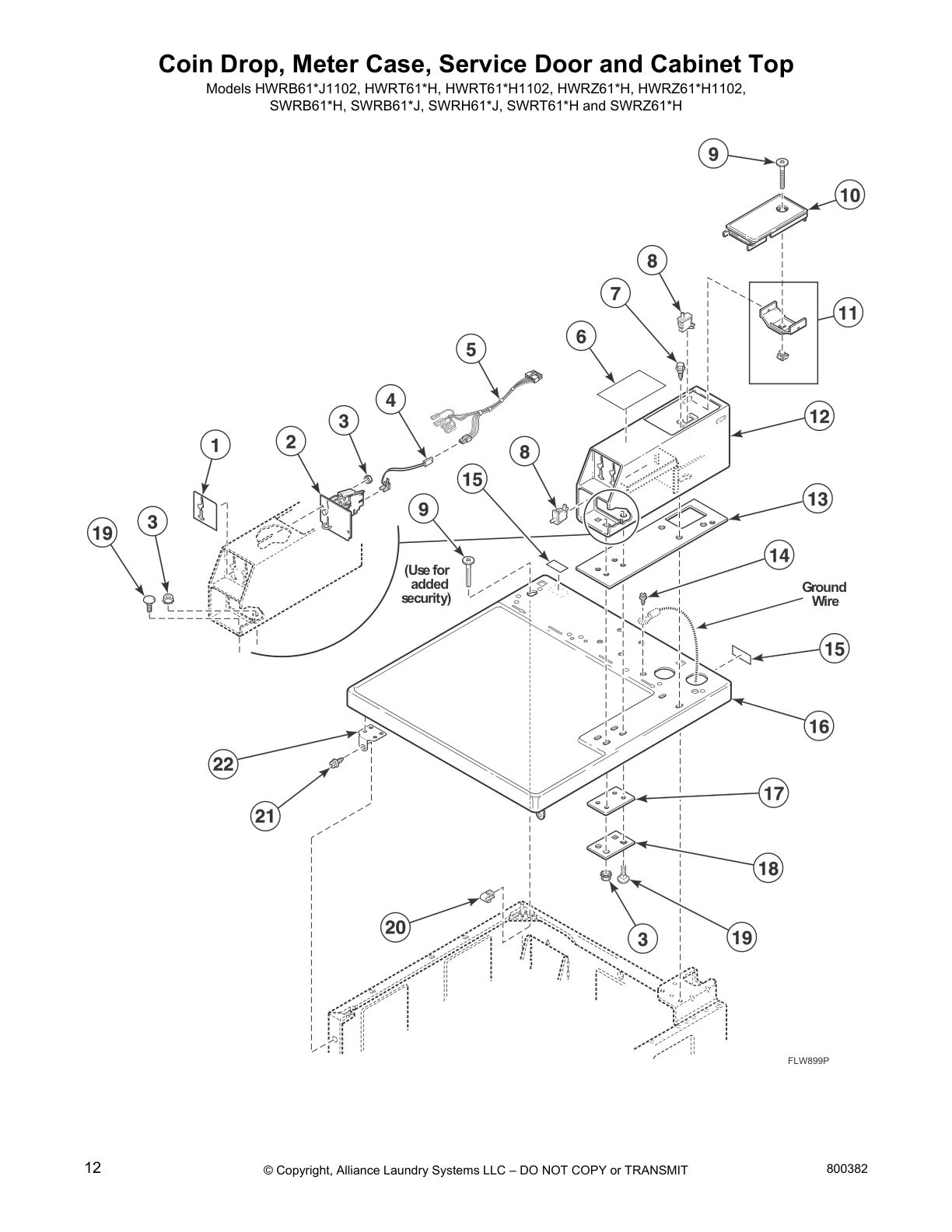

Coin Drop, Meter Case, Service Door and Cabinet Top

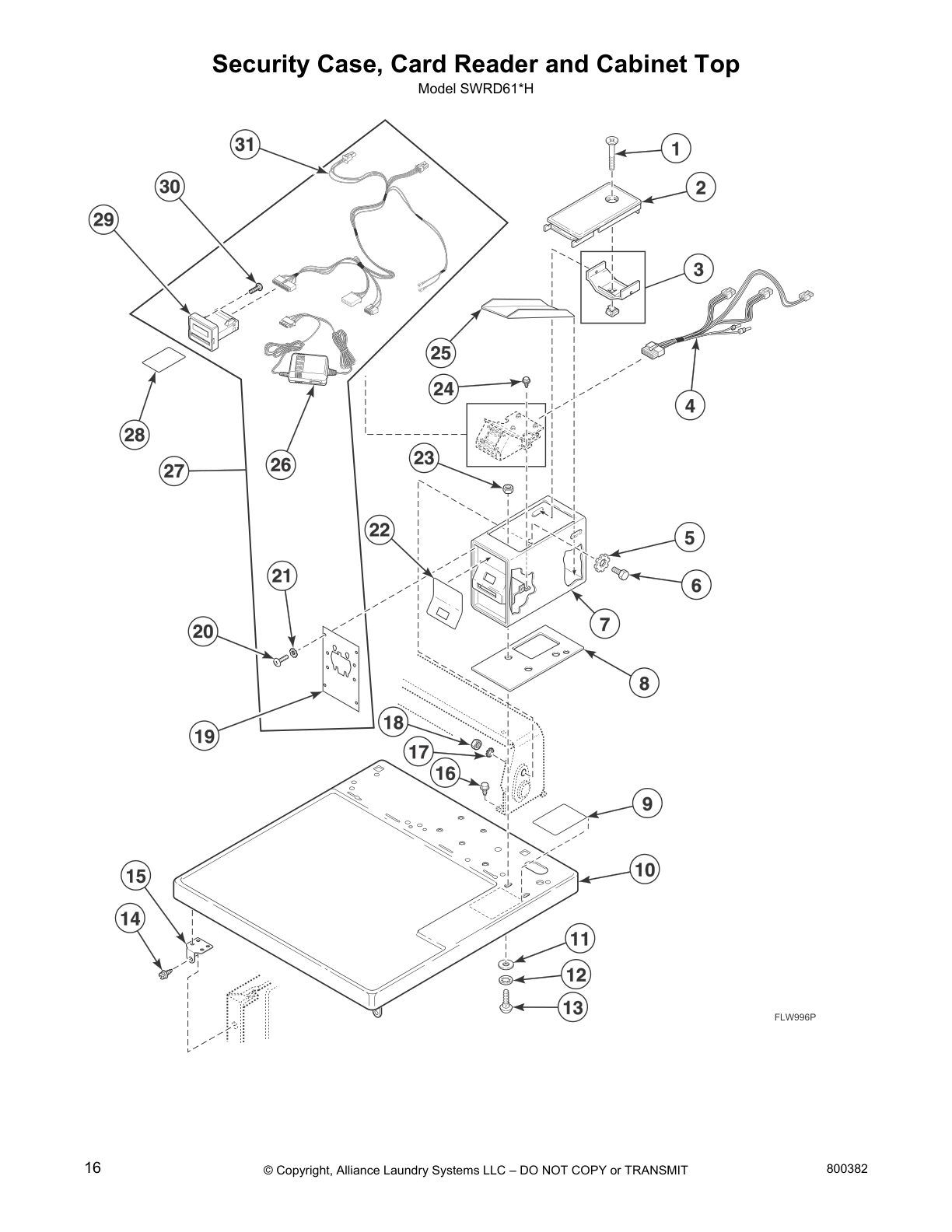

Security Case, Card Reader and Cabinet Top

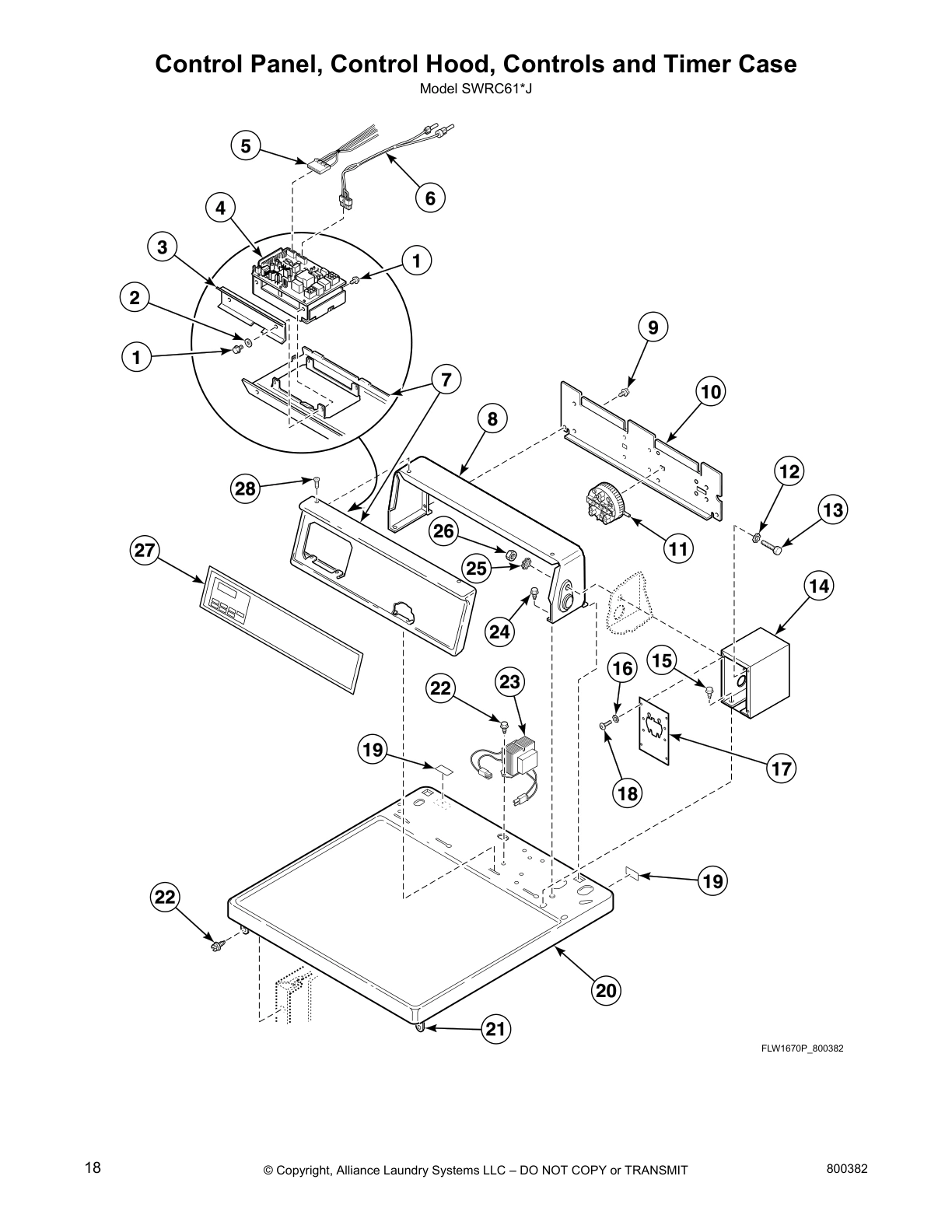

Control Panel, Control Hood, Controls and Timer Case

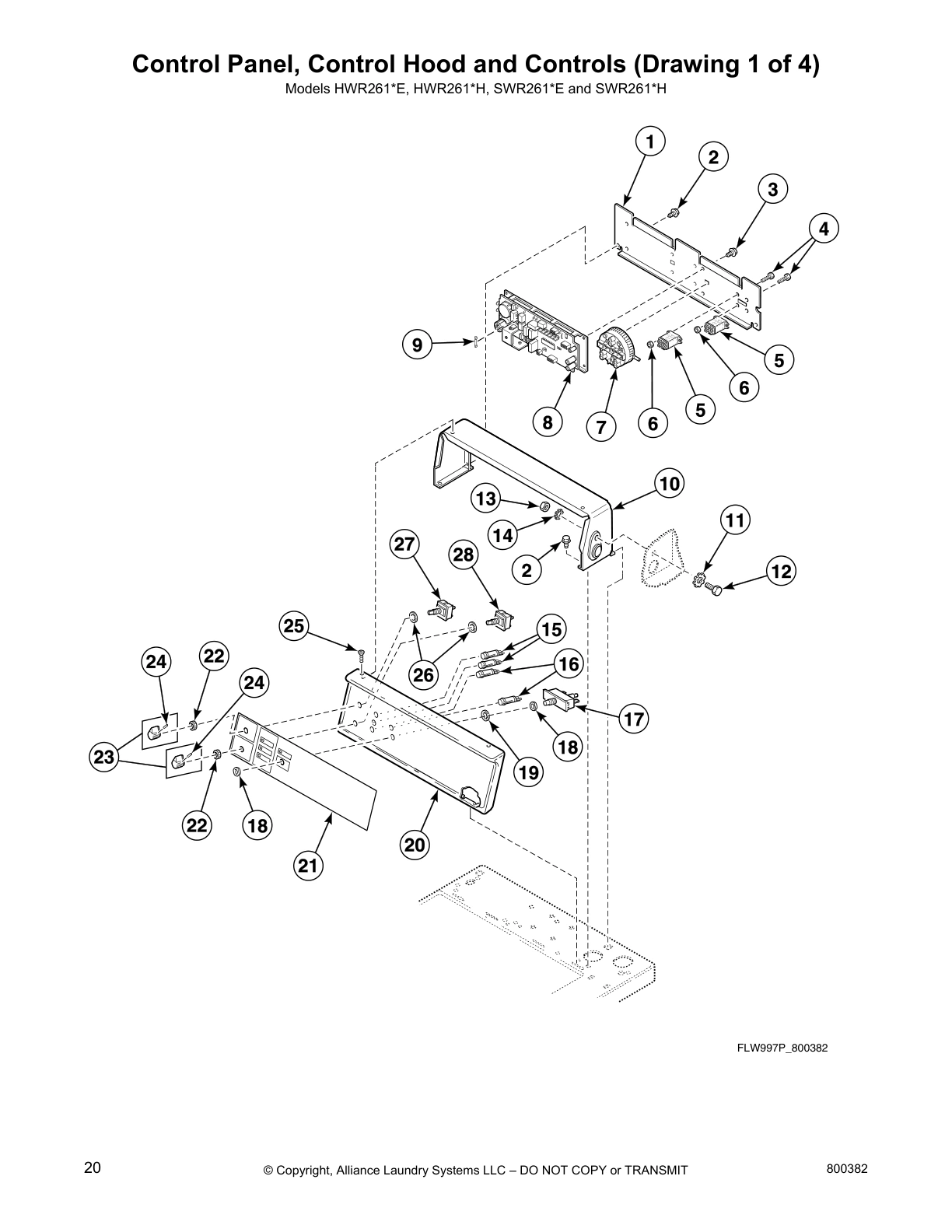

Control Panel, Control Hood and Controls (Drawing 1 of 4)

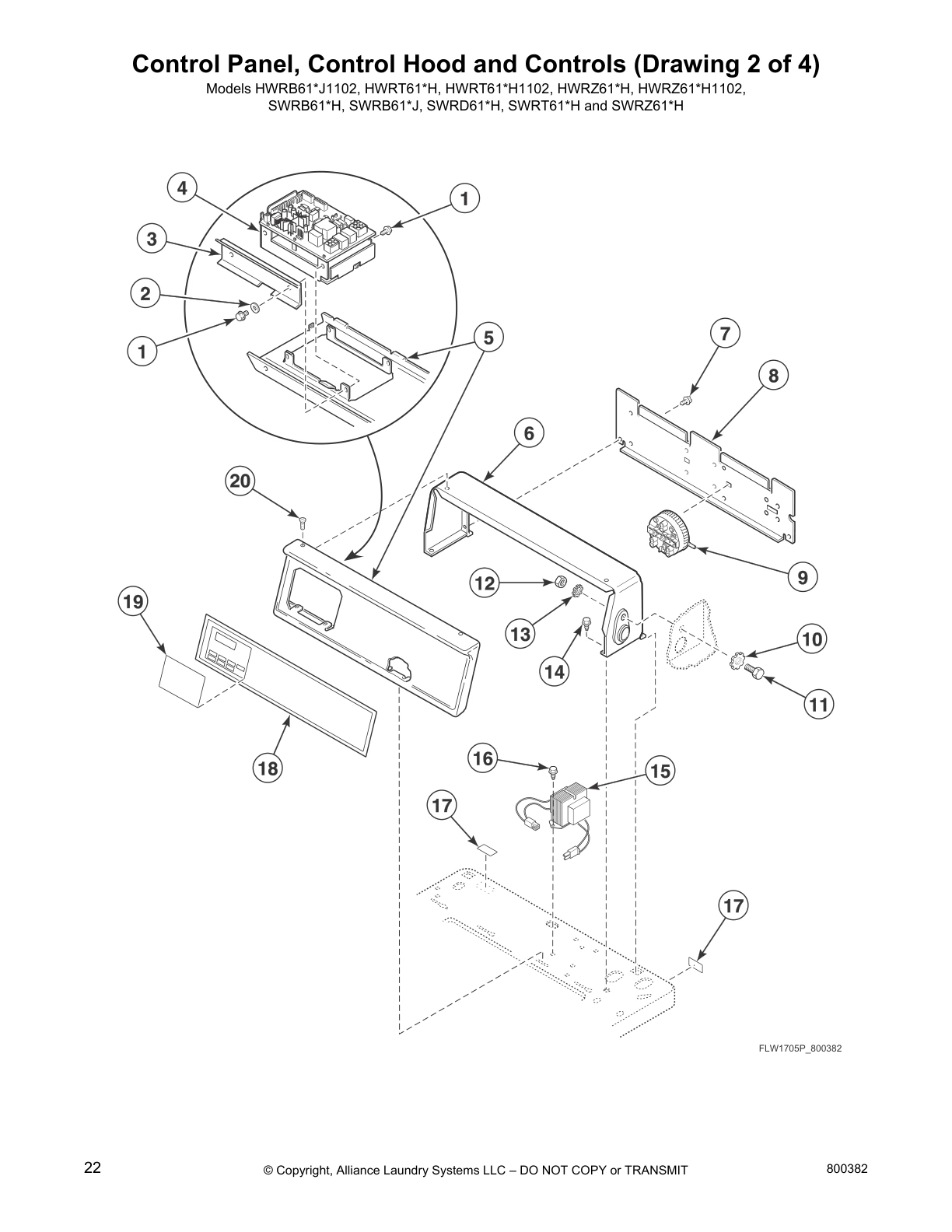

Control Panel, Control Hood and Controls (Drawing 2 of 4)

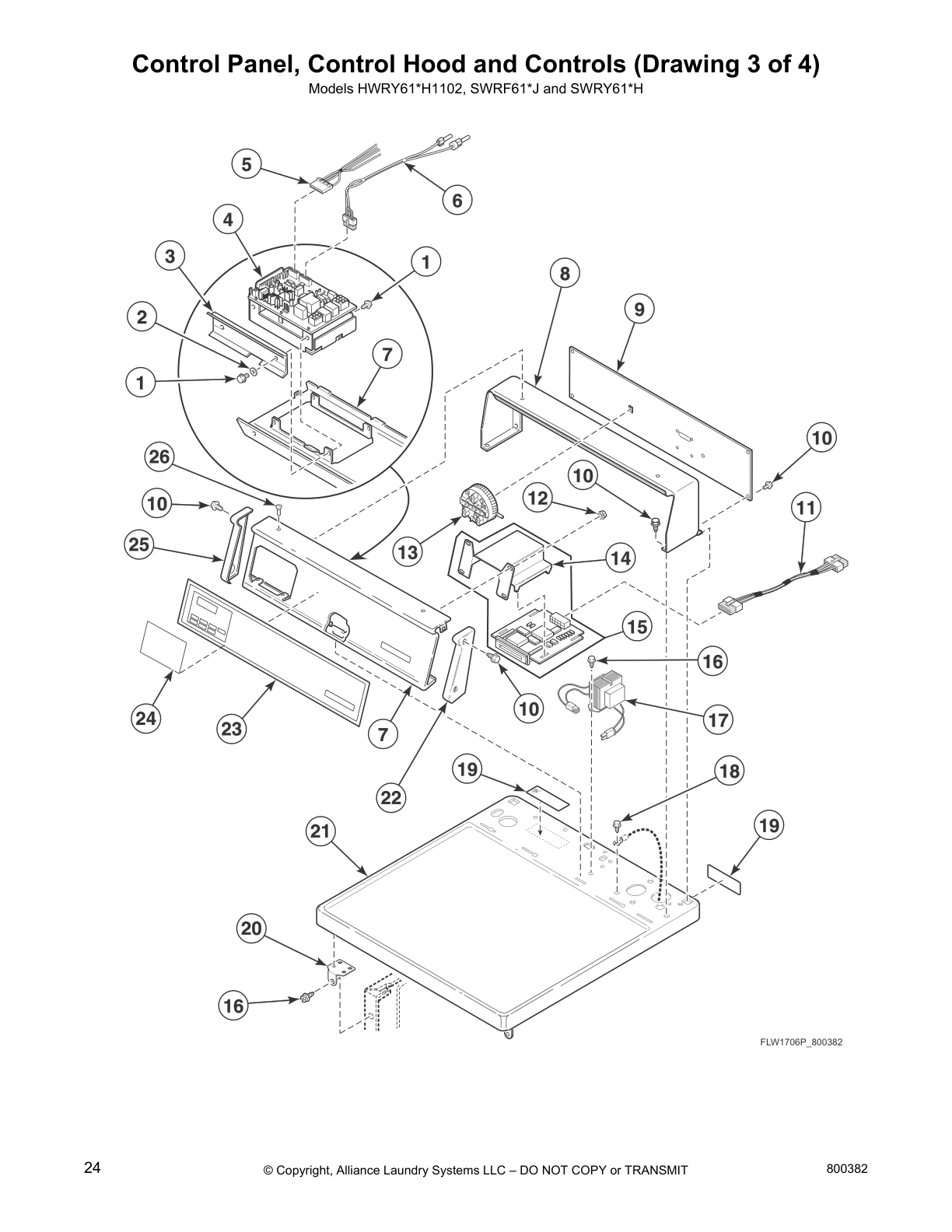

Control Panel, Control Hood and Controls (Drawing 3 of 4)

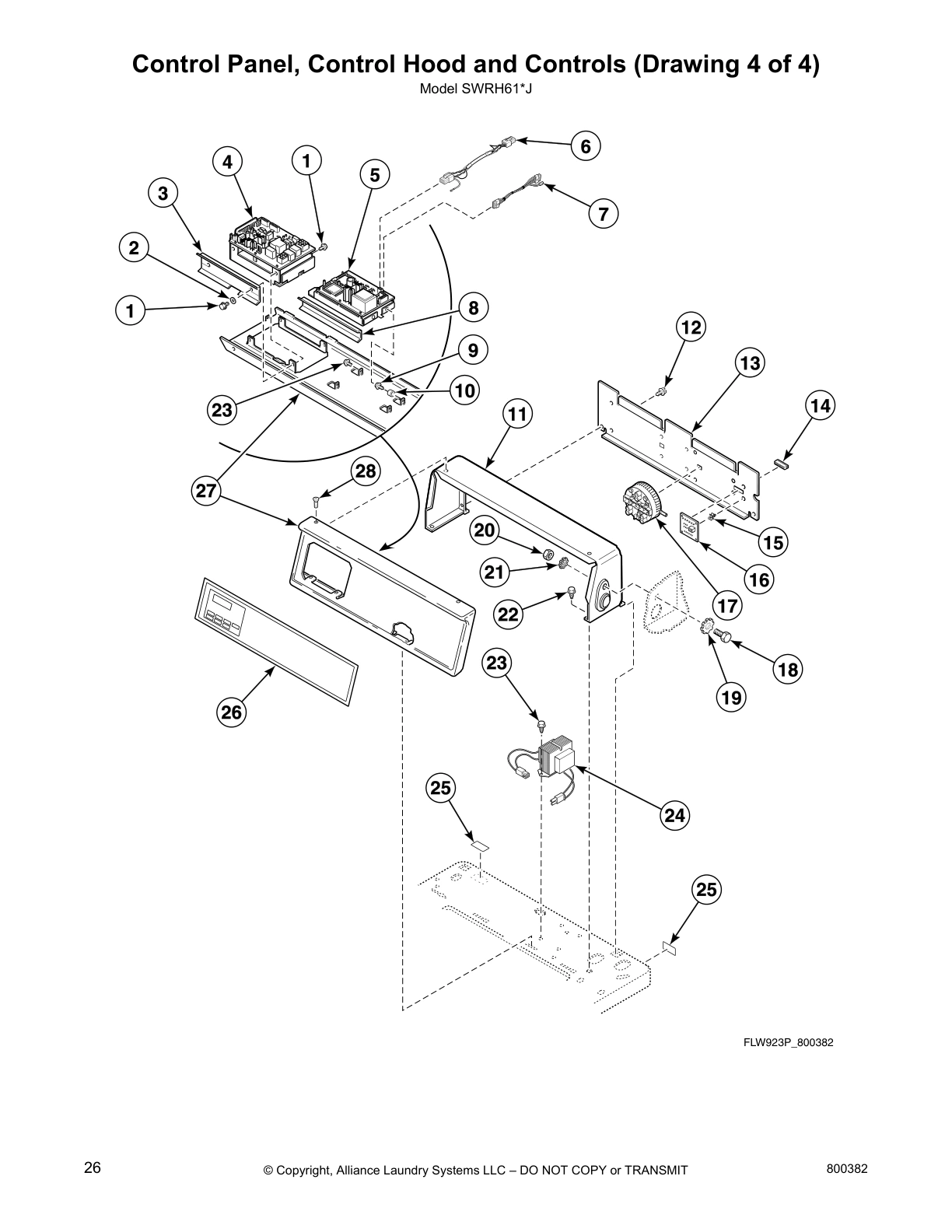

Control Panel, Control Hood and Controls (Drawing 4 of 4)

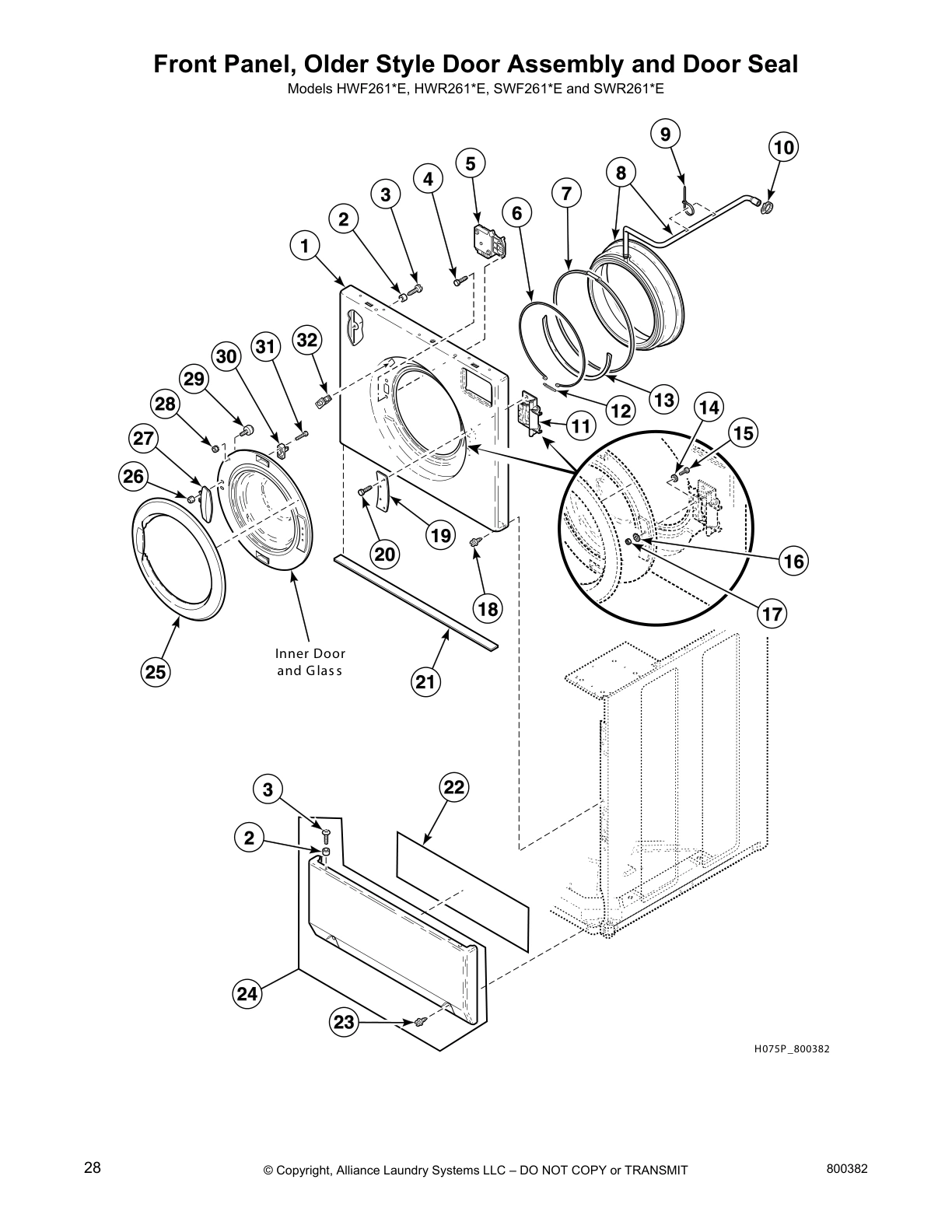

Front Panel, Older Style Door Assembly and Door Seal

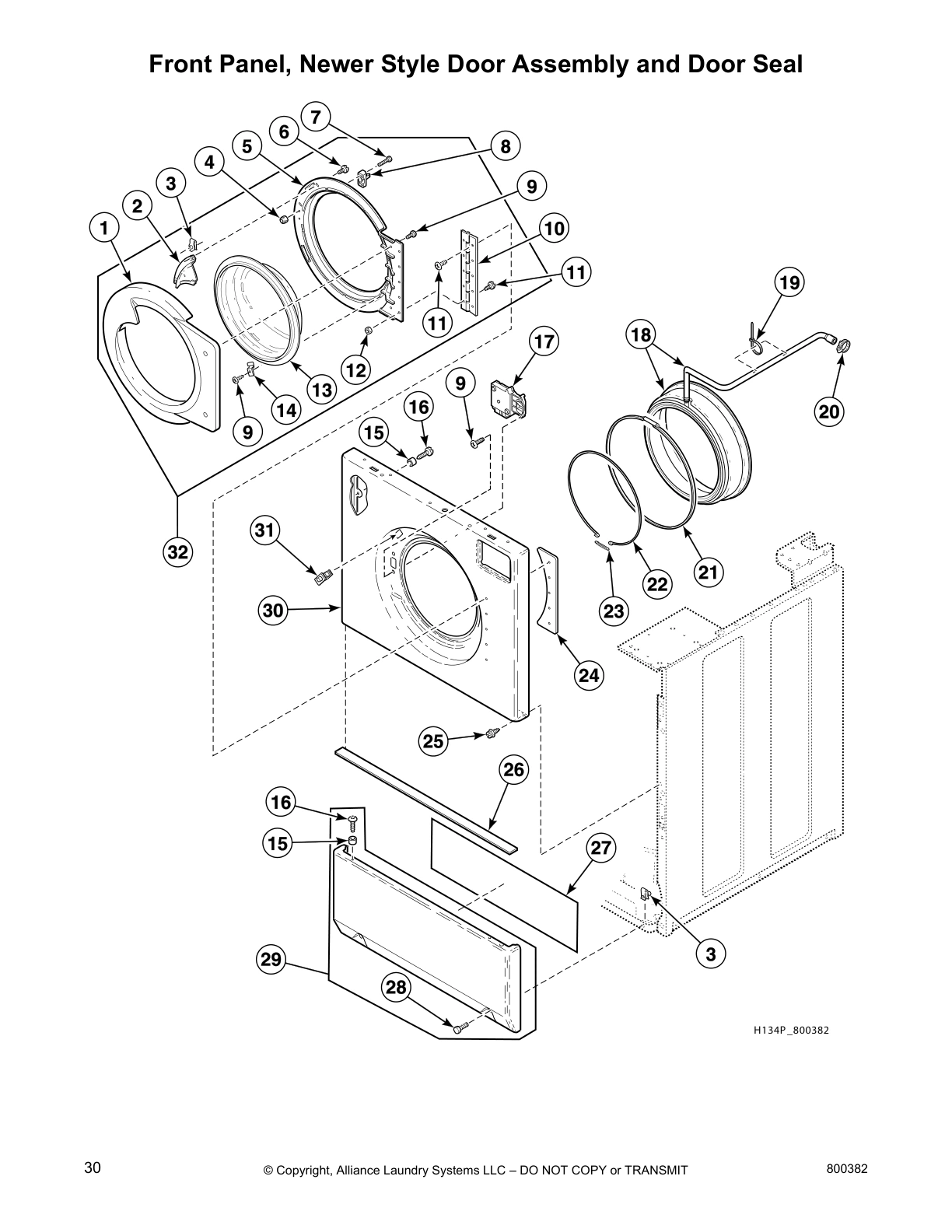

Front Panel, Newer Style Door Assembly and Door Seal

Dispenser Assembly

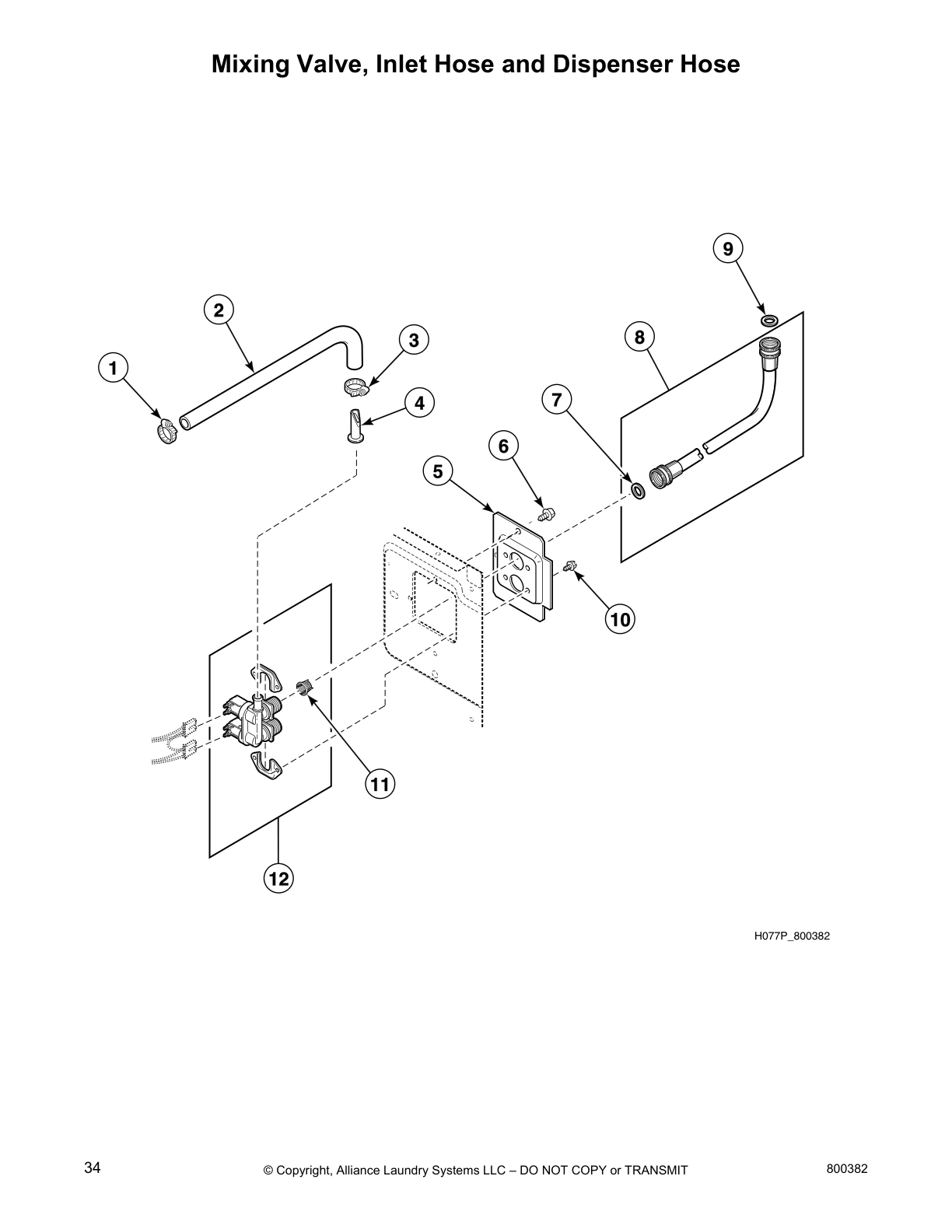

Mixing Valve, Inlet Hose and Dispenser Hose

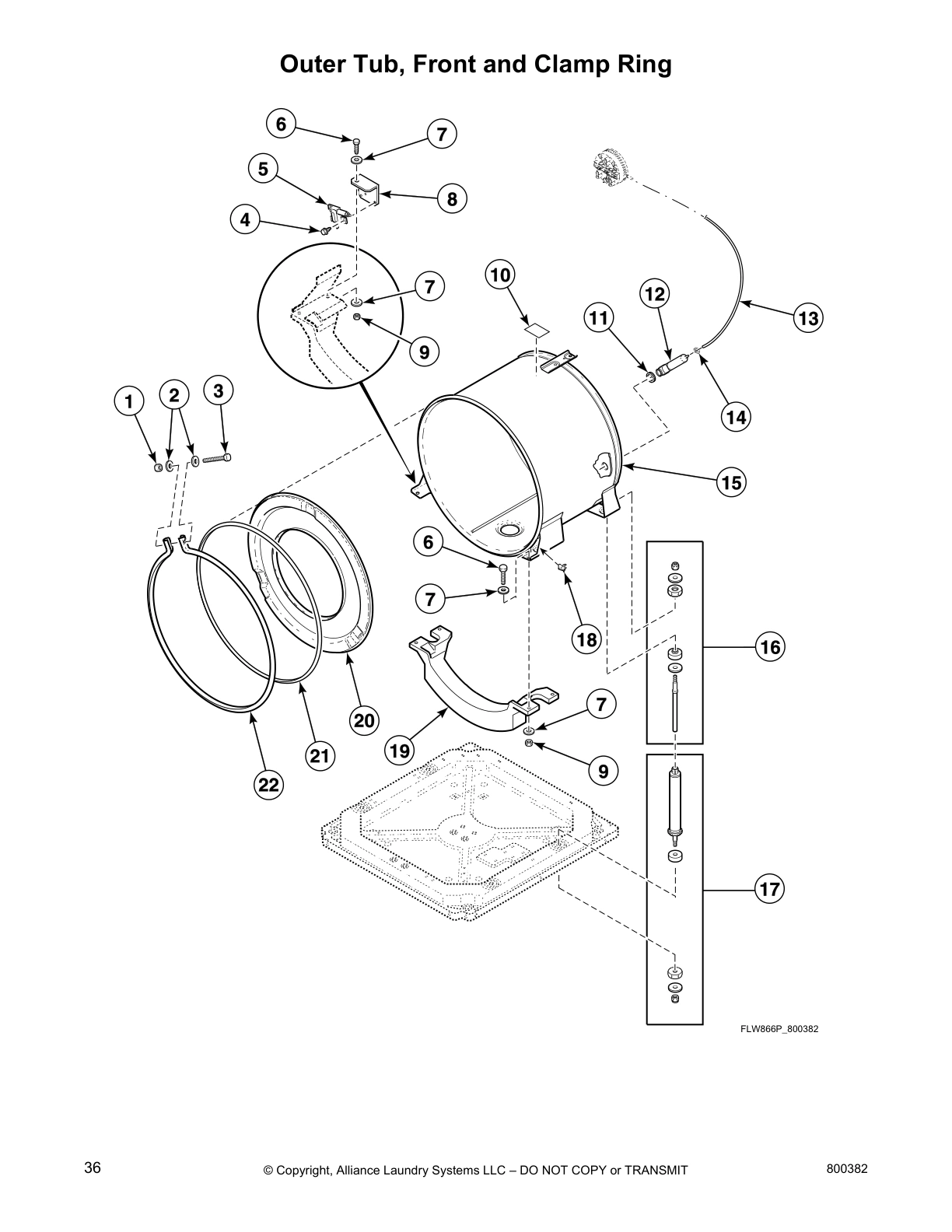

Outer Tub, Front and Clamp Ring

Inner Basket, Trunnion, Bearing Housing and Pulley

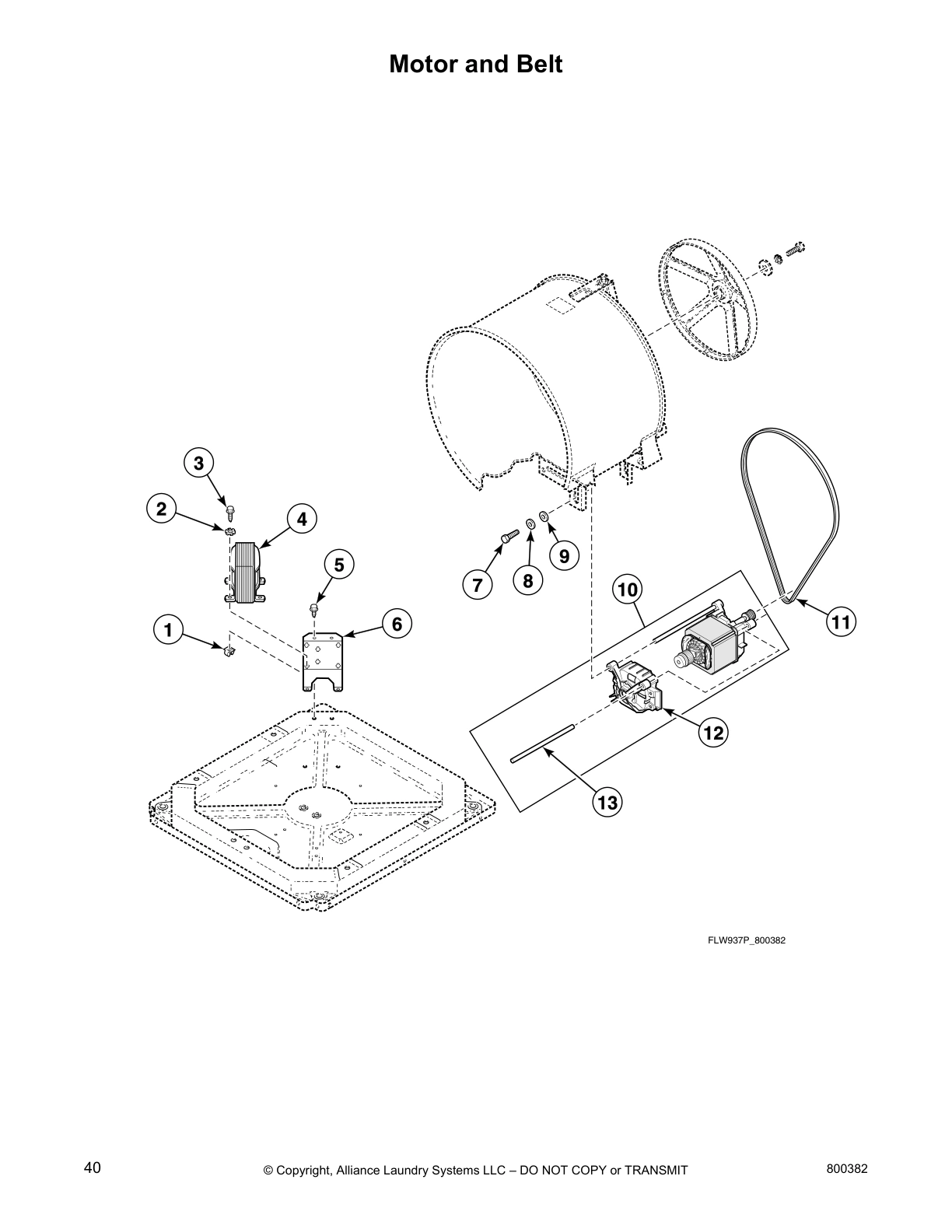

Motor and Belt

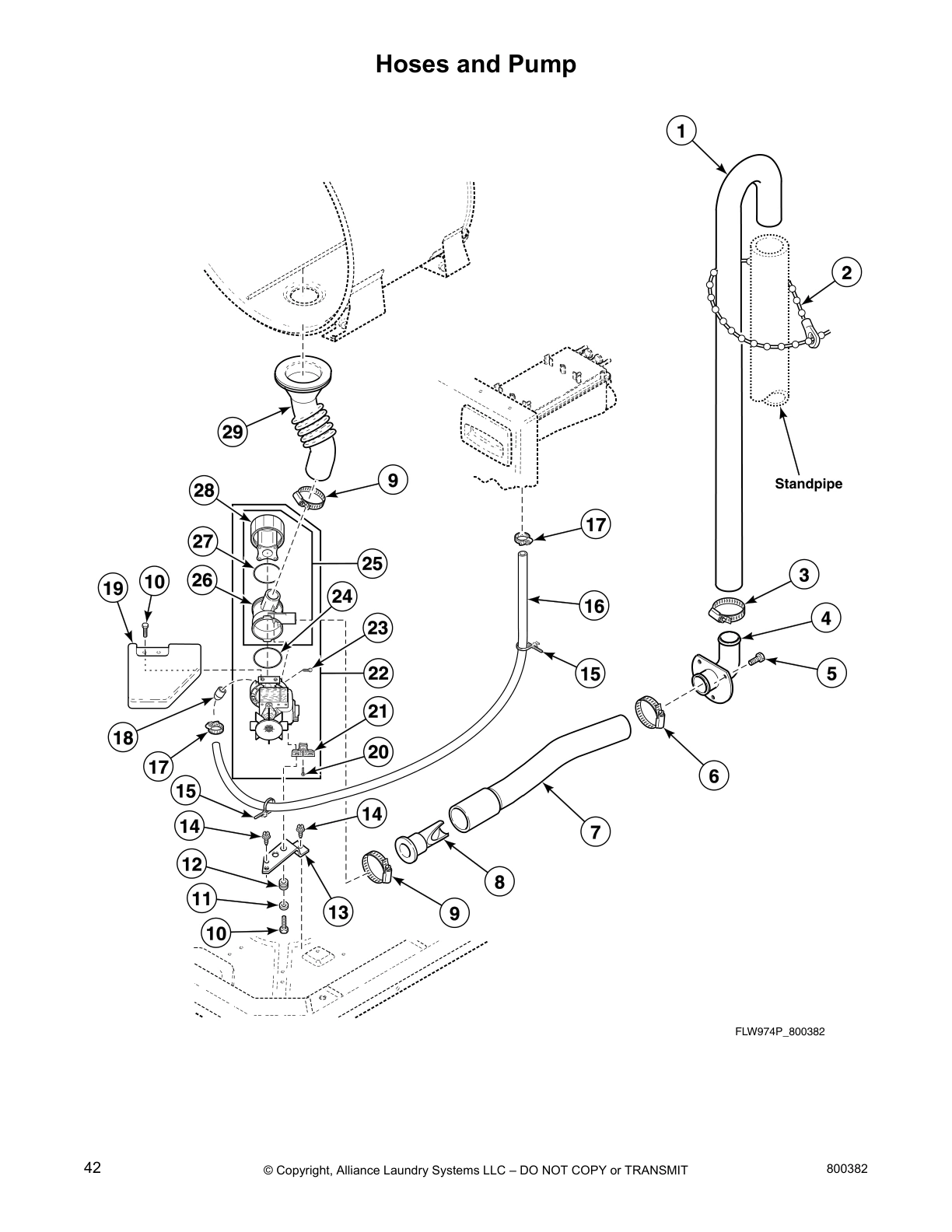

Hoses and Pump

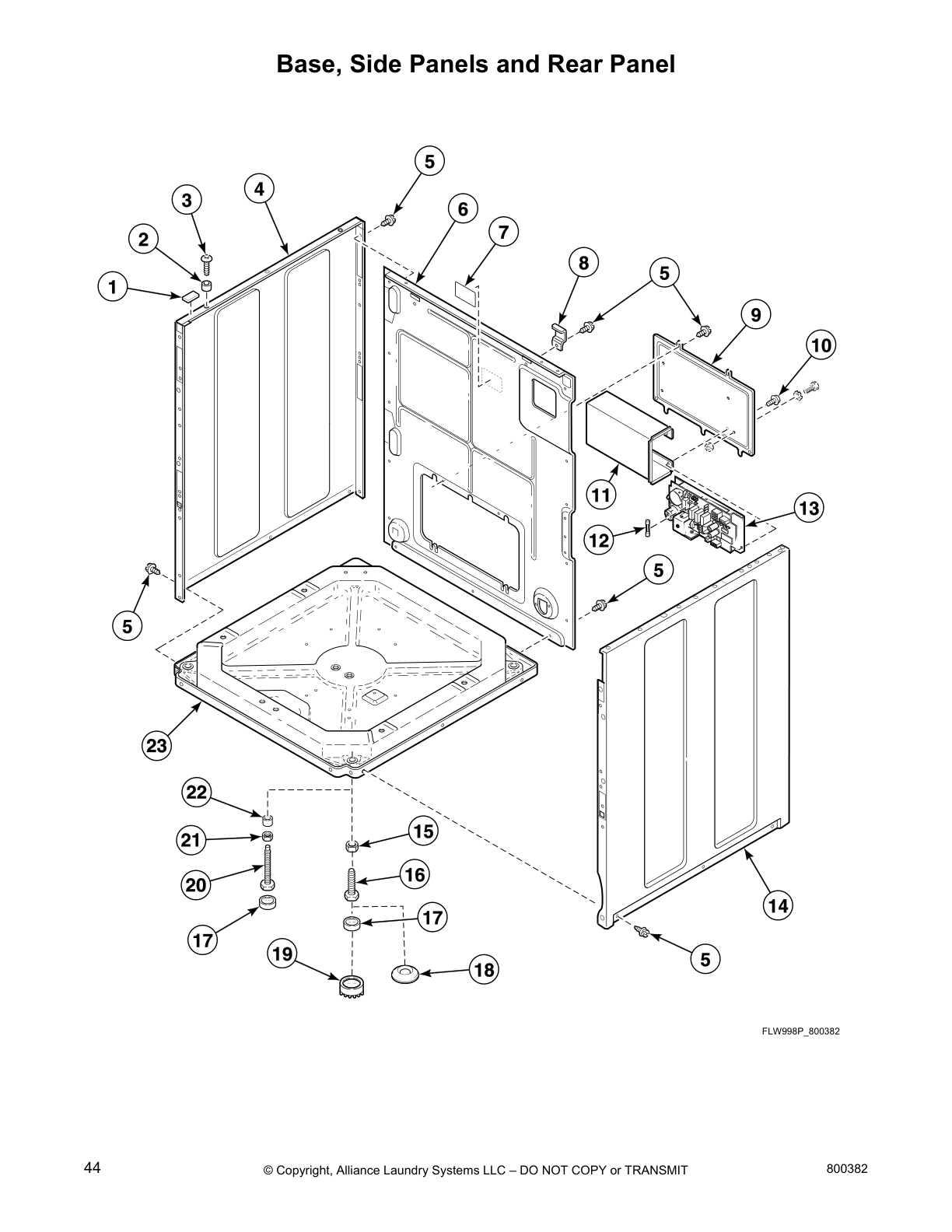

Base, Side Panels and Rear Panel

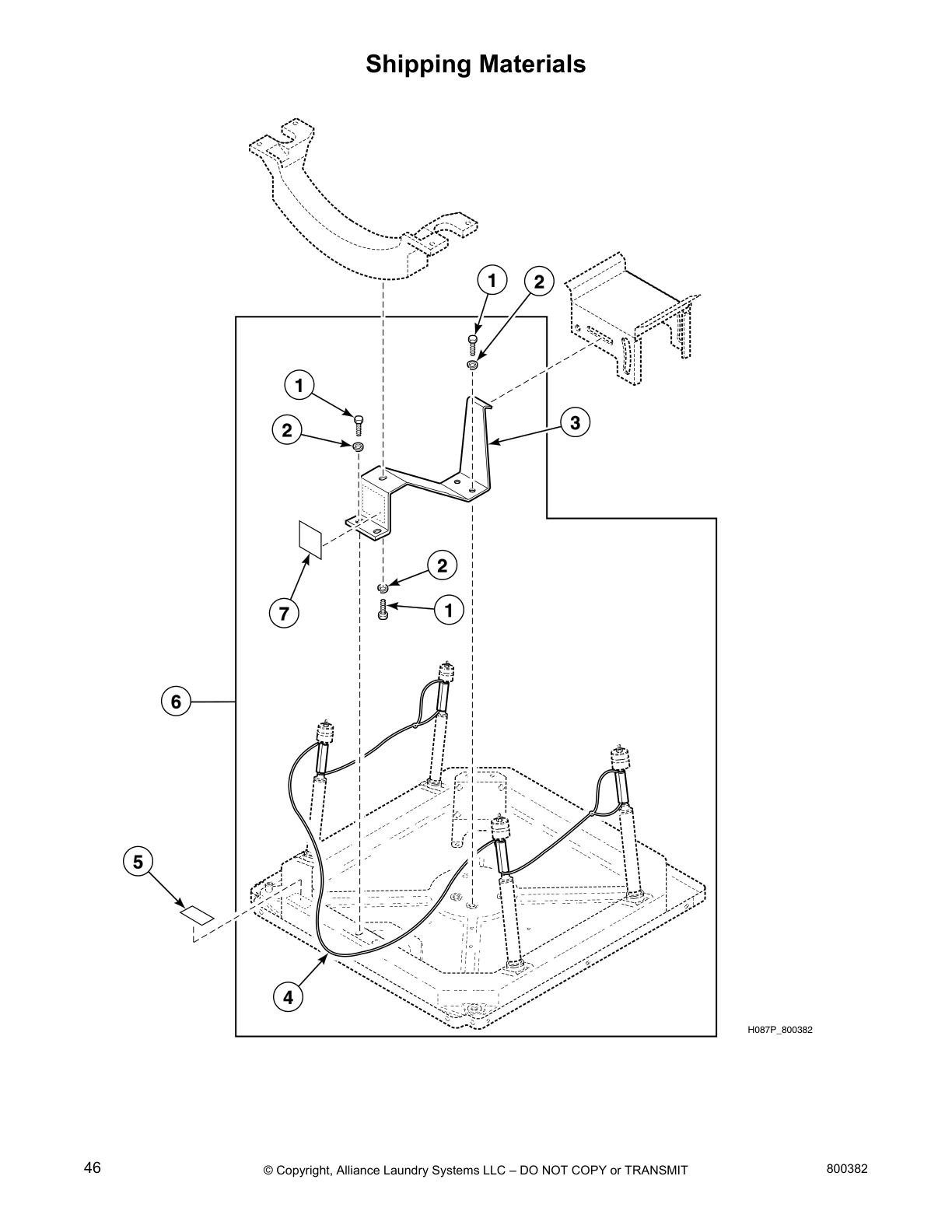

Shipping Materials

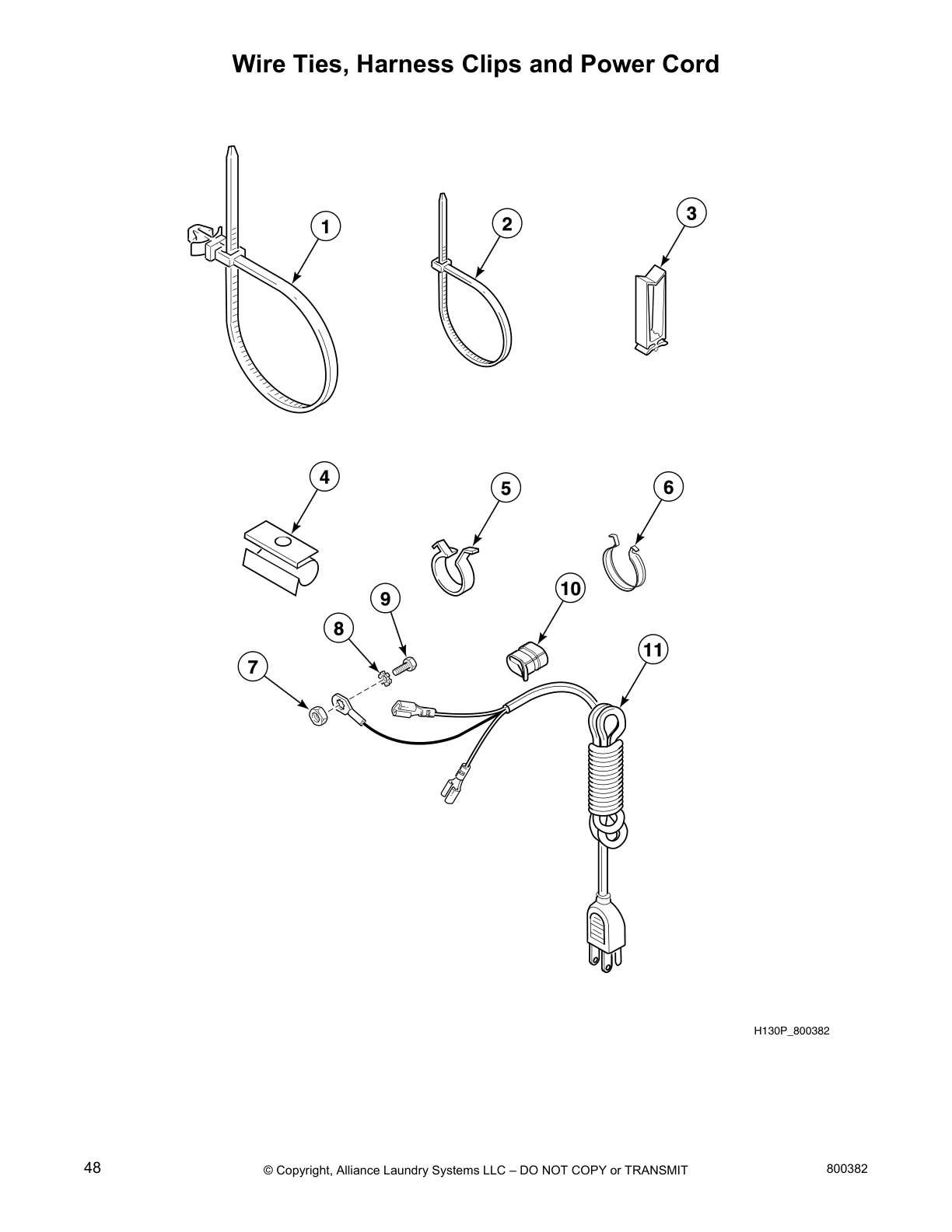

Wire Ties, Harness Clips and Power Cord

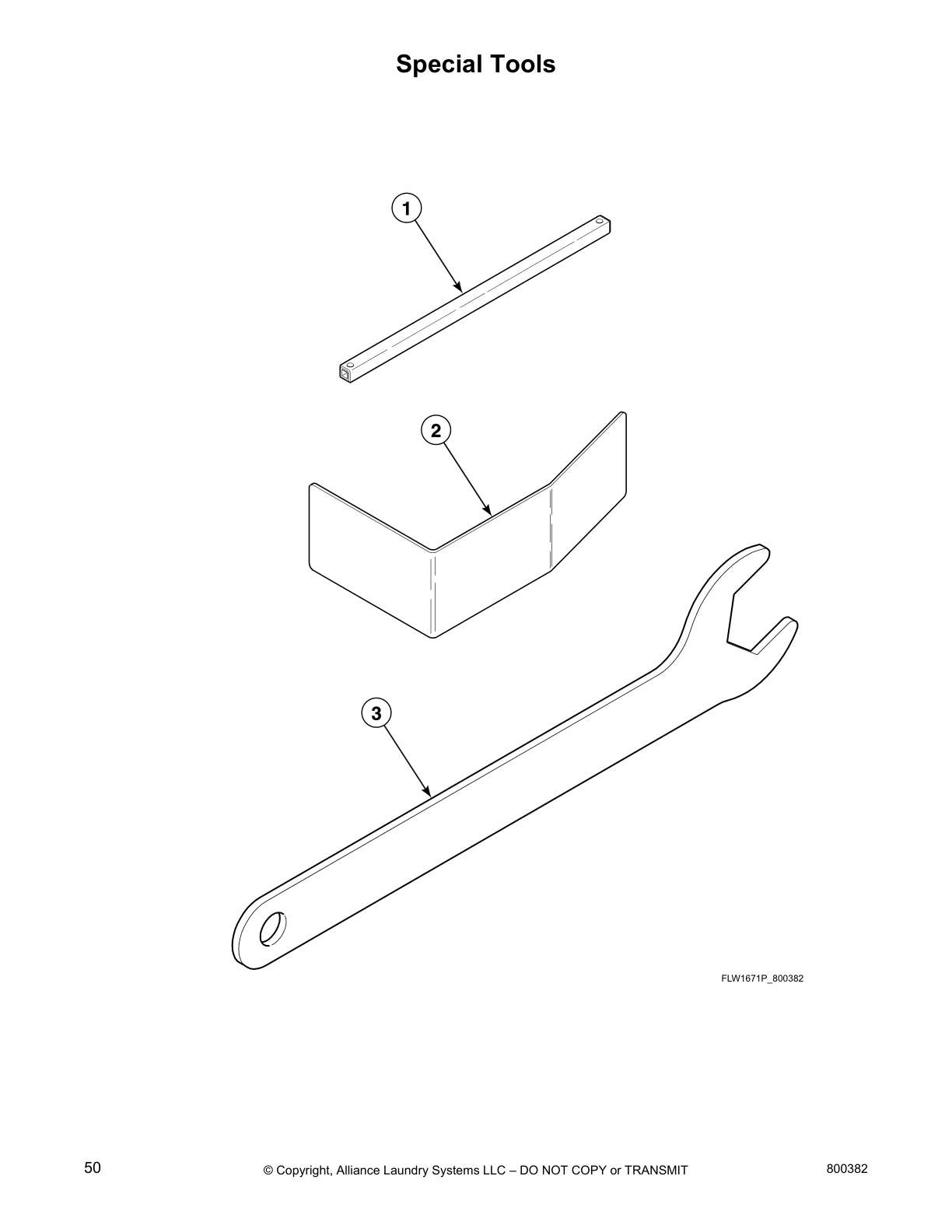

Special Tools

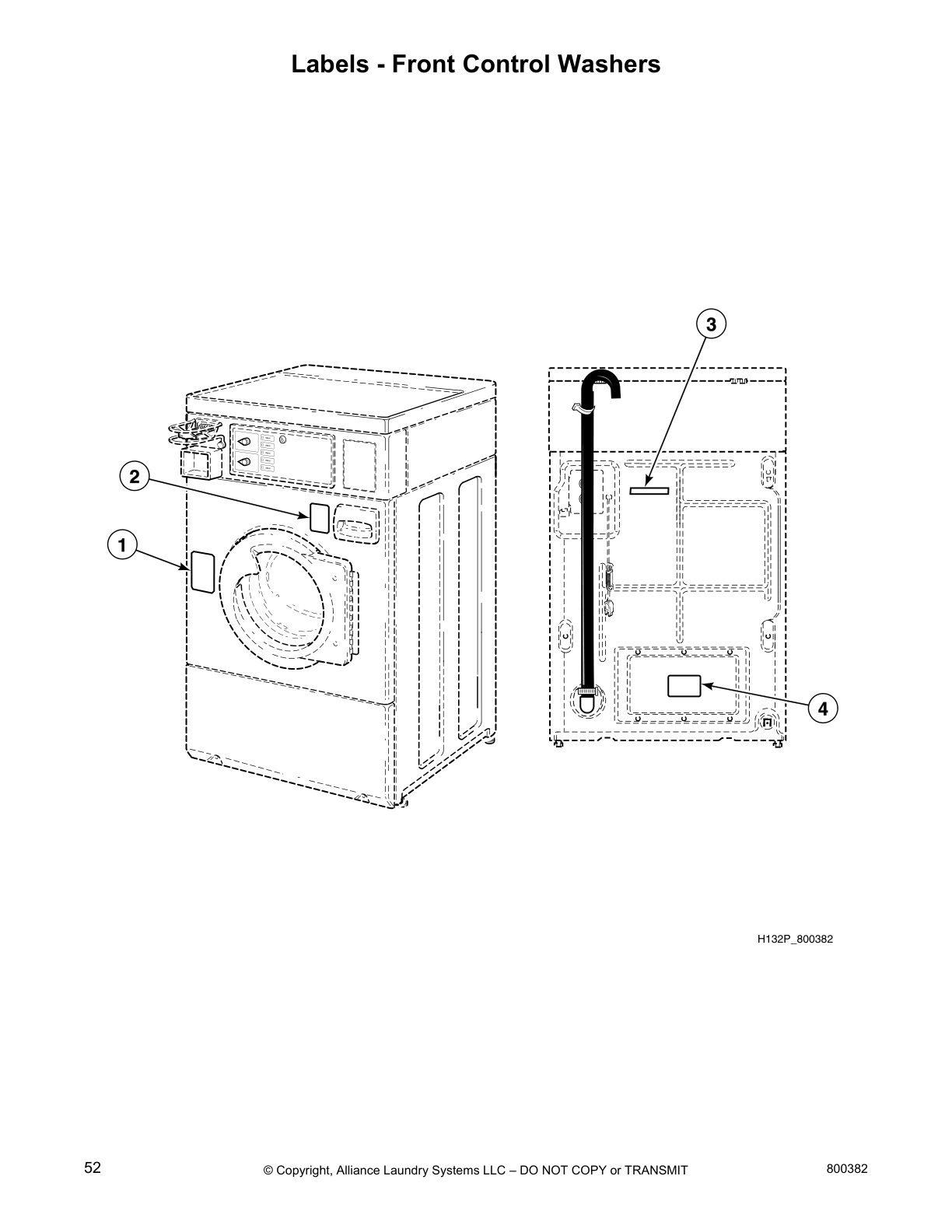

Labels - Front Control Washers

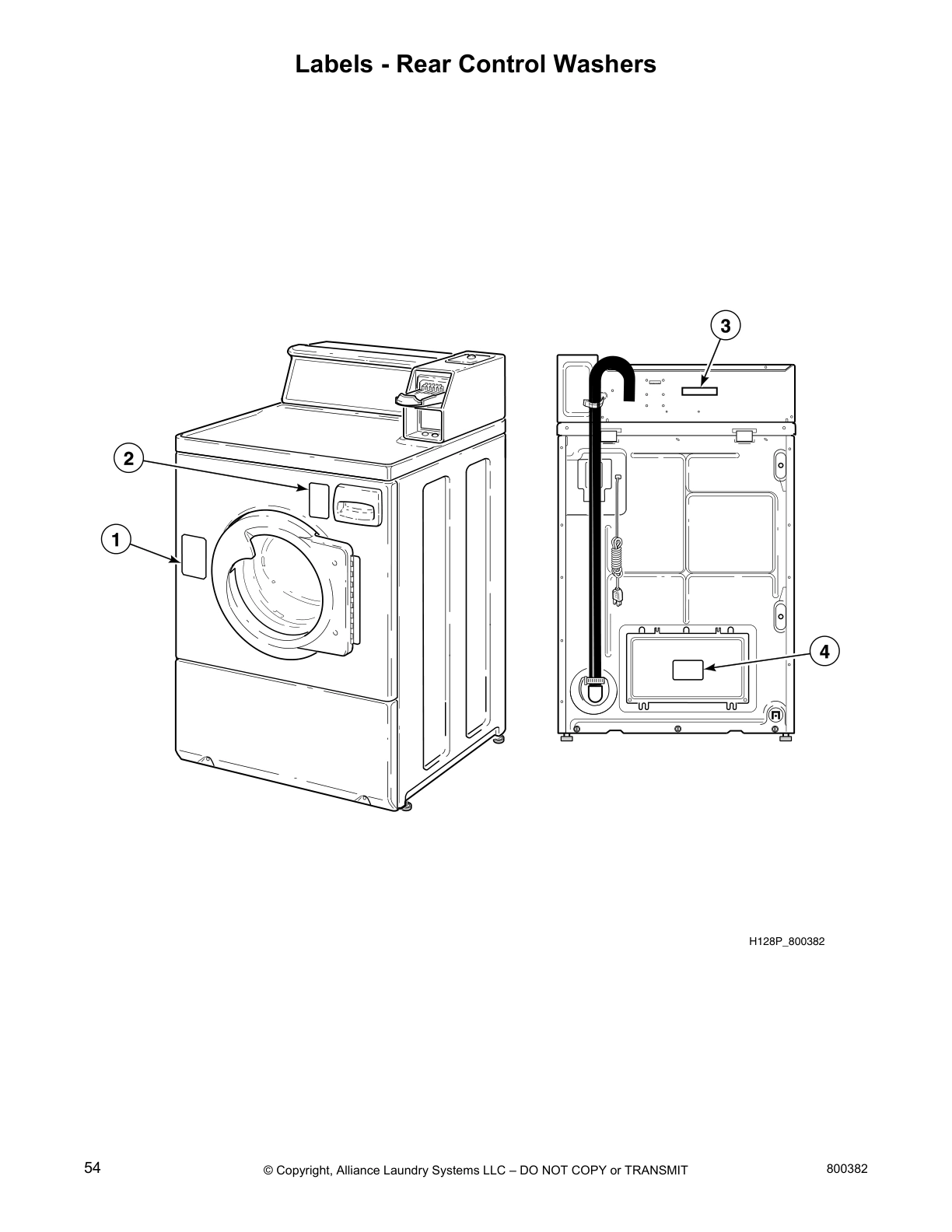

Labels - Rear Control Washers

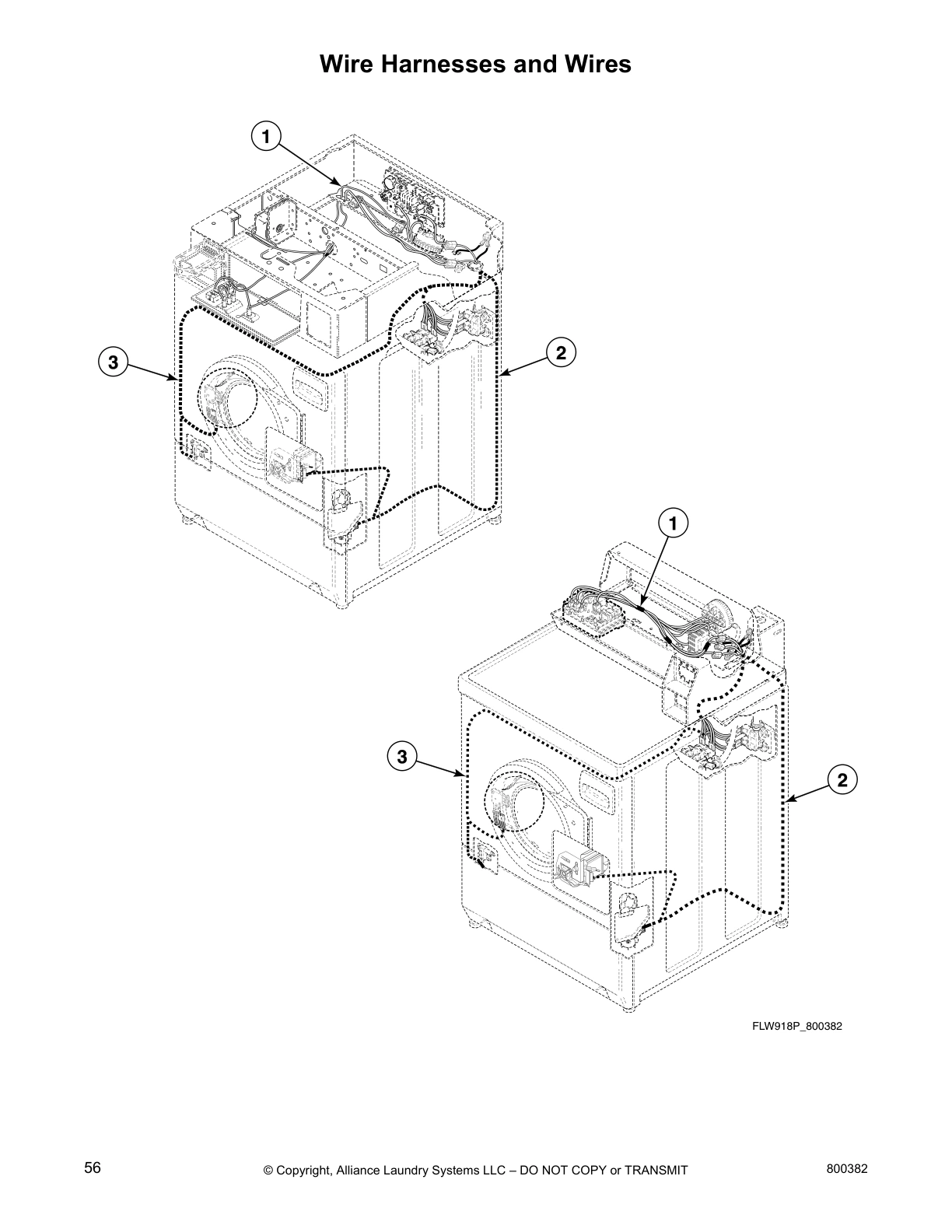

Wire Harnesses and Wires

Common parts from model Huebsch HWF261*E Washer
