Model Huebsch HFNBYASP113CW01 Washer – Common Parts & Diagrams

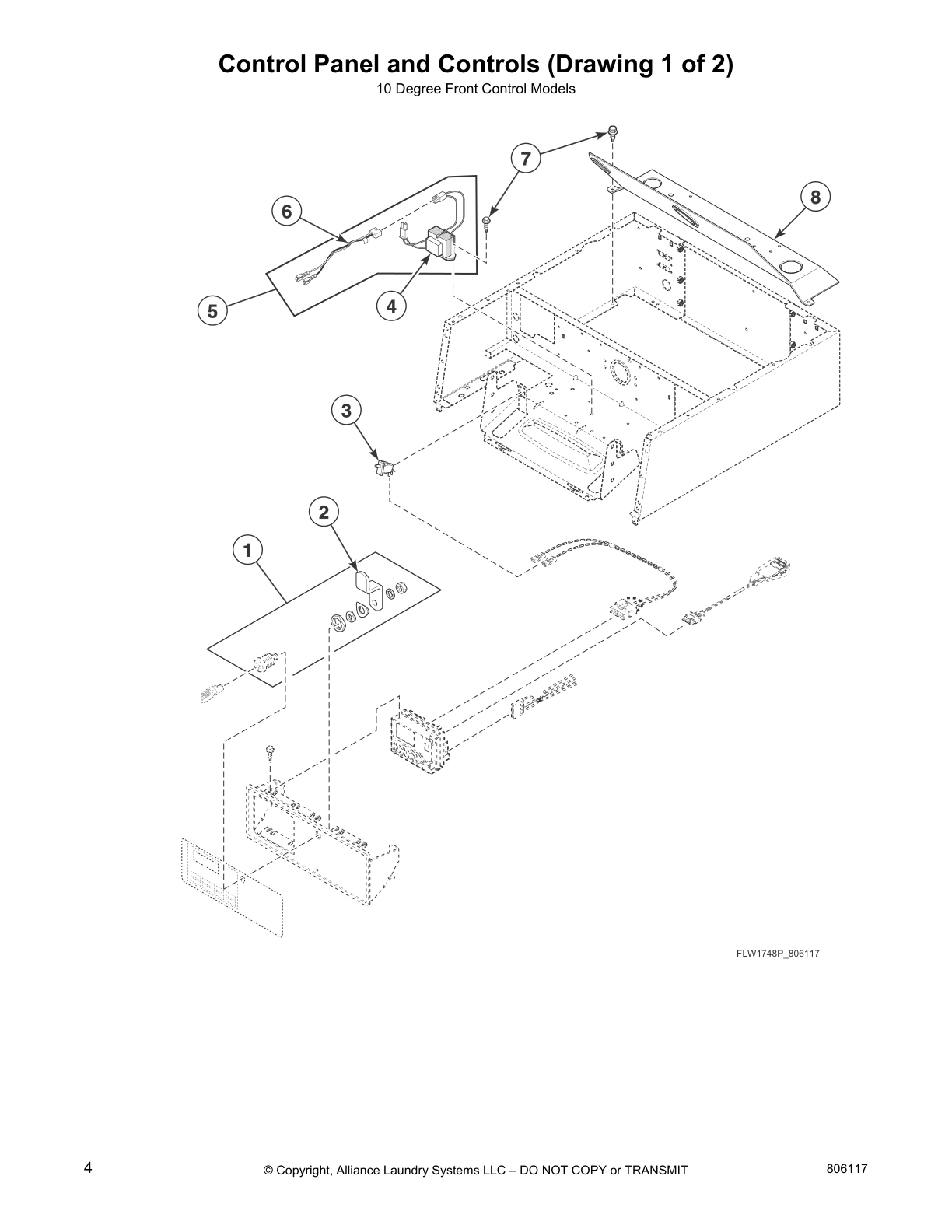

Control Panel and Controls (Drawing 1 of 2)

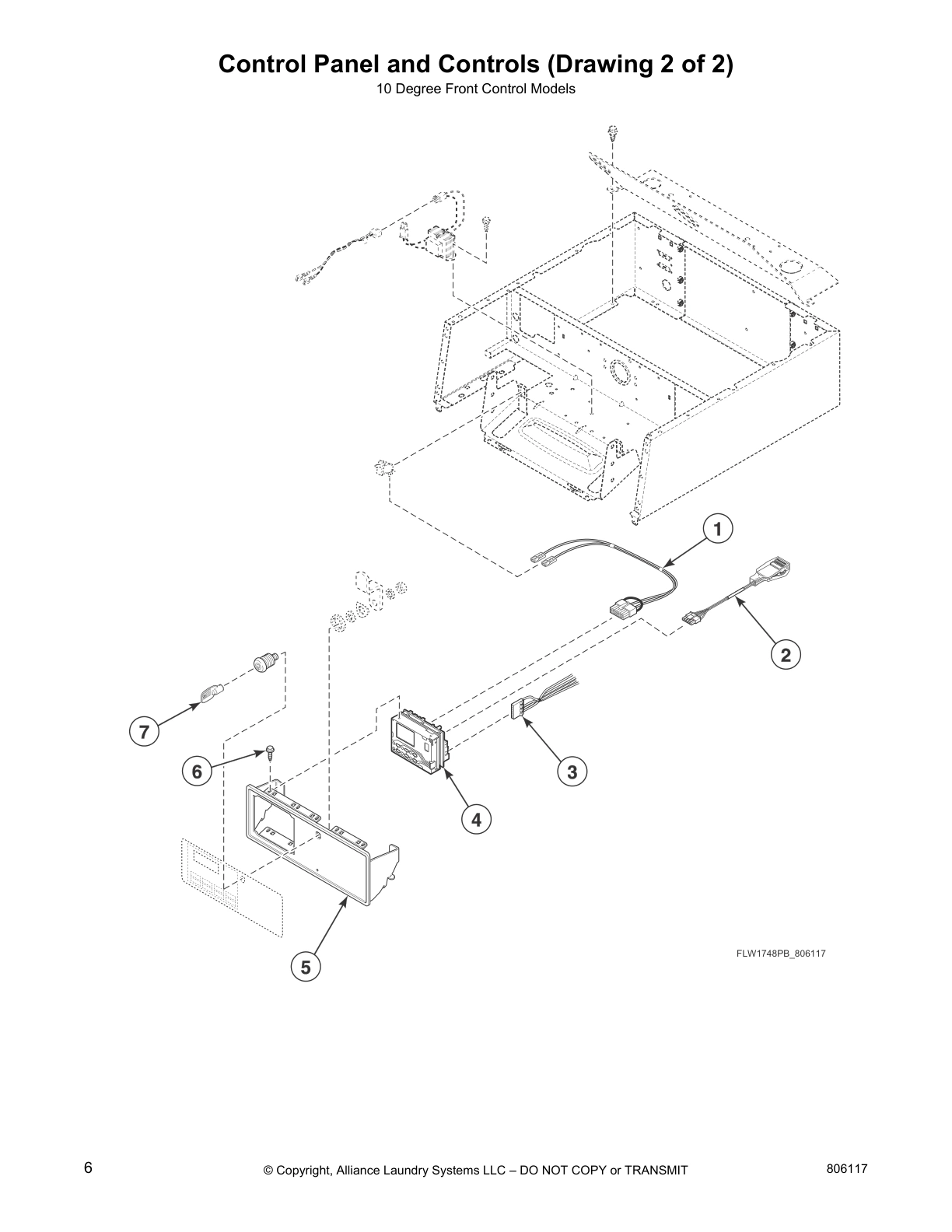

Control Panel and Controls (Drawing 2 of 2)

Control Panel Overlay

Top Assembly

Electrical Access Panel and Filters

Network Board Assembly

Control Cabinet and Meter Case

Control Cabinet - Front Control Card Reader Ready Models

Control Cabinet - 45 Degree Front Control Models

Coin Drop, Meter Case and Service Door

Meter Case, Service Door and Cabinet Top

Coin Slide and Extension

Control Panel, Control Hood and Controls (Drawing 1 of 3)

Control Panel, Control Hood and Controls (Drawing 2 of 3)

Control Panel, Control Hood and Controls (Drawing 3 of 3)

Front Panel, Door Assembly and Door Seal

Front Panel Assembly

Dispenser Assembly

Mixing Valve, Inlet Hose and Dispenser Hose

Outer Tub, Clamp Ring and Shock Absorbers

Inner Basket, Trunnion, Bearing Housing and Pulley

Motor and Belt

Drain Hoses and Valve

Hoses and Pump

Base, Side Panels and Rear Panel

Junction Box and Power Cord

Shipping Materials

Wire Ties, Harness Clips and Lead-In Cord

Special Tools

Labels

Wire Harnesses and Wires

Common parts from model Huebsch HFNBYASP113CW01 Washer

122P4P Speed Queen Paint, Porcelain Touch Backorder SPQ 122P4P $36.22

View on Model

802695P Speed Queen Door Glass Backorder SPQ 802695P $116.61

View on Model

SPQ 802803 SPQ 802803 Contact Us For Availability

View on Model

SPQ D503688 SPQ D503688 Contact Us For Availability

View on Model

SPQ 203719 SPQ 203719 Contact Us For Availability

View on Model

SPQ 803789 SPQ 803789 Contact Us For Availability

View on Model

27154 Speed Queen Hose, Elbow to Drain Backorder SPQ 27154 $47.16

View on Model

806031 Speed Queen Flow Control Harness Backorder SPQ 806031 $94.37

View on Model

CK096 Speed Queen Mounting Tool Kit Backorder SPQ CK096 $14.64

View on Model

Out-of-Balance Switch Assembly SPQ 807384 Contact Us For Availability

View on Model

Lock Assembly SPQ 804339P Contact Us For Availability

View on Model

Dispenser Plate SPQ 803843 Contact Us For Availability

View on Model

33489 Speed Queen Washer Dryer Beaded Standpi In Stock SPQ 33489 $2.16

View on Model

34319 Speed Queen Leveling Leg 1/2-13 x 1.87 In Stock SPQ 34319 $4.70

View on Model

55881 Speed Queen Tie Cable Backorder SPQ 55881 $1.70

View on Model

803868WP Speed Queen Top Porcelain Panel Backorder SPQ 803868WP $247.90

View on Model

804433 Speed Queen Pressure Sensor Harness Backorder SPQ 804433 $15.24

View on Model

Ratchet Extension Tool SPQ 310P4 Contact Us For Availability

View on Model

Screw SPQ 806313 Contact Us For Availability

View on Model

Washer SPQ M400014 Contact Us For Availability

View on Model

Anti-Seize Compound SPQ 804382 Contact Us For Availability

View on Model

Screw SPQ 805495P Contact Us For Availability

View on Model

Hinge Plate SPQ 806086 Contact Us For Availability

View on Model

21899 Speed Queen Hex Nut 1/2-13 Backorder SPQ 21899 $4.70

View on Model

801001 Speed Queen T-20 Torx Plastic Screw 10 Backorder SPQ 801001 $1.81

View on Model

802336 Speed Queen Fixture,Pulley BOLT TIGHTE Backorder SPQ 802336 $2.84

View on Model

803829 Speed Queen Hose, Tub to Pump Backorder SPQ 803829 $18.74

View on Model

806029 Speed Queen Motor Harness FLW Backorder SPQ 806029 $20.66

View on Model

Switch SPQ D512973 Contact Us For Availability

View on Model

SPQ 804376P SPQ 804376P Contact Us For Availability

View on Model

Screw SPQ 70240301 Contact Us For Availability

View on Model

SPQ 805548 SPQ 805548 Contact Us For Availability

View on Model

392P4 Speed Queen Horizon TL Locknut Wrench T Backorder SPQ 392P4 $11.90

View on Model

804374P Speed Queen Inner Basket Assembly Backorder SPQ 804374P $1,017.74

View on Model

Bolt SPQ D511036 Contact Us For Availability

View on Model

Door Lock Harness Assembly SPQ 806028 Contact Us For Availability

View on Model

SPQ 804467 SPQ 804467 Contact Us For Availability

View on Model

24122 Speed Queen Mixing Valve Screen Backorder SPQ 24122 $4.70

View on Model

35766 Speed Queen Plastic Drain Hose Elbow Sp Backorder SPQ 35766 $5.33

View on Model

804617W Speed Queen Access Panel Assembly Backorder SPQ 804617W $58.59

View on Model

Panel Locator SPQ 203843 Contact Us For Availability

View on Model

SPQ 803879 SPQ 803879 Contact Us For Availability

View on Model

20290 Speed Queen Washer 19/32" ID x 1.031" O In Stock SPQ 20290 $4.70

View on Model

52909 Speed Queen Tap-HXWAHD 10B-16X.5 Screw Backorder SPQ 52909 $4.70

View on Model

803849 Speed Queen Inlet Dispenser Hose Backorder SPQ 803849 $3.40

View on Model

SPQ 802343 SPQ 802343 Contact Us For Availability

View on Model

802254 Speed Queen Washer Flow Restrictor Red In Stock SPQ 802254 $20.13

View on Model

802288P Speed Queen Right Hinge Front Panel S Backorder SPQ 802288P $526.24

View on Model

Foam Pad SPQ 803698 Contact Us For Availability

View on Model

Strain Relief SPQ 38384 Contact Us For Availability

View on Model

44087201 Speed Queen Hex Flange Nut 5/16-18 Backorder SPQ 44087201 $4.70

View on Model

802277WP Speed Queen Front Washer Panel Backorder SPQ 802277WP $137.27

View on Model

202777 Speed Queen Lead-in Cord Washer Dryer In Stock SPQ 202777 $19.76

View on Model

27604P Speed Queen Anti-Seize Compound, 1 oz In Stock SPQ 27604P $4.78

View on Model

800310 Speed Queen Backflow Preventer - Pump Backorder SPQ 800310 $16.65

View on Model

SPQ 804717 SPQ 804717 Contact Us For Availability

View on Model

803415 Speed Queen SPST Switch O.B.L W/AU In Stock SPQ 803415 $8.16

View on Model

804227WP Speed Queen Dispenser Handle (White) In Stock SPQ 804227WP $14.15

View on Model

Belt Kit SPQ 807429P Contact Us For Availability

View on Model

Screw SPQ D503661 Contact Us For Availability

View on Model

Washer SPQ 807679 Contact Us For Availability

View on Model

Motor and Rod Assembly Kit SPQ 808067P Contact Us For Availability

View on Model

36985 Speed Queen Pressure Hose Clip Backorder SPQ 36985 $1.70

View on Model

685831 Speed Queen 3/8-24 Nylon Left-Hand Scr Backorder SPQ 685831 $4.70

View on Model

802934 Speed Queen Door Hinge In Stock SPQ 802934 $51.44

View on Model

203423 Speed Queen 120V Transformer Kit ACAS Backorder SPQ 203423 $146.07

View on Model

804483 Speed Queen Tub Pressure Sensor Assemb Backorder SPQ 804483 $9.74

View on Model

M403958 Speed Queen 3/8 Ext Tooth Lock Washer In Stock SPQ M403958 $1.70

View on Model

Panel Locator SPQ 23951 Contact Us For Availability

View on Model

802700 Speed Queen Glass Mounting Clip Backorder SPQ 802700 $4.70

View on Model

M400043 Speed Queen Hex Cap Screw 3/8-16 X 1. Backorder SPQ M400043 $4.58

View on Model

Rubber Foot SPQ 806492 Contact Us For Availability

View on Model

Rubber Foot SPQ D501855 Contact Us For Availability

View on Model

Pump Housing Assembly SPQ 802429P Contact Us For Availability

View on Model

Anchor Floor Mount Assembly SPQ 34318 Contact Us For Availability

View on Model

Tub Front SPQ 803864 Contact Us For Availability

View on Model

Wire Ring and Spring SPQ 56079 Contact Us For Availability

View on Model

Pump Housing SPQ 802434P Contact Us For Availability

View on Model

39733 Speed Queen Screw TAP 10BX5/8 #8PN HD In Stock SPQ 39733 $4.70

View on Model

802844P Speed Queen Floor Mount Anchor Assemb Backorder SPQ 802844P $36.22

View on Model

803770 Speed Queen Outer Tub Front Backorder SPQ 803770 $44.36

View on Model

804393 Speed Queen Balance Ring Assembly (Flo Backorder SPQ 804393 $49.10

View on Model

Gasket SPQ 802428 Contact Us For Availability

View on Model

155P3 Speed Queen Anchor, 4 Pack - 4051A In Stock SPQ 155P3 $43.97

View on Model

802427 Speed Queen Gasket (1.389" ID, 2.362" Backorder SPQ 802427 $21.43

View on Model

Tub Front Seal SPQ 806361 Contact Us For Availability

View on Model

802426P Speed Queen Lid Assembly with Filter Backorder SPQ 802426P $92.45

View on Model

806308 Speed Queen Black Deflector Foreign Ob In Stock SPQ 806308 $33.49

View on Model

Access Panel Assembly SPQ 806466 Contact Us For Availability

View on Model

802281 Speed Queen Clamp,Hose (LARGE Door BOO In Stock SPQ 802281 $20.79

View on Model

803801 Speed Queen Outer Front Tub Seal Backorder SPQ 803801 $10.76

View on Model

802206 Speed Queen Function Selector Bezel, C Backorder SPQ 802206 $17.84

View on Model

803802 Speed Queen Flanged Flowed Clamp Ring Backorder SPQ 803802 $48.17

View on Model

Door Glass SPQ 36020 Contact Us For Availability

View on Model

800462 Speed Queen Hex Cap Screw 3/8-16 x 4.0 In Stock SPQ 800462 $4.70

View on Model

801045 Speed Queen Hex Screw WA HD SMS 10-24 In Stock SPQ 801045 $2.85

View on Model

Grommet SPQ 802596 Contact Us For Availability

View on Model

29175 Speed Queen Grommet In Stock SPQ 29175 $5.78

View on Model

36226 Speed Queen Bumper Pad .25 Backorder SPQ 36226 $1.70

View on Model

685846 Speed Queen #10-32 UNF Nylon Lock Nut Backorder SPQ 685846 $4.70

View on Model

800004WP Speed Queen Left Hand Cabinet Panel Backorder SPQ 800004WP $156.76

View on Model

800548 Speed Queen Front Load Washer Door Han In Stock SPQ 800548 $2.64

View on Model

801993 Speed Queen Hex Head Machine Screw 10- In Stock SPQ 801993 $4.70

View on Model

802525P Speed Queen Left Side Cabinet Panel ( Backorder SPQ 802525P $363.46

View on Model

803615 Speed Queen Washer Filter In Stock SPQ 803615 $2.85

View on Model

F200204 Speed Queen Hose Clamp #20 Backorder SPQ F200204 $3.44

View on Model

SPQ 54612 SPQ 54612 Contact Us For Availability

View on Model

SPQ 808095 SPQ 808095 Contact Us For Availability

View on Model

SPQ 203720 SPQ 203720 Contact Us For Availability

View on Model

SPQ 806716 SPQ 806716 Contact Us For Availability

View on Model

SPQ 803859 SPQ 803859 Contact Us For Availability

View on Model

SPQ 805771 SPQ 805771 Contact Us For Availability

View on Model

18 Gauge Wire SPQ 45001 Contact Us For Availability

View on Model

SPQ M400080 SPQ M400080 Contact Us For Availability

View on Model

SPQ 23008 SPQ 23008 Contact Us For Availability
